Echo 21560059 User manual

WARNING DANGER
Do not attempt to make any adjustments or modications not listed in your Trimmer Operator’s Manual or
this Instruction Sheet. Unauthorized modications can lead to premature failure of your trimmer or trimmer
head and cause serious personal injury.
ADVERTENCIA PELIGRO
No trate de efectuar ajustes ni modicaciones que no estén indicados en el manual del operador de la recor-
tadora o en esta hoja de instrucciones. Las modicaciones no autorizadas pueden provocar fallas prematu-
ras de la recortadora o del cabezal de la recortadora y causar lesiones personales graves.
AVERTISSEMENT DANGER
Ne pas essayer d’effectuer des réglages ou d’apporter des modications ne gurant pas dans le manuel ou
sur cette feuille d’instructions. Les modications non autorisées peuvent conduire à une défaillance préma-
turée du taille-bordures ou de la tête et causer des blessures graves.
WARNING
DANGER
Read your string trimmer Operator’s
Manual before installing trimmer head.
Keep bystanders away 15 m (50 ft.)
when operating trimmer. Always wear
proper safety apparel during trimming
operation. Keep feet and hands away
from trimmer head. Failure to follow
warnings and this instruction sheet
could result in serious injury. Never
handle or change head or line while
engine is ON or RUNNING. Inspect
area and remove foreign objects such
as glass, cans, rocks, metals, wires, etc.
prior to trimming. Be alert to vibrations
or damage to your trimmer head or gas
powered equipment, turn engine off to
inspect for damage.
InstallatIon InstructIons
FOR P/N 21560059 2 - LINE TRIMMER HEAD
InstruccIones de InstalacIón
PARA CABEZAL DE RECORTADORA DE 2 HILOS N/P 21560059
InstructIons de montage
POUR TÊTE DE TAILLE-BORDURES 2 LIGNES RÉF. P/N 21560059
ADVERTENCIA
PELIGRO
Lea el manual de la recortadora de hilo
antes de instalar el cabezal de la mis-
ma. No deje que se acerquen personas
a menos de 15 m (50 pies) al operar
la recortadora. Lleve siempre ropa de
seguridad apropiada durante la ope-
ración de la recortadora. No acerque
los pies y las manos al cabezal de la
recortadora. De no respetar las adver-
tencias y esta hoja de instrucciones se
pueden producir lesiones graves. No
manipule ni cambie nunca el cabezal
o el hilo con el motor ENCENDIDO o
EN MARCHA. Inspeccione el área y
quite los objetos extraños tales como
vidrio, latas, piedras, metales, cables,
etc. antes de recortar. Esté alerta a las
vibraciones, ya que de lo contrario se
puede producir daños en el cabezal de
la recortadora o en el equipo motoriza-
do, apague el motor para inspeccionar
los daños.
AVERTISSEMENT
DANGER
Lire le manuel d’utilisation du taille-
bordures avant d’installer la tête de
coupe. Ne laisser personne approcher à
moins de 15 m (50 pi) pendant l’utilisa-
tion du taille-bordures. Toujours porter
les vêtements et dispositifs de sécurité
appropriés pendant le travail. Garder
les pieds et les mains à l’écart de la tête
de coupe. Le non respect des mises en
garde et de cette feuille d’instructions
peur résulter en des blessures graves.
Ne jamais manipuler ni changer la tête
ou la ligne pendant que le moteur est
EN MARCHE. Inspecter la zone de tra-
vail et éliminer tous les objets étrangers
tels que morceaux de verrem boîtes,
cailloux, morceaux de métal ou de l de
fer etc. avant de commencer la taille.
99922203241
Rev. 06/12
SUP22203241

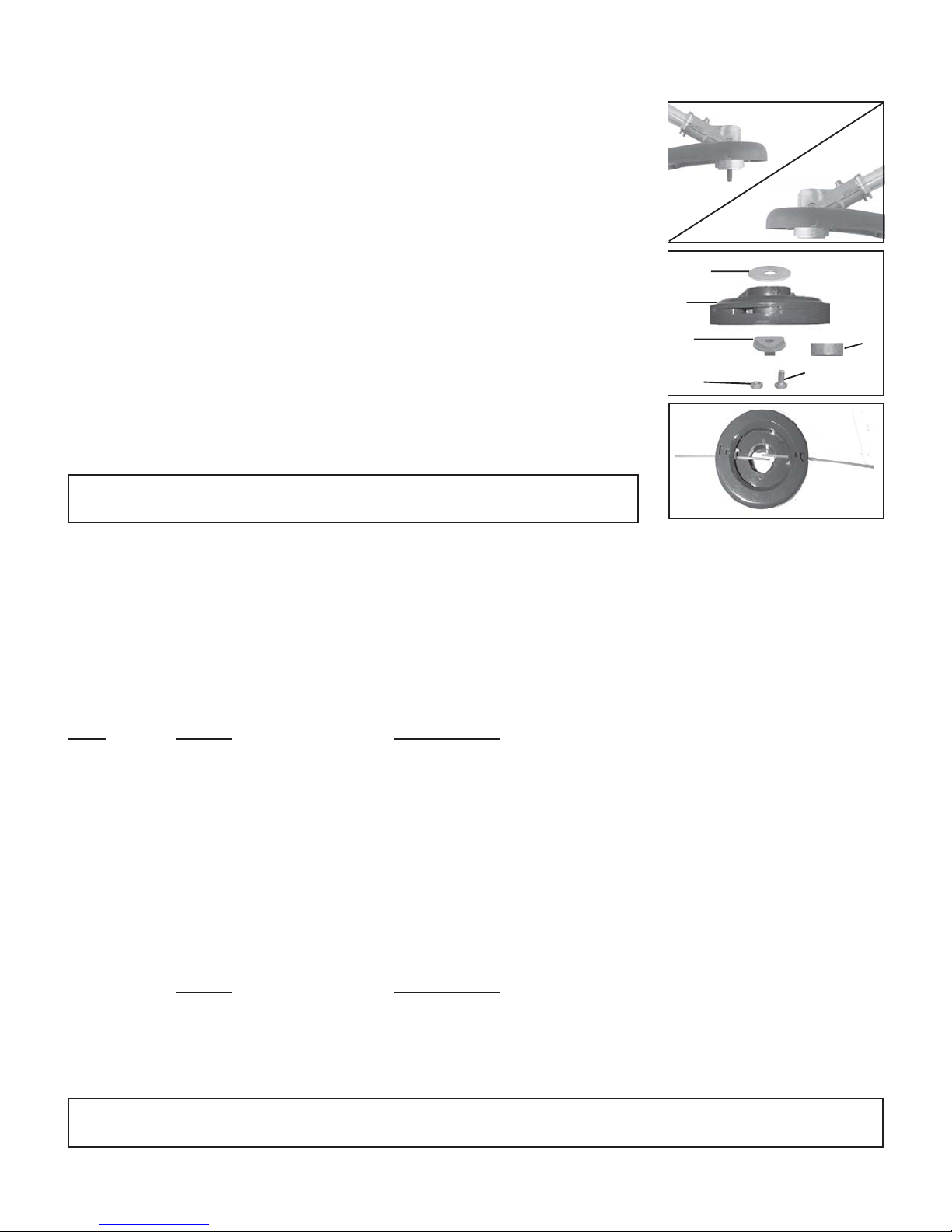

INSTRUCTIONS:
1. Remove original head as described in your trimmer Operator’s Manual.
2A. For machines with extended threaded shafts (A) select triangular adaptor (C) that most closely
matches diameter of the threaded shaft. Select the correct nut (D) thread size and tightening direc-
tion. Refer to Application Chart on page 5 and bag content list below to select correct hardware
for your specic model.
2B. For machines with threaded holes (B) select the correct size bolt (E) that threads into the gear box.
Then select triangular adaptor (C) that most closely matches the diameter of the bolt.
2C. For Stihl FS straight shaft models only, mount Rapid LoaderTM head (G) directly over one inch
shoulder on bottom of gear box. Place nylon spacer (J), small washer (H), and nut (D) into center
of Rapid Loader head (G) and tighten securely. Disregard steps 3~7.
3. Place the large washer (F) between the bottom of the gear box and the trimmer head (G).
4. Place the triangular adaptor (C) into the center recess of the Rapid LoaderTM head (G) and align
the triangle boss with triangle opening in recess.
5. Thread the selected nut (D) or bolt (E) into the center of the Rapid LoaderTM head (G) and tighten
securely.
6. Insert pre-cut 204 mm (8 in.) length of nylon cutting line (recommended sizes 2.4 mm [.095 in.]
to 3.3 mm [.130 in.]) through outside openings of trimmer head. Minimum of 153mm (6 in.) of
line should extend from each opening. 3.3mm [.130 in.] line not recommended for trimmers under
25cc.
NOTE
Insert cutting line ends to center of head recess to insure easy removal of used lines.
2
21560057 (REF# RL-35) ADAPTER SOLD SEPARATELY FOR STIHL FS CURVED SHAFT TRIMMERS.
Contact your ECHO Dealer to order Rapid LoaderTM pre-cut replacement line.
ORANGE BAG CONTENT LIST
REF # COLOR DESCRIPTION
RL52 SILVER 10 mm X 1.25 X 22 LEFT HAND BOLT
RL53 GOLD 8 mm X 1.25 X 22 LEFT HAND BOLT
RL70 BLUE 8 mm X 1.25 LEFT HAND NUT
RL72 BLACK 10 mm X 1.00 LEFT HAND NUT
RL74 GOLD 10 mm X 1.25 LEFT HAND NUT
RL77 RED (In Greeen Bag) 3/8 - 24 RIGHT HAND NUT
RL78 SILVER 3/8 - 24 LEFT HAND NUT
RL42 SILVER 3/8 X 1.5 IN. LARGE FENDER WASHER
RL45 SILVER 3/8 X 1.25 IN. SMALL FENDER WASHER
GREEN BAG CONTENT LIST
To be used with three piece adapter (REF# RL-30).
COLOR DESCRIPTION
GOLD 8mm X 1.25 RIGHT HAND NUT
SILVER 5/16 -20 X1 RIGHT HAND BOLT
SILVER 1/4 - 20 X 1/2 RIGHT HAND BOLT
SILVER 5/16 - 24 RIGHT HAND NUT
SILVER 3/8 FLAT WASHER
IMPORTANT
Do not force bolts or nuts onto trimmer shaft, otherwise damage to trimmer threads may occur.
INSTRUCTIONS:
1. Remove original head as described in your trimmer Operator’s Manual.
2A. For machines with extended threaded shafts (A) select triangular adaptor (C) that most closely
matches diameter of the threaded shaft. Select the correct nut (D) thread size and tightening
direction. Refer to Application Chart on page 5 and bag content list below to select correct
hardware for your specific model.
2B. For machines with threaded holes (B) select the correct size bolt (E) that threads into the gear
box. Then select triangular adaptor (C) that most closely matches the diameter of the bolt.
2C. For Stihl FS straight shaft models and Husqvarna 300 Series, mount Rapid Loader
TM
head (G)
directly over one inch shoulder on -bottom of gear box. Place nylon spacer (J), and nut (D)
into center of Rapid Loader
TM
head (G) and tighten securely.
Disregard steps 3~6.
3. Place the large washer (F) between the bottom of the gear box and the trimmer head (G).
4. Place the black triangular adaptor (C) into the center recess of the Rapid Loader
TM
head (G) and
align the triangle boss with triangle opening in recess.
5. Thread the selected nut (D) or bolt (E) into the center of the Rapid Loader
TM
head (G) and tighten
securely.
6. Insert pre-cut 204 mm (8 in.) length of nylon cutting line (recommended sizes 2.4 mm [.095 in.]
to 3.9 mm [.155 in.]) through outside openings of trimmer head. Minimum of 153mm (6 in.) of
line should extend from each opening. 3.9mm [.155 in.] line not recommended for trimmers
under 26cc.
NOTE
Insertcuttinglineendstocenterofheadrecesstoinsureeasyremovalofusedlines.
2
A
B
21560057(REF#RL-35) ADAPTERSOLDSEPARATELYFORSTIHLFSCURVEDSHAFTTRIMMERS.
ContactyourECHODealertoorderRapidLoader
TM
pre-cutreplacementline.
ORANGEBAGCONTENTLIST
REF# COLOR DESCRIPTION
RL52 SILVER 10mmX1.25X22LEFTHANDBOLT
RL53 GOLD 8mmX1.25X22LEFTHANDBOLT
RL70 BLUE 8mmX1.25LEFTHANDNUT
RL72 BLACK 10mmX1.00LEFTHANDNUT
RL74 GOLD 10mmX1.25LEFTHANDNUT
RL77 SILVER 3/8-24LEFTHANDNUT
RL78 RED
(InGreeenBag) 3/8-24RIGHTHANDNUT
RL42 SILVER 3/8X1.5IN.LARGEFENDERWASHER
RL45 SILVER 3/8X1.25IN.SMALLFENDERWASHER
GREENBAGCONTENTLIST
Tobeusedwiththreepieceadapter(REF#RL-30).
COLOR DESCRIPTION
GOLD 8mmX1.25RIGHTHANDNUT
SILVER 5/16-20X1RIGHTHANDBOLT
SILVER 1/4-20X1/2RIGHTHANDBOLT
SILVER 5/16-24RIGHTHANDNUT
SILVER 3/8FLATWASHER
IMPORTANT
Donotforceboltsornutsontotrimmershaft,otherwisedamagetotrimmerthreadsmayoccur.
C
DE
F
G
J
Trimmer Line Diameter Usage
All curved Shaft Line Trimmers Use Line Diameter .080” To .095”
Line Trimmers Engine Size 15cc. To 24CC. Use Line Diameter .095” To .105”
Line Trimmers Engine Size 25cc. & UP Use Line Diameter .095” To .155”
Trimmer Line Diameter Usage
All curved Shaft Line Trimmers Use Line Diameter .080” To .095”
Line Trimmers Engine Size 15cc. To 24CC. Use Line Diameter .095” To .105”
Line Trimmers Engine Size 25cc. & UP Use Line Diameter .095” To .130”

INSTRUCCIONES:
1. Remueva la cabeza original como se describe en el Manual de Uso de su desbrozadora.
2A. Para las máquinas con ejes enroscados prolongados (A), seleccione el adaptador triangular (C) que
se ajuste mejor al diámetro del eje enroscado. Escoja correctamente la tuerca (D), el tamaño de
roscado y la dirección de enrosque. Reérase al gráco de aplicación en la página 5 y a la lista de
contenidos para escoger los materiales apropiados para su modelo.
2B. Para máquinas con hoyos enroscados (B) escoja el tornillo (E) de tamaño adecuado que se
atornille en la caja de engranaje. Entonces, escoja el adaptador triangular (C) que se ajuste mejor
al diámetro del tornillo.
2C. Para el modelo Stihl FS de tipo de echa recta y Husqvarna 300 Series, monte la cabeza del Rap-
id LoaderTM (G) directamente sobre el reborde de una pulgada al fondo de la caja de engranaje.
Coloque el espaciador de nylon (J), y la tuerca (D) en el centro de la cabeza del Rapid LoaderTM
(G) y apriételo seguramente.
Ignore los pasos 3-6.
3. Coloque la arandela grande (F) entre el fondo de la caja de engranaje y la cabeza de la desbroza-
dora (G).
4. Coloque el adaptador triangular gris (C) en la cavidad en el centro de la cabeza del Rapid Load-
erTM y alinee la protuberancia del triángulo en la cavidad.
5. Atornille la tuerca (D) o el tornillo (E) seleccionado en el centro de la cabeza del Rapid LoaderTM
(G) y apriétela/o seguramente.
6. Inserte el hilo de corte de nilón precortado de 204 mm (8”) de largo (tamaños recomendados 2,4
mm [0,095”] a 3,3 mm [0,130”]) por las aberturas exteriores del cabezal de la recortadora. Debe
sobresalir un minimo o de 153 mm (6”) de hilo por cada abertura. No use del hilo de corte 3.3 mm
(.130”) en la recortadora manos 25cc.
NOTA
Inserte los extremos del hilo de corte por el centro del cabezal, ahuecado para poder retirar fácil-
mente los hilos usados.
21560057 (REF# RL-35) ADAPTADOR VENDIDO POR SEPARADO PARA RECORTADORAS DE EJE CURVADO STIHL FS.
Comuníquese con su distribuidor ECHO para pedir un hilo de repuesto precortado Rapid LoaderTM.
BORSA ANARANJADO LISTA DE CONTENIDO
REF# COLOR DESCRIPCIÓN
RL52 PLATEADO PERNO A IZQUIERDAS DE 10 mm X 1,25 X 22
RL53 DORADO PERNO A IZQUIERDAS DE 8 mm X 1,25 X 22
RL70 AZUL TUERCA A IZQUIERDAS DE 8 mm X 1,25
RL72 NEGRO TUERCA A IZQUIERDAS DE 10 mm X 1,00
RL74 DORADO TUERCA A IZQUIERDAS DE 10 mm X 1,25
RL77 ROJO (En Plastico Verde) TUERCA A DERECHAS DE 3/8 - 24
RL78 PLATEADO TUERCA A IZQUIERDAS DE 3/8 - 24
RL42 PLATEADO ARANDELA PROTECTORA GRANDE 3/8 X 1,5”
RL45 PLATEADO ARANDELA PROTECTORA PEQUEÑA DE 3/8 X 1,25”
BORSA VERDE LISTA DE CONTENIDO
Para usarse con el adaptador de tres piezas (REF# RL-30).
COLOR DESCRIPCIÓN
DORADO TUERCA A DERECHAS DE 8 mm X 1.25
PLATEADO PERNO A DERECHAS DE 5/16 - 20 X 1
PLATEADO PERNO A DERECHAS DE 1/4 - 20 X1/2
PLATEADO TUERCA A DERECHAS DE 5/16 - 24
PLATEADO ARANDELA PLANA 3/8
IMPORTANTE
No fuerce los pernos o las tuercas en el eje de la recortadora, ya que de lo contrario se dañarían las roscas de la recortadora.
3
INSTRUCTIONS:
1. Remove original head as described in your trimmer Operator’s Manual.
2A. For machines with extended threaded shafts (A) select triangular adaptor (C) that most closely
matches diameter of the threaded shaft. Select the correct nut (D) thread size and tightening
direction. Refer to Application Chart on page 5 and bag content list below to select correct
hardware for your specific model.
2B. For machines with threaded holes (B) select the correct size bolt (E) that threads into the gear
box. Then select triangular adaptor (C) that most closely matches the diameter of the bolt.
2C. For Stihl FS straight shaft models and Husqvarna 300 Series, mount Rapid Loader
TM
head (G)
directly over one inch shoulder on -bottom of gear box. Place nylon spacer (J), and nut (D)
into center of Rapid Loader
TM
head (G) and tighten securely.
Disregard steps 3~6.
3. Place the large washer (F) between the bottom of the gear box and the trimmer head (G).
4. Place the black triangular adaptor (C) into the center recess of the Rapid Loader
TM
head (G) and
align the triangle boss with triangle opening in recess.
5. Thread the selected nut (D) or bolt (E) into the center of the Rapid Loader
TM
head (G) and tighten
securely.
6. Insert pre-cut 204 mm (8 in.) length of nylon cutting line (recommended sizes 2.4 mm [.095 in.]
to 3.9 mm [.155 in.]) through outside openings of trimmer head. Minimum of 153mm (6 in.) of
line should extend from each opening. 3.9mm [.155 in.] line not recommended for trimmers
under 26cc.
NOTE
Insertcuttinglineendstocenterofheadrecesstoinsureeasyremovalofusedlines.
2
A
B
21560057(REF#RL-35) ADAPTERSOLDSEPARATELYFORSTIHLFSCURVEDSHAFTTRIMMERS.
ContactyourECHODealertoorderRapidLoader
TM
pre-cutreplacementline.
ORANGEBAGCONTENTLIST
REF# COLOR DESCRIPTION
RL52 SILVER 10mmX1.25X22LEFTHANDBOLT
RL53 GOLD 8mmX1.25X22LEFTHANDBOLT
RL70 BLUE 8mmX1.25LEFTHANDNUT
RL72 BLACK 10mmX1.00LEFTHANDNUT
RL74 GOLD 10mmX1.25LEFTHANDNUT
RL77 SILVER 3/8-24LEFTHANDNUT
RL78 RED
(InGreeenBag) 3/8-24RIGHTHANDNUT
RL42 SILVER 3/8X1.5IN.LARGEFENDERWASHER
RL45 SILVER 3/8X1.25IN.SMALLFENDERWASHER
GREENBAGCONTENTLIST
Tobeusedwiththreepieceadapter(REF#RL-30).
COLOR DESCRIPTION
GOLD 8mmX1.25RIGHTHANDNUT
SILVER 5/16-20X1RIGHTHANDBOLT
SILVER 1/4-20X1/2RIGHTHANDBOLT
SILVER 5/16-24RIGHTHANDNUT
SILVER 3/8FLATWASHER
IMPORTANT
Donotforceboltsornutsontotrimmershaft,otherwisedamagetotrimmerthreadsmayoccur.
C
DE
F
G
J
Trimmer Line Diameter Usage
All curved Shaft Line Trimmers Use Line Diameter .080” To .095”
Line Trimmers Engine Size 15cc. To 24CC. Use Line Diameter .095” To .105”
Line Trimmers Engine Size 25cc. & UP Use Line Diameter .095” To .155”
Uso del Diámetro de la Línea de la Recortadora
Todas las recortadoras de eje curvado usan línea de .080” a .095” de diámetro.Recortadores con
motor de 15cc a 24 cc usan línea de .095” a .105” de diámetro.Recortadores con motor de 25cc en
adelante usan línea de .095” a .130” de diámetro.

INSTRUCTIONS :
1. Enlevez la tête originale comme il est dêcrit dans le manuel de l’utilisateur de votre débroussail-
leuse.
2A. Pour les appareils avec des axes letés élongés (A), sélectionnez l’adapteur triangulaire (C) qui
s’accouple mieux au diamétre de l’axe leté. Sélectionnez correctement l’écrou (D), le diamétre
du letage et le sens de tourner. Voyez le tableau d’application dans la deuxime page 5 et la liste
des contenus ci-dessous pour choisir les ferrures appropries pour votre modéle.
2B. Pour les appareils avec des trous letés (B), sélectionnez le boulon juste (E) qui se ferme à vis
dans la boîte à engrenage. Au suivant, choisissez l’adapteur triangulaire (C) quis s’accouple mieux
au diamètre du boulon.
2C. Pour les modèles Stihl FS d’arbre droit et Husqvarna 300 Series, montez la tête du Rapid
LoaderTM (G) directement sur l’épaulement d’une pouce au fond de la boîte à engrenage. Placez
l’entretoise du l nylon (J), et l’écrou (D) au centre de la tête du Rapid LoaderTM (G) et resserrez
assurément.Omettez les sections 3-6.
3. Placez la grande rondelle (F) entre le fond de la boîte à engrenage et la tête de la débroussailleuse
(G).
4. Placer l’adapteur triangulaire gris (C) dans la cavité au centre de la tête de Rapid LoaderTM (G) et
alignez le moyeu du triangle avec le niche du triangle.
5. Serrez à vis l’écrou sélectionné (D) ou le boulon (E) au centre de la tête de Rapid LoaderTM (G) et
resserrez assurément.
6. Passer un morceau de ligne de coupe en nylon pré-coupé (la taille recommandée est de 2,4 mm
[0,95 po] à 3,3 mm [0,130 po]) dans les ouvertures extérieures de la tête de coupe. Un minimum
de 153 mm (6 po) de ligne doit sortir de chaque ouverture. Ne pas utiliser de ligne de coupe en
nylon 3,3 mm (0,130 po) D’au moines 25cc.
REMARQUE
Insérer les extrémités de la ligne de coupe jusqu’au centre de la tête de coupe, en retrait
an de pouvoir retirer facilement les lignes usées.
21560057 (REF# RL-35) ADAPTATEUR VENDU SÉPARÉMENT POUR TAILLE-BORDURES À ARBRE COURBE STIHL FS.
Pour la commande de lignes Rapid LoaderTM pré-coupées, contacter le concessionnaire ECHO.
SAC ORANGE CONTENU
RÉF# COULEUR DESCRIPTION
RL52 ARGENT BOULON À PAS À GAUCHE DE 10 mm X 1,25 X 22
RL53 OR BOULON À PAS À GAUCHE DE 8 mm X 1,25 X 22
RL70 BLEU ECROUS À PAS À GAUCHE DE 8 mm X 1,25
RL72 NOIR ECROUS À PAS À GAUCHE DE 10 mm X 1,00
RL74 OR ECROUS À PAS À GAUCHE DE 10 mm X 1,25
RL77 ROJIZO (Sac Vert) ECROUS À PAS À DROITE DE 3/8 - 24
RL78 ARGENT ECROUS À PAS À GAUCHE DE 3/8 - 24
RL42 ARGENT GROSSE RONDELLE DE PROTECTION 3/8 X 1,5 po
RL45 ARGENT PETITE RONDELLE DE PROTECTION 3/8 X 1,25 po
SAC VERT CONTENU
À utiliser avec l’adaptateur en trois pièces (REF# RL-30).
COULEUR DESCRIPTION
OR ECROUS À PAS À DROITE DE 8 mm X 1,25
ARGENT BOULON À PAS À DROITE DE 5/16 - 20 X 1
ARGENT BOULON À PAS À DROITE DE 1/4-20 X 1/2
ARGENT ECROUS À PAS À DROITE DE 5/16 - 24
ARGENT RONDELLE PLATE 3/8
IMPORTANT
Ne pas forcer les boulons ou écrous sur l’arbre du taille-bordures, car cela pourrait endommager les letages de l’outil.
4
Informations sur le diamètre du l du taille-bordure
Tous les taille-bordures à arbre courbé utilisent un l de diamètre entre 0,80 et 0,95 po
Pour les taille-bordures avec des moteurs de 15 à 24 cc, utiliser un l de diamètre 0,95 et 0,105 po
Pour les taille-bordures avec des moteurs de 25 cc et plus, utiliser un l de diamètre 0,95 et 0,130 po
INSTRUCTIONS:
1. Remove original head as described in your trimmer Operator’s Manual.
2A. For machines with extended threaded shafts (A) select triangular adaptor (C) that most closely
matches diameter of the threaded shaft. Select the correct nut (D) thread size and tightening
direction. Refer to Application Chart on page 5 and bag content list below to select correct
hardware for your specific model.
2B. For machines with threaded holes (B) select the correct size bolt (E) that threads into the gear
box. Then select triangular adaptor (C) that most closely matches the diameter of the bolt.
2C. For Stihl FS straight shaft models and Husqvarna 300 Series, mount Rapid Loader
TM
head (G)
directly over one inch shoulder on -bottom of gear box. Place nylon spacer (J), and nut (D)
into center of Rapid Loader
TM
head (G) and tighten securely.
Disregard steps 3~6.
3. Place the large washer (F) between the bottom of the gear box and the trimmer head (G).
4. Place the black triangular adaptor (C) into the center recess of the Rapid Loader
TM
head (G) and
align the triangle boss with triangle opening in recess.
5. Thread the selected nut (D) or bolt (E) into the center of the Rapid Loader
TM
head (G) and tighten
securely.
6. Insert pre-cut 204 mm (8 in.) length of nylon cutting line (recommended sizes 2.4 mm [.095 in.]
to 3.9 mm [.155 in.]) through outside openings of trimmer head. Minimum of 153mm (6 in.) of
line should extend from each opening. 3.9mm [.155 in.] line not recommended for trimmers
under 26cc.
NOTE
Insertcuttinglineendstocenterofheadrecesstoinsureeasyremovalofusedlines.
2
A
B
21560057(REF#RL-35) ADAPTERSOLDSEPARATELYFORSTIHLFSCURVEDSHAFTTRIMMERS.
ContactyourECHODealertoorderRapidLoader
TM
pre-cutreplacementline.
ORANGEBAGCONTENTLIST
REF# COLOR DESCRIPTION
RL52 SILVER 10mmX1.25X22LEFTHANDBOLT
RL53 GOLD 8mmX1.25X22LEFTHANDBOLT
RL70 BLUE 8mmX1.25LEFTHANDNUT
RL72 BLACK 10mmX1.00LEFTHANDNUT
RL74 GOLD 10mmX1.25LEFTHANDNUT
RL77 SILVER 3/8-24LEFTHANDNUT
RL78 RED
(InGreeenBag) 3/8-24RIGHTHANDNUT
RL42 SILVER 3/8X1.5IN.LARGEFENDERWASHER
RL45 SILVER 3/8X1.25IN.SMALLFENDERWASHER
GREENBAGCONTENTLIST
Tobeusedwiththreepieceadapter(REF#RL-30).
COLOR DESCRIPTION
GOLD 8mmX1.25RIGHTHANDNUT
SILVER 5/16-20X1RIGHTHANDBOLT
SILVER 1/4-20X1/2RIGHTHANDBOLT
SILVER 5/16-24RIGHTHANDNUT
SILVER 3/8FLATWASHER
IMPORTANT
Donotforceboltsornutsontotrimmershaft,otherwisedamagetotrimmerthreadsmayoccur.
C
DE
F
G
J
Trimmer Line Diameter Usage
All curved Shaft Line Trimmers Use Line Diameter .080” To .095”
Line Trimmers Engine Size 15cc. To 24CC. Use Line Diameter .095” To .105”
Line Trimmers Engine Size 25cc. & UP Use Line Diameter .095” To .155”

5
BLACK & DECKER
82255,82257 & 82267 RL78
8DP385 RL79
BRUSH KING
BK32,32LT,BK49,85,100 RL53
BUNTON
LBS18K,LB24SK RL70
DOLMAR
BC225,LT154,LT225MS220,MS2300,MS2600,NB2 RL70
NBA231,NB,NB01F,NB12,NB16L,NB211,NBF171 RL70
NB26,NB31 RL70
LT16,20BC210,BC212,BCD212 RL78
MS340,LT250,BC337,BC377,LT225 RL74
NB03,04,26NB40,NB411,NB50,BC225 RL74
BC250,BC300,BC400,PRO370,400,SD300 RL52
ECHO
All GT Units RL78
ALL SRM UNITS RL74
CLS4600 RL75
GREEN MACHINE
1600,1900,1930,1940,1950,2130,2200,2230 RL53
2300,2331,2340,2500LP,2510LP,2540,2800 RL53
2840,2850,3000LP/M/SS,3040M,3050M,3541 RL53
GT35B,GT40B,GT41,525H,234S,2504LP,2600 RL53
2810,2841,3000B,3000J,G2A,G2C RL53
GT20,GT21,GT25,GT31,GT31B RL53
4000/LP,4500,4500LPX,4600LPX RL52
99D,99G,1730,1800,1900 RL79
HOFFCO
1600,GR320B,GT160T/TL,GT21,GT210 RL78
GT211,GT225SPL,GT256SPL,GT320B/T RL78
GTX,GTSR,HOFFIE22,LIL WIZ600 RL78
LIL WIZ1600,WC22,215,WT14,WT215 RL78
WT250C,WT1600,GT14,GT14A,GT14B,GT22 RL78
GT160B,GT211A,GT215T,GT225,GT320HT RL78
GT380,GT250HT-A,GT205WT,GT320,GT320H RL78
P22,PC22 RL78
PC225,PC340,CRITTER,WH SERIES RL78
WT160H/HT,WT250HT/WT,WT320HT RL78
JP260,JP270,JP300,JP390,JP390XL,JP660 RL74
JP4200,JP215,JP215GT,JP220F,JP225 RL74
JP260A,JP206C,JP300A,JP206C,JP300A RL74
JP300B,JP300F,JP320 RL74
JP390A,JP390C,JP420 RL74
WW80,WW850 RL79
HOMELITE
HK-24 (UP TO '86), HK30,HK33 RL53
HK18 (AFTER 1-86),HK24(AFTER 1-86) RL70
ST155,ST175,ST285,ST385,ST485,HK15 RL70
HK28,HK38,BCH SERIES,HBC30/B RL70
ST20/40/60/100/200/400,SXD20,RK51,TR518 RL70
NBA524,PMB522,TXD508,SX040,FK514 RL52
ST80/100/120/160/180/200/210/360/385/1600 RL77
HBC38/48,HBC40,PBC3800/4000,PMB52 RL74
ST145,ST145M,ST145,ST155/ RL30
ST175,ST175C/BC/G,ST385,ST485 RL30
SX135/C,EASY TRIM,20680,77 RL30
ZR SERIES TRIMMERS RL30
HBC18,HBC28,BC300,HBC30B/I RL30
HLT15,HLT16,HLT17C,HLT18 RL30
HLT28,PHANTON SS,HGT,GST,GST18 RL30
GSTBC,EZ REACH,EXPAND 3N1/+ RL30
ST185/BC/C,ST275,ST285,/BC,ST385 RL30
ST385BC/C/I/,ST485,ST725/CDR,CEA RL30
TRIM & EDGE/PLUS,TRIM LITE RL30
VERSA TOOL/PLUS,BC730SBR RL30
D630CD/D725CDE,D730CDV,D825CA RL30
D825SB/SD/SBPLUS,D830CA/CBSBA RL30
I625CD,I630CD,I725CC/CEA/CE RL30
I730CC/CA,S825CDV/SEV,Z625CD/V RL30
Z725CA/CD/CBV/CE/CEA/SE RL30
Z825SB/A,Z830SB/SBA,EZ REACH RL30
UT15522,UT20760,UT20763,UT20777 RL30
UT20778,UT20779,UT20811,UT20818 RL30
UT20930,UT20933,UT41002 RL30
HUSQVARNA
26LC,26RLC,32LC,32RLC,MONDO RL78
32L,32LR,32R,32RLC,23LC,21LCN,MONDO RL77
3227,322R,325LX,325RX RL74
JOHN DEERE
80G,82/3G,200G,21C,100G,110G,120G,210G,85 RL78
90G,220G,250G,300G,350G,450G,240G RL74
260G,21S,24S,25S,30S,38S,XT170B,XT250B RL74
T105S,XT105/SB,XT120,XT140/B/SB,XT170 RL74
38R,305,385 RL74
BC1600,S1400 RL70
C1200 RL30
JONSERED
BP2040,BR460,BR480,GR2026CL,GR2026D,GR2032 RL53
GR2032D,GR2032L,GR2036,LR220B,BR420 RL53
LAWNBOY
1100,1150,1300,1330,1360,1400,1400CL,3100 RL30
3130,51620,51638,51903,51906,51911,5196 RL30
51920,51926,61620,61638,3160,SSIA,SSIB RL30
MAKITA
RBC230,RBC260,RBC310,RBC410,RBK410 RL53
RBC221,RBC251/261/311,RST250 RL53
McCULLOCH
MAC57,MAC90,MAC95,MAC100A,MAC32, RL52
MAC37, RL52
MAC22/23/30A,SUPMAC30AUMS/33/38AU/40,BP30AV RL53
60/A,70/A,75,80/A,80A,/S/SL,85A,85S,85SX, RL78
85SXL,TITAN 2100 & 2200 '91 MODELS, RL78
MAC2825,MAC2827,PROMAC 2-'91 MODELS, RL78
PROMAC 2 SUPER,SE32BC,TITAN 2250 RL78
EB1,EB1S,EB3,EB2,EB2S,EB3,EB3S,EB4, RL78
EB3SX,EB3SL,EB285BC,EB287BC RL78
SERIES 10 BRUSHCUTTER RL77
90/A,95/A,99A,100HD,EB285BCS,EB287BCS, RL74
EB325BC,EB327BC,EB-IVSL,MAC3225, RL74
MAC3227,MAC3225HD,MAC3227HD, RL74
ALL PROSCRAPER MODELS,PROMAC3, RL74
PROMAC3 SUPER,PROMAC4/SUPER, RL74
PROMAC4 HD,SE 32BCS,TITAN 2300,2300AV RL74
TITAN 2130,TITAN 2500,TITAN 2500AV, RL74
TITAN 2560,TITAN 2565,85A,85S/SL/SX,EB35L RL74
EB3SX,MAC100A,MAC38AV,MAC85A,MAC90, RL74
MAC90A,MAC95,MAC95A,SEB4, RL74
MAC60-SX,65/SL,MAC80SX/DX/SL RL30
EAGER BEAVER EB280,EB285 RL30
EBISX,EB282,EB287,EB15RT RL30
MAC15RT,MAC2815/2816/2817/2818 RL30
PM2025,2045,SILVER EAGLE 28/C RL30
SE2SL,TITAN2000,2010,2100,2200,2250 RL30
2030,ALL ROAD RUNNER MODELS RL30
EAGER BEAVER SUPER/J PLUS RL30
11SX,PROMAC1/SUPER,POWER PRO RL30
MTD PRO
ST23,ST26,ST35 RL74
PARAMOUNT
K20,KQ,KLQ,JQ RL70
J40D,KQ30 RL74
PIONEER / PARTNER
SPARTAN RL53
REF# REF#
REF#
POULAN / PRO
770,800,111,112,114,115,117,2600,2610,2615 RL78
559,609,1350,1500,2400,2500,2700 RL78
113,PPC32 PRO SERIES 145,160,200 RL78
165,175,185,200,195,800,900,2620,2820 RL77
RED MAX
BC260DL,BC261DL,BC262DL,BC340DL RL53
BCD20,BC341DL,BC342DL,BC2600DL RL53
BC430DWM,BC440DWM,BK346FL RL53
BK245FLK,BK436FL RL53
BT2000DL,BT200 RL30
BC2000DL,BC200 RL74
ROBIN
NB04,NB04-2D,NB30,NB50,NB50L,NB351 RL72
NB411 RL72
RYOBI / RYAN / IDC
274,274-2,274-3,275,275-1,275-P,520,520-1 RL77
520-2,720R,760R,764R,770R,960R RL77
284,284-1,284-2,284-3,285,285-1,285-P,540 RL74
540-1,540-2,580,580-1,580-2,600R,650R RL74
740R/1,780R/1/RB,E 790R,865R,885R,990R RL74
750R,780R,775R,840R,890R,1079R,Z079R RL74
RD180K,REK285BP,108KS/S,3318 RL53
RD5224,RD5225,RSB2801,RSH1100 RL52
ALL CORDED ELECTRIC MODELS RL30
500,700,700R,710,710R,720R,760R RL30
764R,765R,766R,770R,920,960,970 RL30
705R,725R,767R,775R,975R,825R,875R RL30
IDC/RYAN: 120,130,260,262,263,264 RL30
264-1,264-2,264-3,265-1,265,P270 RL30
280,364,364-1,365,BC30,CS30,SS30 RL30
SEARS / CRAFTSMAN
PRO SERIES,79534,79541,79542,79551 RL72
79552,79555,79556,79561,79565,7957,7958 RL72
7959,79611,79612,79613,79614,79615 RL72
79619,79621,7968,7969,79717,79719,79812 RL72
79813,79814,79819,79532,79853,79854/55/57 RL72
636-79545,636-7955,636-79558,636-796233 RL72
796234M,796242,796243 RL72
21851-2816,9-89658LS,979551C,79011,79500 RL74
79501,79504,79522 RL74
79606,79531,79821,742110,742111,74212 RL78
74213,797100,79711,79712,79713,79715 RL78
79718,79721,79726,79714,79716,79725,79727 RL78
79816,79823 RL78
74220,74224,74234,74242,74244,74247,79505 RL77
79530,79626,79821 RL77
74131,79605 RL30
49534C RL52
74110,74121,74125 RL70
SERVICE STAR
385SSR,395SSR RL74
SHINDAIWA
T260,YARDWARE220 RL53
SOLO
100,130S,400 RL74
SNAPPER
212CST,213CST,214DCST RL78
211SST,212CST,212LST,214DCST RL74
215SST,215ORI,240SST,210SS RL74
240SST,245SST,SSTBC,SST2111,SST2401 RL74
310,311,311S,SST4111,410,410SST RL74
415ORT RL74
RAPID LOADER HEAD APPLICATION CHART
TABLA DE APLICACIONES DE CABEZALES RAPID LOADER
TABLEAU D'APPLICATION DE LA TETE RAPID LOADER
5

6
6
STIHL
FS50/E,FS51,FS60,FS61,FS65,FS80E RL53
FS,86,FS90/AVE,FS91,FS96,FS106,FS65 RL53
FS-51AVE,FS-61E,FS-65AVE,FS90AVE RL53
FR50F,FS55RC,FS55C RL53
FR106,FR108,FS44,FS48,FS52/AVR,FS56AV RL72
FS62,FS66,FS66AVRE,FS74,FS76,FS81 RL72
FS81AVRE,FS86,FS86AVRE,FS88,FS96/AVE RL72
FS106/AVE,FS108,FS40,FS110R,FS110 RL72
ALL (FE SERIES) CORDED ELECTRIC RL35
ALL (FS SERIES) CURVED SHAFT RL35
FS45,FS46 RL30
TORO
CL700,CL2100,CL0900,CL30901 RL74
CL30920,TC300,TC400,TC600,TC650 RL74
TC700,TC800,TC1000,TC2000,TC3000 RL74
TC3100,TC3500,TC4000,TC5000 RL74
51628,51641,30900,30901,30920,51918 RL74
TC1000,TC2000 RL78
51903,51904,51907,51906,51911 RL30
51912,51916,51917,51920,51921 RL30
51926,51927,51930,51932,51934,51936 RL30
51938,51940,51450,51620,51638 RL30
SSIA,SSIB,1100,1150,1300,1360 RL30
1400,1400CL,61620,61638 RL30
REF# REF#
REF#
RAPID LOADER HEAD APPLICATION CHART
TABLA DE APLICACIONES DE CABEZALES RAPID LOADER
TABLEAU D'APPLICATION DE LA TETE RAPID LOADER
TROY BUILT
TB300,TB400 RL74
WEEDEATER
GT115T-17C/XT,20T-40/HP,22-22T RL30
165,175,185,195,(STRAIGHT SHAFT) RL77
GT119,XR125,XT20,XT50,XT85,XT100 RL77
XT125 RL77
PRO37 RL77
85,100,125,125B,500,507,587,559,599, RL78
600,607,608,609,1400,1400T,1500,160 RL78
1600T,1700,1700A,3500,GT115/T, RL78
GT116 SUPER,GT117/C/T,GT118/B/KT RL78
(CURVED SHAFT),XR20,XR20T,XR30, RL78
XR50,XR50A,XR70,XR75,XR80/A,XR85 RL78
XT20,XT50,YP120,XT80,XT85,YP110, RL78
YP115,YP116,YP120A,YP130,YP130A RL78
YP145,PRO SERIES 112,111,114,115, RL78
117 (CURVE SHAFT), RL78
PRO SERIES 117,175 RL78
SUPER 16,PRO-LITE,PRO-LITE PLUS RL78
YARD MACHINE
2800M,Y28 RL30
YARD MAN
YM26CS,YM3000,YM4000,YM1500 RL30

WARRANTY: Limited 60-Day Warranty on Homeowner Use, 30-Day Commercial Use, and Lifetime Warranty (On Line-
locking System) from the date of sale on parts found to be defective in material and/or workmanship.
GARANTÍA: Garantía limitada de 60 días para aplicaciones caseras, 30 días para aplicaciones comerciales y durante la
vida útil del equipo (sistema de bloqueo en línea desde la fecha de venta de las piezas con defectos de material
o mano de obra).
GARANTIE : Garantie limitée de 60 jours pour l’usage domestique, 30 jours pour l’usage commercial et à vie sur le système
à blocage de ligne à compter de la date de vente des pièces ayant présentées des défauts de matériaux et/ou de
fabrication.
ECHO CONSUMER PRODUCT SUPPORT: If you require assistance or have questions concerning the application, operation or
maintenance of this product you may call the ECHO Consumer Product Support Department at 1-800-673-1558 from 8:00 am to 5:00
pm (Central Standard Time) Monday through Friday. Before calling, please know the model and serial number of your unit to help
your Consumer Product Support Representative.
ASISTENCIA AL CLIENTE DE ECHO: Si usted requiere asistencia o tiene preguntas concernientes a la aplicación, operación, o
mantenimiento de este producto llame al departamento de asistencia al cliente de ECHO al 1-800-673-1558 de 8:00 am. a 5:00 pm.
(Hora del Centro) de Lunes a Viernes Antes de llamar por favor saber el modelo y numero de serie de su unidad para ayudar a su
representante de asistencia al cliente.
SERVICE APRÈS-VENTE ECHO: Pour toute assistance ou question concernant l’application, l’utilisation ou l’entretien de ce
produit, appeler le service après-vente ECHO au 1-800-673-1558, de 8 à 17 heures (heure normale du centre), du lundi au vendredi.
Avant d’appeler, veiller à disposer des numéros de modèle et de série de l’unité an d’aider votre représentant du service après-vente.
WARNING DANGER
Do not attempt to make any adjustments or modications not listed in your Trimmer Operator’s Manual or this Instruction Sheet.
Unauthorized modications can lead to premature failure of your trimmer or trimmer head and cause serious personal injury.
ADVERTENCIA PELIGRO
No trate de efectuar ajustes ni modicaciones que no estén indicados en el manual del operador de la recortadora o en esta hoja de instrucciones.
Las modicaciones no autorizadas pueden provocar fallas prematuras de la recortadora o del cabezal de la recortadora y causar lesiones persona-
les graves.
AVERTISSEMENT DANGER
Ne pas essayer d’effectuer des réglages ou d’apporter des modications ne gurant pas dans le manuel ou sur cette feuille d’instructions. Les
modications non autorisées peuvent conduire à une défaillance prématurée du taille-bordures ou de la tête et causer des blessures graves.
NOTE
The Rapid LoaderTM head uses a universal mount and may be safely tted to models not listed here.
NOTA
El cabezal Rapid LoaderTM usa una montura universal y puede adaptarse con seguridad a todos los modelos que no estén
indicados aquí.
REMARQUE
La tête Rapid LoaderTM utilise une monture universelle et peut être installée sans risques sur des modèles qui ne sont pas men-
tionnés dans ce document.
7

ECHO, INCORPORATED
400 OAKWOOD ROAD
LAKE ZURICH, IL 60047 U.S.A.
