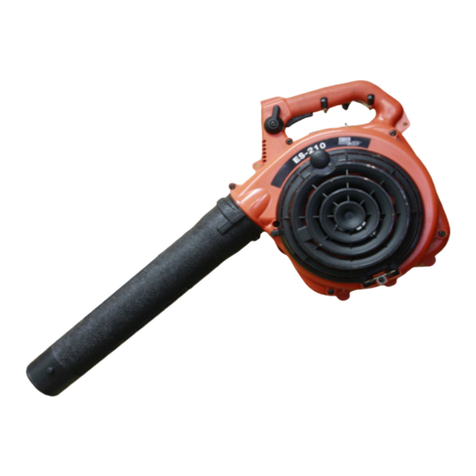

Echo Pro Attachment ES-210 Instruction Manual

21.2cc
SHRED 'N' VAC
©2005ECHO,Incorporated.AllRightsReserved
PARTS CATALOG
99922203283
REVISED05/10/05
AVAILABLEATTACHMENTS &ACCESSORIES
99944100010 RAINGUTTERKIT
99944100030 SHOULDERSTRAP
99944100205 VACUUMBAG
ECHO, INCORPORATED
400 Oakwood Road Lake Zurich, Illinois 60047
WWW.ECHO-USA.COM
ES-210:
ES-211:
05001001-05999999
07001001-07999999
08001001-08999999
09001001-09999999
10001001-10999999
02001001-02999999
06001001-06999999
09001001-09999999
MODEL: SERIALNUMBERS

2
ES-210, 211
SERIAL NUMBERS: 02001001-02999999
ES-211 ENGINE,SHORTBLOCK,IGNITION
GASKET KIT
1
2
3
4
7
8
12
13
14
15
16
13
17
9
10 11
5
6
18
19
20
21
22
23 24 25
26
27

3
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
OPTIONAL ENGINE REPOWER
SB1049 1 SHORT BLOCK INCLUDES 2-17
A130000100 1 CYLINDER
90016205022 2 BOLT 5X22
V100000020 1 GASKET, CYLINDER
P021000410 1 PISTON KIT INCLUDES ITEMS 6-9
A101000000 2 RING, PISTON
10001311520 1 PIN, PISTON
10001504630 2 CIRCLIP, PISTON PIN
10001411520 2 SPACER, PISTON PIN
10001251230 1 BEARING, NEEDLE
10010044732 1 CRANKSHAFT ASY
10020452130 1 CRANKCASE KIT
10021242030 2 OIL SEAL
10021503930 2 DOWEL PIN
9403536201 2 BEARING, BALL
10024242030 1 GASKET, CRANKCASE
90016205028 3 BOLT 5X28
P021001621 1 GASKET KIT
A411000020 1 COIL, IGNITION
90016204022 2 BOLT 4X22
V485000040 1 LEAD
15661105060 1 TUBE
15901201620 1 CAP, SPARK PLUG
15901103432 1 TERMINAL, SPARK PLUG CAP
99944500071 1 SPARK PLUG -- BPM-7Y
16202120660 1 LEAD
A409000000 1 FLYWHEEL
SERIAL NUMBERS: 02001001-02999999
ES-211 ENGINE,SHORTBLOCK,IGNITION
Also Included In GASKET KIT

4
ES-210, 211 ENGINE, SHORTBLOCK,IGNITION
SERIAL NUMBERS: 05001001-07999999
GASKET KIT
1
2
3
4
7
8
12
13
14
15
16
13
17
9
10 11
5
6
18
19
20
21 22
23 24
25
26
27
28
--CANADA

5
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
OPTIONALENGINEREPOWER
SB1066 1 SHORTBLOCK INCLUDES2-17
A130000420 1 CYLINDER
90016205022 2 BOLT5X22
V100000080 1 GASKET,CYLINDER
P021001101 1 PISTONKIT INCLUDESITEMS6-9
A101000000 2 RING,PISTON
10001311520 1 PIN,PISTON
10001504630 2 CIRCLIP,PISTONPIN
10001411520 2 SPACER,PISTONPIN
V553000030 1 BEARING,NEEDLE INCLUDESITEM10
A011000150 1 CRANKSHAFTASY
10020452130 1 CRANKCASEKIT
10021242030 2 OILSEAL
10021503930 2 DOWELPIN
9403536201 2 BEARING,BALL
10024242030 1 GASKET,CRANKCASE
90016205028 3 BOLT5X28
P021004650 1 GASKETKIT
A411000130 1 COIL,IGNITION
90016204020 2 BOLT4X20
V485000040 1 LEAD
V471000660 1 TUBE
15901201620 1 CAP, SPARK PLUG
15901103432 1 TERMINAL,SPARKPLUGCAP
15901019830 1 SPARK PLUG -- BPM-8Y
A425000000 1 SPARK PLUG -- BPMR-8Y CANADAMODELS:07001001-07999999
16202120660 1 LEAD
A409000160 1 FLYWHEEL
SERIAL NUMBERS: 05001001-07999999
ENGINE, SHORTBLOCK,IGNITION
Also Included In GASKET KIT

6
ES-210, 211 ENGINE, SHORTBLOCK,IGNITION
SERIAL NUMBERS: 08001001-10999999
GASKET KIT
1
2
3
4
7
8
12
13
14
15
16
13
17
9
10
11
5
6
18
19
20
21 22
23 24
25
26
27
28
--CANADA

7
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
OPTIONALENGINEREPOWER
SB1076 1 SHORTBLOCK INCLUDES2-17
A130000550 1 CYLINDER
90016205022 2 BOLT5X22
V100000160 1 GASKET,CYLINDER
P021007712 1 PISTONKIT INCLUDESITEMS6-9
A101000090 1 RING,PISTON
10001311520 1 PIN,PISTON
10001504630 2 CIRCLIP,PISTONPIN
10001411520 2 SPACER,PISTONPIN
A011000160 1 CRANKSHAFTASY INCLUDESITEM11
V553000010 1 BEARING,NEEDLE
10020452132 1 CRANKCASEKIT
10021242031 2 OILSEAL
10021503930 2 DOWELPIN
9403536201 2 BEARING,BALL
10024242030 1 GASKET,CRANKCASE
90016205028 3 BOLT5X28
P021008590 1 GASKETKIT
A411000130 1 COIL,IGNITION
90016204020 2 BOLT4X20
V485000040 1 LEAD
V471000660 1 TUBE
15901201620 1 CAP, SPARK PLUG
15901103432 1 TERMINAL,SPARKPLUGCAP
15901019830 1 SPARK PLUG -- BPM-8Y
A425000000 1 SPARK PLUG -- BPMR-8Y CANADAMODELS:0001001-10999999
16202120660 1 LEAD
A409000210 1 FLYWHEEL
SERIAL NUMBERS: 08001001-10999999
ENGINE, SHORTBLOCK,IGNITION
Also Included In GASKET KIT

8
ES-210, 211 STARTER, REAR HANDLE
SERIAL NUMBERS: ALL
23
56
10
11
12
13 15
14
16
17
18
19
20
21
4
SERIAL NUMBERS: 02001001-02999999
1
SERIAL NUMBERS: 05001001-10999999
7
8
9
22

9
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
SERIAL NUMBERS: ALL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
SERIAL NUMBERS: 02001001-02999999
17720244330 1 STARTER PAWL ASY INCLUDESITEMS2-3
17723442030 1 SPRING, RETURN
17721844330 1 PAWL, STARTER
SERIALNUMBERS:05001001-10999999
A052000061 1 STARTER PAWL ASY INCLUDESITEMS5-6
17723412220 1 SPRING,RETURN
17721844330 1 PAWL, STARTER
90059500008 1 NUT
SERIAL NUMBERS: ALL
17720042033 1 STARTERASY INCLUDESITEMS9-14
17723644330 1 SCREW
17721544430 1 DRUM, STARTER
17722610120 1 ROPE,STARTER-3X1000mm BULKOPTION:99944444000
17722742030 1 GUIDE,ROPE
17722806530 1 GRIP, STARTER
17722042030 1 SPRING, REWIND
89011849130 1 LABEL, ECHO
90016304016 4 BOLT 4X16
35100005060 1 REAR HANDLE ASY INCLUDESITEMS18-22
35101105060 1 BRACKET, HANDLE - UPPER
90025305016 3 SCREW
90060500005 1 SPRING WASHER 5
35102805060 1 BRACKET, HANDLE - LOWER
35101005060 1 HANDLE
STARTER, REARHANDLE

10
ES-210, 211
SERIAL NUMBERS: 02001001-02999999
INTAKE, EXHAUST
ES-211
GASKET KIT
1
2
3
4
5
6
7
8
9
10
15
16
17
18
19
20
21 22
11
12 13
23
26
24
14
25

11
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
SERIAL NUMBERS: 02001001-02999999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
21041752730 1 WING BOLT
13031306563 1 LID, AIR CLEANER
89012106360 1 LABEL, CHOKE
13031054130 1 FILTER, AIR
13030706561 1 CASE, AIR CLEANER INCLUDES ITEM 6
90024205065 2 SCREW 5X65
12901152730 1 PLATE, PREVENT
A021000180 1 CARBURETOR -- C1U-K62
13001020560 1 GASKET, INTAKE
90023805022 2 SCREW 5X22
13001705062 1 INSULATOR, INTAKE
90050000005 2 NUT 5
13001009561 2 GASKET, INTAKE
10151420560 1 SHIELD,INTAKE
V104000160 2 GASKET, EXHAUST
14587105760 1 SHIELD,EXHAUST
A300000140 1 MUFFLER
V150000371 1 PLATE, EYE
V347000000 4 WASHER, CONICAL
90010505055 2 BOLT 5X55
14586240630 1 SCREEN, MUFFLER
V104000360 1 GASKET, EXHAUST
A313000140 1 GUIDE, EXHAUST
A313000120 1 GUIDE, EXHAUST
9136704010 5 SCREW4X10
P021001621 1 GASKET KIT
INTAKE,EXHAUST
ES-211
Also Included In GASKET KIT

12
ES-210, 211 INTAKE, EXHAUST
SERIAL NUMBERS: 05001001-07999999
1
2
3
4
5
6
7
8
9
10
11
12
GASKET KIT
13 14
22 23
24
25
27
28
16
29
30
19
31 32
33
34
S/N: 05001001-05999999 & 07001001-07999999
S/N:06001001-06999999
20
21
18
17
15
26
35
--CANADA

13
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
SERIAL NUMBERS: 05001001-07999999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
21041752730 1 WINGBOLT
13031306563 1 LID,AIRCLEANER
89012106360 1 LABEL, CHOKE
89012105360 1 LABEL, CHOKE CANADAMODELS:07001001-07999999
13031054130 1 FILTER,AIR
13030706561 1 CASE,AIRCLEANER INCLUDESITEM7
90024205065 2 SCREW5X65
12901152730 1 PLATE,PREVENT
A021000530 1 CARBURETOR--C1U-K68
13001020560 1 GASKET,INTAKE
90023805022 2 SCREW5X22
13001705062 1 INSULATOR, INTAKE
90050000005 2 NUT 5
13001009561 2 GASKET, INTAKE
10151420560 1 SHIELD,INTAKE
P021004650 1 GASKET KIT
V104000160 2 GASKET, EXHAUST
14587105760 1 SHIELD,EXHAUST
S/N:05001001-05999999&07001001-07999999
14580642030 1 MUFFLER
90060000005 2 WASHER
90010505055 2 BOLT5X55
14586240630 1 SCREEN,MUFFLER
14586642031 1 GASKET,EXHAUST
A313000110 1 GUIDE,EXHAUST-INNER
A313000420 1 GUIDE,EXHAUST-OUTER
90024204010 3 SCREW4X10
S/N:06001001-06999999
A300000141 1 MUFFLER
V150000371 1 PLATE, EYE
V347000000 4 WASHER,CONICAL
90010505055 2 BOLT5X55
14586240630 1 SCREEN,MUFFLER
V104000360 1 GASKET,EXHAUST
A313000140 1 GUIDE,EXHAUST-INNER
A313000400 1 GUIDE,EXHAUST-OUTER
9136704010 5 SCREW4X10
INTAKE,EXHAUST
Also Included In GASKET KIT

14
ES-210, 211 INTAKE, EXHAUST
SERIAL NUMBERS: 08001001-10999999
1
2
3
4
5
6
7
8
9
10
11
12
GASKET KIT
13 14
21 22
23
24
26
27
16
28
29
18
30 31
32
33
S/N: 08001001-08999999 & 10001001-10002700
S/N: 09001001-09999999 & 10002701-07999999
19
20
17
15
25
34
--CANADA

15
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
SERIAL NUMBERS: 08001001-10999999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
21041752730 1 WINGBOLT
13031306563 1 LID,AIRCLEANER
89012106360 1 LABEL, CHOKE
89012105360 1 LABEL, CHOKE CANADAMODELS:10001001-10999999
13031054130 1 FILTER,AIR
13030706561 1 CASE,AIRCLEANER INCLUDESITEM7
90024205065 2 SCREW5X65
12901152730 1 PLATE,PREVENT
A021000940 1 CARBURETOR--C1U-K78
13001020560 1 GASKET,INTAKE
90023805022 2 SCREW5X22
13001705062 1 INSULATOR,INTAKE
90050000005 2 NUT5
13001009561 2 GASKET,INTAKE
10151420560 1 SHIELD,INTAKE
P021008590 1 GASKETKIT
V104000631 1 SHIELD,EXHAUST
S/N:08001001-08999999&10001001-10002700
14580642030 1 MUFFLER
90060000005 2 WASHER
90010505055 2 BOLT5X55
14586240630 1 SCREEN,MUFFLER
14586642031 1 GASKET,EXHAUST
A313000570 1 GUIDE,EXHAUST-INNER
A313000620 1 GUIDE,EXHAUST-OUTER
90024204010 3 SCREW4X10
S/N:09001001-09999999&10002701-07999999
A300000141 1 MUFFLER
V150000371 1 PLATE, EYE
V347000000 4 WASHER,CONICAL
90010505055 2 BOLT5X55
14586240630 1 SCREEN,MUFFLER
V104000360 1 GASKET,EXHAUST
A313000590 1 GUIDE,EXHAUST-INNER
A313000630 1 GUIDE,EXHAUST-OUTER
9136704010 5 SCREW4X10
INTAKE,EXHAUST
Also Included In GASKET KIT

16
ES-210, 211
SERIAL NUMBERS: 02001001-02999999
1
2
3
4
5
6
7
8
9
10 11 13
14 15
16
17
18
19
21
12
22 23
24
25 26
27
28 29
30
31
32
33
34
35
36
37 38 39
40
41
42 43
44 45
46
47
48
49
50
53
ES-211
51 52
FAN CASE, ENGINE COVER, FUEL SYSTEM
20
S/N:
02001001-02006932
S/N:02006933-02999999
54
55
56
S/N:02001001-02006932
S/N:02006933-02999999

17
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
SERIAL NUMBERS: 02001001-02999999
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
20012420661 1 GRID, FAN CASE
13040620660 1 KNOB, FASTENER
90060300005 1 WASHER 5
90025305014 1 SCREW 5X14
20015005060 1 SHAFT, GRID
20015205060 1 SPRING, GRID
20010920662 1 FAN CASE ASY - LEFT INCLUDES ITEM 8
22012020561 1 CUSHION
90025305020 6 SCREW 5X20
90025604022 2 SCREW 4X22
16381020660 1 BRACKET, SHUT OFF SWITCH
16333520560 1 LEVER, SHUT OFF ACTUATOR
16340020660 1 SWITCH, SHUT OFF
X503001320 1 LABEL, MODEL -- ES-211
89016008761 1 LABEL, CAUTION
90050000008 1 NUT 8
20018008761 1 CUTTER, SHREDDER
20001006363 1 FAN
10013205660 1 WASHER
20001105661 1 HUB, FAN
16340120560 1 SWITCH, STOP
90023805025 1 SCREW 5X25
17805420560 1 CONTROL, THROTTLE
90060300005 1 WASHER 5
90051600005 1 FLANGE NUT 5
90050200005 1 NUT 5
35133520560 2 CUSHION
90016204022 4 BOLT 4X22
89022808760 1 LABEL, CAUTION
89016003360 1 LABEL, CAUTION
13201056330 1 PIPE, RETURN - 3X6X90mm BULK OPTION: 90017
A356000030 1 VENT ASY
13132840630 1 COVER, VENT
13131239130 1 PIPE, VENT - 3X5X70mm BULK OPTION: 90014
43721011131 1 PIPE, FUEL - 3X5X90mm BULK OPTION: 90014
13211546730 1 GROMMET, FUEL
13201103360 1 CONNECTOR, FUEL PIPE
13201212360 1 PIPE, FUEL
13120507320 1 STRAINER, FUEL
13100520560 1 TANK, FUEL
13104528230 2 SPACER
90060300005 2 WASHER 5
90023805016 2 SCREW 5X16
13100455530 1 FUEL TANK CAP ASY INCLUDES ITEM 45-46
13101655830 1 GASKET, FUEL CAP
13105156030 1 CONNECTOR, FUEL CAP
17801020560 1 CONTROL, THROTTLE
17801120560 1 ROD, THROTTLE
90025305020 5 SCREW 5X20
89016006361 1 LABEL, HOT
SERIAL NUMBERS: 02001001-02006932
20010820662 1 FAN CASE ASY - RIGHT INCLUDES ITEM 52
22012020661 1 CUSHION
A190000030 1 COVER, ENGINE
SERIAL NUMBERS: 02006933-02999999
P021003701 1 FAN CASE ASY - RIGHT INCLUDESITEM55
22012020661 1 CUSHION
A190000030 1 COVER, ENGINE
ES-211 FANCASE, ENGINECOVER, FUEL SYSTEM

18
ES-210, 211
ES-210--
ES-211--
SERIALNUMBERS:
ES-210: 05001001-05999999
07001001-09002970
10001001-10003140
ES-211: 06001001-06999999
09001001-09002673
1
2
3
4
5
6
7
9
10
11 12 14
15
16
17
19
20
21
22
24
25
26
13
30 31
32
33 34
35
36
37
38
39
40
41
42
43 44 45
46
47
48 49
50 51
52
53
54
55
56
57
27
28
29
SERIAL NUMBERS: 05001001-10999999
FAN CASE, ENGINE COVER, FUEL SYSTEM
23
18
SERIALNUMBERS:
ES-210: 09002971-09999999
10003141-10999999
ES-211: 09002674-09999999
8

19
ES-210, 211
ITEM PART NUMBER QTY DESCRIPTION REMARKS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
20012420661 1 GRID, FAN CASE
13040620660 1 KNOB, FASTENER
90060300005 1 WASHER 5
90025305014 1 SCREW5X14
20015005060 1 SHAFT,GRID
20015205060 1 SPRING,GRID
20011120663 1 FAN CASE - OUTER
20011120664 1 FAN CASE - OUTER
22012020561 1 CUSHION S/N:05001001-07999999ONLY
90025305020 6 SCREW5X20
90025604022 2 SCREW4X22
16381020660 1 BRACKET, SHUT OFF SWITCH
16333520660 1 LEVER, SHUT OFF ACTUATOR
16340020660 1 SWITCH, SHUT OFF
X503003740 1 LABEL, MODEL -- ES-210
X503001320 1 LABEL, MODEL -- ES-211
89016009461 1 LABEL,CAUTION
X508000140 1 LABEL, NOISE
90050000008 1 NUT8
20018008761 1 CUTTER,SHREDDER
20001006363 1 FAN
10013205660 1 WASHER
20001105661 1 HUB, FAN
P021003702 1 FAN CASE - INNER
22012020661 1 CUSHION S/N:05001001-07999999ONLY
16340120561 1 SWITCH, STOP INCLUDESITEMS25-27
9154503010 1 SCREW3X10
16341049231 1 KNOB, SWITCH
89015712330 1 COVER,SWITCH
90023805025 1 SCREW5X25
17805420560 1 CONTROL,THROTTLE
90060300005 1 WASHER 5
90051600005 1 FLANGE NUT 5
90050200005 1 NUT5
35133520560 2 CUSHION
90016204022 4 BOLT4X22
13201056330 1 PIPE,RETURN-3X6X90mm BULKOPTION:90017
A356000030 1 VENT ASY
13132840630 1 COVER, VENT
13131239130 1 PIPE, VENT - 3X5X70mm BULKOPTION:90014
43721011131 1 PIPE, FUEL - 3X5X90mm BULKOPTION:90014
V137000030 1 GROMMET, FUEL
13201103360 1 CONNECTOR,FUELPIPE
13201212360 1 PIPE, FUEL
13120507320 1 STRAINER,FUEL
13100520561 1 TANK, FUEL INCLUDESITEM47
13104528230 2 SPACER
90060300005 2 WASHER 5
90023805016 2 SCREW5X16
13100455530 1 FUEL TANK CAP ASY INCLUDESITEMS51-52
13101655830 1 GASKET, FUEL CAP
13105156030 1 CONNECTOR,FUEL CAP
17801020560 1 CONTROL,THROTTLE
17801120561 1 ROD,THROTTLE
A190000032 1 COVER, ENGINE
90025305020 5 SCREW5X20
89016006361 1 LABEL, HOT
SERIAL NUMBERS: 05001001-10999999
FAN CASE, ENGINECOVER, FUEL SYSTEM

20
ES-210, 211
SERIAL NUMBERS: ALL
BLOWER PIPES, DUST BAG
1
2
3
4
5
6
7
8
9
SERIALNUMBERS:
ES-210: 05001001-05999999
07001001-09002970
10001001-10003140
ES-211: 02001001-02999999
06001001-06999999
09001001-09002673 10
SERIALNUMBERS:
ES-210: 09002971-09999999
10003141-10999999
ES-211: 09002674-09999999
