Echo SHC-2100 User manual

HEDGE CLIPPER
OPERATOR'SMANUAL 1
Shaft Hedge Clipper
Operator'sManual
MODEL SHC-2100
Serial Number 0517101 & Up
X750004210
01/02
X7502253400
WARNING DANGER
Readrulesforsafeoperationandinstructionscarefully. ECHOprovidesan
Operator'sManualandaSafetyManual. Bothmustbereadandunderstoodfor
properandsafeoperation.Failuretodosocouldresultinserousinjury.

HEDGE CLIPPER
OPERATOR'SMANUAL 3
SAFETY
DECALS
Locate this safety decal on your unit. The complete unit illustration found in the "DESCRIPTION" section, will help you
locate them. Make sure the decals are legible and that you understand and follow the instructions on them. If a decal
cannot be read, a new one can be ordered from your ECHO dealer. See PARTS ORDERING instructions for specific
information.
IMPORTANT Theenclosedmessage
provides information necessary for the
protection of the unit.
NOTE This enclosed message provides tips for
use, care and maintenance of the unit.
The circle with the slash symbol means whatever is shown
within the circle is prohibited.
MANUAL SAFETY SYMBOLS AND IMPORTANT INFORMATION
Throughout this manual and on the product itself, you will find safety
alerts and helpful, information messages preceded by symbols or key
words. The following is an explanation of those symbols and key
words and what they mean to you.
This symbol accompanied by the words WARNING and
DANGER calls attention to an act or condition that can lead
to serious personal injury to operator and bystanders.
HANDGUARD
Thisunitis not designedto insulate againsthazardsassociated with thecontactof
wires carrying electrical current. To avoid possible injury/death due to electrical
WARNING DANGER
shockorotherhazards.DONOToperateunitifany wires (power, telephone, cable, etc.) arecloserthan15
feet(4.5meters)minimumdistance,toany part of the unitoroperator. •Thisunitcanbe dangerous if used
improperly.•Fallingobjectsand/orbladecontact cancauseseriousinjurytooperator,helpersandbystanders.
•Keephelpersand bystanders atleast50feet(15m) clear ofoperatingarea.
•Toreduce injuryrisk, READ ANDUNDERSTAND theOperator’sManual.Replacementcopies are
availablethroughany ECHO Dealer.
•Wear Protective Clothing
(head, hearing and eye
protection meeting ANSI
standards)specified in the
Operator’sManual. •
STOPenginebeforemakingrepairsor
bladeadjustments.• Keep handaway
fromblade.

4

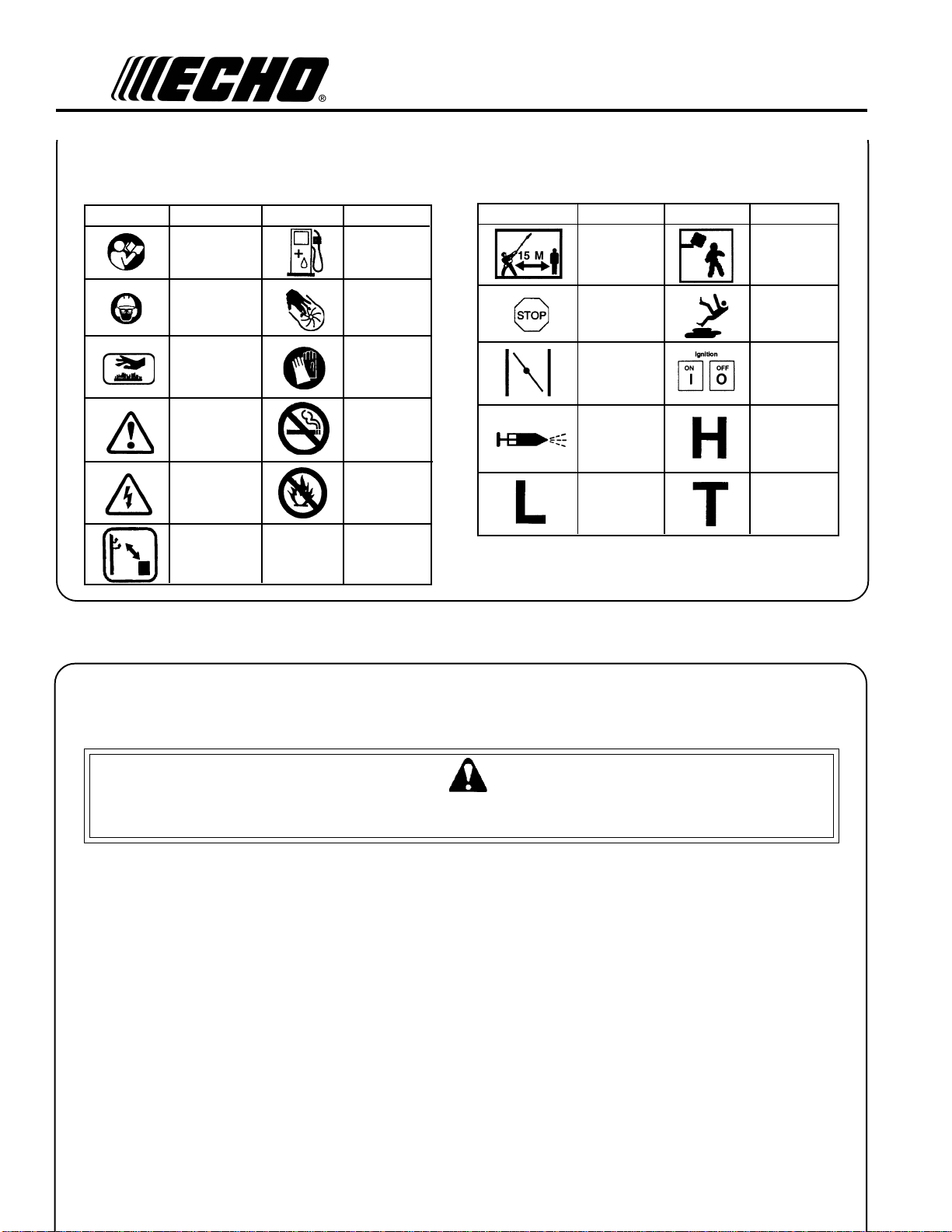

INTERNATIONALSYMBOLS
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Hot
Surface
Carburetor
adjustment
-Idlespeed
Carburetor
adjustment
- High speed
mixture
Symbol
description/application Symbol form/shape Symbol
description/application
Symbol form/shape
Readand
understand
Operator'sManual.
Weareyes,ears
andhead
protection Emergencystop
Fueland oil
mixture
FingerSevering
Carburetor
adjustment
-Low speed
mixture
Safety/Alert
Do not operate
closerthan15 M
(50 ft.) from
electrical
hazards.
Keepbystanders
atleast15meters
(50feet)away.
Planretreatpath
from falling
objects.
Wearhand
protection.Use
twohanded.
DONOTsmoke
nearfuel.
DONOT allow
flamesorsparks
nearfuel.
Wearslip
resistantfoot
wear.
Enginechoke
control. Ignition
ON/OFF
Primerbulb
Avoidallpower
lines.Thisunit is
notinsulated
againstelectrical
current.
SAFETYINSTRUCTIONS
PERSONAL CONDITION AND SAFETY EQUIPMENT
Eye Protection
Eyeprotectionthat meetANSIZ87.1or CE requirements
must be worn whenever you operate the Hedge Clipper.
Hand Protection
Wear no-slip, heavy duty work gloves to improve your
grip on the handles. Gloves also reduce the transmission
of machine vibration to your hands.
Hearing Protection
Wearhearingprotection.ECHOrecommendswearing
hearing protection whenever unit is used.
Proper Clothing
Wear snug fitting, durable clothing;
• Pants should have long legs, shirts with long sleeves.
• DONOTWEARSHORTS,
• DONOTWEARTIES,SCARFS,JEWELRY.
Wear protective hair covering to contain long hair.
Wear sturdy work shoes with nonskid soles;
• DONOTWEAROPENTOEDSHOES,
• DONOTOPERATEUNITBAREFOOTED.
Wear no-slip, heavy duty work gloves.
WARNING DANGER
Hedge Clipper users risk injury to themselves and others if the hedge clipper is used improperly and or safety
precautions are not followed. Proper clothing and safety gear must be worn when operating a hedge clipper.

HEDGE CLIPPER
OPERATOR'SMANUAL 5
EXTENDED OPERATION/EXTREME CONDITIONS
Vibration and Cold
It is believed that a condition called Raynaud’s Phenomenon, which
affects the fingers of certain individuals, may be brought about by
exposure to vibration and cold. Exposure to vibration and cold may
cause tingling and burning sensations, followed by loss of color and
numbness in the fingers. The following precautions are strongly
recommended,becausetheminimum exposure which mighttriggerthe
ailmentisunknown.
• Keep your body warm, especially the head, neck, feet, ankles, hands,
and wrists.
• Maintain good blood circulation by performing vigorous armexercises
during frequent work breaks, and also by not smoking.
• Limit the hours of operation. Try to fill each day with jobs where
operating the trimmer or other hand-held power equipment is not
required.
• If you experience discomfort, redness and swelling of the fingers
followed by whitening and loss of feeling, consult your physician
before further exposing yourself to cold and vibration.
Repetitive Stress Injuries
It is believed that overusing the muscles and tendons of the fingers,
hands, arms, and shoulders may cause soreness, swelling, numbness,
weakness, and extreme pain in those areas. Certain repetitive hand
activities may put you at a high risk for developing a Repetitive Stress
Injury(RSI).AnextremeRSIconditionisCarpalTunnelSyndrome
(CTS), which could occur when your wrist swells and squeezes a vital
nerve that runs through the area. Some believe that prolonged exposure
to vibration may contribute to CTS. CTS can cause severe pain for
months or even years.
To reduce the risk of RSI/CTS, do the
following:
• Avoid using your wrist in a bent, ex-
tended, or twisted position. Instead try to
maintain a straight wrist position. Also,
when grasping, use your whole hand, not
just the thumb and index finger.
• Takeperiodicbreakstominimizerepetition
and rest your hands.
• Reduce the speed and force with which
you do the repetitive movement.
• Do exercises to strengthen the hand and
armmuscles.
• Immediately stop using all power equip-
ment and consult a doctor if you feel
tingling, numbness, or pain in the fingers,
hands, wrists, or arms. The sooner RSI/
CTSisdiagnosed, themorelikelyperma-
nent nerve and muscle damage can be
prevented.
EQUIPMENT
WARNING DANGER
Use only ECHO approved attachments. Serious injury may result from the use of a non-approved attachment
combination. ECHO, INC. will not be responsible for the failure of cutting devices, attachments, or accessories which
have not been tested and approved by ECHO. Read and comply with all safety instructions listed in this manual and
safety manual.
• Check unit for loose/missing nuts, bolts, and screws. Tighten and/or
replace as needed.
• Inspect fuel lines, tank and area around carburetor for fuel leaks. DO
NOT operate unit if leaks are found.
• Never adjust blades when the engine is operating.
• Inspect hand guard for damage. Replace if damaged or missing.
• Check that the blade assembly is firmly attached and in safe operating
condition. Dull, loose or damaged blades should not be used.
• ECHO, INC. will not be responsible for the failure of cutting devices
or accessories which have not been tested and approved by ECHO
for use with this unit.
• Keep exhaust area clear of flammable debris. Avoid contact during
andimmediatelyafteroperation.

6

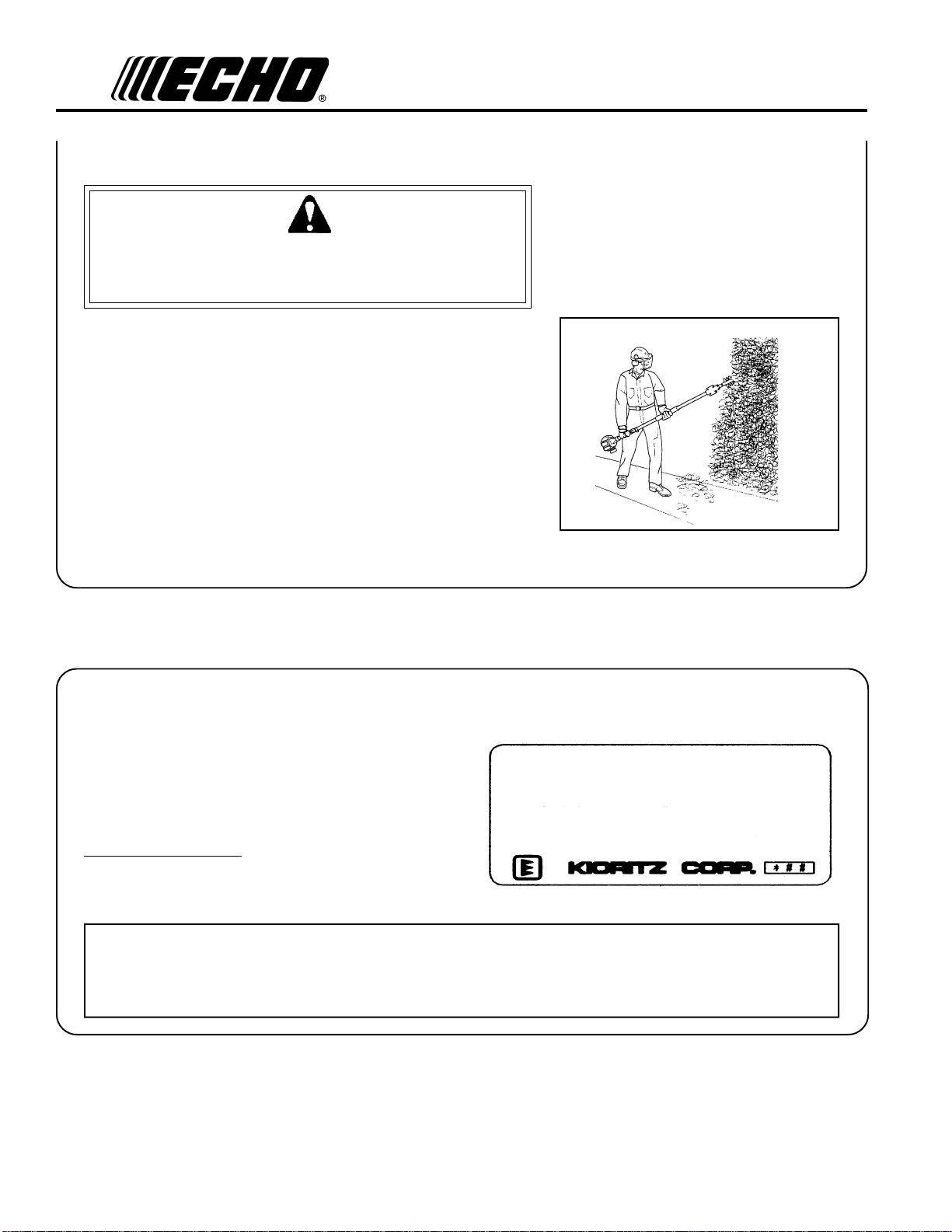

SAFE OPERATION
WARNING DANGER
Do not operate this product indoors or in inadequately ventilated
areas. Engine exhaust contains poisonous emissions and can
cause serious injury or death.
Provide all users of this equipment with the Operator's Manual and
instructions for Safe Operation.
KeepaSolidStance
• Maintain footing and balance at all times. Do not stand on slippery,
uneven or unstable surfaces. Do not work in odd positions or on
ladders. Do not over reach.
KeepaFirmGrip
• Hold the front and rear handles with both hands, with thumbs and
fingers tightly encircling the handles.
IMPORTANTENGINEINFORMATION
ENGINE FAMILY: 2EHXS.0214RA DISPLACEMENT: 21.2 CC
EMISSION COMPLIANCE PERIOD: 300 Hours
THIS ENGINE MEETS U.S. EPA PHASE 2 EMISSION
REGULATIONS FOR SMALL NONROAD ENGINE.
REFER TO OWNER'S MANUAL FOR MAINTENANCE
SPECIFICATIONS AND ADJUSTMENTS.
EmissionControlLabel (locatedonEngine) (EXAMPLE
ONLY,informationonlabelvariesbyFAMILY).
EMISSION CONTROL
EPA Phase II
The emission control system for this engine is EM (Engine
Modification).
PRODUCT EMISSION DURABILITY
The 300 hour emission durability compliance period is the time span selected by the manufacturer certifying the
engine emissions output meets applicable EPA emissions regulations, provided that approved maintenance proce-
dures are followed as listed in the Maintenance Section of this manual.

HEDGE CLIPPER
OPERATOR'SMANUAL 7
DESCRIPTION
The ECHO product you have purchased has been factory pre-assembled for your convenience. Due to packaging
restrictions,someassembly of SHC-2100 isrequired.
After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing
parts. Use the contents list to check for missing parts.
CONTENTS LIST
_____ 1-Shaft Hedge Clipper Assembly
_____ 1-Operator's Manual
_____ 1-Hedge Clipper Safety Manual
_____ 1-Warranty Statement
_____ 1- Warranty Registration Card
_____ 1-2-StrokeOilSample,2.6oz.
_____ 1-T-Wrench
_____ 1-4mmHexWrench
1
2
5
67
3
4
10
12
15
14
13
11
8
916

8
1. POWERHEAD- Factory Assembled. IncludestheEngine,Clutch,Fuel System,IgnitionSystemandRecoil Starter.

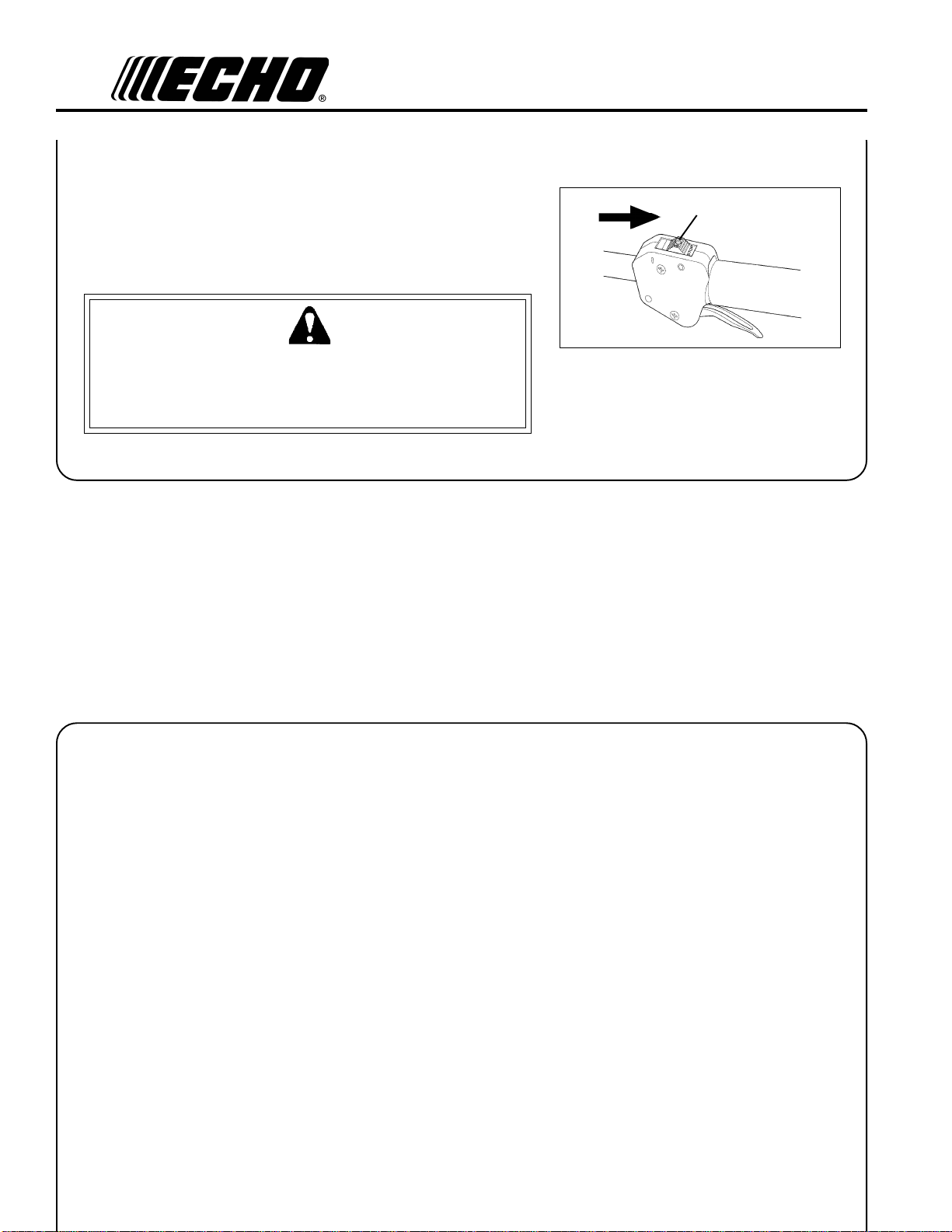

2. STOP SWITCH - mounted on top of the Throttle Trigger Housing. Move switch FORWARD to RUN, BACK to
STOP.
3. FRONTHAND(LEFT) HANDLE-Adjustableforpropercuttingattitudeandoperatorcomfort.
4. BLADES - Double reciprocating blades mounted to a blade support bar. Double sided blades, are capable of cutting
on either side of the blade.
5. GEARHOUSINGASSEMBLY -Gearhousingassemblyfixedstraightextension.
6. DRIVESHAFTASSEMBLY-ContainstheFlexibleDriveCable.
7. THROTTLETRIGGER-Springloadedtoreturntoidlewhenreleased.Duringacceleration,depressgraduallyfor
best operating technique.
8. SPARKPLUG-Providessparktoignitefuelmixture.
9. MUFFLER/SPARKARRESTOR-Themufflercontrolstheexhaustnoisewhilethesparkarrestorpreventshot,
glowing particles of carbon from leaving the muffler where they could possibly start a fire.
10. FUELTANK-Containsfuelandfuelfilter.
11. RECOILSTARTERHANDLE-Pullhandleslowlyuntilstarterengages,thenquicklyandfirmly. DONOTpullrope
all the way out or allow the handle to snap back, damage to the recoil starter will occur.
12. FUELTANKCAP-Coversandsealsfueltankopening.
13. PURGE BULB -Before startingand after filling the fuel tank,pump purge bulb 3-4 timesoruntil a steady stream of
fresh fuel is visible through the "clear" fuel return line.
14. AIRCLEANER-Containsreplaceablefilterelement.
15. CHOKECONTROL - The choke control lever is located on the top of the air filter case. Move the lever to "COLD
START" to close the choke and back to "RUN" to open the choke.
16. HEDGECLIPPERSAFETYVIDEO-P/N99922202800(NotincludedwithunitandEnglishversiononly)isavailable
for your review and purchase at a cost of $5.00 from ECHO, INC. or any authorized ECHO dealer. The video over-
views safety precautions and proper operating techniques provided in detail in the Safety Manual, and is supplemen-
tal to the Safety Manual. Read and understand the Safety Manual for complete information on safe operation.

HEDGE CLIPPER
OPERATOR'SMANUAL 9
SPECIFICATIONS
LEDOM 0012-CHS
htgneL ).ni5.17(mm6181
htdiW ).ni5.8(mm612
thgieH ).ni3.9(mm532
*)yrd(thgieW ).bl9.21(gk8.5
epyTenignE enigneenilosagrednilycelgnis,ekorts-owt,deloocriA
eroB ).ni72.1(mm2.23
ekortS ).ni40.1(mm0.62
tnemecalpsiD ).ni.uc92.1(cc2.12
tsuahxE relffuMrotserrAkrapS
roterubraC remirp/wmgarhpaiD
metsySnoitingI GSEhtiw)noitingiegrahcsidroticapac(IDC,otengaMleehwylF
gulPkrapS ).ni620.0(mm56.0paG(Y7-MPBKGN
leuF )liOekorts-owTdnaenilosaG(dexiM
oitaRliO/leuF lioenignedeloocriaekorts-owt,ecnamrofrePhgiHOHCE1:05
enilosaG ,lohoclalyhtemgniniatnocleufesuTONOD.dedaelnuenatcO98 .EBTM%51rolohoclalyhte%01nahterom
liO lioenignedeloocriaekorts-owt,ecnamrofrePhgiHOHCE1:05
yticapaCknaTleuF ).zo.lfSU0.41(.til4.0
metsySretratSlioceR retratSlioceRcitamotuA
hctulC epyTlagufirtneC
oitaResaCraeG noitcudeR1:63.6
noitacirbuLesaCraeG esufosruoh05yreveesaergdesabmuihtilesoprupllA
rettuC egdEelbuoD-edalBgnitacorpiceRelbuoD
htgneL ).ni5.02(mm425
hctiP ).ni4.1(mm53
deepSeldI MPR0023-0082
deepSelttorhTnepOediW MPR00001-0008

10
ASSEMBLY
GEAR HOUSING ASSEMBLY/DRIVE SHAFT
Tools Required: 8mmx10mmOpenEndWrench,4mmHexWrench
Parts Required: Power Head/Drive Shaft Assembly and Gear Housing
Assembly.
NOTE
Hedge Clipper Blades are very sharp. Wear gloves to protect
hands.
1. Slide the Gear Housing Assembly on the Drive Shaft. Be certain
theFlex Drive Shaft engages thehole in Driver Gear.
2. Align the locating screw (A) with the locating hole (B) in the Drive
Shaft Housing, tighten screw (A) and clamping screws (C).

HEDGE CLIPPER
OPERATOR'SMANUAL 11
PRE-OPERATION
FUEL
Fuel Requirements
Gasoline - Use 89 Octane [ ] (mid grade or higher) gasoline known to
be good quality. Gasoline may contain up to 15% MTBE (methyl
tertiary-butylether). Gasohol containing methyl (wood) alcohol is NOT
approved.
TwoStrokeOil-Atwo-strokeengineoilmeetingISO-L-EGD(ISO/CD
13738)andJ.A.S.O.FCStandards,mustbeused.Echo brand Premium
50:1 oil meets these standards. Engine problems due to inadequate
lubricationcausedby failuretousean ISO-L-EGD andJ.A.S.O.FC
certifiedoil,suchasEchoPremium50:1Two-strokeOil,willvoidthe
two-stroke engine warranty. (Emission related parts only are covered
for two years, regardless of two-stroke oil used, per the statement listed
intheEPAPhase II Emission Defect Warranty Explanation.)
IMPORTANT
EchoPremium2-StrokeOilmaybemixedat50:1ratioforapplication
in all Echo engines sold in the past regardless of ratio specified in
those manuals.
Mixing Instructions
1. Fill an approved fuel container with half of the required amount of
gasoline.
2. Add 2-stroke oil to gasoline.
3. Close container and shake to mix oil with gasoline.
4. Addremaininggasolineandremix.
5. Install fuel container cap and wipe any spilled fuel from container
and surrounding area.
Handling Fuel
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling or serious personal injury may result.
• Use an approved fuel container.
• DONOTsmokenearfuel.
• DONOTallow flames or sparksnearfuel.
• Fuel tanks/cans may be under pressure. Always loosen fuel caps
slowly allowing pressure to equalize.
• NEVERrefuela unit whentheengineisHOT!
• NEVERrefuelaunit with the enginerunning.
• DONOT fill fuel tanks indoors.ALWAYS fill fuel tanks outdoors
over bare ground.
• Securely tighten fuel cap after refueling.
• Inspect for fuel leakage. If fuel leakage is found, do not start or
operate unit until leakage is repaired.
R+M
2IMPORTANT
Spilled fuel is a leading cause of
hydrocarbon emissions. Some states
may require the use of automatic fuel
shut-off containers to reduce fuel
spillage.ContactyourECHOdealerfor
orderinginformation.
After Refueling
• Wipe any spilled fuel from the unit.
• Moveatleast 3 m(10ft.)fromrefueling
location before starting the engine.
After use
• DO NOT store a unit with fuel in its tank.
Leaks can occur. Return unused fuel to an
approved fuel storage container.
Storage - Fuel storage laws vary by
locality. Contact your local government for
the laws affecting your area. As a precau-
tion, store fuel in an approved, air tight
container. Store in a well ventilated, unoccu-
pied building, away from sparks and flames.
Do not store fuel longer than 30 days.
IMPORTANT
Storedfuelages.Donotmixmorefuel
than you expect to use in thirty (30)
days, ninety (90) days when a fuel
stabilizeris added.
IMPORTANT
Stored two-stroke fuel may separate.
ALWAYS shake fuel container thor-
oughly before each use.

12
OPERATION
STARTING COLD ENGINE
WARNING DANGER
Blades should not move at idle. If blades move, readjust carbure-
tor according to Carburetor Adjustment instructions in the
manual or see your ECHO dealer, otherwise serious personal
injurymayresult.
NOTE
Refer to the Hedge Clipper Safety Manual for proper and safe
hedge clipping operation.
1. Stop Switch - Start/Run.
Move Stop Switch button away from the STOP position.
2. Close Choke - Cold Start.
Move choke (B) to "Cold Start" position.
3. Primer-PumpBulb.
Pump primer bulb (C) until fuel is visible and flows freely in the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
WARNING DANGER
Inspect starting area for hazards such as rocks, glass, debris etc.
which could be contacted by the cutting blades when starting.
Keep helpers and bystanders at least 15 M (50 ft.) from starting
area, otherwise serious personal injury may result.
4. Starting
Lay the unit on a flat, clear area. Firmly grasp throttle grip with left
hand and fully depress throttle trigger to wide open position.
Rapidlypullstarterhandle/rope(D)untilenginefires(or maximum
five(5)pulls.
5. After engine fires or five (5) pulls, move choke lever back to
"RUN" position. Hold throttle trigger fully depressed and pull
starter handle/rope until engine starts and runs. Release throttle
trigger and allow unit to warm up at idle for several minutes.
NOTE
If engine does not start with choke in "RUN" position after 5 pulls,
repeat instructions.
6. After engine warm up, gradually depress throttle trigger to
increase engine RPM to operating speed.
B
C
D
A

HEDGE CLIPPER
OPERATOR'SMANUAL 13
STARTING WARM ENGINE
The starting procedure is the same as Cold Start except DO NOT close
the choke.
NOTE
If engine does not start after 5 pulls, use Cold Start Procedure.
WARNING DANGER
Blades should not move at idle. If blades move, readjust carburetor
according to Carburetor Adjustment instructions in the manual or
see your ECHO dealer, otherwise serious personal injury may result.
1. Stop Switch -Start/Run.
Move Stop Switch button (A) away from the STOP position.
2. Primer-PumpBulb.
Pump primer bulb (C) until fuel is visible and flows freely in the
clear fuel tank return line. Pump bulb an additional 4 or 5 times.
3. Starting
Lay unit on a flat, clear area and pull starter handle/rope (D) until
engine fires.
C
A
D

14
STOPPING ENGINE
1. Release throttle and allow engine to return to idle before shutting
off engine.
2. Move Stop Switch button (A) backward to STOP position.
WARNING DANGER
If engine does not stop when stop switch is moved to STOP
position, close choke - COLD START position - to stall engine.
Have your ECHO dealer repair stop switch before using hedge
clipper again or serious personal injury may result.
MAINTENANCE
Your ECHO product is designed to provide many hours of trouble free service. Regular scheduled maintenance will help
achieve that goal. If you are unsure or are not equipped with the necessary tools, you may want to take your unit to an
ECHOServiceDealerformaintenance. TohelpyoudecidewhetheryouwanttoDO-IT-YOURSELForhavetheECHO
Dealer do it, each maintenance task has been graded. If the task is not listed, see your ECHO Dealer for repairs.
SKILL LEVEL
Level1= Easy to do. Most required tools come with unit.
Level2= Moderate difficulty.Some specialized tools may berequired.
Level3= Experiencerequired.Specializedtoolsarerequired.ECHOrecommends
that the unit be returned to your ECHO dealer for service.
ECHO offers REPOWERTM Maintenance Kits and Parts to make your maintenance job easier. Just below each task
heading are listed the various part numbers required for that task. See your ECHO dealer for these parts.
A

HEDGE CLIPPER
OPERATOR'SMANUAL 15
MAINTENANCE INTERVALS
/TNENOPMOC METSYS ECNANETNIAM ERUDECORP
D'QER LLIKS LEVEL ROYLIAD EROFEB ESU
YREVE LEUFER
3SHTNOM 09RO SRUOH 6SHTNOM 072RO SRUOH
YLRAEY 006 SRUOH
serudecorPecnanetniaMrelaeDohcEdednemmoceR
troPtsuahxErednilyCnobraceD/naelC/tcepsnI 3C/I
sedalBneprahSnae
lC/tcepsnI 3)3(I
serudecorPecnanetniaMflesruoY-tI-oD
retliFriAecalpeR/naelC/tcepsnI 1C/I*R
ekohCnaelC/tcepsnI 2C/I
retliFleuFecalpeR/tcepsnI 1I*R
skael,metsySleuFecalpeR/tcepsnI 1*II
metsySgnilooCnaelC/tcepsnI 2C/I
rotserrA
krapSrelffuMecalpeR/tcepsnI 2*R/I
tfahSevirDesaerG 2)1(I
gnisuoHraeGesaerG 2)2(I
sedalBnaelC/tcepsnI 1)3(C/I
epoR
retratSlioceRnaelC/tcepsnI 1*C/I
gulPkrapSnaelC/tcepsnI 2C/I*R
stloB/stuN/swercSecalpeR/nethgiT/tcepsnI 1*R/I
SEDOCRETTELERUDECORPECNANETNIAM NAELC=C,ECALPER=R,TCEPSNI=I:
-ETONTNATROPMI deriuqerfoycneuqerfehtenimretedlliwecneirepxeruoydnaesulautcA.mumixameranwohsslavretniemiT
.ecnanetniam :SETONERUDECORPECNANETNIAM)1( OHCEylppA
®
EBUL
MT
.sruoh52yreve
)2( OHCEylppA
®
EBUL
MT
sruoh52-51yreve
)3( .esugnirudyllacidoirepsedalbetacirbuL.dedeensaneprahsdnanaelcdnaedalbtcepsnI
*..noitcepsnignirudraewroegamadfognidnifehtnodesaberaecalperotsnoitadnemmocerllA

16
AIR FILTER
Level1.
Tools required: 25or50mm(1or2in.)medium bristlepaintbrush
Parts required: 90008REPOWERTM Air&FuelFilterKit
1. Close choke (Cold Start Position). This prevents dirt from entering
the carburetor throat when the air filter is removed. Brush accumu-
lateddirtfromtheaircleanerarea.
2. Remove the air cleaner cover. Clean and inspect the element for
damage. If element is fuel soaked and very dirty, replace.
3. If element can be cleaned and reused, be certain it:
• properly fits the cavity in the air cleaner cover.
• is installed with the original side out.
NOTE
Carburetor adjustment may be needed after air filter cleaning/
replacement. See Carburetor Adjustment Section.
FUEL FILTER
Level1.
Tools required: 200-250mm (8-10in.)lengthofwirewithoneend
bent into a hook. Clean rag, funnel, and an approved
fuel container
Parts required: 90008REPOWERTM Air&FuelFilterKit
WARNING DANGER
FuelisVERYflammable.Useextremecarewhenmixing,storingor
handling or serious personal injury may result.
1. Use a clean rag to remove loose dirt from around fuel cap and empty
fueltank.
2. Use the “fuel line hook” to pull the fuel line and filter from the tank.
3. Remove the filter from the line and install the new filter.

HEDGE CLIPPER
OPERATOR'SMANUAL 17
SPARK PLUG
Level2.
Tools Required: T-Wrench. Feeler gauge, preferably a wire gauge.
Brush.
Parts Required: SparkPlug,NGKBPM-7AP/N15901010630
1. Remove spark plug and check for fouling, worn and rounded center
electrode.
2. Clean the plug or replace with a new one. DO NOT sand blast to
clean.Remainingsandwilldamageengine.
3. Adjust spark plug gap by bending outer electrode.
4. Tightensparkplugto145-155kg/cm(125-135in.lb.).

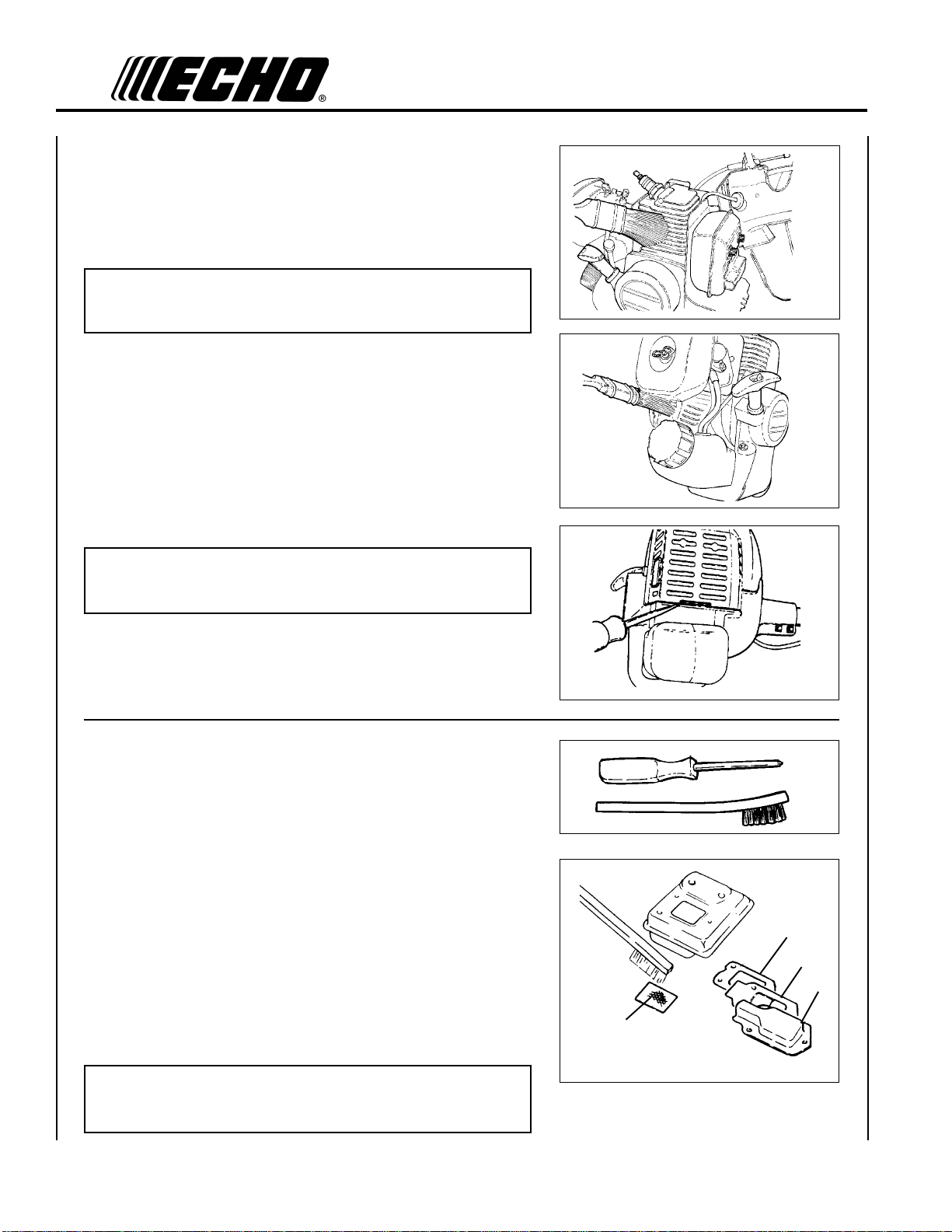

COOLING SYSTEM CLEANING
Level3.
Tools required: CrossHeadScrewdriver, 3mmHexwrench,4mm Hex
wrench, Pointed Wood Stick, Cleaning Brush, 25 or
50mm(1or2in.)mediumbristlepaintbrush.
Parts Required: None.
IMPORTANT
To maintain proper engine operating temperatures, cooling air must
pass freely through the cylinder fin area. This flow of air carries
combustion heat away from the engine.
Overheating and engine seizure can occur when:
• Air intakes are blocked, preventing cooling air from reaching the
cylinder.
• Dust and grass build up on the outside of the cylinder. This build
up insulates the engine and prevents the heat from leaving.
Removal of cooling passage blockages or cleaning of cooling fins is
considered “Normal Maintenance”. Any failure attributed to lack of
maintenance is not warranted.
0.65 mm
(0.026 in.)
A

18
1. Remove spark plug lead from the spark plug and throttle linkage
end from the carburetor swivel.
2. Remove the four screws that retain the engine cover. Two at the
top of the starter, two on either side of the front. Lift the cover from
the engine and lay to the front of the hedge clipper.
NOTE
The throttle linkage remains assembled to the engine cover and the
sparkplugleadand grommet remain installed.
3. Use the wooden stick or brush to remove dirt from the cylinder fins.
4. Remove grass and leaves from the grid between the recoil starter
and fuel tank.
5. Assemble components in reverse order.
NOTE
When installing the engine cover, be certain the tab of the metal
deflector shield is in the slot of the cover.
EXHAUST SYSTEM
Spark Arrestor Screen
Level2.
Tools Required: CrossHead Screwdriver. Soft metalbrush.
Parts Required: ScreenP/N14586240630,GasketLidP/N14586642031
1. Remove engine cover (A). See "Cleaning Cooling System" pages 17
and 18 for step by step instructions.
2. Place piston at Top Dead Center (TDC) to prevent carbon/dirt from
entering cylinder.
3. Remove spark arrestor screen cover (B), screen holder (C), gasket
(D)andscreen(E) from muffler body.
4. Clean carbon deposits from screen and muffler components.
5. Replace screen if it is cracked, plugged or has holes burned
through.
6. Assemble components in reverse order.
NOTE
When installing the engine cover, be certain the tab of the metal
deflector shield is in the slot of the cover.
D
C
B
E

HEDGE CLIPPER
OPERATOR'SMANUAL 19

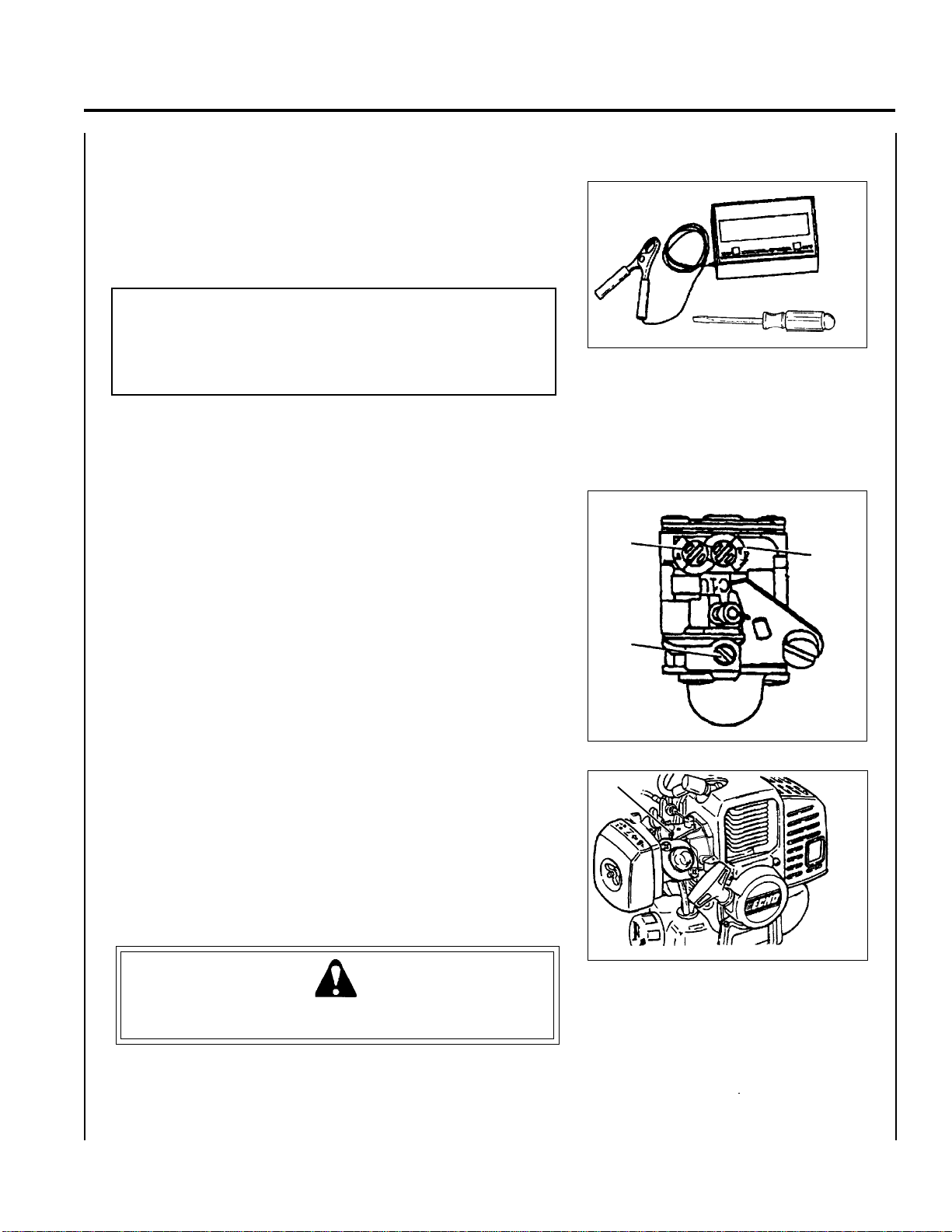

CARBURETORADJUSTMENT
Emission Models (with limiter caps)
Level2.
Tools required: Screwdriver,Tachometer(ECHOP/N99051130017).
Parts required: None.
NOTE
Every unit is run at the factory and the carburetor is set in compli-
ance with emission regulations. In addition, the carburetor is
equipped with HI and LO needle adjustment limiters that prevent
settings outside acceptable limits.
1. Before adjusting the carburetor, clean or replace the air filter and
spark arrester screen.
2. Start engine and run for several minutes to reach operating
temperature.
3. Stop engine. Turn HI speed needle (A) CCW (counter clockwise)
to stop. Turn LO speed needle (B) midway between full CCW and
CW (clockwise) stops.
4. Idle Speed Adjustment.
• Start engine and turn “idle” speed adjustment screw (C) CW
until the blades begin to move, then turn the screw CCW until
blades stop moving. Turn screw CCW an additional 1/4 turn.
5. Accelerate to full throttle for 2-3 seconds to clear excess fuel from
engine then return to idle. Accelerate to full throttle to check for
smooth transition from idle to full throttle. If engine hesitates, turn
LO needle (B) CCW an additional 1/8 turn and repeat acceleration.
Continue adjusting until smooth acceleration results.
6. Check HI speed RPM at W.O.T. (Wide Open Throttle). HI speed
RPM should be set to specifications found on page 9 "Specifica-
tions" of this manual.
7. Check idle speed and reset if necessary. If a tachometer is avail-
able, idle speed should be set to the specification found on page 9
"Specifications" of this manual.
WARNING DANGER
When carburetor adjustment is completed, blades should not
move at idle, otherwise serious personal injury may result.
A
C
C
B

20
LUBRICATION
Blades
Level1.
Tools Required: CleanRag,Brush,OilCan,(2)10mmwrenches.
Parts Required: 20WEngineOil(lubrication),50-50mixtureof
kerosene and 20W oil (cleaning).
WARNING DANGER
Blades are very sharp. Wear gloves to protect hands, otherwise
serious personal injury may result.
1. Brush loose debris from blade and coat both sides of blade with the
50-50cleaningmixture.
2. Allow cleaning mixture to soften the remaining gummy residue then
wipe it from the blade.
3. Apply clean oil to the entire length of the blade. Be certain the
blade bolts are lubricated.
4. Wipe excess oil from the blade before putting the unit back in
service.
5. Check blade tightness. Tighten blade bolts (A) until snug with 10
mm wrench. Loosen bolts 1/2 turn. Hold bolts (A) from turning and
tighten locknuts (B) with other 10 mm wrench.
Gear Case
Toolsrequired: GreaseGunwith LithiumGrease,Rag.
Partsrequired: ECHO®LUBETM (P/N91014)orLithiumBasedGrease.
1. Clean dirt from grease fittings.
2. Carefully pump grease in each fitting. DO NOT force grease.
Too much pressure will force grease past seals and cause damage.
Apply1-2pumpsofgreaseevery15-20hoursofoperation.
Lubrication should be performed as follows:
• Commercial Use - Grease weekly or every 25 hours of use.
• Consumer Use - Grease every 25 hours of use.
A
B
