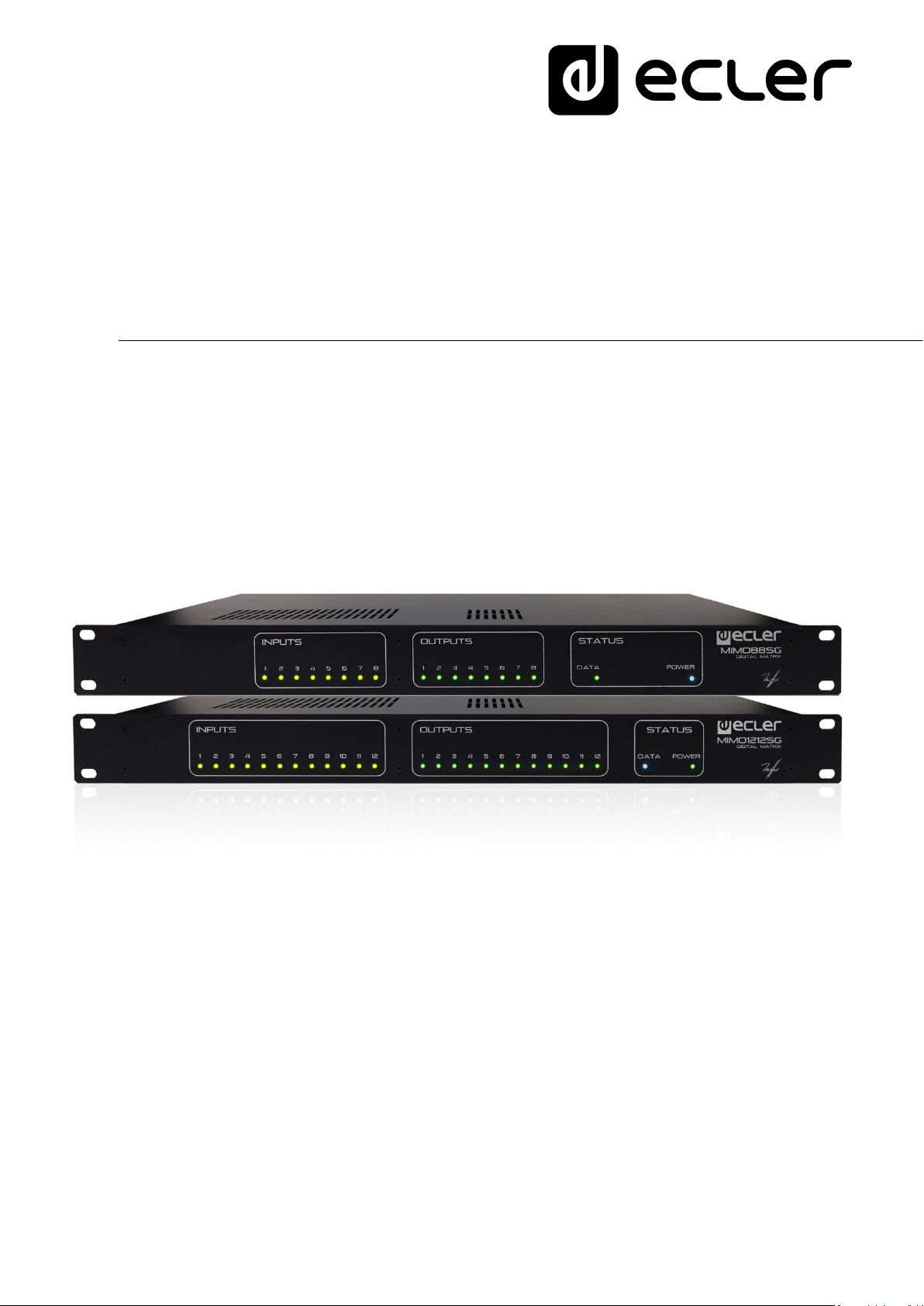

Ecler MIMO88SG User manual

v.20200826
MIMO88SG / 1212SG
DIGITAL MATRIXES
Installation Digital Matrix
USER MANUAL

2
INDEX
IMPORTANT REMARK ..........................................................................................................3
IMPORTANT SAFETY INSTRUCTIONS .............................................................................3
IMPORTANT NOTE ................................................................................................................5
INTRODUCTION ..................................................................................................................... 5
INSTALLATION.......................................................................................................................7
5.1. Location, assembly, ventilation .............................................................................................. 7
5.2. Connection to an AC outlet and switching on .................................................................. 7
5.3. Signal input connections.......................................................................................................... 7
5.4. Audio Output Connections...................................................................................................... 8
5.5. ETHERNET port for programming and control................................................................. 8
5.6. REMOTE port for digital remote controls............................................................................ 8
5.7. GPI Remote Control Ports ....................................................................................................... 9
5.8. Remote control RS-232 Port................................................................................................10
5.9. Front panel controls and LED indicators...........................................................................11
CLEANING..............................................................................................................................11
FUNCTION LIST ....................................................................................................................12
FUNCTION DIAGRAMS.......................................................................................................13
8.1 MIMO88SG..................................................................................................................................13
8.2. MIMO1212SG ...........................................................................................................................14
TECHNICAL CHARACTERISTICS .....................................................................................15
9.1. MIMO88SG.................................................................................................................................15
9.2. MIMO1212SG ...........................................................................................................................20
BLOCK DIAGRAMS..............................................................................................................25
10.1. MIMO88SG..............................................................................................................................25
10.1. MIMO1212SG.........................................................................................................................26

3
IMPORTANT REMARK
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING (If applicable): The terminals marked with symbol of “ ” may be of
sufficient magnitude to constitute a risk of electric shock. The external wiring connected
to the terminals requires installation by an instructed person or the use of ready-made
leads or cords.
WARNING:To prevent fire or shock hazard, do not expose this equipment to rain or
moisture.
WARNING:An apparatus with Class I construction shall be connected to a mains
socket-outlet with a protective earthing connection.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.

4
9. Do not defeat the safety purpose of the polarized or grounding type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at the plugs,
convenience receptacles, and at the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightening sorts or when unused for long periods of
time.
13. Refer all servicing to qualified personnel. Servicing is required when the apparatus
has been damaged in any way, such as power supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Disconnecting from mains: When switching off the POWER switch, all the
functions and light indicators of the unit will be stopped, but fully disconnecting
the device from mains is done by unplugging the power cable from the mains input
socket. For this reason, it always shall remain easily accessible.
15. Equipment is connected to a socket-outlet with earthing connection by means of
a power cord.
16. The marking information is located at the bottom of the unit.
17. The apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on apparatus.
NOTE: This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual,
may cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
WARNING:This product must not be discarded, under any circumstance, as
unsorted urban waste. Take to the nearest electrical and electronic waste
treatment centre.
NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused
to people, animal or objects due to failure to comply with the warnings above.

5
IMPORTANT NOTE
Thank you for choosing our Ecler MIMO88SG / 1212SG Installation Digital Matrix!
It is VERY IMPORTANT to carefully read this manual and to fully understand its
contents before any connection in order to maximize your use and get the best
performance from this equipment.
To ensure optimal operation of this device, we strongly recommend that its maintenance
be carried out by our authorised Technical Services.
Ecler MIMO88SG / 1212SG comes with a 3-year warranty.
INTRODUCTION
The MIMO SG is a series of fully programmable digital audio matrixes, with the following
features:
•8 (MIMO88SG) or 12 (MIMO1212SG) balanced MIC/LINE inputs (independent
phantom power per input channel).
•8 (MIMO88SG) or 12 (MIMO1212SG) balanced LINE outputs.
•8 (MIMO88SG) or 12 (MIMO1212SG) GPI control ports (General Purpose Input).
•Programming and remote management via Ethernet using EclerNet Manager (or
point to point, with a direct CAT5 cable, or from an Ethernet network).
•Remote control via UCP (User Control Panel) clients on Ethernet: simultaneous
clients with customized control panel, such as WPmSCREEN Ecler, Android®,
iOS®, Windows®, etc.
•Remote control from third party external devices. (Crestron, AMX, Vity, Medialon,
etc. Registered trademarks of their manufacturers). TP-NET protocol, via Ethernet
or RS-232 ports.
•Remote control bus for WPTOUCH digital panels and MPAGE16 messaging
consoles (paging).
•Configuration memory (presets) management.
•Scheduled events based on calendar.
•Extensive DSP available:
oRouting matrix/mixer, from any input to any output with adjustable level
for crossover points (independent mixes of different inputs for each
output).
oMono or stereo channel processing.
oLevel control, mute, vu-meters and phase adjustment for inputs and
outputs.
oInternal signal generator (sine wave, pink noise, white noise, polarity test).
oParametric EQ on inputs and outputs.

6
oDelay on inputs and outputs.
oGate/compressor on input channels.
oCompressor/limiter on outputs.
oInput channel priority assignment (ducking).
oVirtual and physical messaging consoles (paging).
oStandard MIMO88SG / MIMO1212SG firmware version (for generic use)
and alternative version, for conferencing applications (MIMO88SG /
MIMO1212SG CONFERENCE version). Both firmware versions are
compatible with the MIMO88SG / MIMO1212SG hardware which can be
freely updated with anyone of them.
The MIMO SG programming is done with EclerNet Manager. Please refer to the EclerNet
Manager Software manual for more information.

7
INSTALLATION
5.1. Location, assembly, ventilation
MIMO SG series has been especially designed to be installed in a standard 19" rack, taking
up 1U.
It is very important not to enclose the MIMO SG or expose it to extreme temperatures as
it generates heat. It’s also necessary to promote the passage of fresh air through the
ventilation holes of the chassis, leaving at least one rack unit off between each device and
installed above and below it in the rack frame.
If the setup has several amplifiers in the same rack or in a closed cabinet with doors, it is
highly recommended to supply them forced ventilation, installing fans at the upper and
lower ends. This upward air flow will help to dissipate the heat generated inside.
5.2. Connection to an AC outlet and switching on
All models in the MIMO SG series operate under voltages between 90 and 264 V at 47 to
63 Hz. This device features an over dimensioned power supply that adapts to the mains
voltage in any country of the world with no need to make any adjustments.
On the rear panel, there is a power switch for the unit next to the IEC power connector.
On the front panel, a LED lights up when the unit is switched on.
The mains cables must not be near the shielded cables carrying the audio signal, as this
could cause humming.
5.3. Signal input connections
The rear panel of a MIMO SG unit offers 8 (MIMO88SG) or 12 (MIMO1212SG) balanced
analogue signal inputs, "IN", accepting both line and microphone level signals. Input signal
type selection and management are carried out from EclerNet Manager application.
Please refer to the EclerNet Manager software manual for more information.
Signal input connectors are 3 position screw terminal block. The wiring is:
Hot or direct signal > Terminal +
Cold or inverted signal > Terminal -
Ground > Terminal ⊥
For unbalanced connection short-circuit pin ⊥to pin -.

8
5.4. Audio Output Connections
The rear panel of a MIMO SG offers 8 (MIMO88SG) or 12 (MIMO1212SG) analogue signal
outputs "OUT", all balanced and accepting line level
signals.
Signal output connectors are 3 position screw terminal
block. The wiring is:
Hot or direct signal > Terminal +
Cold or inverted signal > Terminal -
Ground > Terminal ⊥
For UNBALANCED connections, leave the –terminal unconnected.
5.5. ETHERNET port for programming and control
An RJ45 type connector allows connecting the equipment to an Ethernet network:
•Management from EclerNet Manager application. Please refer to the EclerNet
Manager Software manual for more information.
•Possibility of direct connection (point to point) between a computer and a MIMO SG
unit.
•Connection to third party other devices. (Crestron, AMX, Vity, Medialon, etc.
Registered trademarks of their manufacturers). Protocol used: Ecler TP-NET. See
the TP-NET protocol manual for more information.
•Connection to WPmSCREEN units (remote control of an entire network of EclerNet
devices through custom graphic panels).
5.6. REMOTE port for digital remote controls
The REMOTE port allows the connection of digital remote-control
devices, such as the WPTOUCH wall panel or the MPAGE16 paging
console. The REMOTE port is connected to the digital control bus the
remote devices are daisy-chained to, the last one being loaded with a
120 termination resistor between CAN HIGH and CAN LOW.
Refer to the remote device documentation (WPTOUCH, MPAGE16, etc) for more
information about your connection and controls.

9
Please refer to the EclerNet Manager Software manual for more information about
programming a MIMO SG to manage the remote devices that are connected to the
REMOTE port.
5.7. GPI Remote Control Ports
The rear panel of the MIMO SG offers 8 (MIMO88SG) or 12 (MIMO1212SG) GPI inputs
for 0-10 VDC continuous control voltage. Each of these inputs can be connected to an
external physical device (potentiometer, contact closure, continuously variable voltage 0-
10V DC, etc.) and assigned to a MIMO SG function, as for example:
•Input, output channel or matrix crosspoint volume remote control by means of a
WPmVOL physical knob or an Ecler WPm Series’ WPVOL-IR remote control
•MUTE or SOLO activation/deactivation by means of a switch or contact closure
•Recalling a preset with a push button or contact closure

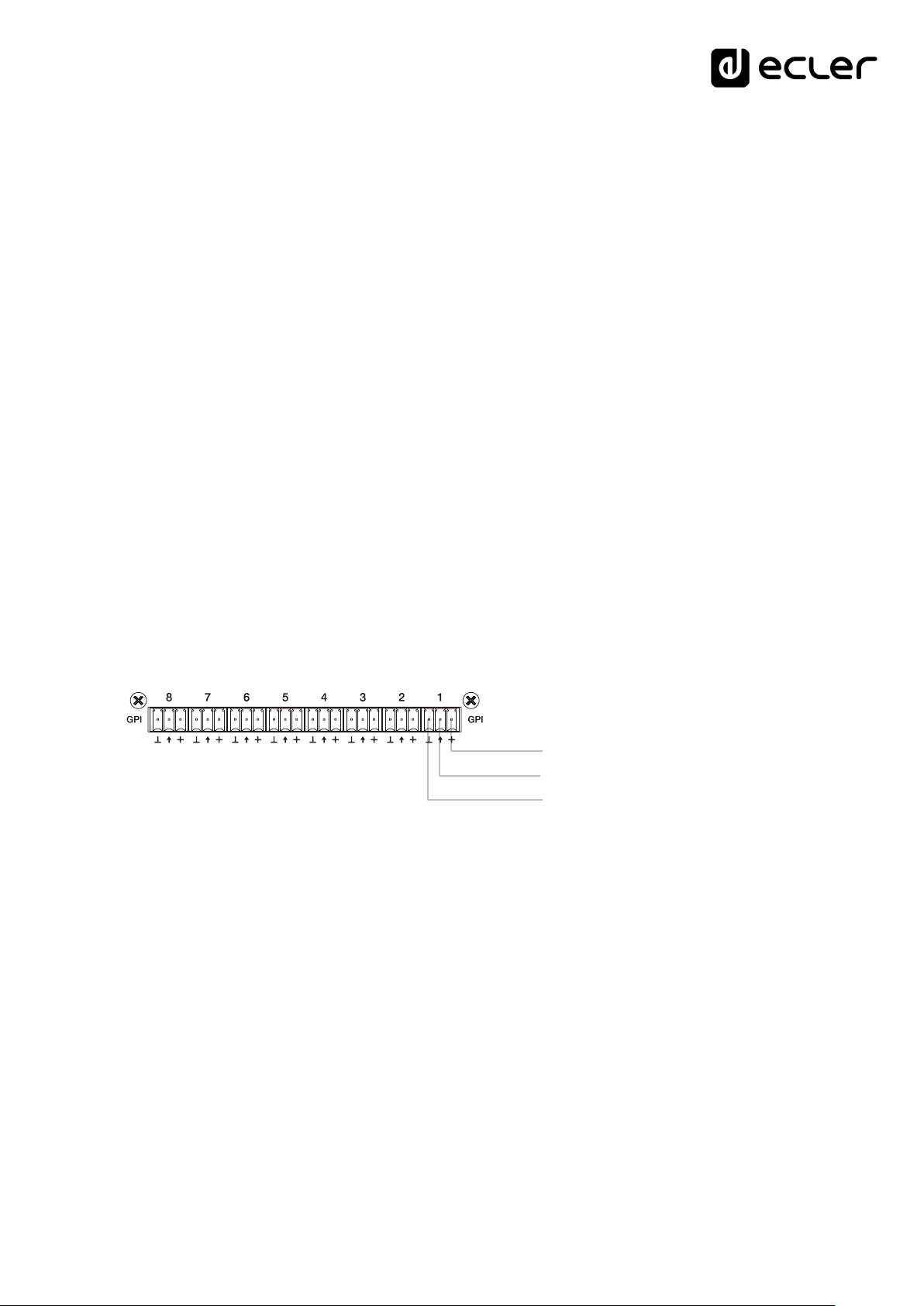

GPI connectors are screw terminal blocks with three-contacts. The wiring is as follows:
Positive, + 10 VDC > Pin +
Variable voltage, 0-10 VDC > Pin ↑
Ground > Pin ⊥
WPaVOL connection to MIMO serial GPI ports
Jumpers position: ALOG / LIN →LIN position
+12 / +10 →+12 position
WPaVOL RJ45 pin 6 (+12VDC/+10VDC)
WPaVOL RJ45 pin 2 (Remote ZONE.)
WPaVOL RJ45 pin 1, 3 or 7 (GND)

10
WPaVOL-SR connection to MIMO serial GPI ports
Connecting cables can be up to 500 meters with a minimum section of 0.5 mm2.
Consult your ECLER dealer or www.ecler.com about the WP series remote control wall
panels and other accessories available for connection to the GPI port.
5.8. Remote control RS-232 Port
The built-in RS-232 port in the rear panel allows an external device to communicate with
a MIMO SG unit via serial connection. Said connection uses the TP-NET protocol syntax
so to enable the external device to obtain the value of any of the parameters of the MIMO
SG unit (by "GET" commands) and/or modify said values (“SET” commands). See the TP-
NET protocol manual for more information.
The serial connection should comply with the following specifications:
Baud rate: 57600 (fixed, no auto negotiation)
Data bits: 8
Parity: None
Stop bits: 1
Flow control: None
WIRING RS232 –DB9
RS232
DB9
Tx
Pin 2 (RxD)
Rx
Pin 3 (TxD)
Gnd
Pin 5 (Signal Gnd)
Jumpers position: ALOG / LIN →LIN position
+12 / +10 →+12 position
WPaVOL-SR RJ45 pin 6 (+12VDC/+10VDC)
WPaVOL-SR RJ45 pin 2 (Remote VOL.)
WPaVOL-SR RJ45 pin 1, 3 or 7 (GND)
WPaVOL-SR RJ45 pin 8 (Remote VOL.)
WPaVOL-SR RJ45 pin 1, 3 or 7 (GND)

11
5.9. Front panel controls and LED indicators
The following elements are available on the MIMO SG series front panel:
•Input LED indicators: indicate the presence of audio signal at the unit’s input, and
its intensity level (green, amber and red indicate in this order the increased intensity
level)
•Output LED indicators: indicate the presence of audio signal at the unit’s output,
and its intensity level (green, amber and red indicate in this order the increased
intensity level)
•Status LED indicators (STATUS):
oDATA: Off: there is no connection to EclerNet Manager even if connected
to Ethernet. On: connected to EclerNet Manager or to other third party
application via TP-NET protocol. Flashing: data traffic with EclerNet
Manager or another application.
oPOWER: Illuminates when the unit is in operation. It flashes if there is an
error in the unit or if firmware is not correct. It also flashes when you update
firmware
CLEANING
The front panel should not be cleaned with dissolvent or abrasive substances because
silk-printing could be damaged. To clean it, use a soft cloth slightly wet with water and
neutral liquid soap; dry it with a clean cloth. Be careful that water never gets into the unit
through the holes of the front panel.

12
FUNCTION LIST
1. Input signal indicators, INPUTS
2. Output signal indicators, OUTPUTS
3. Data traffic indicator, DATA
4. Power on indicator, POWER
5. Signal output screw terminal, OUT
6. Signal input screw terminal, IN
7. RJ-45 connector, ETHERNET
8. Screw terminals for digital remote control, REMOTE
9. Screw-assembled remote-control terminals via the TP-NET, RS-232 protocol
10. Screw terminals for continuous voltage control, GPI
11. Mains socket
12. Fuse holder
13. Power switch

13
FUNCTION DIAGRAMS
8.1 MIMO88SG

14
8.2. MIMO1212SG

15
TECHNICAL CHARACTERISTICS
9.1. MIMO88SG
DSP
DSP 2x 32/64bit
Sampling Rate 48kHz
Latency IN to OUT <2.9ms
Converters
Resolution 24bit AKM
Dynamic Range AD:110dB, DA: 115dB
Analog
8 Input/Output Terminal block (Symmetrical)
Analog Input headroom +27dBV = +30dBu
Max. output level +18dBV = +21dBu
Input sensitivity @ 0dBV out From -50dBV to +10dBV
in 0.5dB step
Input Impedance Balanced, >4k
Phantom power +42VDC, 5mA max.
software switched
Frequency response (-3dB) 5Hz to 24kHz
Flatness better than ±0.1dB
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008%
Output Noise floor FFT (20Hz - 20kHz) better than 115dB
Interchannel crosstalk (20Hz - 20kHz) better than 90dB (100dB typ.)
Channel Leakage (20Hz - 20kHz) better than 100dB (115dB typ.)

16
CMRR 20Hz- 20kHz 65dB typ.
Processing
Input Level (x8) Range: from Off to 0 dB
Mute: Yes
Signal Polarity reverse: Yes
Metering: VU+clip pre & post fader
Output Level (x8) Range: from Off to 0 dB
Mute: Yes
Solo: Yes
Signal Polarity reverse: Yes
Metering: VU+clip pre & post fader
Output Gain (x8) Range: from 0 to +6 dB
Input Delay (x8) from 0 to 1000 ms
Units: sec/ms/m/cm.
Output Delay (x8) from 0 to 1000 ms
Units: sec/ms/m/cm.
Parametric Eq. Types Bypass / On-Off all channels
(4 max per input) Param Eq. Freq: 20Hz-20kHz;
(6 max per output) Gain: -60/+12 dB
Q: 0.3 to 200
Low & High Shelf 6/12 dB/oct
Low & High Pass 6/12 dB/oct
All Pass 1/2 order

17
High & Low pass output Crossover filters (x8) Bypass On-Off
Butterworth in 6/12/18/24 dB/oct
Bessel in 12/18/24 dB/oct
Linkwitz-Riley in 12/24 dB/oct
Input Noise Gate (x8) Bypass On-Off
Threshold: from –80 dBV to +18 dBV
Depth: 0 dB to 80 dB
Attack time: from 0,1 ms. to 500 ms.
Hold time: from 10 ms. to 3000 ms.
Release time: from 10 ms. to 1000 ms.
Input Compressor / Limiter (x8) Bypass On-Off
Threshold: from –36 dBV to +18 dBV
Ratio: 1:1 to inf:1 (limiter)
Knee: hard / soft
Attack time: from 0,1 ms. to 500 ms.
Release time: from 10 ms. to 1000 ms.
Make up gain: from 0 to +10 dB
Input Frequency Shifter (x4) Available on IN1 to IN4. ON / OFF
function
Output Limiter (x8) Bypass On-Off
Threshold: from –36 dBV to +18 dBV
Attack time: from 0,1 ms. to 500 ms.
Release time: from 10 ms. to 1000 ms.
(Feedback Loop Reducer)

18
Built in Signal Generator Sine: from 20 Hz to 20 kHz
Polarity: from 20 Hz to 20 kHz
White noise
Pink noise
Stereo Linking Adjacent input / output channels
Linked processing
Matrix routing linked
Mix Matrix Size: 8x8
Vol: Input, Output, Crosspoint
Mute: Set/Clear individual, row,
column, all
Input /output Mono/stereo selector
Meter: Input /output VU and clip
Pager (x3) Input: IN1 to IN8
Priorities: 3 (1 max, 3 min)
Depth: 0 dB to 80 dB
Attack time: from 5 ms. to 2000 ms.
Release time: from 50 ms. to 3000 ms.
Chime Source: None, Melody 1,
Melody 2
Chime Volume: from –12 dB to 0 dB
Mechanical
Dimensions 482.6x44x266.5mm
Weight 3.5kg

19
Supply
Mains 90-264VCA 47-63Hz
Power consumption 45VA
Miscellaneous
Management Connectivity Ethernet Base-Tx 10/100Mb Auto
X-Over CAT5 up to 100m.
Remote Bus over twisted pairs; up to 1km
(see specific specs.)
GPI 8, from 0 to 10VDC or TTL level
Aux. Power Supply for Remotes & GPI +12VDC, 1.2A. max.
(short circuit protected)
Time and date retention (battery) 100 hours aprox.
(ambient temperature dependant)
RTC accuracy ±1 minute / month
Software
EclerNet Manager From v3.03r4 version.

20
9.2. MIMO1212SG
DSP
DSP 2x 32/64bit
Sampling Rate 48kHz
Latency IN to OUT <3.2ms
Converters
Resolution 24bit AKM
Dynamic Range AD:110dB, DA: 115dB
Analog
12Input/Output Terminal block (Symmetrical)
Analog Input headroom +27dBV = +30dBu
Max. output level +18dBV = +21dBu
Input sensitivity @ 0dBV out From -50dBV to +10dBV
in 0.5dB step
Input Impedance Balanced, >4k
Phantom power +42VDC, 5mA max.
software switched
Frequency response (-3dB) 5Hz to 24kHz
Flatness better than ±0.1dB
THD+Noise @ 1kHz, 0dBV input (line) <0.004%
THD+Noise @ 1kHz, -40dBV input (mic.) <0.008%
Output Noise floor FFT (20Hz - 20kHz) better than 115dB
Interchannel crosstalk (20Hz - 20kHz) better than 90dB (100dB typ.)
Channel Leakage (20Hz - 20kHz) better than 100dB (115dB typ.)
CMRR 20Hz- 20kHz 65dB typ.
