Eclipse EGO9 User manual

Always remove the first stage regulator and relieve
all residual gas pressure from the Ego9 before
disassembly.
Always remove the first stage regulator and
relieve all residual gas pressure from the Ego9 for
transport and storage.
Always follow guidelines given with your first stage
regulator for safe transportation and storage..
Always store the Ego9 in a secure place..
NOTE: THIS USER MANUAL MUST ACCOMPANY THE
PRODUCT IN THE EVENT OF RESALE OR NEW OWNERSHIP.
SHOULD YOU BE UNSURE AT ANY STAGE YOU MUST SEEK
EXPERT ADVICE! (SEE SERVICE CENTERS PAGE 78-79)
The Eclipse Ego9 is not a toy.
Careless or improper use, including failure to
follow instructions and warnings within this User
Manual and attached to the Ego9 could cause
death or serious injury.
Do not remove or deface any warnings attached
to the Ego9.
Paintball industry standard eye/face/ear and head
protection designed specifically to stop paintballs
and meeting ASTM standard F1776 (USA) or CE
standard (Europe) must be worn by user and any
person within range.
Persons under 18 years of age must have adult
supervision when using or handling the Ego9.
Observe all local and national laws,regulations and
guidelines.
Use only professional paintball fields where codes
of safety are strictly enforced.
Use compressed air/nitrogen only. Do not use CO
2
.
Always follow instructions, warnings and
guidelines given with any first stage regulator you
use with the Ego9.
Use 0.68 calibre paintballs only.
Keep the Ego9 switched off until ready to shoot.
Treat every marker as if it is loaded.
Never point the Ego9 at anything you do not
intend to shoot.
Do not shoot at persons at close range.
Always measure your markers velocity before
playing paintball, using a suitable chronograph.
Never shoot at velocities in excess of 300 feet
(91.44 meters) per second, or at velocities greater
than local or national laws allow.
Do not fire the Ego9 without the bolt in the breech,
as high-pressure gas will be emitted.
Do not fire the Ego9 without the bolt pin locked
securely in place.
Never look into the barrel or breech area of the
Ego9 whilst the marker is switched on and able
to fire.
Never put your finger or any foreign objects into
the paintball feed tube of the Ego9.
Never allow pressurised gas to come into contact
with any part of your body.
Always switch off the Ego9 when not in use.
Always fit a barrel-blocking device to the Ego9
when not in use on the field of play.
Always remove all paintballs from the Ego9 when
not in use on the field of play.
ADHERESTRICTLYTOTHESEANDALLOTHER
SAFETYINSTRUCTIONSANDGUIDELINES! ADHERESTRICTLYTOTHESEANDALLOTHER SAFETYINSTRUCTIONSANDGUIDELINES!
THIS USERS MANUAL IS IN ENGLISH.
It contains important safety guidelines and
Instructions.Should you be unsure at any
stage,or unable to understand the contents
within this manual you must seek expert
advice.
LE MODE D’EMPLOI EST EN ANGLAIS.
Ilcontient des instructions et mesures de
sécurité importantes.En cas de doute,ou
s’il vous est impossible de comprendre le
contenu du monde d’emploi,demandez
conseil à un expert.
ESTE MANUAL DE USUARIOS
(OPERARIOS)
USARIOS ESTÁ EN INGLÉS.
Contiene importantes normas de seguridad
e instrucciones.Si no está seguro de algùn
punto o no entiende los contenidos de este
manual debe consultar con un experto.
DIESE BEDIENUNGS - UND
BENUTZERANLEITUNG IST IN ENGLISCH.
Sie enthålt wichtige Sicherheitsrichtlinen
und - bestimmungen.Solten Sie sich in
irgendeinerWeise un sicher sein.Oder den
inhalte dies heftes nicht versthen,lassen Sie
siche bitte von einen Experten beraten.
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
13.
14.
16.
15.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
WARNING
WARNING
2.
WARNING
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
3.
WARNING
QUICK GUIDE

42 > PULL NO -The Ramp Start Parameter
> KICK IN -The Ramp Kick-In Parameter
43 > SUSTAIN -The Sustain Rate Parameter
> RESTART -The Ramp Restart Parameter
44 > TIMING -The Timing Menu
> DWELL -The Dwell parameter
> FSD COMP -The First Shot Drop-off
Compensation Parameter
45 > LIGHT -The Light Parameter
> SLEEP -The Sleep Parameter
46 > FILTER -The Filter Menu
47 > DBOUNCE -The Debounce Parameter
> EMPTY -The Breech Empty Time Parameter
48 > FULL -The Breech Full Time Parameter
> PULL TM -The Trigger Pull Time Parameter
49 > REL TM -The Trigger Release Time Parameter
> PULL PT -The Trigger Pull Point Parameter
50 > REL PT -The Trigger Release Point Parameter
> BASICTRIGGER FILTER SET-UP
> ADVANCED TRIGGER FILTER SET-UP
51 > TRAININ -The Training Parameter
52 > THE HARDWARE MENU
> TRIGGER -The Trigger Parameter
> SOUND -The Sound Parameter
> TONES -The Tones Parameter
53 MAINTENANCE
A guide to performing routine maintenance.
54 > CLEANING THE BREAK BEAM SENSOR SYSTEM
56 > CLEANING THE INLINE REGULATOR
58 > CLEANING THE LOW PRESSURE REGULATOR
60 > MAINTAINING THE RAMMER
62 > CLEANING AND LUBRICATINGTHE BOLT
63 > REMOVING THE FRAME
64 > ATTACHING THE FRAME
65 > THE EGO9 TRIGGER ASSEMBLY
67 > THE EGO9 SOLENOID ASSEMBLY
69 > REMOVING THE VALVE ASSEMBLY
72 > THE EGO9 ON/OFF PURGE SYSTEM
74 FAULT FINDING
Information on how to resolve any problems that
might arise with your Ego9.
78 SERVICE CENTERS
Information on the location of your nearest Ego9
Service Center.
80 PARTS LIST
A table of components that make up the Ego9.
WARRANTY CARD
Tear-out product registration card to be completed
and returned. Alternatively register online at
www.planeteclipse.com
84 SPARES & ACCESSORIES
Available upgrade / repair kits for your Ego9.
6 ORIENTATION
Names the component parts of the Ego9 Marker.This
section is essential reading for everyone.
6 > KNOWYOUR EGO9
7 > ECLIPSE SHAFT 3 BARREL
8 > INLINE REGULATOR
9 > LOW PRESSURE REGULATOR
10 > EGO9 SOLENOID ASSEMBLY
11 > OPERATIONAL OVERVIEW
12 > THE EGO9 NAVIGATION CONSOLE
13 QUICK SET-UP
Details on how to get up and running quickly with your
Ego9.This section is essential reading for everyone.
13 > INSTALLING A 9V BATTERY
14 > SWITCHING ON THE EGO9
> SWITCHING OFF THE EGO9
> FIRING THE EGO9
> THE EGO9 CIRCUIT BOARD
15 > USINGTHE BREAK BEAM SENSOR SYSTEM
16 USING YOUR EGO9
More detailed information on how to use and interact
with the Ego9 via its user interface.
16 > SETTING UP
> INSTALLING A PRESET AIR SYSTEM
17 > T-SLOT MOUNTING SYSTEM
> MACROLINE HOSING AND ELBOWS
18 > INSTALLING AN ADJUSTABLE AIR SYSTEM
19 > ATTACHING A LOADER
20 > SETTING THE TRIGGER
22 > ADJUSTING THE VELOCITY
> ADJUSTING THE LPR PRESSURE
23 > USER INTERFACE
> SWITCHING ON
> RUN SCREEN LAYOUT
24 > UNDERSTANDING THE BBSS INDICATOR
> UNDERSTANDING THE AUX OUT INDICATOR
25 > UNDERSTANDING THE SOUND INDICATOR
> UNDERSTANDING THE TRIGGER DETECTION
INDICATOR
26 > UNDERSTANDING THE LOCK INDICATOR
> UNDERSTANDING THE BATTERY LEVEL
INDICATOR
> THE GAME TIMER
> THE SHOT COUNTER
27 > THE AVERAGE RATE OF FIRE
> THE PEAK RATE OF FIRE
> THE MENU SYSTEM
28 MENU TREE
A quick reference guide to the user interface.
28 > MAIN MENU
29 > SET-UP MENU
32 ADVANCED SET-UP
In depth information on setting up the Ego9.
32 > ACCESSINGTHE MENU SYSTEM
> MOVING AROUND THE MENUS
> ALTERING PARAMETERS
33 > THE MAIN MENU
> DISPLAY -The Display Parameter
34 > TIMER -The Game Timer Menu
> GAME -The Game Time Parameter
35 > ALARM -The Alarm Time Parameter
> START -The Timer Start Parameter
36 > THE SET-UP MENU
37 > LOCK -The Tournament Lock Parameter
> PRESET -The Preset Menu
> LOAD -The Load Preset Parameter
38 > SAVE -The Save Preset Parameter
> MODE -The Firing Mode Parameter
39 > ROF CAP -Rate of Fire Cap Parameter
> MAX ROF -Maximum Rate of Fire Parameter
40 > OFF ROF -Rate of Fire With BBSS Off Parameter
> RMP SET -The Ramp Settings Menu
41 > TYPE -The Ramp Type Parameter
> RATE -The Linear Ramp Rate Parameter
4.
CONTENTS
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
5.
CONTENTS
CONTENTS
QUICK GUIDE

ECLIPSE SHAFT 3 BARREL
NOTE: THE EGO9 WILL ONLY ACCEPT COCKER THREADED
BARRELS. DO NOT USE ANY OTHER TYPE OF BARREL THREAD.
A
B
D
C
E
NOTE: THE BORE SIZE OF YOUR SHAFT 3 MAY VARY
ACCORDING TO THE MODEL OF EGO9 YOU HAVE.
KNOW YOUR EGO9
RAMMER CAP
RAMMER
BOLT PIN
BODY
CLAMPING LEVER
FEEDNECK
VALVE
PLUG
FRM SCREW
TORPEDO
INLINE REGULATOR ASSEMBLY
FRAME
SCREW
FRAME
SCREW
OOPS
BODY
OOPS
KNOB
BATTERY
VALVE
GUIDE EXHAUST
VALVE
LPR BODY
LPR CAP
VALVE
SPRING
F
TRIGGER
E
CIRCUIT BOARD
D
PILOT VALVE
C
SOLENOID ASSEMBLY
B
EYE COVER
A
EYE COVER SCREW
F
E
CD
A
B
MACRO LINE
ELBOW
OOPS
INSERT
OOPS PIN
BOLT
OOPS
SCREWS
Your Eclipse Ego9 comes as standard with an Eclipse Shaft 3 barrel.
The barrel screws into the body of the Ego9 using a right hand thread
meaning that if you hold the Ego9 pointing away from you the barrel screws
into the body in a counter-clockwise direction.
The barrel comprises of two parts, a barrel back and a barrel front .
The two parts are joined together with a left hand thread meaning that
if you hold the barrel, with the back nearest you, the front unscrews in a
counter-clockwise direction. The bore size of the barrel back is engraved at
the end of the barrel back .
On the barrel back there is a 016 NBR 70 o-ring which prevents the barrel
from vibrating loose from the Ego9 body when the marker is fired. There is
also a 015 NBR 70 o-ring on the barrel front helps with alignment when
the two sections are screwed together.
Replace and lubricate these o-rings with Eclipse Grease as necessary.
E
D
C
AB
6.
ORIENTATION
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
7.
ORIENTATION
ORIENTATION
QUICK GUIDE

LPR CAP
LPR PISTON
#010 NBR 70
LPR ADJUSTER SPRING
LOW PRESSURE REGULATOR
LPR ADJUSTER SCREW
LPR PISTON SPRING
INLINE REGULATOR BOTTOM
INLINE REGULATOR SPRING
INLINE REGULATOR TOP
INLINE REGULATOR
ADJUSTER SCREW
INLINE REGULATOR PISTON
INLINE REGULATOR
INLINE REGULATOR SWIVEL
#007 NBR 70
#013 NBR 70
#14x2 NBR 70
OR
#016 NBR 70
LPR BODY
#015 NBR 70
#015 NBR 90
#008 NBR 70
#016 NBR 70
#011 NBR 70
8.
ORIENTATION
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
9.
ORIENTATION
ORIENTATION
QUICK GUIDE

GASKET
SPOOL SHAFT
PILOT VALVE
INLET BARB
SPOOL CAP
SPOOL SPRING
M2.5x5 FIXING
SCREWS
SOLENOID BODY
EGO9 SOLENOID ASSEMBLY
Below is a brief overview of what happens
during the Ego9 firing cycle.The location of parts
discussed in the text below can be found on
page 80-81.
Assuming the Ego9 is gassed up and turned on
FIGURE 1.1 shows the marker in its idle position.
The Rammer is held in its rear position with
pressurised air from the LPR directed through
the Solenoid to the front of the rammer.The
Valve Chamber is full of pressurised air from the
Inline Regulator.
Providing a ball is in the breach and the trigger
is pulled, a signal is sent to the Solenoid which
redirects the supply of air from the front of the
Rammer to the rear, which pushes the Rammer
and Bolt forward toward the Valve (FIGURE 1.2).
As this happens the air in front of the rammer
is vented out through an exhaust port in the
Solenoid Manifold.
The Rammer makes contact with the Valve
Stem and continues to be pushed forward,now
pushing the Valve forward with it.This breaks
the Valve seal allowing pressurised air to flow
up through the Valve and into the Bolt and vent
down the barrel,propelling a ball. (FIGURE 1.3)
The time that the Rammer is held in this forward
position is dependant on the Dwell parameter.
The longer the Dwell the longer the Ego9 vents
gas down the barrel. When this Dwell time has
elapsed, the Solenoid redirects the supply of
air from the back of the Rammer to the front,
pushing the Rammer and Bolt back to the
rear position.This loss of forward force allows
the Valve to re-seal and the Valve Chamber is
re-pressurised.As the rammer moves back air
behind it is vented through an exhaust port in
the Solenoid Manifold (FIGURE 1.4).
The Ego9 has now completed one cycle and is
ready to fire again.
FIG 1.1
FIG 1.2
FIG 1.4
FIG 1.3
Air supply
from Solenoid
Air supply
from Solenoid
Air supply
from Solenoid
Air supply
from Solenoid
Air venting
Air venting
Air venting
Inline Regulator
Supply
OPERATIONAL OVERVIEW
Inline Regulator
Supply
Inline Regulator
Supply
Inline Regulator
Supply
10.
ORIENTATION
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
11.
ORIENTATION
ORIENTATION
QUICK GUIDE

INSTALLING A 9V BATTERY
Ensure that the Ego9 is switched off. Lay the marker on
a flat surface in front of you with the feed tube furthest
away and with the barrel pointing to the right.
Use a 5/64”(2mm) hex wrench to remove the three
countersunk screws that hold the rubber grip onto the
frame. Peel the grip to the right to expose the circuit
board within the frame.
Remove any fitted battery by sliding your thumb or
finger into the recess below the battery and levering
the battery out of the frame (SEE FIGURE 2.1).
DO NOT pull on the top of the battery to remove it as
this can cause the battery terminals to bend and will
result in a poor electrical connection.
Fit a 9-volt alkaline battery (type PP3,6LR61 or
MN1604) into the recess with the battery terminals
away from you.The positive terminal should be on the
right hand side, nearest to the side of the frame (SEE
FIGURE 2.2).
Ensure that all of the wires are within the recess of the
frame and away from the trigger micro-switch and
Opto sensors so as not to interfere with their operation
and replace the rubber grip and replace the three
countersunk screws.
DO NOT OVER-TIGHTENTHE SCREWS.
NOTE: BATTERY VOLTAGE MUST NOT EXCEED 10 VOLTS.
SOME 9 VOLT RECHARGEABLE BATTERIES CAN EXCEED
THIS VOLTAGE IF OVER CHARGED. IF IN DOUBT DO NOT USE
RECHARGEABLE BATTERIES.
THE EGO9 NAVIGATION
CONSOLE
At the rear of the Ego9 grip frame you will find the
Navigation Console (FIGURE 1.5).
The Navigation Console is used for:
> TURNING THE EGO9 ON AND OFF USING THE
BUTTON
> SCROLLING THROUGH MENUS WITH THE
AND BUTTONS
> SELECTING PARAMETERSTO EDIT USINGTHE
BUTTON
> EDITING PARAMETERS USING THE AND
BUTTONS
> TURNING THE EGO9 BBSS ON AND OFF USING THE
BUTTON
> RESETTING RECORDED VALUES USING THE
BUTTON
> CONTROLLING THE GAME TIMER WITH THE
BUTTON
FIG 2.2
FIG 2.1
NEXT / LOWER
PREVIOUS /
RAISE
SELECT
FIG 1.5
12.
ORIENTATION
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
13.
QUICK SET-UP
QUICK SET-UP
QUICK GUIDE

USING THE BREAK BEAM
SENSOR SYSTEM
The Break Beam Sensor System is used to detect when
a paintball is ready to fire from the Ego9. If no paintball
is ready then the BBSS will inhibit the Ego9 from firing.
This prevents the Ego9 from‘chopping’ paintballs that
are not fully loaded into the marker.
To switch off the Break Beam Sensor System,press and
hold the button for 0.5 second (SEE FIGURE 3.3).
The Break Beam sensor system indicator on the top
right of the LCD will change from (enabled) to
(disabled).
To switch the Break Beam Sensor System back on, press
and hold the button for one second.The indicator will
change back to .
When the Break Beam Sensor System is enabled, the
indicator will change depending on if the system has
detected a ball or not.When no ball has been detected
the indicator looks like this when a ball has been
detected the icon changes to look like this .
Additional features of the Ego9’s Break Beam Sensor
System are covered in full on page 24 of this user
manual.
NOTE: WHEN THE EGO9 IS TURNED ON, THE BREAK BEAM
SENSOR SYSTEM IS AUTOMATICALLY ENABLED.
SWITCHING ON THE EGO9
To switch on the Ego9 press the button twice in
quick succession, referred to elsewhere in this manual
as‘double-clicking’.The Ego9 can also be switched on
by pushing and holding the button (FIGURE 3.1).
SWITCHING OFF THE EGO9
Press and hold the button until the display shows
OFF? Release the button and re-press it to turn off
the Ego9. Alternatively when the display reads OFF?,
you can pull the trigger once to turn off the Ego9.
FIRING THE EGO9
Pull the trigger to fire the Ego9.The entire firing
sequence is controlled electronically by the Ego9 circuit
board, enabling any user to easily achieve high rates
of fire.
THE EGO9 CIRCUIT BOARD
There are three sockets on the Ego9 Circuit board two
of which are occupied by the BBSS Connector (A) and
the Ego9 Solenoid Connector (B).The third socket on
the board (C) is the Auxiliary socket to which third
party products such as loaders and RF transmitters can
be connected using the relevant wiring harness (SEE
FIGURE 3.2).
NOTE: ON POWER UP THE EGO 9 CHECKS TO SEE IF ANY
COMPATIBLE THIRD PARTY PRODUCTS ARE CONNECTED
TO THE AUXILIARY SOCKET AND IF ANY ARE FOUND
AUTOMATICALLY ENABLES THE AUXILIARY PORT.
FIG 3.3
FIG 3.2
FIG 3.1
CA
B
14.
QUICK SET-UP
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
15.
QUICK SET-UP
QUICK SET-UP
QUICK GUIDE

T-SLOT MOUNTING SYSTEM
The Ego9 utilises a T-slot arrangement to mount the
OOPS to the bottom of the frame.The T-slot is an
improvement over the dovetail mounting system
found on most paintball markers,and is much more
able to withstand the rigours of modern tournament
paintball.
For backwards compatibility there are industry
standard mounting holes in the base of the frame for
mounting third party air source adaptors (ASAs).
MACROLINE HOSING AND
ELBOWS
To aid the longevity of your macroline hosing, it is
very important to remove it from (and install it back
into) the fittings in the correct manner:
Pull back the collet section of the macroline fitting and
keep the collet depressed.
Pull the macroline hose out of the macroline fitting and
release the collet.
Before installing the macroline hose into the macroline
fitting ensure that the end has been trimmed correctly
to ensure a tight fit in the fitting.
SETTING UP
Before you can begin to use your Ego9, you will need to
attach an air system and a paintball loader.
INSTALLING A PRESET AIR
SYSTEM
Every Ego9 comes complete with an Eclipse On/
Off Purge System (OOPS) which provides a direct
connection for a preset air system.Before screwing the
air system into the OOPS ensure that the On/Off knob
is wound out approximately half way (SEE FIGURE 4.1).
Be careful not to unscrew the On/Off knob too far as
it will come completely off the OOPS.If this happens,
replace the On/Off knob by screwing it back onto the
OOPS body in a clockwise direction.
Screw the preset air system into the OOPS (SEE FIGURE
4.2) so that the bottle screws in all the way and is tight.
Slowly turn the On/Off knob in a clockwise direction
allowing the OOPS to depress the pin of the preset
air system causing the Ego9 to become pressurised,
providing that there is sufficient air in your tank (SEE
FIGURE 4.3).
You have now installed a preset air system onto your
Ego9.
NOTE: THE EGO9 CANNOT BE USED WITH CO2,IT CAN ONLY
BE POWERED BY COMPRESSED AIR OR NITROGEN.
WARNING: ALWAYS RELIEVE ALL RESIDUAL GAS
PRESSURE FROM THE EGO9 BEFORE UNSCREWING THE
PRESET AIR SYSTEM.
WARNING
T-SLOT
MOUNT
FIG 4.3
FIG 4.2
FIG 4.1
IF YOU EVER REMOVE THE MACROLINE HOSE FROM
THE FITTING, ALWAYS CHECK THE CONDITION OF YOUR
MACROLINE HOSING AND IF IT IS WORN OR THE WRONG
LENGTH REPLACE IT IMMEDIATELY.
WARNING
16.
USING YOUR EGO9
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
17.
USING YOUR EGO9
USING YOUR EGO9
QUICK GUIDE

ATTACHING A LOADER
Using a 5/32”hex key, turn the top screw of the
clamping feed neck counter clockwise (SEE FIGURE 5.1).
Release the clamping lever on the feed neck (SEE
FIGURE 5.2) and test to see if your loader can easily
be pushed into the top of the feed neck.If the loader
cannot easily be pushed into the feed neck, loosen the
top screw of the clamping feed neck a little more by
turning it counter clockwise using a 5/32”hex key (SEE
FIGURE 5.1).
When you have managed to push your loader into the
clamping feed neck, close the clamp to secure it firmly
in place (SEE FIGURE 5.3). If the loader is loose then
you will need to release the clamp, tighten the screw
slightly by turning it clockwise with a 5/32”hex key and
closing the clamp. Repeat this process as necessary to
secure your loader in place.
You have now attached a loader to your Ego9. Once
you have filled your loader and air tank you will then be
ready to begin using your Ego9.
INSTALLING AN
ADJUSTABLE AIR SYSTEM
Firstly disconnect the macroline hosing from the elbow
attached to the OOPS at the base of the grip frame
(SEE FIGURE 4.4).
Unscrew the On/Off knob completely from the OOPS
and using a 3/32”hex key turn the two screws on the
bottom of the OOPS in a counter clockwise direction so
that the OOPS can be removed from the rail by sliding
it backwards (SEE FIGURE 4.5).
As well as the integrated slide rail at the base of
the Ego9’s grip frame,there are also two 10-32 UNF
threaded screw holes which will accept all standard
bottom line screws (SEE FIGURE 4.6).
Attach the air system of your choice,taking care to
ensure that you use the correct length and size of
hosing to accommodate your requirements.
BEFORE ATTACHING ANY FIXED AIR SYSTEM, PLACE
ATTACHING SCREW IN DESIGNATED SLIDE RAIL AND
MEASURE PROTRUDING SCREW LENGTH. SCREW
LENGTH MUST NOT PROTRUDE MORE THAN 10MM/0.40”
OTHERWISE THE EGO9 CIRCUIT BOARD WILL BECOME
DAMAGED.
WARNING
WARNING: DO NOT OVER TIGHTEN THE CLAMPING FEED
NECK AS THIS MAY DAMAGE THE LOADER.
WARNING

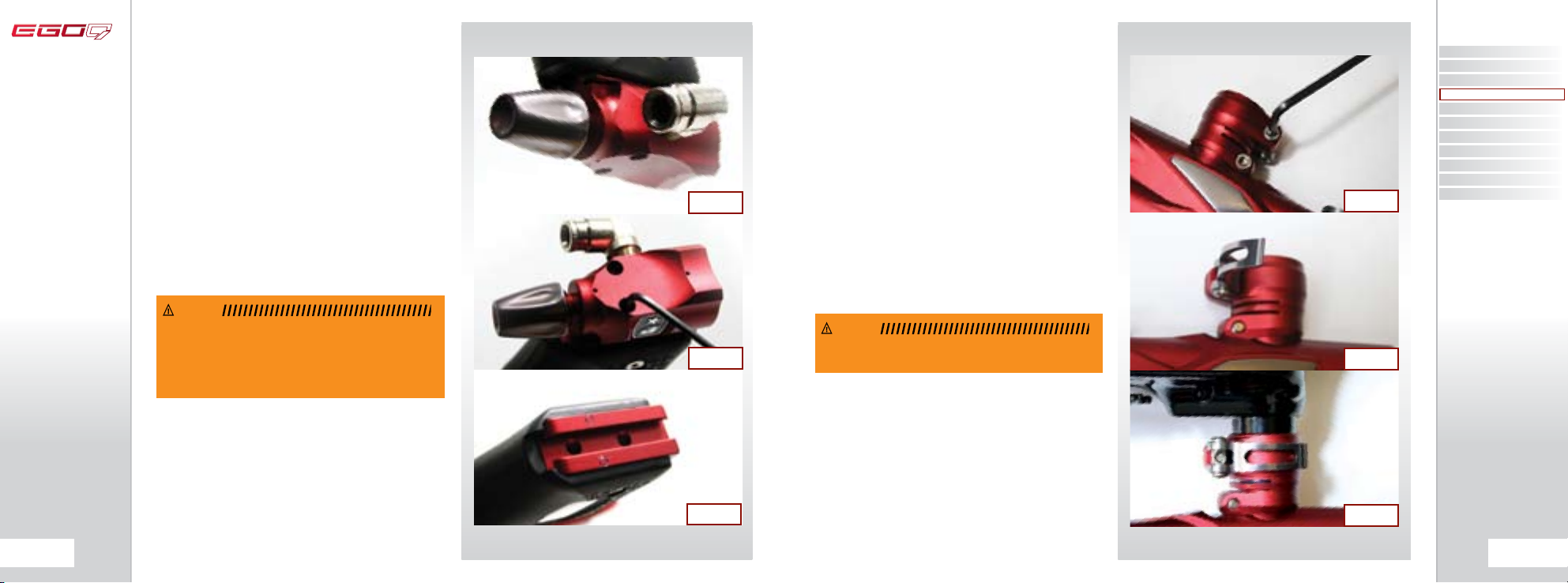

FIG 5.3
FIG 5.2
FIG 5.1
FIG 4.6
FIG 4.5
FIG 4.4
18.
USING YOUR EGO9
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
19.
USING YOUR EGO9
USING YOUR EGO9
QUICK GUIDE

(CONTINUED)
The Micro Switch Activation Screw is used to adjust the
point in the trigger pull at which the micro-switch is
activated.Turn the screw clockwise to decrease the
amount of trigger travel to the activation point.Turn
the screw counter clockwise to increase the amount of
trigger travel to the activation point (SEE FIGURE 6.4).
The Spring Return Strength Screw can only be adjusted
by first removing the frame from the marker body, as
per the instructions in the Maintenance section on
page 63.The Spring Return Strength Screw is used to
adjust the spring strength that returns the trigger to its
resting position.Turn the screw clockwise to increase
the amount of spring return strength in the trigger
pull.Turn this screw counter clockwise to reduce the
amount of spring return strength in the trigger pull.
Do not turn the screw too far counter clockwise or
there will not be enough force to return the trigger
consistently (SEE FIGURE 6.5).
When setting the trigger it is important to ensure that
the electronic trigger detection is working correctly.
When the trigger is fully depressed the Trigger
Detection Indicator (TDI) should point upwards
.When the trigger is fully released the TDI should
point downwards . For more information,
see Understanding the Trigger Detection Indicator
(TDI) on page 25 and The Filter Menu on page 46.
FIGURE 6.6 KEY
ASpring
BSpring Return Strength Screw
CTrigger Pin Locking Screw
DFront Stop Trigger Screw
EMagnet Return Strength Screw
FMicro Switch Activation Screw
GRear Stop Trigger Screw
SETTING THE TRIGGER
The Ego9 provides the user with the option to use
either a Micro-Switch or an Opto Sensor as the means
for detecting trigger pulls. Before you begin to adjust
and set your trigger, you must first select the method
of trigger detection that you wish to use by entering
the Set-Up Menu and making your selection from the
Hardware Menu (see page 52).
There are five adjustment points on the trigger – the
Front Stop Trigger Screw, the Rear Stop Trigger Screw,
the Magnet Return Strength Screw, the Micro Switch
Activation Screw and the Spring Return Strength Screw.
As standard each Ego9 comes with a factory set trigger
travel of approximately 2mm in total length;one
millimeter of travel before the firing point and one
millimeter of travel after the firing point, and the trigger
detection method set to Opto.
The Front Stop Trigger Screw is used to set the amount of
trigger travel prior to the marker firing.Turn this screw
clockwise to reduce the amount of travel.Do not turn
the screw too far or the trigger will be pushed past
the firing point and the marker will not work.Turn this
screw counter clockwise to increase the amount of
trigger travel (SEE FIGURE 6.1).
The Rear Stop Trigger Screw is used to set the amount
of travel after the marker has fired.Turn this screw
clockwise to reduce the amount of travel.Do not turn
the screw too far or the trigger will be prevented from
reaching its firing point and the marker will not work.
Turn this screw counter clockwise to increase the
amount of travel (SEE FIGURE 6.2).
The Magnet Return Strength Screw is used to adjust the
amount of force with which the trigger is returned to its
rest position by the magnet.Turn the screw clockwise
to increase the amount of force. Do not turn the screw
too far or it will negate the position of the Front Stop
Trigger Screw.Turn the screw counter clockwise to
reduce the amount of force.Do not turn the screw
too far or there will not be enough force to return the
trigger (SEE FIGURE 6.3).
FIG 6.2
FIG 6.3
FIG 6.4
FIG 6.5
FIG 6.6
A
B
C
F
G
DE
FIG 6.1
20.
USING YOUR EGO9
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
21.
USING YOUR EGO9
USING YOUR EGO9
QUICK GUIDE

USER INTERFACE
The Ego9 has a simple user interface through which
all aspects of it’s electronic control system can be
monitored and adjusted by means of the three
pushbuttons and graphical LCD which comprise the
Navigation Console.
SWITCHING ON
Pressing and holding or double-clicking the button
will switch the Ego9 on.The LCD display will show the
Ego9 logo.When the button is released, the LCD will
show the Run Screen, which is the screen displayed
during the normal use of the Ego9.
RUN SCREEN LAYOUT
The root of the user interface is the Run Screen.This
screen is the one most often displayed and provides
the user with essential feedback on the state of the
Ego9.A typical Run Screen is shown on the right.
On the left of the screen is a display option that is user
selectable from the Main Menu (see page 33).This
option can be:-
> A GAME TIMER
> A SHOT COUNTER
> AN AVERAGE RATE OF FIRE INDICATOR
> A PEAK RATE OF FIRE INDICATOR
Briefly pressing the button will replace the display
option with the name of the currently selected Preset
(see page 37).
On the right of the screen are up to six icons,each of
which provides graphical indication on different parts
of the Ego9 control electronics:
ADJUSTING THE VELOCITY
When using your Ego9, you may wish to change the
velocity at which your Ego9 is firing.This is done by
inserting a 1/8" hex key into the adjuster screw at the
bottom of your Ego9 Inline Regulator and adjusting it
accordingly (SEE FIGURE 7.1). By turning this adjuster
screw clockwise you decrease the output pressure of
the Inline Regulator and consequently the velocity,
by turning the adjuster screw counter clockwise you
increase the output pressure of the Inline Regulator
and consequently the velocity. (There are also
engravings on the bottom of the Inline Regulator
showing which direction increases and decreases
velocity).
ADJUSTING THE LPR
PRESSURE
When using your Ego9, you may wish to change the
output pressure of your LPR.This is easily done by
inserting a 1/8" inch hex key into the adjuster screw at
the front and adjusting it accordingly (SEE FIGURE 7.2).
However we recommend that the LPR screw be left set
flush with the front of the LPR cap.
By turning the adjuster screw clockwise, you decrease
the output pressure of your LPR and consequently
reduce the pressure driving your rammer back and
forth.By turning the adjuster screw counter clockwise,
you increase the output pressure of your LPR and
consequently increase the pressure driving your
rammer back and forth.
NOTE: AFTER EACH ADJUSTMENT FIRE TWO CLEARING
SHOTS TO GAIN AN ACCURATE VELOCITY READING. NEVER
EXCEED 300FPS.
NOTE: TURNING THE ADJUSTER SCREW IN TOO FAR WILL
PREVENT THE EGO9 FROM FIRING. NOTE: THE AUX OUT INDICATOR IS ONLY DISPLAYED WHEN YOU
CONNECT A COMPONENT SUCH AS A RF TRANSMITTER VIA THE
AUXILIARY SOCKET ON THE CIRCUIT BOARD (SEE PAGE 14).
BREAK BEAM SENSOR SYSTEM
INDICATOR
USER SELECTABLE
DISPLAY OPTION
LOCK INDICATOR
BATTERY LEVEL
INDICATOR
TRIGGER DETECTION
INDICATOR
AUX OUT INDICATOR
FIG 7.1
FIG 7.2
SOUND INDICATOR
22.
USING YOUR EGO9
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
23.
USING YOUR EGO9
USING YOUR EGO9
QUICK GUIDE

UNDERSTANDING THE
SOUND INDICATOR
The SOUND Indicator on the main screen is used to
convey if the SOUND parameter in the Hardware Menu
(page 52) is switched on or off.
There are two possible conditions that can be indicated:
In order for the trigger to be successfully operated
it must first be released and then pulled.The Trigger
Detection Indicator (TDI) is used to indicate each of the
possible trigger states.
From the factory the Ego9 will have the Opto sensor
enabled.The Micro-Switch option can be selected by
referring to the Hardware Menu (see page 52).
UNDERSTANDING
THE BREAK BEAM SENSOR
SYSTEM INDICATOR (BBSS)
The BBSS is able to switch itself off in the event
that a blockage or contamination prevents it from
functioning correctly. In this instance, the BBSS will
switch itself back on once the blockage is cleared and
the correct operation can be resumed.
The BBSS Indicator on the main screen is used to
indicate the eight possible states of the BBSS as follows:
UNDERSTANDING
THE AUX OUT INDICATOR
The auxiliary socket on the Ego9 circuit board allows
third party products such as loaders or RF transmitters
to be interfaced to the Ego9.
On power up the Ego 9 checks to see if any compatible
third party products are connected to this socket and,
if any are found,switches on the auxiliary port and
displays the Aux Out Indicator.
There are two possible conditions that can be indicated:
UNDERSTANDING THE
TRIGGER DETECTION
INDICATOR (TDI)
SOUND ENABLED
The SOUND parameter is enabled. The Ego9
will make sounds when switched on and off
and when the game timer alarms or times
out.
SOUND DISABLED
The SOUND parameter is disabled.The Ego9
will not make any sounds.
MICRO-SWITCH SELECTED, NOT
ACTUATED
The Ego9 is configured to use the micro-
switch to detect trigger pulls.The micro-
switch is not currently actuated, i.e.the
trigger is released.
MICRO-SWITCH SELECTED, ACTUATED
The Ego9 is configured to use the micro-
switch to detect trigger pulls.The micro-
switch is currently actuated,i.e. the trigger
is pulled.
OPTO SENSOR SELECTED, READING
ABOVE PULL POINT
The Ego9 is configured to use the Opto
sensor to detect trigger pulls.The Opto
sensor is currently reading above the Opto
Pull Point, i.e.the trigger is considered
‘pulled’.
OPTO SENSOR SELECTED, READING 0%
The Ego9 is configured to use the Opto
sensor to detect trigger pulls.The Opto
sensor is currently reading 0%, i.e.the
trigger is fully released.
OPTO SENSOR SELECTED, READING 100%
The Ego9 is configured to use the Opto
sensor to detect trigger pulls.The Opto
sensor is currently reading 100%,i.e. the
trigger is fully depressed.
OPTO SENSOR SELECTED, READING
BELOW RELEASE POINT
The Ego9 is configured to use the Opto
sensor to detect trigger pulls.The Opto
sensor is currently reading below the Opto
Release Point, i.e.the trigger is considered
‘released’.
BBSS ENABLED AND BALL DETECTED
The Ego9 can be fired at the maximum
rate of fire determined by the chosen firing
mode.
BBSS FAULT HAS BEEN CLEARED
The sensor has been re-enabled.A ball is
detected and the Ego9 can be fired at the
maximum rate of fire determined by the
chosen firing mode.
BBSS ENABLED NO BALL DETECTED
The Ego9 cannot be fired.
BBSS FAULT HAS BEEN CLEARED
The sensor is enabled.No ball is detected
so the Ego9 cannot be fired.To reset the
BBSS icon, use the button to switch off
the BBSS and then back on again.
BBSS DISABLED
The Ego9 can be fired at a maximum rate
of fire as set by the OFF ROF parameter (see
page 40).
BBSS ENABLED IN TRAINING MODE
The BBSS has been over-ridden as the
user has selected training mode.As the
user has chosen to leave the BBSS on,the
achievable rate of fire is limited by the
firing mode.
BBSS FAULT DETECTED
The system is disabled.The Ego9 can only
be fired at a maximum rate of fire of 10bps,
regardless of the chosen firing mode.
BBSS DISABLED IN TRAINING MODE
The BBSS has been over-ridden as the
user has selected training mode.As the
user has chosen to turn the BBSS off,
the achievable rate of fire is limited by
the OFF ROF parameter (see page 40).
OPTO SENSOR SELECTED, READING
MID-RANGE
The Ego9 is configured to use the Opto
sensor to detect trigger pulls.The Opto
sensor is currently reading somewhere
between the Opto Release Point and
the Opto Pull Point, i.e.the trigger is half
depressed.
AUX OUT ENABLED
The AUX OUT is enabled. Each time the
circuit board detects a valid trigger pull a
signal will be sent to the AUX connector on
the circuit board.
AUX OUT DISABLED
The AUX OUT is disabled. No signal will be
sent to either the AUX connector on the
circuit board.
24.
USING YOUR EGO9
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
25.
USING YOUR EGO9
USING YOUR EGO9
QUICK GUIDE

THE AVERAGE RATE OF FIRE
When the Average ROF is
selected for display the Run
Screen will look something like
the screen to the right.The value
displayed in the top left of the
screen represents the number
of full cycles completed in the
last second - the average rate
of fire over the second.The
number below it is the maximum
average rate of fire that has been
recorded.To reset this maximum,
press and hold the button for
0.5 seconds.
THE PEAK RATE OF FIRE
When the Peak ROF is selected for
display the Run Screen will look
something like the screen to the left,
which differs from the display of the
Average ROF by the inclusion of the
indicator‘PK’.The value displayed in
the top left of the screen represents
the rate of fire measured between
the last two shots.The number
below it is the maximum peak rate
of fire that has been recorded.To
reset this maximum, press and hold
the button for 0.5 seconds.
The Peak ROF is typically higher
than the Average ROF as it is much
easier to fire two shots in quick
succession than it is to maintain a
string over a longer period of time.
THE MENU SYSTEM
Behind the Run Screen is a structured menu system
comprised of multiple levels of menus. Each menu
contains a number of menu items and each menu
item can either be an editable parameter or a branch
to another menu.Branches always have an animated
graphic whereas parameters indicate their current
value.
The menu structure is shown in the following pages.
The menus are‘smart menus’ in that they will expand
and contract depending upon the state of certain
parameters. For example, the MAX ROF parameter is
only visible when the ROF CAP parameter is set to‘on’.
Smart menu items are indicated with a * in the table
below.
UNDERSTANDING THE
LOCK INDICATOR
The Ego9 has a tournament lock which prevents the
user from making changes to any parameter that
affects the way in which the Ego9 shoots, without the
need for tools.This feature is necessary in order to make
the Ego9 legal for tournament play.
When the lock is enabled the lock indictor will show a
closed padlock .
When the lock is disabled the lock indictor will show an
open padlock .
UNDERSTANDING THE
BATTERY LEVEL INDICATOR
The battery level indicator is used to show the state
of the battery within the Ego9.When the battery is
fresh the indicator will show a‘full’battery and as the
battery is drained, so the indicator will show the battery
emptying. When the battery reaches a point at which
the Ego9 will no longer function reliably, the indicator
will start to flash. At this point the battery must be
changed immediately.
THE GAME TIMER
When the Game Timer is shown on the Run Screen
then it can be started by pressing the button and the
timer will start to count down.The Game Timer can also
be configured to start on a trigger press with the START
parameter (see page 35).
When the Game Timer reaches the ALARM time the
Gamer Timer will start to flash and the audible alarm
will sound every second,provided that the SOUND
parameter is on.
When the Game Timer reaches
00:00,GAME OVER will be displayed
and the audible alarm will sound
continually, provided that the
SOUND parameter is set to‘on’.
To stop the Game Timer at any time
press and hold the button for 0.5
seconds.
To reset the Game Timer to it’s
preset start time,push and hold the
button for 1 second.The Game
Timer will also be reset whenever
the Ego9 is switched off.
THE SHOT COUNTER
The Shot Counter increments
every time that the Ego9 is fired,
regardless of whether the Shot
Counter is displayed or not.When
the Shot Counter is displayed on the
Run Screen it can be reset to 0 by
pressing and holding the button
for 0.5 seconds.
TYPICAL
BRANCH
TYPICAL
PARAMETER
26.
USING YOUR EGO9
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
27.
USING YOUR EGO9
USING YOUR EGO9
QUICK GUIDE

MAIN MENU
Timer
Shots
AvgROF
Peak ROF
Cancel
00:00 -60:00
00:00 -10:00
Button
Trigger
Cancel
MAIN MENU
OFF?
DISPLAY
TIMER
GAME
ALARM
START
EXIT
BACK
Turn off the Ego9
Displaythe gametimerontheRunScreen
Displaythe shotcounteron the RunScreen
Displaythe average rateoffire on the RunScreen
Displaythe peakrate offireontheRun Screen
Cancel the displayselection
Countdowngame timerstarttime
Alarm activation time
buttonstarts thegametimer
Triggerpull starts thegametimer
Cancel gametimerstartevent selection
Gobackone menulevel
Return to the RunScreen
Parameters followed by a * are part of the smart menu system and will only be displayed
depending on your chosen settings.(E.g.The MAX ROF parameter will only become available
if the ROF CAP parameter is set to on).
SET-UP MENU
Off
On
Cancel
User 1
User 2
Factory
NPPL
PSP xx**
MSxx**
Cancel
User 1
User 2
Cancel
Semi
Ramp
Cancel
Off
On
Cancel
10.0-30.0
4.0 -15.0
SET-UP MENU
LOCK
PRESET
LOAD
SAVE
BACK
Turn the tournamentlockoff
Turn the tournamentlockon
Makeno changestothe tournamentlock
Load theUser 1settings
Load theUser 2settings
Load thedefault factorysettings(semi-automatic)
Load NPPL compliant settings
Load thePSP 20xx compliantsettings
Load MillenniumSeries20xxcompliantsettings
Cancel the load operation
Savethecurrentsettings asthe User 1 settings
Savethecurrentsettings asthe User 2 settings
Cancel the save operation
Gobackone menulevel
Selectsemi-automatic mode of fire
Selectrampingmode of fire
Cancel the mode selection
Turn off the rateof fire cap
Turn ontherate offire cap
Cancel the ROFcapselection
Rate offire capin balls per secondwhenBBSS is enabled
Rate offire capin balls per secondwhenBBSS is disabled
MODE
ROFCAP
MAXROF*
OFFROF
** - xx in a preset parameter will be substituted by a numerical value on the LCD display
denoting the relevant year that preset was introduced.
28.
MENU TREE
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
29.
MENU TREE
MENU TREE
QUICK GUIDE

SET-UP MENU
Step
Linear
Cancel
0- 100
4- 9
5.0 -15.0
5.0 -15.0
0.0 -1.0
0.0 -25.0
0.0 -3.0
0.0 -20.0
5- 60
Level9
.
Level1
Cancel
1.0 -20.0
TYPE
RATE
BACK
Selectstep typeramping
Selectlineartyperamping
Cancel the ramp typeselection
Percentage linearramprate
Numberof shotsbeforeramping can start
Rate atwhich triggerhastobepulledinpullspersecond beforerampingcan start
Rate atwhich triggerhastobepulledinpullspersecond inorder to maintain
ramping
Time inseconds afterlasttrigger pull during whichramp can berestarted
Gobackone menulevel
Solenoid energise time inmillisecondsforeachshot
Firstshotdrop-off compensation time in milliseconds
Backlight offdelay inseconds
Auto poweroff timein minutes
Gobackone menulevel
Usetrigger debouncelevel9(lessbounce)
Usetrigger debouncelevel1(morebounce)
Cancel debounce selection
Time inmillisecondsthatthe breechmustremain emptybeforethe BBSS canlook
forapaintball
TIMING
FILTER
PULLNO
KICKIN
SUSTAIN
RESTART
DWELL
FSDCOMP
LIGHT
SLEEP
BACK
DBOUNCE
EMPTY
FULL
SET-UP MENU
1.0 -20
3.0 -25.0
3.0 -25.0
51- 99
1- 49
Off
On
Cancel
Opto
Switch
Cancel
Off
On
Cancel
Off
On
Cancel
PULLTM
BACK
Time inmillisecondsthata paintball must beinthebreechfortheEgo9 to be
readyto fire
Time inmillisecondsthatthe triggermustbepulled forashot tobefired
Time inmillisecondsthatthe triggermustbereleasedbeforeapullcan be
recorded
Top limit (triggeractivation point)ofdebouncebandexpressed asapercentage
Bottom limit(triggerrelease point) of debouncebandexpressedasa percentage
Gobackone menulevel
Trainingmodedisabled
Trainingmodeenabled
Cancel trainingmode selection
UseOpto sensorto detecttriggeroperation
Usemicro-switchto detect triggeroperation
Cancel triggerdetection methodselection
Turn off audible indicator
Turn onaudible indicator
Cancel audibleindicator selection
Turn off audible tone whenanybutton ispressed
Turn onaudible tone when anybuttonispressed
Cancel audibletoneselection
Gobackone menulevel
Return to the RunScreen
TRAININ
RELTM
PULLPT*
RELPT*
TRIGGER
SOUND
TONES*
BACK
HARDWRE
EXIT
RAMPSET*
Parameters followed by a * are part of the smart menu system and will only be displayed
depending on your chosen settings.(E.g.The MAX ROF parameter will only become available
if the ROF CAP parameter is set to on).
30.
MENU TREE
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
31.
MENU TREE
MENU TREE
QUICK GUIDE

ACCESSING THE MENU
SYSTEM
To access the Main Menu from the Run Screen double-
click the button and the first item on the Main Menu
will be displayed.Alternatively, push and hold the
button for 2 seconds.
To access the Set-up Menu from either the Run Screen
or the Main Menu push the internal button and the first
item on the Set-up Menu will be displayed.
MOVING AROUND THE
MENUS
Press and release the button to display the
next item on the menu.When the last menu item is
displayed, pressing the button will display the first
item.
Press and release the button to display the previous
item on the menu.When the first menu item is
displayed, pressing the button will display the last
item.
When the displayed item is a branch, as indicated
by an animation on the right of the screen, press the
button to move to another menu.
ALTERING PARAMETERS
When the displayed item is a parameter, as indicated by
a parameter value on the right of the screen,pressing
the button will activate the EDIT mode which allows
the parameter value to be altered.When
EDIT mode is active, edit indicators
appear on the left of the screen as shown
in the screen below.
There are two types of parameter,
numeric parameters and choice
parameters.
A numeric parameter has a value which
is a number whereas a choice parameter
is one that has a small number of distinct
choices.Altering parameter values is
essentially the same for both types of parameter.
To alter a numeric parameter, first activate the EDIT
mode.Press the button to increase the parameter
value one step at a time.Press and hold the button
to increase the parameter value rapidly.When the value
reaches it’s maximum it will revert to it’s minimum
value.Press the button to decrease the parameter
value one step at a time.Press and hold the button
to decrease the parameter value rapidly.When
the value reaches it’s minimum it will revert to it’s
maximum value.When the required parameter value is
displayed press the button to accept the value and
end the EDIT mode.
To alter a choice parameter, first activate the EDIT mode.
Press the button to display the next choice in the
list.When the last choice is displayed,pressing will
display the first choice in the list.Press the button
to display the previous choice in the list.When the first
choice is displayed, pressing the button will display
the last choice in the list.When the required choice is
displayed press the button to accept the choice and
end the EDIT mode.If the displayed choice is Cancel
then pressing the button will end the EDIT mode
and restore the parameter to the value that is was prior
to editing.
NOTE: IF THE TOURNAMENT LOCK IS SET TO‘OFF’THEN THE
MAIN MENU AND SET-UP MENU ARE JOINED TOGETHER
WHICH MEANS THAT THEY CAN BE ACCESSED IN EITHER OF
THE TWO WAYS ABOVE.
THE MAIN MENU
The Main Menu comprises parameters that do not
affect the way in which the Ego9 shoots and which
therefore do not have to be tournament locked.
From the Run Screen push and hold the button.
Initially, the current Preset configuration will be
displayed and then after one 1 second OFF? will be
displayed, the first item on the Main Menu.
To turn off the Ego9, select the OFF? branch or pull the
trigger while the OFF? branch is displayed.
To return to the Run Screen, select the EXIT branch.
DISPLAY
THE DISPLAY PARAMETER
This parameter is used to select the information that is
displayed on the left of the Run Screen.This parameter
has the following choices:-
>TIMER: The Game Timer is displayed on the Run
Screen
>SHOTS: The Shot Counter is displayed on the Run
Screen
>AVG ROF: The Average Rate of Fire is displayed on
the Run Screen
>PEAK ROF: The Peak Rate of Fire is displayed on
the Run Screen
>CANCEL: Editing is cancelled and the parameter
remains unchanged.
This parameter differs from most others in that once
a choice has been made then the EDIT mode is ended
and the display returns to the Run Screen.
NOTE: IF THE LOCK OPTION IS DISABLED FURTHER OPTIONS
WILL BE DISPLAYED IN THE MAIN MENU.
EDIT INDICATORS
32.
ADVANCED SET-UP
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
33.
ADVANCED SET-UP
ADVANCED SET-UP
QUICK GUIDE

TIMER
THE GAMETIMER MENU
This menu is comprised of parameters that control the
operation of the Game Timer:
GAME
THE GAMETIME PARAMETER
This parameter is used to set the game time; the time
from which the game timer counts down to zero.This
parameter can be set between 00:00 and 60:00 minutes
in 10 second increments and the factory default is
07:10 (7 minutes 10 seconds).
When the game timer reaches 00:00, GAME OVER
will be displayed and the audible alarm will sound
continually, provided that the SOUND parameter is set
to ‘ON’.
ALARM
THE ALARMTIME PARAMETER
An alarm condition is generated whenever the game
timer counts down to a specific time set by the ALARM
parameter.This parameter can be set between 00:00
and 10:00 minutes in 10 second increments.
When the alarm condition is generated the game timer
will start to flash and the audible alarm will sound
every second, provided that the SOUND parameter is
set to ‘on’.
START
THE TIMER START PARAMETER
This parameter is used to select the event which will
cause the game timer to begin counting down.This
parameter has the following choices:
> BUTTON: Pressing the button will start the game
timer.
> TRIGGER: Pulling the trigger will start the game
timer.
> CANCEL: Cancel editing and leave the parameter
unchanged.
34.
ADVANCED SET-UP
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
35.
ADVANCED SET-UP
ADVANCED SET-UP
QUICK GUIDE

THE SETUP MENU
This menu is the starting point for access to all of
the parameters that control the way that the Ego9
operates.To access this menu, first turn on the Ego9
and then remove the 3 screws holding the right hand
cheek of the rubber grips (SEE FIGURE 8.1). Peeling back
the cheek will reveal a red Setup (A) button on the
circuit board (SEE FIGURE 8.2),double-click this button
or, alternatively, push and hold it for 2 seconds.
If the tournament lock (LOCK) is off then this menu is
joined to the end of the Main Menu and can therefore
be accessed without tools.
LOCK
THE TOURNAMENT LOCK PARAMETER
The Ego9 has a tournament lock which prevents the
user from making changes to any parameter that
affects the way in which the Ego9 shoots without the
use of tools.
This parameter is used to set the state of the
tournament lock and has the following choices:-
> OFF: Turn on the tournament lock.The Set-up Menu is
added to the Main Menu, making it easily accessible by
pressing and holding the button.
> ON: Turn off the tournament lock.The Set-up Menu
is only accessible by removing the right hand cheek of
the rubber grips and then pressing and holding the red
SETUP button on the circuit board.
> CANCEL: Cancel selection and leave the parameter
unchanged.
PRESET
THE PRESET MENU
In order to simplify the set up of the Ego9 a number
of Preset configurations are available for selection.
Choosing one of these presets will cause all of the
necessary parameters to be set in such a way as to
make the Ego9 comply with the rules governing a
particular paintball league.It is also possible for the
user to save up to two Preset configurations of their
own.
LOAD
THE LOAD PRESET PARAMETER
This parameter is used to load the required Preset
configuration and has the following choices.
> FACTORY: Reset every parameter to the factory set
defaults.The Ego9 leaves the factory set in this way and
this is also described on the Run Screen as SEMI.
> NPPL: Load a set of parameters that configures the
Ego9 to comply with the 2008 NPPL rules governing
firing modes.
> PSP xx: Load a set of parameters that configures the
Ego9 to comply with the 20xx PSP rules governing
firing modes.
FIG 8.1
FIG 8.2
A
36.
ADVANCED SET-UP
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
37.
ADVANCED SET-UP
ADVANCED SET-UP
QUICK GUIDE

> MS xx: Load a set of parameters
that configures the Ego9 to comply
with the 20xx Millennium Series rules
governing firing modes.
> CANCEL: Editing is cancelled and the
parameter remains unchanged.
> USER 1: Load a set of custom firing
mode parameters that have been
previously saved by the user.
> USER 2: Load a second set of custom
firing mode parameters that have
been previously saved by the user.
With the exception of FACTORY each
of the Presets changes only those
parameters that control the firing
mode of the Ego9,leaving FILTER,
TIMING and HARDWARE parameters
unchanged.
SAVE
THE SAVE PRESET PARAMETER
This parameter is used to save the
current set of parameters as a user
defined custom Preset configuration.
This parameter has the following
choices:-
> USER 1: Save the current parameters
as the Preset‘USER 1’.
> USER 2: Save the current parameters
as the Preset‘USER 2’.
> CANCEL: Editing is cancelled and the
parameter remains unchanged.
MODE
THE FIRING MODE PARAMETER
This parameter is used to select the firing mode of the
Ego9 and has the following choices:
> SEMI: This is the default and in this firing mode the
Ego9 will fire one shot for every trigger pull.
> RAMP: In this firing mode,the rate of fire is increased
above the rate at which the trigger is pulled once
certain criteria have been met.These criteria are set by
the parameters on the Ramp Set Menu.
> CANCEL: Editing is cancelled and the parameter is
unchanged.
PLEASE NOTE: CERTAIN MODES MAY ONLY BE AVAILABLE
IN CERTAIN COUNTRIES AND ON CERTAIN MODELS OF THE
EGO9.
ROF CAP
THE RATE OF FIRE CAP PARAMETER
The ROF CAP parameter is used to specify whether or
not the Ego9 should have a limited, or capped rate
of fire.When the ROF CAP is enabled, the maximum
achievable rate of fire is set by the MAX ROF parameter.
Choices for the ROF CAP parameter are:-
> OFF: Rate of fire only limited by the loader.
> ON: Rate of fire limited to the MAX ROF parameter
value.
> CANCEL: Cancel editing and leave the parameter
unchanged.
MAX ROF
THE MAXIMUM RATE OF FIRE PARAMETER
The MAX ROF parameter is used to set the maximum
achievable rate of fire from the Ego9.The value of this
parameter can be adjusted between 10.0 and 30.0 balls
per second in 0.1bps increments.
The MAX ROF parameter will only be displayed if you
have set the ROF CAP parameter to ‘ON’.
NOTE: THE CURRENT PRESET CONFIGURATION CAN BE VIEWED
FROM THE RUN SCREEN BY PRESSING THE BUTTON.
38.
ADVANCED SET-UP
CONTENTS
ORIENTATION
QUICK SET-UP
USING YOUR EGO9
ADVANCED SET-UP
MENU TREE
MAINTENANCE
FAULT FINDING
SERVICE CENTERS
PARTS LIST
SPARES & ACCESSORIES
39.
ADVANCED SET-UP
ADVANCED SET-UP
QUICK GUIDE
