Mobi Technologies DualScan User manual

Talking Ear and Forehead
THERMOM E TER
TM
DualScan
U L TRA
plus
Pulse Meter

User’s Manualfor DualScan™Ultra Digital Thermometer
- Thank you for purchasing our DualScan™Ultra thermometer. For optimal use
of this product, be sure to read this user manual before any operation.

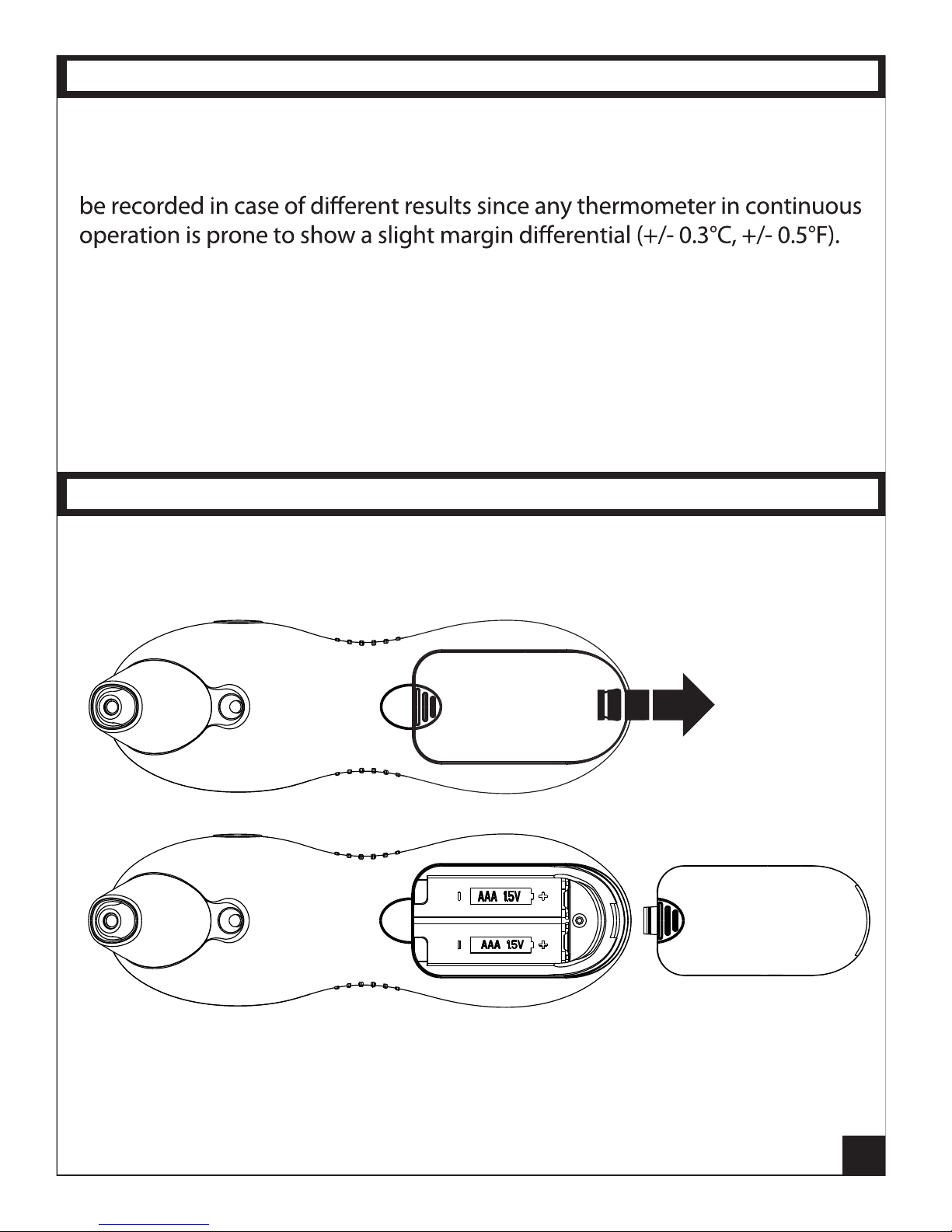

- Remove safety tab from battery. Open battery case and gently pull out the
plastic safety tab from underneath the battery. Thermometer will not activate
until this has been performed.
- For safe and proper use of this product, be sure to read and fully understand
Safety Precautions contained in this user Manual.
- Keep this Manual with you for a convenient reference on proper usage and
operation.
SAFETY PRECAUTIONS
MARKS OR SYMBOLS
INTENDEDUSAGE
- Warning marks and symbols are contained for your safe and proper use of this
product and prevention of any injury to you and others.
- See table below for description of warning marks and symbols:
WARNING
Means a possibility of personal injury in case of improper use.
NOTICE
Means a possibility of personal injury or property damage in case of
improper use.
*Propertydamage covers anydamage to house, family property and domestic animal orpet.
PROHIBITED
within or beside the mark. The mark on left means “generally forbidden”.
OBSERVE CAREFULLY
in orbeside the mark. The markonleft means“generally/compulsory observation”.
The device is intended for the as-needed measurement monitoring of human
body temperature and pulse rate by consumers in the home.
IMPLICATION OF SYMBOL
Means Type-B device.
2

WARNING
Use of this thermometer is not intended as a substitution for consultation with your
physician. Measurement results are for reference only. They cannot be used as a clinical
assessment or medical diagnostic basis. Contact your physician if you have or suspect
any health concerns.
Don't touch or blow infrared sensor.
*A soiled Infrared sensor may cause inaccuracy.
Clean a soiled infrared sensor with a soft wet cloth in a gentle manner.
*Cleansing with toilet tissue or paper towel may scratch the Infrared sensor, causing
inaccuracy.
Keep the unit out of children's reach.
*A self-measurement taken by children may cause ear damage. In case of accidental
swallowing of battery, please contact doctor or emergency room immediately.
Measurement should be delayed until ear is warmed up after any outdoor activities.
activity in winter may cause an inaccurate result.
thermometer for about 3O minutes in room temperature at measurement location.
*Failing to do so may cause inaccuracy.
If the user measurement of the body temperature exceeds 38 degrees C or 100.4 F and
/or feels uncomfortable, the user should contact a medical practitioner immediately .
Stop using the product in case of any occurrence of pain or discomfort, as this might
signify potential ear canal damage.
otitis external and tympanitis, as this may aggravate such a condition.
Don't use the product in a wet ear canal resulting from swimming or bathing, as this
may result in harm to the ear canal.
Taking a temperature reading from the ear is fast and accurate because the ear drum
shares the blood supply with the center of the temperature control center in the brain.
environmentally safe manner.
3
3

- Don't use the product for other purposes then those propose herein.
- This is not a waterproof device. Clean it only with dampened cloth gently.
- It is unsafe and hazardous to leave the product exposed to any chemical solvent,
direct sunshine or high temperature.
- Don't drop, handle roughly, orcause any vibration or impact to the product.
- Don't use a mobile phone nearby when the thermometer is in use.
- Regarding disposal of batteries, please comply with environmentally safe methods
and legalbattery disposable means and laws.
- Take out the batteries if you are not going to use the unit foranextended time.
RECOMMENDATIONS
INTERFACE LAYOUT
Ear Probe
(cover removed)
Forehead Probe
(cover remains)
Forehead
Button
LCD
Display
Red LED
(fever)
GreenLED
(no fever)
Ear
Button
Battery
Compartment
Settings/Memory
Button
Talk
Button
Heart Rate
Button/Sensor
LED
Flashlight
Flashlight
Button
Flashlight
Button
4

IndicatesAM or PM whentime of day is displayed below it
Numerical Readings for Temperature / Time / Pulse
Memory Numberheading (Memory Numbers displayed below)
Calendar Year/ Number of the previous reading in Memory
Calendar Month
Calendar Day
IndicatesEar Temperature Button was used
IndicatesAudio Talking Mode in use
IndicatesForehead Temperature Button was used
Indicates Settings Button in use
Human Temperature measurement indicator
Temperature Degree Scale (ºF or ºC)
Indicates Heart Rate Button pressed, ready to read Pulse
Battery Level indicator 5
LCD DISPLAY

PRIMARY FUNCTIONS
Calendar Datefalls within Gregorian calendar year 2001–2099.
Time of Day is shown in 24 hour shifts. The initial date fora powered unit is
set as January1st of the manufacturing year.
Room Temperature is displayedwith Time of Day(alternating every 5
seconds) when not in use otherwise. Measurement rangesfrom 41.0°F to
139.8°F (5.0°C to 59.9°C).
Body Temperature displayed when Ear or Forehead Buttonsare used with
measurements ranging from 89.6°F to 109.3°F (32.0°C to 42.9°C ).
Memory Function saves a record of every body temperature reading
(maximum of 30 records). Each record is stored with body temperature, date,
measurement mode (earorforehead), and the record’s memory number.
VoiceReadout Mode causes a body or room temperature reading to be
audibly sounded, with the current time, in English, and in°C or °F depending
on the setting.
LED Flashlight is built-in and can be used fordiscreet night time use.
Pulse/Heart Rate is read using the HeartRate Botton/Sensor and measures
within the range of 40-200 heartbeats per minute. To measure yourPulse:
•With your thumb centered on it, press and release the Heart Rate Button
once but leave the thumb lightly in place onthe button withoutpressing it
again. The unit will beep and the word Pulse will appear on the display.
•Asyou let your thumb rest on the button the Large Heart symbol on the
place there without moving until the unit beeps again and displays your heart
rate, which is the numberof beats perminute for your heart at the time.
6

For propermeasurements always store the device inappropriate temperature
of ambient temperature is likely to deteriorate measuring accuracy. When a
which a thermometer is located, or any attempt to performa temperature
reading in front of an air conditioner or heating device is made, accurate read
outs will be impaired. Be sure to keep ear clean, since an uncleanear canal
may cause read out inaccuracy. Measurement should be done at a calm and
quiet time to ensure an accurate result. Do not talk or move body during
measurement. Temperature is likelyto increase immediatelyafter exercise,
bathing, or other physical exertion. If measurement appears to be incorrect
please wait 5-15 minutesbefore the taking measurement again. Make sure to
use the same thumb when re-measuring Heart Rate.
NOTE:Replace any low-voltage battery to ensure full power supply.
•The Heart Rate is usually read within 15 seconds if the Large Heart symbol
between your thumb and the sensor is not optimal and will result in an ERR
(error) message on the display indicating the Heart Rate was not measured.
In that case press and release the button again to restart the reading and be
sure to leave your thumb resting on the button lightenoughto keep it from
being depressed again, but with enough pressure to make good contact so
•Press the SET Button to reset the unit for normal use.
Large Heart
your heart
beatas you
leave your
thumb on
the Heart
Rate Button.
When Large
Heart symbol
your Pulse
Rate will be
displayed in
heart beats
perminute.
7
MEASUREMENT PREPARATIONS

To measure Ear Temperature
cover from the unit, and
insertthe slimmer Ear
Probe tip justslightly
into the ear opening,
then press andhold the EarButton tomeasure the body
temperature. Grip unit comfortablyand depress ONLY the EarButton.
Once the unit has a measurement, you will hear two short "beeps," the display
will show oooin the Memory Numberarea, and the body temperature will
be shown inlarge numerals…either in ºF or ºC…depending on which scale
you have the unit setfor. After ooodisappears you can measure again.
To measure Forehead Temperature
Be sure the ForeheadProbe Coveris
on the unit, then gently touch the
entire tip of the probe tothe
center of the forehead, midway
between the eyebrow and the hairline.
Press and hold the Forehead Button
to measure the body temperature. Grip the thermometer
comfortably and depress ONLY the Forehead Button.
As when reading from the ear, once the unit has aforehead measurement you
will hear two short "beeps," the display will show oooin the Memory Number
area, and the body temperature will be shown inlarge numerals…either in
ºF or ºC…again, depending on which scale you have the unit set for. After
ooodisappears you can measure again.
Witheither reading method (ear orforehead) the result will be stored into
memory automatically. If 30 setsof memory records are stored already, the
oldest (No.1) set of data will be replaced by the next oldedst and the most
recent record will be stored at the top as the highest No.
Measure 3 times (maximum) consecutively, if desired. Proper body temper-
(after 4 times or more) wait 10 minutes before taking a newmeasurement.
HOW TO TAKE TEMPERATUREREADINGS
Ear Button
Forehead
Probe Cover
Forehead
Button
Forehead
Probe Cover
8

Whenin Clock Mode
The display will show Time as: Year, Month, Date, Hour, and Minute with the
displays the currentTime and Room Temperature, alternating every 5 seconds.
Otherwise, press and release TALK and the unit will visiblydisplay, and audibly
speak, the current Time and Room Temperature.
To turn the Talking Feature OFF, press and hold the TALK Button for3 seconds
Press and hold TALK
for3 seconds again andthe unit will beep and the speaker symbol will re-
appear, turning the Talking Feature ON.
Display of Measurement Results
Temperature Range:
Results shown from 89.6°F to 109.3°F (32.0°C to 42.9°C). “HI” isdisplayedfor all
results above 109.3°F (42.9°C), and “LO” displayed for result below 89.6°F (32.0°C)
Fever Diagnosed:
a RED LED lights with results from 100.4°F (38.0°C) to 109.3°F (42.9°C)
No Fever:
a GREEN LED lights with results from 96.0°F (35.6°C) to 100.3°F (37.9°C)
Thirty seconds after a measurement the unit automatically returns to Clock Mode.
button is pressed.
9
ADVANCED OPERATION
Clock Mode
(current time) Clock Mode (temperature)
Note: The default is for the Talk Feature to
be ON. The unit speaks inEnglish and will
saythe temperature ineither ºF or ºC de-
pending onwhat you set the temperature
scale on the unit to.

To retrieve Readings from the Memory
Press and release the SET Button to retrieve the most recent reading recorded
in the Memory. It will show the Body Temperature, the Type of Reading (ear or
forehead), the Fever/No Fever colored light, the Date it was recorded, and the
Memory Number (highest number in memory).
To retieve further readings from
the memory just keep pressing the
SET Button. As you do so the next
previous reading records will
appear in sequence from latest to
oldestasthe Memory Number
displayed goes down.
You can stop on any previous read-
ing and press the TALK Button to
hear the reading spoken (if Taking
Feature has not been disabled).
To change Settings
Set-up Mode is entered when you press and hold the
SET Button for 2 seconds. The word SET will appear on
the display. Then you can reset the unit.
10
Set-up Mode
Memory Mode
(no previous recorded
readings in memory)
Memory Mode
(No.18 of previous
recorded readings)
To resetcurrent Time and Date
Once the word SET is shown, use theTALK button to go
through to the Year, Month, Hour, Minute, etc. To change
one of those, stop on it, and then use the SETButton again,
which will cycle through the date/time values so you can
stop on the date/time numberyou need to set it to.

To change between
Fahrenheit or Celsius
Press the Ear Button and
the TALK Button together.
The unit will change from
which ever scale it is in, to
the other…Celsius or
Fahrenheit.
This setting change will be
spoken if the Talking Feature
has not been disabled.
To set to Sleep Mode
11
To activate the LED Mini Flashlight
Press and hold the center of the SET and TALK Buttons for 2 seconds and the
LED Mini Flashlight willturn ON. It will turn OFFautomatically after 5 seconds.
CelsiusFahrenheit
Sleep Mode
(enabled)
Sleep Mode
(disabled)
The unit enters Sleep Mode
one minute after the last
button is pressed.
After resetting any function the unit returns to Clock Mode automatically
5 seconds after last key is pressed.
Note: Press any buttonto instantly cut talking on unit when silence is desired.

RECOMMENDATIONS
REPLACE BATTERIES
For users not familiar with digital thermometers, it is recommended that you
measure the same ear 3 times during initialusage. The maximum reading shall
Wait about 30 seconds before measuring the same patient again to factor in
changes of skin condition.
For users in sound health, both ears will be virtually the same in terms of
bodytemperature.
Clean ear before taking measurement.
Remove the battery compartment door as shown below.
Put batteriesinto compartment according to the + and - symbols inside and
use only new batteries (2 xAAA - alkaline recommended).
Replace the battery compartment door tightly.
12

MAINTENANCE, STORAGE AND CALIBRATION
CAREANDCLEANING
Maintenance:
1. Remove all stains from the device withasoft, dry cloth.
2. Clean the tip of the probe asfollows: Wipe the surface gently with a swab
of cotton or a soft cloth moistened with alcohol until no dirt or wax remains.
Allow the alchol to dry before using thermometer again.
3. Do not wash the thermometer with water, abrasive detergent or detergent
containing benzene or other harsh solvents.
Storage:
1. Aftereach use, clean the thermometer and put on the protective cover.
2. Do not leave the thermometerexposed to direct sun, high temperatures,
3. If you plan to not use the thermometer an extended time, remove the
batteries.
Calibration:
The thermometer is factory-calibrated. If it is used according to this user
manual, periodic recalibration is not required. If there are doubts concerning
the accuracy of the thermometer, please contact Mobi at the address
given herein. Do not try to repair or modifythe thermometeryourself.
13
1. Keep the probe surface clean, otherwise the measurement may not be
accurate.
2. Clean the probe with a non-abrasive clothorpapermoistened with water
or alcohol, and conduct measurement after the water or alcohol onthe
surface of the probe has evaporated.
Caution:
Make sure the probe tip of the thermometeriscompletely clean. A dirty
probe lenswill cause inaccurate measurements.

14
UNIT SPECIFICATIONS
• Product Name: DualScan Ultra Thermometer
• Model: 70120
• Power supply: DC3V (2 x AAA battery)
• Temperature Sensing Part: IR sensor
• Measuring range: 32.0°C - 42.9°C (89.6°F -109.3°F)
• Room Temperature: 5.0°C - 59.9°C 141.0°F -139.8°F)
• Measuring accuracy: +1- 0.2°C (or +1- 0.4°F) from 35.5°C - 42.0°C
(or 95.9°F -107.6°F), and +/- 0.3°C (+/- 0.5°F), from 32.0°C - 35.4°C
(or 89.6°F - 95.8°F) or from 42.1°C - 42.9°C (or 107.7°F - 109.3°F)
• Room Temperature: +1- 2°C (4°F)
• Outer dimensions: 134 (L)x43(W)X59(D)mm
• Weight :67g (without batteries)
• Working environment: 10°C - 40°C (50.0°F - 104.0°F) for Ear
15°C- 40°C (59.0°F - 104.0°F) for Forehead
• Relative humidity: 20%RH-80%RH
• Storage environment: -20°C - 55°C (-4°F - 131°F)
• Relative humidity: 20%RH-90%RH
• Precision/repeatability: +I- 0.3°C (+/- 0.5°F)
Dispose of used batteries properly and with care and comply
with all environmental ordinances for battery disposal.

0197
EXPLANATION OF SYMBOLS
15
Type B Appliedpart
Disposal in accordance with Directive 2002/96/EC (WEEE)
The name and the addressof the manufacturer
The name and the address of the authorised
representative inthe EuropeanCommunity
Complieswith the European MedicalDevice
Directive (93142/EEC)andamended by
directive 2007/47/EC requirements.
Refer to Instruction Manual.

GUIDANCE AND MANUFACTURER'S DECLARATION
16
Guidance and manufacturer's declaration - electromagnetic emissions
below.
The customer or the user mustensure that it is used in such an environment.
Emissions Test Compliance Electromagnetic environment- guidance
RF emissions Group2 The device must emit electromagnetic e
energyin order to perform its intended
function. Nearby electronic equipment
RF emissions Class B The device is suitable for use in all est-
ablishments other than domestic and
those directly connected to the Public
low-voltage power supplynetwork that
supplies buildingsused for domestic
purposes.
Voltage
emissions
IEC 61000-3-3
RF emissions CompliesThe device is not suitable for
interconnection with otherequipment.
RF emissions CompliesThe device isnot suitable for
interconnection with other equipment.
CISPR 11
CISPR 14-1
CISPR 11
Harmonic
emissions
IEC 61000-3-2
Not applicable
Not applicable
CISPR15

Immunity test IEC 60601
test level Compliance level
Electrostatic
discharge (ESD)
lEC 61000-4-2
±6 kV contact
±8 kV air
Electrical fast
transient/burst
IEC 61000-4-4
±2kV for power
supply lines
±1kV for input/
output lines
±1kV
differential
mode
±2kV
common mode
Voltage dips,
short
interruptions
and voltage
variations on
power supply
input lines
IEC 61000-4-11
The device is intended for use in the electromagnetic environment specified
below.The customer or the user should assure that it is used in such an
environment.
Surge
IEC 61000-4-5
Electromagnetic
environment - guidance
±6 kV contact
±8 kV air
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30 %.
Not applicable
Mains power quality
should be that of a typical
commercial or hospital
environment.
Not applicable
Mains power quality
should be that of a typical
commercial or hospital
environment.
<5% UT
(>95% dip in UT)
for 0.5 cycle
40% UT
(60% dip in UT)
for 5 Cycles
70% UT
(30% dip in UT)
for 25 Cycles
<5% UT
(>95% dip in UT)
for 5 sec
Mains power quality
should be that of a typical
commercial or hospital
environment. If the user
of the device requires
continued operation
during power mains
interruptions, it is
recommended that the
device is powered from
an uninterruptible power
supply or a battery.
Not applicable
Power frequency
(50/60Hz)
magnetic field
IEC 61000-4-8
3 A/m 3 A/m
Power frequency magnetic
fields should be at levels
characteristic of a typical
location in a typical
commercial or hospital
environment.
NOTE: UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer's declaration - electromagnetic immunity
17

The device is intended for use in. the electromagnetic environment specified
below.The customer or the user should assure that it is used in such an
environment.
Conducted R
F lEC 61000-4-6
Portable and mobile RF
Communications equipment should be
used no closer to any part of the device,
including cables, than the recommended
separation distance calculated from the
equation applicable to the frequency of
the transmitter. Recommended
separation distance.
3 V
3 V/m
NOTE I At 80 MHz ends 800 MHz. the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation
is affected by absorption and reflection from structures, objects and people.
3 Vrms
150 kHz to
80 MHz
Radiated RF lEC
61000-4-3
3 V/m
80 MHz to
2.5 GHz
80 MHz to 800 MHz
800 MHz to 2.5 GHz
Where P is the maximum output power
rating of the transmitter In watts (W)
according to the.Transmitter
manufacturer and d is the recommended
separation distance in meters (m).
Field strengths from fixed RF
transmitters, as determined by an
electromagnetic site survey,a should be
less than the compliance level in each
frequency range.b
Interference may occur In the
vicinity of equipment marked
with the following symbol:
a Field strengths from fixed transmitters, such as base stations for radio (cellular/
cordless) telephones and land mobile radios, amateur radio, AM and FM radio
broadcast and TV broadcast cannot be predicted theoretically with accuracy.To
Guidance and manufacturer's declaration - Electromagnetic immunity
18

assess the electromagnetic environment due to fixed RF transmitters,
an electromagnetic site survey should be considered. If the measured
field strength in the location in which the device is used exceeds the
applicable RF compliance level above, should be observed to verify
normal operation. If abnormal performance is observed, additional
measures may be necessary, such as reorienting or relocating the
device.
b Over the frequency range 150 kHz to 80 MHz, field strengths should
be less than [Vi] V/m.
Recommended separation distances between portable and mobile RF
communications equipment and the device
Rated
maximum
transmitter
output power of
W
For transmitters rated at a maximum output power not listed above, the
recommended separation distance d in meters (m) can be estimated using the
equation applicable to the frequency of the transmitter, where P is the
maximum output power rating of the transmitter in watts (W) accordable to the
transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz. the separation distance for the higher
frequency range applies.
150 kHz to 80 MHz
0.01
The device is intended for use in an electromagnetic environment in
which radiated RF disturbances are controlled.The customer or the user
of the device can help prevent electromagnetic interference by
maintaining a minimum distance between portable and mobile RF
communications equipment (transmitters) and the as recommended
below, according to the maximum output power of the communications
equipment.
Separation distance according to frequency of transmitter
150 kHz to 80 MHz 150 kHz to 80 MHz
0.12 0.12 0.23
0.1 0.38 0.38 0.73
11.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
19

DECLARATION OF CONFORMITY
20
NOTE 2 These guidelines may not applyinall situations. Electromagnetic
andpeople.
Fortransmittersrated at a maximum outputpower not listed above , the
recommended separation distance d in meters (m) can be estimated using
theequation applicable to the frequencyof the transmitter, where P is the
maximum outputpower rating of the transmitter in watts (W) accordable to
the transmittermanufacturer.
NOTE 1 At 80 MHz and 800 MHz. the separation distance for the higher
frequency range applies.
NOTE 2 These guidelines may not applyinall situations. Electromagnetic
andpeople.
Mobi Technologies, Inc. declares that the (MobiDualScan Ultra) complies
with the following normative documents: IEC60601-1, IEC60601-1-2,
IEC60601-1-4, ASTM E1965-98, IS010993-5, I5010IS010993-1010993-1,
ISO 14971, EN 124705.
