Ecoair ECO DD322FW CLASSIC User manual

Model: ECO DD322FW SIMPLE
Desiccant Dehumidifier
USERS MANUAL
Read This Manual
Inside you will find many helpful hints on how
to use and maintain your dehumidifier properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your dehumidifier. You’ll find many
answers to common problems in the chart of
troubleshooting tips. Review the chart of
Troubleshooting Tips before calling your
service engineers.

2
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.
WARNING - This appliance is intended for use in a domestic environment only. Any other
use is not recommended by the manufacturer and may cause fire, electrical shocks or
other injury to person or property.
When using electrical appliances, basic safety precautions should always be followed:
1. Do not operate the unit with a damaged cord or plug, after it malfunctions or has been
dropped or damaged in any way. Return to an authorized service facility for examination
and repair.
2. This unit should always be kept in an upright position to avoid any damage. Locate the
unit on a flat stable surface.
3. Check the household voltage to ensure it matches the units rated specification before
operating.
4. Operate this unit in an ambient temperature between 1°C and 35°C.
5. Ensure that the air inlets and outlets are not blocked or covered.
6. Do not place the unit too close to curtains or other objects - min 40cm.
7. When using the "LAUNDRY" mode to speed up the drying of wet clothes in the room,
please keep the clothing at a safe distance from the unit to prevent water from dripping
onto the unit.
8. Never place anything on top of the unit and do not cover with any kind of material while
in use.
9. This product is intended for domestic and light office use ONLY and not for commercial,
industrial or outdoor use.
10. To protect against electrical shocks, do not immerse unit, plug or cord in water, or spray
with liquids.
11. Never unplug the power cord without turning off first, as this could damage the unit.
12. Always unplug the unit when not in use or moving location. To disconnect from the
power supply, grip the plug and pull from the power socket. Never pull by the cord.
13. Always empty the water tank before storing the unit away.
14. Close supervision is necessary when any appliance is used by or near children and pets.
15. Do not run power cord under carpeting, or cover with rugs or runners. Arrange the
cord away from areas where it may be tripped over.
16. Never operate or store the unit in direct sunlight.
17. To repair the unit, take it to a qualified service engineer. Repairs carried out by
unqualified people may cause damage to the unit or injury to persons or property and
void the warranty.
18. Where possible, avoid the use of an extension cable as they may overheat and cause
a risk of fire. Only use an extension cord after ensuring it is in perfect condition.
19. Do not use the unit without the air filter.
20. Do not leave the unit running unattended for long periods of time as a safety precaution.
SAVE AND READ THESE IMPORTANT SAFETY INSTRUCTIONS
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

3
BS PLUG WIRING
Wiring Instructions: Should it be necessary to change the plug please note the wires
in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
GREEN AND YELLOW - EARTH
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows:
1. The BLUE wire is the NEUTRAL and must be connected to the terminal which is marked
with the letter Nor coloured BLACK.
2. The BROWN wire is the LIVE and must be connected to the terminal which is marked
with the letter Lor coloured RED.
3. The GREEN/YELLOW is the EARTH and must be connected to the terminal which is
marked with the letter Eor or coloured GREEN OR GREEN/YELLOW.
4. Always ensure that the cord grip is positioned and fastened correctly.
If a 13A (BS 1363) fused plug is used it must be fitted with a 13A fuse. If in doubt consult a
qualified electrician.
Wiring for a 13 Amp Plug (BS1363)
Please note. The Earth Terminal is marked with the letter Eor Earth Symbol.

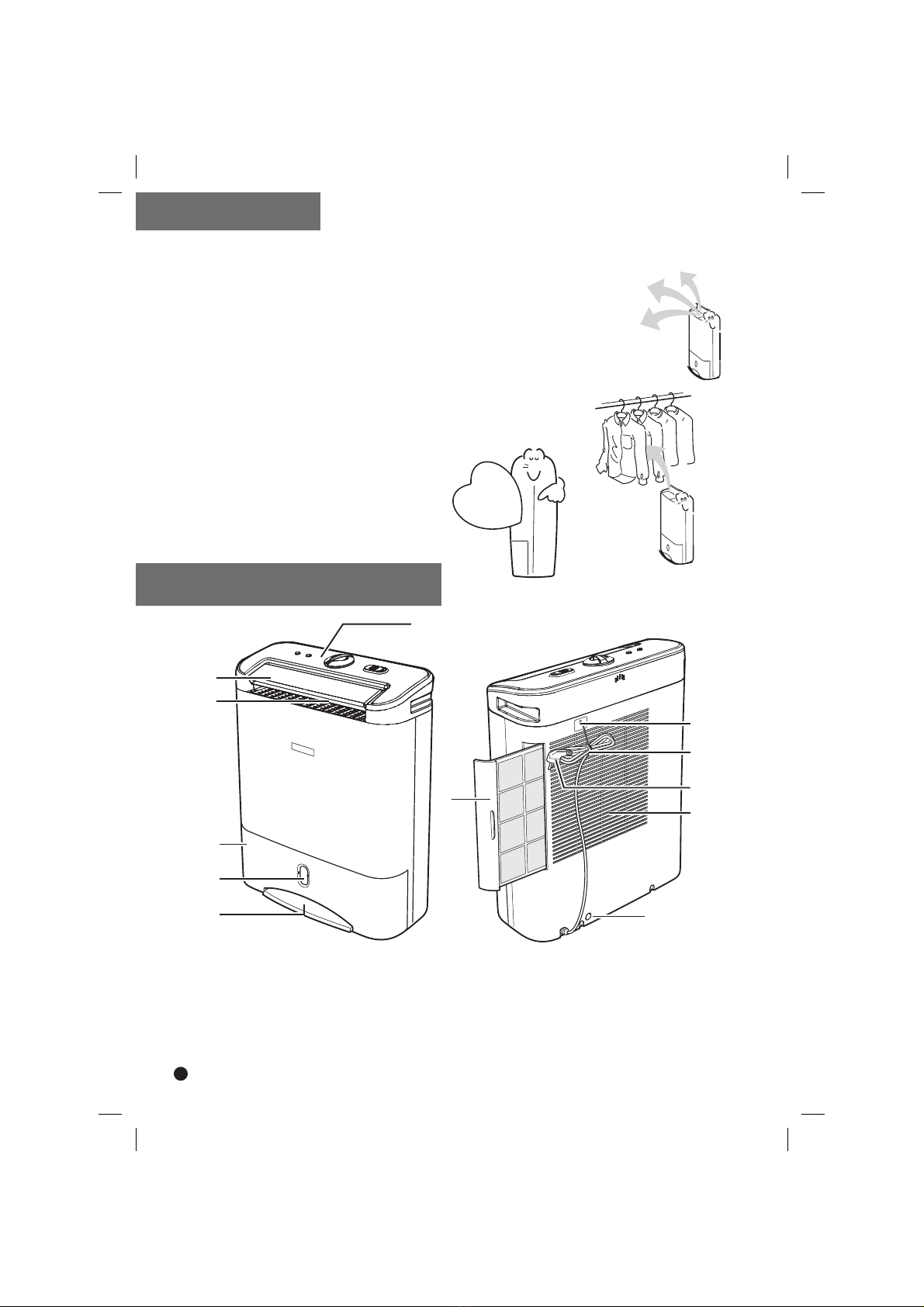

1. Control panel
2. Adjustable louvre
3. Air outlet
4. Bucket
5. Water level viewer
6. Hand grip to pull out the bucket
7. Air filter
8. Power cord tie hole
9. Cord tie
10. Power cord
11. Air inlet
12. Continuous drain hole
4
5
6
2
3
1
7
8
9
10
11
12
4
PRODUCT DESCRIPTION
FEATURES
• Compressorless dehumidifier - uses desiccant rotor technology
• Environmentally friendly with no harmful gases & quiet in operation
• Moisture removal - 10 litres/day (20°C RH60%)
• Water tank capacity - 3.5 litres
• Laundry mode - set on continuous running
• Temperature range for use ~ 1°C - 35°C
• Light & portable with carry handle
• Removable water bucket with handle
• Operating light
• Quiet and Turbo operation
- 2 speed selection
• Manual adjustable louvre
Comfort
and Health

OFF
Power On Full / Check Quiet Turbo
Laundry
Hi 50~40%
Med 60~50%
Lo 70~60%
Control Panel
Full Tank and Check Indicator
Power on Indicator
Humidistat
Power Selection Switch
Power On Indicator : Lights up when the unit is turned on by the
humidistat.
Full / Check Indicator : Lights up when the bucket is full, or when the
unit malfunctions, see troubleshooting on
Page 10.
5
Humidistat
Indicating Lamps
Power Selection Switch
Turn the knob clockwise to turn on the unit with a desired humidity setting.
Turn it counterclockwise to switch off. The humidistat can be set along
Lo(70~60%RH), Med(60~50%RH), Hi(50~40%RH) or other positions to
control the unit on and off automatically for keeping the room humidity
at a suitable humidity. At Laundry, the unit will run continuously until
the bucket is full.
Push the switch the button to the right for TURBO MODE (high heating
power and high fan speed).
Push the switch the button to the left for QUIET MODE (low heating power
and low fan speed).

Place the unit in an upright position on a
stable, level surface. (Please ensure unit
is not sitting on its own cable)
Please ensure the unit is a safe distance away
from a wall or furniture (see the right graphic).
Please keep clothes at a safe
distance of 60 cm from air outlet
of the unit to prevent water dripping
into the unit.
Where to position your dehumidifier?
For best results position the
dehumidifier somewhere central
like a landing or a hallway.
As long as the internal doors are open
the excess moisture from all of the rooms
in the house will migrate naturally towards
the dehumidifier and be processed.
UNIT SETUP
TO OPERATE SAFELY
Do not insert small
objects into the unit or
this will damage it and
cause a hazard.
Do not attempt to remove
bucket while unit is in
operation to avoid water
leakage.
Keep suitable space
as above
Ensure bucket is
fitted correctly.
Top above 60cm
Air outlet
Air inlet
(Back)
above 20cm
above 20cm
above 20cm
above 50cm
6

PLEASE NOTE
Smell coming from the dehumidifier
When you first use the dehumidifier and periodically afterwards you might notice
a smell coming from the dehumidifier. This is caused by the Zeolite desiccant material
and is not a sign that the dehumidifier is faulty, nor is it harmful to humans or pets.
The smell occurs because the Zeolite absorbs odours from items like cigarettes,
cosmetics, hair sprays, building materials and new furniture and then when the
desiccant is heated the smell is discharged into the room. This smell has been
described as being like a burning smell or a sour smell. It is normal, will not last long
and is not a sign of a fault.
Amount of water collected
When you first use your dehumidifier it may work harder to reduce the room humidity
to it's target humidity level, this is the time when it will produce the most water and
need emptying most frequently. As the room becomes dryer the dehumidifier collects
less water. This is normal. When the target relative humidity has been reached the
dehumidifier will stop.
If you find that you still have condensation on your windows or you need to dry the air
further then turning the humidistat knob more clockwise will turn on the dehumidifier
again to dry the air further to a less humidity. You may choose Turbo mode to get a
faster drying, or choose quiet mode to get a slower but less quieter operation.
Safety temporary auto shut-off
The unit may automatically switch off periodically to cool itself down as a safety
precaution (for approximately 15 minutes). This feature is evident in the Turbo mode.
This is normal and once the unit cools down, it will resume operation.
7

Lift by the handle
Pull bucket out
Remove the cover Pour the water contents Refit the cover Restore the bucket
1. When the bucket is full, the Full/Check LED lights up and the unit stops.
2. Do not move the unit or remove the bucket, if the machine is still operating, as
water may leak, damage the unit or cause an electric shock.
3. To remove the bucket, pull it out by
gripping the bottom of the bucket,
and lift carefully.
4. Remove the cover of bucket first,
then pour the water away, clean the
bucket and restore the cover and the
bucket to the correct position.
TO EMPTY THE BUCKET
PERMANENT DRAIN OPTION
NOTE:
Clean the bucket with clean water if needed. Do not use detergent, solvent,
abrasive or hot water to avoid damage to the appliance.
Do not remove or damage the float in the bucket, the unit will not work correctly.
The bucket cover must be well fitted in position.
The "Full/Check" LED lights if the bucket is not well in place.
12
34
56
A hose with an inner diameter of 12mm can
be connected for continuous drainage.
1. Remove the bucket.
2. There is a through hole at the lower left
corner on the back of the appliance.
3. Pass the hose through the hole.
4. Remove the plug from the drain hole at
the back of the bucket. Keep it safely for
future use.
5. Push and connect the hose firmly to the
drain hole of the bucket.
6. Restore the bucket in the correct position.
A B
C D E F
8

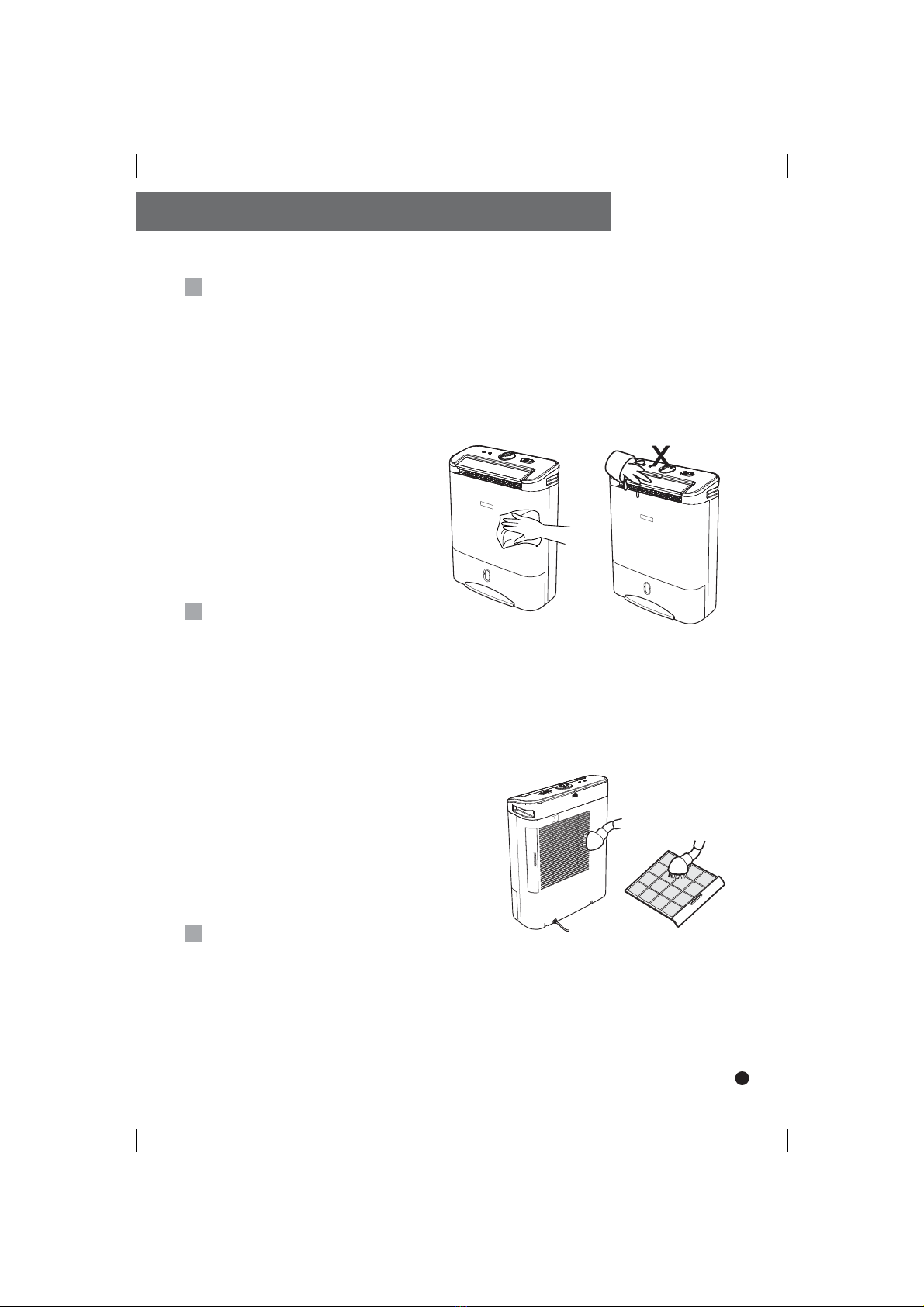

1. Turn the appliance OFF, wait for the fan to stop and ensure the plug is removed from
the socket outlet.
2. Clean the casing using a soft damp cloth with warm water and mild detergent.
Do not use solvents or abrasive materials.
3. Use a soft dry cloth to wipe the casing dry.
4. To avoid damage to internal parts, do not let water to drip into the air inlet or outlet
and do not wash the machine with water.
1. Turn the appliance OFF and ensure the plug is removed from the socket outlet.
2. Remove the filter located at the back of the appliance.
3. Clean the filter using clean water and dry it before use, or alternatively clean using
a vacuum cleaner.
4. Restore the filter into the appliance.
5. Never run the unit without the filter.
If the filter is covered by plenty of dust, the airflow and performance of the unit will be
affected and mulfunction may occur. It is recommended to check and clean the filter
every two weeks.
Cleaning the unit
Cleaning the filter
Before storing
MAINTENANCE
1. Turn off the unit, wait for it to stop and unplug from the power socket.
2. Clean and dry the bucket. Leave the unit to drain for approximately one day.
3. Clean the filter and the unit. Cover the unit to prevent it from
gathering dust. Store upright in a cool dry place.
4. Do not expose to direct sunlight.
9

10
TROUBLESHOOTING
The following conditions are normal:
1. The unit works within room temperature about 1~35ºC. It may stop operation out of
this range or when the air inlet or outlet is covered. (The "Full / Check" LED light
will illuminate)
2. The unit includes heater function that could increase the room temperature.
If your Dehumidifier stops working or "Full / Check" LED illuminates, please check the
following items first.
NOTE:
1. If the "Full / Check" LED illuminates, turn off the unit, unplug from the power socket,
check and clean the filter. If it is dirty, remove any obstacle that covers the air inlet or
outlet, and wait for at least ten minutes before plugging in and switching back on.
2. Please contact your retailer if the problem continues.
Do not try to repair it yourself, as this could cause an electrical shock and void your
warranty.
Problem
Dehumidifier
doesn’t start
(no lamp)
Full / Check
lamp lights
Water on
floor
The unit is unplugged Make sure the plug is pushed completely
into the outlet.
The bucket is full or not in place Empty the bucket, check the float in
position, and replace the bucket.
The unit is not level on the floor /
surface
Place the unit on a stable, level surface.
The air inlet or outlet is covered /
blocked
Lack of air ventilation in the room
Filter clogged with dust
Make sure there is nothing blocking the air
inlet and air outlet of the unit. Clean the
filter. Unplug and wait at least 10 minutes to
resume operation.
The ambient temperature is too
high, such as over 38ºC
Do not use it in a small and closed place
where heat accumulates.
Move to a cooler place, wait at least 10
minutes to resume operation.
The unit is not level Check the unit is placed on a level
surface and not accidentally sitting on a
cable etc.
The drainage is clogged or loose Check the drainage hose and its
connection.
The fuse is blown orcircuit
breaker is tripped
Check the house fuse / circuit breaker box
and replace fuse or reset the breaker.
The room humidity has reached
the setting
If you turn the humidistat clockwise the
unit should turn on for a drier humidity
level.
Possible Causes What to Do

Model: ECO DD322FW SIMPLE
Operating Temperature Range: 1ºC - 35ºC
Dehumidifier extraction Rate: 10 Litres/Day(20oC, 60%RH)
Bucket Capacity: 3.5 Litres
Power: High: 620-720W / Low:400-460W
Voltage: 220-240V ~ /50Hz
Net Weight: 8.5Kg
Dimensions: Width 416 x Depth 186 x Height 552 (mm)
11
SPECIFICATIONS

Copyright Reserved
SERVICE AND WARRANTY
anship
l
WARRANTY VOID
ments
This product has been manufactured to comply with the EC Directives
2006/95/EC and 2004/108/EC.
