Ecoair ECO2OLDF User manual

P

P
eco air
www.eco air.org
USERSMANUAL
F SERIES
DEHUMIDIFIER
ft
Models
ECO2OLDF

Read This Manual
Inside you will find many helpful hints on how
to use and maintain your dehumidifier properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your dehumidifier. You'll find many
answers to common problems in the chart of
troubleshooting tips. Review the chart of
Troubleshooting Tips before calling your
service engineer.

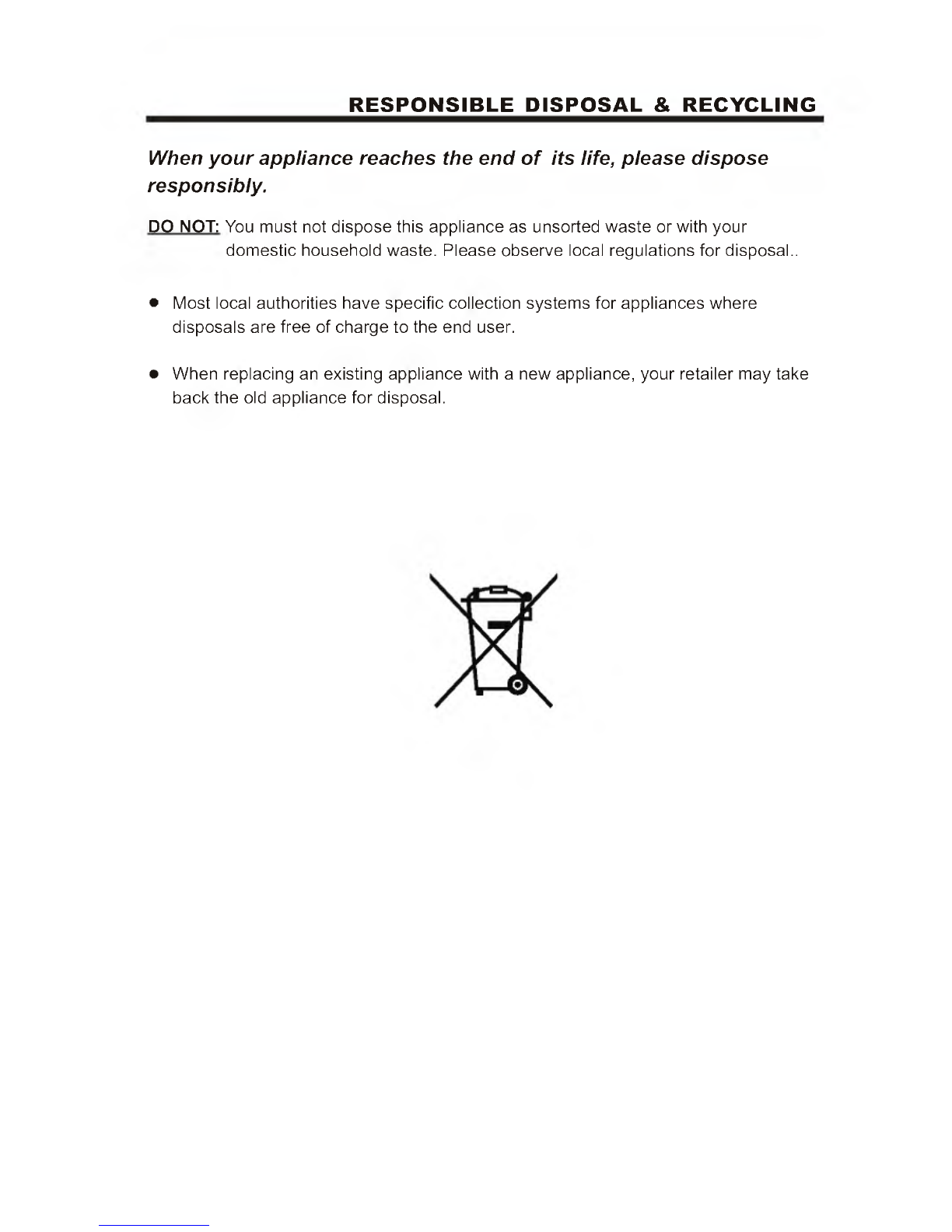

RESPONSIBLE DISPOSAL & RECYCLING
When your appliance reaches the end of its life, please dispose
responsibly.
DO NOT: You must not dispose this appliance as unsorted waste or with your
domestic household waste. Please observe local regulations for disposal..
• Most local authorities have specific collection systems for appliances where
disposals are free of charge to the end user.
• When replacing an existing appliance with a new appliance, your retailer may take
back the old appliance for disposal.

BS PLUG WIRING
Wiring Instructions: Should itbe necessaryto changethe plug please
note the wires in the mains lead are coloured in accordance with the
following code:
BLUE-NEUTRAL
BROWN LIVE
GREEN AND YELLOW- EARTH
As the colours of the wires in the mains lead of this appliance may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The BLUE wire is the NEUTRAL and must be connected to the terminal
which is marked with the letter N or coloured BLACK.
The BROWN wire is the LIVE and must be connected to the terminal
which is marked with the letter L or coloured RED.
The GREEN/YELLOW is the EARTH and must be connected to the
terminal which is marked with the letter Eor or coloured GREEN OR
GREEN/YELLOW.
Always ensure that the cord grip is positioned and fastened correctly.
If a I 3A (BS 1363) fused plug is used it must be fitted with a 1 3A fuse.
If in doubt consult a qualified electrician.
Wiring fora 13 Amp Plug (BS1363)
Please note. The Earth Terminal is marked with the letter E or  Earth
Symbol.
Earth -
(Green / Yellow)
Neutral
(Blue)
Live - L
(Brown)

P 
P

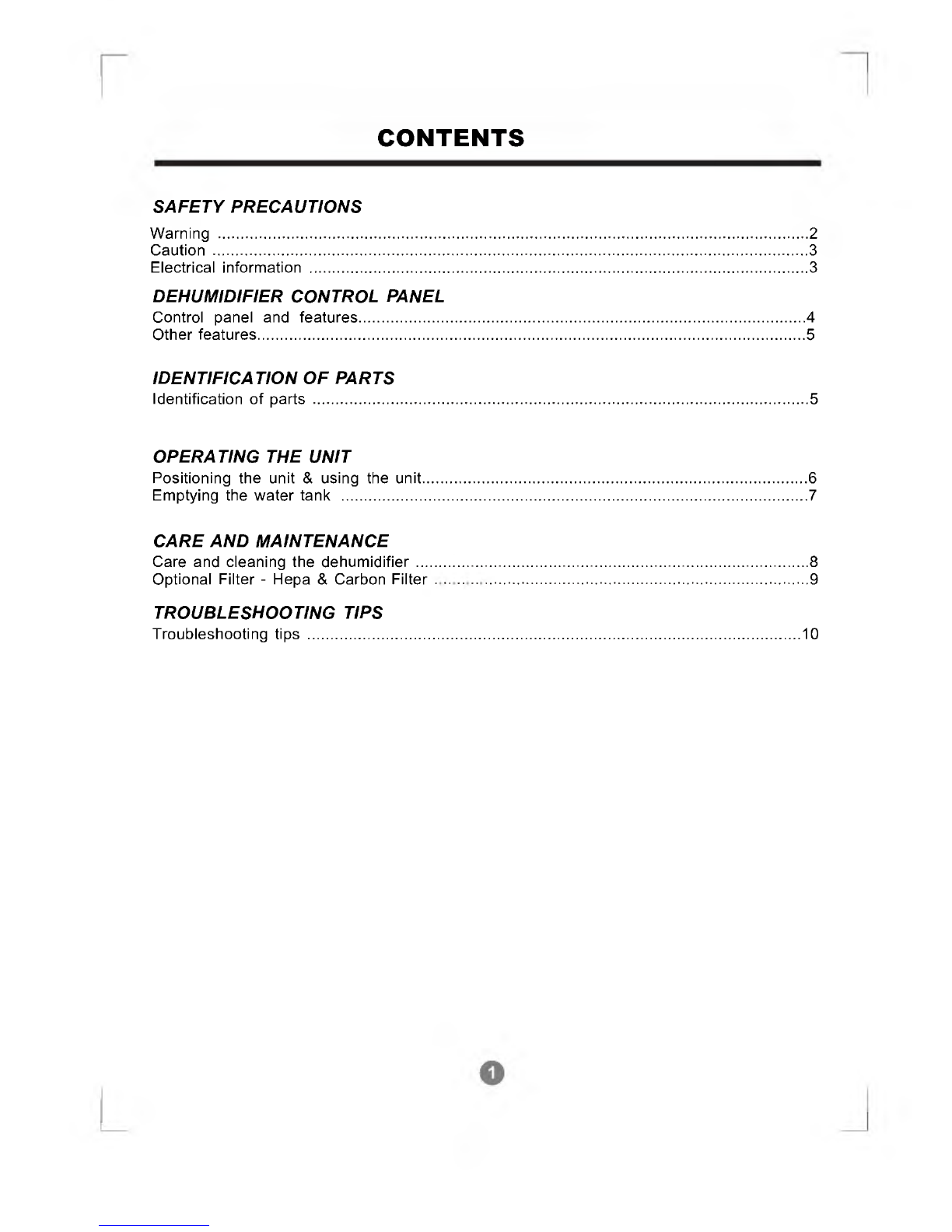

CONTENTS
SAFETY PRECAUTIONS
Warning.................................................................................................................................2
Caution..................................................................................................................................3
Electricalinformation .............................................................................................................3
DEHUMIDIFIER CONTROL PANEL
Control panel and features..................................................................................................4
Otherfeatures........................................................................................................................5
IDENTIFICATION OF PARTS
Identificationof parts ............................................................................................................5
OPERATING THE UNIT
Positioning the unit & using the unit....................................................................................6
Emptyingthe water tank ......................................................................................................7
CARE AND MAINTENANCE
Care and cleaning the dehumidifier ......................................................................................8
Optional Filter - Hepa & Carbon Filter ..................................................................................9
TROUBLESHOOTING TIPS
Troubleshootingtips ...........................................................................................................10
0
L  P

P

P
SAFETY PRECAUTIONS
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
• The seriousness is classified by the following indications.
WARNING 
This symbol indicates the possibility of death or serious injury.
L1\
CAUTION 
This symbol indicates the possibility of injury or damage to property.
• Meanings of symbols used in this manual are as shown below.
r&- 
Never do this.
(D 
Always do this.
[LI
WARNING]
j
I.mT
1
not
i
:}

IIi!

'I_
of the 
I
outlet or 
!_[ J
.  I
I
7 
I
j
power
connection
• Otherwise, it may cause electric • It may cause electric shock or fire

It may cause electric shock or
shock or fire due to excess heat 
due to heat generation. 
fire.
generation.
!
imm
hl
l
engt h
 j 
Truh1t*I_
1
plug
IaIqI  •r.IIL.k
•Q1
a heat source.
• It may cause electric shock or
S
It may cause electric shock.  • Plastic parts may melt and
fire due to heat generation.  cause a fire.
• It may cause fire and electric 
• It may cause failure of machine • It may cause electrical shock
shock. 
or electric shock. 
or injury.
Do not use the machine near 
I&
Do not drink or use
the 
Do
flammable gas or combustibles, such

water drained from air  during
n o t
ff"
as gasoline, benzene, thinner, etc.

conditioner.

JL.
I
•
It may cause an explosion or fire.* It contains contaminants and 
S It may cause electric shock.
could make you sick.
[
CAUTION]
OW
hen using
I1Y11iTF closetsor

& Do not put
in places where

' Place
 - -
level,
unit.
other
small spaces, be

water may

III
sure to keep
doors
open.
• Lack of ventilation can 
• Water may enter the unit and • If the unit falls over, it may
cause overheating and fire. 
degrade the insulation. It may 
cause water to spill and
cause an electric shock or fire. 
damage belongings, or
cause electrical shock or fire.
0
L  P

P
P
SAFETY PRECAUTIONS
• A lack of air flow can lead 
S Infants, children, elderly people, 
• This will cause the unit
to overheating and fire. 
and people not senstive to 
deterioration due to
humidity. 
chemicals and solvents
dissolved in the air.
• Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
• There is danger of fire or
electric shock.
• You may be injured if you
fall or if the unit falls over.
• Operation without filters
may cause failure.
• It may cause failure of
appliance or accident.
• Water may spill inside I
unit, causing insulation
failure and electrical
shock or fire.
Do 
(,uraTh
I
circumstances cut
I
IV 
remove orby
L heear1ad.
This unit isgrounded through the
power cord plugwhen plugged
into a matching wall outlet.
Fig.1
Electrical Information
•
The manufacture's nameplate is located on the rear panel of
the unit and contains electrical and other technical data
specific to this unit.
• The dehumidifier must be properly earthed. To minimize
shock and fire hazards, proper earthing is important. The
power cord is equipped with a three-pin plug for
protection against shock hazards.
• Your dehumidifier must be used in a properly grounded wall
receptacle. If the wall receptacle you intend to use is not
adequately grounded or protected by a time delay fuse or
circuit breaker, have a qualified electrician install the proper
receptacle.
• Ensure the receptacle is accessible after the unit installation.
• Do not use extension cords or an adapter plugs with this
unit. However, if it is necessary to use an extension cord, use
a sufficiently rated extension and ensure cord is fully
unwound to avoid heat build-up.
• To avoid the possibility of personal injury, always disconnect
the power supply to the unit, before installing and/or servicing.
0
L  P

r
DEHUMIDIFIER CONTROL PANEL
Power on
indicator light

0
Bucket full
(green)
indicator light(red)
Dehumidifying 
FULL
operation on
indicator light 
• 
(_)
-I-
(green) 
PNER
Continuous
operation on
indicator light 
SET DEHUN 
MODE 
Humldlty%
(green)  S S
HIGH
CONTDEH UN
LOW
High fan
Low fan
indicator
light(green)
indicator
light(green) 
Fig.2
Control buttons
o Power On/Off Switch 0
FAN SPEED Pad
Press to turn the dehumidifier on and off.
Control the fan speed. Press to select either
HIGH or LOW fan speed. Set the fan control
@
Set Dehum Mode
to HIGH for maximum moisture removal.
Press to switch continuous dehumidification on and off
When the humidity has been reduced and
quiet operation is preferred, set the fan control
to LOW.
Note:
The continuous mode will operate until the bucket is
full if drained to bucket.
•
Humidit Setting
Press -  or 19 to select the desired humidity
setting
o
Display
Shows the set
%
humidity level while setting, then shows
the actual(±5% accuracy) room % humidity level.
Error Codes:
El- Humidity sensor error--Unplug the unit and plug it
back in. If error repeats, call for service.
E2- Temperature sensor error-- Unplug the unit and plug
it back in. If error repeats, call for service.
P1- Unit is defrosting-- tJlow the unit time to automatically
defrost. The error will clear after the unit self defrosts.
P2- Bucket is full-- Empty the bucket and replace in
the right position.
NOTE: When more than one error occur, the
priority of the code display order is:
P2--E2--E1--P1. Please refer to trouble shooting
section
0
L

P
P

IDENTIFICATION OF PARTS
Other features
O
Full Water
Power Failure
In the case of a power failure or interruption, the unit
Indicator light on indicates the bucket is full. Remove
will automatically re-start, in the settings last used,
bucket, empty and replace properly to continue
when the power is restored.
operation.
Safety Feature On Restart
Auto Shut Off
A 3 minute delay will occur before the compressor
The water level control switch shuts off the dehumidifier when :-
restarts after a power failure, water full or when the
desired humidity level is reached. This is a safety
1. The bucket is full, or when the bucket is removed
measure designed to protect the unit.
2. When the bucket is removed or not replaced in the proper position.
3. When the setting humidity is reached
Auto Defrost
When frost builds up on the evaporator coils, the compressor will
switch off but the fan will continue to run until the frost disappears.
Identification of parts
Front 
Rear
Carry Handle
Control panel 
// 
Air outlet
gril
i le
, ,.Air intake filter
Water bucket
Continuous drain
Water level
hose outlet
window  -
Power cord hook 
page 7)
(Used only when
storing the unit.)
Castor
Power Cord
Fig.3
and plug
0
L  P

P

OPERATING THE UNIT
P
Positioning the unit
A dehumidifier operating in a basement will have little or no effect in drying an adjacent enclosed storage area, such as a
closet, unless there is adequate circulation of air in and out of the area.
• Do not use outdoors.
• This dehumidifer is intended for indoor use only.
This dehumidifier should not be used for industrial
applications.
• Place the dehumidifier on a flat, level surface strong
enough to support the unit with a full bucket of water.
•
.AJlow at least 20cm of air space on all sides of the unit
for good air circulation.
• Place the unit in an area where the temperature will not
fall below 5(41 ° F). The coils can become covered with
frost at temperatures below 5 C(41 F), which may reduce
performance.
• Place the unit away from the clothes dryer, heater or radiator.
• Use the unit to prevent moisture damage anywhere books
or valuables are stored.
• Use the dehumidifier in a basement to help prevent
moisture damage.
• The dehumidifier must be operated in an enclosed
area to be most effective.
• Close all doors, windows and other outside openings
to the room.
40cm or
more
Air outlet grille
Air intake.—
grille
20cm 
20cm or more
d i
20cm or more
20cm or more
Fig.4
Castors(At four points on the bottom of unit)
• Castors can only move laterally.
• Do not force castors to move over carpet,
nor move the unit with water in the bucket.
(The unit may tip over and spill water.)
When using the unit
• Plug the unit into a 220 - 240V 50Hz electrical power socket.
• When first using the dehumidifier, operate the unit continuously for 24 hours.
• This unit is designed to operate with a working environment between 5
° C and 35 ° C.
If the unit has been switched off and needs to be switched on again quickly, allow approximately
• three minutes for the correct operation to resume. This is a restart safety feature.
• Do not connect the dehumidifier to a multiple socket outlet, used with other electrical appliances.
• Select a suitable location, making sure you have easy access to an electrical outlet.
• Plug the unit into a suitable electrical socket-outlet with earth connection.
Make sure the water bucket is placed properly otherwise the unit will not operate properly.
0
L  P

P
P
OPERATING THE UNIT
1. Pull out the bucket a little.
Emptying the water tank
1. Using bucket for water collection
• When the bucket is full, the unit will automaticallyswitch
off displaying' P2', the Full indicator light will flash.
• Slowly pull out the bucket, grip the handle of the bucket
from both sides, and carefully pull out straight so water does U
not spill. Do not put the tank on the floor because the
bottom of the bucket is uneven. Otherwise the bucket
Fig.5
will fall down and cause the water to spill.
• Discard the water and replace the bucket. The
2. Grip the handle of the bucket
bucket must be in place and securely positioned for the
with even strength, and pull it
dehumidifier to operate.
out from the unit.
• The machine will re-start when the bucket is restored
in its correct position.
NOTES:
• When you remove the bucket, do not touch any parts
inside of the unit. This may damage the product.
• Be sure to push the bucket gently all the way into the
unit securely otherwise it may cause damage to the unit.
Avoid Spillage: 
Fig.6
• Do not place the bucket on the floor as the bottom of 
3. Pour the water out.
the bucket is uneven.
Bucket handle
2. Continuous draining 
Fig .7
Water can be automatically emptied into a
drain by attaching the unit with a water hose
(not included).
•
Remove the plastic cover located atdrain hose
outlet by scissor. Attach a drain hose(10=016mm)
into the back ofthe unitand run the hose to a
suitable drainage facility (see Fig.8).
NOTE: When the continuous drain feature is not being 
Remove the rubber
plug,attach the
used, remove the drain hose from the outlet and
hose to the drain
attach the rubber plug as shown in Fig.8. 
hose outlet.
Fig.8
0
L  P

Fig.9
Fig. lOa
Fig. lOb
Pnwr rnril
Fig. 1 I
P

CARE AND MAINTENANCE
P
Care and cleaning of the dehumidifier
Turn the dehumidifier off and remove the plug
from the wall outlet before cleaning.
1. Clean the Grille and Case
•
Use water and a mild detergent. Do not use bleach
or abrasives.
• Do not splash water directly onto the main unit. Doing
so may cause an electrical shock, cause the insulation
to deteriorate, or cause the unit to rust.
• The air intake and outlet grilles get soiled easily, so use
a vacuum attachment or brush to clean.
2. Clean the bucket
Every few weeks, clean the bucket to prevent growth
of mold, mildew and bacteria. Partially fill the bucket
with clean water and add a little mild detergent.
Swish it around in the bucket, empty and rinse.
NOTE: Do not use a dishwasher to clean the bucket.
After clean, the bucket must be in place and securely
seated for the dehumidifier to operate.
3. clean the air filter
The washable nylon air filter (Fig. lOc) behind the front
grille should be checked and cleaned at least every 30 days
or more often if necessary.
NOTE: THE FILTER IS NOT DISHWASHER SAFE.
To remove:
• Grip the tab on the filter and pull it upward, then
pull it out as shown in Fig. 10a.
• Clean the filter with warm, soapy water. Rinse and
air dry before replacing it. Do not clean the
filter in a dishwasher.
To attach:
Insert the air filter into the unit from underside to
upside. See Fig.lOc.
CAUTION:
• The dehumidifier must be operated with a filter
because dirt and lint will clog it and reduce
performance.
4. When not using the unit for long time periods
• After turning off the unit, wait one day before emptying
the tank.
• Clean the main unit, bucket and air filter.
• Twist the excess cord onto the power cord hook
(see Fig. 11)
• Cover the unit with a plastic bag.
• Store the unit upright in a dry, well-ventilated place.
r
ø 1
Fig. lOc
0
L  P

Remove nylon air filter
Reveal the frame
for optional filters
Frame for optional
filters (HEPA/ Carbon)
Fig. 1 ic
Fig. 1 Ia
P
P
CARE AND MAINTENANCE
Optional Filter- HEPA or Carbon Filter
This appliance is supplied with a HEPA Filter.
It is recommended that the HEPA Filter is replaced every 6 - 12 months depending on frequency
of usage. You may replace it with a Carbon Filter instead.
Replacement HEPAor Carbon Filter can be purchased directly from EcoAir. Please
contact 020 8459 2458. The HEPAor Carbon Filter is optional but the washable nylon
filter must always be used.
To replace the HEPA or Carbon filter:-
• First remove the washable nylon air filter (Fig. 11 a)
• Remove the HEPA filter from the frame (behind the air filter)
• Insert the HEPAor Carbon filter within the lugs around the frame (Fig. 1 ic)
• Refit the nylon air filter

P

TROUBLESHOOTING TIPS
P
Before calling for service, review the chart below first yourself.
Make sure the dehumidifier's plug is pushed completely into the
Unit does not start
outlet.
V 
I
• Check the house fuse/circuit breaker box.
__________________________ 
• Dehumidifier has reached its preset level or bucket is full.
Tank is not in the proper position.
Dehumidifier does not
dry the air as it should
• Do not allow enough time to remove the moisture.
• Make sure there are no curtains, blinds or furniture blocking the
front or back of the dehumidifier.
• The humidity control may not be set low enough.
• Check that all doors, windows and other openings are securely
closed.
• Room temperature is too low, below 5 ° C(41 ° F).
• There is a kerosene heater or something giving off water vapor
in the room.
CThe unit makes a loud
1 
The air filter is clogged.
• The unit is tilted instead of upright as it should be.
noise when operating 
1111111*
0 The floor surface is not level.
[
Frost appears on the 
1111111*

This is normal. The dehumidifier has Auto defrost feature.
coils
Water on floor
Hose to connector or hose connection may be loose.
I
• Intend to use the bucket to collect water, but the back
lIII 
L
drain plug is removed.
El, E2, P1 or P2 appear

These are error codes. See the CONTROL PADS ON THE
in the display 
j 
llluu*ø

L
DEHUMIDIFIER section.

P

P
ONE (1)YEAR LIMITED WARRANTY
Save This Warranty Information
EccAir guarantees this product free from defects in materials and workmanship
for a period of one (1)year from the date of purchase.
This unit must be operated under conditions as recommended, at voltages
indicated on the unit. Any attempts made to service or modify the unit, will
render this WARRANTY VOID. The actual product may differ slightly from
the illustration. This warranty is in addition to, and does not affect,
your statutory rights.
For further information, please contact 020 8459 2458.
This product has been manufactured to comply with the EEC Directives
73/23/EEC and 89/336/EEC.
eco
Q

Copyright Reserved
www.eco air. org
