Instruction Manual
EN
Manual Arahan
MS
TH
AR
ZH
ZH-TW

Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!
We hope it brings you many years of satisfaction. We trust the purchase of your
new robot will help keep your home clean and provide you more quality time to
do other things.
Live Smart. Enjoy Life.
Should you encounter situations that have not been properly addressed in
this Instruction Manual, please contact our Customer Service Center where a
For more information, please visit the ECOVACS ROBOTICS official website:
www.ecovacs.com
The company reserves the right to make technological and/or design changes
to this product for continuous improvement.
Thank you for choosing DEEBOT!
Instruction Manual........................................................2
EN
Manual Arahan............................................................69
MS
TH
AR
...........................................................................46
ZH
...........................................................................23
ZH-TW
................................................... 92
................................................................115

FR-CA
EN
1. Important Safety Instructions ......................................................................2
2. Package Contents and Technical Specifications ......................................4
2.1 Package Contents .................................................................................... 4
........................................................................................... 4
2.3 Product Diagram....................................................................................... 5
3. Operating and Programming .......................................................................7
3.1 Notes Before Cleaning .............................................................................7
3.2 Quick Start ................................................................................................ 8
3.3 Cleaning Mode Selection........................................................................ 11
3.4 Programming the Robot ......................................................................... 12
3.5 Optional Mopping System ...................................................................... 13
3.6 Alarm Indicator Light and Sounds .......................................................... 15
4. Maintenance ................................................................................................ 16
4.1 Dust Bin and Filters ................................................................................ 16
....................................17
4.3 Main Brush and Side Brushes ................................................................ 18
4.4 Other Components ................................................................................. 19
4.5 Regular Maintenance ............................................................................. 20
5. Troubleshooting ......................................................................................... 21
Contents

FR-CA
2EN
When using an electrical appliance, basic precautions should always be followed, including the
following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
SAVE THESE INSTRUCTIONS
1. This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3.
could entangle the Appliance. Tuck rug fringe under the rug base, and lift items such as
4. If there is a drop off in the cleaning area due to a step or stairs, you should operate the
Appliance to ensure that it can detect the step without falling over the edge. It may become
necessary to place a physical barrier at the edge to keep the unit from falling. Make sure the
physical barrier is not a trip hazard.
5. Only use as described in this manual. Only use attachments recommended or sold by the
manufacturer.
6. Please make sure your power supply voltage matches the power voltage marked on the
Charging Dock.
7. For INDOOR household use ONLY. Do not use the Appliance in outdoor, commercial or
industrial environments.
8. Use only the original rechargeable battery and Charging Dock provided with the Appliance
from the manufacturer. Non-rechargeable batteries are prohibited. For battery information,
9.
10. Do not operate the Appliance in an area where there are lit candles or fragile objects.
11. Do not use in extremely hot or cold environments (below -5°C/23°F or above 40°C/104°F).
12.
parts.
13. Do not operate the Appliance in a room where an infant or child is sleeping.
14. Do not use Appliance on wet surfaces or surfaces with standing water.
15. Do not allow the Appliance to pick up large objects like stones, large pieces of paper or any
item that may clog the Appliance.
16. Do not use Appliance to pick up flammable or combustible materials such as gasoline,
printer or copier toner, or use in areas where they may be present.
17. Do not use Appliance to pick up anything that is burning or smoking, such as cigarettes,
18. Do not put objects into the suction intake. Do not use if the suction intake is blocked. Keep
19. Take care not to damage the power cord. Do not pull on or carry the Appliance or Charging
Dock by the power cord, use the power cord as a handle, close a door on the power cord, or
pull power cord around sharp edges or corners. Do not run Appliance over the power cord.
Keep power cord away from hot surfaces.
20. If the power cord is damaged, it must be replaced by the manufacturer or its service agent in
order to avoid a hazard.
21. Do not use the Charging Dock if it is damaged.
1. Important Safety Instructions

FR-CA 3
EN
22. Do not use with a damaged power cord or receptacle. Do not use the Appliance or Charging
Dock if it is not working properly, has been dropped, damaged, left outdoors, or come in
contact with water. It must be repaired by the manufacturer or its service agent in order to
avoid a hazard.
23. Turn OFF the power switch before cleaning or maintaining the Appliance.
24. The plug must be removed from the receptacle before cleaning or maintaining the Charging
Dock.
25. Remove the Appliance from the Charging Dock, and turn OFF the power switch to the
Appliance before removing the battery for disposal of the Appliance.
26. The battery must be removed and discarded according to local laws and regulations before
disposal of the Appliance.
27. Please dispose of used batteries according to local laws and regulations.
28. Do not incinerate the Appliance even if it is severely damaged. The batteries can explode in
29. When not using the Charging Dock for a long period of time, please unplug it.
30. The Appliance must be used in accordance with the directions in this Instruction Manual.
ECOVACS ROBOTICS cannot be held liable or responsible for any damages or injuries
caused by improper use.
31. The robot contains batteries that are only replaceable by skilled persons. To replace the
robot’s battery, please contact Customer Service.
32. If the robot will not be used for a long time, power OFF the robot for storage and unplug the
Charging Dock.
33. WARNING: For the purposes of recharging the battery, only use the detachable supply unit
CH1465A provided with this appliance.
34. The Remote Control pre-installs two non-rechargeable AAA batteries. To replace the
battery of the Remote Control, please turn over the Remote Control, press and remove its
Battery Cover. Remove the batteries, and insert the new batteries with the correct polarity.
Reassemble the Battery Cover.
35. Non-rechargeable batteries are not to be recharged.
36. Different types of batteries or new and used batteries are not to be mixed.
37. Batteries of the Remote Control are to be inserted with the correct polarity.
38. Exhausted batteries are to be removed from the Appliance and safely disposed of.
39. If the Remote Control is to be stored unused for a long period, the batteries should be
removed.
40. The supply terminals are not to be short-circuited.
1. Important Safety Instructions

FR-CA
4EN
2. Package Contents and Technical Specifications
2.1 Package Contents
Robot
(4) Side Brushes (2) Washable/
Cleaning Cloths
Main Brush Option
(Pre-installed)
Cleaning Cloth Plate
Charging Dock Remote Control with
Batteries
Instruction Manual
Model DD3G
Working Voltage 12V DC Rated Power 40W
Charging Dock Model CH1465A
Rated Input Voltage 100-240V AC Rated power 20W
Rated Output Current 1A Rated output voltage 20V DC
Remote Control Model RC1633 Input Voltage 3V DC
Battery
DM88-BYD
Ni-MH3000mAh
12V
2.2 Specifications
*
Sponge Filter and
Reservoir

FR-CA 5
EN
2.3 Product Diagram
Robot
1. Cover
2. AUTO Mode Button
3. Bumper with Anti-
Collision Sensors
4. Reservoir Release Button
5. Anti-Drop Sensors
6. Charging Contacts
7. Side Brushes
8. Main Brush Option
9. Driving Wheels
10. Universal Wheel
11. Battery Pack
12. Water Outlets
13. Reservoir
14. RESET Button
15. Power Switch
16. Dust Bin
17. Multi-Function Cleaning Tool
2. Package Contents and Technical Specifications
Dust Bin
1. Dust Bin Handle
2. Dust Bin Lock
3. Filter Net
4. Sponge Filter
1. Status Indicator Light
2. Wi-Fi Indicator Light
3. AUTO Mode Button
Control Panel
1
2
3
4
5
6
7
8
9
10
11
13
12
1
2
3
4
5
1
2
3
14
16
15
17

FR-CA
6EN
2. Package Contents and Technical Specifications

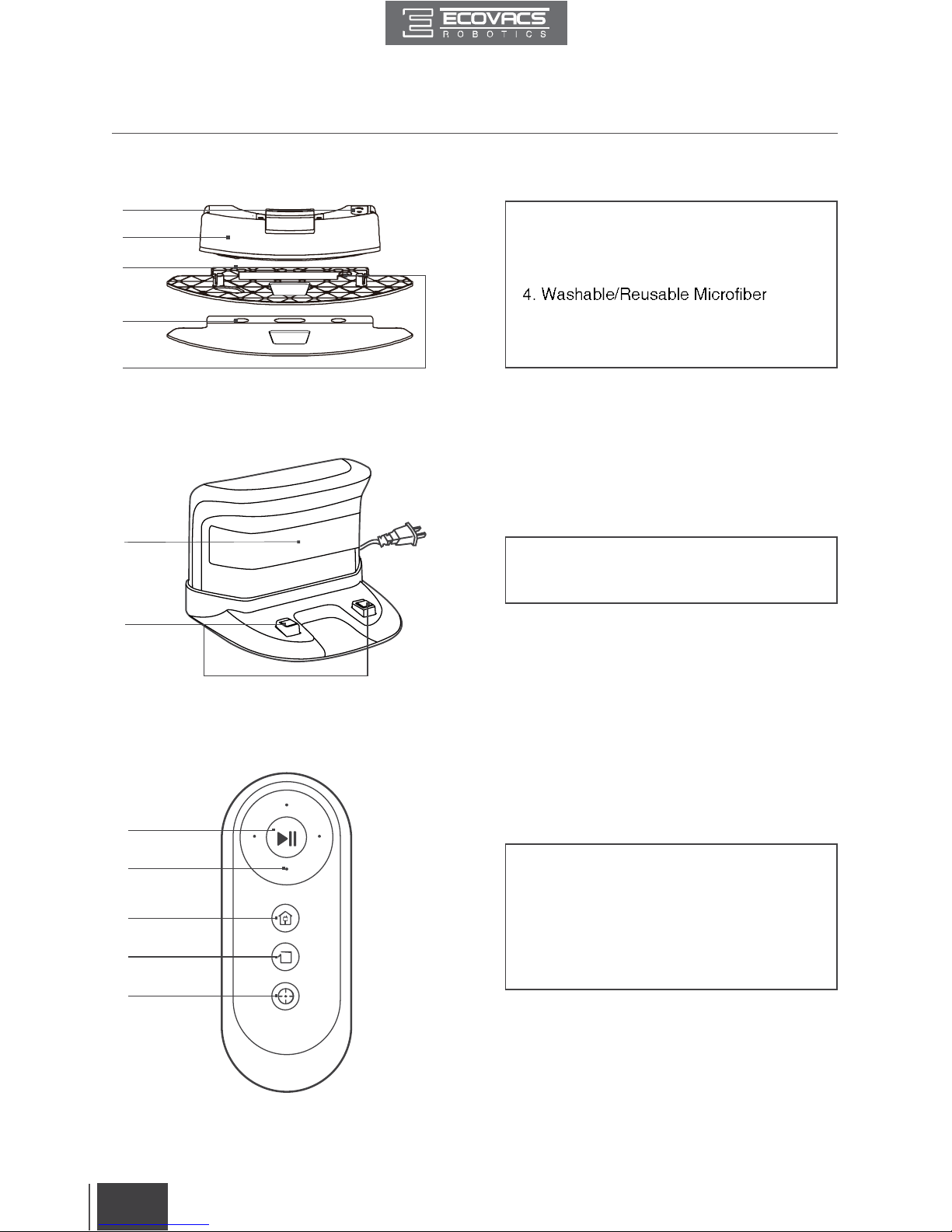

Advanced Mopping System
1. Water Inlet
2. Reservoir
3. Cleaning Cloth Plate
Cleaning Cloth
5. Magnet
Charging Dock
Charging Dock
1. Infrared Signal Generator
2. Charging Dock Pins
1. START/PAUSE Button
2. Direction Control Buttons
3. Return to Charger Mode Button
4. Edge Cleaning Mode Button
5. Spot Cleaning Mode Button
1
2
1
2
3
4
5
4
3
5
2
1

FR-CA 7
EN
3.1 Notes Before Cleaning
Before operating DEEBOT, take a few moments to survey the area to be
cleaned and remove any obstacles.
Please take care of DEEBOT and assist it at
the cleaning area to put furniture like chairs in their proper place.
The product is not suitable for use on carpet.
Before using the product near an area rug or
on a short-pile area rug with tasseled edges,
please fold area rug edges under themselves.
3. Operating and Programming

FR-CA
8EN
3. Operating and Programming

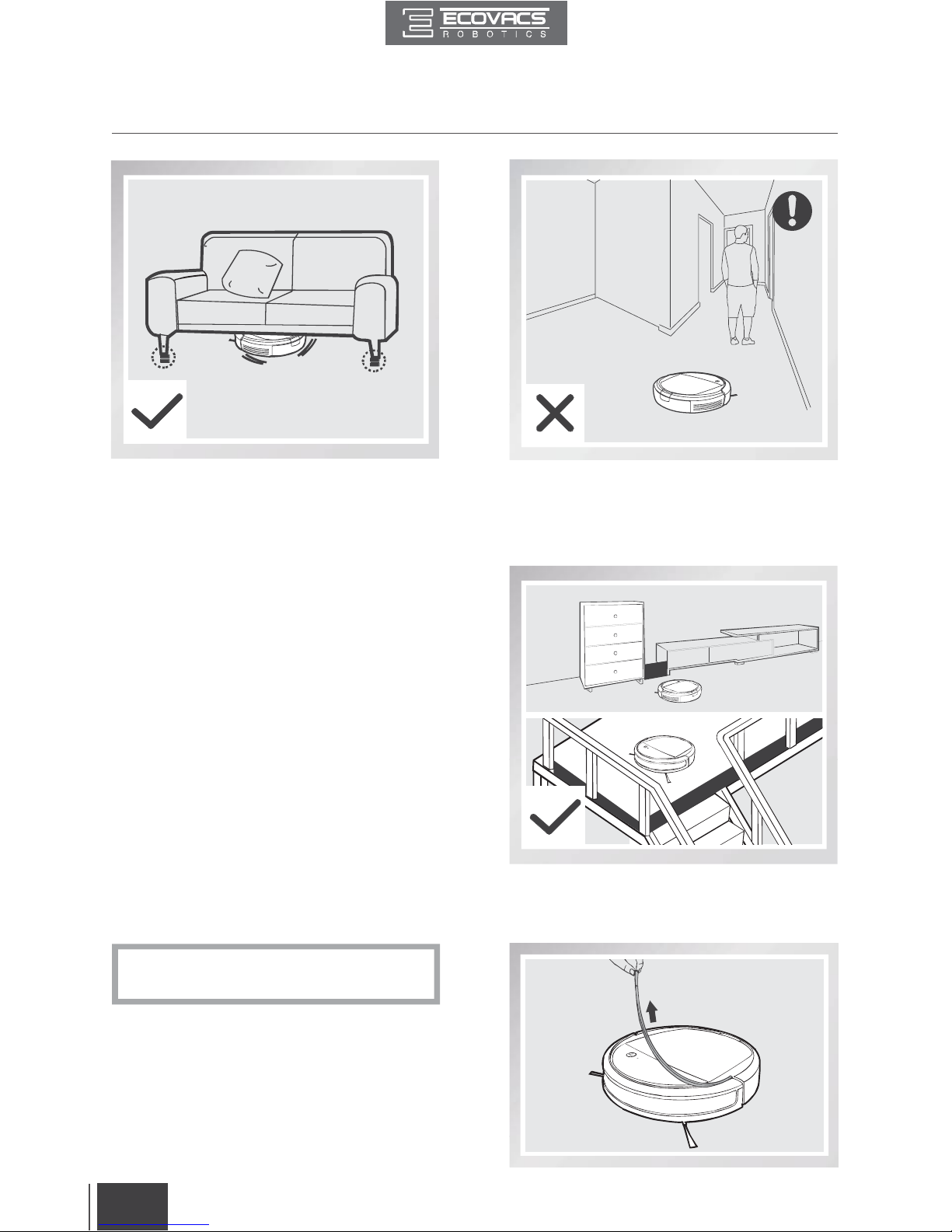

Please be aware that the robot needs at
least an 8 cm (3.1") clearance to clean under
furniture without complications.
If there is a step or stairs in the cleaning area,
please operate DEEBOT to ensure its Anti-
Drop Sensors can detect the drop off. It may
be necessary to place a physical barrier at the
edge of the drop off to keep the unit from falling
over the edge.
Please do not stand in narrow spaces, such as
hallways, or DEEBOT may fail to identify the
area to be cleaned.
3.2 Quick Start
*
Remove the protective strip from the robot’s
Bumper before use.

FR-CA 9
EN
3. Operating and Programming
*When DEEBOT is not cleaning, it is suggested to keep it powered ON and charging instead of
powered OFF.
Install Side Brushes
Attach Side Brushes to the bottom of
DEEBOT by pressing a brush into each
slot with the matching color until it clicks.
2
Power ON
Open the robot’s Top Cover. Turn the
robot's Power Switch to the ON position.
DEEBOT is powered ON when DEEBOT
emits a musical sound and the AUTO
Mode Button stays illuminated.
3
Charging Dock Placement
Place the Charging Dock on a level
floor surface against the wall with the
base perpendicular to the ground. Keep
the immediate area 1.5m (5') in front
of the charger and 0.5m (1.6') on both
sides of the charger clear of objects and
Plug the Charging Dock in.
1

FR-CA
10 EN

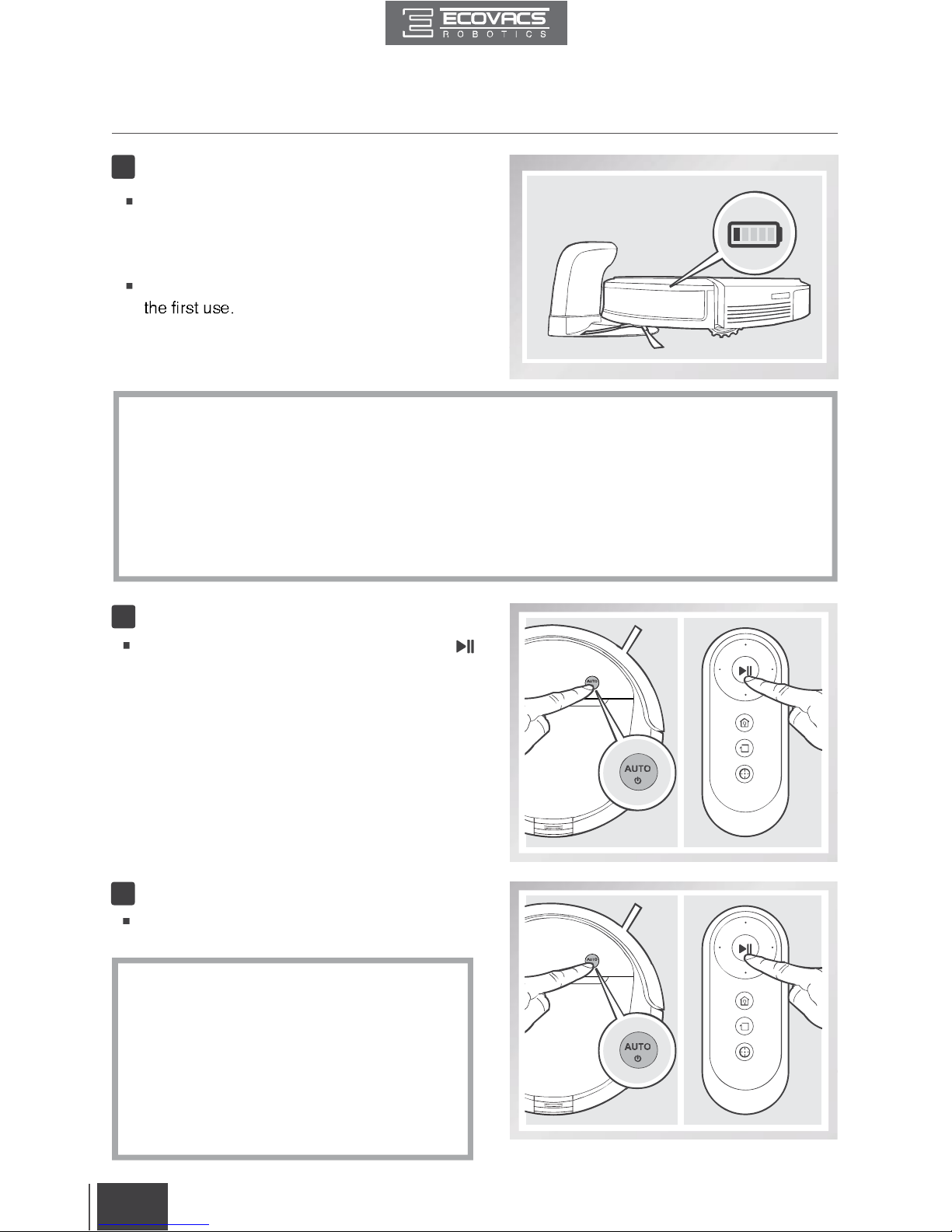

Pause DEEBOT by pressing the AUTO Mode
Button on DEEBOT or on the Remote Control.
* DEEBOT can be directed to move forward,
backward, left and right using the Direction
Control Buttons on the Remote Control when
it is Paused.
* The AUTO Mode Button on the robot’s Control
Panel stops glowing after the robot is paused
for more than 10 minutes. Press AUTO Mode
Button on the robot or press any button on the
Remote Control to wake up the robot.
6Pause
5Start
Press the AUTO Mode Button on DEEBOT or
on the Remote Control. DEEBOT starts to work
immediately in AUTO Cleaning Mode.
3. Operating and Programming
*Make sure to turn the robot’s Power Switch to the ON position before charging.
* AUTO Mode Button blinks when DEEBOT is charging. AUTO Mode Button stops glowing when
DEEBOT is fully charged.
* When DEEBOT completes the cleaning cycle or when battery power gets low, DEEBOT
automatically returns to the Charging Dock to recharge itself. DEEBOT can also be sent back to the
Charging Dock at any time by pressing the Return to Charger Button on the Remote Control.
* Empty any remaining water from the Reservoir and remove the Cleaning Cloth Plate before charging
DEEBOT.
Place DEEB OT on th e Cha rgin g Dock
making sure the Charging Contacts on
DEEBOT and the Charging Dock Pins make
a connection.
Charge DEEBOT for at least 4 hours before
4Charge DEEBOT

FR-CA 11
EN
3. Operating and Programming

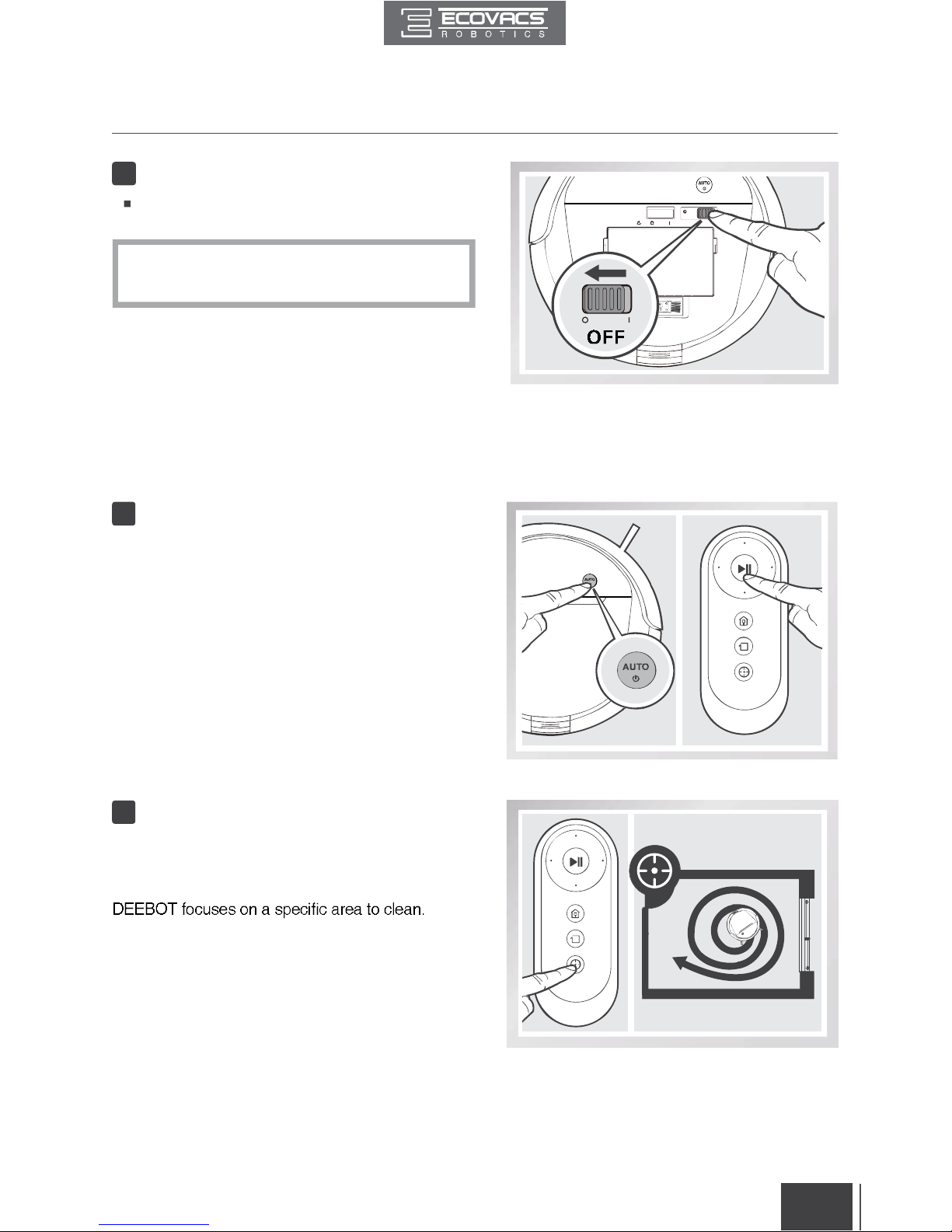

Pause DEEBOT. Open the robot’s Top Cover.
Move the Power Switch to the OFF position.
*When DEEBOT is not cleaning, it is suggested
to keep it powered ON and charging.
7Power OFF
3.3 Cleaning Mode Selection
DEEBOT has several cleaning modes to choose from to effectively clean different floors.
Cleaning modes are selected using the Remote Control or ECOVACS App.
AUTO Cleaning Mode
Spot Cleaning Mode
(1-5 minutes)
This is the most commonly used mode. In AUTO
Cleaning Mode, DEEBOT plans the most efficient
route and cleans in a back and forth straight-line
pattern.
This mode is applicable for an area of highly
concentrated dirt or dust. In Spot Cleaning Mode,
1
2

FR-CA
12 EN
3. Operating and Programming
Set Intelligent Scheduling
DEEBOT can be scheduled to cleaning once per day
at the same time, even if nobody is at home.
Double-click the AUTO Mode Button on DEEBOT to
set the current time as the scheduled cleaning time.
Intelligent Scheduling is set when the robot beeps.
DEEBOT will automatically clean at the set time
every day.
For example: Set Intelligent Scheduling successfully
at 9:00am, and DEEBOT automatically cleans at
9:00am every day.
1
Edge Cleaning Mode
This mode is good for cleaning the edges and
corners of a room. In Edge Cleaning Mode,
DEEBOT cleans along a border (e.g. wall).
3
* All scheduled cleanings are performed in AUTO Cleaning Mode.
DEEBOT has an Intelligent Scheduling and a Time Scheduling function to schedule cleaning
times. DEEBOT can be programmed to automatically clean with Intelligent Scheduling using the
robot’s Control Panel. DEEBOT can also be programmed with Time Scheduling using the App.
3.4 Programming the Robot
Intelligent Scheduling

FR-CA 13
EN
3. Operating and Programming
Cancel Intelligent Scheduling
Double-Click the AUTO Mode Button on DEEBOT
when DEEBOT is paused. Intelligent Scheduling is
cancelled when the robot beeps.
2
*
Intelligent Scheduling again at the desired time.
* If DEEBOT is turned OFF, Intelligent Scheduling is cancelled.
* Empty the Reservoir and remove the Cleaning Cloth Plate before cleaning on carpet.
* When using the mopping system, fold area rug edges under themselves so DEEBOT will
avoid the rug.
* Empty any remaining water from the Reservoir and remove the Cleaning Cloth Plate before
charging DEEBOT.
* Always keep the Reservoir installed when the robot is cleaning or charging.
3.5 Optional Mopping System
DEEBOT has an optional Mopping System using a Washable/Reusable Microfiber Cleaning
Cloth and Cleaning Cloth Plate attached to a proprietary Reservoir. The washable/reusable
Cleaning Cloth automatically damp mops the floor to a spotless clean.
Add Water into the Reservoir.1

FR-CA
14 EN
3. Operating and Programming
Attach Cleaning Cloth; Install the Cleaning Cloth Plate and the Reservoir.2
Start
Select the desired Cleaning Mode. DEEBOT sweeps,
lifts, vacuums and mops in the selected mode.
3

FR-CA 15
EN
3. Operating and Programming
3.6 Alarm Indicator and Sounds
Alarm Sound Indicator Light Problems Solution
/
Status Indicator
twice and
goes out once
DEEBOT is
powered ON.
DEEBOT has low
battery.
Power ON the robot. Manually
place the robot on the Charging
Dock and charge.
One Beep
Status Indicator
RED.
Driving Wheel
Malfunction
Check Driving Wheels for tangled
hair or debris and clean.
Two Beeps
Status Indicator
RED.
Main Brush Malfunction Check Main Brush for tangled hair
or debris and clean.
Three Beeps
Status Indicator
RED.
Driving Wheel
Malfunction
Turn over the robot. Press Driving
Wheels to check for a clicking
sound. If they do not click, please
contact Customer Service.
DEEBOT gets into
trouble while working
and stops.
Manually remove the obstacles
and restart DEEBOT.
Four Beeps
Status Indicator
RED.
Dust Bin Malfunction
Remove the Dust Bin and re-
install it properly. If the robot still
emits the alarm, please contact
Customer Service.
Five Beeps
Status Indicator
RED.
Low Battery Manually place the robot on the
Charging Dock to charge.
Six Beeps
Status Indicator
RED.
Side Brush Malfunction Check Side Brush for tangled hair
or debris and clean.
Seven Beeps
Status Indicator
RED.
Anti-Drop Sensor
Malfunction
Check Anti-Drop Sensors for dust
and clean.
Eight Beeps
Status Indicator
RED.
DEEBOT is powered
OFF while charging. Power ON the robot.
If DEEBOT detects a problem and needs your assistance, it emits alarm beeps or the Status
Indicator Light illuminates.

FR-CA
18 EN
Rinse the Sponge Filter, Dust Bin and Filter Net
under running water. reinstalling.
Main Brush
Turn the robot over. Push both buttons on the Main Brush Option and remove the Main Brush
cover. Remove the Main Brush. Use the Multi-Function Cleaning Tool to cut off and remove any
hair tangled around the Main Brush. Clean any tangled hair or debris from the Main Brush.
4.3 Main Brush and Side Brushes
* A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this
cleaning tool has sharp edges.
4. Maintenance
Cleaning the Side Brushes
Remove any hair or debris tangled around the Side
Brushes with the provided Multi-Function Cleaning
Tool. Remove the Side Brushes and wipe the Side
Brushes and their slots with a clean cloth.
