Introducing the PC
Introduction
Thank you for choosing LIVA Z Mini PC featuring APLD-MINI of great
performance and with stylish and flexible design.
This mini PC is based on Intel®Apollo lake Mobile platform. This
latest Core-M processor is a multi-core system-on-a-chip (SoC) that
integrates the next generation Intel®processor core, graphics,
memory, and I/O interfaces into one solution. Two M.2 slots are for
extending usage. It implements three Type-A USB 3.0 ports and one
Type-C USB 3.0 port and one USB 2.0 header supports two USB 2.0
ports at the front panel.
It supports DDR3L up to 8 GB Dual-channel SO-DIMM memory. It
also can add additional storage from M.2 SSD and USB Flash Drive.
The system is equipped with a set of I/O ports at the rear panel,
including one DC_IN port (19V), one HDMI port, one mini Display
port, two Giga LAN connectors.

2
LIVA Z MINI PC USER MANUAL
Chapter 1
Rear Panel I/O
CPU/Chipset
•Support DDR3L up to 8GB
- Dual-channel DDR3L SDRAM SO-DIMM
Memory
•2 x M.2 slots
(One supports Wireless card, the other
supports 2242 SSD card)
•Support eMMC 32/64, 1 x M.2 2242 SSD
Expansion
Storage
•Intel Apollo lake Mobile SoC
Specificaons
Note:
ID design and specificaon may vary, please refer
to actual goods you purchase.
Slots
•Support IEEE 802.11 b/g/n/ac and
Bluetooth 4.0
Wireless
•1 x DC_IN port (19V only)
•2 x Giga LAN connectors
•1 x HDMI port
•1 x Mini Display port
®

LIVA Z MINI PC USER MANUAL
3
Chapter 1
• 3 x Type-A USB 3.0 ports and 1 x Type-C USB
3.0 port
• 1 x Power button
• 1 x Audio combo jack
• 1 x Front USB 2.0 header
• 1 x 2-pin Front LED header
• 1 x 2-pin battery connector
• 1 x 3-pin System Cooling Fan connector
• 1 x 4-pin Digital Microphone connector
• 2 x M.2 slots
• 1 x Mini PLUS connector (LPC_CONN)
• 1 x HDD connector (SATA_CONN)
Internal I/O
Connectors &
Headers
Power Supply • Adapter 19V, 40W/65W
Dimension • 117mm x 128mm x 32mm
VESA • 100mm x 100mm

4
LIVA Z MINI PC USER MANUAL
Chapter 1
WARNING:
Please realize that there is a certain risk involved with
overclocking, including adjusng the seng in the BIOS, or
using the third-party overclocking tools. Overclocking may
affect your system stability, or even case damage to the
components and devices of your system. It should be done
at your own risk and expense. We are not responsible for
possible damage casesd by overclocking.

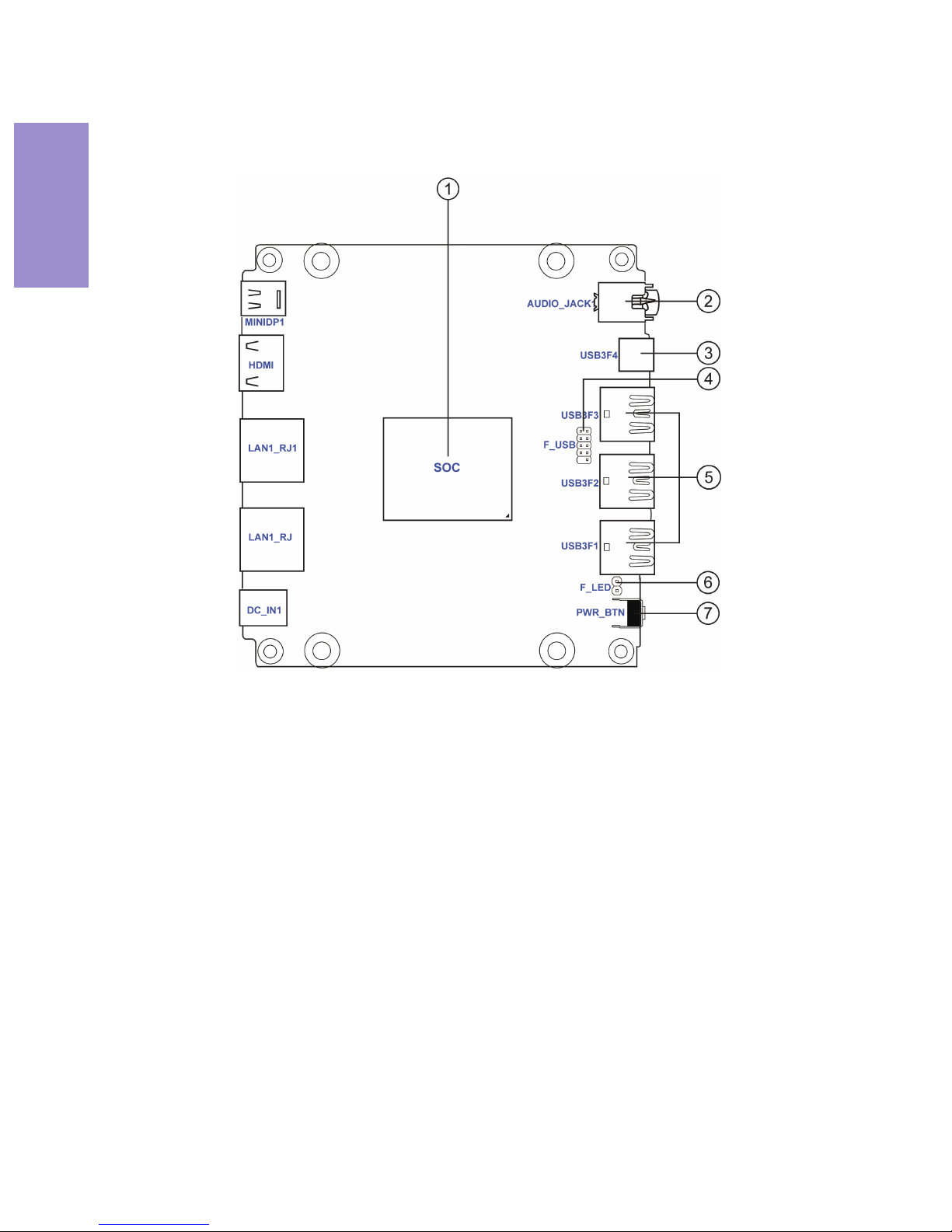

Front and Rear I/O
1. Power Buon Use this buon to power on/offthe
system.
Note:
ID design and specificaon may vary, please refer
to actual goods you purchase.
Connect your Type-A USB 3.0 devices
to these ports.
2. Type-A USB 3.0 Ports
Connect your Type-C USB 3.0 device
to this port.
3. Type-C USB 3.0 Ports

LIVA Z MINI PC USER MANUAL
5
Chapter 1
4. Combo Audio Jack
(Line out & Mic in)
Connect a microphone or speaker to
the combo audio jack.
Connect the DC_IN port to the power
adapter.
8. 19V DC_IN Port
Connect the RJ-45 jack to the LAN
ports for Network connecng.
7. Giga LAN Ports
You can connect the display device to
the HDMI port.
6. HDMI Port
You can connect the mini display
device to this port.
5. Mini Display Port

6
LIVA Z MINI PC USER MANUAL
Chapter 1
Motherboard Components

LIVA Z MINI PC USER MANUAL
7
Chapter 1

8
LIVA Z MINI PC USER MANUAL
Chapter 1
Table of Motherboard Components
LABEL COMPONENTS
1. SoC Intel®Apollo lake SoC
2. AUDIO_JACK Audio jack
3. USB3F4 Front USB 3.0 port (Type-C)
4. F_USB Front USB 2.0 header
5. USB3F1~3 Front USB 3.0 ports (Type-A)
6. F_LED Front LED header
7. PWR_BTN Power On/Off button
8. DIMM1~2 Single channel DDR3L SDRAM SO-DIMM
9. BT1 Battery connector
10. SYS_FAN 3-pin System cooling fan connector
11. NGFF1~2 M.2 support wireless card and SSD card
12. DMIC1 4-pin Digital microphone connector
13. LPC_CONN Mini PLUS connector
14. SATA_CONN HDD connector

LIVA Z MINI PC USER MANUAL
9
Chapter 1
BT1 (Baery)
SYS_FAN
Header Pin Definion
DMIC1

10
LIVA Z MINI PC USER MANUAL
Chapter 1
Memo

LIVA Z MINI PC USER MANUAL
11
Chapter 2
Chapter 2
Using BIOS
About the Setup Utility
The computer uses the latest “American Megatrends Inc. ” BIOS
with support for Windows Plug and Play. The CMOS chip on the
motherboard contains the ROM setup instructions for configuring
the motherboard BIOS.
The BIOS (Basic Input and Output System) Setup Utility displays the
system’s configuration status and provides you with options to set
system parameters. The parameters are stored in battery-backed-
up CMOS RAM that saves this information when the power is turned
off. When the system is turned back on, the system is configured
with the values you stored in CMOS.
The BIOS Setup Utility enables you to configure:
The settings made in the Setup Utility affect how the computer
performs. Before using the Setup Utility, ensure that you understand
the Setup Utility options.
This chapter provides explanations for Setup Utility options.
• Hard drives, diskette drives and peripherals
• Video display type and display options
• Password protection from unauthorized use
• Power Management features

12
LIVA Z MINI PC USER MANUAL
Chapter 2
The Standard Configuration
A standard configuration has already been set in the Setup Utility.
However, we recommend that you read this chapter in case you need
to make any changes in the future.
This Setup Utility should be used:
• when changing the system configuration
• when a configuration error is detected and you are
prompted to make changes to the Setup Utility
• when trying to resolve IRQ conflicts
• when making changes to the Power Management
configuration
• when changing the password or making other changes
to the Security Setup
Press DEL to enter SETUP
Entering the Setup Utility
When you power on the system, BIOS enters the Power-On Self Test
(POST) routines. POST is a series of built-in diagnostics performed
by the BIOS. After the POST routines are completed, the following
message appears:
Press the delete key to access BIOS Setup Utility.
