ECS Durathon 2 H110M4-C23 User manual

Version:1.0
H110M4-C23/C2H/C21

H110M4-C23/C2H/C21 USER MANUAL
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties with respect to the contents
hereof and specifically disclaims any implied warranties of merchantability or
fitness for any particular purpose. The manufacturer reserves the right to revise this
publication and to make changes from time to time in the content hereof without
obligation of the manufacturer to notify any person of such revision or changes.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna
•Increase the separation between the equipment and the receiver
•Connect the equipment onto an outlet on a circuit different from that to
which the receiver is connected
•Consult the dealer or an experienced radio/TV technician for help
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits
governing this device. Changes or modifications not expressly approved by the
system’s manufacturer could void the user’s authority to operate the equipment.
FederalCommunicationsCommission(FCC)
Disclaimer
DeclarationofConformity
This device complies with part 15 of the FCC rules. Operation is subject to the follow-
ing conditions:
•This device may not cause harmful interference.
•This device must accept any interference received, including interference
that may cause undesired operation.
Limits and methods of mesurement of radio disturbance char-
acteristics of information technology equipment
EN 55022
EN 61000-3-2 Disturbances in supply systems caused
EN 61000-3-3 Disturbances in supply systems caused by household appli-
ances and similar electrical equipment “ Voltage fluctuations”
EN 55024 Information technology equipment-Immunity characteristics-
Limits and methods of measurement
EN 60950 Safety for information technology equipment including electri-
cal business equipment
CE marking






This device is in conformity with the following EC/EMC directives:

ii
H110M4-C23/C2H/C21 USER MANUAL
TABLE OF CONTENTS
Preface i
Brief Introduction 1
Specifications......................................................................................1
Motherboard Components................................................................3
Header Pin Definition and Jumper Settings.........................................6
I/O Ports...............................................................................................8

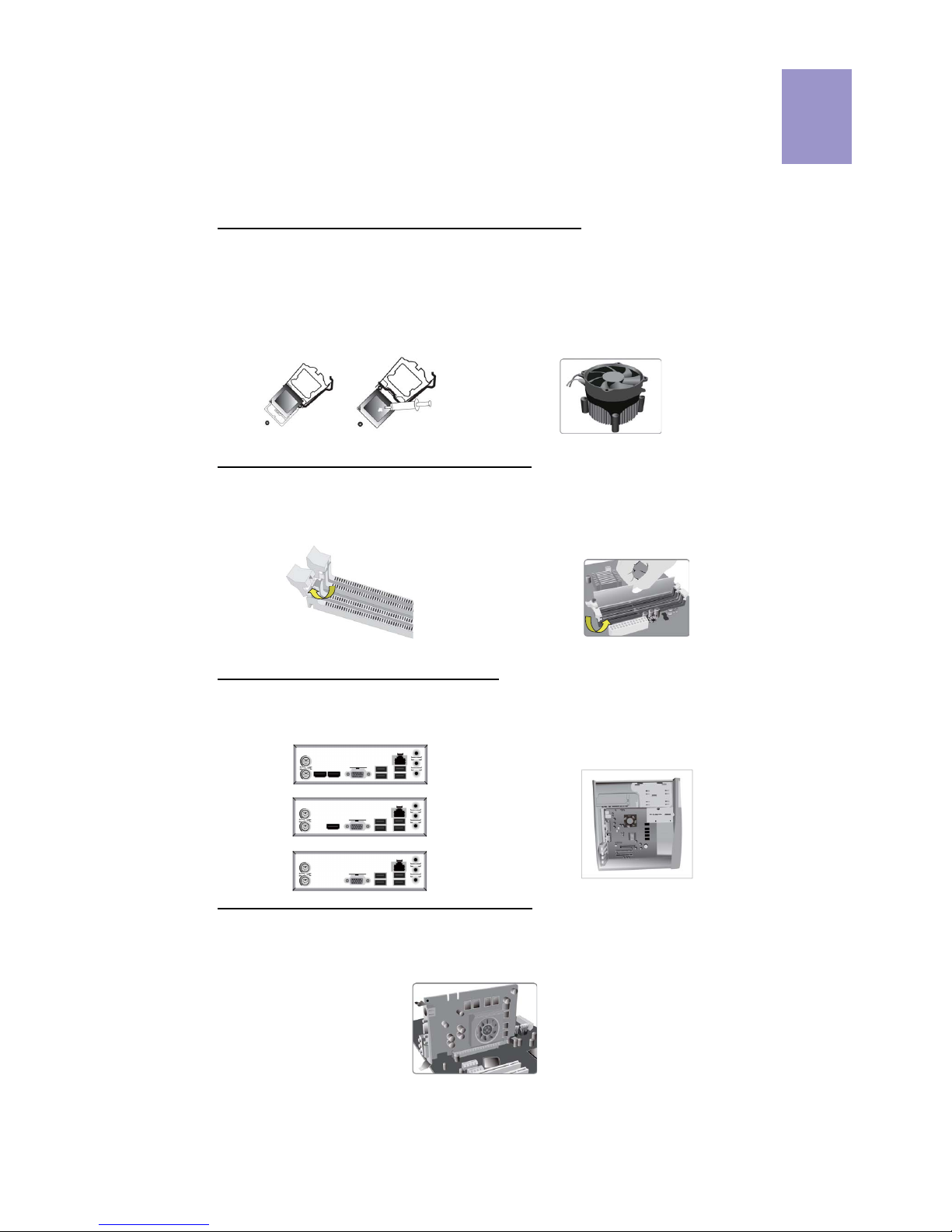

Multi-language Quick Installation Guide 11
English.................................................................................................11

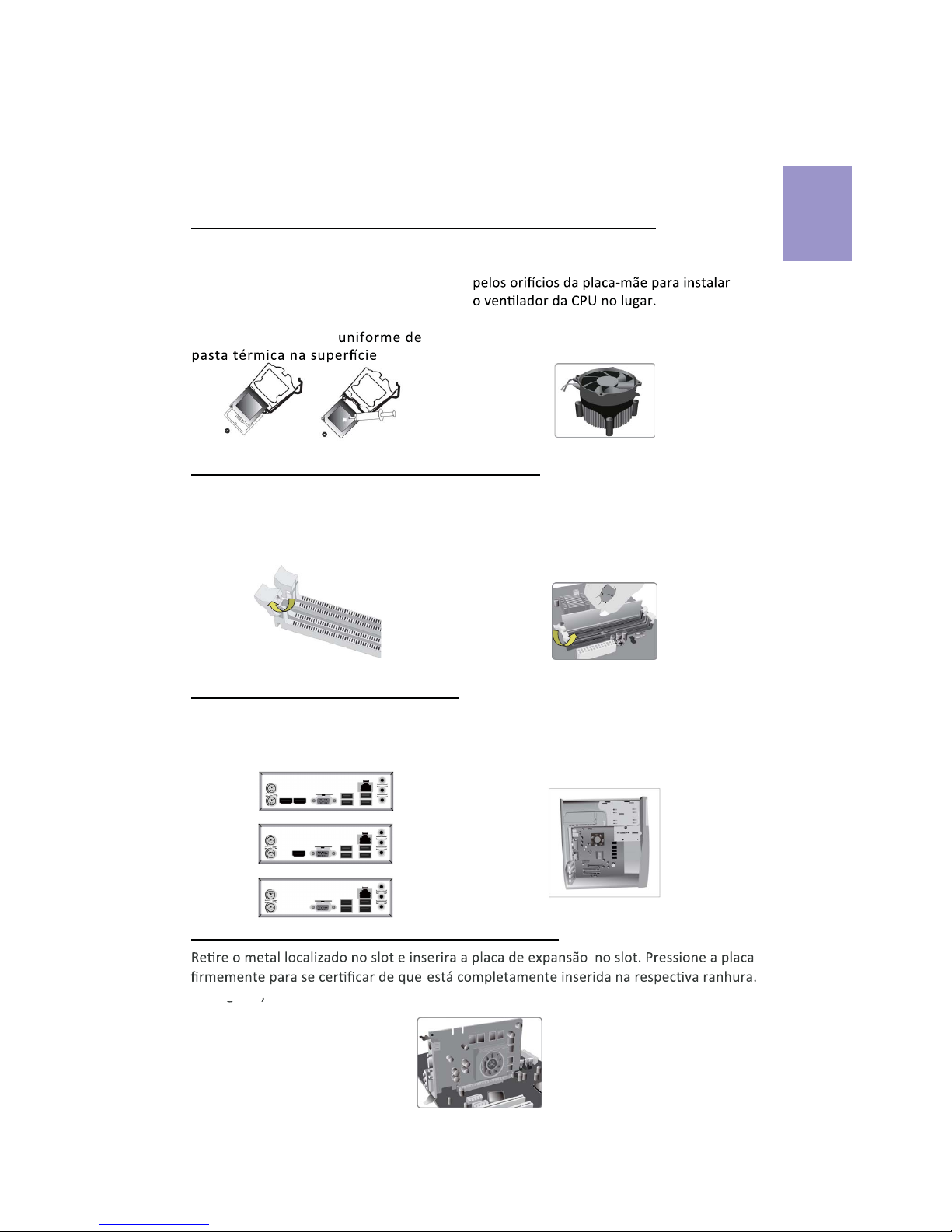

Brazilian Portuguese.........................................................................13
Hindi....................................................................................................................15
French......................................................................................................17
Deutsch................................................................................................19
Russian................................................................................................21
Spanish................................................................................................23
Indonesian.............................................................................................25
Arabic.......................................................................................................27
Simplified Chinese...............................................................................29
Korean......................................................................................................31

H110M4-C23/C2H/C21 USER MANUAL
1
Brief Introduction
Specifications
CPU
•Intel
®H110 Chipset
Chipset
• Supported by Intel®H110 Express Chipset
- 4 x Serial ATA 6Gb/s devices
Storage
• LGA1151 socket for Intel® Skylake processor
• Supports CPU up to 65W
Note: Please go to ECS website for the latest CPU support list.
• 1 x PS/2 mouse & PS/2 keyboard connector
• 2 x HDMI ports (or 1 x HDMI port or 0 x HDMI port)*
• 1 x D-sub port (VGA port)
• 2 x USB 2.0 ports
• 2 x USB 3.0 ports
• 1 x RJ45 LAN connector
• 1 x Audio 6-ch jacks (line-in, line-out, microphone)
Rear Panel I/O
LAN • Realtek RTL8111H Gigabit Lan
• Realtek ALC662-VD0-GR 6-CH High Definition audio CODEC
- Compliant with HD audio specification
Audio
Expansion
Slots
• 1 x PCI Express x16 Gen3 slot
• 1 x PCI Express x1 Gen2 slot
• Dual-channel DDR4 memory architecture
• 2 x 288-pin DDR4 LONG DIMM sockets support up to 32 GB
• Supports DDR4 2400 MHz DDR4 SDRAM
Memory
Note: Please go to ECS website for the latest Memory support list.
Note: *H110M4-C23 has two HDMI ports, H110M4-C2H has one HDMI
port, and H110M4-C21 has no HDMI port.
Internal I/O
Connectors &
Headers
• 1 x 24-pin ATX Power Supply connector
• 1 x 4-pin ATX 12V Power connector
• 1 x 4-pin CPU_FAN connector
• 1 x 4-pin SYS_FAN connector
• 1 x USB 3.0 header supports additional two USB 3.0 ports
• 2 x USB 2.0 headers support additional four USB 2.0 ports
• 4 x SATA 6Gb/s connectors
• 1 x Front Panel audio header
• 1 x Front Panel switch/LED header
• 1 x COM header
• 1 x Clear CMOS jumper
• 1 x Buzzer header
• 1 x Case open header

H110M4-C23/C2H/C21 USER MANUAL
2
QR Code for the complete manual download
on ECS website: http://www.ecs.com.tw
• AMI BIOS with 64Mb SPI Flash ROM
• Supports Plug and Play, STR (S3)/ STD (S4), Hardware Monitor
• Audio, LAN, can be disabled in BIOS
• F7 hot key for boot up devices option
• Supports ACPI & DMI
• Supports PgUp clear CMOS Hotkey (PS2 KB Model only)
• Add the function of copying BIOS parameters to USB flash drive
System BIOS
• Micro ATX Size, 190mm x 170mmForm Factor
• Supports eBLU*1/eDLU/eSF*1/Cyberlink Media Suite*2 AP Support
Note: *1Microsoft .NET Framework 3.5 is required.
*2Free bundle software including ECS DVD: Cyberlink Media
Suite.

H110M4-C23/C2H/C21 USER MANUAL
3

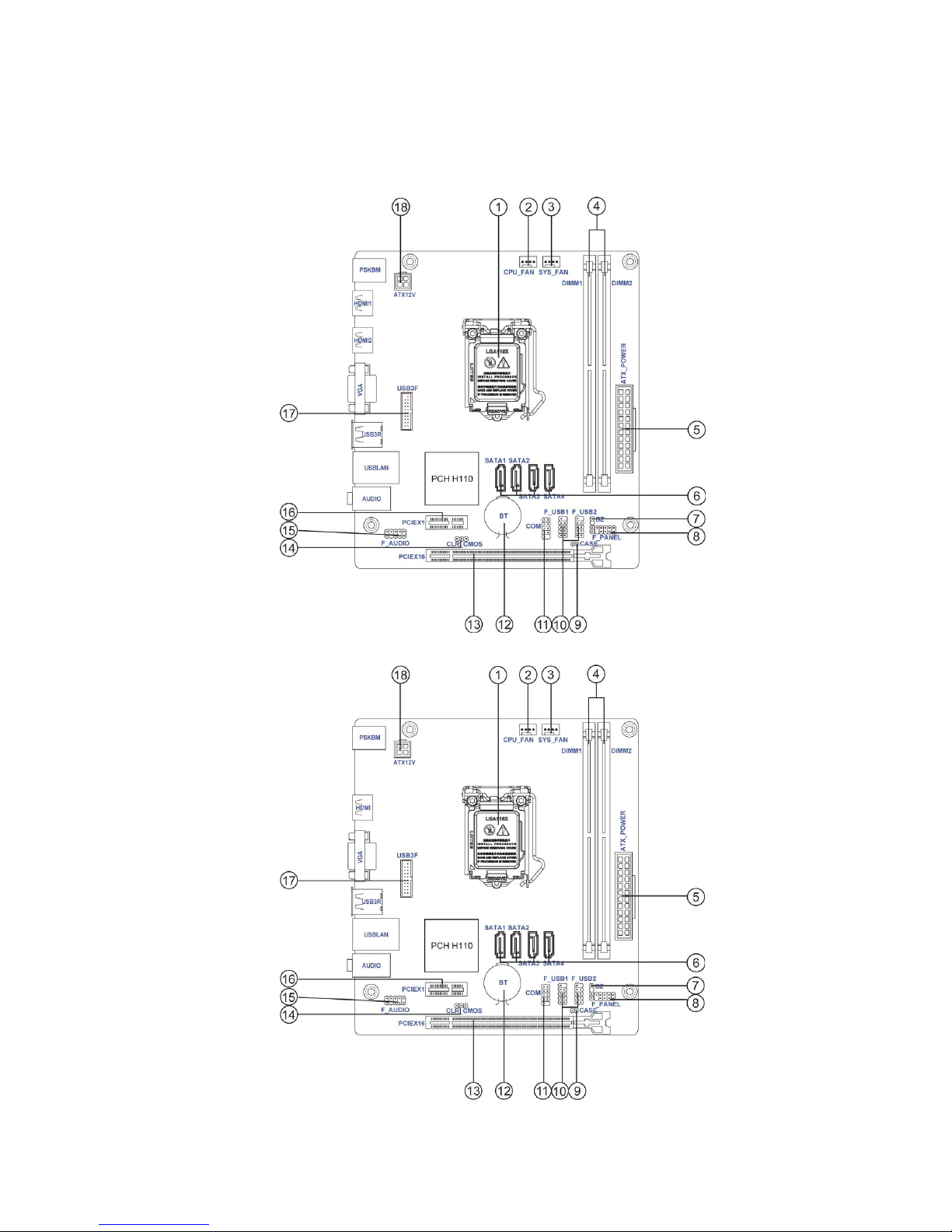

Motherboard Components
H110M4-C23
H110M4-C2H

H110M4-C23/C2H/C21 USER MANUAL
4

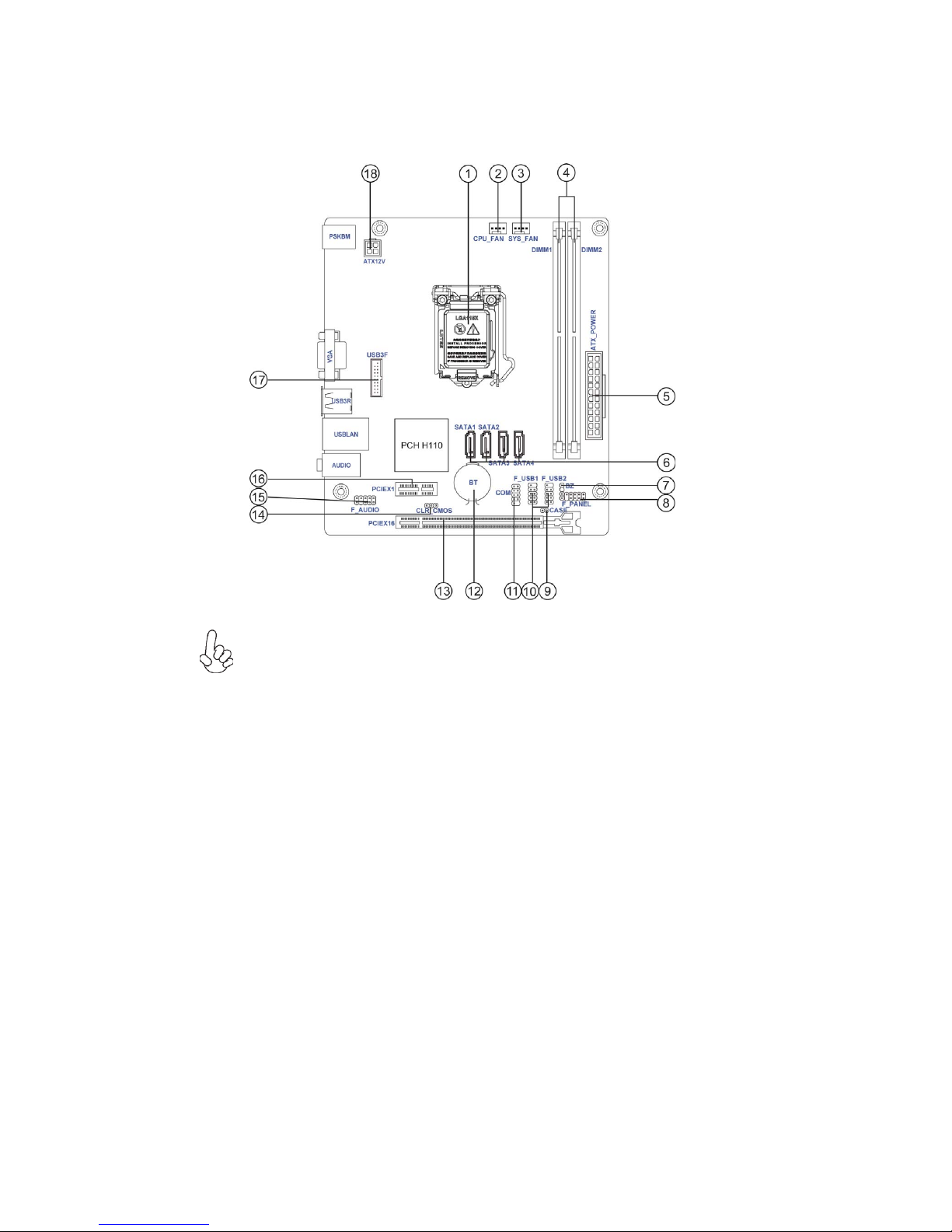

H110M4-C21
The picture of the product appearance is for reference only, actual product
appearance might vary and be subject to change without notification.

H110M4-C23/C2H/C21 USER MANUAL
5
Table of Motherboard Components
LABEL COMPONENTS
1. CPU Socket LGA1151 socket for Intel®Sk
y
lake
p
rocessor
2. CPU_FAN 4-pin CPU cooling fan connector
3. SYS_FAN 4-pin system cooling fan connector
4. DIMM1~2 288-pin DDR4 Module slots
5. ATX_POWER Standard 24-pin ATX power connector
6. SATA1~4 Serial ATA 6Gb/s connectors
7. BZ Buzzer header
8. F_PANEL Front panel switch/LED header
9. CASE CASE open header
10. F_USB1~2 Front panel USB 2.0 headers
11. COM Onboard serial port header
12. BT Battery
13. PCIEX16 PCI Express x16 slot Gen3 for graphics interface
14. CLR_CMOS Clear CMOS jumper
15. F_AUDIO Front panel audio header
16. PCIEX1 PCI Express Gen2 x1 slot
17. USB3F Front panel USB 3.0 header
18. ATX_12V 4-pin +12V power connector

H110M4-C23/C2H/C21USERMANUAL
6
F_AUDIO
F_USB1~2
USB3F
COM
PORT 1L
PORT 1R PORT 2R SENSE_SEND
AUD_GND
PRESENCE# SENSE1_RETURN Key
SENSE2_RETURN
F_PANEL
PORT 2L
Front Panel USB Power
Ground
USB3 ICC Port1 SuperSpeed Rx-
USB3 ICC Port1 SuperSpeed Rx+
USB3 ICC Port1 SuperSpeed Tx-
USB3 ICC Port1 D+
NC
Ground
USB3 ICC Port1 D-
USB3 ICC Port1 SuperSpeed Tx+
Front Panel USB Power
Ground
USB3 ICC Port2 SuperSpeed Rx-
USB3 ICC Port2 SuperSpeed Rx+ Ground
USB3 ICC Port2 D+
USB3 ICC Port2 D-
USB3 ICC Port2 SuperSpeed Tx-
USB3 ICC Port2 SuperSpeed Tx+
1
1
Hard disk LED (-)
Hard disk LED (+)
Reset Switch (-) Reset Switch (+)
NC
Power Switch (-)
Power Switch (+)
MSG LED (+)
MSG LED (-)
1
1
Serial Output
Data Carrier Detect
Serial Input
Ring Indicator
Data Terminal ReadyClear to Send
Request to Send
Data Set Ready
Ground
1
9
Ground
Ground
Power +5V
Power +5V
GroundUSB Port A (-)
USB Port B (-)
USB Port A (+)
USB Port B (+)

7
CLR_CMOS Jumper
1-2: NORMAL
Before clearing the CMOS, make sure to turn off the system.
CLR_CMOS
3
1
22-3: CLEAR CMOS
CPU_FAN
Sensor
PWM
System Ground
Power +12V
1
H110M4-C23/C2H/C21USERMANUAL
CASE
Chassis cover
is removed Chassis cover is closed
2
1
2
1
BZ
1
Signal
Power +5V
GND
SYS_FAN
Sensor
PWM
System Ground
Power +12V
1

H110M4-C23/C2H/C21 USER MANUAL
8

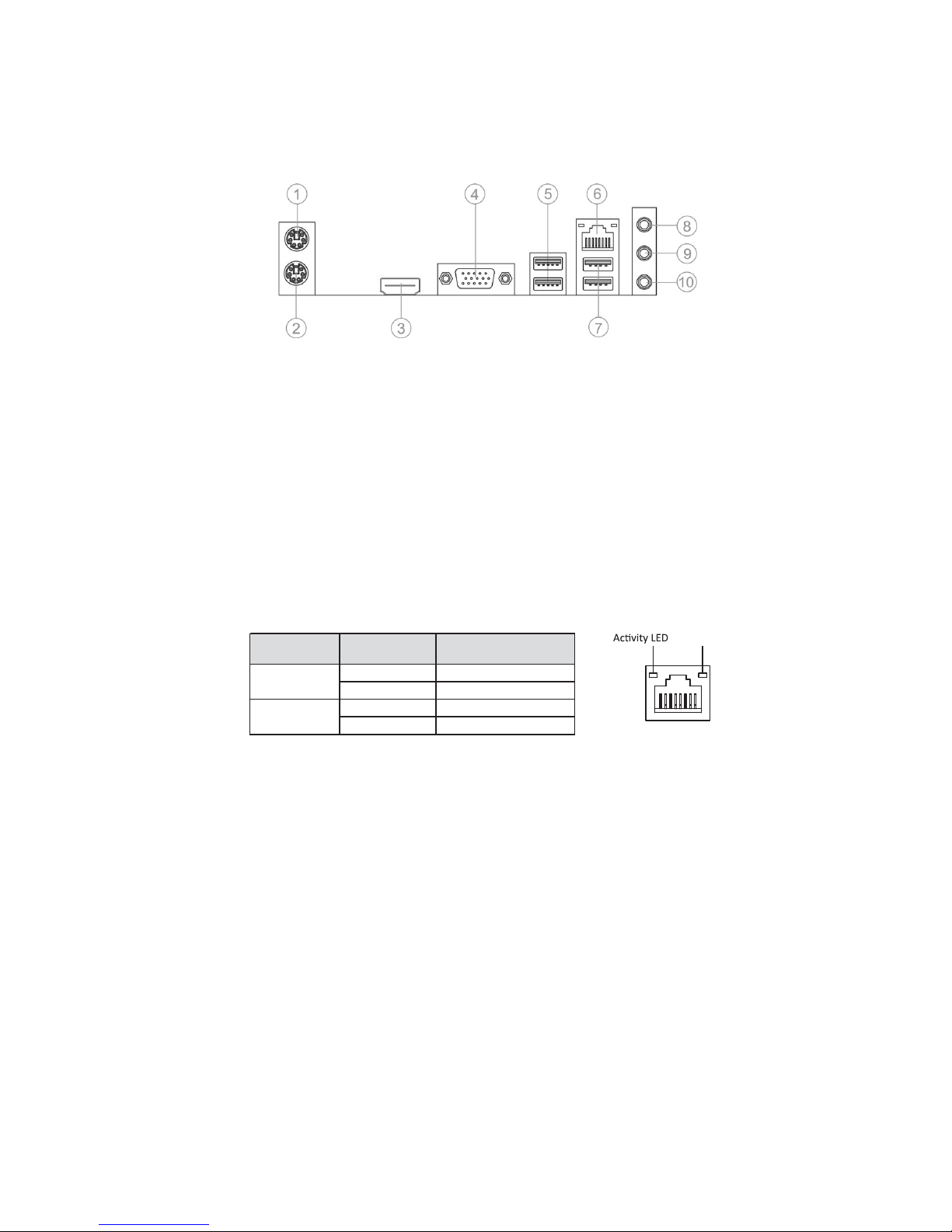

I/O Ports
H110M4-C23
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect the PS/2 Mouse.
2. PS/2 Keyboard (purple)
Use the upper PS/2 port to connect the PS/2 Keyboard.
3. HDMI Ports
You can connect the display device to the HDMI ports.
4. VGA Port
Connect your monitor to the VGA port.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
8. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
9. Line-out (lime)
It is used to connect to speakers or headphones.
10.Microphone (pink)
It is used to connect to a microphone.

H110M4-C23/C2H/C21 USER MANUAL
9
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect the PS/2 Mouse.
2. PS/2 Keyboard (purple)
Use the upper PS/2 port to connect the PS/2 Keyboard.
3. HDMI Port
You can connect the display device to the HDMI port.
4. VGA Port
Connect your monitor to the VGA port.
5. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
7. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
8. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
9. Line-out (lime)
It is used to connect to speakers or headphones.
10.Microphone (pink)
It is used to connect to a microphone.
H110M4-C2H

H110M4-C23/C2H/C21 USER MANUAL
10
H110M4-C21
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect the PS/2 Mouse.
2. PS/2 Keyboard (purple)
Use the upper PS/2 port to connect the PS/2 Keyboard.
3. VGA Port
Connect your monitor to the VGA port.
4. USB 3.0 Ports
Use the USB 3.0 ports to connect USB 3.0 devices.
5. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
6. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
7. Line-in (blue)
It can be connected to an external CD/DVD player, Tape player or other audio
devices for audio input.
8. Line-out (lime)
It is used to connect to speakers or headphones.
9.Microphone (pink)
It is used to connect to a microphone.
LAN LED Status Description
OFF No data
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port

11
English
Step 1. Installation of the CPU and CPU Cooler:
Hardware Installation Guide
Installation Steps
1-1. Pull up the lever away from the
socket. Align the CPU cut edge with the
indented edge of the CPU socket.
Gently place the CPU into correct
position. Apply an even layer of thermal
grease on the surface of CPU.
Step 2. Installation of Memory Modules:
2-1. Unfasten the latches on each side
of the DIMM slots.
Step 3. Installation of Motherboard:
3-1. Replace the back I/O plate of the
case with the I/O shield provided in
motherboard’s package.
1-2. Rotate and press down the fastener
of CPU fan to the motherboard through
holes to install CPU fan into place.
2-2. Firmly press the DIMM down until it
seats correctly. Make sure the slot
latches are levered upwards and latch
on the edge of the DIMM.
3-2. Place the motherboard within the
case by positioning it into the I/O plate.
Secure the motherboard to the case
with screws.
Step 4. Installation of an Expansion card:
Remove the metal located on the slot and then insert the expansion card into the
slot. Press the card firmly to make sure it is fully inserted into its slot. And then
return the screw back to its position.
Or
Or

12
English
Step 5. Connecting Cables and Power Connectors:
c. Connect 24-pin power cable
The ATX_12V 4-Pin power connector is used
to provide power to the CPU. When installing
4-pin power cable, the latch of power cable
matches the ATX_12V connector perfectly.
b. Connect SATA power connector to the
SATA device
Once the steps above have been completed, please connect the peripherals such
as the keyboard, mouse, monitor, etc. Then, connect the power and turn on the
system. Please install all the required software.
Step 6: Connecting ports on the case:
a. Connect the SATA hard drive to its
SATA cable
d. Connect 4-pin power cable
Please note that when installing 24-pin
power cable, the latches of power cable
and the ATX connector match perfectly.
The sequence of installation may differ depending on the type of case and
devices used.
Using BIOS
The BIOS (Basic Input and Output System) Setup Utility displays the system’s
configuration status and provides you options to set system parameters. When
you power on the system, BIOS enters the Power-On Self Test (POST) routines,
please press <DEL> or F2 to enter setup. When powering on for the first time, the
POST screen may show a “CMOS Settings Wrong” message. Please enter BIOS and
choose “Load Default Settings” to reset the default CMOS values. (Changes to
system hardware such as different CPU, memories, etc. may also trigger this
message.)

Passo 1. Instalação da CPU e da CPU Refrigeração (Cooler):
Manual de Instalação de Hardware
Etapas para instalação
1-1. Puxe a alavanca para fora do
soquete.
Passo 2. Instalação de módulos de memória:
2-1. Solte as travas em cada lado dos
slots DIMM.
Passo 3. Instalação da Placa-mãe:
3-1. Mude a placa I/O que se encontra
no gabinete pela placa de blindagem
fornecida no pacote da placa-mãe.
Alinhe o lado da CPU com o
lado correto do soquete do
processador. Delicadamente, coloque
o processador na posição correta.
Aplique uma camada
da CPU.
2-2. Pressione Įrmemente o módulo DIMM
para baixo até que Įque corretamente
encaixado. VeriĮque se as travas do slot estão
correctamente posicionadas e travam a
extremidade do DIMM.
3-2. Coloque a placa-mãe dentro do
gabinete, posicionando-a no encaixe do
I/O. Fixe a placa-mãe ao gabinte com
parafusos.
1-2. Gire e pressione para baixo a
alavanca de fecho da ventoinha da CPU
Passo 4. Instalação de uma placa de expansão:
coloque o parafuso para sua posição de origem. Em seguida
Português
13
Or
Or

Passo 5. Conexão de cabos e conectores de alimentação:
c. Ligue o cabo de alimentação 24 pinos.
O conector de alimentação ATX_12V de 4-Pin
instalar o cabo de alimentação de 4pinos, as
travas do cabo de alimentação correspondem
perfeitamente ao conector ATX_12V.
b. Ligue o conector de alimentação SATA aoa. Conecte o disco rígido SATA ao seu
cabo SATA.
d. Ligue o cabo de alimentação de 4-pinos.
Por favor note que ao instalar o cabo de
alimentação de 24 pinos, as travas do
cabo de alimentação e o conector ATX
encaixam perfeitamente.
é usado
Português
Usando a BIOS
O Programa de ConĮguração da BIOS (Sistema Básico de Entrada e Saída)
apresenta o estado da conĮguração do sistema e fornece opções para
deĮnir os parâmetros do sistema. Quando você liga o sistema, a BIOS entra nas
pressione <DEL> ou
F2 para entrar no menu d e conĮguração. Ao ligar pela primeira vez, a tela pode
mostrar a mensagem de erro POST "CMOS ConĮguração Errada". Por favor,
entre na BIOS e escolha "Carregar ConĮgurações Padrão" para repor os valores
CMOS padrão. (Alterações ao hardware do sistema, como uma CPU diferente,
memórias, etc., também podem desencadear esta mensagem.)
14
Após as etapas acima terem sido completadas, por favor conectar os periféricos como
o teclado, o mouse, monitor, etc. Em seguida, conecte a alimentação e ligue o sistema.
Por favor, instale
6

ռ֒օ&38ն֒&38շ֢֔֒֚֭և֞֌֟ֆշ֒֊֞
֛֭֞֒փ֧֑֗֒ ֚֭և֞֌֊֞ չ֞թփ
օ֒ռ֧շ֞֊֌֞և֭֚
1-1.֔֠֗֒շ֫֚֩շ֧ց֐֧ե֧֚ո֠եռշ֒
է֔չշ֧֒ե
֞֊֒շֆ֟֌֞և֭֚֢֑֭֔փ֩֐֠֒֫֐֧֐օ֒ռ
2-1. DIMM ֧չ֔֒֌փթ֚֞շ֧֑֭ֆ֭֒֌֠շց֭֚֩֔
ե֧ֈ֔֫ոռ֨֔
֚֩շ֧ցշ֧ֈ֞եֆ֧ֈ֞֒֧֚֟֒֧֚֐֟֔֞շ֒֔չ֞ձե
CPU շ֫ը֛֚֭֟ֆ֞֧֚ւ֠շվչ֛֌֒֎֟ւ֞ձե
CPUշ֠֚ֆ֛֌֒և֭֒֐֔չ֭֚֒֠շ֠ձշ֚֞֒
֌֒ֆ֔չ֞ձե
1-2. CPU շ֧֌եո֧շ֫ի֚շ֠վչ֛֌֒
֔չ֞֊֧շ֧֔֟ձCPUշ֧֌եո֧շ֧֍֚֭֞ց֊֒
շ֫պ֡֐֞ձեն֒ի֧֚ֈ֎֞շ֒֐ֈ֒֎֭֫֒փշ֧
ը֒֌֞֒շ֧ս֧ֈ֫ե֐֧ե֔չ֞ֈ֧ե
2-2. DIMM շֆ֎վեձ֞֎ֈ֒յ֠շ֧ռ֠֊֧֚֠ֆ֢֎֜վ֐֫շ
ֆ֟ռ֭֘֟֊֚֡ձ֞վւ֨֎֊֧֚շ֠ւ֒֌֛չվ֠֊֌է֛֗
֒ն֛֨֞ֆ֛֒֒յ֠շ֒֌լո֡֒֞շռ֨֔֧շց֭֚֩֔֟շե֧֒շ
֛֨֞ֆ֞վ֑֞֟շռ֨֔֒֌֧֚֒֟֧շ00,'ե֧֛֭֊ի
ռ֒օ֐ֈ֒֎֭֫֒փ֚֭և֞֌֟ֆշ֒֊֞
3-1. շ֧֚շ֠֌֟ս֔֠ֆ֒֍֔չ֠I/O֌֧֭֔ցշ֫
֛ց֞շ֒ի֚շ֠վչ֛֐ֈ֒֎֭֫֒փշ֧֌֨շ֧վ֐֧եֈ֠
չժI/O֭֘֠֔փ֔չ֞ձե
3-2. ֫շփ֭֒֫֎֒ֈ֐ I/O ֒շ֞ւ֟֎֧֚֛֒ֆշ֠ւե֧֐ց֧֭֔֌
ե֧ֈ֚շե֧֐֧֚շ֧֚ռ֧֌֫շփ֭֒֫֎֒ֈ֐ե֧ո֒֒ֆ֠֏֧շ֧֚շ
CPUշ֧֊֫շֈ֞֒֧֚֟֒շ֫CPU
15
֛֟֊֭ֈ֠
֞֊֒շֆ֟֌֞և֭֚փ֭֒֞շ֊֘ե֨֌֚֭շձօ֒ռ
֚֭֔֩ց֌֒֔չ֠։֞ֆ֡֛ց֞ձեն֒֍֟֒ձշ֭֚֌֨ե֘֊շ֭֞֒փ֚֭֔֩ց֐֧ե֔չ֞ֈ֧եշ֭֞֒փշ֫֐վ֜֎֢ֆ֠֧֚ֈ֎֞ձե
ֆ֞շ֟֚֡֊֭֟֘ռ֟ֆ֛֫֚շ֧շ֟֑֛է֌֊֧֚֭֔֩ց֐֧եւ֠շֆ֛֒֧֚֔չչ֑֞֛֨ն֒֍֟֒֌֧ռշ֫֗֞֌֚ի֚շ֠
վչ֛֌֒֔չ֞ֈ֧ե
Or
Or

ռ֒օշ֧֎֔ն֒֌֩֗֒շ֊֧շ֭ց֒֚֭և֞֌֟ֆշ֒֊֞
չ24-֌֟֊֌֩֗֒շ֧֎֔շ֊֧շ֭ցշ֧֒ե
CPUշ֫֌֩֗֒ֈ֧֊֧շ֧֔֟ձATX_12V 4-֌֟֊֌֩֗֒
շ֊֧շ֭ց֒շ֞ի֌֑֫չշ֑֟֞վ֞ֆ֞֛֨4-֌֟֊֌֩֗֒
շ֧֎֔֚֭և֞֌֟ֆշ֒ֆ֧֚֐֑֌֩֗֒շ֧֎֔շ֞֔֨ռ
ATX_12Vշ֊֧շ֭ց֒֧֚֎֭֟֔շ֡֔ւ֠շ֧֚֐֧֔ո֞֊֞
ռ֛֞֟ձ
շSATA ֛֭֞֒փփ֭֒֞թ֗շ֫ի֚շ֠SATAշ֧֎֔
֧֚շ֊֧շ֭ցշ֧֒ե
ոSATA֌֩֗֒շ֊֧շ֭ց֒շ֫SATAփ֟֗֞թ֚֧֚
շ֊֧շ֭ցշ֧֒ե
պ4-֌֟֊֌֩֗֒շ֧֎֔շ֊֧շ֭ցշ֧֒ե
շ֣֌֑֞֊֫ցշ֧֒եշ֟24-֌֟֊֌֩֗֒շ֧֎֔
֔չ֞ֆ֧֚֐֑֌֩֗֒շ֧֎֔ն֒ATXշ֊֧շ֭ց֒
շ֧֔֨ռ֎֭֟֔շ֡֔ւ֠շ֧֚֐֧֔ո֞֊֧ռ֛֞֟ձ
֛֟֊֭ֈ֠
16
ի֌֑֭֒֡շ֭ֆռ֒օ֌֢֧֒շ֒֧֔֊֧շ֧֎֞ֈշ֣֌֑֞շ֠֎֭֫֒փ֐֞ի֚֐֩֊֠ց֒ըֈ֟վ֧֚֨֌֧֒֟֍֧֧֒֔շ֊֧շ֭ց
շ֧֒եի֚շ֧֎֞ֈ֌֩֗֒շ֊֧շ֭ցշ֧֒են֒֚֚֭֟ց֐ռ֢֞֔շ֧֒եշ֣֌֑֞֚֏֠ը֑֭֗֘շ֚֩֍֭֜ց֧֑֗֒
֚֭և֞֌֟ֆշ֧֒ե
ռ֒օշ֧֚֌֒֌֭֫֒ցշ֊֧շ֭ցշ֒֊֞
BIOS (֎֧֚֟շթ֊֌֡ցն֒ըից֌֡ց֚֚֭֟ց֐֧֚ցէ֌֑֢ց֠֔֟ց֠֚֚֭֟ց֐շ֧շ֩֊֭֍֜֟չ֧֒֘֊
շ֠֚֭և֟ֆ֟֌֭֒ֈ֭֒֘֟ֆշ֒ֆ֠֛֨ն֒ը֌շ֫֚֚֭֟ց֐շ֧֌֨֒֞֐֠ց֒֧֚ցշ֒֊֧շ֧֗֟շ֭֔֌
ի֌֔֎֭։շ֒֞ֆ֠֛֨վ֎ը֌֚֚֭֟ց֐շ֠֌֩֗֒ճ֊շ֒ֆ֧֛֨եֆ֫BIOS֌֩֗֒ճ֊֧֚֭֔֍֜
ց֧֚֭ց(POST)֢֒ց֠֊֐֧ե֌֧֭֒֗֘շ֒ֆ֞֛֨շ֣֌֑֞
֌֛֔֠֎֞֒֌֩֗֒ռ֢֞֔շ֟ձվ֞֊֧֌֒POST֚֭շ֭֒֠֊CMOS Seƫngs trong֚եֈ֧֘
ֈ֟ո֞֚շֆ֠֛֨փ֟֍֭֜֩֔ցCMOS֑֢֭֗֨֔֧֚֒֠ցշ֒֊֧շ֧֔֟ձշ֣֌֑֞
֏֟֊֭֊CPU֐֧֐֫֒֠ըֈ֟վ֧֚֨֚֚֭֟ց֐֛֭֞֒փ֧֑֗֒֐֧ե֎ֈ֔֞֗շ֒֊֧
֌֒֏֠֑֛֚եֈ֧֘ը֚շֆ֞֛֨
%,26շ֞ի֌֑֫չշ֒֊֞
շ֧֚շ֧֌֭֒շ֞֒ն֒ի֌֑֫չշ֠վ֞֊֧֗֞֔֠փ֟֗֞թ֚շ֧է֊֚֡֞֒֚֭և֞֌֊֞շ֞շ֭֒֐
է֔չէ֔չ֛֫֚շֆ֞֛֨
Default Seƫngsռ֡֊֧ե
BIOS ֐֧ե վ֞ձեն֒ >oad
֧֚ցէ֌ ֐֧ե վ֞֊֧շ֧ ֔֟ձ <DEL> ֑֞ F2 ֈ֎֞ձե

1-1. Ecartez le levier du socket.
2-1. Libérez les loquets de chaque côté
des logements DIMM.
3-1. Replacez la plaque E/S arrière du
l’emballage de la carte mère.
Alignez
le bord coupé du CPU avec le bord
correspondant sur le socket du CPU.
Placez soigneusement le CPU dans la
bonne
de pâte thermique sur la
surface du CPU.
1-2. Tournez et appuyez sur la
2-2. Pressez fermement le module DIMM
jusqu'à ce qu'il soit correctement installé.
Assurez-vous que les loquets des logements
sont soulevés et accrochés sur le bord de la
DIMM.
3-2.
la
carte mère à travers les trous pour
Français
d'extension dans le logement.
Appuyez fermement sur la carte pour vous assurer qu'elle est complètement insérée
4
17
Or
Or
