EcubMaker TOYDIY 4in1 User manual

3D Printer
------------------------------------- M a n u a l ------------------------------------
TOYDIY 4in1

Directory
------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------
--------
02
Directory
A. Product overview
Disclaier-------------------------------------------------------------------------------------
Safety Instructions------------------------------------------------------------------------
Structural Schematic--------------------------------------------------------------------
Specication-------------------------------------------------------------------------------

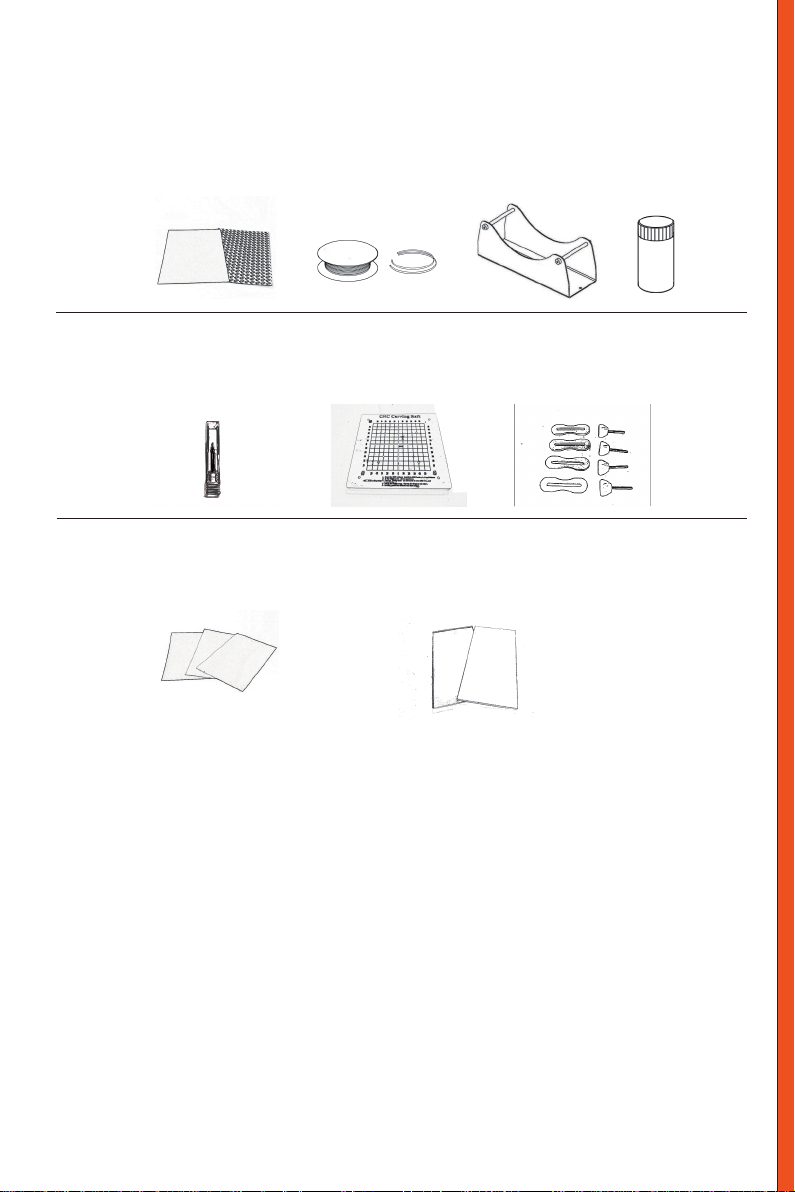

Packing List--------------------------------------------------------------------------------
B. Equipment Set
UnI-------------------------------------------------------------------------------------------

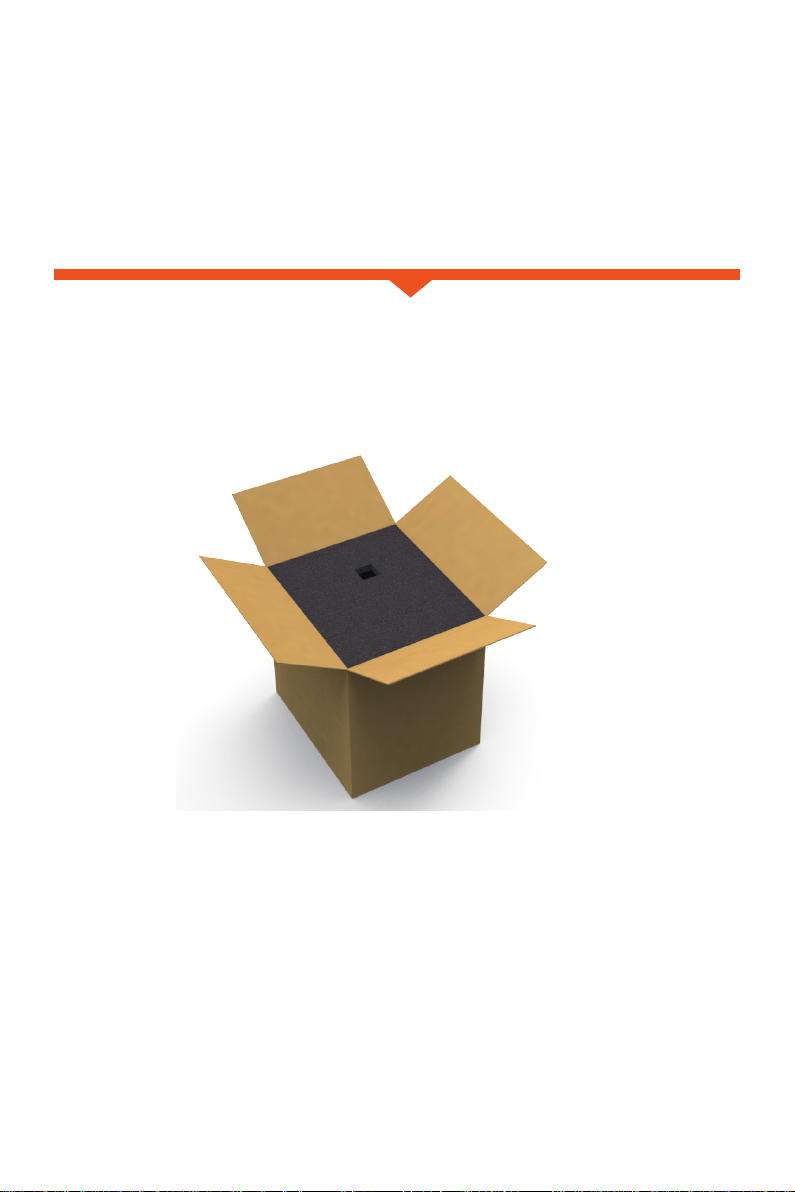

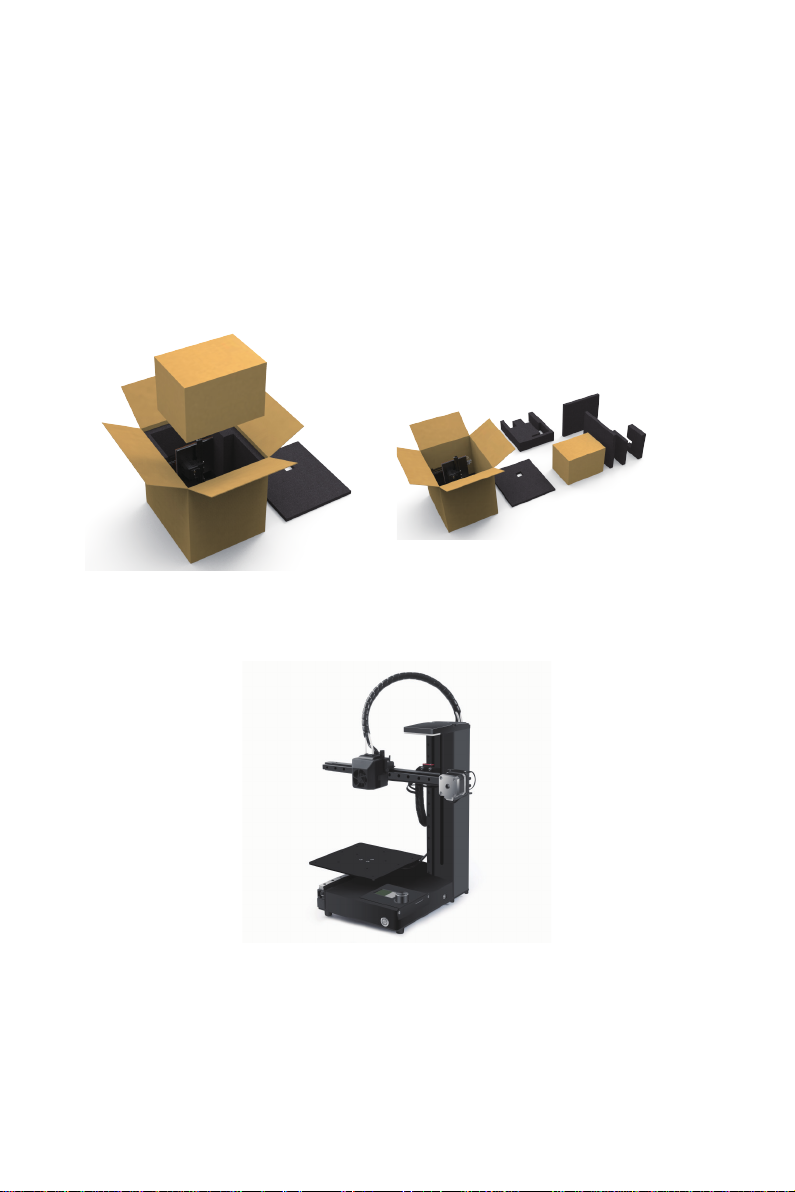

Unboxing----------------------------------------------------------------------------------
Initial Start-Up---------------------------------------------------------------------------
Menu Feature-----------------------------------------------------------------------------
FDM single 3D print--------------------------------------------------------------------
FDM-Dual 3D print----------------------------------------------------------------------
Laser Engraving--------------------------------------------------------------------------
CNC Carving-------------------------------------------------------------------------------
C. EcubWare slice Settings
Setup EcubWare-------------------------------------------------------------------------
FDM Setting
FDM 3D Print------------------------------------------------------------------------------
FDM_Multi-Color 3D print------------------------------------------------------------------
FDM_Multi-Material 3D print----------------------------------------------------------------
LASER Setting----------------------------------------------------------------------------
CNC Setting-------------------------------------------------------------------------------
Other Function--------------------------------------------------------------------------
D. Equipment Maintenance
Maintenance and cleaning of guide rail-----------------------------------------------------
Maintenance of printing platform------------------------------------------------------------
CNC plate----------------------------------------------------------------------------------
Laser Toolhead life-------------------------------------------------------------------------
CNC Toolhead life--------------------------------------------------------------------------
E. Common Faults
Unable to start-up--------------------------------------------------------------------------
Screen ower screen white screen,no display-----------------------------------------------
Temperature display alarm------------------------------------------------------------------
SD Card contents can not be read----------------------------------------------------------
The menu switch Toolhead function can not be activated------------------------------------
Can not return to zero(X,Y,inpact cannot return to zero,Z cannot return to zero)--------------
Automatic reboot---------------------------------------------------------------------------
Z-o󰀨set setting is not successful. The rst layer is so close or so far to the platform----------
The Toolhead can not be reset after changing-----------------------------------------------
FDM failed to feed/unscrew, plug-----------------------------------------------------------
FDM print rst layer non-stick base plate----------------------------------------------------
Laser engraving in the printing process points of light is very large, did not carve out the
pattern-------------------------------------------------------------------------------------
CNC engraving and milling in the printing process, part of the processing pattern, another
part of the processing pattern---------------------------------------------------------------
Welcome to contact us!
04
05-09
10
11
12-13
15
16
17
18
19-22
23-26
27-30
31-33
35-37
38-39
40-42
43-44
45-46
47-48
49-59
61
61
61
61
61
63
63
63
63
63
63
63
63
64
64
64
64
64

Ｗｅｌｃｏｍｅ ｔｏ ｃｈｏｏｓｅ
ＥｃｕｂＭａｋｅｒ

------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------
--------
04
This manual is designed to let new and old customers understand and become
familiar to the operatation of the EcubMaker TOYDIY 4in1 3D Printer (herein
after referred to as TOYDIY). Let you know how to use our machines correctly.
Please read this manual carefully, even if you have been used the other 3D
printers of Ecubmaker. Compared with the previous 3D printers, the TOYDIY
has made further improvement in many aspects. This manual will introduce
those improvement one by one.
In sections A and B, you will learn some basic Settings, such as how to unpack
properly and how to do the basic Settings. Section C~E mainly introduces how
to level, print, maintain and repair.
We are glad that you choose TOYDIY 4in1 3D printer. This manual will let you
know about the operation of TOYDIY, make you create more possibilities in the
3D world.
Before using TOYDIY, you must read the safety instructions on the
next page. We are not responsible for any personal damage caused by
violation operation and disobey the safety instruction when using TOYDIY.
Warning: The FDM Toolhead and FDM-Dual Toolhead contain heating
elements. Do not touch the nozzle directly by your hands to avoid scald.
After printing, let TOYDIY cool down to indoor temperature before
cleaning.
Warning: Laser Toolhead contains Laser device. Make sure you wear
Safety Glasses when using it. Do not observe the laser directly without
Safety Glasses.
Warning: CNC Toolhead contains high-speed motor, violation operation
may cause damage to graver, make sure you wear Safety Glasses when
using it.
Warning: Never leave the TOYDIY unattended while operating – always
stay within sight. Look at it frequently.
Warning: When inspecting the TOYDIY, please plug out it at first, and
make sure it has been powered off before checking.
Warning: Do not move the axis by hand directly , otherwise the driver
chip on the motherboard will be burnt.
AWelcome to choose EcubMaker
Ｄｉｓｃｌａｉｍｅｒ

------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------
--------
05 AWelcome to choose EcubMaker
Ｓａｆｅｔｙ Ｉｎｓｔｒｕｃｔｉｏｎｓ
1.Safety Information-Laser Toolhead
Please read This at rst. improper operation of the TOYDIY may cause re,
eyes or skin injury and other serious repercussion . Please read through this
section before you start using Laser Toolhead as well as the others who will use
Laser Toolhead.
Before You Start
● Wear the Laser Safety Glasses before you set up the Laser Toolhead and
keep it throughout the Laser Engraving process.
● Children should only be allowed to use Laser Toolhead under the supervision
and assistance of adults at all times.
● Do not use your TOYDIY while under the inuence of alcohol or drugs.
● Using Laser should obey the rules and standards, especially when installed in
an educational institution or workplace. Make sure that you comply fully with all
applicable rules.
● Do not touch the Laser Toolhead of the TOYDIY while the Laser is on. If you
were burnt by accident, turn it o󰀨 immediately and seek help from doctors.
Electrical Safety
To reduce the risk of electric shock or re:
● Try not to service, repair, or modify the TOYDIY.
● Never try to access the wiring of the TOYDIY.
● Do not open the power supply or any other sealed portion of the TOYDIY.
● If the TOYDIY is damaged, turn o󰀨 the TOYDIY, unplug the power adapter
and contact [email protected] immediately .
● If there is any emergency or malfunction, turn off TOYDIY and unplug the
power adapter.
● Only use properly grounded outlet.
Fire Safety
The TOYDIY’s LaserToolhead engrave with a beam of high-intensity infrared
light. The Laser can generate extremely high temperatures in the material being
engraved. In some condition, it will be possible to ignite the material being
engraved and the ame may spread outside of the area . If re, the ame could
destroy your TOYDIY and spread, even re in the building.
Fire Risk
● Do not use the TOYDIY to Laser engrave anything that is not supported by the
TOYDIY, even if you do not intend to engrave it. Learn more about supported
materials below.
● Do not stack materials; for example attempting to burn two or more pieces of
paper at one time. Multiple pieces are easier to be ignited.
● Do not place anything on top of the TOYDIY.
● Do not store sources of flammable vapors like paint, acetone, gasoline, or
alcohol with your TOYDIY in the same room. Flammable vapors could be ignited
during operation.
● When engraving complete, certain materials, like plastics, can remain hot.
Wait for them cooling down before you touch them.

------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------
--------
06
AWelcome to choose EcubMaker
Ｓａｆｅｔｙ Ｉｎｓｔｒｕｃｔｉｏｎｓ
Safety Equipment
● Always equip a properly maintained and inspected re extinguisher near the
machine, and learn how to use it. A wet towel can also be useful in extinguishing
small res.
● Make sure smoke alarms are installed and tested in the building required by
local legislation and manufacturer recommendations.
Keep Watching During Operation
● Never leave the TOYDIY unattended while operating – always stay within
sight. Look at it frequently.
● A small ame where the laser beam strikes the material is normal. This ame
should move with the laser and should not remain lit when the laser has moved
past. If there is a lasting ame on the material:
① Power o󰀨 the machine and unplug the power adapter.
② If it is safe to do so, extinguish the re with a wet towel or a re
extinguisher.
③ If the re can not be extinguished or if it spreads outside the TOYDIY,
call your local emergency number (for example 911) and evacuate the
building.
④ Do not operate the TOYDIY further until you have contacted us for se
rvice information at [email protected].
Laser Safety
● Your TOYDIY Laser Toolhead is a Class 3B laser product. The laser emits
enough beam to cause skin and eye injury. The TOYDIY provides a pair of Laser
Safety Glasses to protect your eyes. Wear the Laser Safety Glasses before you
set up the laser engraver and throughout the laser engraving process.
● Keep a safe distance from the machine when it’s laser engraving.
CAUTION!
Use of controls or adjustments or performance of procedures other than those
specied herein may result in hazardous radiation exposure.
Do not modify or service
CAUTION!
Attempting to modify or service the TOYDIY may result in hazardous laser light
exposure.
To reduce the risk of injury:
● Do not attempt service. All service must be performed only by the TOYDIY
factory or by factory-authorized technicians.
● Do not attempt to alter or modify the TOYDIY.
● Do not try to open sealed portions of the TOYDIY, including any protective
coverings or housings.
Smoke and Fume Safety
● When you use your TOYDIY, the laser creates visible and invisible aerosols,
gases, vapors, and particulates (referred to here as “smoke and fumes”). The
smoke and fumes can include carbon monoxide and other chemicals depending
on the material being lasered and can Causes health hazards. The fan in the

------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------
--------
07 AWelcome to choose EcubMaker
Ｓａｆｅｔｙ Ｉｎｓｔｒｕｃｔｉｏｎｓ
Laser Toolhead Module can blow away some smoke and fumes but it might still
be a bit smelly.
● Do not forget to check your local rules for air quality regulations that may apply
to you.
Materials Safety
● It’s recommended to only Laser Toolhead the following materials:
Wood, leather, plastic(ABS,PC,etc.) paper,acrylic.
● Do NOT use Laser Toolhead engrave the following materials:
Metal, transparent material, reflective materials, etc.
Materials Must Fit
Materials that do not fit properly may obstruct operation and result in
damage and increase risk of re.
● The size of the material must be smaller than 180 x180 mm (7.0” x 7.0”).
● Do not place rolled-up material in the TOYDIY. It may be too tall, or unroll
during laser engraving, obstructing operation.

------------------------------------------------------------------------------------------------------------------------------------------
--------
08
AWelcome to choose EcubMaker
------------------------------------------------------------------------------------------------------------------------------------------
Ｓａｆｅｔｙ Ｉｎｓｔｒｕｃｔｉｏｎｓ
2.Safety Information-CNC Toolhead
Read This First，Improperly operating the TOYDIY can cause injury or other
serious consequences from the CNC Toolhead. Please read through this section
before you start CNC carving and ensure everyone else who uses it reads this
too.
Before You Start
● It is recommended that experienced users and users over 18 years old perform
the setup and use the CNC Toolhead.
● Wear the Safety Glasses before you set up the CNC Toolhead and throughout
the CNC carving process.
● The CNC Toolhead are sharp. Please handle them carefully and keep them
out of reach of children.
● Keep a safe distance from TOYDIY when it is carving.
● Do not use your TOYDIY while under the inuence of alcohol or drugs.
● Do not touch the CNC Toolhead while the TOYDIY is on. If you are cut by
accident, turn o󰀨 TOYDIY immediately and seek help from doctors.
Electrical Safety
To reduce the risk of electric shock or re:
● Do not try to service, repair, or modify the TOYDIY.
● Never try to access the wiring of the TOYDIY.
● Do not open the power supply or any other sealed portion of the TOYDIY.
● If the TOYDIYis damaged, turn off TOYDIY, unplug the power adapter and
contact [email protected] immediately.
● If there is any emergency or malfunction, turn off TOYDIY and unplug the
power adapter.
● Only use a properly grounded outlet.
Keep Watch During Operation
● Never leave the TOYDIY unattended while operating – always stay within
close aside and look at it frequently.
Materials Safety
● It’s recommended to only CNC Toolhead the following materials:
Wood, acrylic, PVC expansion sheet, plastic(ABS,PC,etc.)
● Do NOT CNC Toolhead the following materials. They may damage the
TOYDIY or cause injury.
Metal, etc.
Materials Must Fit
Materials that do not fit properly may obstruct operation and result in
damage and cause injury.
● The size of the material must be smaller than 150 x150 x40 mm (5.9” x 5.9” x
1.5”).
● Do not place rolled-up material in the Snapmaker. It may be too tall, or unroll
during carving, obstructing operation.

------------------------------------------------------------------------------------------------------------------------------------------
Ｓａｆｅｔｙ Ｉｎｓｔｒｕｃｔｉｏｎｓ
------------------------------------------------------------------------------------------------------------------------------------------
--------
09 AWelcome to choose EcubMaker
3.Operating Environment
To prolong the life of your TOYDIY and to reduce the risk of fire or
mechanical failure, do not put the TOYDIY where it could experience:
● Extreme temperature or humidity
○ Storage: below 14 degrees Fahrenheit (-10 Celsius) or over 120 degrees
Fahrenheit (48 Celsius)
○ Extreme humidity conditions (below 10% or more than 75%)
● Direct sunlight
● Rain, moisture, or liquids
● Excessive hair, dust, or small particles
If any of the following occur, immediately turn o󰀨 TOYDIY, unplug the power
adapter, and contact [email protected] . Do not use your TOYDIY again
until the issue has been addressed by support.
● The TOYDIY stops unexpectedly.
● You see any damage to the interior components of the TOYDIY.
● You notice an unusual sound coming from the TOYDIY that was not occur
previously.

--------------------------------------------------------------------------------------------------------------------------------------------
Mechanical Drawings
CNC ToolheadFDM-Dual Toolhead
FDM Toolhead
-------------------------------------------------------------------------------------------------------------------------------------------
--------
10
AWelcome to choose EcubMaker
Laser Toolhead
Filament tube
Toolhead Flat Cable
ToolHead Probe
Heating platform
X-Axis
Y-shaft
Z-Axis
X-Axis stpper motor
Handle
Power switch
Menu Button
USB interface
SD Card slot
Display
① Extruder
② Extruder
Filament
Filament tube
Y-Axis stpper motor
Power jack

Specification
--------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------
--------
11 AWelcome to chooseEcubMaker
Modle EcubMaker ToyDIY 4in1 3D printer
Technology FDM/LASER/CNC
Specialty 4 funcation 、automatic leveling、easy to use
Nozzle FDMToolhead；FDM-DualToolhead；
LaserToolhead；CNCToolhead
Printing Size 180mm*180mm*180mm
Color Black
Interface 128*64 LED screen
Language English
LED Light Yes
Molding Precision ±0.1mm
Position Accuracy Z Axis 2.5um,XY Axis 11um
Layer Thickness 0.05mm-0.4mm
Printing Speed Max 24ml/h
Heatbed function automatic leveling、Enable heating、separating-
heatbed;
Heatbed Temperature max 60℃
Connection USB on-line Printing
SD Card o󰀨-line Printing
PC System Winxp/Vista7/8/10 64bit
Power Voltage:110V-220V OUTPUT:24V 5A
Power:120W；50Hz-60Hz
Weight 14kg
Machine Size 372×315×395mm
Packing Size 460×400×460mm
Slicing Software EcubWare
File Type Input STL/OBJ，OutPut Gcode
FDM Toolhead 0.40mm/260℃
FDM-Dual Toolhead 0.40mm/260℃/Dual-lament printing
LASER Toolhead Lader-power 1.5W；Laser wavelength:405nm
CNC Toolhead DC motor 40W；Rpm 10000
FDM lament PLA-T210
FDM-Dual lament main:PLA-T210;
support：PVA (water-solubility lament)
LASER materials wood、PMMA（Acrylic）、Leather、plastic
CNC materials wood、PMMA（Acrylic）、PVC -expension
-sheet、plastic

-------------------------------------------------------------------------------------------------------------------------------------------
--------
12
AWelcome to choose EcubMaker
--------------------------------------------------------------------------------------------------------------------------------------------
Packing List
The accessory list of different configurations will be different, please
refer to the real one.
FDM Toolhead
FDM-Dual Toolhead
Laser Toolhead
CNC Toolhead
Power supply and
power cord
SD Card，SD reader
and USB
TOYDIY
Spanners and Accessories
Safety Glasses
Instructions

-----------------------------------------------------------------------------------------------------------------------------------------
--------
13 AWelcome to chooseEcubMaker
Packing List
--------------------------------------------------------------------------------------------------------------------------------------------
Plate Sticker x2 Filament
Wood Material
CNC Tool CNC Baseplate x2 CNC Fixture
FDM Mountings
CNC Mountings
Support
PMMA Material(Acrylic)
Processed raw material
Solid glue

PMMA Material(Acrylic)
Equipment Set

When you receive TOYDIY, please follow the steps to open
the box. Each TOYDIY is strictly tested and packed before it
leaves from the factory. Please be careful when unpacking.
Tip: Please take TOYDIY out of the box lightly and carefully. So as to avoid
the damage of TOYDIY . If you tear too hard, it may scratches o and even
damage TOYDIY.
UnI
----------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------
--------
15 B EcubMaker TOYDIY basic setup and installation

------------------------------------------------------------------------------------------------------------------------------------------
--------
16
B EcubMaker TOYDIY basic setup and installation
Unboxing
-------------------------------------------------------------------------------------------------------------------------------------------
1.Unboxing
2. Remove TOYDIY from the box
(1) Lay the unopened TOYDIY on the floor.
(2)Open the box, remove the lid and take out TOYDIY user manual. It is
recommended that you follow the steps in the user manual to install and know
the contents in the box. If you nd that anything described in the manual is
missing, please contact your vendor.
(3)Take out the pearl cotton used for bu󰀨er protection.
(1)Remove TOYDIY from the box, place it on a stable place, and remove the
plastic protective bag.
Tip:The Toolhead Flat Cable is not a handle. Never pull or twist the
Toolhead Flat Cable.

--------
17 B EcubMaker TOYDIY basic setup and installation
---------------------------------------------------------------------------------------------------------------------------------------------
Initial Start-Up
1.Mounting Toolhead(The initial default Toolhead is the FDM Toolhead)
2. Plug into the adapter
3.Press the button, the handle light and the screen will be light up.
After unboxing, let's assemble TOYDIY.
------------------------------------------------------------------------------------------------------------------------------------------

Menu Function
------------------------------------------------------------------------------------------------------------------------------------------------
Below is the function menu of TOYDIY.
EcubMaker TOYDIY
FDM 3D Printer Displays the current
rmware Toolhead type
> Print Form SD Print from SD card ->
Filament
Utility
Back
>File1.gcode Select le print
File2.gcode
File3.gcode
File4.gcode
EcubMaker TOYDIY
FDM 3D Printer Displays the current
rmware Toolhead type
Print Form SD ->
> Filament Material set
Utility
Back
>Set Preheat Temp
Preheat
Load Filament
Unload Filament
EcubMaker TOYDIY
FDM 3D Printer Displays the current
rmware Toolhead type
Print Form SD
Filament
> Utility Feature set
Back
Auto Home Each axis returns to its
original position
Move Axis Manual shaft
Set Origin Set the machining origin of
CNC Toolhead
Z-O󰀨set Set the Z-O󰀨set value
Change ToolHead Change ToolHead
Restore defaults Restore defaults
Printer info Equipment information
------------------------------------------------------------------------------------------------------------------------------------------
--------
18
B EcubMaker TOYDIY basic setup and installation

--------
19 B EcubMaker TOYDIY basic setup and installation
------------------------------------------------------------------------------------------------------------------------------------------
FDM single 3D print
--------------------------------------------------------------------------------------------------------------------------------------------
1.Install FDM Toolhead
(1) Power up, if there are filament rest
in the Toolhead, please enter the option
Filament>Unload Filament at rst to exit the
consumables, otherwise it will be easy to
plug in.
(2) Conrm the current Toolhead type on the
screen. If it shows the FDM Toolhead, jump
straight to step 4. If it shows other Toolhead,
proceed to step 3.
(3) Use Menu Button, enter Utility > Change
ToolHeader > Change To FDM Toolhead,
browse the contents displayed on the screen
and click To the last step.
(4) Loose the ToolHead Screw fixing the
current Toolhead, remove the original
Toolhead upward but keep the cable
connected. Remove it and put it aside. Pay
attention not to unplug the cable at this
moment.
