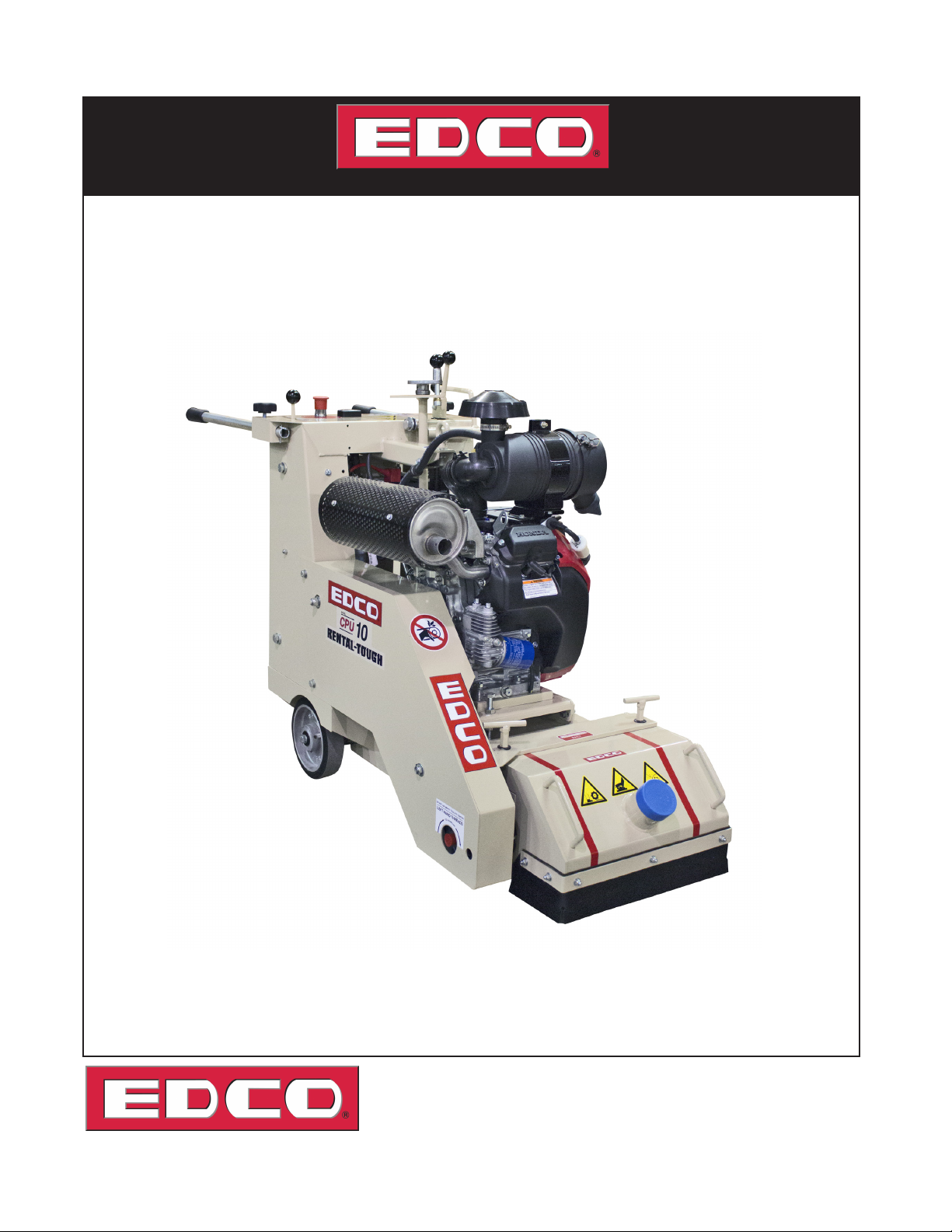

Edco CPU-10FC Assembly instructions
Operator’s Instruction Manual
MODELS CPU-10FC
Gasoline and Electric
Self-Propelled Concrete/Asphalt Scarier
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
EQUIPMENT DEVELOPMENT CO., INC.
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone: 301-638-3326 • 301-663-1600
Fax: 800-447-3326 • 301-663-1607
edcoinc.com • [email protected]
Page 2
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
READ AND UNDERSTAND THE OPERATORS INSTRUCTION MANUAL THOROUGHLY
BEFORE ATTEMPTING TO OPERATE THIS EQUIPMENT.
Death or serious injury could occur if this machine is used improperly.
Extreme care must be taken when operating electric
models with water present: Ensure power cord is prop-
erly grounded, is attached to a Ground-Fault-Interrupter
(GFI) outlet, and is undamaged.
• Check all electrical cables - be sure connections are tight and
cable is continuous and in good condition. Be sure cable is
correctly rated for both the operating current and voltage of
this equipment.
• Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with qualied electri-
cian or service person if there is any doubt as to whether the
outlet is properly grounded. Adhere to all local codes and
ordinances.
• NOTE: In the event of a malfunction or breakdown, grounding
provides a path of least resistance for the electric current to
dissipate. The machine is equipped with a grounded plug
and must be connected to an outlet that is properly installed
and properly grounded. DO NOT modify the plug provided on
the motor. If the plug does not t the outlet have a qualied
electrician install the proper receptacle.
• Switch motor OFF before disconnecting power.
• Engine exhaust from this product contains
chemicals known to the State of California to
cause cancer, birth defects or other reproduc-
tive harm.
• Gasoline is extremely ammable and poisonous. It
should only be dispensed in well ventilated areas,
and with a cool engine.
• Small gasoline engines produce high concentrations of car-
bon monoxide (CO) example: a 5 HP 4 cycle engine opera-
tion in an enclosed 100,000 cu. ft. area with only one change
of air per hour is capable of providing deadly concentrations
of CO in less than fteen minutes. Five changes of air in the
same area will produce noxious fumes in less than 30 min-
utes. Gasoline or propane powered equipment should not be
used in enclosed or partially enclosed areas. Symptoms of
CO poisoning include, headache, nausea, weakness, dizzi-
ness, visual problems and loss of consciousness. If symp-
toms occur - get into fresh air and seek medical attention
immediately.
SAFETY
MESSAGES

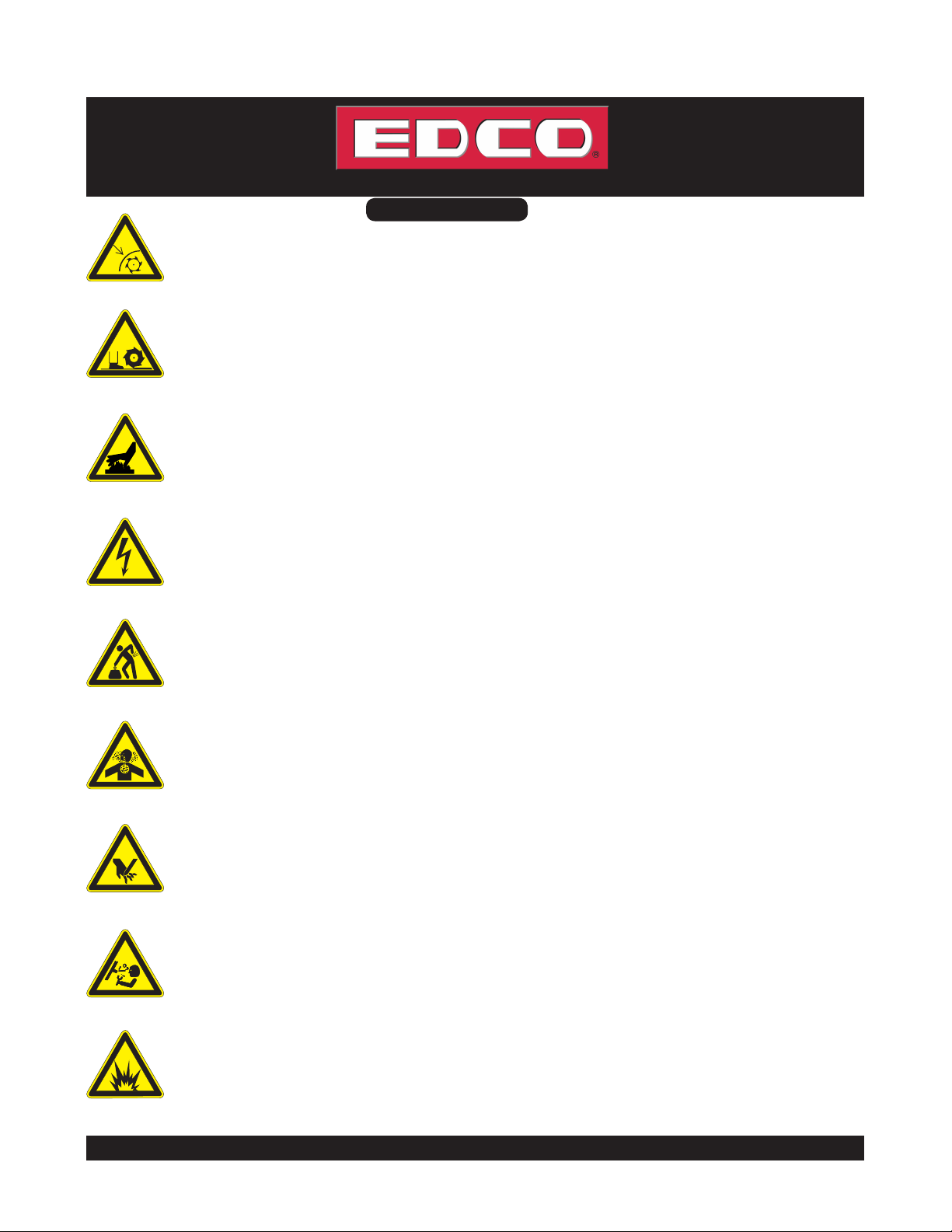

SAFETY MESSAGES
Indicates an imminent hazard which, if not
avoided, will result in death or serious injury.
Indicates an imminent hazard which, if not
avoided, can result in death or serious injury.
Indicates hazards which, if not avoided, could
result in serious injury and or damage to the
equipment.
• Safety Instructions are proceeded by a graphic alert symbol
of DANGER, WARNING, or CAUTION.
ELECTRICAL POWERED EQUIPMENT
GASOLINE/PROPANE POWERED EQUIPMENT
• Equipment should only be operated by trained personnel in
good physical condition and mental health (not fatigued). The
operator and maintenance personnel must be physically able
to handle the bulk weight and power of this equipment.
• This is a one person tool. Maintain a safe operating distance
to other personnel. It is the operators’ responsibility to keep
other people (workers, pedestrians, bystanders, etc.) away
during operation. Block o the work area in all directions with
roping, safety netting, etc. for a safe distance. Failure to do so
may result in others being injured by ying debris or exposing
them to harmful dust and noise.
• This equipment is intended for commercial use only.
• For the operator’s safety and the safety of others, always keep
all guards in place during operation.
• Never let equipment run unattended.
• Personal Protection Equipment and proper safety attire must
be worn when operating this machinery. The operator must
wear approved safety equipment appropriate for the job such
as hard hat and safety shoes when conditions require. Hear-
ing protection MUST be used (operational noise levels of this
equipment may exceed 85db). Eye protection MUST be worn
at all times.
Keep body parts and loose clothing away from moving
parts. Failure to do so could result in dismemberment
or death.
• Do not modify the machine.
• Stop motor/engine when adjusting or servicing this equipment.
Maintain a safe operating distance from ammable
materials. Sparks from the cutting-action of this machine
can ignite ammable materials or vapors.
GENERAL INSTRUCTIONS
DUST WARNING
Some dust created by power sanding, sawing,
grinding, drilling, and other construction activi-
ties contains chemicals known to cause cancer,
birth defects, or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints, and
• Crystalline silica from bricks and concrete and other
masonry products.
Your risk of exposure to these chemicals varies depending
on how often you do this type of work. To reduce your risk:
work in a well ventilated area, use a dust control system, such
as an industrial-style vacuum, and wear approved personal
safety equipment, such as a dust/particle respirator designed
to lter out microscopic particles.
• Do not disconnect power by pulling cord. To disconnect, grasp
the plug, not the cord.
• Unplug power cord at the machine when not in use and before
servicing.
Page 3
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Operator’s Instruction Manual
CPU-10FC
Table of Contents
What to Expect ............................................................................................................................................................................. 4
Safety Guideline .............................................................. .............................................................................................................5
Operator Controls ......................................................... ................................................................................................................6
Operating Instructions...............................................................................................................................................................7-11
Maintenance ............................................. .................................................................................................. ..........................12-13
Drum Bearing Replacement ....................................................................................................................................................... 14
Machine Schedule ............................................................. .........................................................................................................15
SMI Dust and Silica Warning ...................................................................................................................................................... 18
Limited Equipment Warranty ........................................................... ..................................................................Inside Back Cover

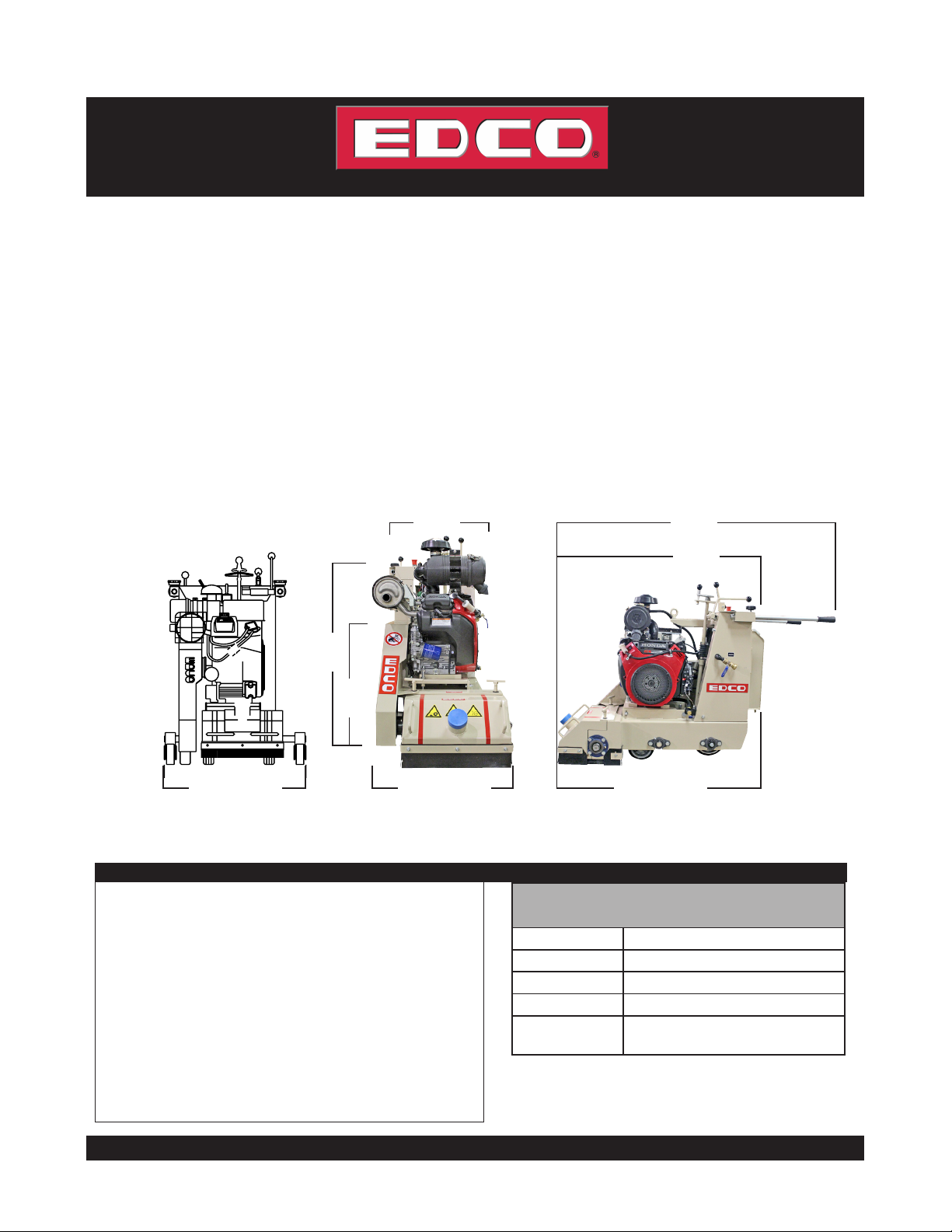

Figure 1
29 1/2”
75cm
CPU-10FC
w/OUTRIGGER
24”
61cm
CPU-10FC
34”
86.5cm
22”
56cm
22 1/2”
57mc
62”
157.5cm
12”
30.5cm
48”
122cm
HOW TO ORDER REPAIR PARTS
To insure product safety and reliability, always use genu-
ine EDCO replacement parts when making repairs to the
equipment.
When ordering parts, please specify the MODEL and
SERIAL NUMBER of the machine as given on the NAME-
PLATE. In addition, give part number, description and
quantity as listed on the parts list.
Please note: Due to improvements and changes in the
equipment the illustrations shown may be dierent from
the actual machine.
Toll Free: Voice 1-800-638-3326 • Fax 1-800-447-3326
NOTE: Due to improvements your machine may not appear the same as the pictures in this manual.
Specications diensions are for
reference only and subject to change.
Model CPU-10FC
Length (L) 47”/120cm
Width (W) 24” 61cm
Height (H) 34”/86.5cm
Total Weight 530lbs/240kg
47”
120cm
Page 4
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
The CPU-10FC EDCO concrete scarier was designed to
remove material from the surface of concrete slabs. The
material may consist of excess concrete, coatings, contami-
nants such as industrial debris, sealer, paint, production line
spill and virtually any foreign substance that creates a safety
or health hazard on walks, passageways or oor surfaces.
The EDCO scariers are primarily used for surface prepara-
tion in commercial and industrial buildings. The machine’s
total weight is an advantage when used on upper oors
where lbs per sq. feet is an important factor. We have kept
the overall width to 24” (61 cm), with outrigger 30” (76.2cm)
to allow for passage through most commercial doorways.
Since the maximum depth of cut is 1/2” (2 cm) in increments of
1/8” to 3/16”, it is not suited for removal of very hard concrete
such as the kind found on roads, bridge decks or runways.
This work is best accomplished by heavy duty milling ma-
chines built for that purpose.
The basic mechanical structure consists of a fabricated steel
frame, a power source - electric or gasoline and a rotating
drum like cutter head that can be raised or lowered to a
chosen depth by the operator.
The CPU-10FC model is designed with an “up-cut” rotation of
the cutter drum assembly, consequently a milling type action
occurs which is more ecient than the “down-cut” found on
the manual units.
The self propelled units require very little manual labor to
operate - a single lever controls speed, forward and reverse
directions. Note that it will cut in forward or reverse directions.
The 10 inch wide drum assembly consists of a welded cage
holding 4 or 6 hardened shafts - locked in place during op-
eration and removable when replacing cutters.

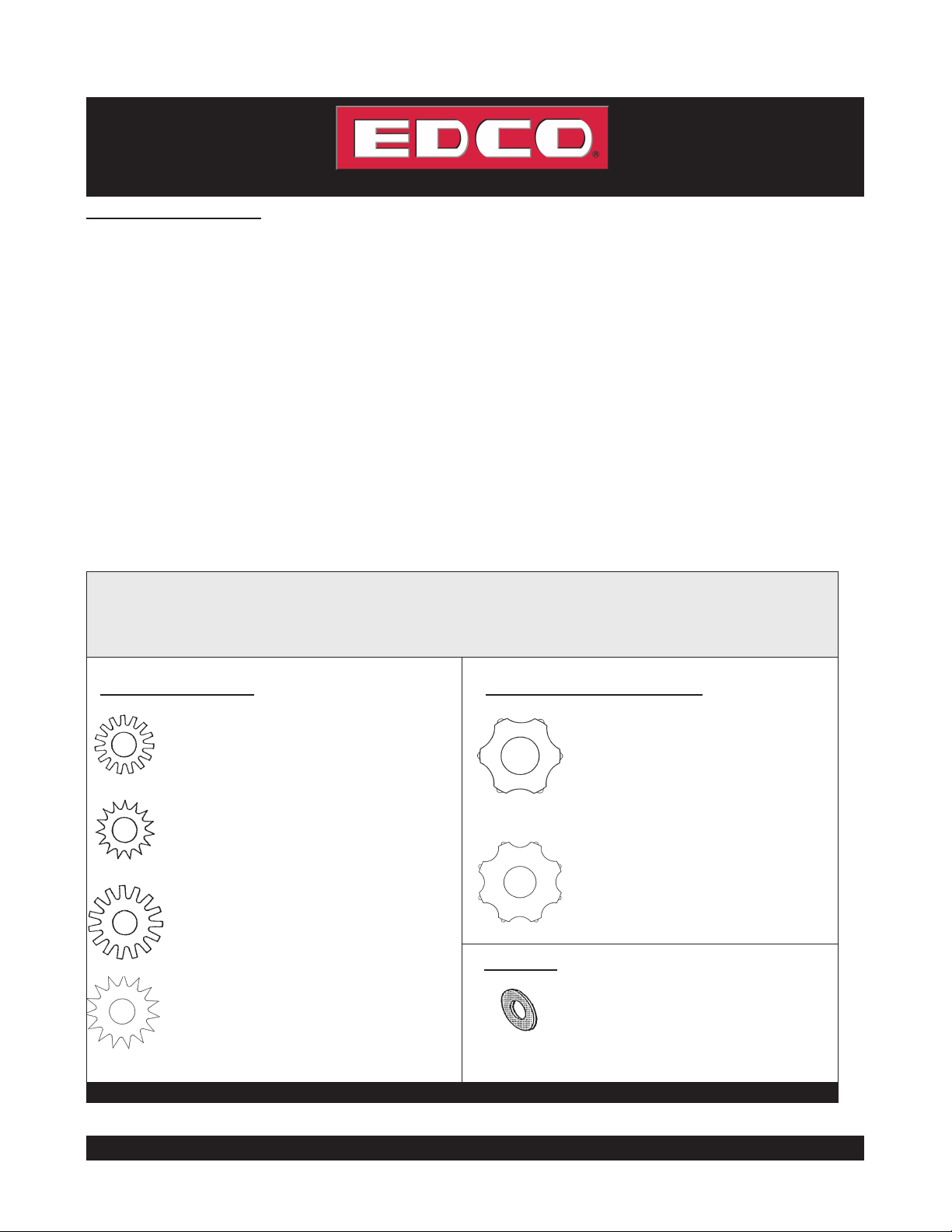

Several styles and sizes of cutter are available. All types
of cutters may be used on both sizes of drum assemblies.
Cutters vary in size - 2 3/8” for light removal, 3” diameter
for longer life. Additional cutter wheel specications can be
found on literature and price lists.
The eciency of the scarier is determined by 3 factors - the
hardness and type of surface to be removed, the type of cut-
ting tool and the power behind the cutters.
What to Expect from your
CP-C C Concrete Scarier
Since the hardness of the surface cannot be changed
and the cutter type is limited to present state of the art
material and the power source is xed - there may be
conditions that are beyond the capability of the scarier.
To exceed these limits will only cause problems. Cutter
life will be shortened drastically, excessive vibration will
most likely cause the scarier to self destruct.
EDCO cannot accept responsibility if the conditions found
on the job site exceed the ability of the equipment to meet
the contractors expectations. It is the obligation of the
purchaser, user or renter to determine the compatibility
of the scarier with the job to be performed.
We at EDCO are prepared to assist the user. We can
provide technical information and comparison data on
jobs of a similar nature. Given information on the project
we can advise the contractor which tools, in our opinion,
will suit the job best, approximate production rates and
possibly arrange a demonstration or suggest an alterna-
tive method or equipment.
EDCO concrete scariers, when properly used, will
perform eciently and economically, but as with all
“demolition” equipment, unless proper maintenance is
provided they tend to wear out faster than other mechani-
cal devices.
It is important that each job be considered individually.
Testing should be carried out and a determination made
if the project is feasible under the circumstances. In
those instances where no other alternative is available,
various changes in procedure can be tried - shallower
cutting depth, slower forward speeds, spacing of cutters
changed - extra weight added. We do not guarantee
life of cutters, depth of cut, life of equipment (except for
workmanship). Equipment of this type is capable of self
destruction through misuse or abuse and the owner/
operator is the vital component that can mean success
or failure of the project.
Our technical information has been obtained from years
of experience on all types of job sites and we gladly share
this information with you. New materials are constantly
being introduced - concrete is made harder with addi-
tives, chemicals and new curing techniques. We try to
keep up with these changes, it’s a never ending job for
us and we need your cooperation to provide us with ac-
curate job site conditions and information.
Page 5
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Safety Guidelines
Read and understand this Operator’s Instruction Manual,
and the Engine Manufacturer’s Owner’s Manual
before operating this equipment.
Death of serious injury can result if this machine is used improperly.
Eye and ear protection must be worn at all times while the saw is in use. During normal operation,
sound pressure levels exceed 85dBA. Use only ANSI approved safety glasses to help prevent eye
injury. Standard eyeglasses have only impact resistant lenses; they are NOT safety glasses.
Operator must wear appropriate clothing and footwear. Do not wear loose clothing or jewelry that
can get tangled in moving parts. Footwear should provide sure footing and protection from debris that
may be dropped. Take steps to insure hair will not be caught in moving parts. If necessary, tie it back.
• When loading or unloading the saw, use caution. Make sure rolling table is locked so that the blade will not be
damaged. Do not move the saw while the engine is running.
• Never exceed the maximum operating speed of the blade. Match the blade speed rating with the arbor shaft speed.
(See page 11)
• Never leave the saw running unattended.
• Never operate this saw under the inuence of drugs, alcohol or when taking medications that impair the senses or
reactions, or when excessively tired or under stress.
• Do not lend or rent this equipment without including the Operator’s Instruction Manual and the Engine Manufacturer’s
Manual.
• Make sure all safety decals can be clearly read and understood. Replace damaged or missing decals immediately.
For Electric Models:
• Electric motor must be properly grounded at all times. Check the outlet box to be sure the electrical service is
properly grounded and that adequate power is available. Insucient power will cause motor to overheat and burn out.
Use only grounded extension cords correctly sized for the current draw and voltage drop (amp rating and length).
Never use frayed, damaged, taped or underrated extension cords. Electrical shock could result in death or serious
injury and damage to the equipment.
For Gasoline Models:
• Poisonous exhaust gas. Do not operate gasoline powered equipment without adequate ventilation. Carbon monox-
ide is an invisible, odorless gas that can kill. NEVER REFUEL AN ENGINE WHILE IT IS HOT OR AN ENGINE
WHILE IT IS RUNNING. Only refuel in a well-ventilated area and only refuel after the engine has cooled completely.
Thoroughly cleanup any spilled fuel before starting the engine.
Dry cutting creates a large volume of airborne dust. For health reasons, the operator should wear an ap-
plicable respirator. The dust may contain chemicals known to cause serious illnesses, including Silicosis
- a fatal disease of the lungs. Check the chemical properties of the material to be cut and follow all EPA/
OSHA regulations.
Safety warnings and guidelines do not by themselves eliminate danger.
They are not substitutes for proper accident prevention procedures and good judgement.
Page 6
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
Operating Controls
1. Cutter Head Lever
2. Clutch Lever
3. Depth Control Knob
4. Lifting Eye
5. E-Stop
6. Drive Control Lever
7. Handle Locking Knobs
8. Hour Meter
9. Water Hook Up
10. Fuel Locko Solenoid Toggle
For Propane Models Only.
(Not Shown)
11. Ignition Switch, Choke & Throttle are
located on Remote Control on Engine
Figure 2
9
1
7
3
2
8
56
7
411
Page 7
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Operating Instructions
Before Starting the Machine:
• Perform a visual inspection of the entire machine and all daily maintenance according to the Maintenance
Schedule on page 15.
• Locate and be familiar with all engine/motor and operating controls (Figures 2).
• For Gasoline models, obtain the Engine Manufacturer’s Owner’s Manual. Read it and understand it before con-
tinuing. Follow the engine manual for break-in instructions.
• Use the correct cutters for the job. Be sure cutter drum is balanced, the number, size and type of cutter wheels
are correct and the cutter drum shaft is locked and secured.
• Be sure all fasteners are tight and secure, check for signs of metal cracking or fatigue, inspect for damage to
electrical wiring, damage to fuel lines, check bearings, etc.
• Be sure all guards are in place. Do not operate unless cutter drum guard is in place and secure.
• Inspect work area to determine the presence and location of deck inserts, pipes, columns and objects protrud-
ing from the slab surface so that they may be avoided during operation.
• Adjust the handles for operator comfort and safe operation. Be sure to retighten knobs. (Figure 2, Item 9)
• Raise the cutter head to the full “up” position using the cutter head lever on the console. (Figure 2, item 1)
• Move the machine into operating position by disengaging the clutch (Figure 2, item 2). Lower clutch lever when
unit is in position.
DO NOT disengage clutch when engine is running and cutter drum is in contact with slab surfaces.
Failure to comply could result in serious bodily injury and/or damage to the equipment.
Starting the Engine/Motor:
For Electric Models:
• Be sure the “OFF” button is depressed on the motor starter box.
• Hook up the correct voltage/phase electrical power source by plugging into the connector provided. If the cord
does not mate with the connector, consult a qualied licensed electrician before continuing.
• Verify that the electrical current being supplied is the proper voltage and phase required to run the equipment
• Check motor rotation. Cutter drum rotation on the model CPU-10FC is “upcut.” DO NOT use if drum rotation is
incorrect - have a qualied electrician make the necessary change in the main control panel or motor connection box.
For Gasoline Models:
• Consult the Engine Manufacturer’s Owner’s Manual and follow the directions for starting the engine and allow the
engine to warm up.
Page 8
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
Operating Instructions
Starting the Cut:
• Crank Depth Control up.
• Slowly lower the cutter head to the slab surface with the cutter head lever. (Figure 2, Item 1)
• Lift the knob of the Depth Control to unlock and turn the hand wheel slowly until the cutter head contacts the slab
(you will hear the sound of the cutter wheels contacting the slab). Continue adjusting the depth of cut until the
desired depth is reached; max depth of cut 3/8” (9.5 mm).
• Use an Industrial Vacuum Dust Control System for dry planing operations.
Forward/Reverse Ground Speed Control:
• The drive control lever (Figure 2, Item 8) provides variable ground speed in both forward or reverse directions.
The lever is spring loaded and returns to neutral when released. Ground speed is increased by moving the lever
forward away from the neutral position. Depth of cut and hardness of material will determine the most ecient cutting
speed. Deep cutting requires slower forward speeds, allow engine to run at full RPM during the cutting operation.
To Stop Cutting:
• Move drive control lever to neutral, raise cutter head assembly above slab surface.
• For gasoline models, close throttle and turn the ignition switch to the “o” position.
• For electric models, depress the “OFF” button.
After Cutting:
• At the end of the day, clean the entire machine after it has cooled. Check for worn or damaged cutters and per-
form any required maintenance. See Maintenance Schedule and Instructions on page 13.
Transporting:
• Before hoisting, always inspect frame and attachment hardware for damage. Use proper and
safe hoisting techniques and approved hardware. CPU-10FC weight is approximately 530 lbs (240 kg).
Never hoist a machine over top of where people are working or standing. Never hoist a machine while the engine is
running. Serious person injury or damage to the equipment can result.
Page 9
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Operating Instructions
Cutting Heads / Drums:
• Drum assembly revolves at approximately 2000 R. P. M.; Model CPU-10FC is an “up-cut” planer. Depth of cut
is completely determined by the material to be cut, horsepower of the engine and spacing of the cutter wheels on
the cutter head.
• All cuts should be started from a stationary position - when the cutting depth is reached the plane should then
move forward.
• The engine should not labor. Run at full throttle and adjust forward speed to t the work being performed. Very
hard concrete will have to be cut at a slower pace then asphalt or deteriorated surfaces.
• If it is necessary to make deep cuts - make several shallow cuts to achieve the desired depth. If the cutting depth
is set too deep the cutter wheels will not be able to absorb the shock and damage to the equipment will result.
• The cutter wheels have an oversized arbor hole. This “play” is needed to absorb some of the shock of the cutter
contacting the concrete.
• Cutting speed is directly proportional to the amount of material to be removed in one pass; an example - cutters
spaced on 1” centers will penetrate to a greater depth than those spaced at 1/2” centers, and the planer will move
forward faster. Most of the material in the path of the cutting head will be removed either by the cutters them-
selves or through the natural hammering action and spalling of the material being cut. A later pass with cutters
spaced closer together will remove the ridges.
To Reach Maximum Depth in Concrete:
• It is best to make several passes - increments of 1/8” or even less if surface is extremely hard.
• Use coarse (wide spacing) for initial passes. Complete job with medium spacing. Never use a ne spaced cutter
head to cut deeper than 1/8”.
• Some concrete slabs, especially if they are covered with water a good deal of time or if they have been treated
with hardeners, develop an extremely high surface strength.
• Material removal depth should not exceed 1/8” per pass thus requiring several passes to reach the desired depth
of cut.
To Cut Asphalt:
• This surface is usually easy to penetrate - depths of 1/4” can be reached using medium spacing. Let the job
guide your selection of cutter spacing. Deep cuts require wide cutter spacing. Asphalt will usually break out be-
tween cutters and a fairly uniform clean cut is the result.
Note: Specic information on asphalt cutting is available upon request.
Fine Cutting:
• This assembly should be used for very shallow or cleaning operations. Check with dealer for special cutter
wheels for removal of paint build-up or similar surface coatings.
Page 10
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
rac ine eoal
• For this operation, be sure to set depth of cut to just penetrate the paint. Most state and municipal agencies
require 70% to 80% removal. If the road surface was pitted (worn or just old and full or uneven areas when it
was painted), it will be impossible to remove the paint from the depressions without changing the depth setting.
• We suggest leaving these areas to be completed last after the majority of the lines have been removed. Return
to the problem spots , reset the depth and proceed to remove the paint. This procedure will minimize the time
necessary to do the job and will prevent cutting into the road surface.
• The EDCO CPU-10FC model is ideally suited to remove thermoplastic lines - the upcut feature removes the plas-
tic from the surface by “milling” or lifting. In excessively hot weather it may be necessary to sweep the plastic
away from in front of the planer - hot plastic tends to build up on the tires changing the cutting depth setting.
• To keep thermoplastic from heating up, we recommend to spray water on the work surface whenever possible.
Note: If the CPU-10FC will be used for trac line removal, the optional front outrigger wheel assembly will follow the
contour of the surface to be cut. By doing this you can control the amount of surface to be removed with little or no
damage beneath the paint.
Refer to the CPU-10FC Assembly Instructions booklet
for suggested Cutter Drum setups.

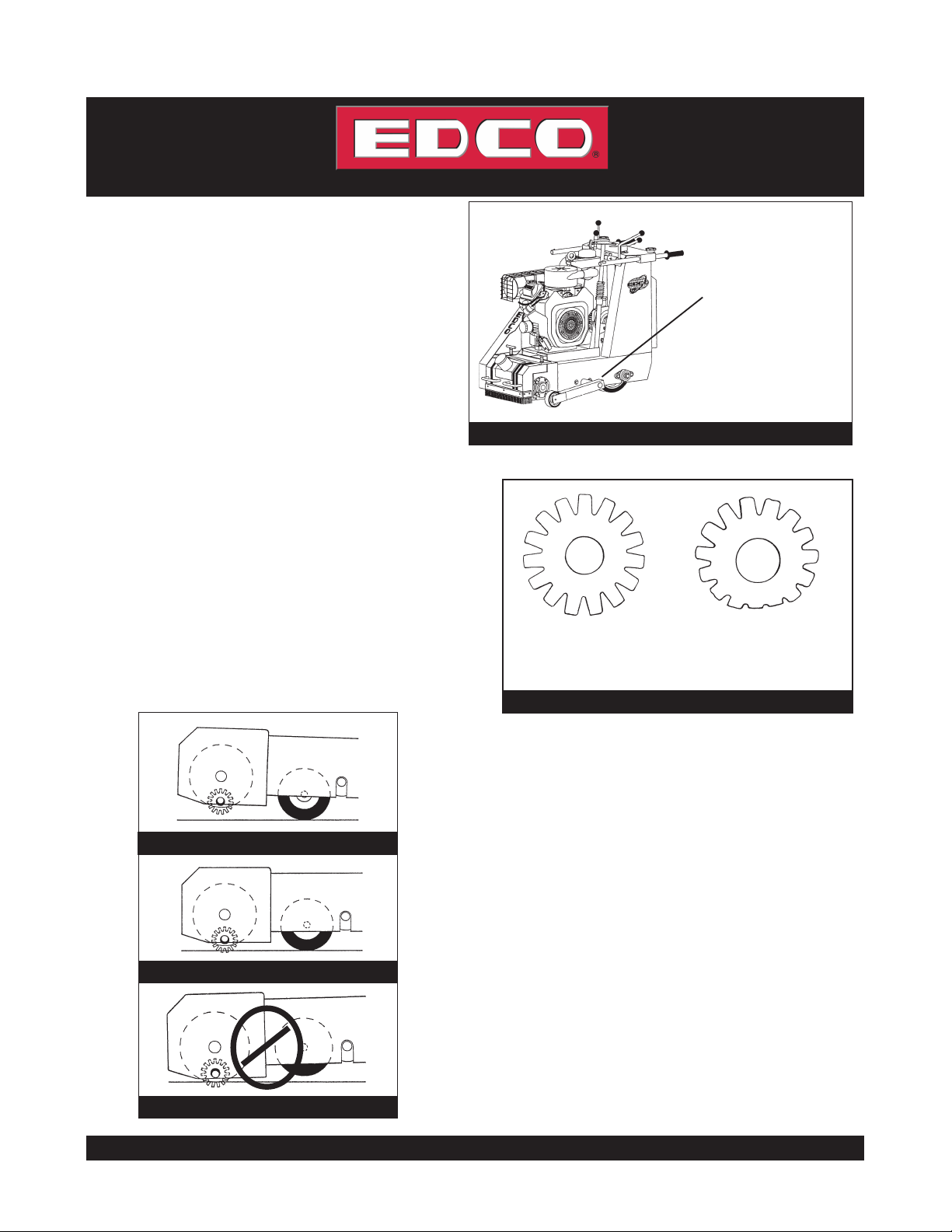

Cutter Wheels
Use only EDCO approved cutter wheels. Cutter wheels for all application are available - sizes and types
vary. Complete information is available from EDCO.
CP-403: Hardened steel spacers for use
with all cutter wheel set ups.
CP-404: 2-3/8” diameter -1” ID x 3/16”
max.depth of cut - 1/2” - hi-carbon cutters -
use on concrete 3500 PSI or less.
CP-404P: Same as above, except teeth
are pointed to aid in removal of paint or
similar surface material - points wear and
become at. When this happens, use as
you would standard CP-404.
CP-405: 3” diameter - 1” ID x 3/16” - max.
depth 3/4” - hi-carbon steel cutters - use on
concrete 3500 PSI or less.
CP-405P: Same as above, except teeth
are pointed to aid in removal of paint or
similar surface material - points wear and
become at. When this happens, use as
you would standard CP-405.
CP-404TV: 2-1/8” OD x 1” ID x 1/4” thk
6 point, tungsten carbide inserts. Use
for long life and fast removal of concrete,
asphalt or coatings.
CP-408TV: 3-1/8” OD x 1 3/16” ID x
5/16” thk 8 tungsten carbide inserts.
Heavy duty cutter with oversized inner di-
ameter. Maximum cutter shaft diameter
1”. Heavy removal of concrete, asphalt or
coatings.
Hi Carbon Cutters: Tungsten Carbide Cutters:
Figure 4
Spacers:
Page 11
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Outrigger Wheel Assembly: (Optional)
Outrigger wheel assembly (Figure 5) is designed to al-
low the drum to follow the contour of the slab. Wheels
are aligned with cutting drum to follow highs and lows
of the slab removing a consistent depth over the entire
surface. Can be used with all accessories but highly
recommended for diamonds and heavy duty roto peen,
removing trac lines or thin coatings.
Do Not Bottom Cutter Assembly
If front wheels are not in contact with slab surface when
planing you are bottoming the cutter head. You are riding
on the drum & cutter wheels. Cutter wheels will wear
uneven or break if this is continued. (Figure 6)
Re-adjust depth - turn ne adjustment in “up” direction
until cutters are free and cutting is being accomplished
by “hammering” action only.
Failure to follow these instructions will cause undue cut-
ter wear, breakage, bearing failure or excessive vibration
that will be transmitted back to the machine frame and
engine eventually causing a virtual self-destruction of
the unit.
Outrigger Wheel
Assembly
(Optional)
Figure 5
Figure 6
New CP-405
Cutter Wheel
Uneven wear on cutter wheel
caused by cutting too deep or
cutting very hard concrete
“Full Up Position”
Cutter wheels raised from surface for preparation in starting
engine or to stop cutting operation. (Figure 7a)
“Pre-selected Depth”
Depth of cut determined by the hardness of the surface. Cutter
wheels should swing free on shaft.(FIgure 7b)
“Bottomed Out”
This can cause severe damage to equipment or cause cutters
to atten or break. (Figure 7c)
Cutter wheels are jammed or forced up against shaft by trying
to remove too much in one pass. Wheels are raised from the
surface and front rides on the drum anges.
Figure 7a
Figure 7b
Figure 7c
Page 12
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
Never work on or under equipment without rst securing the equipment to prevent it from moving
or falling. Always work on a at and level surface.

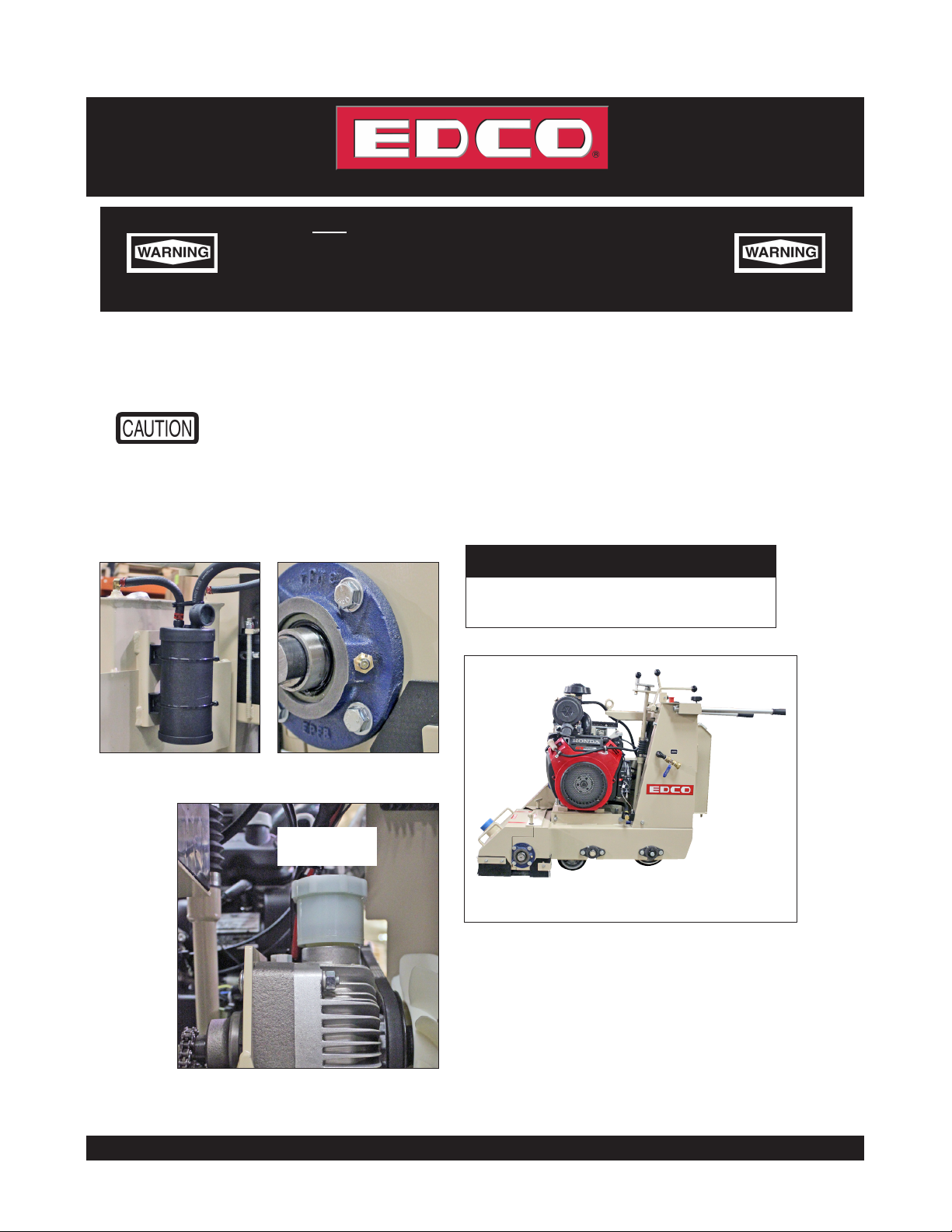

Carbon Canister
The CPU-10FC is equipped with a charcoal canister to create a sealed fuel system and re-
route any vapors from the tank back to the airbox on the engine for burning. This unit also has a
teathered fuel cap with viton gasket and evaporation resistent fuel lines. Life expectancy is esti-
mated at 10+ years.
Refer to the Engine Manufacturer’s Owner’s Manual
for maintenance information specic to the engine used.
Grease cutter assembly bearings (2)
after every 4 hours of use.
IMPORTANT!
• Grease Depth Control Bearing every 40 hours.
• Check hydrostatic transmission uid level after
every 50 hours of operation. If it is low, ll to
level mark with GM Dexron B or comparable uid.
Grease wheel bearings every 40 hours
Remove both spark plug leads on gasoline engine models or
disconnect the supply voltage connector on
electric models before performing any maintenance.
Disconnect the power cord at the machine.
Maintenance Instructions
Cutter Assembly
Bearings (2)
Carbon Canister
Depth
Control
Bearing
Transmission
Fluid
Page 13
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Important!
• Check oil level before operation. Change engine oil and lter according to engine manufacturers recommendations.
• Clean air lter element daily.

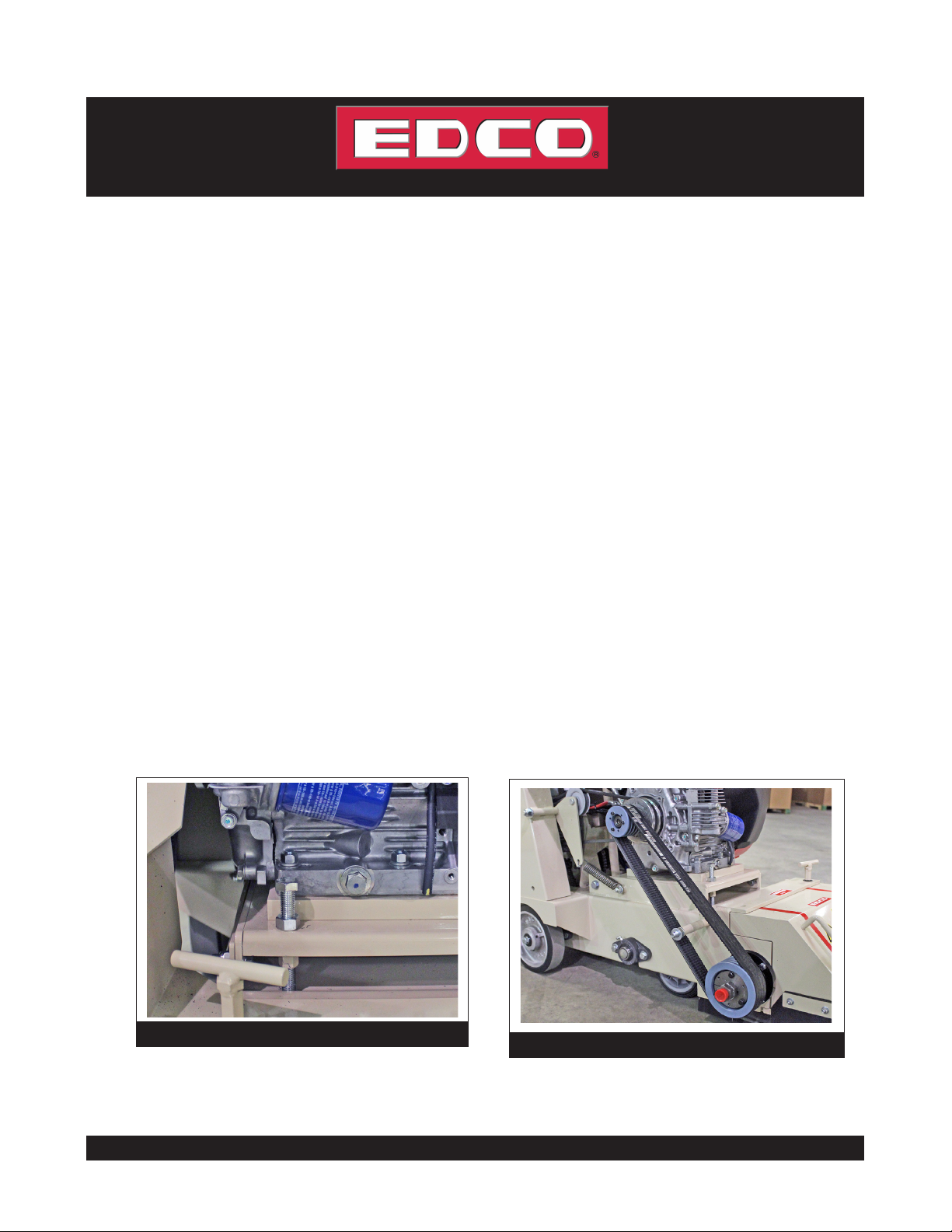

Belts:
• On new equipment, and after replacing a set of belts, they should be re-tensioned after the rst four hours of use.
• New belts will be sti and will loosen with use. Proper belt tension must be maintained to transmit the engine
power to the cutting drum. Slipping belts will overheat, the blade life will be shortened and the cutting speed lim-
ited. Over tensioned belts will shorten the belt and bearing life.
• Damaged, stretched or excessively worn belts should be replaced with a new matched set.
• To tension belts, loosen motor mounting hardware slightly. Use the jacking bolt to adjust the motor until the belts
are tight. Re-torque the engine mounting hardware.
Jacking Bolt and Engine Mounting Hardware Belts
Page 14
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
Drum Bearing Replacement
Important!
1. Remove hood and belt cover.
2. Remove spindle shaft. Remove 2 left hand nuts on left side of shaft. Note: These nuts loosen to the right. Set aside.
Remove shaft. If the debris has hardened on shaft you might need to tap out with a hammer and drift pin. Remove
drum and set aside.
3. Remove 4 - 3/8th - 24 x 1 1/2 HH bolts, washers, and lock nuts from each bearing and set aside. Check to see if
bearings have factory installation shims. If so, note the placement.
4. Install new bearings placing the factory shims in there original position. Note: Make sure to reinstall the dust shields
with the new bearings.
5. When assembly is complete slide the shaft through both bearings. If it doesn’t slide through smoothly repeat steps 3
and 4 until it does. This is required. If the shaft doesn’t pass through both bearings easily it will put excessive side-
load on the bearings and cause premature failure.
Dust Shield
Page 15
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
Repairs are to be preformed
by EDCO or by approved
EDCO repair technicians.
Read and follow all instructions
in the Engine Manufacturer’s
Owner’s Manual.
Maintenance Schedule
*Gasoline Models Only
Follow Engine
Manufacturer’s
Maintenance
Schedule
Before
each
Operation
Daily Every 4
Hours
Every
40-50
Hours of
Operation
As
Required
Visually Inspect Entire
Machine and Hardware X
Check Engine Oil* X
Cutter Shaft Wear
(bushing drum) X
Grease Cutter
Assembly Bearings X
Clean Air Filter
Element* X
Clean Dust and
Dirt O Machine X
Check Hydrostatic
Transmission Fluid
Level
X
Change Engine Oil*
(Refer to
Engine Manual)
X
Grease Wheel
Bearings X
Belt Tensioning X
Page 16
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
This symbol means that the machine is heavy if the machine needs to be lifted onto or o of a truck,
loading dock etc. that proper technique or heavy duty lifting device should be used, personal injury could result.
(Yellow background with black pictogram and black outline)
This symbol means that dangerous chemicals, gases, dust particles and/or fumes are present including
carbon monoxide. Proper ventilation must be maintained. Do not use gasoline/diesel/propane powered
equipment indoors.
(Yellow background with black pictogram and black outline)
This symbol means that there are sharp components and if feet/ngers/digits come in contact personal
injury or death could result.
(Yellow background with black pictogram and black outline)
This symbol means that potential hazardous voltages are present and the equipment must be properly
grounded and extreme caution should be taken. If for any reason maintenance or repair is needed,
insure that voltage(s) are disconnected at the machine and the source unless (be cautious) voltage needs
to be present to troubleshoot the problem, then only qualied personal should work on “live” systems.
(Yellow background with black pictogram and black outline)
This symbol means hazardous pressures are present. Caution should be exercised to prevent personal
injury or damage to equipment. Face, eye and head protection should be used.
(Yellow background with black pictogram and black outline)
This symbol means explosive and hazardous vapors are present. Caution should be exercised to
prevent personal injury to face and eyes. Breathing and personal protection should be used when
servicing.
(Yellow background with black pictogram and black outline)
This symbol means that the guards must remain in place while the engine/motor on the machine is
running because death or personal injury may result.
(Yellow background with black pictogram and black outline)
This symbol means that there are moving parts and if feet/ngers/digits are inserted under any edge of
the cutter/grinder/saw cover while the engine/motor on the machine is running that personal injury and loss
of foot/ngers/digits may result.
(Yellow background with black pictogram and black outline)
This symbol means the surface is HOT and that if ngers/digits/hands or any bare or unprotected skin comes
in contact with this surface or hot accessory, possible serious burns and personal injury may result.
(Yellow background with black pictogram and black outline)
Safety Symbols
Page 17
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
This symbol means that the Operator’s, owners, instruction and/or manufacturer(s) manuals must be
read and understood before operating or attempting to operate this electrical, gasoline, diesel or
propane powered equipment, failure to do so can result in personal injury and possible death.
(Blue background with white pictogram.)
This symbol means that proper eye protection must be worn/used during the operation of this equipment. There is
a potential risk of operator eye damage, injury or loss of sight. This also applies to any personnel standing
nearby observing the operation of this equipment.
(Blue background with white pictogram.)
This symbol means that proper ear protection should be worn/used during the operation of this equipment.
There is a potential risk of operator hearing damage, injury or loss of hearing which will increase based on the
length of exposure. This also applies to any personnel standing nearby observing the operation of this equipment.
(Blue background with white pictogram.)
This symbol means that proper head protection should be worn/used during the operation of this equipment there
is a potential risk of operator head injury from foreign or loose objects the equipment might come in
contact with during operation. This also applies to any personnel standing nearby or observing the
operation of this equipment.
(Blue background with white pictogram.)
This symbol means that proper breathing protection or engineering controls must be worn/used during the
operation of this equipment there is a potential risk of operator lung damage. Repeated and/or substantial
inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. In
addition, to California and some other authorities have listed respirable crystalline silica as a substance known
to cause cancer. When grinding/cutting/drilling such materials, always follow local respiratory precautions.
This also applies to any personnel standing nearby or observing the operation of this equipment.
(Blue background with white pictogram.)
This symbol means do not insert ngers/digits under any edge of the belt cover while the engine/
motor on the machine is running because personal injury and loss of ngers/digits may result.
(Black pictogram with red “No” symbol outline)
This symbol denotes the lifting point and means that if lifting of this equipment is necessary use a lifting
device that is designed to accomodate or exceed the weight of this machine. Check the Operator’s
manual for specications. Using a device that is not designed to accomodate or exceed the weight of this
machine could result in damage to the machine and personal injury. Do not lift equipment over people
because death or serious injury could result.
(Blue background with white pictogram.)
This GHS pictogram identies that the chemicals contained present serious health hazards.
(Black pictogram with red diamond symbol outline)
Safety Symbols
Page 18
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
DUST AND CRYSTALLINE SILICA WARNING
Grinding/cutting/drilling of masonry, concrete, metal and other materials can generate dust,
mists and fumes containing chemicals known to cause serious or fatal injury or illness, such as
respiratory disease, cancer, birth defects or other reproductive harm. If you are unfamiliar with
the risks associated with the particular process and/or material being cut or the composition of
the tool being used, review the material safety data sheets and/or consult your employer, the
manufacturers/suppliers, governmental agencies such as OSHA and NIOSH and other sources
on hazardous materials. California and some other authorities, for instance, have published lists
of substances known to cause cancer, reproductive toxicity, or other harmful eects.
Control dust, mist and fumes at the source where possible. In this regard use good work practices
and follow the recommendations of the manufacturers/suppliers, OSHA/NIOSH, and occupa-
tional and trade associations. Water should be used for dust suppression when wet grinding/
cutting/drilling is feasible. When the hazards from inhalation of dust, mists and fumes cannot
be eliminated, the operator and any bystanders should always wear a respirator approved by
NIOSH/MSHA for the material being used.
Grinding/cutting/drilling of masonry, concrete and other materials with silica in their composi-
tion may give o dust or mists containing crystalline silica. Silica is a basic component of sand,
quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial
inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including
silicosis. In addition, California and some other authorities have listed respirable crystalline silica
as a substance known to cause cancer. When grinding/cutting/drilling such materials, always
follow the respiratory precautions mentioned above.
See more on the importance of dust prevention and silica warnings at osha.gov/silica.
See more concrete and silica dust supression training and educational
materials at edcoinc.com/silica-standards or scan the QR code at right.
Page 19
E-CPU10FC-I-1117
E-SPTS-I-0809
EQUIPMENT DEVELOPMENT CO., INC.
P AA SA S CS
Equipment Development Company, Inc. herein referred to as EDCO (Seller) warrants that
each new unit manufactured by EDCO to be free from defects in material and workmanship
in normal use and service for a period of (1) one year (except for the cutter drum assembly
on all model concrete/asphalt planes, in which case the warranty period shall be 90 days)
from date of shipment to the original retail or equipment rental center owner.
Accessories or equipment furnished and installed on the product by EDCO but manufactured by
others, including, but not limited to engines, motors,electrical components, transmissions etc., shall
carry the accessory manufacturers own warranty.
EDCO will, at its option, repair or replace, at the EDCO factory or at a point designated by
EDCO, any part which shall appear to the satisfaction of EDCO inspection to have been
defective in material or workmanship.
EDCO reserves the right to modify, alter and improve any part or parts
without incurring any obligation to replace any part or parts previously sold without such
modified, altered or improved part or parts.
This warranty is in lieu of and excludes all other warranties, expressed, implied, statutory,
or otherwise created under applicable law including, but not limited to the warranty of mer-
chantability and the warranty of fitness for a particular purpose in no event shall seller or
the manufacturer of the product be liable for special, incidental, or consequential damages,
including loss of profits, whether or not caused by or resulting from the negligence of seller
and/or the manufacturer of the product unless specifically provided herein. In addition, this
warranty shall not apply to any products or portions there of which have been subjected to
abuse, misuse, improper installation, maintenance, or operation, electrical failure or abnormal
conditions and to products which have been tampered with, altered, modified, repaired,
reworked by anyone not approved by seller or used in any manner inconsistent with the
provisions of the above or any instructions or specifications provided with or for the product
FORCE MAJEURE
Seller’s obligation hereunder are subject to, and Seller shall not be held responsible for, any
delay or failure to make delivery of all or any part of the Product due to labor difficulties,
fires, casualties, accidents, acts of the elements, acts of God, transportation difficulties,
delays by a common carrier, inability to obtain Product, materials or components or qualified
labor sufficient to timely perform part of or all of the obligations contained in these terms
and conditions, governmental regulations or actions, strikes, damage to or destruction in
whole or part of manufacturing plant, riots, terrorist attacks or incidents, civil commotions,
warlike conditions, flood , tidal waves, typhoon, hurricane, earthquake, lightning, explosion
or any other causes, contingencies or circumstances within or without the United States not
subject to the Seller’s control which prevent or hinder the manufacture or delivery of the
Products or make the fulfillment of these terms and conditions impracticable. In the event
of the occurrence of any of the foregoing, at the option of Seller, Seller shall be excused
from the performance under these Terms and Conditions, or the performance of the Seller
shall be correspondingly extended.
This document sets forth the terms and conditions pursuant to which the purchaser (“Pur-
chaser”) will purchase and Equipment Development Co.Inc. (“Seller”)will sell the products,
accessories, attachments (collectively the Products “) ordered by the Purchaser. These terms
and conditions shall govern and apply to the sale of Seller’s Products to Purchaser, regardless
of any terms and conditions appearing on any purchase order or other forms submitted by
Purchaser to Seller, or the inconsistency of any terms therein and herein.
1. PRICE
A ll p ri c es s e t f o r th o n a n y p u r ch as e o r de r o r o t h er d o c um en t a r e F. O . B. S e l le r s f a ci li ty o r d i st r ib ut io n
point, as may be determined by Seller (F.O.B.Point). All prices are exclusive of any and all taxes,
including, but not limited to, excise, sales, use, property or transportation taxes related to the sale or
use of the Products, now or hereafter imposed, together with all penalties and expenses. Purchaser
shall be responsible for collecting and/or paying any and all such taxes, whether or not they are
stated in any invoice for the Products. Unless otherwise specified herein, all prices are exclusive
of inland transportation, freight, insurance and other costs and expenses relating to the shipment
of the Products from the F.O.B. point to Purchaser’s facility. Any prepayment by Seller of freight
insurance and other costs shall be for the account of Purchaser and shall be repaid to Seller.
2. PAYMENT TERMS
Payment terms are as follows. 2% 10 days (to approved and qualified accounts). Net 30 days.
This is a cash discount for invoices paid within 10 days after the invoice date, regardless of date
of receipt of shipment. This is not a trade discount and will not be granted to accounts that do not
adhere to stated terms.
*All past due accounts are subject to a late payment fee of 1.5% per month or a maximum allowed
by law if different, along with the expenses incidental to collection including reasonable attorney’s
fees and costs.
*Seller reserves the right to hold shipments against past due accounts.
*Seller reserves the right to alter payment terms.
3. FREIGHT TERMS
All shipments will be made F.O.B. shipping point as designated in these Terms and Conditions, and
title shall pass at the F.O.B. point. Delivery to the initial common carrier shall constitute delivery to
the Purchaser. Any claims for loss or damage during shipment are to be filed with carrier by the
Purchaser. Seller will not assume responsibility for the performance of the carrier.
Back orders will be shipped in the most practical fashion with charges consistent with our freight
policy established with the original order. UPS, FED EX, MAIL or shipments by other couriers are
subject to the same terms and conditions as outlined in paragraph #3”Freight Terms”.
4. DELIVERY, DAMAGES, SHORTAGES
Seller shall use reasonable efforts to attempt to cause the Products to be delivered as provided for in these
Terms & Conditions. Delivery to the initial common carrier shall constitute the delivery to the Purchaser.
Sellers responsibility, in so far as transportation risks are concerned ceases upon the delivery of the
Products in good condition to such carrier at the F.O.B. point and all the Products shall be shipped at the
Purchaser’s risk. Seller shall not be responsible or liable for any loss of income and/or profits, or incidental,
special, consequential damages resulting from Seller’s delayed performance in shipment and delivery.
5. RETURN OF DEFECTIVE PRODUCTS
Defective or failed material shall be held at the Purchaser’s premises until authorization has been
granted by Seller to return or dispose of Products. Products that are to be returned for final inspec-
tion must be returned Freight Prepaid in the most economical way. Credit will be issued for material
found to be defective upon Seller’s inspection based on prices at time of purchase.
6. PRODUCTS ORDERED IN ERROR
Products may be returned, provided that claim is made and Seller is notified within 7 days of receipt of
Products, and the Products are in original buyer’s possession not more than 30 days prior to return,
subject to Seller’s approval. If Products are accepted for return, they must be Freight Prepaid and
buyer will be charged a minimum of 15% restocking charge, plus a charge back for outbound freight
charges if the original order was shipped prepaid. Returns are not accepted for any Products that
are specifically manufactured to meet the buyer’s requirement of either specifications or quantity.
AGREEMENTS
These Terms and Conditions constitute the entire agreement between Seller and Purchaser as it relates to
terms and conditions of sale, and supersedes any and all prior oral or written agreements, correspondence,
quotations or understandings heretofore in force between the parties relating to the subject matter hereof.
There are no agreements between Seller and Purchaser with respect to the Product herein except those
specifically set forth in and made part of these terms and conditions. Any additional terms, conditions
and/or prices are rejected by Seller.
These terms and conditions may be modified, cancelled or rescinded only by a written
agreement of both parties executed by their duly authorized agents.
USE ONLY GENUINE EDCO PARTS & ACCESSORIES
For your own safety, the safety of others and the life of your machine.
Page 20
E-CPU10FC-I-1117
EQUIPMENT DEVELOPMENT CO., INC.
SURFACE PREPARATION, RESTORATION, PROFESSIONAL
SAWING EQUIPMENT & HAND HELD TOOLS
100 THOMAS JOHNSON DRIVE, FREDERICK, MD 21702
PHONE: 800-638-3326 OR 301-663-1600
Fax: 800-447-3326 or 301-663-1607
Email: [email protected]
Website: edcoinc.com
Patents Pending & Issued
Created 6 2014
Printed in USA ©2014
Other manuals for CPU-10FC
1
Table of contents
Other Edco Lawn And Garden Equipment manuals
