Eden Branch Products 101016 User manual

MADE IN CHINA
©2021 J & J Global, LLC
Distributed By:
J & J Global, LLC
Dallas, TX 75234

Freestanding Carbon Fiber Patio Heater W/ Remote
Sku: 101016
Please keep this instruction manual for future reference
Read the instructions and precautions before use of this product
For warranty information, please refer to the back page of
this instruction manual.

1. Do not use the heater with a programmer, timer, separate remote-control system or any other device that switches
the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
2. It’s dangerous to install the appliance close to curtains and other combustible materials.
3. Do not use the heater in reach of a shower, bath or a swimming pool.
4. Heater is not located immediately below a socket-outlet.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified
person in order to avoid a hazard.
6. In order to avoid overheating, do not cover the heater.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved children shall not play with the appliance.
cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
8. Keep the appliance and its cord out of reach of children less than 8 years.
9. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small
rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is
provided.
10. Pay attention that, no combustible material due to Wind or other environmental influences covers or obstructs the
appliance, such as curtains, marquees, flags, plastic foil etc.
11. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
When using this electric unit, basic safety precautions should be followed to reduce the risk of fire, electric shock, and
injury to persons, including the following:
1.Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use
handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the
front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or the disabled, or when the heater is
left operating and unattended.
6. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been drooped or
damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical
adjustment, or repair.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate heater
where it may fall into a bathtub or other water container. To protect against electrical hazards, DO NOT immerse in water
or other liquids.
8. DO NOT touch the control panel with a wet hand.
9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. Arrange cord
away from traffic area and where it will not be tripped over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric
shock or fire, or damage the heater.
Important Instructions 1Attaching Base
Use four M6*30 screws to attach the base onto heater body (see illustration below).
Bracket Installation
First find the gaps on both sides of the product. Next, insert the brackets into the gaps on
both sides of the product, and hook the hooks of the brackets to the cylinder in the middle
of the product. Finally, pull the two brackets in the right direction, align the holes, and
lock them with a special screw.
2
Step 1 Step 2 Step 3
9 2

3Operating Instructions
A. These appliances must be supplied with proper voltage and frequency (AC120V,
60Hz), and connected to an individual, properly grounded branch circuit, protected by a
circuit breaker which in accordance with wiring rules. power cord of this appliance
must be fastened with the chain, installation can only be carried out by qualified person
in order to avoid a hazard.
B. Only operate the heater when it is in the upright position. Our Electric Patio Heater is
equipped with One heat settings The switch on the heater head is used to control the
One heat setting.for1500W, The 0 position is off. To operate the heater on high, push the
Switch Cord again. This will cause both the bottom and top heating elements to glow and
radiate heat.
Press once, display says P0, system now in stand by
Press twice, display says P1, low heat 500W
Press three times, display says P2, medium heat 100W
Press four times, display says P3, high heat 1500W
Press ,timer, 1~24 hours

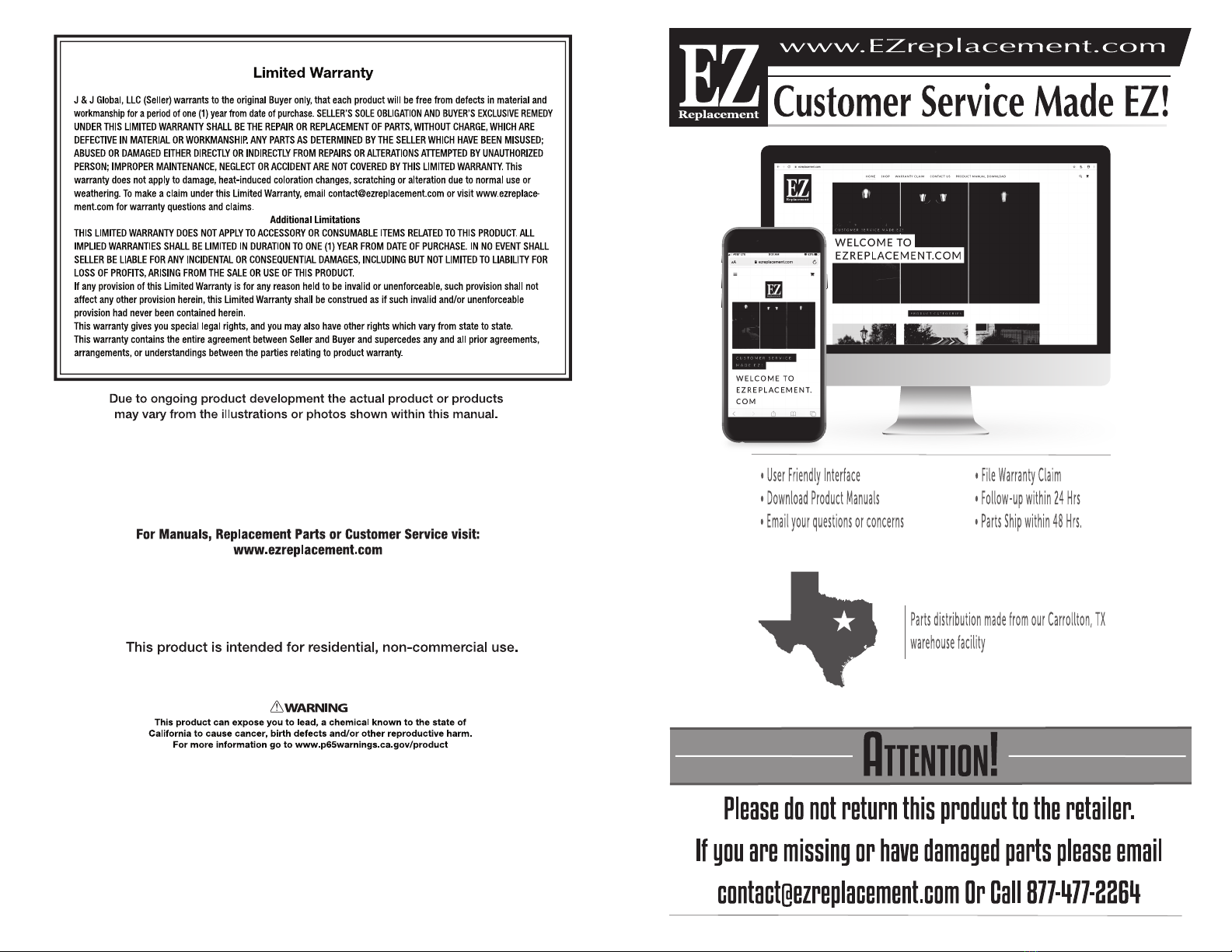

Purchase Information For Warranty
Product SKU #
Date Of Purchase
Purchased At
__________________________________________
__________________________________________
__________________________________________
Fill Out Purchase Information
Warranty Claim Instructions
Please use the link below to go to our warranty replacement website to fill out our Warranty
Claim questionnaire. Please provide any photo(s) of the defective issue. NOTE- If you have a solar
product that is not working correctly as it should, please provide photos of the product not
working correctly at sunset/nighttime. If you received a product that was damaged, please take a
photo(s) of the all the damages as well as the box that the product shipped in. You can either attach
your photo(s) to your warranty claim (which will be located at the bottom of the page), or you can
email the photo(s) to [email protected]. If you are missing an item(s)/hardware, you
will not need to provide a photo(s) you will just need to fill out the warranty claim.
Notes:
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
_______________________________________________________________
8
3

4Remote Control Operation
Definitions of the Buttons on the Remote Control
The functions of the heater may be controlled via the buttons on your remote control
and LED screen. You may also control some of the functions of your heater through the
buttons on the front side of the heater.
Remote Control
1. On/Off Switches heater on or off.
2. After turning heater on, this turns on low heating.
3. After turning heater on, this turns on medium heating.
4. After turning heater on, this turns on high heating.
5. Turns on timer option, heater turns off after selected time has expired.
11. To prevent a possible fire, DO NOT blocks the air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a
bed, where openings may become blocked.
12. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or
flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.
13. Avoid the use of an extension cord because the extension cord may overheat and cause a risk of fire. However, if you
have to use an extension cord, the cord shall be 1.5m㎡minimum size.
15. To disconnect heater, turn controls to OFF.
16. Always turn off the unit before moving or cleaning, or whenever the heater is not in use.
17. Use only for intended household use as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by
unauthorized dealers may cause hazards.
18. WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device.
19. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your
warranty. The inside of the unit contains no user serviceable parts. Qualified personnel should perform all servicing
only.
20. Connect to properly grounded outlets only.
21. This appliance is not intended for use by persons (including children) with reduced physical. Sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliance by a person responsible for their safety.
22. Children should be supervised to ensure that they do not play with the appliance.
23. The marketing concerning covering shall be visible after the heater has been installed.
24. Save these instructions
Important Instructions Continued
7
1
2
4 5
3
7 4

Important Instructions Continued
1. Do not use the heater with a programmer, timer, separate remote-control system or any other device that switches
the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.
2. It’s dangerous to install the appliance close to curtains and other combustible materials.
3. Do not use the heater in reach of a shower, bath or a swimming pool.
4. Heater is not located immediately below a socket-outlet.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified
person in order to avoid a hazard.
6. In order to avoid overheating, do not cover the heater.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved children shall not play with the appliance.
cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
8. Keep the appliance and its cord out of reach of children less than 8 years.
9. WARNING: This heater is not equipped with a device to control the room temperature. Do not use this heater in small
rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is
provided.
10. Pay attention that, no combustible material due to Wind or other environmental influences covers or obstructs the
appliance, such as curtains, marquees, flags, plastic foil etc.
11. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given
where children and vulnerable people are present.
When using this electric unit, basic safety precautions should be followed to reduce the risk of fire, electric shock, and
injury to persons, including the following:
1.Read ALL instructions before using this unit.
2. CAUTION: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use
handles when moving this heater.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the
front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or the disabled, or when the heater is
left operating and unattended.
6. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has been drooped or
damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical
adjustment, or repair.
7. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. NEVER locate heater
where it may fall into a bathtub or other water container. To protect against electrical hazards, DO NOT immerse in water
or other liquids.
8. DO NOT touch the control panel with a wet hand.
9. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. Arrange cord
away from traffic area and where it will not be tripped over.
10. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric
shock or fire, or damage the heater.
Important Instructions Continued
Maintenance:
• Turn off the circuit breaker before maintenance and let the unit cool completely.
• To keep heater clean, the outer shell may be cleaned with a soft, damp cloth. You may use a mild
detergent if necessary. After cleaning, dry the unit with a soft cloth.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the
heater. This may cause damage or deterioration to the surface of the heater.
• Although this heater is outdoor approved (balconies and patios). DO NOT immerse the heater in
water for your safety. Wait until the unit is completely dry before use.
Storage:
If the heater will not be used for a long period of time, store it in a cool, dry location when not in
use To prevent dust and dirt build-up, use the original packaging to repack unit.
Trouble Shooting:
If the heater will not operate, please check the following before seeking repair of service:
• Check if electricity to the main fuse is working.
• Make certain the power switches are turned on. If not, choose a setting.
Maintenance & Storage
Voltage Rating
Power Consumption
Unit Size
120V ~ (60Hz)
1500W
300(W) x 300(D) x 1015(H)
Specifications
Important Instructions
