Dear Customer,
Congratulations on purchasing your new Eden greenhouse.
Before you start, please read this instruction booklet carefully. The components
for your greenhouse are in numbered bundles corresponding to the sections in
this booklet. There may be more than 1 bundle per section. Build one section at a
time. IF YOUR GREENHOUSE IS POWDERCOATED, TAKE CARE WHEN OPENING
PACKAGES NOT TO SCRATCH PAINTWORK.
N TE: These instructions are for more than one length of greenhouse.
Precautions
•Please allow plenty of time for construction.
•Assembly must be carried out in dry and calm weather.
•A minimum of two people are required to construct the greenhouse.
•We recommend using the tools supplied to tighten bolts. Electric drills can
lead to cross threading issues and bolts shearing.
•Place step ladder on level ground.
•Extreme care should be taken when handling glass: always use appropriate
gloves and goggles while glazing. Greenhouse glass can have sharp edges,
especially if there are any breakages.
•Do not, under any circumstances, climb step ladders whilst carrying glass.
•If there are any breakages, pick up broken glass immediately taking care to
keep children and pets away until completely cleared.
•We also recommend using protective gloves and goggles when fitting spring
wire clips due to the extreme tension. There is a helpful video clip under the
“Help and Advice” tab on our website www.edengreenhouses.com .
Tools supplied
1 x Box spanner
1 x 10mm flat spanner
Tools and safety equipment
Recommended
•Step ladder
•Drill (anchoring only)
•Spirit level
•Tape measure
•Utility knife
•Scissors
•7mm socket
•Screwdrivers – flat, PZ2
•Safety gloves
•Safety goggles
Selecting a site
The location of your greenhouse is very important. The structure needs to get as
much sunlight as much as possible but should not be exposed to high winds. Try
to avoid locating your greenhouse under trees as this will cast shade, which
encourages a build-up of algae and falling branches or leaves could cause damage
to the structure or block guttering. Sap from trees can make the glazing sticky and
dirty so it lets in less light. Creating a level and square base is the most important
step in successfully assembling your greenhouse: selecting a site that is already
quite level will make the assembly process much easier.
Site preparation
Please refer to the front cover of this booklet for the OVERALL dimensions of
your greenhouse. If you are siting the greenhouse on earth, you will need to dig 6
holes for the ground anchors, as shown in SECTION 0, FOUNDATION, approx.
300mm deep x 200mm in diameter. You will need post concrete for the ground
anchors and, depending on your soil type, you may need plastic pipes to stop the
ground crumbling in on itself. If you are siting the greenhouse on slabs/concrete,
cut the ground anchors off with a hack-saw so that they are level with the base as
shown in SECTION 8 LOCATING, pic 2. To secure the base down pour concrete
into pre dug holes with ground anchors situated in place. For slab/concrete
foundation, using the L-shaped brackets provided, drill into the concrete/slabs
using a 7mm masonry drill bit and secure using 8mm plugs and screws as shown
in SECTION 10 FINISHING.
Introduction

Birdlip
2
Eden Greenhouses Customer Helpline [phone]
Base
The integral base must be 100% level and square, the latter can be done by
checking the 2 diagonals are equal. If it is not square the glazing will not fit.
Construction
For each section, lay the profiles out on the ground in the same way as pictured in
the main diagram. Assemble in the order of the pictures.
M6 x 10 bolts/nuts (parts 50 and 51) are not listed on individual parts lists as they
are used in each section.
The following symbols show whether an illustration is viewed from inside or
outside the greenhouse:
Viewed from the inside Viewed from the outside
(White background) (Black background)
Take note of where you will need to slide extra bolts into the channels for fixing
horizontal bars, bracing or roof vent sills as per example
picture to the right.

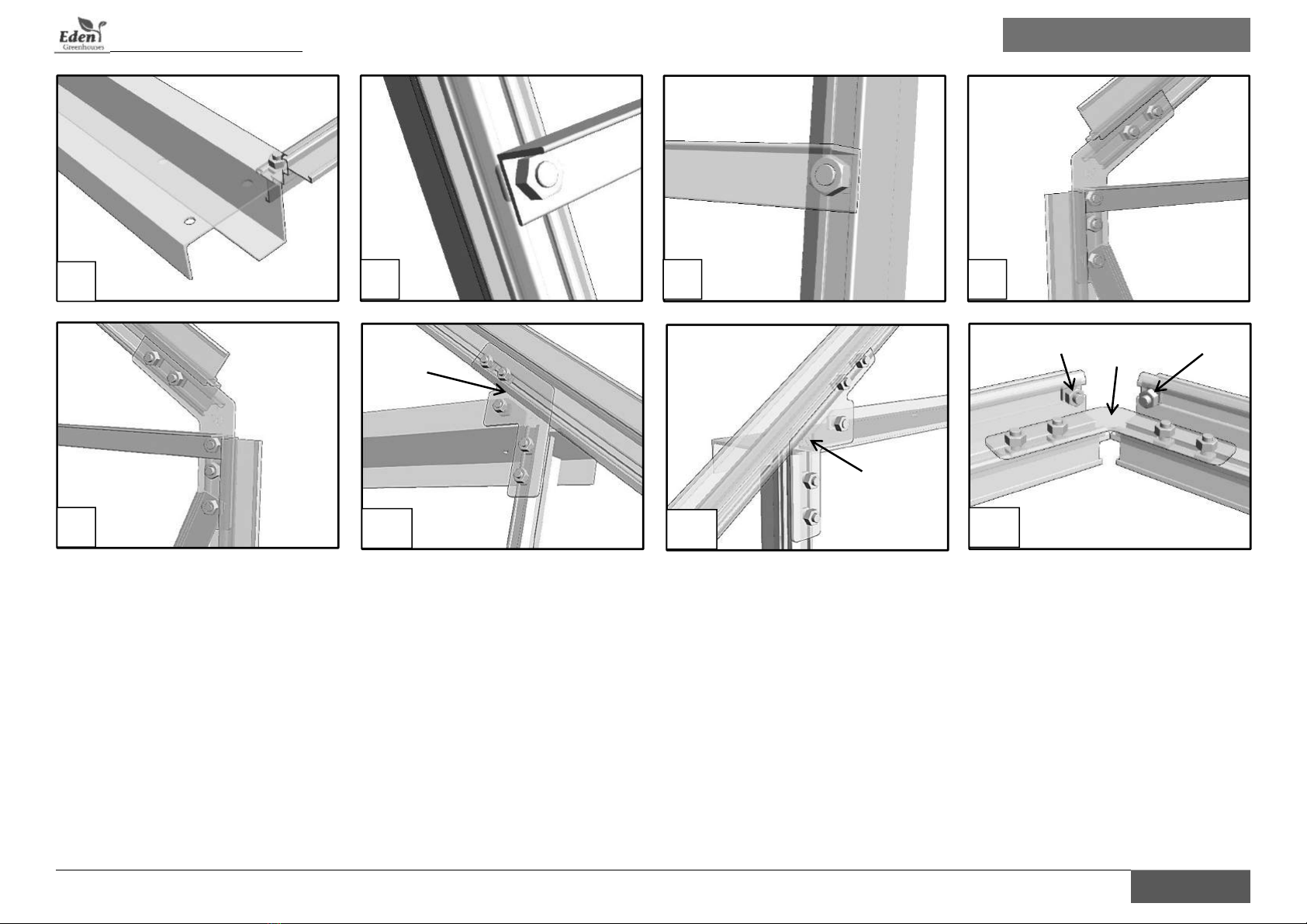

Fasten the profiles together by sliding the square headed
bolts into the channel of the profile and attach to the hole in
the corresponding bar. Do not tighten the nuts completely
until the completed frame is square. NOTE THAT ALL CONNECTING PROFILES
MUST BE FLUSH AND TIGHT TOGETHER TO ENSURE THAT LEAKING IS KEPT TO A
MINIMUM.
The door has a zero threshold™. Component 19 at the base of the door on the
front gable (SECTION 2 FRONT GABLE) is used as a brace to gauge the distance
between the two components 18 and to make construction easier. This will then
be removed in SECTION 10 FINISHING.
Glazing
Glazing must be completed in one operation. Fit the rubber glazing gasket to all
the profiles as shown in SECTION 8, LOCATING before fitting the glass. Note there
are 3 different plans for glazing: horticultural glass, toughened glass or
polycarbonate. Glaze the roof first, then sides and gable ends. Glaze roof vents
before sliding in from THE END of the ridge bar as shown in SECTION 10
FINISHING. Glaze the door before hanging as shown in SECTION 7 DOOR.
Finishing Touches
Fit all plastic parts, i.e. Ridge Cap, Gutter End Caps and Integral Base Corner Caps
by pushing into place as in SECTION 10 , FINISHING.
Note: Fit Integral Base Corner Caps before securing down the greenhouse.
Maintenance
•The door sliders and lock will need to be lubricated approximately every 6
months with an OUTDOOR lubricant to ensure smooth operation.
•The gutters will need to be regularly cleared of leaves and debris to ensure
efficient drainage.
•Replace all broken panes of glass immediately, failure to do so may cause
structural failure.
•Remove snow loads from the roof.
Introduction Introduction
1
1
COMPONENTS LIST
SECTION 0 FOUNDATION
SECTION 1 REAR GABLE
SECTION 2 FRONT GABLE
SECTION 3 SIDES
SECTION 4 ASSEMBLE
SECTION ROOF
SECTION 6 WINDOWS
SECTION 7 DOOR
SECTION 8 LOCATING
SECTION 9 GLAZING
SECTION 10 FINISHING

Birdlip
Eden Greenhouses Customer Helpline [phone]
3
Components List
POS Length mm 4x4 4x6 4x8 No.
1 1492 2 4 6 RP228501492
2 1264 2 RP2078411264
2 1882 2 RP2078411882
2 2500 2 RP2078412500
3 1264 2 RP137841264
3 1882 2 RP137841882
3 2500 2 RP137842500
4 1609 2 4 4 RP2079111609
5 1492 4 4 4 RP309331492
6 1418 1 1 1 RP137841418
7 1812 2 2 2 RP228501812
8 1499 2 2 2 RP2079111499
9 - 6 6 6 RN00310237
10 1405 1 1 1 RP243251405
11 400 2 2 2 RP2079110400
13 832 4 4 4 RP309330832
14 1521 2 2 2 RP2079111521
15 - 2 2 2 RN00310417
16 1757 2 2 2 RP233651757
18 414 2 2 2 RP137850414
19 632 2 2 2 RP2079110632
02 652 1 1 1 RP2079090652-4
22 1264 1 RP2078401264
22 1882 1 RP2078401882
22 2500 1 RP2078402500
23 832 2 4 6 RP228500832
24 636 1 2 2 RP309300636
25 606 2 4 4 RP1070400606-25
26 610 1 2 2 RP088600610-26
27 638 1 2 2 RP046940638-27
28 1738 3 3 3 RP158361738
29LH 305 1 1 1 RP288960305-LH
29RH 305 1 1 1 RP288960305-RH
30LH 305 1 1 1 RP2081140305-LH
30RH 305 1 1 1 RP2081140305-RH
31 315 2 2 2 RP309340315
32 305 2 2 2 RP2081140305
40 300 3 6 9 RP235570300
42 32,000 0 0 1 RN00300412
42 64,000 1 1 1 RN00300413
43 - 100
100 100 N00300210
44 - 200 200 200 N00300205
45 4,000 1 1 1 RN00300418

Birdlip
4
Eden Greenhouses Customer Helpline [phone]
48 - 2 2 2 RN00300227BK
50 - 200
200 200 N00300605
51 - 200 200 200 N00300655
52 - 2 2 2 RN00310035
53 - 2 2 2 RN00310453
54 - 2 2 2 RN00310454
55 - 1 1 1 RN00310415
55 - 1 1 1 RN00310416
58 - 8 12 16 RN00310458
64 305 6 6 6 RP102640305
65 1738 1 1 1 RP209171738
69 1034 2 4 4 RP2079111034
71 - 1 2 2 RN00300301
74 - 2 2 2 RN00310450
78 477 1 1 1 RP2079110477
90 - 2 2 2 RN00310413
95-LH 315 1 1 1 RP2079100315-LH
95-RH 315 1 1 1 RP2079100315-RH
97-LH 360 1 1 1 RP2079120360-LH
97-RH
360 1 1 1 RP2079120360-RH
98 - 6 6 6 N00310020
100 - 6 6 6 00402
101 - 2 2 2 N00300422
102 - 26 26 26 N00300602
103 - 26 26 26 N00300603
104 - 4 4 4 N00300604
105 - 2 2 2 PT200
106 - 2 2 2 PT204
107 - 2 2 2 RN00310418
109 305 2 2 2 RN00310420
110 - 2 2 2 N00300606
111 - 1 1 1 RN00310422
112 170 2 2 2 RN00310426
113 1400 2 2 2 RN00310428
114 300 4 4 4 RN00310438
115 - 2 2 2 RN00310462
116 - 1 1 1 RN00310463
117 - 1 1 1 RN00310464
118 26 26 26 01645
119 4 4 4 RN00310439
120 200 200 200
00682BK
121 - 2 2 2 PT201
H 360 3 3 3 12469
H 437 2 2 2 12468

Birdlip
Eden Greenhouses Customer Helpline [phone]
44 46 48
X 1418mm
1418mm 1418mm
Y 1264mm
1882mm 2500mm
Z 414mm 414mm 414mm
T 590mm 590mm 590mm
D 1890mm
2356mm 2874mm
Foundation
0
D

Birdlip
6
Eden Greenhouses Customer Helpline [phone]
1 # mm 44 46 48 PART NO.
6 1418 1 1 1 RP137841418
5 1492 2 2 2 RP309331492
7 1812 2 2 2 RP228501812
41 1521 2 2 2 RP2079111521
9 - 4 4 4 RN00310237
10 1405 1 1 1 RP243251405
15 - 1 1 1 RN00310417
78 477 1 1 1 RP2079110477
13 832 2 2 2 RP309330832
Rear gable - Baggavl - Hintergiebel - Bakgavel - Pignon derrière -
Achtergevel - Frontis trasero - Pannello posteriore - Peräpääty
1
2
4
3
1
2
3
4
9
6
7
8
10
11
13
13
14
14
7
7
1
9
9
6
6
7
8
6
7
8
6
1
0
1
9

Birdlip
Eden Greenhouses Customer Helpline [phone]
7
Rear gable - Baggavl - Hintergiebel - Bakgavel - Pignon derrière -
Achtergevel
-
Frontis trasero
-
Pannello posteriore
-
Peräpääty
/6
7
8
9
1
0
7
10
10
13
9
10
13
9
13
13
13
78
78
13
9
9
13
1
13
13
+ 1
+ 1
1
1

Birdlip
8
Eden Greenhouses Customer Helpline [phone]
2 # mm 44 46 48 ITEM NO.
45 4000 1 1 1 RN00300418
16 1757 2 2 2 RP233651757
18 414 2 2 2 RP137850414
5 1492 2 2 2 RP309331492
8 1499 2 2 2 RP2079111499
9 - 2 2 2 RN00310237
90 - 2 2 2 RN00310413
02 652 1 1 1 RP2079090652-4
19 632 1 1 1 RP2079110632
15 - 1 1 1 RN00310417
11 400 2 2 2 RP2079110400
13 832 2 2 2 RP309330832
Front gable - Forgavl - Vordergiebel - Frontgavel - Pignon devant
Voorgevel
-
Frontis frontal
-
Pannello frontale
-
Ovipääty
1
2
3
4
2
1
2
3
4
6
7
8
9
10
11
12
16
16
13
13
18
18
8
8
11
11
9
9
90
16 x 2
18
18
16
8
8
18
16
4 x 2
1
19
19
19
19
02

Birdlip
Eden Greenhouses Customer Helpline [phone]
9
Front gable - Forgavl - Vordergiebel - Frontgavel - Pignon devant
Voorgevel
-
Frontis frontal
-
Pannello frontale
-
Ovipääty
6
7
8
9
10
11
18
16
11
16
11
11
13
8
9
13
11
9
8
13
16
21
90
13
21
16
90
+
1
+ 1
13
13
1
12

Birdlip
10
Eden Greenhouses Customer Helpline [phone]
3
# mm
44 46 48 ITEM NO.
1 1492 2 4 6 RP228501492
2 1264 2 RP2078411264
2 1882 2 RP2078411882
2 2500 2 RP2078412500
3 1264 2 RP1378411264
3 1882 2 RP1378411882
3 2500 2 RP1378412500
4 1609 2 4 4 RP2079111609
Sides - Sider - Seiten - Sidor - Cötés - Zijkanten
Laterales
-
Pannelli laterali
-
Sivut
3
3
3
(44) (46)
(48
)
2
3
4
2
3
1
2
3
4
4
1
1
4
4
2
4
2
1
2
+ 1
+ 1
1
2
4
3
4
1
1
4
3
1
2
3
4
6
2/3
4
6
1
4
2/3
6
6
1
4
2/3
1
1
1

Birdlip
Eden Greenhouses Customer Helpline [phone]
11
Assemble
1
2
3
3
3
3
1
2
1
1
2
2
1
2
2
1
1
1
2
2
3
3
3
2
2
11
13
13
11
4
4
4

Birdlip
12
Eden Greenhouses Customer Helpline [phone]
# mm 44 46
48
ITEM NO.
22 1264 1 RP2078401264
22 1882 1 RP2078401882
22 2500 1 RP2078402500
23 832 2 4 6 RP228500832
69 1034 2 4 4 RP2079111034
27 638 1 2 2 RP046940638-
27
40 300 3 6 9 RP235570300
23 2a
2b
44 x 1 x 1
46 x 4
48 x 4 x 2

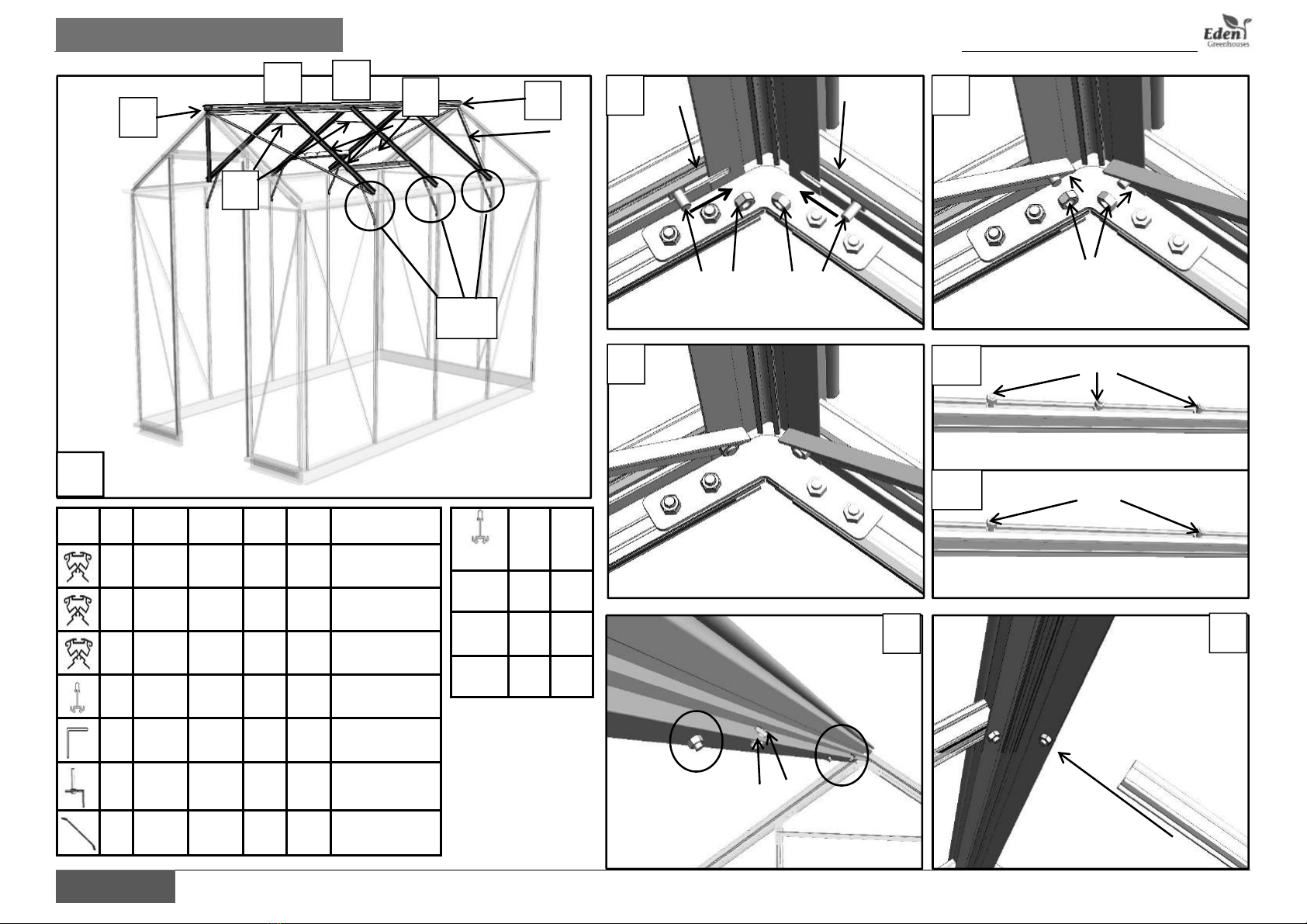

Tag - Roof - Dach - Tak - Toit - Dak - Tejado - Tetto - Katto
(48)
1
1
1
1
1
22
22
22
22
2a
2b
23
23
69
69
69
69
3
3
23
0 1
1 0
1
0 1
0 1
1 0
22
22
13
13
6/7
4
2
3
69

Birdlip
Eden Greenhouses Customer Helpline [phone]
13
Tag - Roof - Dach - Tak - Toit - Dak - Tejado - Tetto - Katto
40
4
4
4
6
6
6
7
7
22
22
22
23
23
23
23
23
23
40
23
27
27
23
23
23
69
23
69
2
2
2
40
2
2
1
1
23
69
69
23

Birdlip
14
Eden Greenhouses Customer Helpline [phone]
Windows - Vinduer - Fenster - Fönster - Fenêtres
Ramen
-
Ventanas
-
Finestre
-
Luukut
6 # mm 44 46 48 ITEM NO.
42 64000 1 1 1 RN00300413
25 606 2 4 4 RP1070400606-25
24 636 1 2 2 RP309300636
26 610 1 2 2 RP088600610-26
71 - 2 4 4 RN00300301
71 - 1 2 2 RN00300301
6
1
2
3
4
1
2
3
4
24
24
2
2
2
2
24
2
2
26
26
26
26
71
71
42
42
42
42
42
71

Birdlip
Eden Greenhouses Customer Helpline [phone]
1
Door - Dør - Tür - Porte - Deur
- Puerta - Porta - Ovi
7
#
mm
44
46
48
ITEM NO.
42 64000 2 2 2 RN00300413
65 1738 1 1 1 RP209171738
28 1738 3 3 3 RP158361738
29RH
29LH 305 2 2 2 RP288960305-RH RP288960305-LH
30RH
30LH 305 1 1
1
1
1
1
RP2081140305-RH
RP2081140305-LH
112 170 2 2 2 RN00310426
32 305 2 2 2 RP2081140305
31 315 2 2 2 RP309340315
52 - 4 4 4 RN00310035
107 - 2 2 2 RN00310421
110 - 2 2 2 N00300606
111 - 1 1 1 RN00310422
111 - 1 1 1 RN00310422
48 - 2 2 2 RN00300227BK
7
7.1
7.3
7.2
7.4
29RH
29LH
28
28
6
28
112
112
32
30RH
30LH
31
31
107 +
110 x 2
107
48
2
2
2
2
111
48
7.
7.6
32

Birdlip
16
Eden Greenhouses Customer Helpline [phone]
Door - Dør - Tür - Porte - Deur
- Puerta - Porta - Ovi
Door - Dør - Tür - Porte - Deur
- Puerta - Porta - Ovi
7.1
42
28
6
28/6
29RH
111
42
42
42
1
2
3
4
2
2
28/6
x 8
29RH
29RH
28
6
2
29LH
28
6
6
48
29
28
6
30RH
7
8
28
6
30RH
3
4
2
1
6/7
8
9
10
11
12
13
14
107

Birdlip
Eden Greenhouses Customer Helpline [phone]
17
Door - Dør - Tür - Porte -
Deur
-
Puerta
-
Porta
-
Ovi
9
10
11
12
13
14
28
32
6
32
28
6
31
28
6
30RH
111
111
48
107
2

Birdlip
18
Eden Greenhouses Customer Helpline [phone]
Door - Dør - Tür - Porte - Deur
- Puerta - Porta - Ovi
28
28
42
42
3
4
2
29LH
29LH
28
28
2
29LH
28
28
6
48
29LH
28
28
30LH
7
8
28
28
30LH
1
6/7
8
9
10
11
12
107
7.2
42
28
1
2
28
x 8
2
2
42
4
3
29LH
107
110
x 2

Birdlip
Eden Greenhouses Customer Helpline [phone]
19
Door - Dør - Tür - Porte -
Deur
-
Puerta
-
Porta
-
Ovi
9
10
28
32
28
32
28
28
11
31
28
28
2
12
30
LH
48
