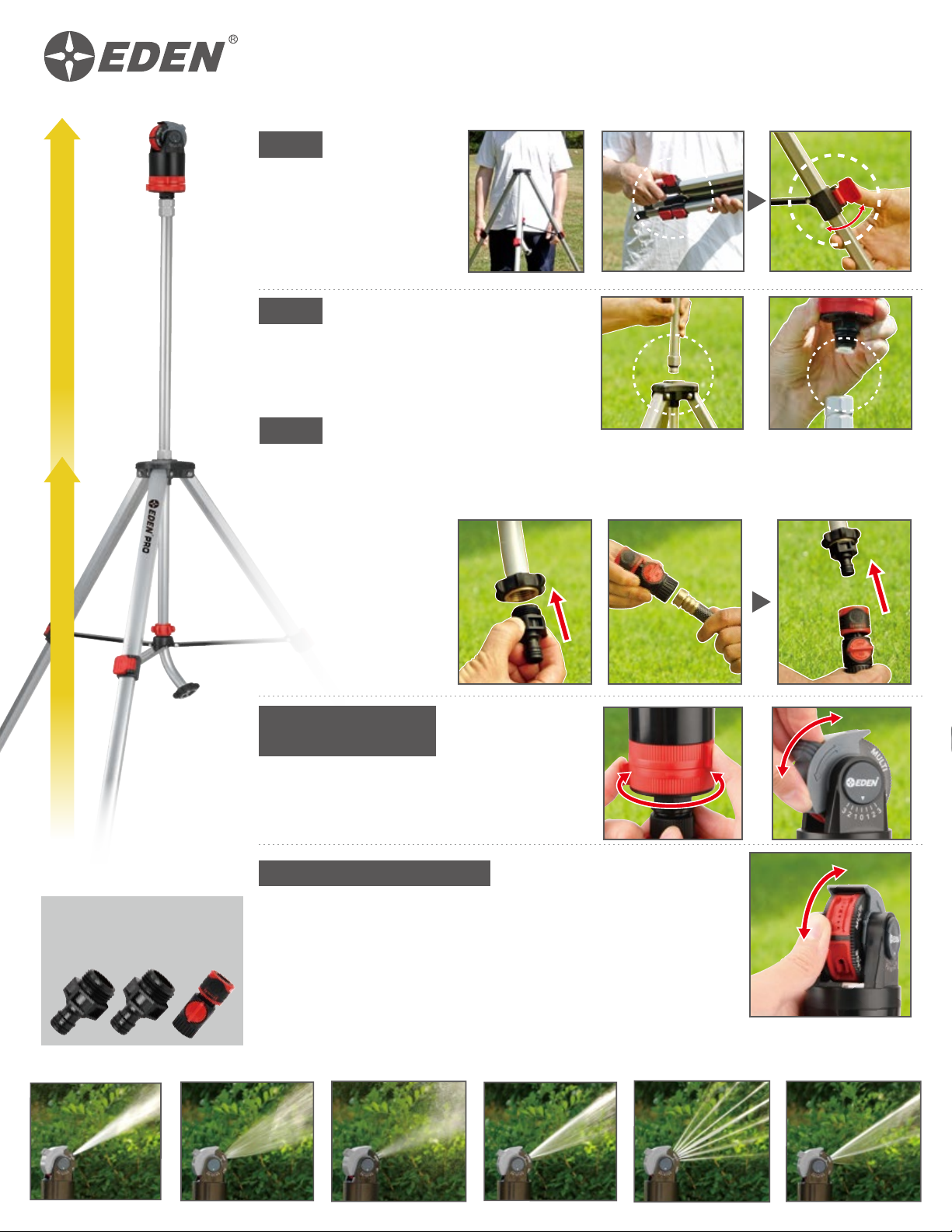

Eden 94152EDAMZ User manual

MULTI-PATTERN SPRINKLER PLUS MISTING SYSTEM
WITH TELESCOPING TRIPOD
Step 2
Attach the Extension Tube to the tripod, then
connect the sprinkler head to the top of the
Tripod or Extension Tube (do not overtighen).
Adjust the range tabs and angle cap to change
the spray coverage(from 5° up to 360°) and
spraying angle to water just where you need.
Spray Coverage and
Distance Adjustment
Depending on your watering needs, you can manually select from the
various pattern settings:
FLAT - The at pattern will provide a at wave of water.
FAN - The fan pattern disperses water in a wide fan shape.
MIST - This pattern is useful to cool down a small area.
LARGE - This provides a larger watering spray area.
MULTI - This is a combination of the Flat, Fan and Large patterns.
MINI - Provides delicate plant watering
Spray Pattern Adjustments
FLAT
FAN
MIST MINI
LARGE MULTI
94152EDAMZ
Step 3
Use the Quick Connect to easily connect and disconnect the sprinkler from the hose.
Connect the Product Adapter to the base of the sprinkler. Attach the lockable Quick Connect
to the end of the hose, then simply snap in the hose to the sprinkler to begin using.
Premium Quick Connect
Starter Set
ts standard garden
hoses and watering tools
Note: If you are not using
the Quick Connect System,
simply connect the sprinkler
directly to the hose.
18.7”
(47.5cm)
63.7”
(162cm)
Place the tripod in the area
where you want to water.
Open the latches to release
the legs. Push down on the
tripod legs until the legs are
well seated in the ground.
Step 1
43.7”
(111cm)

Move the angle cap to control the distance of your watering area. The higher level will create a higher arc for greater
water coverage. The lower level will reduce the watering area. Convenient indicators help you remember your settings
for next time.
Level Adjustment Indicator
HIGHER LEVEL (1-3):
Adjust the spray upwards for
maximum distance.
LOWER LEVEL (3-1):
Adjust the spray downwards
to reduce the watering area.
LEVEL (0):
Adjust the spray in between a
dispersed and concentrated
watering area.
Fan
27 ft (8.5 m)
2440 sq ft
(226 m²)
Mini
36 ft (11 m)
4090 sq ft
(380 m²)
WARNING: This product can expose you to chemicals including styrene which is
known to the State of California to cause cancer. For more information go to
www.P65Warnings.ca.gov.
94152EDAMZ
Made in Taiwan www.edengarden.com
UNLOCK LOCK
Secure twist-and-lock
mechanism prevents
accidental disconnection
A
C
A B C D
B
D
Quick and easy connections to 5/8-inch and
1/2-inch garden hoses, sprinklers, nozzles, and/or
any other garden watering tools
UNLOCK
LOCK
The Premium Quick Connect with Shut O Valve Set will simplify your watering
experience. Simply attach the connector at the end of your hose. Then connect the
adapters to your watering tools. Interchange various tools with a snap without turning
o the water as the shut o valve of the connector will stop the water ow. No more
kinking or hose twisting as the connector allows you to swivel your hose 360 degrees.
Flat
29 ft (9 m)
2730 sq ft
(250 m²)
Multi
37 ft (11.5 m)
4470 sq ft
(415 m²)
Large
39 ft (12 m )
4860 sq ft
(452 m²)
40 PSI
Radius of Spray
Coverage Area
up to
