16 NOZZLES ESSENTIAL OSCILLATING SPRINKLER
Base
Spray nozzles (16)
Oscillator tube
Sliding tabs
Plastic nozzle heads :
Adjustable range control :
Coverage Max :
94113-EDAMZ
Attach your garden hose to the unit.
Use the range sliding tabs to select desired rectangular watering position distance. (Fig 1 & Fig 2)
Turn on the faucet and check to see how the process is working. Make adjustments to suit your needs.
16
Yes
3600 sq ft (335 m²)
(Based on 40PSI / 2.76Bar)
1.
2.
3.
4.
Hose-end
Inlet lter
Cleaning pin
5.
6.
7.

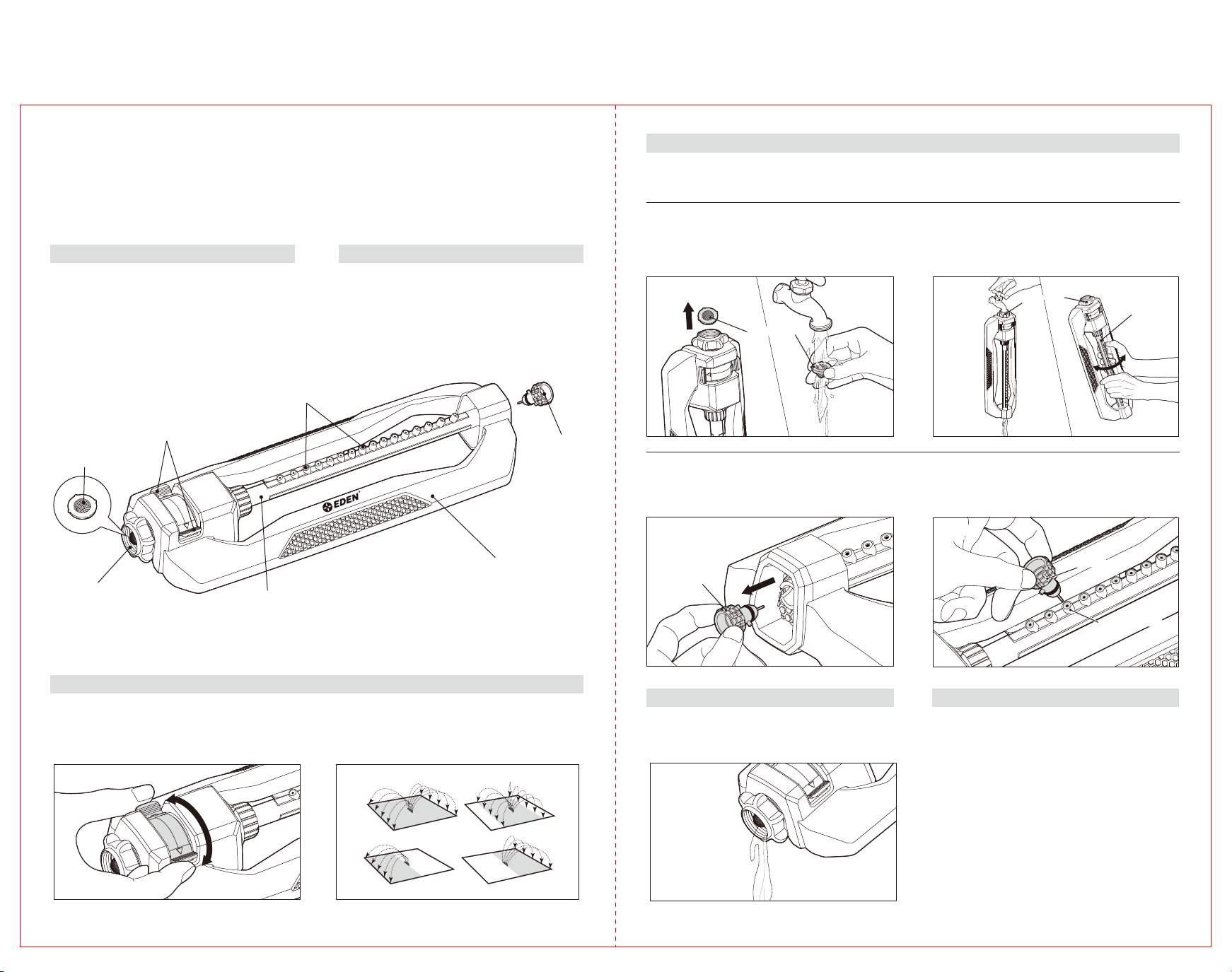

Get To Know Your Sprinkler
Usage
Specications
If your sprinkler begins to display irregular water pressure or is clogged due to dirt buildup, do the following
maintenance task.
Remove your hose from your sprinkler.
Notice a small inlet lter from the hose-end of the
oscillator, remove it and run under water to remove
the dirt (Fig. 3).
1.
Maintenance + Care
Storage Tips
To ush, connect the oscillator to a faucet.
Turn on the faucet and while the water continues
running, spin the tube gently back and forth for few
minutes (Fig 4)
2.
Remove the cleaning pin from the opposite end of
the oscillator (Fig. 5).
3. Use the provided cleaning pin to clear any clogs
from the spray nozzles while running water in
step 2 (Fig. 6).
Drain the sprinkler after use. DO NOT allow water to
freeze in the sprinkler (Fig. 7).
4.
1.
2.
3.
4.
Fig. 7
Fig. 6
Fig. 1 Fig. 2
Fig. 3
inlet lter
Fig. 5
cleaning pin
cleaning pin
spray nozzles
cleaning pin
spray nozzles
7.
2.
1.
5.
6.
4.
3.
Use this manual to familiarize yourself with the various parts and components, the use, handling and features of the
sprinkler. Save this manual for future reference.
Fig. 4 hose-end
tube
1.
2.
3.
Think of the best coverage design for the watering
without wasting water resources before placing the
sprinkler in the location where you want to water.
Drain any water from the sprinkler after use. This
will preserve the unit for longer lasting use.
Place the sprinkler in a dry warm storage area until
it is required.
Water only when necessary, preferably in the
morning as this will minimize water loss through
evaporation. To obtain deep root growth,water
deeply but do not water often. Watering every
second day will provide for better water coverage.
Using a timer can be helpful in reducing waste.
Watch water application to avoid water run-o.
Fig. 6
94113-INS 29.7×21cm
-For outdoor use with cold water only
-Do not spray near electrical connections
-When not in use, rinse the tool with water to remove most of the dirt, dry your tool, and store indoors
A
C
A B C D
B
D
Quick and easy connections to 5/8-inch and
1/2-inch garden hoses, sprinklers, nozzles, and or
any other garden watering tools
UNLOCK
LOCK
UNLOCK LOCK
Secure twist-and-lock
mechanism prevents
accidental disconnection
m CAUTION m
16 NOZZLES
ESSENTIAL OSCILLATING SPRINKLER
94113-EDAMZ
• Coverage up to 3600 sq. ft. ( 335 m² ) (Based on 40 PSI / 2.76 Bar)
• 16 Durable nozzles
• Sliding tabs allow for simple range adjustment
• Flexible construction won't break when stepped on
• Needle plug for nozzle cleaning
A simple quick adapter (2 pcs) and hose
connector (1 pc) with a water stop feature
included will simplify your watering experience.
Simply connect the connector at the end of
your hose, and then attach your accessories
to the adapter. You can interchange various
accessories in a just a snap without any need
to turn o your water tap as the adapter will
stop the water ow once you remove the
accessories. No more kinking or hose twisting
as the adapter allow you to swivel your hose
360° degrees.
This product can expose you to chemicals including styrene, which is known to the State of California to
cause cancer. For more information go to www.P65Warnings.ca.gov
94113-INS 29.7×21cm
