Edge Technologies Patriot Series User manual

Patriot 338 & 551
OPERATIONS MANUALOPERATIONS MANUAL
Version 10

PATRIOT 338/551
i
Table of Contents
Section Page
1. General Information
1.1 Contents of this Manual ……………………………………………………… 1
1.2 Machine Safety ………………………………………………………………. 2
1.3 Indemnification………………………………………………………………… 2
1.4 Hardware and Software Changes…………………………………………… 2
1.5 Machine Data Plate…………………………………………………………… 3
1.6 Technical Support …………………………………………………………….. 3
2. Technical Information
2.1 Description of the Machine …………………………………….……….......... 4
2.2 Machine Footprint and Installation Area………………………….…………..6
2.3 Specifications and Capacities ……………………………………….……….. 8
2.3.2 Bar Feeder Oil Requirements ………………………………………………... 8
2.3.3 Guide Channel Specifications ……………………………………………….. 9
2.3.4 Compressed air supply including oil ………………………………………….10
2.4 Safety ……….....………………………………………………………….…..... 11
2.4.2 Covers …………………………………………………………………………...11
2.4.3 Lathe Door Safety …………………………………………………….…..........11
2.5 Emergency Stop Buttons………………………..…………………………......12
2.6 Electrical Safety…………………………………………………..…..…………13
2.6.2 Electrical Connection…………………………………………….………..……14
2.6.3 Glossary of Terms ……………………………………………………………...15
2.6.4 Signal Functionality and Explanation …………………………………………16
3. Transportation and Handling
3.1 Unpacking the Bar Feeder ….……………………………………….………...22
3.2 Transportation and Hoisting ………………………………………….………..23
4. Installation
4.1 Lathe Preparation …………………………………….……………….………..24
4.2 Typical Installation Guide ………………………………………………...……25
4.2.2 Swiss Headstock Shipped Components …………………………….……….26
4.2.3 Fixed Headstock Shipped Components ………………………………..…… 27
4.2.4 Bar feeder Install Process ….. …………………………………………….…..28
4.3 Distance from Lathe ……………………………………………….………….. 30
4.4 Height Adjustment ……………………………………………..……….………31
4.5 Leveling Pad Installation ……………………………………………………….32
4.6 String Alignment…………………………………………………………….......35

PATRIOT 338/551
ii
4.7 Laser Alignment………. ……………………….………………………….……37
4.7.2 Alignment guidance, Level Pad Arbor and Threaded Rod Tightening …... 38
4.8 Axial Shifting …………………………………...…………….… ……………...40
4.9 Setting Axial Track Synchronization Switches …………………………….. 45
4.10 Change Axial Swiss Mode to Chucker Mode ………………………………..47
4.10.2 Change Chucker Mode to Swiss Mode ………………………………………48
4.11 Axial Track Programing Tech Tip ……………………………………………..49
4.12 Bushing Block Alignment ………………………………………………………51
4.12.2 Hand Crank …………………………………………………………………….. 52
4.13 Anchoring…..………………………………………………………………….…53
4.14 Installation Components ……………………………………………………… 54
4.15 Spindle Liner...…………….…….……...………………………………….……55
4.16 Telescoping Nose ……………………………………………………………....56
4.17 Hard Nose ……………..…………………………………………….…………. 58
4.18 MAVD Installation ……………………………………………………..………. 60
5. Systems and Adjustments
5.1 Bar Feeder Component Locations…..………………….……….…………….63
5.2 Magazine Adjustment …….……………………………………….…..............64
5.3 Movable Anti-Vibration Device/MAVD Adjustment …................………......66
5.3.2 MAVD Block Sets ……………………………………………………..………..68
5.4 Bushing Block Device with Air Knife …………………………………..…….. 69
5.5 Drip Pan, Oil Management …………………………………………………….73
5.6 Pusher Drive Chain ………….………………………………………………… 75
5.7 Synchronization System ……………………………………………………….76
5.8 Channel Set Components ….……………………………………..………….. 78
5.9 Pre-Run Setup Card ……………………………………………………..……. 80
5.10 Pre-feed Pusher and Pusher …………………………………………….…… 81
5.11 Rotating Tip …………………………………………………………………..… 82
5.12 Channel Set …………………………………………………………………..…83
5.13 Material Measurement sensor/Cutting sensor ……………………………… 85
5.14 Gripper Assembly ……………………………………………………………… 87
5.15 Shuttle - Extraction / Introduction Cylinder …………………………………..89
5.16 Channel Lock system ……………………………………..………………….. 93
5.17 Material Standards and Requirements …………………………………….... 94
5.17.2 Procedure for Checking Bar Straightness ……………………..…...…..….. 95
5.17.3 Bar Stock Preparation ……………………………………………………….…96
5.18 Vibration Troubleshooting Check List ……………….………………………. 97
6. Control Operation and HMI Description
6.1 HMI Operation Description ……………………………………….…………... 98
6.2 Handheld Pendant ………………………………………………..…………….99
6.3 Power Up ……………………………………………………………………….. 100
6.4 Basic Movement Functions ……….………………………..……...................101

PATRIOT 338/551
iii
6.4.2 Advance / retreat at low-speed ……………………………….……………….101
6.4.3 Automatic work operation ……………………………………….……………..101
6.4.4 Resetting the Bar Feeder Home Position ……………………….………….. 101
6.5 Loading and Unloading Bar Stock …………………………………..………..104
6.6 Tower Light………………………………………………………………...…….105
6.7 Description of the Manual Screen ……………………………………......…..106
6.8 Description of the Automatic Screen …………………………………..……..107
6.9 Loading With the Bar On and Bar Off Buttons ………………………………108
7.0 Parameters and Program
7.1 Entering a New Program ……………………………………………………… 110
Parameter Page 1 …………………………………………………………..…. 115
Parameter Page 1.1 …………………………………………………………....116
Parameter Page 1.2 …………………………………………...……………….117
Parameter Page 1.3 …………………………………………………………….118
Parameter Page 2 (Option) …………………………………………………....119
Parameter Page 2.1 (Option) ……………………………………………..…..120
Parameter Page 2.2 (Option) ………………………………………………….121
Parameter Page 2.3 (Option) …………………………………….……………122
Parameter Page 3 (Option) ………………………...………………………….123
Parameter Page 4 (Option) ……………………………...…………………….124
Parameter Page 5 (Option) ……………………………………………………125
Parameter Page 6 (Option) ………………………..…………………………..126
Factory Parameter Page 11 ……………………………………….…………..127
Factory Parameter Page 12 …………………………………….…..…………128
Factory Parameter Page 13 ……………………………...……………………129
Factory Parameter Page 14 ……………………….…………………………..130
Factory Parameter Page 15 ………………………………..………………….131
Factory Parameter Page 16 ………………………………………….………..132
Factory Parameter Page 17 ………………………………………...…………133
Factory Parameter Page 18 ………………………………………….………..134
Factory Parameter Page 19 ………………...…………………………………135
Factory Parameter Page 20 ………………………...…………………………136
Factory Parameter Page 21 ……………………………………...……………137
Factory Parameter Page 22 ……………………………………………...……138
Factory Parameter Page 23 …………………………………….……………..139
Factory Parameter Page 24 ………………...…………………………………140
Factory Parameter Page 25 …………………………………………….……..141
Factory Parameter Page 26 ………………...…………………………………142
7. Maintenance
7.1 Maintenance chart ……………………………………………………………...143
7.1.2 Inspecting the pusher collet and revolving tip ………………..……………...143
7.1.3 Inspecting the air regulator..….……………………………………………......144

PATRIOT 338/551
iv
7.1.4 Pneumatic System Lubrication ……………………………………………..…144
8. Troubleshooting
8.1 Troubleshooting Chart.…………………….……………….………………….145
8.2 Troubleshooting Chart …………………………….…………………………..145
Alarm 01…………………………………………………….…….……………..146
Alarm 02 …….……...…………………………………….…………….……… 146
Alarm 03 …….….…………………………………………..………………….. 147
Alarm 04………………………………………………………………………... 147
Alarm 05 …..….………………..………………………………..……………...147
Alarm 06.……………………………………………….…………………….….148
Alarm 07…………………………………………………..……………….…… 148
Alarm 08…………………………………………………………………………148
Alarm 09 …………………………….…………………….………………...…. 148
Alarm 10 ….………………………………….…………….………….……….. 149
Alarm 11 …………..………………………………………………….…………149
Alarm 12 …………………………................................................................151
Alarm 13 ……………..……………………………..……………………..…… 151
Alarm 14 ………………….……………………………………………………..152
Alarm 15 …………………….………………………………………...……….. 152
Alarm 16 ………………….………………………………………….………….153
Alarm 17 ………………………………………………………………………...154
Alarm 20 ………………………………………………………….…….……….154
Alarm 21 …………………………………………………………..…………….154
Alarm 22 …………………………………………………………..…………….155
Alarm 23 …………………………………………………………..…….………155
Alarm 24 ……………………………………………………………….…..……155
Alarm 25 ………………………………………………………………...………156
Alarm 26 …………………………………………………………………...……156
Alarm 27 ……………………………………………………………...…………157
Alarm 28 ………………………………………………………….………..……157
Alarm 29 ………………………………………………………..……………….158
Alarm 30 ………………………………………………………..……………….158
Alarm 31 ………………………………………………………..……………….159
Alarm 32 ………………………………………………………..……………….159
Alarm 33 ………………………………………………………..……………….159
Alarm 34 ………………………………………………………..……………….160
Alarm 35 ………………………………………………………..……………….160
Alarm 36 ……………………………………………………….……………..... 160
Alarm 37 ……………………………………………………….……..…………161
Alarm 38 ………………………………………………………………………...161
Alarm 39 ………………………………………………………………………...161
Alarm 40 ………………………………………………………………………...162
Alarm 41 ………………………………………………………………………...162
Alarm 42 ………………………………………………………………………...162
Alarm 43 ………………………………………………………………………...163
Alarm 44 ………………………………………………………………………...163

PATRIOT 338/551
v
Alarm 45 ………………………………………………………………………...163
Alarm 46 ………………………………………………………………………...164
Alarm 47 ………………………………………………………………………...164
Alarm 48 ………………………………………………………………………...164
Alarm 51 ………………………………………………………………………...165
Alarm 52 ………………………………………………………………………...165
Resetting Emergency Stop Safety interlocks (ESSI) …………………...….167
Patriot Setting of the S2 and S3 Sensor Plate ………………….…………..168
9. Electrical Parts and Schematics
Electrical Parts …………….………………………………………….…………
10. Replacement Parts
Replacement Parts ………………………………………………….…….………
End of Manual
Patriot Parameter Record Blank

PATRIOT 338/551
1
REV 10:2019
1. General information
Please read and understand the Manual before operating the bar loader
1.1 Contents of this Manual
The bar feeder/Unloader manufacturer has provided this manual as an integral part of the
machine. Adherence to the instructions of the manual will help prevent injury to the operator and
damage to the machine as well as helping to realize the maximum potential of the bar
feeder/unloader and machine tool. Particularly important points of information are preceded by
the following symbols and text:
Warning Indicates a potential danger to life or risk of personal injury. Exercise extreme
caution.
Caution Indicates a possible hazardous condition. Take precautions according to the
Instructions following these warnings to help prevent injury to personnel or damage to the
equipment.

PATRIOT 338/551
2
REV 10:2019
1.2 Machine Safety
It is the user’s responsibility to provide proper safety devices and equipment to safeguard the
operator from harm for any particular use, operation or set-up, and to adequately safeguard the
machine, or machines, to conform to all Federal, State and Local Government Safety Standards
and all industry safety standards. It is suggested that only trained personnel operate the
machine and equipment because improper use could damage the machine and cause personal
injuries.
1.3 Indemnification
User agrees to indemnify and hold harmless Edge Technologies from any and all claims or
liabilities from accidents involving these machines caused by failure of users, his employees, or
agents to follow instructions, warnings or recommendations furnished by Edge Technologies, or
by failure of user to comply with Federal, State and local laws applicable to such equipment
including the occupational Safety and Health Act of 1970.
1.4 Hardware and Software Changes
As Edge Technologies continues to be the premier bar feeder supplier in the industry, ongoing
development and changes to software and hardware is normal. All software noted in this
manual are current at the print of this manual. For latest developments and changes please
visit www.EdgeTechnologies.com for the latest information or contact us.

PATRIOT 338/551
3
REV 10:2019
1.5 Machine Data Plate
A. Name of Manufacturer
B. Model (Type)
C. Serial Number
D. Manufacture Date
E. Weight of Machine
F. Pneumatic Pressure
G. Rated Voltage
H. Control Voltage
I. Full Load Current
J. Power
K. Short Circuit Rating
L. Wiring Drawing Number
Important information When inquiring about or ordering parts please have the machine
model type and serial number on hand. Refer to the machine data plate for this information.
1.6 Technical Support
For technical support please contact the Edge Technologies Service Department by phone at
314-810-3927 or by email [email protected]

PATRIOT 338/551
4
REV 10:2019
2. Technical Information
2.1 Description of the Machine
The Patriot is a PLC controlled automatic bar feeder designed for both Swiss style and fixed
headstock lathes. The bar feeder is constructed to handle a wide variety of material profiles
from round to hex and square stocks and can be adapted to feed materials with a more unique
shape.
The bar feeder uses hydrodynamic design to dampen vibrations caused by bar stock rotation.
The bar stock spins within a polyurethane channel which is flooded with a high viscosity
circulating oil. This creates turbulence within the channel that serves to steady the material and
control vibration. The end of the bar stock is supported by a bearing unit on the end of the bar
pusher and the work holding system of the lathe.
An anti-vibration device is located at the front of the bar feeder. Polyurethane bushings
surround the bar, leaving a few millimeters clearance between the bar and the bushings. This
void is filled with oil to help further stabilize and support the stock. For Swiss style sliding
headstock lathes a moveable anti-vibration device is mounted on the rear of the lathe
headstock to provide even more support and vibration dampening.
Our touch screen control panel gives access to parameters that allow easy set up and
operation. Most job changeovers require only one or two parameter settings. While in the
automatic mode the screen displays helpful information.

PATRIOT 338/551
5
REV 10:2019
Following Features
(1) Guide channel set to be chosen by customer. Several sizes to choose from, each
handling a specific stock range. See chart.
(1) Standard front telescopic nose to match guide channel set
(1) O.D. bar stock collet (to be chosen by customer, specific collet needed for each stock
diameter)
(1) Bushing block for outboard anti-vibration device to be chosen by customer based on
bar diameter
Automatic remnant retraction, self-centering gripper
Synchronization device and Swiss lathe adaption kit
Custom lathe cable and interface plugs
Air knife with flow control valve
Movable Anti Vibration Device with rollers, block set available as option

PATRIOT 338/551
6
REV 10:2019
2.2 Machine footprint and Installation Area
Caution machine placement is important and proper planning should
be observed. A level floor free from cracks is ideal for anchoring of the
machine. As the customer is the one that decides on machine installation
placement it is their responsibility to be aware of proper floor requirements.
Placement of the bar feeder is important to gain the use of all the features. It is important to
review the lathe layout to be sure proper clearance exists of the assembly. On some lathes
accessories may prohibit proper placement such as tool changers and transformers. On certain
lathes a “Chucker Mode” option is available. This option requires the physical movement of the
bar feeder fore and aft to the lathe headstock Z axis movement plane, while anchored to the
floor. Be sure to place the bar feeder close enough to supply the reach for the pusher when the
lathe is converted to “Chucker Mode” If placed too far the remnant will be longer than normal. Be
advised that too close may allow the bar feeder telescoping nose to collapse into the head stock
when the headstock moves to full negative over travel.
The Patriot models are available in 3 different pusher length configurations reflected in the chart
below.
Model Length
8’
8’ extended
12’
12’ extended
L
3020mm
3553mm
4222mm
4762mm
A (Max Bar Length)
2600mm
3800mm
B
276mm
574mm
C
1309mm
1559mm
H
850mm to 1300mm
Weight
850 Kg
950 Kg

PATRIOT 338/551
7
REV 10:2019
Installation Area
The bar feeder must be bolted to a sound, reasonably level floor using anchor bolts. The area
surrounding the machine must provide sufficient clearance the operator access to both sides
and the rear of the machine as shown in the diagram below. Other necessities are suitable
lighting and a compressed air supply. The bar feeder is not suitable for and cannot be adapted
to use in an explosive surrounding.
The image below references ideal spacing for operator movement.
Areas of interest
D-operator area
E-supply area
F-remnant material area
The space must provide adequate working area. All values are in metric.
635
370
800

PATRIOT 338/551
8
REV 10:2019

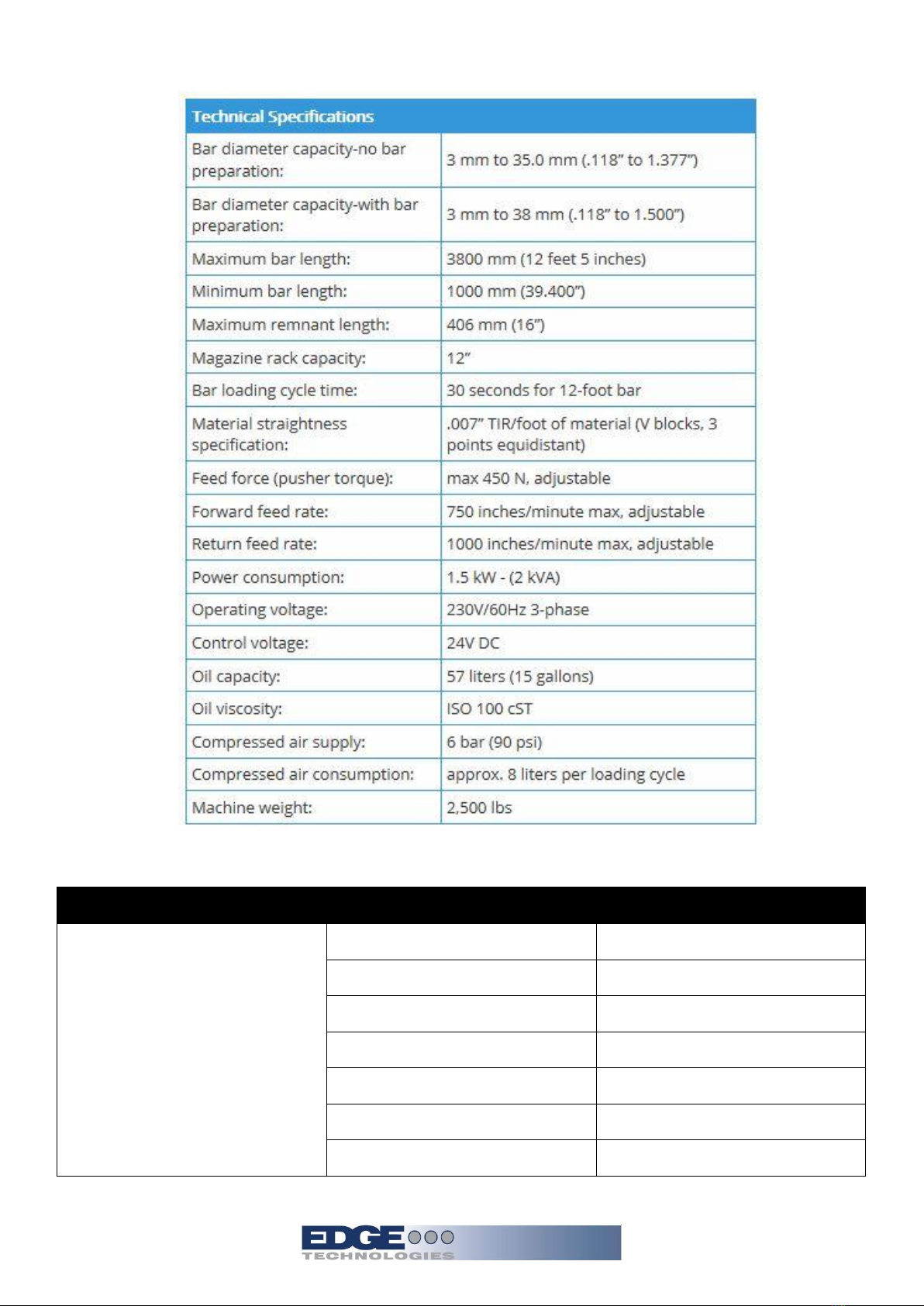

2.3 Specifications and Capacities
2.3.2 Bar Feeder Oil Requirements
Oil Viscosity
Brand
Description
ISO 100
BP
Energol CS 100
Castrol
Magna 100
Chevron
Circulating Oil 100
Elf
Movixa 100
Esso
Nuto 100
Mobil
Vectra Oil Heavy
Shell
Vitrea 100 / Tellus C 100

PATRIOT 338/551
9
REV 10:2019
2.3.3 Guide Channel Specifications
Warning if bar stock and channel set size are not with in the chart
below damage to the bar feeder or lathe could occur.
For a complete list of available guide channels offered review the parts section at
the end of this manual or visit Edgetechnologies.com
Guide Channel
Diameter
Bar Pusher
Diameter
Permissible Diameter of Bar Stock
Minimum ¹
Maximum
Max. Special ²
ø13mm
12.5mm
5mm (.196”)
10mm (.393”)
12mm (.472”)
ø17mm
16.5mm
5mm (.196”)
15mm (.591”)
16mm (.629”)
ø21mm
20.5mm
8mm (.315”)
16mm (.630”)
20mm (.787”)
ø26mm
25.5mm
8mm (.315”)
21mm (.827”)
25mm (.984”)
ø28mm
27.5mm
10mm (.393”)
25.4mm (1.00”)
27mm (1.062”)
ø33mm
32.5mm
10mm (.393”)
28.5mm (1.125”)
32mm (1.259”)
ø36mm
34mm
12.7mm (.500”)
32mm (1.260”)
35mm (1.377”)
34.5mm
ø36mm
35.5mm
12.7mm (.500”)
32mm (1.260”)
35mm (1.377”)
ø38mm
37.0mm
15.8mm (.625”)
33.3mm (1.312”)
37mm (1.456”)
Channel sizes below can be used ONLY with the Patriot 551
ø39mm
38.0mm
15.8mm (.625”)
33.3mm (1.312”)
38mm (1.500”)
ø43mm
42.5mm
19mm (.750”)
38mm (1.500”)
42mm (1.653”)
ø46mm
45.5mm
22.2mm(.875”)
41.2mm (1.625”)
44.5mm (1.750”)
ø52mm
51.0mm
25.4mm (1.00”)
44.5mm (1.750”)
50.5mm (2.00”)
ø56mm
55.0mm
25.4mm (1.00”)
50.8mm (2.00”)
50.5mm (2.145”)³
¹ Although the guide channel is capable of running the minimum diameter listed, the increasing difference between
the stock OD and channel ID allows greater potential for vibration. Spindle RPM may need to be reduced
accordingly.
² Bar stock larger than the standard maximum diameter up to the collet diameter may be used if the bar end
diameter is reduced to fit a standard collet. An ejection collet may also be used if the end of the material is
chamfered to match the angle of the ejection collet.
³ Diameter can only be run with a front ejection collet.

PATRIOT 338/551
10
REV 10:2019
2.3.4 Compressed air supply including oil
Warning working with compressed air, proper PPE is required in
accordance with federal state and local laws.
Shop air must be present for machine installation
1. The supply hose for compressed air supply must be larger than 8mm
2. Pressure must be over 5~7kg / cm2, 71.11 –99.56 PSI, Consumption about 50L/H。
3. Connect the air supply tube into (A). Pull up and rotate knob counter clockwise (B) and
set the pressure at 6kg / cm2, 71.11 –99.56 PSI
Air system Lubricant Viscosity of 32, temperature 40℃, ISO VG type.
Oil level should be checked monthly. Be sure to use the recommended oil or damage to the
pneumatic system will result.
1. Adjust control air lubrication from cylinder, (C), 1-2 drops／1000 L air if necessary.
Air Unit Lubricating Oil –ISO VG32
BP
Castrol
Chevron
Mobil
Shell
Energol HLP 32
Hyspin VG32
Regal R&O 32
DTE 24 or Light
Tellus 32
A: Air supply fitting
B: Air regulator knob
C: Oil supply knob
D: Lock ring

PATRIOT 338/551
11
REV 10:2019
2.4 Safety
Warning safety switches should always be in place during bar
feeder operation.
The patriot is designed to be safe and reliable to operate. However, the machine can be
dangerous if used improperly by untrained personnel. Personnel should be familiar with the
operating instructions of the equipment before using and must follow standard safety practices.
The machine is equipped with safety devices to prevent accidental damage to the machine and
injury to the operator. These devices must not be bypassed or tampered with.
2.4.2 Covers
Warning covers should always be in place during bar feeder
operation. The Patriot is supplied with covers to prevent access to moving
parts during operation. The hood of the machine is equipped with a safety
switch to place the machine in alarm if the hood is not closed. The magazine
cover prevents access to the material on the rack and the bar separators.
2.4.3 Lathe Door Safety
Warning lathe door safety if used should not be bypassed
An input to the Patriot for monitoring the lathe door is available. If used, this input will prevent
movement of the machine when the lathe door is open. This parameter is normally set during
machine installation. It is not advisable that this feature is disabled once enabled.
Please review the electrical schematics for the lathe and bar feeder to use the door Safety.

PATRIOT 338/551
12
REV 10:2019
2.5 Emergency Stop Buttons
Warning Indicates a potential danger to life or risk of personal
injury. Exercise extreme caution. These buttons should be tested monthly
to verify the proper emergency stoppage of the lathe and Patriot.
There are two emergency stop buttons on the bar feeder. Button ES1 is the emergency stop
button on the HMI control panel housing. Button ES2 is the emergency stop button on the
remote pendant control. Pressing either emergency stop button disconnects the Emergency
Stop Relay.
Contacts from the emergency stop buttons are incorporated into the interface with the lathe
emergency stop circuit to enable the lathe to be manually placed into emergency stop
condition from the machine control panel.
The lathe emergency stop system will place the bar feeder into emergency stop as well.
During installation, on some lathes during emergency stop the output of 220V to the bar
feeder is removed. This will not allow the bar feeder to meet the emergency stop reset
requirements of the lathe. The lathe will be stuck in emergency stop and the bar feeder will not
power up. Please contact Edge Technologies for appropriate instructions. It is the
responsibility of the bar feeder and lathe installer to verify emergency stop operation between
the lathe and bar feeder is operational. That is when the emergency stop on either machine is
depressed automatic operations are stopped immediately. If this does not occur appropriate
diagnosis by a trained technician is required. Contact Edge Technologies for additional
information.

PATRIOT 338/551
13
REV 10:2019
2.6 Electrical Safety
WARNING!
ONLY QUALIFIED ELECTRICIAN OR SERVICEMAN SHOULD PERFORM ANY
ELECTRICAL TROUBLESHOOTING OR MAINTENANCE TO THIS
EQUIPMENT.
DO NOT PERFORM ANY MAINTENANCE, REPAIRS OR ADJUSTMENTS ON
THIS EQUIPMENT WITHOUT FIRST LOCKING OUT ALL ELECTRICAL
CONTROLS IN ACCOURDANCE WITH ALL FEDERAL, STATE AND LOCAL
SAFETY CODES.
PERSONNEL SHOULD BE TRAINED IN OSHA COMPLIANT LOCK-OUT/TAG-
OUT AND ELECTRICAL SAFETY PROCEDURES.
MAKE CERTAIN THAT THE POWER SUPPLY IS DISCONNECTED BEFORE
ATTEMPTING TO SERVICE OR REMOVE ANY COMPONENTS!
NEVER SHOULD ADJUSTMENTS, MAINTENANCE OR CLEANING BE
PREFORMED WITHOUT FOLLOWING PROPER SAFETY PROCEDURES IN
ACCORDANCE WITH LOCAL, STATE AND NATIONAL SAFETY CODES.
Before making any electrical connections be certain the voltage for which the bar feeder
requires from the lathe is verified with a voltmeter at the power supply connector. Verify this
voltage matches the required voltage of the bar feeder, see machine operator manual section
2.3 Specifications and Capacities. Failure to do so may result in injury or damage to the
equipment. Normally a bar feeder is ordered from Edge Technologies to be placed with a
specific lathe model. The wiring interface is set in accordance with current information received
to Edge Technologies. There are times the lathe manufacture may update and change the main
connector pin locations and circuits. It is important this is verified with the schematics of the
lathe and bar feeder. In some cases a harness is provided which must be wired into the lathe.
All previous safety advises and information must be adhered to. This form of connection allows
for quickly unplugged for cleaning or service without having to disconnect “hard wired”
connections.
Before starting the bar feeder, check to be sure no tools, packing, or other material have been
left in the machine or lathe.

PATRIOT 338/551
14
REV 10:2019
2.6.2 Electrical Connection
Warning The power for the bar feeder and the input and output signals between
the bar feeder and lathe are supplied through the interface cable. The interface cable is normally
pre-wired for the lathe application when shipped from Edge. The installer should verify the
connection to the lathe before applying voltage to the system. If the lathe is not equipped with
an interface connection for the machine plug and cables will be supplied. This supplied harness
must be wired into the lathe electrical cabinet by a qualified technician. The lathe must support a
machine type interface for the machines to be connected. Additionally some lathes types power
output may be higher than the required 230 voltage. If this is the case an additional transformer
will be required to step down the lathe voltage for the bar feeder.
*Note the wiring interface contained in this manual is a generic 1 to 1 pin to wire call out.
Each lathe brand is different from one to another. Please contact Edge Technologies for
the proper interface schematic if you do not have one.
