EdilKamin PELLKAMIN 8 EVO User manual

EN Installation, use and maintenance page 2
PELLKAMIN 8 EVO
WOOD PELLET INSERT

2
ENGLISH
CONTENTS
EDILKAMIN S.p.A., with registered offices in Via
Vincenzo Monti 47 - 20123 Milan - tax code and VAT
number 00192220192
Declares, under its sole responsibility, that:
The pellet stove mentioned below is conforming with
EU Regulation 305/2011 and harmonised EU standard
EN 14785:2006
WOOD PELLET INSERT, tradename EDILKAMIN,
models PELLKAMIN 8 EVO
SERIAL NUMBER: Nameplate reference
Performance declaration:
PELLKAMIN 8 EVO (DoP - EK n° 201) Ref. data tag plate
Nameplate reference
And also declares that:
the PELLKAMIN 8 EVO wood pellet insert satisfies the
requirements of the following European directives:
2014/35/EC - Low Voltage Directive
2014/30/EC - Electromagnetic Compatibility Directive
USER/INSTALLER
The original language of this manual is Italian
Safety information
Safety information 4
General information 5
Unpacking 9
Installation 12
Instructions for use 20
Maintenance 54
Note 57
Troubleshooting 58

3
ENGLISH
USER/INSTALLER
optional
Dear Sir/Madam
We thank you for and congratulate you on choosing our
product. Before using it, we ask you to read this manual
carefully, in order for you to be able to make the most of all
its functions in total safety.
This manual is an integral part of the product. We ask you
to keep it for the entire lifetime of the product. If you lose it,
you can request a copy from your dealer or download it from
www.edilkamin.com.
Readers of this manual
This manual is addressed to:
• those who will use the product at home (“USER”);
• the technician who will install the product (“INSTALLER”)
The target person of each page is indicated in a band at the
bottom of the page (USER or INSTALLER).
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer where
the purchase was made, providing them with a copy of the
warranty booklet and the sales receipt.
The appliance must be installed and operated in compliance
with local and national law and European regulations. For the
installation, and for anything not specifically indicated in the
manual, observe local regulations.
The diagrams provided in this manual are for illustration
purposes only: they do not always strictly refer to your
specific model, and are not binding in any way.
MEANING OF SYMBOLS
In some parts of the manual the following symbols are
used:
INFORMATION:
failure to comply with these requirements
will compromise product use.
ATTENTION:
carefully read and understand the
message in question, since failure to
follow the instructions in it could cause
serious damage to the product and put
the safety of those using it at risk.
OPERATING SEQUENCE:
follow the instructions for the operations
described.
The product’s CE marking plate is located as below, and can
also be accessed once the product has been installed exing
the product well fixed
Identification of the product and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the installer.
The warranty conditions are given in the warranty certificate
accompanying the product and on website www.edilkamin.
com.

4
ENGLISH
USER/INSTALLER
• The appliance is not designed for use by
people, including children, with limited
physical, sensory and mental capacities.
• The appliance is not intended to be used for
cooking.
• The appliance is designed to burn UNI EN
ISO 17225-2 category A1 wood pellets, in
the amounts and manner described in this
manual.
• The appliance is designed for use indoors, in
normal conditions of ambient humidity.
• Keep the product in a dry place out of the
weather.
• For the legal and company warranties, refer
to the warranty certificate inside the product:
neither Edilkamin nor the reseller are liable for
damage resulting from incorrect installation or
maintenance.
Safety risks may be caused by:
• installation in unsuitable conditions. In
particular, conditions of fire hazard. DO NOT
INSTALL THE PRODUCT IN AREAS SUBJECT
TO THE RISK OF FIRE.
• contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH THE STOVE’S
HOT PARTS; always wear the gloves when
working with the stove, even if switched off,
when it is still hot. Failure do so can result in
burns.
• contact with live electrical equipment
(internal). DO NOT ACCESS THE INTERNAL
ELECTRICAL EQUIPMENT WHILE THE
APPLIANCE IS POWERED ON. Electrocution
hazard.
• use of improper ignition aids (e.g. alcohol).
DO NOT IGNITE OR BOOST THE FLAME
WITH FLUID SPRAYS OR A FLAME TORCH.
• use of fuel other than wood pellets. DO NOT
BURN WASTE MATTER, PLASTIC OR OTHER
MATERIALS THAN WOOD PELLETS IN THE
HEARTH. The product may be soiled, the flue
may catch fire, and environmental damage
may ensue.
• cleaning the hearth when hot. DO NOT
CLEAN THE HEARTH WITH A VACUUM
CLEANER WHILE IT IS HOT. Risk of damage
to the cleaner and smoke in the room.
• cleaning the fumes duct with cleaning
products. DO NOT CLEAN THE PRODUCT
WITH FLAMMABLE PRODUCTS. Risk of fire
and blowback.
• cleaning the hot glass pane with unsuitable
cleaning products. DO NOT CLEAN THE
GLASS WHILE IT IS HOT WITH WATER
OR ANY OTHER PRODUCT THAN THE
RECOMMENDED GLASS CLEANING
PRODUCTS. Risk of cracking and irreparable
damage to the glass.
• storing flammable materials within the safety
clearance indicated in this manual. DO NOT
PLACE LAUNDRY ON THE PRODUCT. DO
NOT PLACE DRYING RACKS WITHIN THE
SAFETY CLEARANCE. Keep flammable fluids
away from the product. Fire hazard.
• blocking the aeration vents and air intakes in
the room. DO NOT BLOCK THE AERATION
VENTS OR FLUE. Risk of smoke returning
into the room with consequent damage and
injury.
• use of the product as a support or ladder. DO
NOT CLIMB ONTO THE PRODUCT OR USE
IT AS A SUPPORT. Risk of damage and injury.
• use of the stove with the hearth open. DO
NOT USE THE PRODUCT WITH ITS DOOR
OPEN.
• incandescent material projected from the
open door. DO NOT throw incandescent
material outside the appliance. Fire hazard.
• use of water in case of fire. CALL THE
AUTHORITIES IF A FIRE BREAKS OUT.
If you have doubts, please do not take any action,
but contact the retailer or the installer.
For reasons of safety, read the user instructions
included in this manual.
SAFETY INFORMATION
PLEASE BE CAREFUL
THE PRODUCT CAN BE OPENED
TO CHARGE OR CLEAN ONLY ONE
WELL FIXED.

5
ENGLISH
DIMENSIONS
USER/INSTALLER
PELLKAMIN 8 EVO (cm)
The frame is optional 76Lx52h
49
Smoke outlet Ø 8 cm
73,3
49
64
2
49
Combustion
Ø 4 cm
49
73
5
9
Combustion
Ø 4 cm
8
28

6
ENGLISH
DIMENSIONS OPTIONAL
USER/INSTALLER
PELLKAMIN 8 EVO (cm)
Hatch loading
Tray loading
75,7
60
49
57,5
55
52
75,7 49
49,7
Optional RACK:
(mm)
105
255
63
4139
387,92
140
355
150
45 min-55 max
74

7
ENGLISH
TECHNICAL DATA
USER/INSTALLER
EDILKAMIN s.p.a.
reserves the right to modify the product without notification in the interests of improve-
ment.
TECHNICAL CHARACTERISTICS in accordance with EN 14785
Best results are achieved with the clean glass system closed. Use the supplied gasket, by the installer.
Pellkamin 8 Evo
Nominal power Reduced power
Available power 8,3 3,5 kW
Yield 89,9 93,9 %
CO emissions at 13% O20,007 0,020 %
Fumes temperature 196 103 °C
Fuel consumption * 1,9 0,8 kg/h
Tank capacity 11 kg
Draw 12 10 Pa
Autonomy 14 6 ore
Heatable volume ** 215 m3
Fume duct diameter 80 mm
Air intake duct diameter 40 mm
Weight including packaging 147 kg
Energy efficiency class according to UE 2015-
1186 regulation (Class A++/G) A+
TECHNICAL DATA FOR SIZING THE FLUE which must in any case satisfy the requirements in this sheet
and the installation instructions for the product.
Nominal power Reduced power
Fumes temperature at smoke outlet 196 103 °C
Minimum draw 0,01 Pa
Fumes flow rate 6 3,3 g/s
*A calorific value of 4.8 kW/Kg has been used to calculate consumption.
** The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
The product can be used safety even with a higher depression.
An higher depression can cause decrease in efficiency
ELECTRICAL SPECIFICATIONS
Power supply 230 Vac +/- 10% 50 Hz
Nominal power absorbed 170 W
Reduced power absorbed 48 W
Power absorbed in stand by 2 W
Power absorption during ignition 300 W
Remote control frequency (provided) 2,4 GHz
Protection Fuse 4 AT, 250 Vac 5x20
NOTE: smoke outlet Ø not equal to the chimney system one, to be adjusted accordingly

8
ENGLISH
TECHNICAL DATA
USER/INSTALLER
Manufacturer Edilkamin S.p.A.
Trademak Edilkamin
Model Identifier Pellkamin 8 Evo
Description Mechanically space heater fired by wood pellets
Indirect heating functionality no
Direct heat output (space heat output) 8,3 kW
CPR harmonised standard EN 14785
Notified Body Acteco srl (Via Amman 41 ,33084 Cordenons-PN-Italy) NB1880
Fuel Preferred fuel
(unique)
PM OGC CO NOx PM OGC CO NOx
Compressed wood with moisture content < 12 % yes 16 3 91 104 18 3 244 74
Observe the specific precautions for installation, assembly and maintenance indicated in the manual accompanying the product
Up to 1/1/2022 From 01/01/2022
ɻs[%] 85,8 ɻs[%] 85,8
EEI [%] 126 EEI [%] 126
Energy Efficiency Class A+ A+
Calculations according to the council commission regulation (EU) 2015/1186 and 2015/1185
BLF =1,45
F5 not of relevance
Heat output Useful efficiency (NCV as received)
Item Symbol Value Unit Item Symbol Value Unit
Nominal heat output Pnom 8,3 kW ɻth,nom 89,9 %
Minimum heat output
(indicative)
Pmin 3,5 kW ɻth,min 93,9 %
Auxiliary electricity consumption
Item Symbol Value Unit NO
At nominal heat output elmax 0,140 kW NO
At minimum heat
out
p
ut
elmin 0,048 kW NO
In standby mode elsb 0,002 kW NO
NO
F(4) 2,1 % CC =2,5
yes
F (2) 7,0 % up to 2022
F (2) 7,0 % from 2022
NO
NO
with distance control option yes
F (3) 1,0 % up to 2022
F (3) 1,0 % from 2022
Contact details
Name and address of the manufacturer www.edilkamin.com
EDILKAMIN S.p.A. [email protected]
Via Mascagni 7 Legal Representative
20045 Lainate (MI) – ITALY Paolo Gusella
TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1185 AND 2015/1186
Type of heat output/room temperature control (select one)
Space heating emissions at nominal heat output Space heating emissions at minimum heat
output
Only required if correction factors F(2) or F(3) are applied.
(*) PM = particulate matter, OGCs = organic gaseous compounds, CO = carbon monoxide, NOx = nitrogen oxides
mg/m3 at 13%O2 mg/m3 at 13%O2
Energy Efficiency
Class
Characteristics when operating with the preferred fuel
Useful efficiency at nominal
heat output
Useful efficiency at
minimum heat output
(indicative)
Other control options (multiple selections possible)
room temperature control, with presence detection
room temperature control, with open window
detection
single stage heat output, no room temperature
control
two or more manual stages, no room temperature
control
with mechanic thermostat room temperature
control
with electronic room temperature control
with electronic room temperature control plus day
timer
with electronic room temperature control plus
week timer

9
ENGLISH
UNPACKING
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
The packaging materials are neither toxic nor noxious
and do not require special disposal.
and do not require special disposal.
The user is responsible for storing, disposing of and
The user is responsible for storing, disposing of and
recycling them in a regulatory fashion.
recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in compliance with
safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
In the stove you will find:
• remote control,
• warranty certificate,
• this manual,
• power cable
• cold hand to open the door
Package materials such as plastic and films my be
dangerous for children.
Suffocation hazard.
Keep packages away from children.
INSTALLER
PRESE PER MOVIMENTAZIONE
The product is equipped with rings to facilitate
its transport.
Make sure that the product remains
balanced during handling.

10
ENGLISH
UNPACKING
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
TO REMOVE THE STOVE FROM THE PALLET:
TO REMOVE THE STOVE FROM THE PALLET:
•
•
Remove the screws
Remove the screws
DO NOT REMOVE THE PRODUCT FROM THE PALLET BEFORE LOOSENING THE SCREWS.
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)
(V)

11
ENGLISH
UNPACKING
PACKAGING
The packaging includes a useful inspection hatch to
check the status of the product.On receipt, check and
immediately
notify the retailer of any anomalies.
The packaging comprises a single item containing the
following:
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
(A)
(B)
NOTE
The frame, rack, Hatch loading kit with chute and front loading tray kit i’m optional.
Description Quantity
Inserts 1
Hand (A) for hinged-type opening of the hearth door 1
Hand (B) for opening the product to charge and clean 1

12
ENGLISH
INSTALLER
INSTALLATION
REMARKS ON INSTALLATION
REMARKS ON INSTALLATION
Note that:
Note that:
•
•
The appliance may only be installed by a qualified
The appliance may only be installed by a qualified
technician authorised to issue the declaration of
technician authorised to issue the declaration of
conformity.
conformity.
•
•
The appliance must be installed and operated
The appliance must be installed and operated
in compliance with local and national law and
in compliance with local and national law and
European regulations. The applicable Italian
European regulations. The applicable Italian
regulation is UNI 10683.
regulation is UNI 10683.
•
•
If installed in a condominium, the appliance must
If installed in a condominium, the appliance must
be approved by the administrator.
be approved by the administrator.
We give some general instructions below, however
We give some general instructions below, however
these do not obviate the need to comply with local
these do not obviate the need to comply with local
regulations and do not affect the installer’s liability for
regulations and do not affect the installer’s liability for
the installation.
the installation.
Checking the suitability of the installation
space
• The room must have a volume of at least 20 m3
• The floor must be able to bear the weight of the
product and its accessories.
• Level the appliance
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draw.
Protection from heat and safety clearances
The surfaces of the building adjacent to the product
must be protected against overheating.
The insulation to be used will depend on the type of
surface in question.
The product must be installed in observance of the
following safety instructions:
- minimum clearance at the sides of 10 cm and back of
10 cm from flammable materials.
- no flammable materials may be kept closer to the
front of the appliance than 80 cm.
If connected to a wooden or otherwise flammable wall,
the flue must be insulated appropriately.
If installed on a flammable or combustible floor, or
which is not capable of bearing its load, use steel or
glass plates under the stove to distribute the load.
Contact the retailer for such optional equipment.
Positioning the product
The product is designed to operate in all climatic
conditions. In special circumstances, such as strong
wind, its safety equipment may switch the stove off.
Contact the authorised Edilkamin Technical Assistance
Centre.
NOTE
smoke outlet Ø not equal to the chimney system one, to be adjusted accordingly

13
ENGLISH
INSTALLATION
INSTALLER
TYPICAL CASES
46
99
11
18
46
49
49
39
99
46
99
11
18
46
49
49
39
99
FLUE SYSTEM
FLUE SYSTEM
(
(
Fumes duct, flue and chimney pot
Fumes duct, flue and chimney pot
)
)
Thsi chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457. The installer must observe both these and any
other local regulations. This manual does not in any
way substitute such regulations.
The product must be connected to a flue system which
ensures that the fumes produced by combustion are
exhausted in complete safety.
Before positioning the product, the installer must
check that the flue pipe is properly rated.
FUMES DUCT, FLUE
FUMES DUCT, FLUE
The fumes duct
(which connects the hearth's fumes
(which connects the hearth's fumes
outlet with the flue)
outlet with the flue) and the flue itself must, among
other regulatory requirements:
• receive the fumes from a single product (the outlets
of multiple appliances may not be conveyed into
a single flue)
• be routed vertically for the most part
• have no downwards sloping sections
• preferably have a circular internal cross section, or
with a ratio of the sides of less than 1.5
• terminate at roof level with a proper chimney pot:
the flue may not discharge directly from the wall
or into an enclosed space, even if the space in
question is open to the sky
• be made of material rated fire reaction class A1 per
UNI EN 13501 or analogous national regulations.
• be certified, with a chimney plate if metal
• be of uniform cross section or vary in cross section
only immediately after the outlet, not at some mid
point of its length
THE FUMES DUCT
THE FUMES DUCT
Further to the general prescriptions for the fumes duct
and flue, the fumes duct
:
:
• may not be made of flexible metal material
• must be insulated, if routed through unheated
areas or outdoors
• must not be routed through rooms in which the
installation of combustion heat generators is
prohibited, or subject to fire hazard, or which
cannot be inspected.
• must enable the recovery of soot and be open for
inspection
• must have at most 3 bends, through an angle of
no more than 90°
• must have a single horizontal section of length
no more than 3 metri, depending on the draw.
Note in any case that long sections promote the
accumulation of dirt and are harder to keep clean.

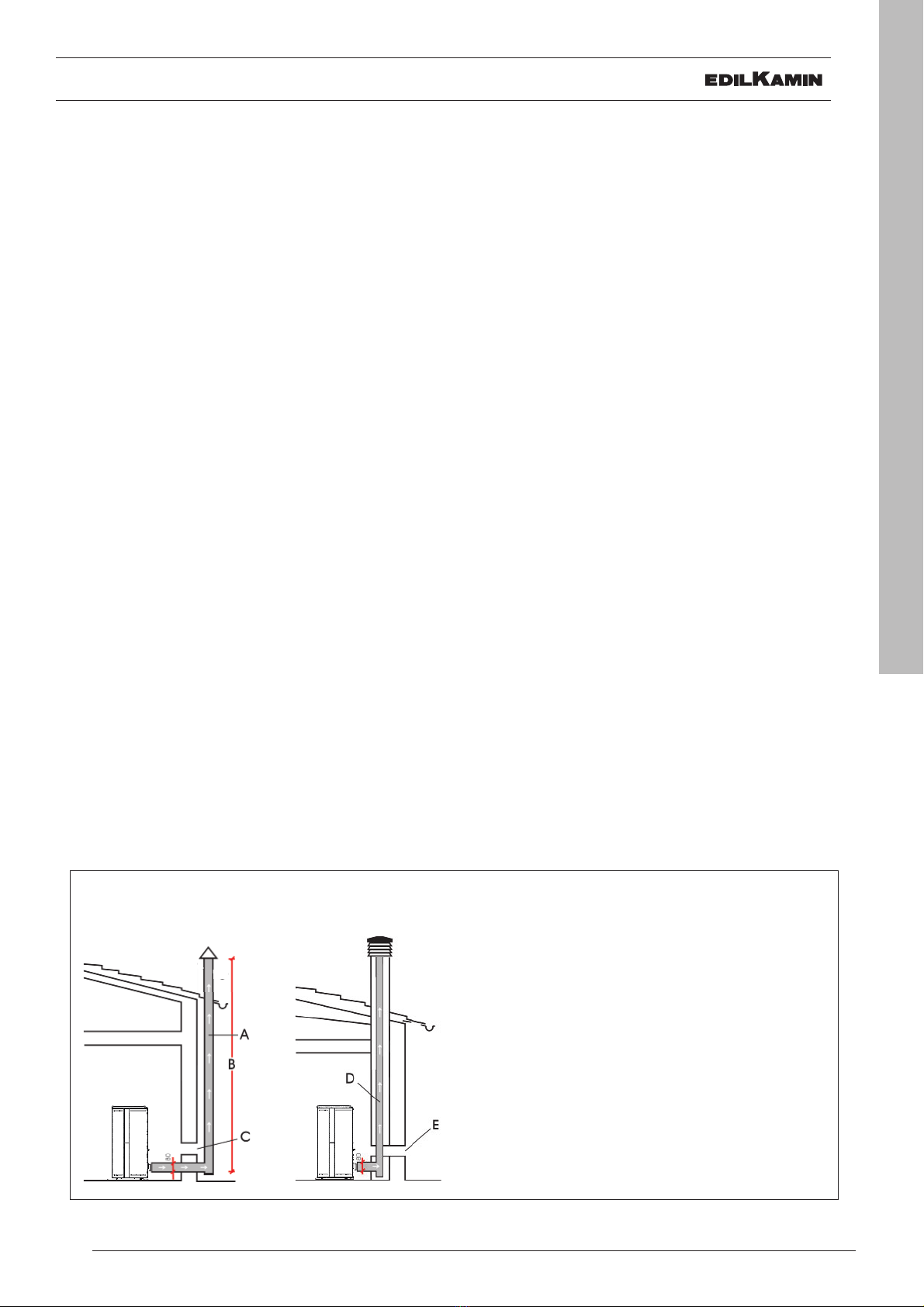

A: insulated steel flue, pursuant to EN 1856
B: minimum height 1.5 m and above the level of the roof
guttering
C-E: external ambient air intake (through section of at least
80 cm²)
D: steel flue inside existing masonry chimney

14
ENGLISH
INSTALLATION
INSTALLERINSTALLER
THE FLUE
THE FLUE:
Further to the general prescriptions for the fumes duct
and flue, the flue
:
:
• must serve solely to exhaust fumes
• must be correctly sized to satisfy the requirements
of fumes exhaust (EN 13384-1)
• should preferably be insulated, in steel with a
circular internal section. If rectangular, the corners
must have a radius of not less than 20 mm, with a
ratio of the internal dimensions of <1.5
• must normally be at least 1.5 metres in vertical
length
• must have a constant cross section
• must be waterproof and thermally insulated to
ensure a good draw
• must preferable have a collection chamber for
• If pre-existing, must be clean, to prevent the fire
hazard.
• in general, we recommend fitting a tube inside the
existing masonry chimney if its diameter is greater
than 150 mm.
INTUBATED SYSTEM
INTUBATED SYSTEM:
Further to the general prescriptions for the fumes duct
and flue, the intubated system:
• must operate in negative pressure;
• must be open to inspection
• must observe local regulations.
THE CHIMNEY POT
THE CHIMNEY POT
• must be windproof
• must have an internal cross section equivalent to
that of the flue and a fumes outlet at least double
that of the interior of the flue
• for dual flues (which should be spaced at least 2
m apart) the chimney pot receiving the fumes from
the solid fuel appliance or that from the higher
storey, must be at least 50 cm higher than the other
• it must extend beyond the back flow zone (in Italy,
refer to UNI 10683 point 6.5.8.)
• it must allow for maintenance of the chimney
EXTERNAL AIR INTAKE
In general, we suggest two ways for ensuring a proper
flow of combustion air.
Indirect air intake
Install an intake at floor level with effective area (net of
the mesh or other protective equipment) of at least 80
cm2(10 cm dia.).
To prevent draughts, we recommend installing the
intake behind the stove or behind a radiator.
Installing it in front of the appliance will create
unpleasant draughts.
Direct air intake
Install an air intake of effective area (net of the mesh or
other protective equipment) at least equal to that of the
air intake at the back of the product.
Connect the air intake to the appliance’s air intake
with a tube (which may also be flexible). Increase the
diameter of the pipe if it is not smooth: assess its load
loss.
We recommend not exceeding a 5 m length and not
curving the tube at most 3 time, depending on the
draw of the flue.
The air maty be drawn from an adjacent room only if:
• the flow is taken from permanent and unobstructed
openings communicating with the outdoors;
• the adjacent room is never in underpressure
relative to the outdoors;
• the adjacent room is not a garage. subject to fire
hazard, a bathroom or bedroom
• the adjacent room is not a shared room in the
condominium.

15
ENGLISH
CHECKINGTHEELECTRICAL CONNECTIONS
(the power socket must be located in an
easily accessible position)
The stove is equipped with an electrical power cord or
connection to a 230V 50 Hz socket, preferably with an
electromagnetic switch.
Variations in voltage of more than 10% can compromise
the operation of the stove.
The electrical system must be compliant; check the
operation of the earth in particular.
Edilkamin is not responsible for malfunctions resulting
from an improperly earthed system.
The power line must be of adequate section for the
power of the appliance.
Power up the stove by setting its switch from 0 to 1.
There is a 4 A fuse on the socket with switch located at
the rear of the stove.
INSTALLATION
INSTALLER
The power cable must
not come into contact with the flue or
other hot parts of the stove.
- not be damaged because of the metal

16
ENGLISH
The insert is supplied with a base plate (A) complete
with smoke duct (B) and primary air duct (C).
To fit, proceed as follows:
• Check for a power outlet on the back of the insert, so
that it is accessible once installation is complete.
• After evaluating the proper position of the insert, lift it
using the two handles on the sides of the insert (D),
from the base plate (A).
• Secure the base plate (A) on the base using
bolts through the holes positioned on the perimeter of
the plate (X– Fig. 4).
Alternatively, to secure the above plate, you can use
the existing holes in the same base plate (Y– Fig. 4)
and countersunk screws (the screw head must not
protrude more than 2 mm from the base plate).
The customer can make other holes, being careful not
to do so in line with the guides (Z– Fig. 4)
• Fit the flue (not supplied) on the smoke duct (B) and
the Ø 40 mm tube (C1 – not supplied) on the primary
air duct (C).
The Ø 40 mm tube (C1 – not supplied) can be installed
from below the base plate (A), see Fig. 3.
• Replace the insert (Fig. 4) by sliding it on the base
plate (A– Fig. 2) until it stops (the insert must fit in the
two slots (E– Fig. 2) in the front part of the base plate
(A– Fig. 2), taking care that the power supply cord is
not crushed between the two plates.
INSTALLATION
fig. 2 E
A
B
C
D
A
B
CC1
fig. 3
A
B
C
C1
fig. 4
X
X
XX X
Y
Z
6,5 6,5
15 15 23
INSTALLER
INDICATIVE DRAWINGS, NOT ALWAYS
REFERRING TO THE SPECIFIC MODEL.
X
fig. 1

17
ENGLISH
INSTALLATION
INSTALLER
BE CAREFUL REMOVE THE PART AS SHOWED BELOW
WITHOUT OPTION Tray loading
HATCH LOADING

18
ENGLISH
INSTALLER
INSTALLATION
COMPENSATION VENTS KIT
COMPENSATION VENTS KIT

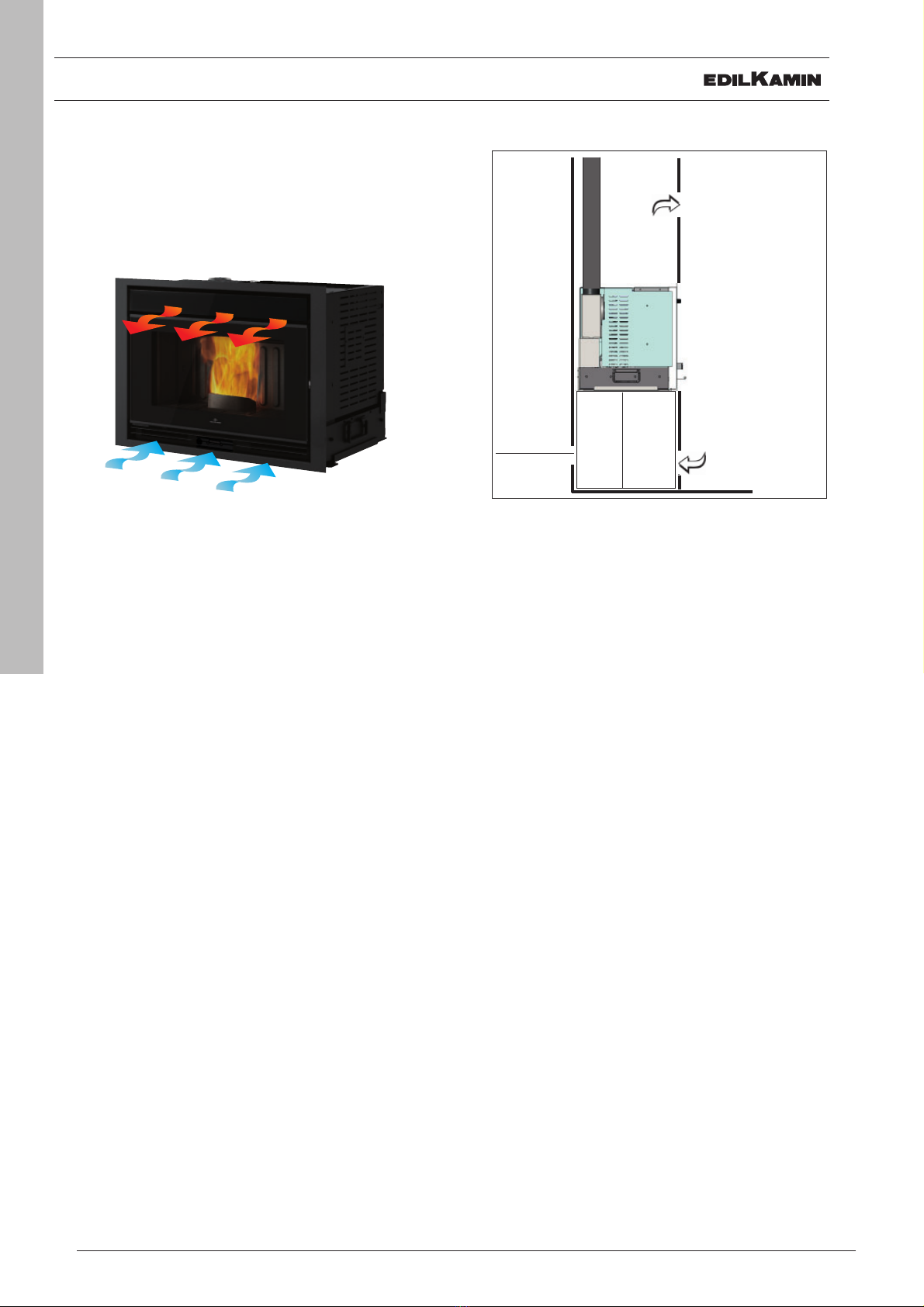

* Provide two aeration grilles (area larger than 100 cm2),
the first one under the insert and the second positioned
at least 50 cm above the insert or anyway communica-
ting with the internal compartment where the insert is
positioned.
These grilles prevent the accumulation of heat inside,
which is then used to help heat the room of installation.
INDICATIVE DRAWINGS, NOT ALWAYS REFERRING TO THE SPECIFIC MODEL.
* Internal mantel
ventilation grilled
External
intake * Recycled air
intake inspection
They must be installed: one below and one above
They must be installed: one below and one above
the hearth mouth.
the hearth mouth.
They are NOT supplied with the product.
They are NOT supplied with the product.

19
ENGLISH
INSTALLER
INSTALLATION
FACINGS, GATHER HOOD AND VENTS
FACINGS, GATHER HOOD AND VENTS
Face the product only after having completed the
Face the product only after having completed the
following steps:
following steps:
• connection of the product to the smoke outlet and
• connection of the product to the smoke outlet and
air intake;
air intake;
• inspection of the product when hot;
• inspection of the product when hot;
• check to verify whether the product is levelled.
• check to verify whether the product is levelled.
The installer must implement all the installation good
The installer must implement all the installation good
practices and take all the necessary precautions
practices and take all the necessary precautions
against overheating and fire.
against overheating and fire.
In particular:
In particular:
• if a plinth is constructed beneath the hearth level,
• if a plinth is constructed beneath the hearth level,
it must include a suitable slot for the passage of
it must include a suitable slot for the passage of
recirculation air from the room;
recirculation air from the room;
• wooden parts must be protected with fireproof
• wooden parts must be protected with fireproof
panels, which must not be placed against one
panels, which must not be placed against one
another but spaced at least 1 cm apart to enable air
another but spaced at least 1 cm apart to enable air
to flow and prevent heat build-up.
to flow and prevent heat build-up.
The gather hood
The gather hood
can be made with fireproof panels, plasterboard
can be made with fireproof panels, plasterboard
or gypsum slabs; during construction, the hot air
or gypsum slabs; during construction, the hot air
ducting kit must be mounted as described above.
ducting kit must be mounted as described above.
The interior of the gather hood should be aerated
The interior of the gather hood should be aerated
by exploiting the flow of air coming from below (the
by exploiting the flow of air coming from below (the
space between the door and mantel) which convective
space between the door and mantel) which convective
currents will cause to exit from the grille on top,
currents will cause to exit from the grille on top,
thus allowing heat recovery and preventing undue
thus allowing heat recovery and preventing undue
overheating.
overheating.
In addition to that mentioned above, take into account
In addition to that mentioned above, take into account
the regulations in force in the relevant country
the regulations in force in the relevant country
concerning “insulation, finishes, facings and safety
concerning “insulation, finishes, facings and safety
recommendations”.
recommendations”.
CHECK CAREFULLY THE PRODUCT
CHECK CAREFULLY THE PRODUCT
BEFORE COMPLETE.
BEFORE COMPLETE.

20
ENGLISH
USER INSTRUCTIONS
FIRST IGNITION (COMMISSIONING)
PHASES
Make sure you have read and understood this
Make sure you have read and understood this
manual:
manual:
•
•
Remove all flammable materials from the appliance
Remove all flammable materials from the appliance
(manuals, labels, etc.). In particular remove any
(manuals, labels, etc.). In particular remove any
labels from the glass.
labels from the glass.
FUEL
Use Class A1 wood pellets conforming to the UNI
Use Class A1 wood pellets conforming to the UNI
EN ISO 17225-2 standard or similar local regulations
EN ISO 17225-2 standard or similar local regulations
envisaging, for example, products with the following
envisaging, for example, products with the following
characteristics:
characteristics:
diameter 6 mm
diameter 6 mm
length 3-4 cm
length 3-4 cm
humidity <10%
humidity <10%
For reasons of safety and environmental compatibility,
DO NOT burn, among other, plastic, painted wood,
coal or bark.
Do not use the stove as an incinerator.
Caution
Using fuels other than those specified
can damage the appliance.
On first ignition, there may be a slight
smell of paint, which will disappear in a
short time.
USER
As with all appliances, a wood appliance heats up and cools down during the
various operating stages. This implies normal expansion movements.
These expansions may cause slight settling noises that cannot constitute grounds
for complaints.
