EdilKamin FIREBOX DECO Quick start guide

FIREBOX®DECO
FIREBOX®LUCE PLUS
FIREBOX®RIGA
WOOD INSERTS
UK Installation, use and maintenance page 2

2
ENGLISH
The undersigned company, EDILKAMIN S.p.A., with
registered office in Via Vincenzo Monti 47 - 20123
Milan (Italy) - Italian Tax ID code and VAT number
00192220192
Hereby declares, under its sole responsibility, that:
The product mentioned below complies with EU
Regulation 305/2011 and the harmonised EU standard
EN 13229:2001+A1:2003+A2:2004+AC:2006+AC:2007
WOOD INSERTS, bearing the EDILKAMIN brand,
known as
- FIREBOX®LUCE PLUS
- FIREBOX®RIGA
- FIREBOX®DECO
SERIAL NO.: Rating plate reference
Performance declaration: (DoP - EK No. 169):
Rating plate reference.
CONTENTS
Introduction 3
Safety information 4
Technical data 5
Dimensions 6
Unpacking 7
Installation 9
Introduction about use 18
Maintenance 21
Troubleshooting 23

3
ENGLISH
Identification of the product and warranty.
The product is uniquely identified by a number, the
“counterfoil”, which is indicated on the warranty
certificate.
Please keep:
• the warranty certificate accompanying the product
• the purchase receipt given to you by the retailer
• the declaration of conformity given to you by the
installer.
The warranty conditions are given in the warranty
certificate accompanying the product.
MEANING OF SYMBOLS
In some parts of the manual the following symbols
are used:
INFORMATION:
failure to comply with these
requirements will compromise
product use.
PLEASE NOTE:
carefully read and understand the
message in question, since failure
to follow the instructions in it could
cause serious damage to the
product and put the safety of those
using it at risk.
Dear Sir/Madam
Congratulations on choosing our product. Before you
use it, please read this manual carefully, to get the best
from your new appliance in total safety.
This manual is an integral part of the product. Please
keep it for the entire life of the product.
If you lose it, you can request a copy or download it
from www.edilkamin.com
After unpacking the product, check the condition and
completeness of the contents.
In the event of error, immediately contact the retailer
where the purchase was made, providing him with a
copy of the warranty booklet and the sales receipt.
The appliance must be installed and operated in
compliance with local and national law and European
regulations. For the installation, and for anything not
specifically indicated in the manual, observe local
regulations.
The diagrams in this manual are illustrative; they do
not always refer specifically to your product and are
not binding in any way.

4
ENGLISH
SAFETY INFORMATION
• The product is not designed for use by people,
including children, with limited physical, sensory
and mental abilities.
• The appliance is not designed for cooking
purposes.
• The appliance is designed to burn wood pellets
from category A1 in the UNI EN ISO 17225-2
standard, in the amounts and manner described in
this manual.
• The appliance is designed for indoor use and in
areas with normal humidity conditions.
• Keep the product in a dry place out of the weather.
• For the legal and company warranties, refer to the
warranty certificate inside the product: specifically,
neither Edilkamin nor the retailer are liable for
damage resulting from incorrect installation or
maintenance.
Safety risks may be caused by:
• installation in non-suitable settings, in particular
those that are subject to fire risks. DO NOT
INSTALL THE PRODUCT IN AREAS SUBJECT
TO THE RISK OF FIRE.
• contact with fire and hot parts (e.g. glass panel
and pipes). DO NOT TOUCH HOT PARTS and,
when the stove is switched off and still hot,
always wear the glove supplied.
• contact with live electrical equipment (internal).
DO NOT ACCESS THE INTERNAL ELECTRICAL
EQUIPMENT WHILE THE APPLIANCE IS
POWERED ON. Electrocution hazard.
• use of improper ignition aids (e.g. alcohol). DO
NOT IGNITE OR BOOST THE FLAME WITH
FLUID SPRAYS OR A FLAME TORCH. Serious
risk of burns, damage and injury.
• use of fuel other than wood pellets. DO NOT
BURN WASTE MATTER, PLASTIC OR OTHER
MATERIALS THAN WOOD PELLETS IN THE
COMBUSTION CHAMBER. The product may
become soiled, the flue may catch fire, and
environmental damage may ensue.
• cleaning the combustion chamber when hot. DO
NOT CLEAN THE HEARTH WITH A VACUUM
CLEANER WHILE IT IS HOT. You could damage
the vacuum-cleaner and risk the emission of
smoke in the room.
• cleaning the smoke duct with cleaning
products. DO NOT CLEAN THE PRODUCT
WITH FLAMMABLE PRODUCTS. Risk of fire or
blowback.
• cleaning the glass pane while hot or with
unsuitable cleaning products. DO NOT
CLEAN HOT GLASS WITH WATER. ONLY USE
RECOMMENDED GLASS
• CLEANING PRODUCTS. Risk of cracking and
permanent, irreparable damage to the glass.
• the storage of flammable materials at a distance
which is less than the safe distances listed in
this manual. DO NOT PLACE LAUNDRY ON
THE APPLIANCE. DO NOT PLACE DRYING
RACKS WITHIN THE SAFETY CLEARANCE.
Keep flammable fluids away from the appliance.
Fire hazard.
• blocking the aeration vents and air intakes in the
room. DO NOT BLOCK THE AERATION VENTS
OR FLUE. Risk of smoke returning into the room
with consequent damage and injury.
• use of the product as a support or ladder. DO
NOT CLIMB ONTO THE PRODUCT OR USE IT
AS A SUPPORT. Risk of damage and injury.
• use of the stove with the combustion chamber
open. DO NOT USE THE PRODUCT WITH ITS
DOOR OPEN.
• incandescent material projected from the open
door. DO NOT throw incandescent material
outside the appliance. Fire hazard.
• use of water in case of fire. CALL THE
AUTHORITIES if a fire breaks out.
• never operate the product without water in the
circuit.
• running it dry can damage it. If you have doubts,
please do not take any action, but contact the
retailer or the installer. For reasons of safety, read
the user instructions included in this manual.

5
ENGLISH
The above data is for guidance only and was measured during certification by a notified
body.
EDILKAMIN s.p.a. reserves the right to modify the product without notification in the inte-
rests of improvement.
TECHNICAL DATA as per EN 14785
FIREBOX®DECO
FIREBOX® LUCE PLUS
FIREBOX® RIGA
Available power 9,6 kW
Efficiency 89,5 %
CO emissions at 13% O20,09 %
Smoke temperature 141 °C
Recommended draught 12 Pa
Fuel consumption * 2,5 kg/h
Heatable volume ** 250 m3
Smoke outlet diameter (male) 200 mm
Weight with packaging 124-126/144-111 kg
Energy efficiency classes
(2015-1186/1187 Regulation) A+
TECHNICAL DATA FOR SIZING THE FLUE
which must in any case satisfy the requirements of this sheet and the installation instructions for the product
FIREBOX®DECO
FIREBOX® LUCE PLUS
FIREBOX® RIGA
Smoke temperature at outlet 155 °C
Minimum draw 10 Pa
Smoke flow rate 8,2 g/s
TECHNICAL DATA
* A calorific value of 4,6 kW/Kg has been used to calculate consumption.
** The heatable volume is calculated based on the assumption of a heating demand of 33 Kcal/m³ hour.
VERSION V
Power absorbed in stand by 33 W

6
ENGLISH
DIMENSIONS
Dimensions in cm
FIREBOX DECO
Glass dimensions 52x27,5 h cm
FIREBOX LUCE PLUS
Mod. 54
Glass dimensions 64,5x49 h cm
FIREBOX LUCE PLUS
Mod. 62
Glass dimensions 68,5x55,5 h cm
65
45 54
80
70 5 5
44
44
32
26
6
1313
Ø 20 cm
smoke outlet
Ø 14 cm
ducted air
50
39
42
30
21
3
1313
Ø 20 cm
smoke outlet
Ø 20 cm
smoke outlet
Ø 14 cm
ducted air
Ø 14 cm
ducted air
45
53
62
61
68
75
65 5 5
3
3
5
3
FIREBOX RIGA
Mod. 49 - frontal / one side glass, left
Glass dimensions 57,5x26,5 h cm / 57,5F x 29,5L x 26,5 h cm
FIREBOX RIGA
Mod. 54 frontal
45
65
71
3 3
42 3
Ø 20 cm
smoke outlet
49 32 5125
Ø 14 cm
ducted air
Ø 14 cm
ducted air
54
45
61
65
2 2
42 3
Ø 20 cm
smoke outlet
Ø 14 cm
ducted air
Glass dimensions 55x30 h cm
71
16 16
42
45
3
39
20 28
Ø 20 cm
smoke outlet
5

7
ENGLISH
UNPACKING
DETACH THE PRODUCT FROM THE PALLET
Remove the product from the pallet while being
careful to protect the door and its glass panel from
mechanical impacts which could damage them.
PREPARATION AND UNPACKING
The packaging materials are neither toxic nor noxious
and do not require special disposal.
The user is responsible for storing, disposing of and
recycling them in a regulatory fashion.
Always move the stove vertically with
suitable equipment and in compliance
with safety regulations.
Do not turn the package over, and handle
all parts requiring installation with care.
Package materials such as plastic and
films my be dangerous for children.
Suffocation hazard.
Keep packages away from children.

8
ENGLISH
UNPACKING
PACKAGING
The packaging can provide a useful indication of the product’s condition. Check the packaging on receipt and report
any anomalies to the reseller straight away.
The packaging comprises a single box containing the firebox and the following items:
Description figure No. of Use
R2 unions 2 for ducting, for the version without ventilation kit
Lever for opening the
door
1 for hinged-type opening of the hearth door

9
ENGLISH
PRODUCT HEIGHT
Be fixed on a support stand option or in a specific
self-made one.

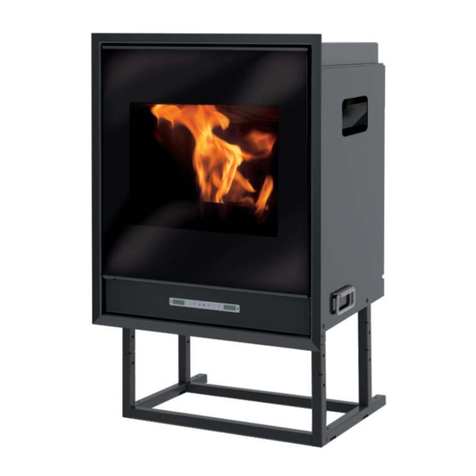

SUPPORT STAND OPTION
(fig. L)
Screw the 2 frame-fastening brackets (A) to the bottom
of the Firebox® structure, using the ø 3.6 holes and
the six 4.8x13 screws provided.
At the pre-cuts, cut the vertical tubes of the support
frame (B) to the desired height for positioning Firebox®.
Using the pins provided, fi t the frame (B) to the
brackets (A) previously fastened to Firebox ®.
Take care that the horizontal projections (C) of the
frame are on the rear facing the wall.
Lock the support stand with the four 8x40 screws
provided.
Position Firebox® with stand and fasten to the fl oor
using the anchors and 8x70 screws provided.
FIXATION
Use the screws to fix the product.
Failure to follow the above instructions
can cause the insert to tip over with
possible serious injury to the user.
INSTALLATION
NOTE
As far as the EXTERNAL AIR INLET DEVICE is
concerned (code 163750 and 163769), please
remove the pre-cut shown by the red arrow
Do NOT remove metal part shown by the blue arrow
for any reason.

10
ENGLISH
REMARKS ON INSTALLATION
Note that:
• The appliance may only be installed by a qualified
technician authorised to issue the declaration of
conformity.
• The appliance must be installed and operated
in compliance with local and national law and
European regulations. The applicable Italian
regulation is UNI 10683.
• If installed in a condominium, the appliance must
be approved by the administrator.
We give some general instructions below, however
these do not obviate the need to comply with local
regulations and do not affect the installer’s liability for
the installation.

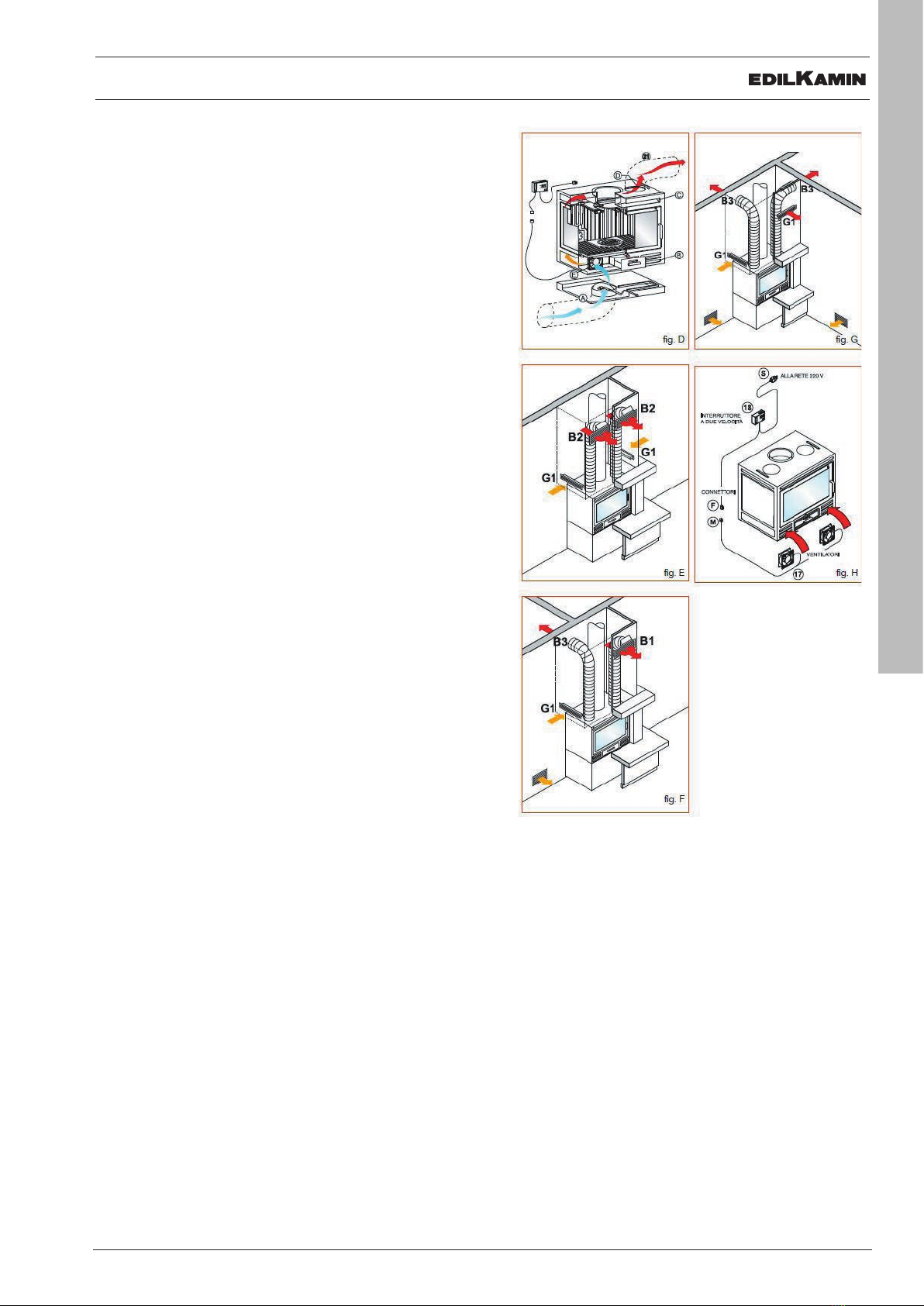

INSTALLATION
The hot air can circulate naturally
(natural convection) or with the aid of a
ventilation system (AIR DIFFUSER KIT)
to be purchased separately and applied
BEFORE completing the installation
process.
Contact your retailer for any further
information.
Checking the suitability of the installation
space
• The room must have a volume of at least 40 m3
• The appliance may not be installed in a bedroom,
bathroom or in the same room as other equipment
which draws air for combustion from the room
itself, or in any area with an explosive atmosphere.
Any extraction fans operating in the same room or
area as the product, may affect its draw.
• In Italy, check the compatibility pursuant to UNI
10683 and UNI 7129 in the presence of gas fired
products.
• The floor must be able to bear the weight of the
product and its accessories. If it can’t, check and
evaluate a solution.
Protection from heat and safe distances
All the surfaces of the building adjacent to the product
must be protected against heating.
The insulation measurements to implement depend on
the type of surface present.
The product must be installed in accordance with the
following safety instructions:
- minimum distance of 110 cm from flammable
materials along the sides.
- minimum distance of 13 cm from flammable materials
along the back.
- minimum distance of 20 cm from flammable materials
along the sides with glass.
- no flammable materials may be kept within 110 cm
from the front of the appliance.

11
ENGLISH
FLUE SYSTEM
(Fumes duct, flue and chimney pot)
This chapter has been drawn up pursuant to European
regulations EN 13384, EN 1443, EN 1856 and EN
1457.
The installer must observe both these and any
other local regulations.
This manual does not in any way substitute such
regulations.The product must be connected to a flue
system which ensures that the fumes produced by
combustion are exhausted in complete safety.
Before positioning the product, the installer must
check that the flue pipe is properly rated.
SMOKE CHANNEL, CHIMNEY FLUE
The smoke channel (pipe that connects the smoke
outlet of the fi replace with the chimney flue inlet)
and the chimney flue must, along with other legal
provisions:
• receive the discharge for a single product (multiple
product discharges are not permitted together)
• have a mainly vertical development
• no section should have a reserve slope
• have an inner section preferably circular and
however with a ratio between sides lower than 1,5
• complete the roof with the appropriate chimney
stack: direct discharge is forbidden on walls or
towards closed spaces, even if outdoors
• be created with materials with a fi re reaction class
A1 pursuant to UNI EN 13501 or similar national
standard
• be appropriately certifi ed, with an appropriate
fi replace plate, if metal
• keep the initial section
Electricity lines
There must be no electricity lines in the
walls or ceiling of the fi replace installation
area.
INSTALLATION

12
ENGLISH
INSTALLATION
THE SMOKE CHANNEL
• if in metal must have a CE marking (EN 1856-2) or
similar national law;
• cannot be in fl exible metal material
• to check the fl ow, a shutter is advised for draft over
25 Pa
THE CHIMNEY FLUE:
• must have a draft capable of creating negative
pressure ideally around 12 Pa. Lower drafts can
cause leaking smoke if the door is open; higher
values tend to generate fast combustion by
reducing the yield
• must be correctly sized to meet smoke evacuation
(EN 13384-1)
• must preferably be insulated, in steel with a circular
inner section. If rectangular, the inner edges must
have a radius under 20 mm and a ratio between
between the inner dimensions <1.5
• normally have a minimum height of 3-4 metres
• maintain a constant section
• be waterproof and thermally insulated to guarantee
draft.
• preferably create a collection chamber for
unburned fuel and any condensate
• beat least category T400, with an adequate
resistance to soot fi reIf pre-existing, it must be
cleaned to avoid risk of fire.
THE CHIMNEY STACK
• must be wind-proof
• have an internal section equivalent to that of the
chimney flue and passage section outlet equal to
at least double the inner passage of the chimney
flue
• for paired chimney flues (which should be at least
2 m apart) the chimney stack of the chimney flue
receiving the product discharge with solid fuel or
that of the highest fl oor must be at least 50 cm
taller
• must go beyond the refl ux zone
• must enable chimney maintenance
EXTERNAL AIR INTAKE (Figs. A-B)
The connection with the outside, made with a cross-
sectional area of at least 80/200 cm² (depending on
the model) is absolutely essential, as prescribed by
the standard governing installation requirements (UNI
10683).
It must, therefore, be provided.
It is made with a duct that must bring outside air
directly to the adjustment mechanism (Fig. B). The
regulation mechanism must be attached to the bottom
of Firebox®.
During installation, carefully seal the points where the
external air may leak.
The external air duct may come from behind, from
below, from the side, or consist of a fl exible hose
which runs directly from the outside to the mechanism
vent (Fig. B).
It is advisable to apply a protection grille on the outside
of the air-intake duct that does not, reduce the air-fl ow
capacity.
The external air must be drawn in at floor level.
If it is not possible to do as described above, place the
external air intake as near to Firebox®as possible.

13
ENGLISH
INSTALLATION
INSTALLATION IN AN EXISTING FIREPLACE
FITTED WITH EXTERNAL AIR INTAKE
(when part numbers are not specifi ed, refer to the
specifi cation tables on the previous pages)
N.B.: if you do not want to alter the existing hood, the
installation must be carried out without hot-air ducting
(leaving the upper outlets closed).
In this case, the hot air only enters the room through
the slots on the front, above the door.
a) make a pit (Fig. A), in the basement of the existing
fi replace, big enough to hold the external air intake
mechanism (Fig. B)
b) this pit must communicate with an external air inlet
duct through a passage with cross-sectional area of at
least 80-200 cm² (depending on the model)
c) position the mechanism (Fig. B) fl ush with the upper
face of the fl oor, carefully sealing the points where
outside air may leak d) make sure the damper moves
correctly (Fig. B)
e) with a hose clamp Ø 16-20 cm fi t a length of at least
2 meters of stainless steel flue, with the fi tting for a Ø
16 cm flue or the fi tting for a Ø 20 cm flue (Fig. C)
f) wrap the section of steel pipe with a multilayered
ceramic fi bre mat or equivalent material (Fig. C)
g) slip the section into the flue of the existing fireplace
and make sure the thickness of the ceramic fi bre
wrapping is suffi cient to completely fill the space
between the new steel pipe and the existing flue (Fig. C)
h) place Firebox® onto the mechanism (Fig.B)
checking that:
- the lower fl ange has been removed to allow the fl ow
of external air;
- The defl ector is open, using the knob located at the
top left on the front of Firebox®;
- a seam of high temperature mastic has been inserted
where the flue attaches and on the smoke outlet collar;
i) lower the previously inserted stainless steel pipe until
it fi ts into the Firebox® smoke outlet collar.
Do this by hand in the space between Firebox® and
the top of the inlet to the existing chimney
l) if Firebox® is ventilated, leave a space for the fan
power cord making sure it does not come into contact
with hot parts
m) carefully close off the remaining space between
Firebox® and the edges of the inlet to the existing
chimney.
It can be closed off with a metal mantelpiece, brickwork
or fi re retardant plasterboard.
Leave a slight space between the closing material and
Firebox® to allow for expansion.
INSTALLATION IN AN EXISTING FIREPLACE
WITHOUT EXTERNAL AIR INTAKE
Check for the possibility of making a pit inside the
existing fi replace (Fig. A) by removing the fi re surface.
This pit must be big enough to hold the external air
intake mechanism (Fig. A) and must be connected to
the outside by a duct with cross-sectional area of Ø
80/200 cm2 (according to model) (Fig. B).
If it is not possible to do as described above, place a
80/200 cm2 external air intake as near to Firebox® as
possible.
In this case, the mechanism is not used and the lower
Firebox fl ange must not be removed.
Proceed with the installation as described in
the previous section from point “e” onwards.
INSTALLATION WITH A NEW, SPECIALLY
MADE COVERING
Position Firebox® according to the characteristics
of the new covering with which it will be completed.
If the covering is produced by EdilKamin, you will fi
nd instructions for correctly positioning Firebox® in the
packaging.
Place the external air-intake mechanism and connect
the lower inlet directly with the outside using a fl exible
aluminium tube or a specially made duct; Both having
a minimum cross-sectional area of 80-200 cm2 (Fig.
B) (depending on model).
Place Firebox® onto the mechanism and make sure
the lower fl ange has been removed to allow the fl ow
of external air (Fig. B).
Connect Firebox to the flue with a Ø 16 or Ø 20 cm
pipe. Complete with the chosen covering and install
the kits for hot-air circulation (see following
instructions).

14
ENGLISH
INSTALLATION
HOT-AIR CIRCULATION AND DUCTING
(FIG. D)
The air drawn from the outside through the special
mechanism (A) is mixed with air drawn from the room
through the lower grilles (B). The mixed air is then
heated in the rear cavity and comes out into the room
through the upper front grille (C).
This ensures replenishment of the air which leaves
Firebox® through the flue during operation and at the
same time heats the room.
Alternatively, the hot air may reach the room through
an outlet connected to the holes in the upper part of
Firebox® (D) with Ø 14 cm aluminium pipes.
The air circulation described above may take place
naturally by convection or with the help of two fans (E)
housed in the base.
If the hot air is channelled into rooms other than the one
in which Firebox® is installed, it is necessary to ensure
an air return to the installation room through grilles at
the bottom of the walls or gaps under the doors.
The pipe diameter must not be less than 14 cm so
that the air does not exceed a speed of 5 m/s, thus
avoiding irritating noises or excessive load losses
owing to friction.
It is important that the path of the pipes is as straight
as possible.
Aluminium pipes may be hidden within the ceiling or
false beams, or built into walls; in any case, they must
be well insulated.
The ducting must be a maximum of 4 - 5 m long for
Firebox® with natural convection and 6 - 7 m long for
Firebox® with forced ventilation.
This length must be reduced by 1.2 m for each bend
and for each outlet owing to load losses.
The product is supplied with two anti-corrosion
discs (one on the outside and one on the inside of the
combustion chamber).
They must be removed during unpacking and disposed
of as normal waste.

15
ENGLISH
INSTALLATION
INSTALLATION OF HOT-AIR CIRCULATION
KITS
There are three kits for ducting hot air that include
everything necessary for the following three cases:
KIT UNO (fig. D - E) only the fireplace room
- remove the two pre-cut plugs from the Firebox®
cover by pressing inwards;
- fasten the two connectors on the holes inthe hood;
- insert the two pipes and fi x them with the clamps
provided;
- attach the two outlet “B2” frames with connection
pipe to the top of the mantel;
- attach the two slots “G1” to the bottom of the mantel;
- connect the two aluminium connection
pipes and fasten with clamps; fi t the two front
grilles and click them into place.
KIT DUE (fig. F) fireplace room, plus one adjacent
room
Proceed as for kit one, fi tting one complete outlet “B1”
to the top of the mantel instead of two “B2”, and an
outlet “B3” to the wall of the room to be heated.
At the base of the mantel, only one slot “G1” is required.
KIT TRE (fig. G) fireplace room, plus two adjacent
rooms
Proceed as for kit one, fi tting the two “B3” outlets
to the walls of the rooms to heat instead of the two
“B2” outlets.
This kit entails the use of a slot (G1) in the top of the
mantel to allow ventilation inside the mantel itself.
NATURAL CONVECTION
This occurs when the air circulates naturally in
the cavity and ducting by exploiting convection
(the physical principle that causes hot air to rise).
FORCED VENTILATION (fig. H)
This is achieved with the use of two fans (17) inserted
in the lower part of Firebox®, a temperature thermostat
housed next to one of the two fans and a two-speed
switch (18) to be placed near the fi replace.
Connecting the forced-ventilation equipment:
- connect the switch to the fans by inserting connector
(M) into connector (F).
- connect the switch to the 230 VAC mains using the
plug (S).
Operation of the two-speed switch:
- to start the fans, set the switch to “manual” (first or
second speed as desired).
- to stop the fans set the switch to “automatic”
N.B.: in the “automatic” position, the fans operate
automatically when the air temperature is above 50°C,
to prevent damage from excessive heat, and then
they remain off at lower temperatures.

16
ENGLISH
INSTALLATION
Facings, gather hood and vents
Face the product only after having completed the
following steps:
• connection of the product to the smoke outlet and
air intake;
• inspection of the product when hot;
• check to verify whether the product is levelled.
The installer must implement all the installation good
practices and take all the necessary precautions
against overheating and fire.
In particular:
• if a plinth is constructed beneath the hearth level,
it must include a suitable slot for the passage of
recirculation air from the room;
• if the Air Diffuser Kit is installed, it must be possible
to inspect or replace the fans;
• wooden parts must be protected with fireproof
panels, which must not be placed against one
another but spaced at least 1 cm apart to enable air
to flow and prevent heat build-up. The gather hood
can be made with fireproof panels, plasterboard
or gypsum slabs; during construction, the hot air
ducting kit must be mounted as described above.
The interior of the gather hood should be aerated
by exploiting the flow of air coming from below (the
space between the door and mantel) which convective
currents will cause to exit from the grille on top,
thus allowing heat recovery and preventing undue
overheating.
In addition to that mentioned above, take into account
the regulations in force in the relevant country
concerning “insulation, finishes, facings and safety
recommendations”.
Compensation vents
These MUST be installed on the front: one beneath
and one above the firebox’s opening.

17
ENGLISH
VENTILATION FORCED
DESCRIPTION
The ventilation regulator for wood inserts allows speed
selection of the heated air (convection) emitted from
the fireplace into the environment.
Parameter Value Unit of
measurement
Power supply 230 +/- 15% Vac
Frequency 50/60 Hz
INSTALLATION
Only a qualified technician is authorised to carry out
the installation.
Power the “Control Unit” upstream with a
differential circuit breaker in accordance
with legislation in the country of installation.
Note for the installer.
An earth system is mandatory.
The retailer and the manufacturer are not
liable in the event of improper use.

18
ENGLISH
SMOKE DAMPER ADJUSTMENT:
in the event of diffi culty clearing the smoke (low draught), evacuation can be improved by adjusting the screw on the
damper control rod.
By turning the screw (clockwise) and closing the door, the damper will remain slightly inclined, helping the smoke to
fl ow out.
Ash tray:
during operation, it must always be completely closed; otherwise a “forge effect” is created with consequent damage
to the Firebox® structure and covering components.
USER INSTRUCTIONS
AIR LIMITATION:
• A “starter” (A) for ignition is provided on the product.
• adjustment lever (B).
To increase or decrease the combustion air supply to the chamber, adjust the air regulator with the provided removable
lever.
Position Description Effect
1 Ignition / maximum power Primary air sent entirely to the hearth
2 Intermediate position for normal combustion
3 Ember maintenance Post-combustion air only
(A)
(C)
(B)

19
ENGLISH
Lighting a cold fifi replace
1. Check the existing ash bed is not too high. If the
ash bed is too high, there is a danger of opening the
door of the fifi replace to add wood and possible
brazier fragments fall out of the fifi replace.
2. Position the adjustment lever of the valve in the “total
opening” position . The air for combustion will flfl ow
intensely to the wood in the fifi replace, to quickly reach
good combustion.
3. place the wood in the fifi replace without excessively
squashing it in. Position a fifi relighter between the
wood logs and light. Never user materials such as
petrol, alcohol and similar to switch on.
4. At this point, close the door and monitor it for a few
minutes. If the fifi re should extinguish, slowly open the
door, re-position another fifi relighter between the logs
and light again.
Lighting a hot fireplace
When should wood be added? When the fuel is
almost completely consumed to embers. With the
glove supplied, slowly open (to avoid formation of
vortexes that can cause smoke to exit) the door.
Add the desired wood to the fifi replace, locating it on
the existing embers (within the quality limits indicated
in the technical table).
Product functioning changes with the chimney flue
draft and adjustment of the air valve in combustion.
Functioning with initial low draft
To extract air for combustion and discharge the
smoke, the fifi replace needs a draft to be exerted on
the chimney flflue.
If the draft is weak, initially light a “starter” fifi re using
small sized lighting material.
Once the correct draft is restored, you can add the fuel.
As with all the products, the wood product heats and
cools during the various phases. This would lead to
normal dilation. Such dilation can cause slight settling
noise, which is not a reason for dispute.
USER INSTRUCTIONS
FUEL
The product was designed to burn wooden logs or
sawdust briquettes.
Use dry wood logs (max. humidity 20%)Use logs The
use of damp wood would cause the product and the
flue to get dirty, the risk of smoke and a lower yield
than that declared.Each type of wood has different
characteristics that also influence combustion yield.
The data outlined on this manual are with wood used
during certifi cation.
In general wood can have a heat of combustion up to
4.5 kWh/kg while cut fresh it has heat of combustion
around 2 kWh/kg
In general, beech or elm is recommended, or however
class A1 wood according to UNI EN ISO 17225-5
Attention to prolonged use of wood with aromatic oils
(e.g. eucalyptus). Cast iron parts can deteriorate
Use the recommended quantities of wood:
Overloading causes overheating, resulting in damage:
• possible deformation of the inner parts;
• possible irreversible changes to the colour of the
paint on the metal parts for which Edilkamin or the
retailer cannot be held liable.
To respect the environment and safety, do NOT burn,
among other things: plastic, varnished wood, coal and
bark waste.
Do not use the product as an incinerator.
Use of these fuels also nullifi es the guarantee.
First switch on phases
• Ensure you have read and understood the content
of this manual
• Remove all the inflfl ammable parts from the
product (manuals, labels, etc.). In particular
remove any labels from the glass. If they melt, they
would irreversibly damage the glass.
For initial switch on of the fifi replace, always use the
smallest logs. Use larger wooden logs to raise the fifi
re.
Always locate the wood deep in the fifi replace, al-
most in contact with the rear wall, so that even if they
slide they won’t come in contact with the glass.
There may be a slight smell of paint the fi rst few
times it is ignited, however, this will disappear quickly.
Use always the glove supplied to touch
hot parts.

20
ENGLISH
USER INSTRUCTIONS
FORCED VENTILATION (FIG. H)
This is achieved with the use of two fans (17)
inserted in the lower part of Firebox®, a temperature
thermostat housed next to one of the two fans and a
two-speed switch (18) to be placed near the fi replace.
Operation of the two-speed switch:
- to start the fans, set the switch to “manual” (first or
second speed as desired).
- to stop the fans set the switch to “automatic”
N.B.: in the “automatic” position, the fans operate
automatically when the air temperature is above 50°C,
to prevent damage from excessive heat, and then
they remain off at lower temperatures.
