Edimax ES-1008PL User manual

ES-1008PL / GS-1008PL
Quick Installation Guide
07-2014 / v1.0

1
COPYRIGHT
Copyright Edimax Technology Co., Ltd. all rights reserved. No part of
this publication may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical,
chemical, manual or otherwise, without the prior written permission from
Edimax Technology Co., Ltd.
Edimax Technology Co., Ltd. makes no representations or warranties,
either expressed or implied, with respect to the contents hereof and
specifically disclaims any warranties, merchantability, or fitness for any
particular purpose. Any software described in this manual is sold or
licensed as is. Should the programs prove defective following their
purchase, the buyer (and not this company, its distributor, or its dealer)
assumes the entire cost of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the
software. Edimax Technology Co., Ltd. reserves the right to revise this
publication and to make changes from time to time in the contents hereof
without the obligation to notify any person of such revision or changes.
The product you have purchased and the setup screen may appear
slightly different from those shown in this QIG. The specification is subject
to change without notice. Please visit our web site www.edimax.com for
the update. All brand and product names mentioned in this manual are
trademarks and/or registered trademarks of their respective holders.
Edimax Technology Co., Ltd.
Add: No. 3, Wu-Chuan 3rd Rd., Wu-Ku Industrial Park, New Taipei City,
Taiwan
Tel: [phone]
Email: [e-mail]

2
PRODUCT INTRODUCTION
Model no.:
ES-1008PL: 8-Port Fast Ethernet PoE+ Switch
GS-1008PL: 8-Port Gigabit Ethernet PoE+ Switch
Package Contents
Before you start using this router, please check if there is anything missing
in the package, and contact your dealer to claim the missing item(s):
PoE switch x 1pcs
Quick installation guide x 1pcs
Power cord x 1pcs
Rubber feet x 4pcs
Rack-mount brackets and screws x 1 set
Safety Precautions
To avoid any device damage and bodily injury caused by improper use,
please observe the following rules.
*Keep the power off during the installation.
*Wear an ESD-preventive wrist strap, and make sure that the wrist strap
has a good skin contact and is well grounded.
*Use only the power cord provided with the Switch.
*Make sure that the supply voltage matches the specifications indicated
on the rear panel of the Switch.
*Ensure the vent hole is well ventilated and unblocked.
*Do not open or remove the cover of the Switch.
*Before cleaning the device, cut off the power supply. Do not clean it by
the waterish cloth, and never use any other liquid cleaning method.

3

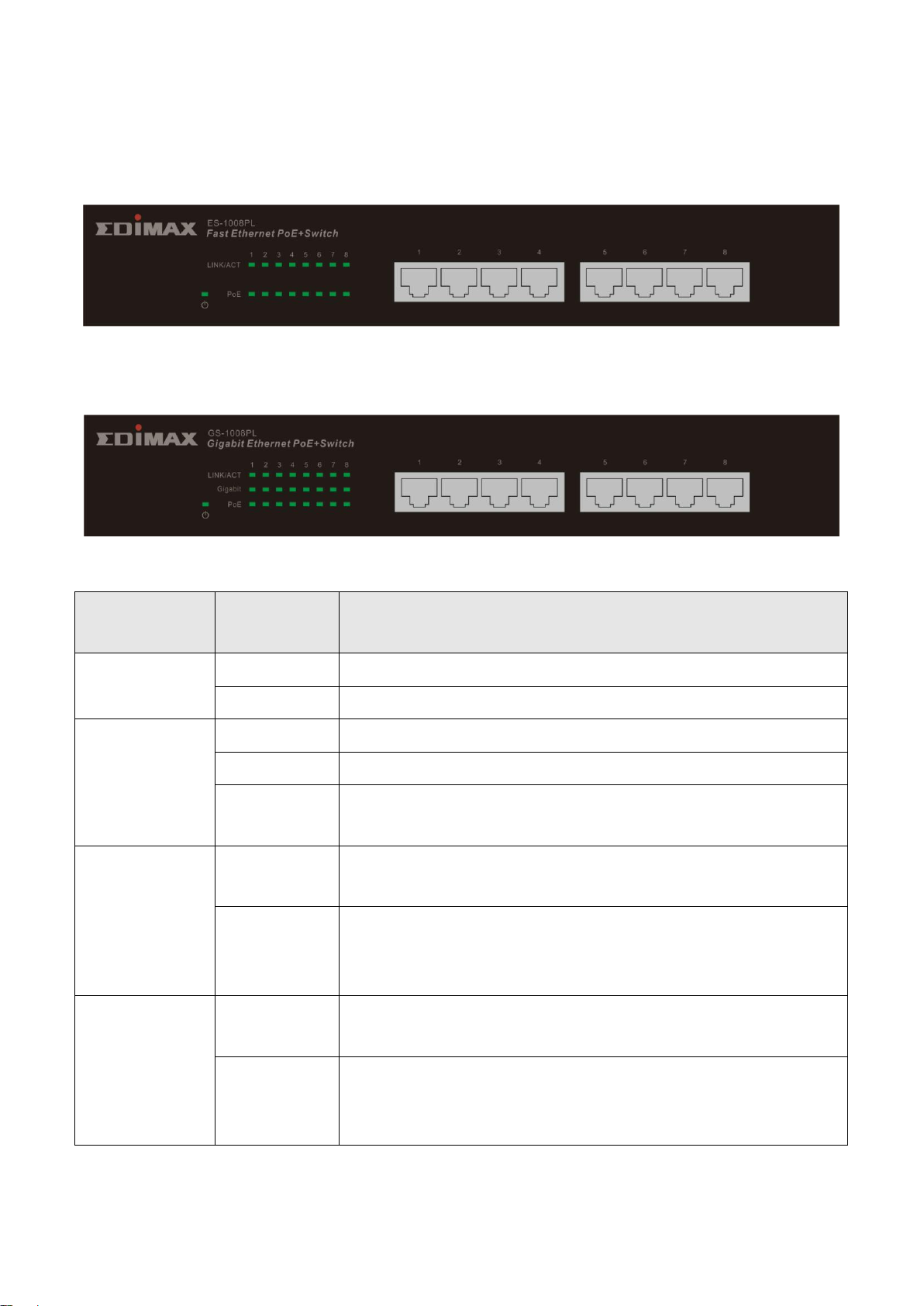

Front Panel
Please refer to the following description for the front panel:
*ES-1008PL
*GS-1008PL
LED Definitions:
LED Name
Light
Status
Description
PWR
On
Switch on and correctly powered
Off
Switch not powered or not correctly powered
LINK/ACT
On
The port connected
Off
The port not connected
Flashing
The port is activating and transferring /receiving
data.
Gigabit
(GS-1008PL)
On
There is a 1000Mbps device connected to the
corresponding port.
Off
There is a 10/100Mbps device connected to the
corresponding port, or there is no device
connected to the corresponding port.
PoE
On
There is a PoE PD connected to the port, which
supply power successfully.
Off
No PD is connected to the corresponding port,
or no power is supplied according to the power
limits of the port.

4
Back Panel:
Power Connector:
Plug in the female connector of the provided power cord into this AC LINE
socket, and the male into a power outlet. Supported input voltages range
from 100-240V AC, and 50-60 Hz.

5
Product Specifications:
Note:
* PoE budget: Up to 30 Watts max per port, 75 Watts Total
* Please ensure you do not exceed the PoE power budget and overload the PoE switch.
For example:
7.7W
15.4W
30W
Max. PoE ports (up to)
8 ports
4 ports
2 ports
* Make sure the PDs that you connected to the Switch are compliant with IEEE802.3af/IEEE802.3at
standard.
Model
ES-1008PL
GS-1008PL
Standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3af/802.3at PoE
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient
Ethernet
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3af/802.3at PoE
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient
Ethernet
Interface
RJ-45
8 ports
8 ports
PoE
8 ports
8 ports
MAC Address
1K
8K
Buffer Memory
96KB
128KB
Jumbo Frames
N/A
9K
Total Power budget
80W
150W
80W
150W
Power Consumption
5 Watts (Max. no PD connected)
Dimensions
280 x 179 x 44.5 (L x W x H)
Weight
1.5 kg
Operating
Temperature
0 to 40℃
Storage Temperature
-40 to 70℃
Humidity
Operating:10 to 90% RH (non-condensing)

6
1. PRODUCT INSTALLATION
There are two ways to install your switch, please select one that
suits you.
2. Desktop Installation
1. Install the switch on a level surface that can support the
weight of the unit and the relevant components, and attach
the rubber feet to the bottom. The rubber feet cushion the
switch and helps protect the case from scratches.
2. Plug the switch into an electrical source with the provided power
cord.
3. Rack-Mount Installation
Rack mounting allows for a more orderly installation
when a series of network devices is being installed.
1. Disconnect all the cables from the switch.
2. Place the unit the right way up on a hard, flat surface with the
front facing you.
3. Position a mounting bracket over the mounting holes on one
side of the unit.
4. Insert the screws and fully tighten with a suitable screwdriver.
5. Repeat the two previous steps for the other side of the unit.
6. Insert the unit into the rack and secure with suitable screws
7. Reconnect all the cables.
Regarding the installation environment, we strongly recommend:
1. The switch should be placed in an appropriately ventilation
environment. A minimum 25 mm space around the unit is
recommended.
2. The switch and the relevant components should be kept away from
sources of electrical noise such as radios, transmitters and
broadband amplifiers.
3. Avoid environments with higher than recommended moisture levels.

7
Troubleshooting
1. Power LED is not lit
Check if the power cord is properly connected to the plug and the
power outlet; make sure the power cord is firmly plugged into the
power socket of the switch.
2. LINK/ACT LED is not lit when connected to devices
Make sure the network device attached to the switch is turned on.
Make sure the network cable is properly connected to the switch
and the network device.
Make sure the network cable is a UTP cable that complies with
EIA/TIA 568 and Category 5 specifications.
[!] Contact your dealer if problem persist.

8
Appendix: The standard RJ-45 Introduction
RJ45 Pin:
Below is an indication of a standard RJ-45 socket and plug, and definition
for the pins.
RJ-45 Connector pin signal:
RJ-45 Connector pin signal
Pin no.
MDI-II signal
MDI-X signal
1
TX+
RX+
2
TX-
RX-
3
RX+
TX+
4
POE -
POE -
5
POE -
POE -
6
RX-
TX-
7
POE +
POE +
8
POE +
POE +
The following shows straight cable and crossover cable connection,
ordinary please use straight cable to connect switch/Hub or other devices:
Straight cable for the switch (uplink MDI-II port) to switch/Hub or other
devices connection
Cross over cable for switch (MDI-X port) to switch/hub or other network
devices (MDI-X port) connection.

9
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4. Consult the dealer or an experienced radio technician for help.
FCC Caution
This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the authority to operate equipment.

10
CE Mark Warning
This is a class B product. In a domestic environment this product may cause radio interference in which case
the user may be required to take adequate measures.
EU Declaration of Conformity
English: This equipment is in compliance with the essential requirements and other relevant provisions
of Directive 2004/108/EC and 2006/95/EC
Français: Cet équipement est conforme aux exigences essentielles et autres dispositions de la directive
2004/108/EC and 2006/95/EC
Čeština: Toto zařízení je v souladu se základními požadavky a ostatními příslušnými ustanoveními
směrnic 2004/108/EC and 2006/95/EC
Polski: Niniejszym (Edimax) oświadcza, że (ES-3305P / ES-3308P/ ES-3116P) jest zgodne z zasadniczymi
wymaganiami oraz innymi stosownymi postanowieniami dyrektywy 2004/108/EC and
2006/95/EC
Română: Acest echipament este în conformitate cu cerinţele esenţiale şi alte prevederi relevante ale
Directivei 2004/108/EC and 2006/95/EC
Русский: Это оборудование соответствует основным требованиям и положениям Директивы
2004/108/EC and 2006/95/EC
Magyar: Ez a berendezés megfelel az alapvető követelményeknek és más vonatkozó irányelveknek
(2004/108/EC and 2006/95/EC)
Türkçe: Bu cihaz 2004/108/EC & 2006/95/EC direktifleri zorunlu istekler ve diğer hükümlerle ile
uyumludur.
Українська: Обладнання відповідає вимогам і умовам директиви 2004/108/EC and 2006/95/EC
/108/EC
Slovenčina: Toto zariadenie spĺňa základné požiadavky a ďalšie príslušné ustanovenia smerníc
2004/108/EC and 2006/95/EC
Deutsch: Dieses Gerät erfüllt die Voraussetzungen gemäß den Richtlinien 2004/108/EC and 2006/95/EC
Español: El presente equipo cumple los requisitos esenciales de la Directiva 2004/108/EC and
2006/95/EC
Italiano: Questo apparecchio è conforme ai requisiti essenziali e alle altre disposizioni applicabili della
Direttiva 2004/108/EC and 2006/95/EC
Nederlands: Dit apparaat voldoet aan de essentiële eisen en andere van toepassing zijnde bepalingen van
richtlijn 2004/108/EC and 2006/95/EC
Português: Este equipamento cumpre os requesitos essênciais da Directiva 2004/108/EC and 2006/95/EC
Norsk: Dette utstyret er i samsvar med de viktigste kravene og andre relevante regler i Direktiv
2004/108/EC and 2006/95/EC
Svenska: Denna utrustning är i överensstämmelse med de väsentliga kraven och övriga relevanta
bestämmelser i direktiv 2004/108/EC and 2006/95/EC
Dansk: Dette udstyr er i overensstemmelse med de væ sentligste krav og andre relevante forordninger
i direktiv 2004/108/EC and 2006/95/EC
Suomi: Tämä laite täyttää direktiivien 2004/108/EY &2006/95/EC oleelliset vaatimukset ja muut
asiaankuuluvat määräykset.
-----------------------------------------------------------------------------------------------------------------
WEEE Directive & Product Disposal
At the end of its serviceable life, this product should not be treated as household or general waste.
It should be handed over to the applicable collection point for the recycling of electrical and
electronic equipment, or returned to the supplier for disposal.

11
Declaration of Conformity
We, Edimax Technology Co., LTD., declare under our sole responsibility, that the
equipment described below complies with the requirements of the European Council
directive (2004/108/EC and 2006/95/EC).
Equipment : 8-Port Fast / Gigabit PoE+ Switch
Model No. : ES-1008PL / GS-1008PL
The following European standards for essential requirements have been followed:
EMC
:
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006 + A2:2009
EN 61000-3-3:2008
Safety (LVD)
:
EN 60950-1 :
2006+A11:2009+A1:2010+A12:2011
Edimax Technology Co., Ltd.
No. 3, Wu Chuan 3rd Road,
Wu-Ku Industrial Park,
New Taipei City, Taiwan
Date of Signature:
July, 2014
Signature:
Printed Name:
Albert Chang
Title:
Director
Edimax Technology Co., Ltd.

12
