Edwards STP-iXR1606 User manual

MT-79E-001-D
STP Series Turbomolecular Pumps
STP-iXR1606
(Issue 1-d)
Instruction Manual
Copyright 2014 Edwards Japan Limited. All rights reserved. Printed in Japan.
Read through the Safety Precautions and
each section of this Manual carefully before
using the STP pump.
Keep this Manual in a place where you can
quickly access it at any time.
July
2014
Original Instructions

This product has been manufactured under a quality system registered to ISO9001
Declaration of Conformity
We,
Manufacture: Edwards Japan Limited
1078 1, Yoshihashi, Yachiyo shi, Chiba, 276 8523, Japan
EU Representative: Edwards Limited
Manor Royal, Crawley, West Sussex, RH10 9LW, UK
declare under our sole responsibility, as manufacturer and person within the EU authorised to
assemble the technical file, that the product(s)
Product Name: Turbomolecular pump
Model Number: STP iXR1606 series
Accessories Covered: Display Unit: iDT 001,
Communication Interface (Profibus, Device Net)
to which this declaration relates is in conformity with the following standard(s) or other normative
document(s)
EN12100:2010 Safety of machinery. General principles for design.
Risk assessment and risk reduction.
EN1012 2:1996, A1:2009 Compressors and Vacuum Pumps.
Safety Requirements. Vacuum Pumps
EN61010 1:2010 Safety Requirements for Electrical Equipment for Measurement,
Control and Laboratory Use. General Requirements
EN61326 1:2006 Electrical equipment for measurement, control and laboratory Use.
EMC requirements. General requirements
(Immunity: Industrial locations, Emission: Class A)
EN61000 6 2:2005 Electromagnetic compatibility (EMC). Generic standards.
Immunity for industrial environments
EN55011:2009, A1:2010 Industrial, scientific and medical equipment Radio frequency
disturbance characteristics (Group1, Class A)
EN50581:2012 Technical Documentation for the Assessment of Electrical and Electronic
Products with respect to the Restriction of Hazardous Substances
and fulfils all the relevant provisions of
2006/42/EC Machinery Directive
2006/95/EC Low Voltage Directive
2004/108/EC Electromagnetic Compatibility (EMC) Directive
2011/65/EU* Restriction of Certain Hazardous Substances (RoHS) Directive
* i.e. The product(s contain less than - 0.1wt% for hexavalent chromium, lead, mercury, PBB and PBDE; 0.01wt% for
cadmium - in homogeneous materials (subject to the exemptions allowed by the Directive . The RoHS Directive does not
legally apply to industrial vacuum equipment until July 2019 (July 2017 for instruments .
Note: This declaration covers all product serial numbers from the date this Declaration was
signed onwards.
VI
-
DOC
-
79
-
00
3
M
anufacture:
Y
uji Kato, TMP Technical Senior Manager
,
Edwards Japan Limited
3
1
th
July. 2013,
Yachiyo
Date and Place
EU representative:
Ian Stones
,
Director of
Technology, Edwards Limited
5
th
August
. 20
13
, Burgess Hill
Date and Place

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page i
PAGE
i
CONTENTS
Section Title Page
1 INTRODUCTION 1
1.1 Scope and definitions 1
1.2 Applied standards 2
1.3 Limited warranty 3
1.3.1 Warranty period 3
1.3.2 Item warranted 3
1.3.3 Disclaimer 4
1.3.4 Spare parts 4
1.4 Precautions for safe operation of the STP pump 5
1.4.1 Usable gases 5
1.5 Maintenance and inspection precautions 6
1.6 Labels 6
1.7 Operation principle of the STP pump 8
1.8 STP pump specification 10
2 TECHNICAL DATA 11
2.1 STP pump specifications 11
2.2 Maximum gas flow-rate 12
2.3 Water cooling use condition 13
2.4 Control unit 14
2.5 External appearance of the STP pump 16
2.6 Label affixing positions 17
3 INSTALLATION OF THE STP PUMP 19
3.1 Precautions before installation 19
3.1.1 Operating environment 19
3.1.2 Installation area 21
3.1.3 Bench 22
3.1.4 Insulation test 22
3.2 Unpacking and installation 23
3.3 Name and function of each part 27
3.3.1 Name and function of the pump 27
3.3.2 Name and function of the control unit 28
3.4 How to install the STP pump 31
3.4.1 Cleaning the seal 32
3.4.2 STP pump installation positions 33
3.4.3 Secure the STP pump 34
3.4.4 Legs for securing the base 38
3.4.5 Power cable 39
3.4.6 How to connect the power cable 41
3.5 Precautions of vacuum piping 43
3.5.1 Vacuum piping method 44
3.6 Introducing N2gas
(for the STP pump equipped with purge port) 44
3.7 Connecting the water cooling pipe 45
3.8 Attaching a baking heater 46

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page ii
PAGE
ii CONTENTS (CONTINUED)
Section Title Page
3.9 Connecting to semiconductor equipment 47
3.9.1 Connecting to power 47
3.9.2 Emergency off circuit (EMO circuit) 47
4 OPERATION 49
4.1 Gas pumping, cooling and baking the STP pump 49
4.1.1 Gas pumping 49
4.1.2 How to introduce a purge gas 50
4.2 Cooling the STP pump 50
4.2.1 Water-cooling method 50
4.3 Baking the STP pump 51
4.4 Before starting the STP pump 52
4.4.1 Confirmation before starting 52
4.4.2 Confirmation of vacuum system 52
4.5 Powering ON 53
4.6 Pump operation 53
4.6.1 Input operation port setting 53
4.6.2 Starting/stopping the STP pump 54
4.7 How to start/stop the STP pump 55
4.7.1 Starting the STP pump after stopping 55
4.7.2 Starting the STP pump after a safety function operates 55
4.7.3 Powering OFF 55
4.8 LED 56
4.9 Parallel port input/output signal 57
4.9.1 Input signal pins 57
4.9.2 Input operation port setting 61
4.9.3 Rotation INHIBIT signal 62
4.9.4 Second speed option 63
4.9.5 Output signal pins 64
5 SERIAL COMMUNICATION PROTOCOL 69
5.1 Introduction 69
5.2 Connection and setting up 70
5.2.1 Signal connection 70
5.2.2 Connecting the RS485 72
5.2.3 Communication parameter setting 73
5.2.4 Input operation port setting 74
5.2.5 Serial communication timeout setting 75
5.2.6 Recommended items about communication cable installation 76
5.3 Protocol specifications 79
5.3.1 General description 79
5.3.2 Standard transmission frame
(in the RS232/RS485 single point connection) 80
5.3.3 Control command
(in the RS232/RS485 single point connection) 81
5.3.4 Query command
(in the RS232/RS485 single point connection) 82

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page iii
PAGE
iii
CONTENTS (CONTINUED)
Section Title Page
5.3.5 Transmission data format 83
5.3.6 Frame control (checksum) 84
5.3.7 Error control 84
5.3.8 Transmission frame in the RS485 multi-point connection 84
5.3.9 Control command in the RS485 multi-point connection 86
5.3.10 Query command in the RS485 multi-point connection 87
5.3.11 Broadcasting command in the RS485 multi-point connection 88
5.3.12 Application note 89
5.4 Command specifications 93
5.4.1 Command list 93
5.4.2 ReadMeas 94
5.4.3 Command 94
5.4.4 ReadFailMess 95
5.4.5 ReadModFonct 99
5.4.6 ReadVersion 101
5.4.7 ReadCounters 102
5.4.8 ReadSetPoint 103
5.4.9 ReadMotorTemp 103
5.4.10 ReadStatus 104
5.4.11 ReadEvents 105
5.4.12 SetSpeedSetPoint 106
5.4.13 ReadSpeedSetPoint 107
5.4.14 ReadModFonctWithWarning 108
5.4.15 ReadMeasValue 111
5.4.16 ReadOptionFunc 113
5.4.17 SetOptionFunc 116
5.4.18 ReadCondition 118
5.4.19 ReadEventsWithTime 120
5.4.20 SetOptions 124
5.4.20.1 Second speed option setting 124
5.4.20.2 Second speed selection 125
5.4.21 ReadOptions 126
5.4.21.1 Second speed function setting 126
5.4.21.2 Second speed select 127

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page iv
PAGE
iv CONTENTS (CONTINUED)
Section Title Page
6 STP-LINK AND DISPLAY UNIT 129
6.1 STP-Link 129
6.2 Display unit 130
7 SAFETY FUNCTIONS 131
7.1 Safety functions 131
7.1.1 Power Failure 131
7.1.2 Operation after a power recovery 132
7.1.3 Abnormal state of magnetic bearing (Disturbance) 133
7.1.4 Excessive vibration (Disturbance) 133
7.1.5 Motor driver overload (DRV Overload) 133
7.1.6 Overheating inside the STP pump (MOTOR Overheat) 133
7.1.7 Overheating inside the control unit (CNT Overheat) 133
7.1.8 Overspeed 134
7.2 "WARNING" function 134
7.2.1 "WARNING" function 134
7.3 Contents of WARNING function 136
7.3.1 First Damage limit 136
7.3.2 Second Damage Limit 136
7.3.3 Pump run time over 136
7.3.4 Pump Overload 137
7.3.5 Imbalance 137
7.4 WARNING function setting 138
7.5 Troubleshooting immediately after failure occurs 139
7.5.1 After power failure 139
7.5.2 After other abnormality/error 139
7.6 Troubleshooting 140
7.6.1 Indication of "FAILURE" LED (red) 140
7.6.2 Indication of "FAILURE" LED (green) 147
7.6.3 No Indication of the "FAILURE" LED 147
8 MAINTENANCE AND INSPECTION 149
8.1 Maintenance and inspection 149
8.2 Cleaning 150
8.3 Inspecting the deposit 150
8.4 Maintenance 151
8.4.1 Recommended overhaul intervals 151
8.4.2 Standard replacement parts 151
8.4.3 Recommended maintenance intervals for main parts 152
8.5 Transporting for repair or overhaul 153

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page v
PAGE
v
CONTENTS (CONTINUED)
Section Title Page
9 STORAGE AND DISPOSAL 155
9.1 Storage of the STP pump 155
9.2 Disposal 156
10 SERVICE, SPARES AND ACCESSORIES 157
10.1 Introduction 157
10.2 Service 157
10.3 Spares 157
10.4 Accessories 158

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page vi
PAGE
vi ILLUSTRATIONS
Figure Title Page
1 STP pump installation warning label 6
2 Hot surface warning label 6
3 Heavy product caution label 7
4 High voltage device caution label 7
5 Rotation instruction label 8
6 Cross sectional view of the STP pump 8

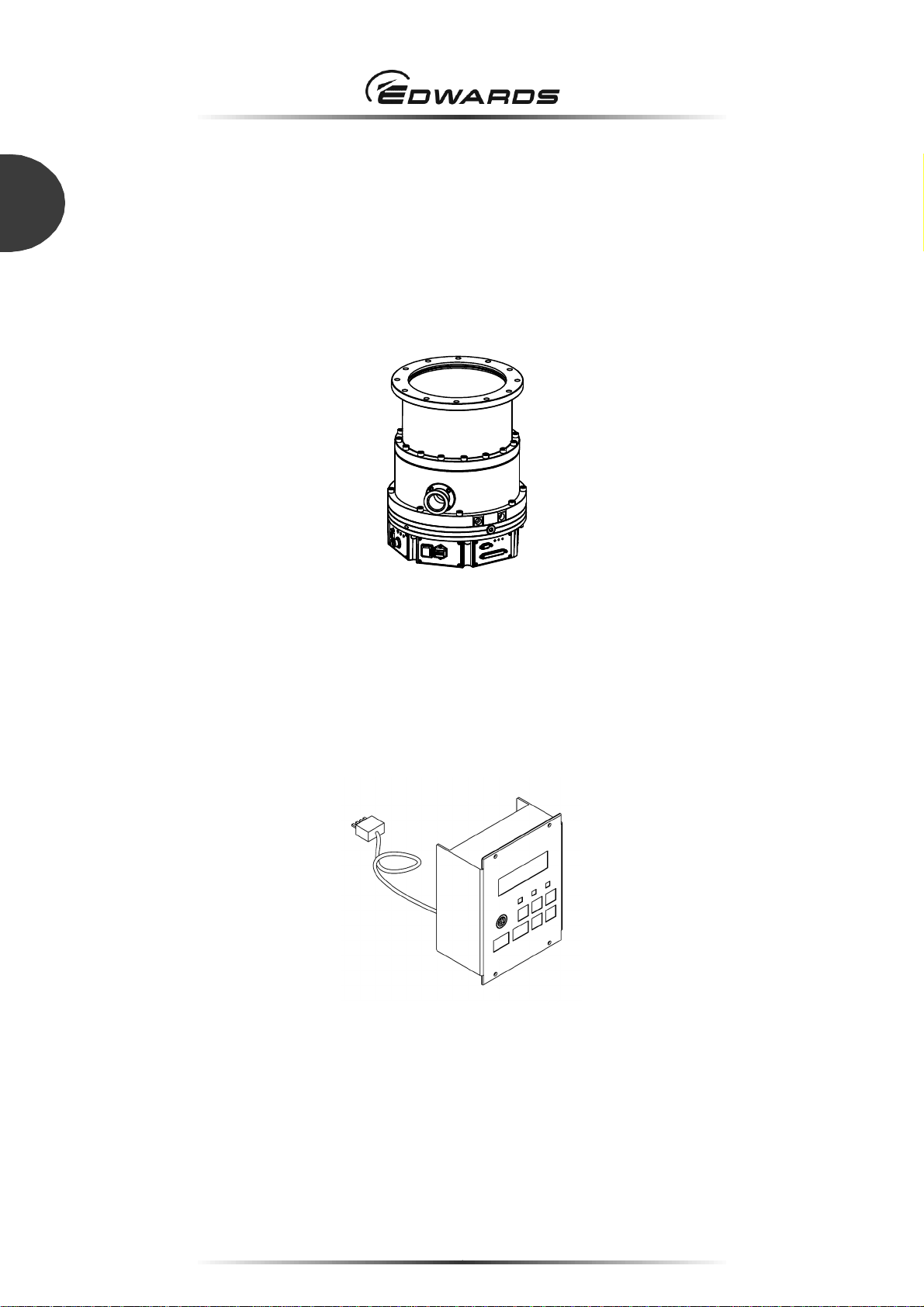

7 External appearance of STP-iXR1606 16
8 Label affixing positions 17
9 Space around the STP pump 21
10 Example of lifting the STP pump 23
11 Example of lifting the STP pump (horizontal positioning) 24
12 Jack-up the STP pump 25
13 Control unit bottom face 25
14 STP pump with eyebolts 26
15 Configuration of the STP pump 27
16 Control unit (Front panel) 28
17 Installation of the STP pump to the vacuum equipment 31
18 STP pump installation positions 33
19 Positions of the outlet port on the horizontally
or slanted installed STP pump 33
20 Bolt position for securing the flange 37
21 Methods of securing the STP pump 37
22 Screw holes for securing the base 38
23 Power cable 39
24 Connecting method of the power cable 40
25 Height of purge port 44
26 Positions of the cooling water port 45
27 Baking heater installation position 46
28 Pump operation method 1 54
29 Pump operation method 2 54
30 "ROTATION" LED Indication 56
31 X2 REMOTE connector 57
32 X2 REMOTE input signal pins (contact input) 60
33 X2 REMOTE output signal pins 66
34 Serial port 69
35 X3/X4 connector (D-Sub9) 71
36 RS485 connections 72
37 Grounding example (Both ends grounding) 76
38 Grounding example (single point grounding) 76
39 Example of ring ferrite core installation 77
40 Example of cable installation in metallic duct 77
41 Example of differential signal waveform 78
42 PC to SIM communication 79
43 Block diagram of communication process example 89
44 Example of answer resending process 90
45 Example of response when the command is sent continuously 90
46 Example of command sending during answer data reply 90
47 Example of communication cycle process 91
48 Example of command sending process 92
49 Example of answer receiving process 92

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page vii
PAGE
vii
ILLUSTRATIONS (CONTINUED)
Figure Title Page
50 Display unit iDT-001 130
51 WARNING output 135
52 Failure output 140

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page viii
PAGE
viii TABLES
Table Title Page
1 Environmental requirements for installation 20
2 Eyebolt size 23
3 Pump functions 27
4 Control unit front panel functions 29
5 Control unit front panel functions (continued) 30
6 Tightening torque of bolt 34
7 Maximum torque predicted
and recommended securing bolt for inlet port flange 35
8 Power cable 39
9 Starting/stopping the STP pump (X2 REMOTE) 54
10 Reset Operation (X2 REMOTE) 55
11 LED Indications for each state 56
12 X2 REMOTE input signal pins 58
13 X2 REMOTE input signal pins (continued) 59
14 Input operation port setting 61
15 Rotation INHIBIT signal input 62
16 Second speed function 63
17 X2 REMOTE output signal pins 65
18 X2 REMOTE output signal pins (continued) 66
19 Rated contacts for relays CR1 to CR8 67
20 X3/X4 pin position 70
21 Communication parameters 73
22 Input operation port 74
23 Serial communication time out setting 75
24 Transmission control characters 80
25 Pump operation commands 88
26 Command list 93
27 Pump operation commands 95
28 Error message values 97
29 Error message values (continued) 98
30 Pump operation mode 100
31 Remote mode 105
32 Warning value bit assign 109
33 Parameter setting value 114
34 Option function number and parameter list 124
35 Option function number and parameter list 126
36 Functions of STP-Link 129
37 States of LEDs and X2 REMOTE output signals
at power failure 132
38 WARNING function 134
39 Default setting of WARNING function 138
40 Factory Setting and Variable Range 138
41 Priority of failure signal 140
42 Error List 141
43 Error List (continued) 142
44 Error List (continued) 143
45 Error List (continued) 144
46 Error List (continued) 145
47 Error List (continued) 146
48 Troubleshooting with no indication of the "FAILURE" LED 147

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 1
INTRODUCTION
1
1 INTRODUCTION
1.1 Scope and definitions
This manual provides installation, operation and maintenance instructions for the Edwards
Turbomolecular Pump (abbreviated to "STP pump" throughout this manual). You must use the STP
pump as specified in this manual otherwise the protection provided by the equipment may be
impaired.
Important safety information is highlighted as WARNING and CAUTION instructions; these
instructions are mandatory. The use of WARNINGS and CAUTIONS is defined below:
WARNING
Warnings are given where failure to observe the instruction could result in serious injury
or death to people.
CAUTION
Cautions are given where failure to observe the instruction could result minor personal injury in
damage to the equipment, associated equipment and/or process.
Note: Items you must follow during operation and maintenance.
Throughout this manual, page, figure and table numbers are sequential.
The units used throughout this manual conform to the SI international system of units of
measurement; US equivalent units of measurement are also given.
The following IEC warning labels/symbols appear on the STP-iXR1606 Turbomolecular Pump and
the STP Pump Instruction Manual:
Warning - This symbol denotes general warning
Refer to accompanying documentation and instruction manual.
Warning - Hazardous Voltage
This symbol denotes the risk of electrical shock.
Warning - Heavy object
This symbol denotes the risk of low back pain and fall.
Warning - Hot surface
This symbol denotes the risk of burns.

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 2
INTRODUCTION
1
Note: An alarm function is incorporated into this STP series. Alarm and cautionary messages are
displayed on the LCD of the display unit iDT-001 (optional accessory). Note that the words
"WARNING" and "CAUTION" displayed on the LCD indicate the need for overhaul of the
pump or precautions during the operation. They do not have the same meaning as the much
more serious symbols for "WARNING" and "CAUTION" used in the instruction manual.
1.2 Applied standards
The STP pump conforms to the following directives and standards:
1. Applied Directives
EC Machinery Directive
EC Electromagnetic Compatibility Directive
EC Low Voltage Directive
2. Applied Standards
EN12100
EN1012-2
EN61010-1
EN61326-1 (Class A)
EN61000-6-2
EN55011
UL61010-1, 2nd Edition (Electrical Equipment for Measurement, Control, Laboratory Use)
SEMI S2-0310
* i.e. The product(s) contain less than - 0.1wt% for hexavalent chromium, lead, mercury, PBB and PBDE; 0.01wt% for
cadmium - in homogeneous materials (subject to the exemptions allowed by the Directive). This information relates
only to products sold on or after the date of this certificate. Edwards has taken all reasonable steps to confirm this
statement, which is based mainly on information from our suppliers. Whilst the RoHS Directive does not legally apply
to this vacuum equipment, we recognize that component compliance is relevant to many of our customers.

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 3
INTRODUCTION
1
3. Electromagnetic compatibility
This product is a class A product according to EN61326, and a group 1, class A product
according to EN 55011.
This means that this product does not generate and/or use intentionally radio-frequency energy,
in the form of electromagnetic radiation, inductive and/or capacitive coupling, for the treatment
of material or inspection / analysis purpose and that it is suitable for use in all establishments
other than domestic and those directly connected to a low voltage power supply network which
supplies buildings used for domestic purposes.
This product may have potential difficulties in ensuring electromagnetic compatibility in other
than industrial environments, due to conducted as well as radiated disturbances.
This product must not be used in residential areas because it may cause interference if used in
residential areas.
1.3 Limited warranty
This WARRANTY applies to the customer to whom Edwards has delivered this product.
1.3.1 Warranty period
Edwards warrants this product against defects for a period of two (2) years from the date of delivery
or during the period specified in the agreement made by and between the customer and Edwards.
1.3.2 Item warranted
1. This warranty applies only to the product delivered from Edwards to the customer.
2. If any defect is found during this period, Edwards will, at its option, repair or recondition the
product free of charge. The costs for repair or replacement of the product after the warranty
period has passed will be at your own charge.

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 4
INTRODUCTION
1
1.3.3 Disclaimer
Edwards makes no warranty with respect to any damage occurred due to any of the following during
the warranty period:
1. Handling, operation or maintenance other than that specified herein.
2. Failure to follow any of the warnings or cautions enumerated in this manual.
3. Installation, operation or maintenance using parts which are not specified by Edwards.
4. Maintenance personnel other than those authorized by Edwards or Service office have
disassembled, reconditioned, or tampered the product.
5. Defect resulting from the not-specified use of the product.
6. When the product is used under special conditions without obtaining the written consent of
Edwards (particular gases, strong magnetic field and the radiation are added to the product).
7. Defect resulting from deposit.
8. Water cooling system defect resulting from water quality used.
9. Defect resulting from the installation of the product (exclude the installation by authorized
personnel).
10. Deterioration in the external because of use (discoloration, scratches and so forth).
11. Product damage occurred during transport or other factors not attributable to Edwards.
12. Product breakage or damage due to natural disasters, fire or other external factors.
13. Deterioration in the basic performance due to the use of the product beyond limits of the use.
14. Any direct, incidental or consequential damage resulting from the use of the product.
15. When continuously operated without overhaul after the WARNING indication on the "Failure"
LED of the control unit or the LCD ("WARNING" message) of the display unit iDT-001.
16. Overhaul and replacement of maintenance parts.
1.3.4 Spare parts
Touch down bearing.
Touch down bearing should be replaced at Edwards, contact Edwards.

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 5
INTRODUCTION
1
1.4 Precautions for safe operation of the STP pump
1.4.1 Usable gases
The STP-iXR1606 is non-corrosion resistant type. Therefore, it cannot use the following gases
including chlorine and fluorine system gases.
Gases including alkaline metals except Li gas.
Gases including Ga, Hg, In, or Sn.
HBr gas.
WARNING
To prevent an accident, confirm the characteristics of gases to be used, referring to the
Material Safety Data Sheet (MSDS) you obtain from the gas supplier, and, keep MSDS
and a safety advice of gas supplier.
WARNING
Warn of the danger of the gas with the warning label when the use gas is hazardous
chemical material.
WARNING
Secure safety by wearing personal protective equipment when using the gas which
might influence damage health. In addition, take appropriate measure for depending
upon the properties of the gas to be used.
CAUTION
NEVER use any gas that is not specified as usable in this Manual. The use of such gas may
corrode the STP pump and damage it.
CAUTION
Introduce a dry N2gas (purge gas) to protect the inside of the STP pump when using gases
including hydrogen. The use of these gases may result in product damage.
CAUTION
The STP-iXR1606 is non-corrosion resistant type. Therefore, the use of corrosive gases and active
gases (radical gases) may damage Advanced Composite Materials (ACM) used in the part of rotor.
Note that the costs for repair of the product will be at the customer's own charge.

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 6
INTRODUCTION
1
1.5 Maintenance and inspection precautions
Perform any maintenance or inspection of the STP pump under the condition that no power is
applied to the STP pump (refer to SEMI S2 Section 13.2 - type 1), following Section 8,
"MAINTENANCE AND INSPECTION".
1.6 Labels
The following labels are affixed to the STP pump. Read the contents of the labels before operation.
1. STP pump installation warning label
This label describes installation of the STP pump. Install the STP pump according to the
precautions. Install the STP pump according to the precautions of Section 3, "INSTALLATION
OF THE STP PUMP".
Figure 1 - STP pump installation warning label
2. Hot surface warning label
This label instructs operators so as not to touch the hot surface of the baking heater.
The baking heater may lead to a considerable rise in temperatures outside of the STP pump.
(only with baking heater)
Figure 2 - Hot surface warning label

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 7
INTRODUCTION
1
3. Heavy product caution label
This label is affixed to the product with a weight of 18 kg or more. Follow the precautions of
Section 3.2, "Locate the STP pump" so as not to cause any accident during handling.
Figure 3 - Heavy product caution label
4. High voltage device caution label
The pump and control unit are equipped with a high voltage device. This label warns operators
to pay attention to the high voltage device at the maintenance and inspection.
Figure 4 - High voltage device caution label
5. Rotational direction instruction label
This label describes the rotational direction of the STP pump. The STP pump rotates in this
direction.
Figure 5 - Rotation instruction label

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 8
INTRODUCTION
1
1.7 Operation principle of the STP pump
Turbomolecular pump (abbreviated to "STP pump" throughout this manual) is used for high vacuum
pumping. It is principally used for manufacture and inspection equipment of semiconductor, flat panel,
solar battery.
The STP pump (Figure 6) is configured so that rotor blade (1) and stator blade (2) are aligned
alternately in the axial direction. Gas molecules are pumped from the inlet port to the outlet port by
the high speed rotation of the rotor.
The STP-iXR1606 pump is a magnetically-levitated turbomolecular pumps, each with the following
features:
1. Oil free
2. Low vibration
3. High reliability
4. Compact size (Integrated control unit)
5. Dust and water protection
1. Rotor blade 4. Radial electromagnet 7. Touch down bearing
2. Stator blade 5. Axial sensor 8. Control unit
3. Radial sensor 6. Axial electromagnet
Figure 6 - Cross sectional view of the STP pump
1
2
4
6
7
3
3
5
8

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 9
INTRODUCTION
1
1. Oil free
Rotor blade (1) is supported by the magnetic bearing without mechanical contact. Therefore, the STP
pump requires no lubrication oil unlike conventional turbomolecular pumps using ball bearings.
2. Low vibration
The magnetic bearing consists of 5 pairs of active magnetic bearings. The rotor is supported in the
radial direction by 4 pairs of radial direction active magnetic bearings that consist of radial sensor (3)
and radial electromagnet (4). A pair of axial direction active magnetic bearings consists of axial
sensor (5) and axial electromagnet (6) to support the rotor in the axial direction. Because the rotor is
supported without mechanical contact, it can rotate at low vibration.
3. High reliability
There is no periodic replacement of magnetic bearings unlike conventional turbomolecular pumps
using ball bearings because there is no friction. Taking into consideration a breakage of magnetic
bearings, touch down bearings (7) have been installed. They do not contact with the rotor during the
rated operation. The status of the rotor and magnetic bearing is continuously monitored via circuits
detecting rotor displacement, rotational speed and pump temperature. If an abnormality/error occurs,
the rotor will stop.
4. Compact size (Integrated control unit)
To save space for installation, the STP pump mounts the control unit (8) that includes the power
supply which converts the alternating input to direct current output. In addition, the following circuits
are integrated; the magnetic bearing control circuit, the motor drive circuit which drives rotor blade,
the supervisor circuit which monitors pump operation status and operates the pump in remote
operation mode.
5. Dust and water protection
The STP pump can be installed in the location subject to dust or sprays of water.

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 10
INTRODUCTION
1
1.8 STP pump specification
External appearance, installation and unpacking method differ depending to the STP pump
specification. Refer to the followings:
Standard type
(Without anticorrosion
treatment type)
STP-iXR1606
The display unit iDT-001 is available as an optional accessory with the STP-iXR1606.
The display unit operates the STP pump, confirms the pump status and sets various settings. (refer
to Section 6.2 and the Instruction Manual of the "Display Unit iDT-001".)
Display unit iDT-001
