EFT E416P User manual

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
1
Attention
This product is suitable for adults over 18 years old. The company will not bear any responsibility for
personal injury or property damage caused by the following reasons. Please read the following terms
carefully:
1. Obtain through abnormal channels, use non-company products or imitation products.
2. The installation, setting and use are not carried out correctly according to this user manual.
3. Self-modification and replacement of parts or accessories not produced by our company may
cause damage to the aircraft due to poor operation.
4. The user controls the aircraft while drinking, taking drugs, or in poor physical or mental state.
5. Property loss and personal injury caused by the operator's subjective intention or improper
operation.
6. Poor operation of this product caused by natural aging and wear of aircraft parts.
7. Use this product in a strict applicable environment exceeding the label of this product.
8. The user uses this product when the visibility is insufficient and the line of sight is blocked.
9. Users use this product in government air control areas, no-fly zones, etc.
10. Product damage caused by abnormal use.
About E416P/E410P
The E416P/E410P version uses a integrated body to simplify the frame. The frame is integrated from
dozens of original parts into a whole. The frame is made of high-strength, impact-resistant materials,
strong and anti-falling, and continues the old The classic design elements of the E - series products,
streamlined body design, the whole body is waterproof, without fear of high-pressure washing, and the
double fixing method of clamping and limiting is adopted at many key points of the force structure of the
body, so that the whole machine The body will not cause structural displacement due to long-term use,
and it also makes installation and positioning easier. The new product continues the classic foldable body
design, using threaded locking folding parts, stable and not loose, and compact after folding , Convenient
for transportation and transition, the fuselage power distribution board adopts a hidden design, isolates
power and signals, optimizes the internal electromagnetic environment of the frame, provides more
space for the flight control installation, makes the wiring more concise, and the front of the frame is
detachable. The camera adapter can be installed or closed according to needs. The tank has a large inlet,
which makes the dosing efficiency more efficient. The power board is directly fixed on the side of the
tripod through the fixing seat, which is beautiful and makes the plug-in connector safer and more stable.
You can learn about the latest information on the EFT official website
Website: www.effort-tech.com WeChat public account

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
2
Catalogue
Attention ……………………………………………1
About E416P/E410P …………………………………1
Installation……………………………………………4
Unpacking inspection ………………………………4
Frame installation …………………………………4
Landing gear installation ……………………………6
Arm installation ……………………………………7
Tank installation …………………………………9
Motor set installation …………………………………10
Spray system installation ……………………………11
Flight controller Installation ………………………13
Radar installation …………………………………17
RTK installation …………………………………19
Appendix ………………………………………………20

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
3
Parts name
Cautions.
1、 Please do not violently assemble during the assembly process, if you
encounter difficulties, please call 0551-65536542
2、When installing the hose, please do not bend excessively to avoid
creases and affect the spraying effect
3、Be sure to connect the aircraft power after completing all installation
and connections
Hood of frame
40MM folding arm
camera
Integrated body
Hobby wing motor sests
16000mah12Sbattery
Extended nozzle
10LBattery board tank with filter
Landing gear
Brush pump

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
4
Installation
Please bring your own medium-strength screw glue when installing. First complete the
unpacking inspection, and then proceed to the tripod installation, fuselage installation, arm
installation, flight control installation, power system installation, and spray system installation. If
there are other options, install the option at last.
The installation method of E410P/E416P is the same, the following Piconly uses E410P frame an
example E410P/E416P
Unpacking inspection
1、EFT provides users with the following documents
2、Product Packing List
3、Product installation instructions
It is recommended that users use the "Product Packing List" to check and carefully check
whether the items are missing or damaged. If there is any problem, please contact our company
in time. Read the "Product Installation Instructions" carefully, follow the instructions to complete
the installation step by step, and read the relevant precautions carefully.
Frame installation
Attention To install the fuselage, some parts of the fuselage must be
disassembled first. Please pay attention to the installation position of the removed parts
to facilitate later restoration.
Pic 1
1.Remove the M3*8 fixing screws of the body
cover.
Pic 2
2. Remove the M3*8 fixing screws of the flight
control board mounting plate.

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
5
Pic4
Pic6
3. Turn the body over.
Pic7
Pic8
4. Remove the M3*10 self-tapping screws of
the protection plate of the power distribution
board.
Pic5
7. Align the holder with the power plug.
8. Use M3*8 screws to fix the C-type pipe
clamp.
Pic3
5. Pass the AS150U power cord through the
three-hole protective coil.
6. Install the AS150U fixed seat

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
6

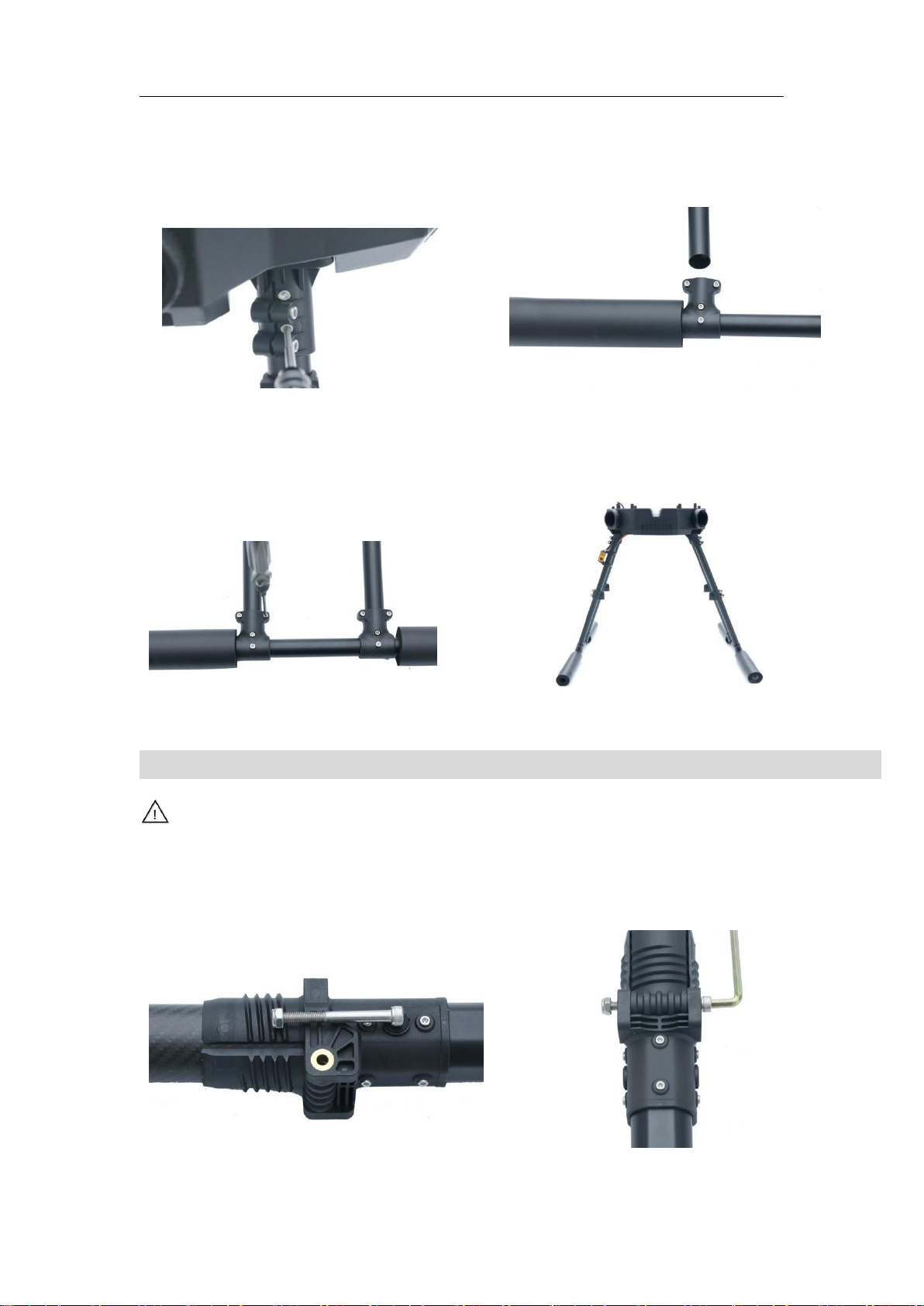

Landing gear installation
2.The positioning hole of the diagonal brace is
flush with the positioning hole of the tripod
fixing seat.
Pic 10
1. Put the AS150U fixed seat on the
landing gear, and then insert it into the
tripod fixed seat to reach the bottom.
Pic 11
Pic 1
11. Customers can choose the left and right
sides of the outlet.
Pic 2
9.Finished power cord.
This is the power
signal line, you can
cut it if you don’t
need it
Pic9
Pic12
12. Restore the M3*10 self-tapping screws of
the power distribution board cover.
10. Use M6*8 screws to fix the power cord on
the terminals of the power distribution board,
paying attention to distinguish the positive
and negative poles.

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
7
Arm installation
Note： Note The carbon tube of the machine arm comes standard with a
diameter of 40MM, if you have other customization requirements, please contact sales.
Pic 6
Pic 5
Pic 1
Pic 3
3. Fix the limit hole M3*8 screw and the fixing
seat M4*12 screw.
5. Tighten two M3*10 screws and one M3*20
screw.
6. Finished body.
2. Use the included L-shaped wrench for
fixing.
1. Put the carbon tube into the folding part
and fix it with M6*60 screws + locknut.
Pic 4
Pic 2
4. Insert the landing gear into the tee of
landing gear until it reaches the bottom.

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
8
5. Reach the frame limit.
Body limit
Pic 8
3. Finished arm.
图 2
Pic 5
7. Then fix the locking button M4*20 screw.
Pic 3
4. Put the arm on the body
locking ring.
8. Arm card holder.
6. First fix the locking buckle limit
M3*8 screw.
Pic 7
Pic 6
Pic 4

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
9

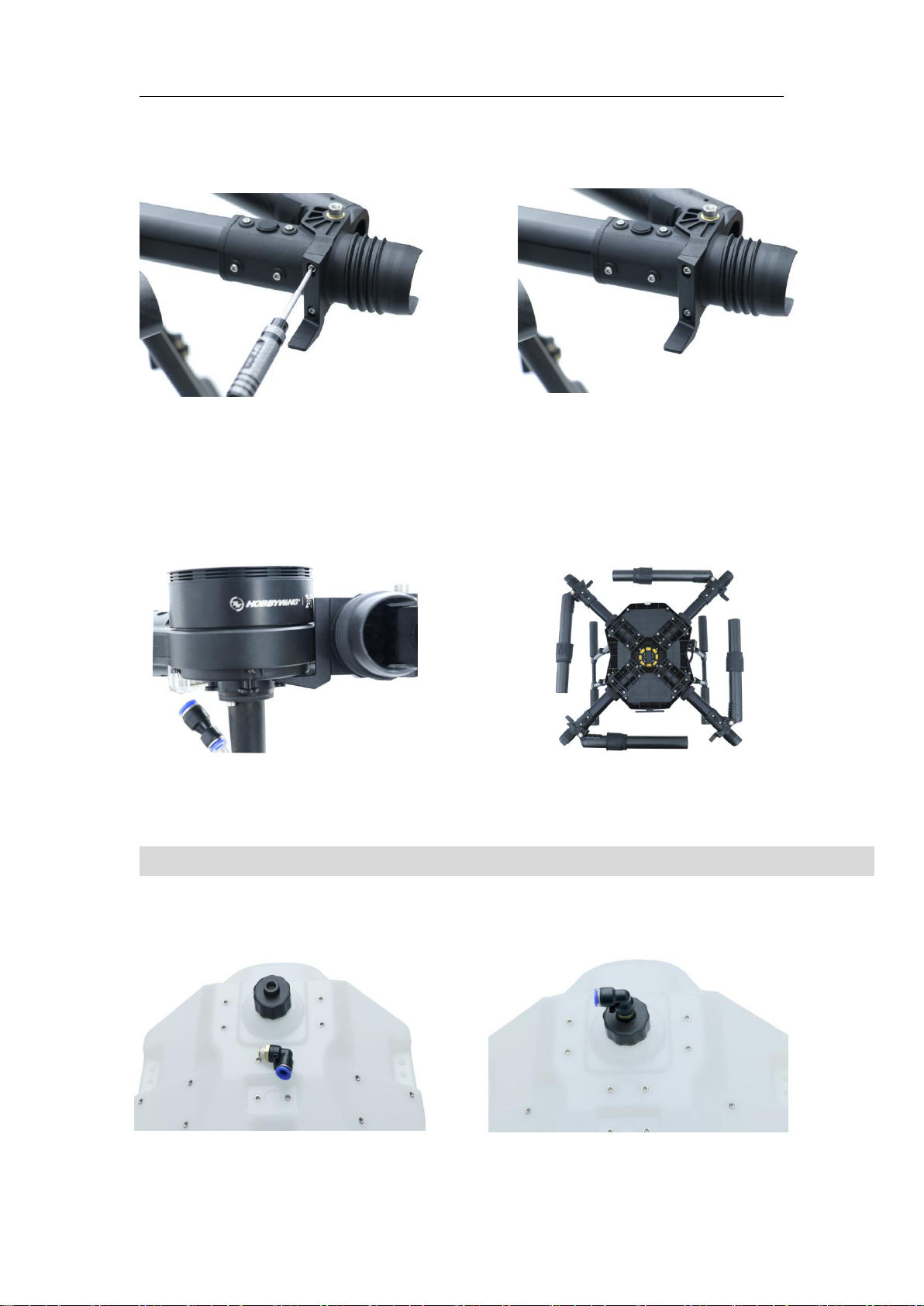

Tank installation
12. Install the finished picture.
Pic 2
9. Install the arm holder.
Pic 12
Pic 1
Pic 10
11. Use renderings.
10. Finished arm tray.
1. Screw the external thread pneumatic
head into the bottom cover of the tank
Pic 9
Pic 11
2. Finished tank bottom cover.

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
10
Motor installation
5.Fix the tank.
Pic 2
Pic 4
Pic 3
1. X8motor sets
2. The power plug is XT60 male, and the power
distribution board is XT60 female. Pay attention
to distinguish the positive and negative poles.
3. Prepare to install the tank, the position of
the LED lampshade on the frame is the
default tail, and the tail of the tank is in the
same direction as the tail.
4. Use M6*45 tank fixing screws and
L-wrench to fix the tank.
Pic 5
6. The finished tank is installed.
Pic 6
Pic 1

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
11

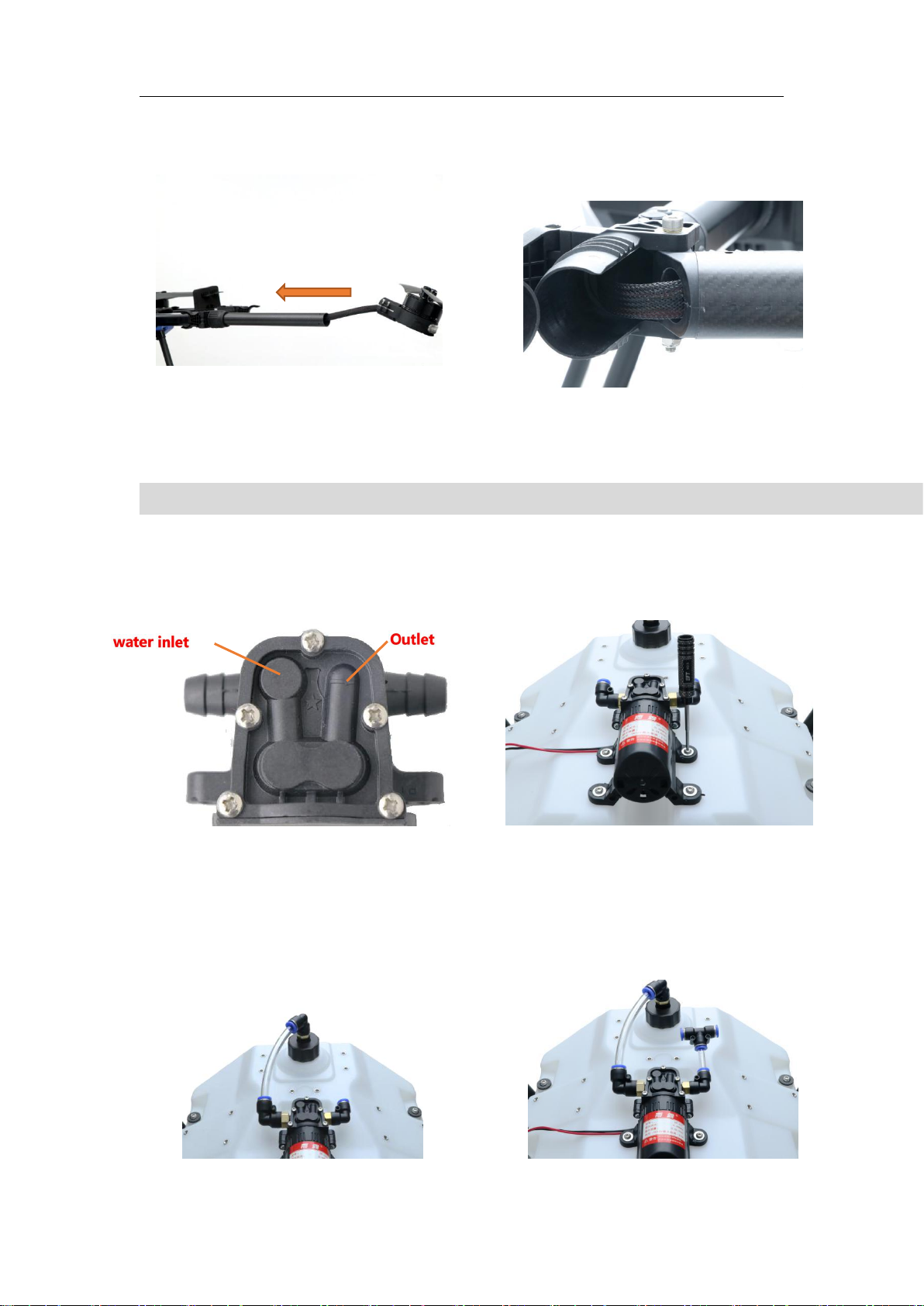

Spray system installation
Pic 4
Pic 1
Pic 3
3. The water inlet is a 10MM pneumatic head,
and a 10MM water pipe is used to connect
with the pneumatic head of the bottom cover
of the tank.
4. The water outlet is 8MM pneumatic head, which
is connected with 8-8-8 tee.
3.Pass the power cord and signal cord
through the arm.
4. Pass through the arm folding parts
2. Install the water pump at the bottom of the
medicine box and tighten the M3*8 screws.
Pic 4
1. The head of the water pump has an arrow
pointing to the water outlet, and a round
shape is the water inlet.
Pic 2
Pic 3

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
12

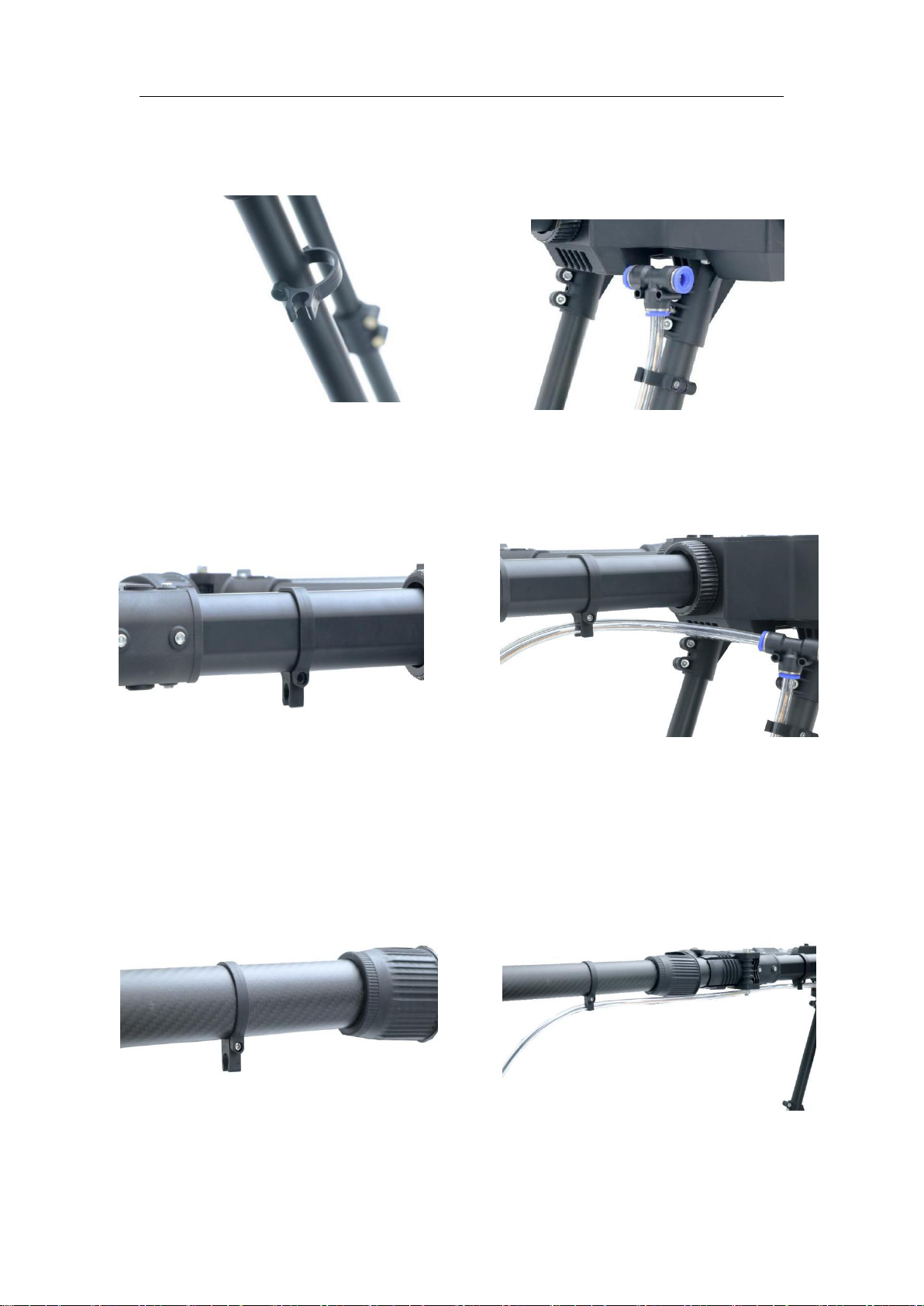

10. Connect one end of the 8MM water
pipe to the 8-8-8 tee, and the other end to
the extension rod nozzle.
Pic 5
9. Install 40MM water pipe clamp.
5. Install the 20MM water pipe clamp and
fix it with M3*10 self-tapping screws.
6. Use 8MM water pipe, one end is
connected to the water outlet tee of the
water pump, and the other end is installed
with 8-8-8 tee.
Pic 9
Pic 10
Pic 7
7.Install the pipe clamp on the
aluminum tube.
图 6
Pic 6
8. Use 8MM water pipe to connect
8-8-8 tee.
Pic 8

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
13

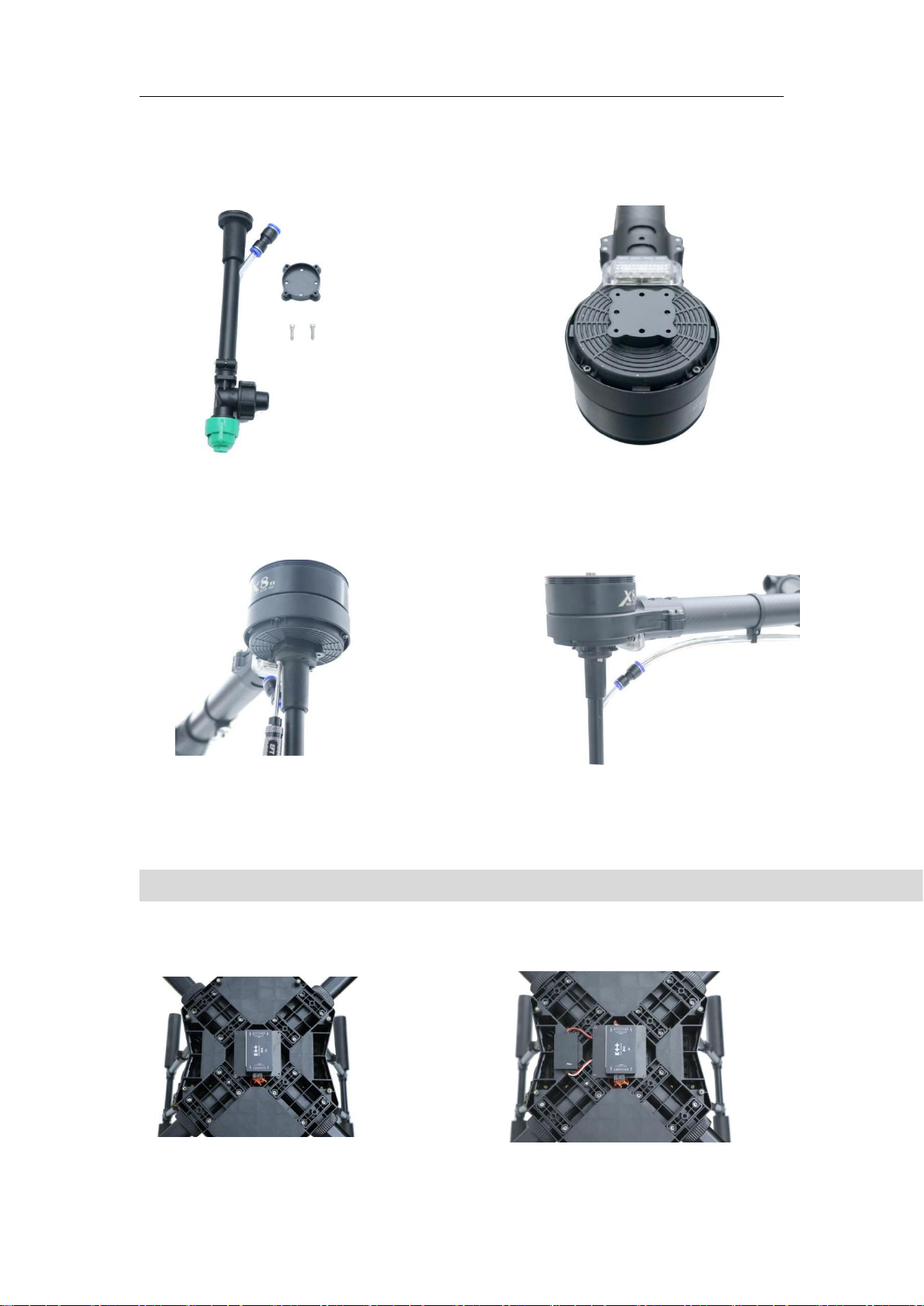

Flight controller installation
This manual uses Jiyi K++ flight control.
11. Install the extension rod nozzle.
12. Place the nozzle adapter on the
bottom of the motor.
Pic 12
1. Use 3MM glue to install the main control.
Pic 11
2. Install the receiver.
Pic 1
Pic 2
Pic 14
Pic 13
14. Connect the pneumatic head.
13. Use M3*16 screws to install the
extension rod nozzle.

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
14
图 4
Pic 5
Pic 6
Pic4
5. Use a soft connection to protect the
end of the antenna.
Pic 7
Pic 8
6. Install the flexible connection into the wire
protection hole of the arm folding parts.
7. Install the Speed governor of pump .
8. Install the radar management module.
4. The receiver antenna needs to pass through the
arm to reach the wire protection hole of the arm
folding part.
3. Install PMU.
Pic 3

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
15
Pic 10
Pic 11
Pic 9
14. Remove the camera adapter board and
prepare to install the camera.
13. Install GPS.
12. Install the GPS bracket.
11. Place the LED lamp cover in the card slot.
10. Stick the LED light on the lampshade
position.
Pic 14
9. Install RTK.
Pic 12
Pic 13

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
16
20. Finished product without camera.
16. Install the camera on the adapter.
Pic 17
Pic 18
18. The camera harness passes through the wire
hole, and the adapter is installed in the card slot.
17. First install the cable hole in the body card slot.
Pic 15
15. The camera takes T12 as an example.
Pic 20
Pic 19
19. If you do not need to install the camera, you can
choose to insert the decorative board into the card
slot.
Pic16

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
17
Radar installation
Pic 3
Fix the bottom
screw first
1. Front obstacle avoidance radar
6. Finished front obstacle avoidance radar.
5. Install the T-piece.
Pic 4
2. Install the radar in the universal radar adapter
board.
Pic 1
Pic 2
3. Use screws to fix on the reverse side.
4. Install the T-piece.
Pic 6
Pic 5
Then fix the
top screw

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
18
Pic 10
Pic 12
11. Use M4*6 self-tapping screws to
install ground radar.
Pic 7
Pic 9
9. Install the elevated radar under the water
pump and fix it with M4*16 screws.
12. Side view of elevated radar
assembly.
Pic 8
10. Use M4*6 self-tapping screws to
install the radar universal board.
8. Elevated radar installation
components.
7. The rear obstacle avoidance radar can be
directly fixed at the tail of the medicine box.
Pic 11

EFT agriculture frame installation manual
©2020 Hefei EFT all rights reserved
19
RTK installation
Pic 1
Pic 6
6. Install the RTK external antenna.
5. Pass the RTK antenna through the arm to the
upper end of the wire protection hole. A
straight antenna is required.
Pic 4
Pic 5
4. Install RTK adapter thread.
Pic 3
3. Install the RTK adapter and screw on the
M3*8 screws of the folding part.
Pic 2
1. RTK accessories.
2. Remove the M3*8 screws of the
folding parts.
