EGO BC3800E User manual

S
OPERATOR’S MANUAL
56 VOLT LITHIUM-ION
REAR MOTOR BIKE-HANDLE
BRUSHCUTTER
MODEL NUMBER BC3800E
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.

4. Trigger
1. Speed Limiting Lever
2. Lock-off Lever
5. Bike Handle
15. 3-teeth
Blade
16. Outer
Flange
17. Nut
19. Rubber Pad Protection
20. Latch
21. Electric Contactsms
22. Ejection Mechanism
18. Release Button
9. Trimmer Head
10. Sealing Screw
12. Guard Accessory
11. Shaft-
locking Hole
13. Multi-Function Wrench
7. Cutting Line
8. Guard Assembly
23. Strap Buckle
A
3. Wing Bolt
6. Shaft
14. Hex Wrench 24. Hip-pad

CB
D E
F
H1 H2
GInner Flange Upper Housing ASSY
Washer
Nut
Spring Lower
Housing
ASSY
Trimmer Line
Flange
Cover

H3 H4
I J
N
K L
M

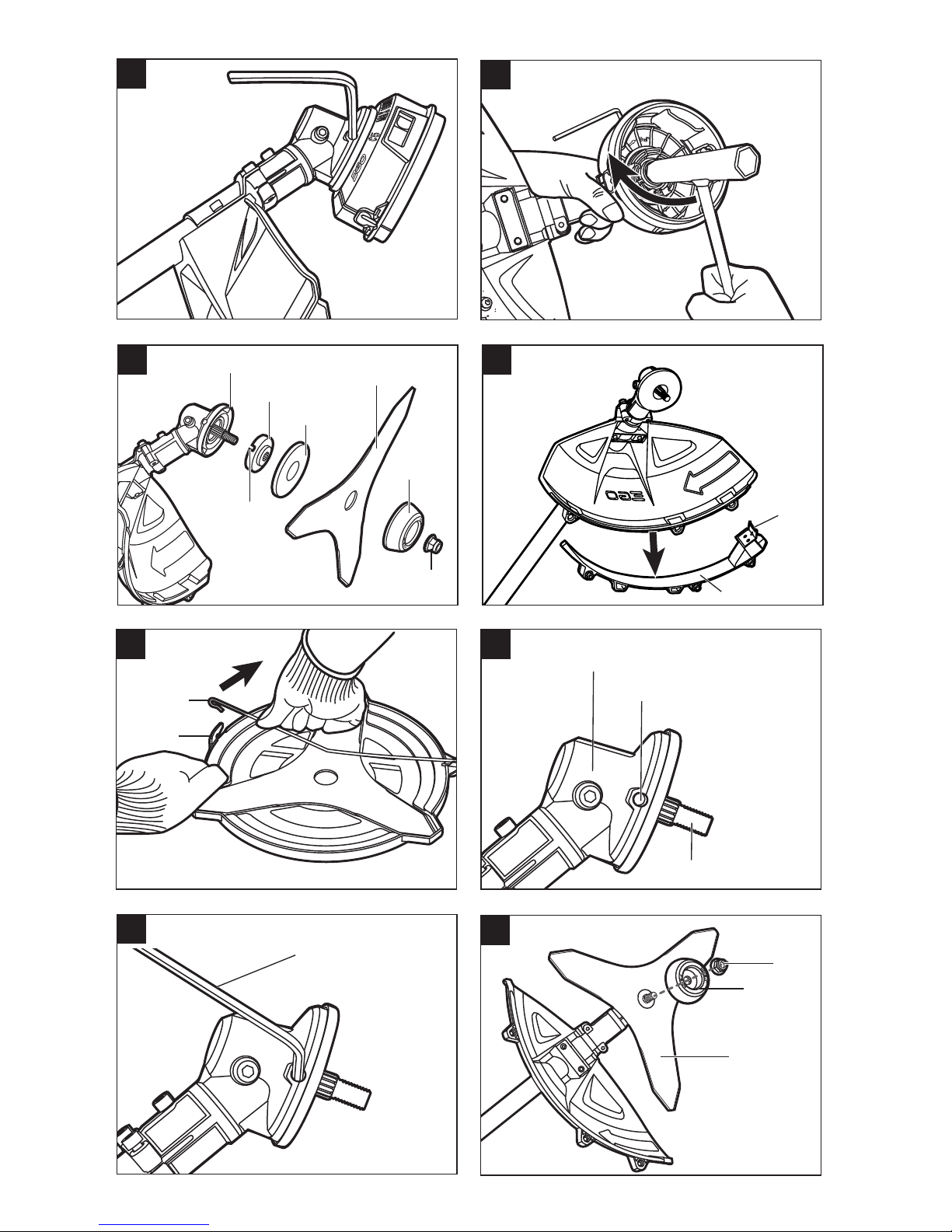

Motor Shaft
Inner Flange
Flange Cover
Slot in the Flange
Outer Flange
Nut
Line-cutting
Blade
Guard Accessory
Gear Case
Aligned Shaft-locking Holes
Motor Shaft
Nut
Outer ange
3-teeth blade
Stablizer
Hook
Clamp Wire
3-teeth blade

S
R2 R3
R4
O P
Q R1
RibMounting Slot
1
2

TU
V W1
W2 W3
X1
W4
14 cm
2.5 m
2
1

Y
X2

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E8
READ ALL INSTRUCTIONS!
Read Operator’s Manual
Residual risk! People with electronic devices, such
as pacemakers, should consult their physician(s) before
using this product. Operation of electrical equipment
in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all repairs
and replacements should be performed by a qualied
service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols and the explanations
with them deserve your careful attention and understand-
ing. The symbol warnings do not, by themselves, eliminate
any danger. The instructions and warnings they give are no
substitutes for proper accident prevention measures.
WARNING: Be sure to read and understand all
safety instructions in this Operator’s Manual, including
all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION”before using this tool. Failure to follow all
instructions listed below may result in electric shock, re,
and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION, may be used in conjunction with
other symbols or pictographs.
WARNING: The operation of any
power tools can result in foreign objects
being thrown into your eyes, which can
result in severe eye damage. Before
beginning power tool operation, always
wear safety goggles or safety glasses with
side shields and a full face shield when
needed. We recommend a Wide Vision
Safety Mask for use over eyeglasses or
standard safety glasses with side shields.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assem-
ble and operate it.
Safety Alert Indicates a potential person-
al injury hazard.
Read
Operator’s
Manual
To reduce the risk of injury,
user must read and under-
stand the operator’s manual
before using this product.
Wear Eye
Protection
Always wear safety goggles
or safety glasses with side
shields and a full face shield
when operating this product.
Wear Ear
Protection
Always wear sound barriers
(ear plugs or ear mufers) to
protect your hearing.
Wear Head
Protection
Wear an approved safety
hard hat to protect your
head.
Wear
Protective
Gloves
Protect your hands with
gloves when handling blade
or blade guard. Heavy-duty,
nonslip gloves improve your
grip and protect your hands.
Wear
Safety
Footwear
Wear non-slip safety
footwear when using this
equipment.
Beware
of blade
thrust
Warn the operator of the
danger of blade thrust.
Ricochet
and Keep
Bystanders
Away
Thrown objects can ricochet
and result in personal injury
or property damage. Ensure
that other people and pets
remain away from the
brushcutter when it is in use.
15m
Keep
Bystanders
Away
Ensure that other people and
pets remain at least 15m
away from the line trimmer
when it is in use.
No round
blade
Do not install round cutting
blades.
XX
NOISE dB
Noise Sound pressure level.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E 9
V Volt Voltage
Direct
Current
Type or a characteristic of
current
n0
No Load
Speed Rotational speed, at no load
... /min Per Minute Revolutions per minute
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this product, basic safety
precautions should always be followed to reduce the risk
of re, electric shock, and personal injury, including the
following:
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
DANGER! Do not rely on the tool’s insulation
against electric shock. To reduce the risk of
electrocution, never operate the machine in the vicinity
of any wires or cables (power, etc.) which may carry
electric current.
CAUTION! Wear appropriate personal hearing
protection during use. Under some conditions and
durations of use, noise from this product may contribute
to hearing loss.
TRAINING
◾Read the instructions carefully. Be familiar with the
controls and the proper use of the machine.
◾Never allow people unfamiliar with these instructions
or children to use the machine. Local regulations can
restrict the age of the operator.
◾Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
PREPARATION
◾Never operate this product while people, especially
children, or pets are nearby.
◾Wear eye protection and stout shoes at all times while
operating this product.
◾The distance between the machine and bystanders
shall be at least 15m.
OPERATION
◾Use the brushcutter only in daylight or good articial light.
◾Never operate the brushcutter with damaged guards or
shields or without guards or shields in place.
◾Switch on the motor only when the hands and feet are
away from the cutting means.
◾Always disconnect the brushcutter from the power
supply (i.e. remove the plug from the mains or remove
the disabling device).
◾whenever leaving the brushcutter unattended;
◾before clearing a blockage;
◾before checking, cleaning or working on the brushcutter;
◾after striking a foreign object;
◾whenever the brushcutter starts vibrating abnormally.
◾Take care against injury to feet and hands from the
cutting means.
◾Always ensure that the ventilation openings are kept
clear of debris.
MAINTENANCE AND STORAGE
◾Disconnect the brushcutter from the power supply (i.e.
remove the plug from the mains or remove the disabling
device) before carrying out maintenance or cleaning work.
◾Use only the manufacturer’s recommended replacement
parts and accessories.
◾Inspect and maintain the brushcutter regularly. Have the
machine repaired only by an authorized repairer.
◾When not in use, store the brushcutter out of the reach
of children.
OTHER SAFETY WARNINGS
◾Keep children away - All visitors should be kept at
least 15 m away from work area.
◾Avoid dangerous environments - Don’t use
appliances on damp or wet slope.
◾Always turn the brushcutter off or remove the
battery pack whenever leaving the tool unattended.
◾Don’t use in rain.
◾Dress properly - Do not wear loose clothing, jewelry,
short pants, sandals, or go barefoot. They can be
caught in moving parts. Always wear heavy, long pants
and a long-sleeve shirt. Use of rubber gloves and
substantial footwear is recommended when working
outdoors. Wear protective hair covering to contain long
hair to secure hair above shoulder level.
◾Use safety glasses - Always use safety glasses while
operating the machine.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E10
◾Use the right tool - Do not use the tool for any job
except that for which it is intended.
◾Don’t force the brushcutter - It will do the job better
and with less likelihood of a risk of injury at the rate for
which it was designed.
◾Don’t overreach - Keep proper footing and balance
at all time.
◾Stay alert - Watch what you are doing. Use common
sense. Do not operate the brushcutter when you are tired.
◾Do not operate the brushcutter while under the
inuence of alcohol or drugs.
◾Keep guards in place and in working order.
◾Keep hands and feet away from the cutting area.
◾Store brushcutter indoors - When not in use the
brushcutter should be stored indoors in a dry and high
or locked-up place with the battery pack removed- out
of reach of children.
◾Maintain brushcutter with care - Keep the cutting
attachment clean for best performance and to reduce
the risk of injury. Follow the instructions for changing
accessories. Keep the handles dry, clean, and free from
oil and grease.
◾Check damaged parts - Before further use of the
brushcutter, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of
moving parts, breakage of parts, mounting, and any
other condition that may affect its operation. A guard or
other part that is damaged should be properly repaired
or replaced by an authorized service center unless
indicated elsewhere in this manual.
◾Make sure all fasteners are in place and secure.
Be sure the cutting attachment shield is properly
attached and in the position recommended by the
manufacturer.
◾Clear the area to be cut before each use. Remove
all objects such as rocks, broken glass, nails, wire,
or string, which can be thrown or become entangled
in the cutting attachment. Clear the area of children,
bystanders and pets. At a minimum, keep all children,
bystanders and pets outside a 15 m (50 ft) radius;
outside the 15 m (50 ft) zone, there is still a risk of
injury from thrown objects. Bystanders should be
encouraged to wear eye protection.
◾Before using the brushcutter and after any impact,
check for signs of wear or damage and repair as
necessary.
◾Always hold the brushcutter rmly, with both
hands on the handles, while operating. Wrap your
ngers and thumbs around the handles.
◾Avoid accidentally starting - Don’t carry the
brushcutter with your nger on the trigger.
◾Do not operate the brushcutter in gaseous or
explosive atmospheres. Motors in these appliances
normally spark, and the sparks might ignite fumes.
◾Damage to brushcutter - If you strike a foreign object
with the brushcutter or it becomes entangled, stop the
tool immediately, remove the battery pack from the
brushcutter, check for damage and have any damage
repaired before further operation is attempted. Do not
operate with a broken guard or cutting attachment.
◾If the equipment should start to vibrate abnormally,
stop the motor, remove the battery pack from the
brushcutter and check immediately for the cause.
Vibration is generally a warning of trouble. A loose
cutting unit may vibrate, crack, break or come off the
brushcutter, which may result in serious or fatal injury.
Make sure that the cutting unit is properly installed
and securely fastened. If the cutting unit loosens after
xing it in position, replace it immediately. Never use a
brushcutter with a loose cutting unit.
◾Replace a cracked, damaged or worn-out cutting
unit immediately, even if damage is limited to
supercial cracks. Such unit may shatter at high
speed and cause serious or fatal injury.
◾To reduce the risk of injury, never work on a ladder
or on any other insecure support. Never hold the
cutting unit above waist height.
◾Never use other wires in place of the nylon cutting
lines, pieces of wire could break off and be thrown
at high speed toward the operator or bystanders.
◾Keep rm footing and balance. Do not over-reach.
Keep cutting unit below waist level. Keep all parts of
your body away from the rotating cutting unit.
◾Check the cutting unit at regular short intervals
during operation, or immediately if there is a
noticeable change in cutting behavior.
◾Only use EGO authorized polymer trimmer line and
blade accessories, trimmer line and blade that are
designed for use with this brushcutter. Although
certain unauthorized units might be extremely
dangerous, and/or damaging to the tools.
◾If you are approached, stop the motor and cutting unit.
◾Warn the operator of the danger of blade thrust
(only using with 3-teeth blade).
◾Blade thrust may occur when the spinning blade
contacts an object that it does not immediately cut.
◾Blade thrust can be violent enough to cause the unit
and/or operator to be propelled in any direction, and
possibly lose control of the unit.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E 11
◾Blade thrust can occur without warning if the blade
snags, stalls or binds.
◾Blade thrust is more likely to occur in areas where it
is difcult to see the material being cut.
◾Do not attach any blade to a unit without proper
installation of all required parts. Failure to use the
proper parts can cause the blade to y off and
seriously injure the operator and/or bystanders.
Discard blades that are bent, warped, cracked,
broken, or damaged in any way. Use a sharp blade.
A dull blade is more likely to snag and thrust (only
using with 3-teeth blade).
◾The battery pack shall be disposed of safely.
◾A coasting blade/line can cause injury while it
continues to spin after the motor is stopped or
trigger is released. Maintain proper control until
the blade/line has completely stopped rotating.
◾Do not charge the battery pack in rain, or in wet
locations.
◾Use only with EGO’s battery packs and chargers listed
below:
BATTERY PACK CHARGER
BA1120E, BA1400, BA2240E,
BA2800, BA3360, BA4200
CH2100E
CH5500E
◾The battery pack must be removed from the
appliance before it is scrapped.
◾Do not dispose of the battery in a re. The cells may
explode. Check with local codes for possible special
disposal instructions.
◾Do not open or mutilate the battery. Released
electrolyte is corrosive and may cause damage to the
eyes or skin. It may be toxic if swallowed.
◾Exercise care in handling batteries in order not
to short the battery with conducting materials
such as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
◾Replacement parts - When servicing, use only
identical EGO replacement parts. Use of any other
accessory or attachment may increase the risk of injury.
◾Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
even when the tool is not operating. Take care when
performing maintenance or service.
◾Remove or disconnect battery pack before
servicing, cleaning or removing material from the
brushcutter.
◾Do not wash with a hose; avoid getting water in
motor and electrical connections.
◾If situations occur that are not covered in this
manual, use care and good judgment. Contact the
EGO Customer Service Center for assistance.
SAVE THESE INSTRUCTIONS!
SPECIFICATIONS
Cutting unit Trimmer head 3-teeth metal
blade
Voltage 56 V 56 V
No-load Speed 4500-6000 /min 4500-6000 /min
Cutting Line Type 2.4mm nylon
twist line /
Cutting blade / ABB1203
Cutting Width 38 cm 30 cm
Weight (without battery
pack) 4.35 kg 4.64 kg
Sound pressure level 70 dB(A) 64 dB(A)
PACKING LIST
PART NAME QUANTITY
Brushcutter 1
3-teeth blade with Sheath 1
Guard Assembly 1
Nut 1
Outer Flange 1
Hex Wrench 1
Multi-Function Wrench 1
Double-shoulder Strap 1
Operator’s Manual 1

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E12
DESCRIPTION
KNOW YOUR Brushcutter (Fig. A)
1. Speed Limiting Lever
2. Lock-off Lever
3. Wing Bolt
4. Trigger
5. Bike Handle
6. Shaft
7. Cutting Line
8. Guard Assembly
9. Trimmer Head
10. Sealing Screw
11. Shaft-locking Hole
12. Guard Accessory
13. Multi-Function Wrench
14. Hex Wrench
15. 3-teeth Blade
16. Outer Flange
17. Nut
18. Release Button
19. Rubber Pad Protection
20. Latch
21. Electric Contactsms
22. Ejection Mechanism
23. Strap Buckle
24. Hip-pad
WARNING: Never operate the tool without the
guard rmly in place. The guard must always be on the
tool to protect the user.
WARNING: When the tool is equipped with a
trimmer head, the guard accessory with line–cutting
blade should be mounted onto the guard. Failure to
comply will result in overly long cutting line and overload
the motor. Never use the trimmer head without guard
accessory.
ASSEMBLY
WARNING: If any parts are damaged or missing, do
not operate the brushcutter until the parts are replaced.
Use of the brushcutter with damaged or missing parts
could result in serious personal injury.
WARNING: Do not attempt to modify the brushcutter
or create accessories not recommended for use with this
product. Any such alteration or modication is misuse and
could result in a hazardous condition leading to possibly
serious personal injury.
WARNING: Always wear heavy gloves when
installing or removing the guard and doing any
maintenance on the 3-teeth blade/line-cutting blade. Be
careful of the line-cutting blade on the guard accessory /
3-teeth blade for protecting your hands from being injured
by both the blades.
WARNING: To prevent accidental starting that could
cause serious personal injury, always remove the battery
pack from the tool when assembling parts or transporting
the machine.
WARNING: Never operate the tool without the guard
and bike handle rmly in place. Failure to comply could
result in possible serious personal injury.
MOUNTING AND ADJUSTING THE BIKE HANDLE
The brushcutter is stored as shown in Fig. B. Firstly,
loosen the wing bolt on the connecting joint and then lift
the bike handle 180° around the shaft (Fig. C), turn it 90°
anticlockwise to make it face the bump head (Fig. D).
Lastly, move it back and forth to achieve a comfortable
working position and tighten the bolt.
NOTICE: Operating the machine with the bike handle
perpendicular to the shaft is only permitted.
MOUNTING THE GUARD
1. Lift the cutting head and face it downward; align the two
mounting holes in the guard with the two bolts that are
preassembled on the base of shaft. Make sure that the
internal surface of the guard faces towards the cutting
head (Fig. E).
2. Lock the guard in place with the bolts and the supplied
hex wrench (Fig. F).
REPLACE THE TRIMMER HEAD WITH THE 3-TEETH
BLADE
Know the trimmer head Fig. G and follow the steps as
Fig. H-1 - Fig. H-4 shown (refer to the section “line replace-
ment”) to disassemble the trimmer head. To mount the
blade follow the steps below:
1. To mount the metal blade unit (Fig. I).
2. Remove the guard accessory by loosening the three
screws with washer (Fig.J).

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E 13
3. The blade is shipped with a sheath. Before mounting
the blade onto the brushcutter, the sheath should be
removed by undoing the clamp wire from the hook on
the sheath (Fig. K).
NOTICE: To protect against injury, you have to wear
gloves prior to any operation with the 3-teeth blade.
4. Rotate the motor shaft to align the slot in the inner ange
with the shaft-locking hole in the gear case (Fig. L).
5. Insert the hex wrench into the aligned holes to act as a
STABILISER (Fig. M).
6. Mount the blade onto the motor shaft, ensuring
that the suface of the blade is ush with the
surface of the inner ange bulge. Mount the outer
ange and the nut (Fig. N). Pre-tighten the nut in a
COUNTERCLOCKWISE direction by hand.
7. Position the gear case against a solid surface for
support. With one hand hold the brushcutter shaft
and the other hand grasp the multi-function wrench
to tighten the nut following the directional arrow icon
marked on the outer ange (Fig. O).
USE OF GUARD ACCESSORY
NOTICE: When the brushcutter is equipped with a trimmer
head, the guard accessory must be mounted onto the guard.
Secure the guard accessory onto the guard by tightening
the three screws with the hex wrench due to the line-
cutting blade is equipped on the guard accessory. Failure
to comply could result in an overly long cutting line and
motor overload.
OPERATION
WARNING: Do not allow familiarity with this product
to make you careless. Remember that a careless fraction
of a second is sufcient to inict serious injury.
WARNING: Always wear eye protection, along with
hearing protection. Failure to do so could result in objects
being thrown into your eyes and other possible serious
injuries.
WARNING: Do not use any attachments or
accessories not recommended by the manufacturer of
this product. The use of attachments or accessories not
recommended can result in serious personal injury.
APPLICATIONS
You may use the brushcutter for the purpose listed below:
◾With 3-teeth metal blade: Cutting grass, weeds,
wild growth and scrub, thinning young trees with a
maximum stem diameter of 2cm.
◾With Trimmer Head: Trimming grass and weeds from
around porches, fences and decks.
NOTICE: The tool is to be used only for its prescribed
purpose. Any other use is deemed to be a case of misuse.
ATTACHING/DETACHING THE BATTERY PACK
Fully charge before rst use.
To Attach
Align the battery rib with the mounting slots and press the
battery pack down until you hear a “click” (Fig. P).
To Detach
Depress the battery-release button and the battery pack
out (Fig. Q).

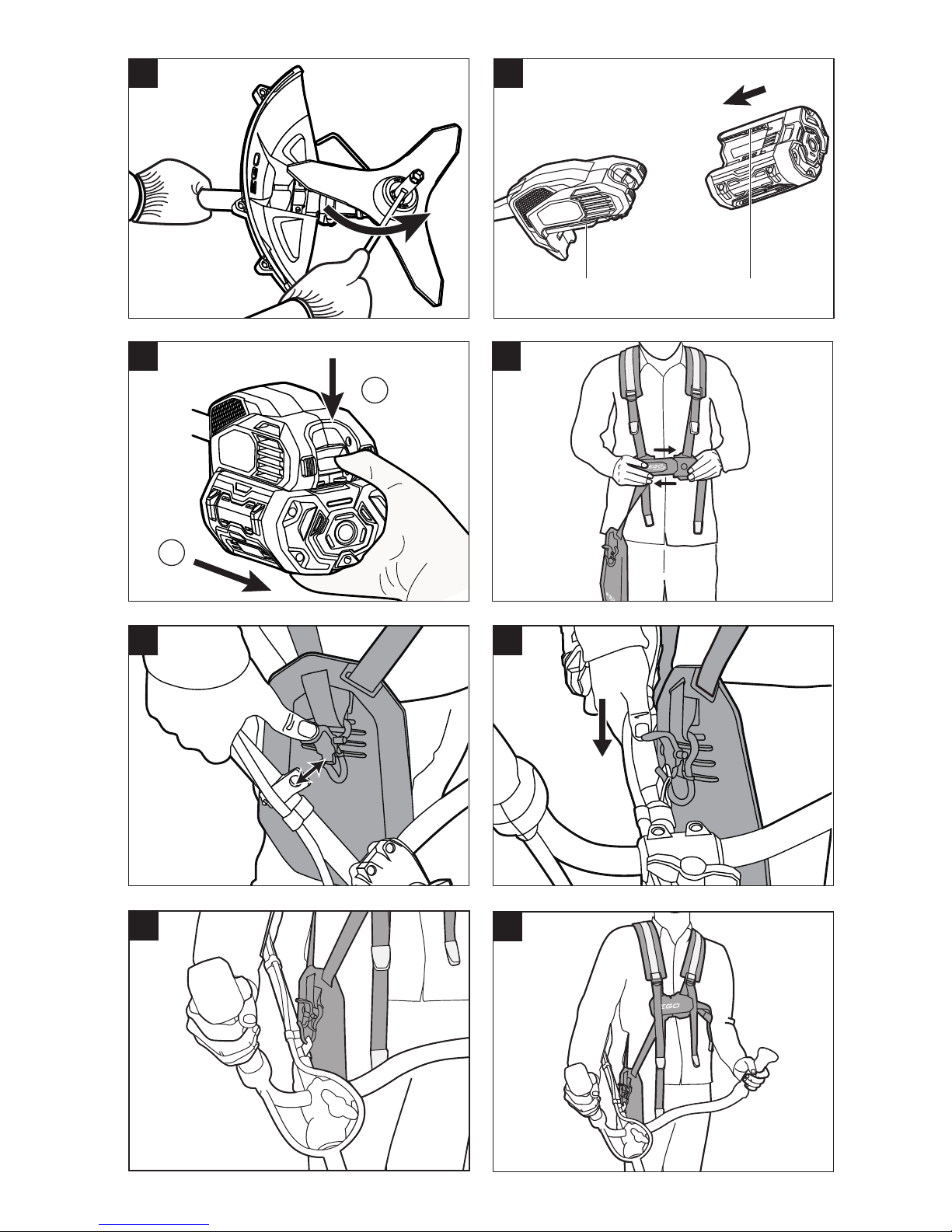

MOUNT THE DOUBLE-SHOULDER STRAP AND
HOLDING THE MACHINE
Put the double-shoulder strap on your body and insert
the two parts of the strap buckle into each other until a
click is heard (Fig. R-1). Align the hook of hip pad into hole
of the tubing clip xed on the shaft, and press the shaft
down softly (Fig. R-2 & R-3 & R-4).
Hold the line trimmer with both hands on the right side of
your body (Fig. S). The trimmer head or blade should be
parallel to the ground at a proper cutting distance without
the operator bending over.
Releasing the brushcutter can be achieved in two ways;.
Release the strap buckle (Fig. T) or press the hook of the
strap and take it apart from the tubing clip xed on the
shaft (Fig. R-2).
WARNING: When emergency occurs, take it off from
your shoulder immediately, no matter what way the strap
is in. Releasing the strap buckle (Fig. T) and both hands
taking off your shoulders at each side is a quick release
method.
WARNING: You should not use the single-shoulder
strap and double-shoulder strap simultaneously.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E14
STARTING/STOPPING THE Brushcutter
To Start

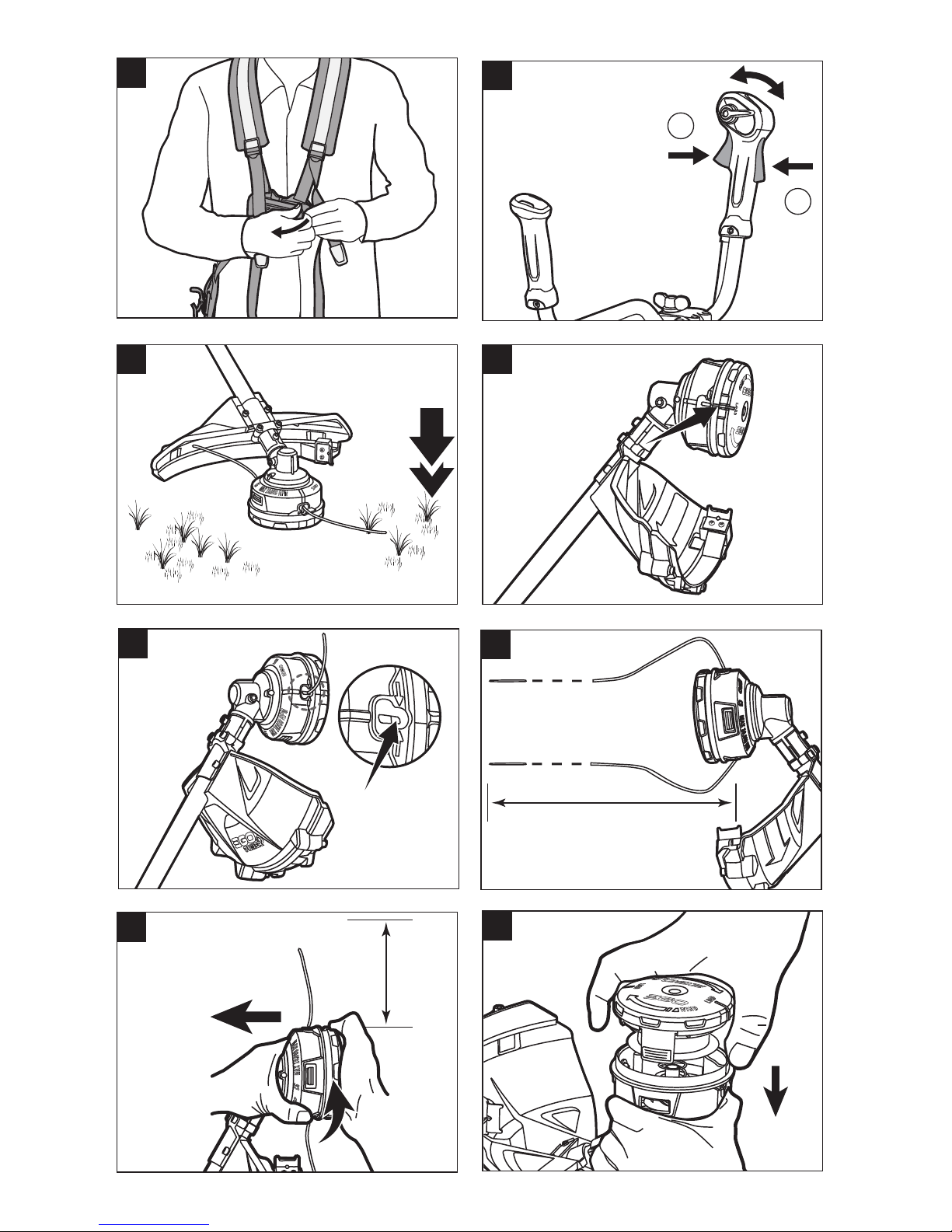

Press down the lock-off lever and hold it in that position.
Depress the trigger to start (Fig. U).
Different pressure on the trigger results in variable
rotating speed of the cutting unit. If necessary, adjust the
speed limiting lever to set the maximum speed.
NOTICE: The speed limiting lever can also be preset to
limit the trigger travel.
To Stop
Release the trigger.
NOTICE: The motor runs only when the lock-off lever and
trigger are both pressed.
WARNING: Always remove the battery pack from the
line trimmer during work breaks and after nishing work.
USING THE MACHINE
WARNING: Dress properly to reduce the risk of
injury when operating the brushcutter. Do not wear loose
clothing or jewelry. Wear eye and ear/hearing protection.
Wear heavy duty, long trousers, boots and gloves. Do not
wear short trousers, sandals or go barefoot.
Before operating, look around you to ensure a safety work-
ing area without other people, animals or any loose objects.
Make sure they are at least 15m away. And then check for
eye protection, proper clothing and balanced footing.
Before each use check for damaged/worn parts.
Check the trimmer head, 3-teeth blade, guard, guard
accessory, bike handle and double-shoulder strap and
replace any parts that are cracked, warped, bent, or dam-
aged in any away. The line-cutting blade on the edge of
the guard accessory can dull over time. It is recommend-
ed that you periodically sharpen it with a le or replace it
with a new blade.
After each use, clean the brushcutter
USING WITH TRIMMER HEAD
Adjusting cutting line length
The trimmer head allows the operator to release more
cutting line without stopping the motor. As line becomes
frayed or worn, additional line can be released by lightly
tapping the bump knob on the ground while operating the
trimmer (Fig. V).
NOTICE: Line release will become more difcult if the
cutting line becomes too short.
WARNING: Do not remove or alter the line-cutting
blade assembly. Excessive line length will cause the mo-
tor to overheat and may result in serious personal injury.
Line Replacement
NOTICE: Always use the recommended nylon cutting
line with a diameter that does not exceed 2.4 mm. Using
line other than that specied may cause the brushcutter
to overheat or become damaged.
WARNING: Never use metal-reinforced line, wire,
or rope, etc. These can break off and become dangerous
projectiles.
1. Remove the battery pack.
2. Remove the remaining cutting line, if necessary.
3. Rotate the spool retainer in the direction indicated by the
arrow, as necessary, to align the LOAD line on the spool
retainer with the eyelets in the spool base (Fig. W-1).
4. Cut 5m of cutting line, and insert the line into the
mounting hole inside the eyelet (Fig. W-2). Push and
pull the line from the other side until equal amounts
of line appear on both sides of the spool (Fig. W-3).
5. Press, while rotating the spool retainer in the arrow
direction, to wind the line onto the spool until
approximately 14cm of line is showing on each side
(Fig. W-4).
6. Push the spool retainer down while pulling on the
lines to manually advance the line and to check for
proper assembly of the trimmer head.
When the cutting line breaks from the line outlet or the
cutting line is not released when tapping the trimmer
head, follow the steps below:
1. Remove the battery pack.
2. Press the release tabs on the spool retainer and
remove the spool retainer by pulling it straight out
(Fig. H-1 & H-2).
3. Remove the cutting line from the spool retainer.
4. With one hand holding the spool base, use the other
hand to grasp the spool retainer and align the tabs
on the spool retainer with the holes in the spool base

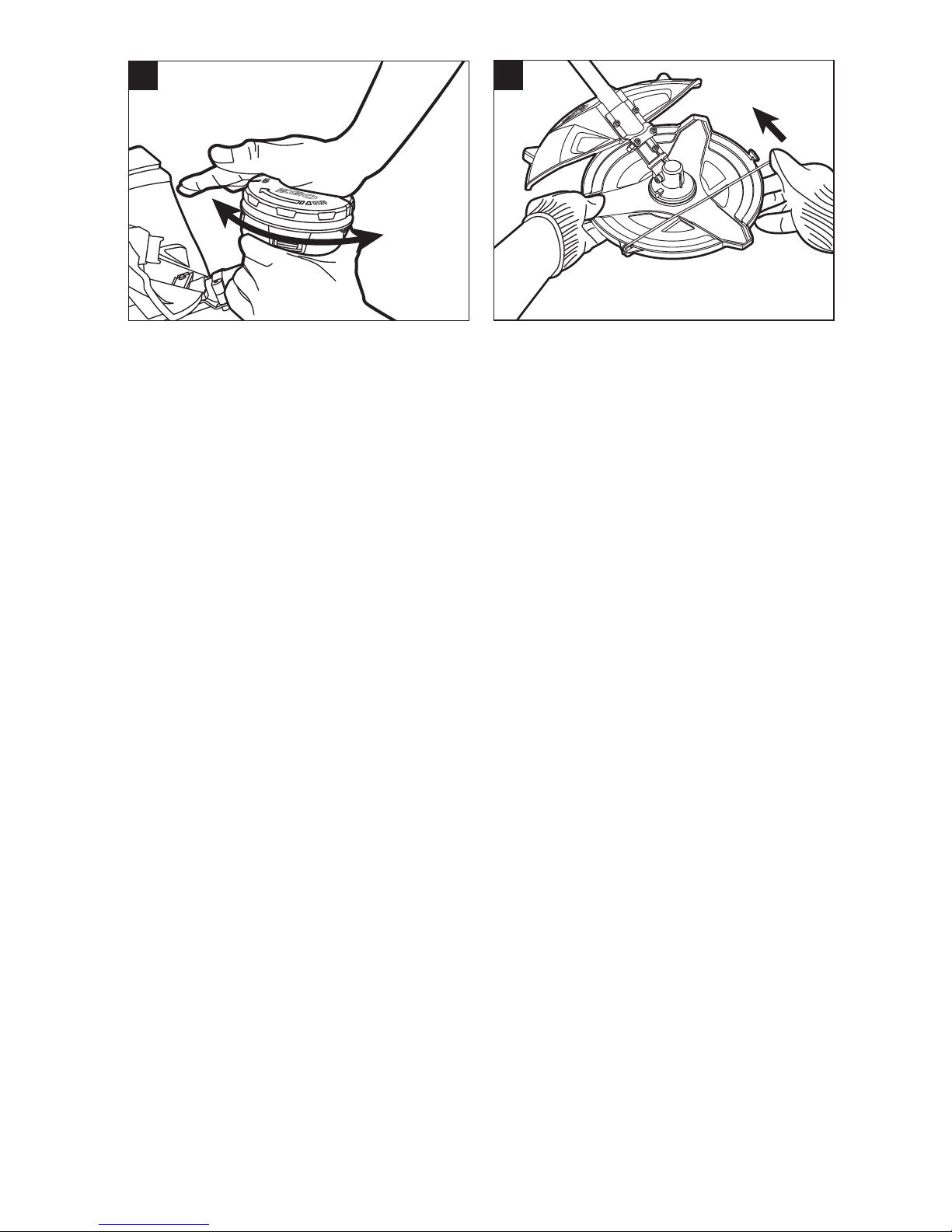

(Fig. X-1); use your palm to press and rotate the
spool retainer left and right until the tabs lock with
the spool base (Fig. X-2).
5. Reload the cutting line.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E 15
USING WITH 3-TEETH METAL
WARNING: To cut wild growth and scrub, lower the
rotating 3-teeth blade down onto the growth to achieve a
chopping effect. Use the brushcutter like a scythe (sweep
it to the right and left) at ground level. Do not use the
cutting unit above waist height.
WARNING: The higher the cutting unit is off the
ground, the greater the risk of injury from cuttings being
thrown sideways.
WARNING: When cutting young trees or other woody
materials up to 2cm in diameter, use the left side of the
blade to avoid blade thrust situations. Do not attempt
to cut woody material with a larger diameter, since the
blade may catch or jerk the brushcutter forward. This may
cause damage to the blade or the brushcutter or loss of
control of the brushcutter, resulting personal injury.
WARNING: Improper use of a blade may cause it to
crack, chip, or shatter. Thrown parts may seriously injure
the operator or bystander. To reduce the risk of personal
injury, it is essential to take the following precautions:
◾Avoid contact with hard or solid foreign objects such as
stones, rocks or pieces of metal.
◾Never cut wood or shrubs with a stem diameter of
more than 2cm.
◾Inspect the blade at a regular short interval for signs of
damage. Do not continue working with a damaged blade.
◾Re-sharpen the blade regularly (when it has dulled
noticeably) and have it balanced if necessary
(performed by a qualied service technician).
Blade Thrust
Exercise extreme caution when using the 3-teeth blade
with this unit. Blade thrust is the reaction that may occur
when the spinning blade contacts anything it cannot cut.
This contact may cause the blade to stop for an instant
and suddenly “thrust” the unit away from the object that
was hit. This reaction can be violent enough to cause the
operator to lose control of the unit. Blade thrust can occur
without warning if the blade snags, stalls, or binds. This is
more likely to occur in areas where it is difcult to see the
material being cut. For cutting ease and safety, approach
the weeds being cut with the brushcutter from the right to
the left. In the event an unexpected object or woody stock
is encountered, this practice could minimise the blade
thrust reaction.
MAINTENANCE
WARNING: Before inspecting, cleaning or servicing
the unit, stop the motor, wait for all moving parts to stop,
and remove the battery pack. Failure to follow these
instructions can result in serious personal injury or
property damage.
WARNING: When servicing, use only identical
replacement parts. Use of any other parts may create a
hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualied
service technician.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean clothes to remove dirt, dust, oil, grease, etc.
CLEAN THE MACHINE
◾After each use of 3-teeth blade / trimmer head, clean
the debris, clogged soils or grass on the blade and
guard with a soft brush.
NOTICE: When the line-cutting blade becomes dull,
please sharpen it performed by a qualied service
technician or replace with a new line-cutting blade as
necessary.
◾After each use of brushcutter, clean the cutting unit
using a damp cloth with a mild detergent.
◾Do not use any strong detergents on the plastic
housing or the handle. They can be damaged by certain
aromatic oils, such as pine and lemon, and by solvents
such as kerosene. Moisture can also cause a shock
hazard. Wipe off any moisture with a soft dry cloth.
◾Use a small brush or a small vacuum cleaner to clean
the air vents on the rear housing.
STORING THE MACHINE
◾Remove the battery pack from the tool.
◾Wear heavy gloves to clean the tool thoroughly.
◾Mount the blade sheath onto the 3-teeth blade for safe
storage (Fig. Y).
◾Store the unit in a dry, well-ventilated area, locked-up
or up high, out of the reach of children. Do not store
the machine on or adjacent to fertilisers, petrol, or
other chemicals.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E16
Protecting the environment
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
Contact your local government for infor-
mation regarding the collection systems
available.
If electrical appliances are disposed of in
landlls or dumps, hazardous substances
can leak into the groundwater and get into
the food chain, damaging your health and
well-being.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E 17
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION SOLUTION
Fail to start.
◾The battery pack is not attached to the
brushcutter.
◾Attach the battery pack to the power
head.
◾No electrical contact between the
brushcutter and the battery pack.
◾Remove battery, check contacts
and reinstall the battery pack until it
snaps into place.
◾The battery pack is depleted. ◾Charge the battery pack with EGO
chargers listed in this manual.
◾The lock-off lever and trigger are not
depressed simultaneously.
◾Press down the lock-off lever and
hold it, then depress the trigger to
turn on the brushcutter.
Stop working.
◾The motor is overloaded. ◾The motor will recover when the
load is removed. For continuous
working, decrease the load on the
power head.
◾Heavy cutting line is used. ◾Use standard nylon cutting line with
diameter no more than 2.4mm.
◾The battery pack or the brushcutter is too
hot.
◾Allow the battery pack or the power
head to cool until the temperature
drops below 67°C.
◾The battery pack is disconnected from the
tool.
◾Re-install the battery pack.
◾The battery pack is depleted. ◾Charge the battery pack with EGO
chargers listed in this manual.
Trimmer head will not
advance line (only
using with trimmer
head).
◾The motor shaft or trimmer head is bound
with grass.
◾Stop the machine, remove the
battery and remove the grass from
the motor shaft and trimmer head.
◾There is not enough line on the spool. ◾Remove the battery and replace the
cutting line, follow the section “LINE
REPLACEMENT” in this manual.
◾The trimmer head is dirty. ◾Remove the battery and clean the
spool, spool retainer and spool base.
◾Line is tangled on spool. ◾Remove the battery, remove the line
from the spool and rewind, follow
the section “LINE REPLACEMENT” in
this manual.
◾The line is too short. ◾Remove the battery and pull the
lines while alternately pressing
down on and releasing the bumb
knob.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BC3800E18
WARRANTY
EGO WARRANTY POLICY
5 year warranty on EGO outdoor power equipment and 3 year warranty on EGO Power+ System battery packs and
chargers.
Please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims.
LIMITED SERVICE WARRANTY
FOR FIVE YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or
workmanship. Defective product will receive free repair.
FOR THREE YEARS from the date of original retail purchase, the EGO Power+ System battery pack and charger are
warranted against defects in material or workmanship. Defective product will receive free repair.
This warranty does not cover routine maintenance parts and consumables that can wear out from normal use within the
warranty period.
◾This warranty applies only to the original purchaser at retail and may not be transferred.
◾The warranty period for any EGO product or part used for industrial, professional or commercial purpose is one year.
◾This warranty is void if the product has been used for rental purpose.
◾This warranty does not cover the damage resulting from modication, alteration or unauthorised repair.
◾This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect
resulting from misuse, abuse (including overloading of the product beyond capacity and exposure to water or rain),
accidents, neglect or lack of proper installation, and improper maintenance or storage.
◾This warranty does not cover normal deterioration of the exterior nish, including but not limited to scratches, dents,
paint chips, or to any corrosion or discoloring by heat, abrasive and chemical cleaners.
HOW TO OBTAIN SERVICE
For warranty service, please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346). When requesting warranty service, you must present the original dated
sales receipt. An authorized service center will be selected to repair the product according to the stated warranty terms.
ADDITIONAL LIMITATIONS
Chervon Australia Pty Ltd ABN 36 165 077 501(“Chervon”) warrants to the original domestic purchaser that this
product will be free from defects in materials and workmanship for 5 years from date of purchase, and any battery or
charger will be free from defects in materials and workmanship for 3 years from date of purchase. To make a claim,
return the faulty item together with proof of purchase directly to your closest service agent or to the place of purchase.
Any handling and transportation costs (and other expenses incurred in claiming this warranty) are not covered by this
warranty and will not be borne by Chervon. The replacement product or part or repaired product will be made available
for your collection at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace the
defective product or repair the fault. Where the product is repaired, Chervon may use refurbished parts. This warranty
does not cover normal wear and tear, misuse or abuse. This warranty may also be further limited or voided as speci-
cally detailed in the product Manual. Chervon has no other liability under this warranty.The benets to you given by this
warranty are in addition to other rights and remedies imposed by State and Federal legislation that cannot be excluded.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You
are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does
not amount to a major failure. Chervon Australia Pty Ltd, Unit 13, 1488 Ferntree Gully Rd, Knoxeld, VIC. 3180.
Phone Number: Australia 1300 000 EGO(1300 000 346), New Zealand 0508 000 EGO (0508 000 346).
Email address: [e-mail].
