EGO BCX3800 User manual

S
OPERATOR’S MANUAL
56 VOLT LITHIUM-ION
REAR MOTOR
BIKE-HANDLE BRUSHCUTTER
MODEL NUMBER BCX3800
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.

CB
A

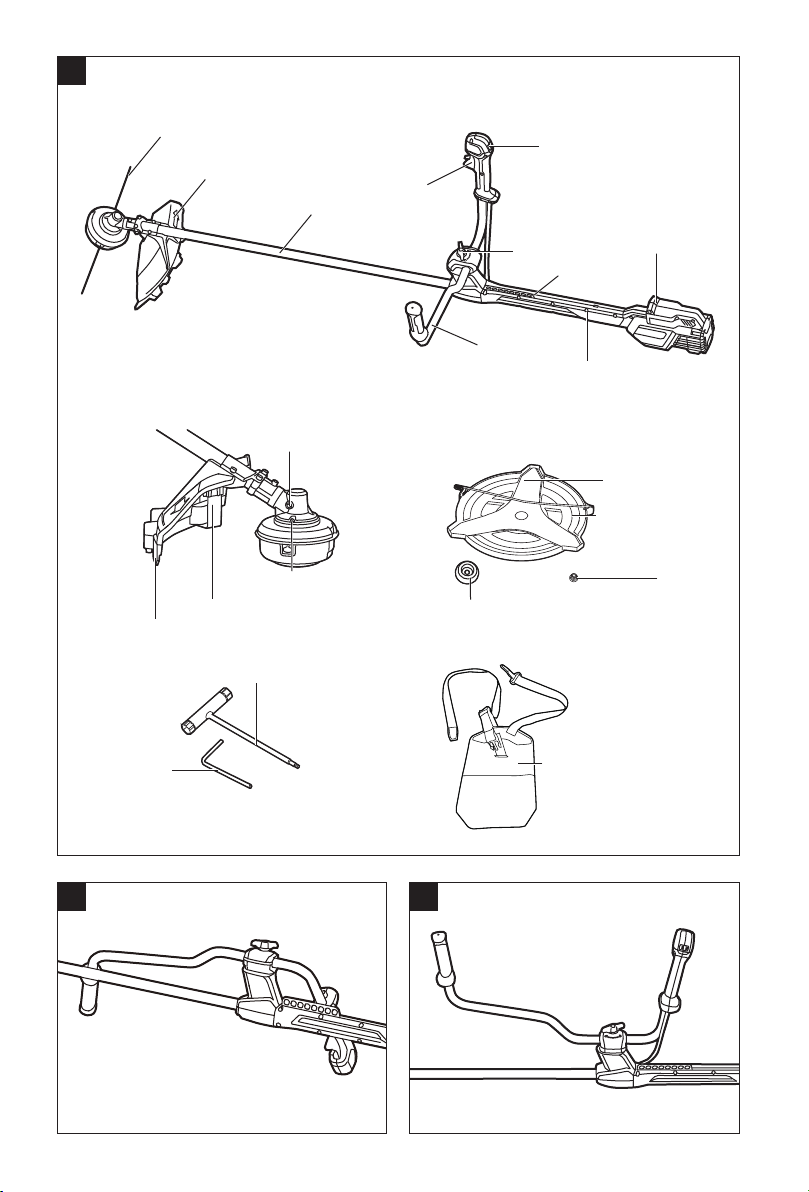

2. Guard Assembly
3. Shaft
7. Hook
4. Trigger
10. Bike Handle
5. Lock-off Button
6. Wing Bolt 8. Socket
9. Guard Plate
11. Sealing Screw
14. Guard Accessory
13. Line-cuttingBlade
19. Multi-function Wrench
20. Hex Wrench
15. 3-teethBlade
16. Blade Sheath
21*. Hip-pad
17. Outer Flange
18. Nut
12. Shaft-locking Hole
1. Trimmer Line

D E
F G
H3
H1 H2
H4
Flange Cover
Cutting Line
Spring
Nut
Spool Retainer
Lower Housing ASSY
Inner Flange
Upper Housing ASSY

H5 I1
J3
I2 I3
J2
I4 J1
Clamp Wire
Hook
Shaft
Inner Flange 3-teeth Blade
Flange Cover
Slot
Outer Flange
Nut
Spring

J7
11 cm
J4
J6
J5
K
13 cm
L1 L2
Notch
Chest
Buckle
Belt
Buckle
Hook
Eyelet

N
M

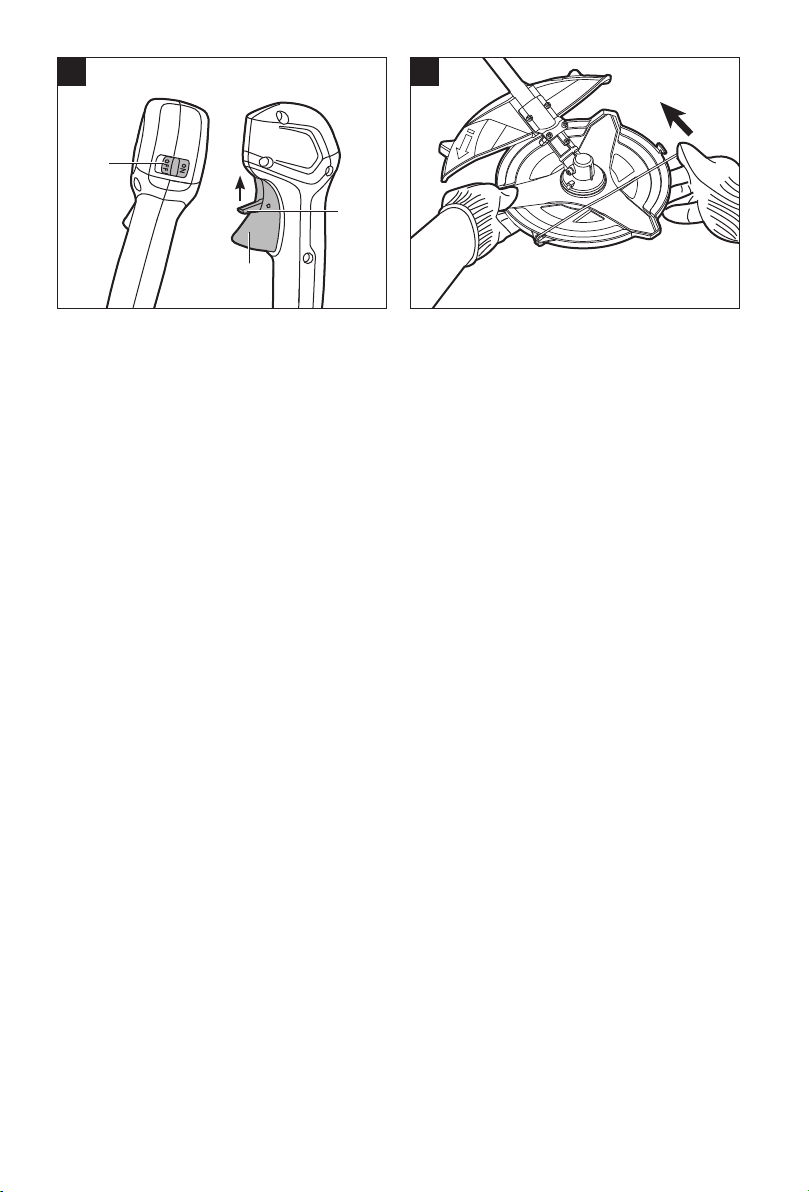

Lock-off
Button
Small
Trigger
Switch Trigger

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX3800 7
READ ALL INSTRUCTIONS!
READ OPERATOR’S MANUAL
WARNING: To ensure safety and reliability, all repairs
and replacements should be performed by a qualied
service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them deserve your careful attention and
understanding. The symbol warnings do not, by themselves,
eliminate any danger. The instructions and warnings they
give are no substitutes for proper accident prevention
measures.
WARNING: Be sure to read and understand all
safety instructions in this Operator’s Manual, including
all safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION”before using this tool. Failure to follow all
instructions listed below may result in electric shock, re,
and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION, may be used in conjunction with
other symbols or pictographs.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow
all instructions on the machine before attempting to
assemble and operate it.
Safety Alert Indicates a potential
personal injury hazard.
Read
Operator’s
Manual
To reduce the risk of
injury, user must read and
understand the operator’s
manual before using this
product.
Wear Eye
Protection
Always wear safety goggles
or safety glasses with side
shields and a full face shield
when operating this product.
Wear Ear
Protection
Always wear sound barriers
(ear plugs or ear mufers) to
protect your hearing.
Wear Head
Protection
Wear an approved safety
hard hat to protect your
head.
Wear
Protective
Gloves
Protect your hands with
gloves when handling blade
or blade guard. Heavy-duty,
nonslip gloves improve your
grip and protect your hands.
Wear
Safety
Footwear
Wear non-slip safety
footwear when using this
equipment.
Beware
of blade
thrust
Warn the operator of the
danger of blade thrust.
Ricochet
and Keep
Bystanders
Away
Thrown objects can ricochet
and result in personal
injury or property damage.
Ensure that other people
and pets remain away from
the brushcutter when it is
in use.
15m
Keep
Bystanders
Away
Ensure that other people
and pets remain at least
15m away from the line
trimmer when it is in use.
No round
blade
Do not install round cutting
blades.
Do not
expose to
rain
Do not use in the rain or
leave outdoors while it is
raining.
WEEE
Waste electrical products
should not be disposed of
with household waste. Take
to an authorized recycler.
XX
NOISE dB
Noise Sound pressure level
IPX5 IP Symbol Protection against ingress of
water degree 5
V Volt Voltage

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX38008
Direct
Current
Type or a characteristic of
current
n0
No Load
Speed Rotational speed, at no load
min-1 Per Minute Revolutions per minute
GENERAL POWER TOOL SAFETY WARNINGS
WARNING: Read all safety warnings,
instructions, illustrations and specications
provided with this power tool. Failure to follow all
instructions listed below may result in electric shock, re
and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
WORK AREA SAFETY
◾Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
◾Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, petrols or dust. Power tools
create sparks which may ignite the dust or fumes.
◾Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
ELECTRICAL SAFETY
◾Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adaptor
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk
of electric shock.
◾Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
◾Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
◾Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
◾When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
◾If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
◾Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the inuence of drugs, alcohol medication. A
moment of inattention while operating power tools
may result in serious personal injury.
◾Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
◾Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energizing power tools that have the switch
on invites accidents.
◾Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
◾Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
◾Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
◾If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
devices can reduce dust-related hazards.
◾Recommendation that the tool always be supplied
via a residual current device having a rated
residual current of 30 mA or less.
◾Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX3800 9
POWER TOOL USE AND CARE
◾Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
◾Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
◾Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting
the power tool accidentally.
◾Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
◾Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect
the power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents are
caused by poorly maintained power tools.
◾Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
◾Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
◾Keep handles and grasping surface dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
◾Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
◾Use power tools only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
◾When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
◾Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
◾Do not use a battery pack or tool that is damaged
or modied. Damaged or modied batteries may
exhibit unpredictable behaviour resulting in re,
explosion or risk of injury.
◾Do not expose a battery pack or tool to re
or excessive temperature. Exposure to re or
temperature above 100 °C may cause explosion.
◾Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specied in the instructions. Charging
improperly or at temperatures outside the specied
range may damage the battery and increase the risk
of re.
SERVICE
◾Have your power tool serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
◾Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorised service providers.
TRAINING
◾Read the instructions carefully. Be familiar with the
controls and the proper use of the machine.
◾Never allow people unfamiliar with these instructions
or children to use the machine. Local regulations can
restrict the age of the operator.
◾Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
PREPARATION
◾Never operate this product while people, especially
children, or pets are nearby.
◾Wear eye protection and stout shoes at all times while
operating this product.
◾The distance between the machine and bystanders
shall be at least 15m.
OPERATION
◾Use the brushcutter only in daylight or good articial light.
◾Never operate the brushcutter with damaged guards or
shields or without guards or shields in place.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX380010
◾Switch on the motor only when the hands and feet are
away from the cutting means.
◾Always disconnect the brushcutter from the power
supply (i.e. remove the battery pack).
◾whenever leaving the brushcutter unattended;
◾before clearing a blockage;
◾before checking, cleaning or working on the brushcutter;
◾after striking a foreign object;
◾whenever the brushcutter starts vibrating abnormally.
◾Take care against injury to feet and hands from the
cutting means.
◾Always ensure that the ventilation openings are kept
clear of debris.
MAINTENANCE AND STORAGE
◾Disconnect the brushcutter from the power supply
(i.e. remove the battery pack) before carrying out
maintenance or cleaning work.
◾Use only the manufacturer’s recommended replacement
parts and accessories.
◾Inspect and maintain the brushcutter regularly. Have the
machine repaired only by an authorised repairer.
◾When not in use, store the brushcutter out of the reach
of children.
OTHER SAFETY WARNINGS
◾Avoid dangerous environments - Don’t use
appliances on damp or wet slope.
◾Keep guards in place and in working order.
◾Keep hands and feet away from the cutting area.
◾Store brushcutter indoors - When not in use the
brushcutter should be stored indoors in a dry and high
or locked-up place with the battery pack removed- out
of reach of children.
◾Before using the brushcutter and after any impact,
check for signs of wear or damage and repair as
necessary.
◾If the equipment should start to vibrate abnormally,
stop the motor, remove the battery pack from the
brushcutter and check immediately for the cause.
Vibration is generally a warning of trouble. A loose
cutting unit may vibrate, crack, break or come off the
brushcutter, which may result in serious or fatal injury.
Make sure that the cutting unit is properly installed
and securely fastened. If the cutting unit loosens after
xing it in position, replace it immediately. Never use a
brushcutter with a loose cutting unit.
◾To reduce the risk of injury, never work on a ladder
or on any other insecure support. Never hold the
cutting unit above waist height.
◾Check the cutting unit at regular short intervals
during operation, or immediately if there is a
noticeable change in cutting behavior.
◾For best results, your battery should be charged in
a location where the temperature is greater than
5° C and less than 40° C. Do not store it outside or
in vehicles.
◾Only use EGO blade accessories and blade that
are designed for use with this brushcutter.
Unauthorized units might be extremely dangerous,
and/or damaging to the tools.
◾If you are approached, stop the motor and cutting unit.
◾Warn the operator of the danger of blade thrust
(only using with 3-teeth blade).
◾Blade thrust may occur when the spinning blade
contacts an object that it does not immediately cut.
◾Blade thrust can be violent enough to cause the unit
and/or operator to be propelled in any direction, and
possibly lose control of the unit.
◾Blade thrust can occur without warning if the blade
snags, stalls or binds.
◾Blade thrust is more likely to occur in areas where it
is difcult to see the material being cut.
◾Do not attach any blade to a unit without proper
installation of all required parts. Failure to use the
proper parts can cause the blade to y off and
seriously injure the operator and/or bystanders.
Discard blades that are bent, warped, cracked,
broken, or damaged in any way. Use a sharp blade.
A dull blade is more likely to snag and thrust
(only using with 3-teeth blade).
◾A coasting blade/line can cause injury while it
continues to spin after the motor is stopped or
trigger is released. Maintain proper control until
the blade/line has completely stopped rotating.
◾Use only with EGO’s battery packs and chargers listed
below:
BATTERY PACK CHARGER
BAX1500
BH1000 CHX5500E
◾Battery tools do not have to be plugged into an
electrical outlet; therefore, they are always in
operating condition. Be aware of possible hazards
even when the tool is not operating. Take care when
performing maintenance or service.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX3800 11
◾Do not wash with a hose; avoid getting water in
motor and electrical connections.
◾If situations occur that are not covered in this
manual, use care and good judgment. Contact the
EGO Customer Service Center for assistance.
SAVE THESE INSTRUCTIONS!
SPECIFICATIONS
Cutting unit Trimmer head
3-teeth metal
blade
Voltage 56V 56V
No-load Speed Up to 5800/min Up to 5800/min
Recommended
Operating Temperature: 0°C-40°C
Recommended
Storage Temperature: -20°C-70°C
Cutting Line Type 2.4mm /
Cutting blade / ABB1203
Cutting Width 38cm 30cm
Weight 6.8kg 6.46kg
Sound pressure level 67dB(A) 67dB(A)
PACKING LIST
PART NAME QUANTITY
Brushcutter 1
3-teeth blade with Sheath 1
Guard Assembly 1
Nut 1
Outer Flange 1
Hex Wrench 1
Multi-Function Wrench 1
Hip-pad 1
Operator’s manual 1
DESCRIPTION
KNOW YOUR BRUSHCUTTER (Fig. A)
1. Trimmer Line
2. Guard Assembly
3. Shaft
4. Trigger
5. Lock-off Button
6. Wing Bolt
7. Hook
8. Socket
9. Guard Plate
10. Bike Handle
11. Sealing Screw
12. Shaft-locking Hole
13. Line-cutting Blade
14. Guard Accessory
15. 3-teeth Blade
16. Blade Sheath
17. Outer Flange
18. Nut
19. Multi-function Wrench
20. Hex Wrench
21*. Hip-pad (Sold separately)
WARNING: Never operate the tool without the guard
rmly in place. The guard must always be on the tool to
protect the user.
WARNING: When the tool is equipped with a
trimmer head, the guard accessory with line–cutting
blade should be mounted onto the guard. Failure to
comply will result in overly long cutting line and overload
the motor. Never use the trimmer head without guard
accessory.
ASSEMBLY
WARNING: If any parts are damaged or missing, do
not operate the brushcutter until the parts are replaced.
Use of the brushcutter with damaged or missing parts
could result in serious personal injury.
WARNING: Do not attempt to modify the
brushcutter or create accessories not recommended
for use with this product. Any such alteration or
modication is misuse and could result in a hazardous
condition leading to possibly serious personal injury.
WARNING: Always wear heavy gloves when
installing or removing the guard and doing any
maintenance on the 3-teeth blade/line-cutting blade.
Be careful of the line-cutting blade on the guard
accessory / 3-teeth blade for protecting your hands from
being injured by both the blades.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX380012
WARNING: To prevent accidental starting that could
cause serious personal injury, always remove the battery
pack from the tool when assembling parts, making
adjustments, cleaning, or when not in use.
WARNING: Never operate the tool without the guard
and bike handle rmly in place. Failure to comply could
result in possible serious personal injury.
MOUNTING AND ADJUSTING THE BIKE HANDLE
The brushcutter is stored as shown in Fig. B. Firstly,
loosen the wing bolt on the connecting joint and then lift
the bike handle 180° around the shaft (Fig. C), turn it 90°
anticlockwise to make it face the bump head (Fig. D).
Lastly, move it back and forth to achieve a comfortable
working position and tighten the bolt.
NOTICE: Operating the machine with the bike handle
perpendicular to the shaft is only permitted.
MOUNTING THE GUARD
Loosen and remove the two screws from the guard (Fig. E),
align the guard mounting holes with the assembly holes and
then lock the guard onto the shaft base with the two screws,
together with two spring washers (Fig. F).
WARNING: Make sure the guard is xed according
to Fig. F & G, any reverse xing will cause great danger!
WARNING: When the brushcutter is equipped with
a trimmer head, the guard accessory must be mounted
onto the guard. Failure to comply could result in an
overly long cutting line and motor overload.
REPLACE THE TRIMMER HEAD WITH THE 3-TEETH
BLADE
Know the trimmer head as Fig. G shown. Then disassemble
the trimmer head and mount the 3-teeth blade on the
brushcutter.
1. Press the release tabs on the spool retainer and remove the
spool retainer by pulling it straight out (Fig. H1 & H2).
2. Rotate the upper housing assembly to align the slot in
the ange with the shaft-locking hole in the gear case
and insert a stabilizer into the hole (Fig. H3).
3. Rotate the socket wrench clockwise to remove the nut
and upper housing assembly (Fig. H4).
4. Remove the guard accessory by loosening the three
screws with washer (Fig. H5).
5. The blade is shipped with a sheath. Before mounting
the blade onto the brushcutter, the sheath should be
removed by undoing the clamp wire from the hook on
the sheath (Fig. I1).
NOTICE: To protect against injury, you have to wear
gloves prior to any operation with the 3-teeth blade.
6. Mount the inner ange and ange cover into its place
(Fig. I2).
7. Mount the blade onto the motor shaft, ensuring that the
surface of the blade is ush with the surface of the inner
ange bulge. Mount the outer ange and the nut (Fig. I3).
Pre-tighten the nut in a COUNTERCLOCKWISE direction
by hand.
8. Position the gear case against a solid surface for support.
With one hand hold the brushcutter shaft and the other
hand grasp the multi-function wrench to tighten the nut
following the directional arrow icon marked on the outer
ange (Fig. I4).
REPLACE THE 3-TEETH BLADE WITH THE TRIMMER
HEAD
Know the 3-teeth blade cutting unit as Fig. J1 shown. Then
disassemble 3-teeth blade and mount the trimmer head on
the brushcutter.
1. Rotate the blade to align the slot in the ange with
the shaft-locking hole in the gear case and insert a
stabiliser into the hole.
2. Position the gear case against a solid surface for
support. With one hand hold the brushcutter shaft
and the other hand grasp the multi-function wrench
to loosen the nut clockwise.
3. Take out the nut, outer ange, blade, inner ange
cover and inner ange from the brushcutter (Fig. J2).
NOTICE: When the 3-teeth blade is unused, to prevent
personal injury, mount the blade into its sheath.
4. Assemble the guard accessory to the brushcutter by
tighten three screws with washer.
5. Mount the lower housing onto the gear case by
tightening the nut and put the spring into its place
(Fig. J3).
6. Fold and wind trimmer line onto the spool as Fig. J4
shown. Then place the line ends through the two
opposite notches in the spool (Fig. J5) and place
the spool into its retainer with notches aligned with
retainer eyelets (Fig. J7). Lastly, align the retainer
slots with the tabs on the spool base and press the
retainer evenly down, ensuring that it snaps into
place (Fig. J6).

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX3800 13
NOTICE: Failure to wind the line in the direction
indicated it will cause the trimmer head to operate
incorrectly.
OPERATION
WARNING: Do not allow familiarity with this product
to make you careless. Remember that a careless fraction
of a second is sufcient to inict serious injury.
WARNING: Always wear eye protection, along with
hearing protection. Failure to do so could result in objects
being thrown into your eyes and other possible serious
injuries.
WARNING: Do not use any attachments or
accessories not recommended by the manufacturer of
this product. The use of attachments or accessories not
recommended can result in serious personal injury.
HOLDING THE BRUSHCUTTER
Before connect the backpack battery with the brushcutter,
wear your backpack battery and mount the hip-pad your
backpack harness referring to BAX1500 and AHP1500
manual.
Mount the brushcutter with your hip-pad by connecting
the hook to the mounting hole (Fig. K). There are 8 holes
upon the shaft, choosing an optimum hole for comfortable
operation.
Hold the line trimmer with both hands on the right side of
your body. The trimmer head or blade should be parallel to
the ground at a proper cutting distance without the operator
bending over.
Releasing the brushcutter can be achieved in two ways.
Release the chest and belt buckles (Fig.L1) or press the
hook of the hip-pad and take it apart from the mounting
hole on the shaft.
WARNING: When emergency occurs, releasing the
chest and belt buckles is the quick release method to
release the brushcutter.
WARNING: You should not use the single-shoulder
strap and double-shoulder strap with backpack battery
simultaneously.
To Install Battery Pack (Fig. L2)
Align ▲of plug with ▲of brushcutter. Insert the plug into
the machine until the green seal completely disappeared
into the socket.
To Remove
Release the battery cord from the mounting groove and pull
out the plug from the brushcutter.
STARTING/STOPPING THE BRUSHCUTTER
To Start
Push the lock-off button to position “ON” (Fig. M). Move
the small trigger upwards and then press the switch
trigger to start the brushcutter. Different pressure on the
trigger results in variable rotating speed of the cutting
unit.
To Stop
Release the switch trigger and push the lock-off button
back to position “OFF”.
WARNING: Always remove the battery pack from
the line trimmer during work breaks and after nishing
work.
USING THE BRUSHCUTTER
WARNING: Dress properly to reduce the risk of
injury when operating the brushcutter. Do not wear loose
clothing or jewelry. Wear eye and ear/hearing protection.
Wear heavy duty, long trousers, boots and gloves. Do
not wear short trousers, sandals or go barefoot. Before
operating, look around you to ensure a safety working
area without other people, animals or any loose objects.
Make sure they are at least 15m away. And then check for
eye protection, proper clothing and balanced footing.
Before each use check for damaged/worn parts. Check
the trimmer head, 3-teeth blade, guard, guard accessory
and bike handle and replace any parts that are cracked,
warped, bent, or damaged in any away. The line-cutting
blade on the edge of the guard accessory can dull over
time. It is recommended that you periodically sharpen it
with a le or replace it with a new blade.
After each use, clean the brushcutter
Using with Trimmer Head
Adjusting cutting line length
The trimmer head allows the operator to release more
cutting line without stopping the motor. As line becomes
frayed or worn, additional line can be released by lightly
tapping the bump knob on the ground while operating the
trimmer.
NOTICE: Line release will become more difcult if the
cutting line becomes too short.
WARNING: Do not remove or alter the line-cutting
blade assembly. Excessive line length will cause the motor
to overheat and may result in serious personal injury.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX380014
Line replacement
WARNING: Never use metal-reinforced line, wire,
or rope, etc. These can break off and become dangerous
projectiles.
Press the release tabs on the spool retainer and pull
the spool retainer out (Fig. H1 & H2). Follow the step
6 of “REPLACE THE 3-TEETH BLADE WITH THE
TRIMMER HEAD” to assemble a new trimmer line to the
brushcutter.
Using with 3-Teeth Blade
WARNING: To cut wild growth and scrub, lower the
rotating 3-teeth blade down onto the growth to achieve a
chopping effect. Use the brushcutter like a scythe (sweep
it to the right and left) at ground level. Do not use the
cutting unit above waist height.
WARNING: The higher the cutting unit is off the
ground, the greater the risk of injury from cuttings being
thrown sideways.
WARNING: When cutting young stands or other
woody materials up to 2cm in diameter, use the left
side of the blade to avoid blade thrust situations. Do not
attempt to cut woody material with a larger diameter,
since the blade may catch or jerk the brushcutter
forward. This may cause damage to the blade or
the brushcutter or loss of control of the brushcutter,
resulting personal injury.
WARNING: Improper use of a blade may cause it to
crack, chip, or shatter. Thrown parts may seriously injure
the operator or bystander. To reduce the risk of personal
injury, it is essential to take the following precautions:
◾Avoid contact with hard or solid foreign objects such as
stones, rocks or pieces of metal.
◾Never cut wood or shrubs with a stem diameter of more
than 2cm.
◾Inspect the blade at a regular short interval for signs of
damage. Do not continue working with a damaged blade.
◾Re-sharpen the blade regularly (when it has dulled
noticeably) and have it balanced if necessary (performed
by a qualied service technician).
Blade Thrust
Exercise extreme caution when using the 3-teeth blade with
this unit. Blade thrust is the reaction that may occur when the
spinning blade contacts anything it cannot cut. This contact
may cause the blade to stop for an instant and suddenly
“thrust” the unit away from the object that was hit. This
reaction can be violent enough to cause the operator to lose
control of the unit. Blade thrust can occur without warning if
the blade snags, stalls, or binds. This is more likely to occur
in areas where it is difcult to see the material being cut.
For cutting ease and safety, approach the weeds being cut
with the brushcutter from the right to the left. In the event
an unexpected object or woody stock is encountered, this
practice could minimise the blade thrust reaction.
MAINTENANCE
WARNING: Before inspecting, cleaning or servicing
the unit, stop the motor, wait for all moving parts to stop,
and remove the battery pack. Failure to follow these
instructions can result in serious personal injury or
property damage.
WARNING: When servicing, use only identical
replacement parts. Use of any other parts may create a
hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualied
service technician.
GENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plastics are susceptible to damage from various types of
commercial solvents and may be damaged by their use.
Use clean clothes to remove dirt, dust, oil, grease, etc.
CLEAN THE MACHINE
◾After each use of 3-teeth blade / trimmer head, clean
the debris, clogged soils or grass on the blade and
guard with a soft brush.
NOTICE: When the line-cutting blade becomes dull, please
sharpen it performed by a qualied service technician or
replace with a new line-cutting blade as necessary.
◾After each use of brushcutter, clean the cutting unit
using a damp cloth with a mild detergent.
◾Do not use any strong detergents on the plastic housing
or the handle. They can be damaged by certain aromatic
oils, such as pine and lemon, and by solvents such as
kerosene. Moisture can also cause a shock hazard. Wipe
off any moisture with a soft dry cloth.
◾Use a small brush or a small vacuum cleaner to clean
the air vents on the rear housing.
LUBRICATE THE GEAR CASE
For best operation and longer lifetime, lubricate the gear
case with a special grease (4-5g each time) after every
50 hours operation.
The special grease should meet the following requirements.
1. Belong to DIN51818: NLGI-1 cone penetration degree.
2. Ester base grease.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX3800 15
3. Excellent low-temperature startup, EP, mechanical
shearing, abrasion resistance and oxidative stability
properties.
4. Operation temperature must contain -40~180°C.
Remove the battery plug and the sealing screw. Lubricating
the gear case through the oil-hole.
WARNING: Do not lubricate while the brushcutter is
still connected with battery or running.
STORING THE MACHINE
◾Remove the battery pack from the tool.
◾Wear heavy gloves to clean the tool thoroughly.
◾Mount the blade sheath onto the 3-teeth blade for safe
saving (Fig. N).
◾Store the unit in a dry, well-ventilated area, locked-up
or up high, out of the reach of children. Do not store
the machine on or adjacent to fertilisers, petrol, or
other chemicals.
NOTICE: Do not operate your brushcutter with dull or
damaged cutting blades. This may cause overload and
will give unsatisfactory cutting results.
Protecting the environment
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
Contact your local government for
information regarding the collection
systems available.
If electrical appliances are disposed of in
landlls or dumps, hazardous substances
can leak into the groundwater and get into
the food chain, damaging your health and
well-being.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX380016
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION SOLUTION
Fail to start.
◾The battery pack is not attached to the
brushcutter or no electrical contact between
the brushcutter and battery.
◾Reinsert the battery plug into the
hedge trimmer
◾The battery pack is depleted. ◾Charge the battery pack with the
specied charger.
◾The lock-off button has not pushed to
position “ON” before pressing the switch
levels.
◾Before using the trimmer, conrm
the lock button is unlocked.
Stop working.
◾The battery pack or brushcutter is too hot. ◾Allow the battery pack or
hedge trimmer to cool until the
temperature to normal temperature.
◾The brushcutter is overload. ◾The machine will recover when the
load is removed. For continuous
working, reduce the load of the
machine.
◾The battery pack is disconnected from the
tool.
◾Re-install the battery pack.
◾The battery pack is deleted. ◾Charge the battery pack with the
specied charger.
Excessive vibration or
noise.
◾Dry gearbox ◾Remove sealing screw and add
lubricating oil.
◾The unbalance cutting line. ◾Lightly tap the bump knob on the
ground while operating the trimmer.
◾The 3-teeth blade is bent or damaged ◾Replace a new blade.
The cutting line can’t
be released.
◾The line in the trimmer head has been run
out.
◾Assemble a new cutting line into the
brushcutter.
◾The cutting line has not been installed
properly.
◾Remove the cutting line and
re-assemble the cutting line.

56 VOLT LITHIUM-ION REAR MOTOR BIKE-HANDLE BRUSHCUTTER — BCX3800 17
WARRANTY
EGO WARRANTY POLICY
1 year warranty on EGO outdoor power equipment and 1 year warranty on EGO Power+ System battery packs and
chargers.
Please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims.
LIMITED SERVICE WARRANTY
FOR ONE YEAR from the date of original retail purchase, this EGO product is warranted against defects in material or
workmanship. Defective product will receive free repair.
FOR ONE YEAR from the date of original retail purchase, the EGO Power+ System battery pack and charger are
warranted against defects in material or workmanship. Defective product will receive free repair.
This warranty does not cover the blade, which is a part that can wear out from normal use within the warranty period.
◾This warranty applies only to the original purchaser at retail and may not be transferred.
◾The warranty period for any EGO product or part used for industrial, professional or commercial purpose is one year.
◾This warranty is void if the product has been used for rental purpose.
◾This warranty does not cover the damage resulting from modication, alteration or unauthorised repair.
◾This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect
resulting from misuse, abuse (including overloading of the product beyond capacity and exposure to water or rain),
accidents, neglect or lack of proper installation, and improper maintenance or storage.
◾This warranty does not cover normal deterioration of the exterior nish, including but not limited to scratches, dents,
paint chips, or to any corrosion or discoloring by heat, abrasive and chemical cleaners.
HOW TO OBTAIN SERVICE
For warranty service, please contact EGO customer service on Australia 1300 000 EGO(1300 000 346),
New Zealand 0508 000 EGO (0508 000 346). When requesting warranty service, you must present the original dated
sales receipt. An authorised service center will be selected to repair the product according to the stated warranty terms.
ADDITIONAL LIMITATIONS
Chervon Australia Pty Ltd ABN 36 165 077 501(“Chervon”) warrants to the original domestic purchaser that this product
will be free from defects in materials and workmanship for 1 year from date of purchase, and any battery or charger will
be free from defects in materials and workmanship for 1 year from date of purchase. To make a claim, return the faulty
item together with proof of purchase directly to your closest service agent or to the place of purchase. Any handling and
transportation costs (and other expenses incurred in claiming this warranty) are not covered by this warranty and will
not be borne by Chervon. The replacement product or part or repaired product will be made available for your collection
at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace the defective product
or repair the fault. Where the product is repaired, Chervon may use refurbished parts. This warranty does not cover
normal wear and tear, misuse or abuse. This warranty may also be further limited or voided as specically detailed in
the product Manual. Chervon has no other liability under this warranty.The benets to you given by this warranty are
in addition to other rights and remedies imposed by State and Federal legislation that cannot be excluded. Our goods
come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a
major failure. Chervon Australia Pty Ltd, Unit 14, 5 Kelletts Road, Rowville, VIC 3178.
Phone Number: Australia 1300 000 EGO(1300 000 346), New Zealand 0508 000 EGO (0508 000 346).
Email address: [email protected].
