EGO BBA2100 User manual

OPERATOR'S MANUAL
BRISTLE BRUSH ATTACHMENT
MODEL NUMBER BBA2100
BRISTLE BRUSH ATTACHMENT
FOR USE ONLY WITH THE 56V LITHIUM-ION POWER HEAD PH1400E
BRISTLE BRUSH ATTACHMENT
BRISTLE BRUSH ATTACHMENT
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.

D
B C
E

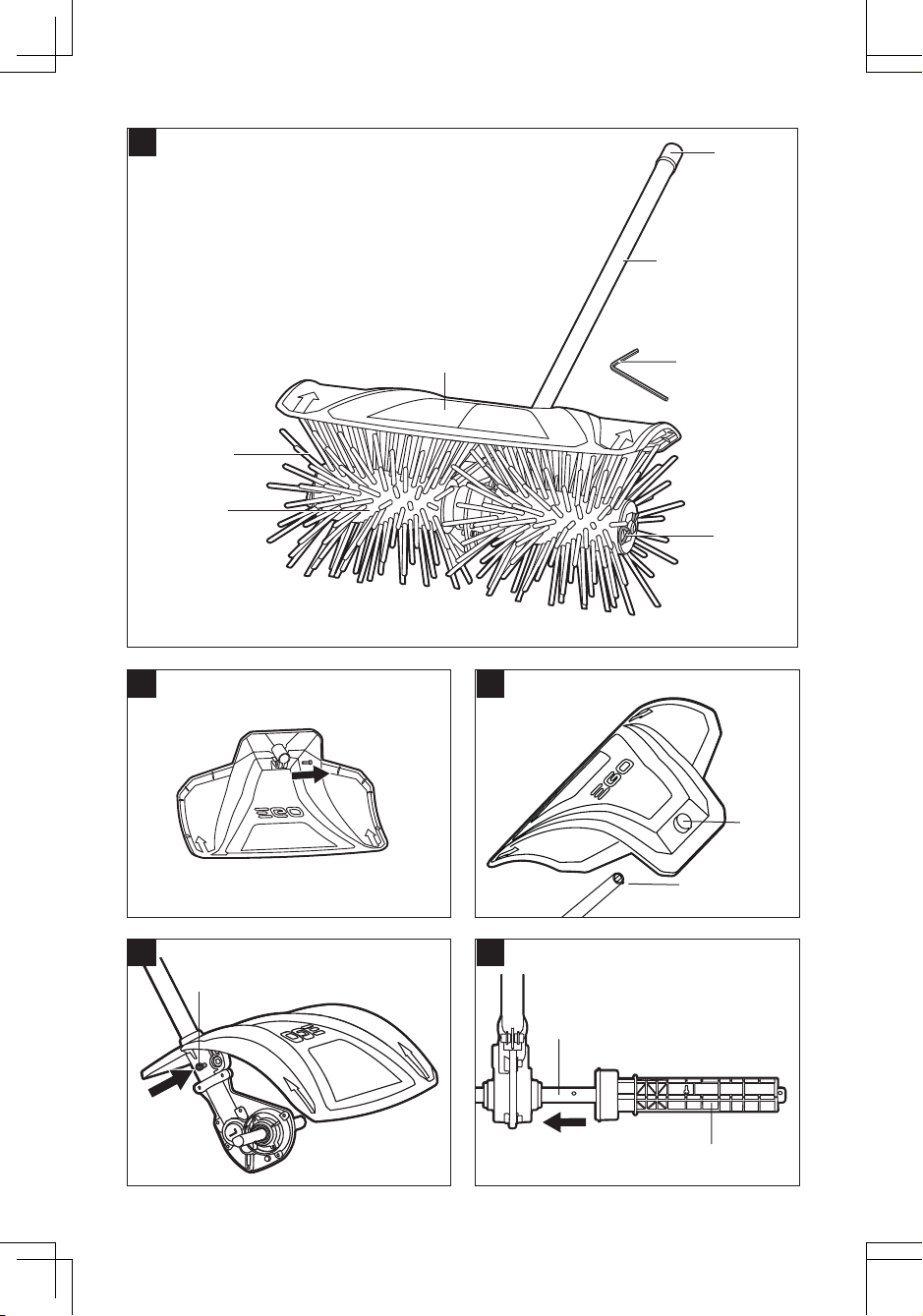

1. End Cap
A
2. Bristle Brush
Attachment Shaft
4. Brush Roller
5. Gear Box
6. Hitch Pin
7. Allen Key
3. Guard
Slot
Rib
Bolt
Drive Shaft
Drive Axle

J
K
F
H
G
I
L
Lock Pin
Locking Hole
Brush Roller
Hitch Pin
Shaft-Release Button
Wing Nut
Drive Axle
Driven Shaft
Lock Pin Brush Roller
Hitch Pin
Cover Plate

N
M
Hole Rib

BRISTLE BRUSH ATTACHMENT — BBA2100 5
READ ALL INSTRUCTIONS!
READ OPERATOR’S MANUAL
Residual risk! People with electronic devices, such
as pacemakers, should consult their physician(s) before
using this product. Operation of electrical equipment
in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all
repairs and replacements should be performed by a
qualified service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols and the explanations
with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any
danger. The instructions and warnings they give are no
substitutes for proper accident prevention measures.
WARNING: Be sure to read and understand all
safety instructions in this Operator’s Manual, including all
safety alert symbols such as “DANGER,” “WARNING,”
and “CAUTION” before using this tool. Failure to follow all
instructions listed below may result in electric shock, fire,
and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, OR CAUTION, may be used in conjunction
with other symbols or pictographs.
WARNING: The operation of any
power tools can result in foreign objects
being thrown into your eyes, which can
result in severe eye damage. Before
beginning power tool operation, always wear
safety goggles or safety glasses with side
shields and a full face shield when needed.
We recommend a Wide Vision Safety Mask
for use over eyeglasses or standard safety
glasses with side shields.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assem-
ble and operate it.
Safety Alert Indicates a potential personal
injury hazard.
Read
Operator’s
Manual
To reduce the risk of
injury, user must read and
understand operator’s manual
before using this product.
Wear Eye
Protection
Always wear safety goggles
or safety glasses with side
shields and a full face shield
when operating this product.
Keep
Bystanders
Away
Keep Bystanders at a Safe
Distance
Wear Safety
Footwear
Wear non-slip safety footwear
when using this equipment.
Ricochet
Thrown objects can ricochet
and result in personal injury
or property damage.
Do Not
Expose To
Rain
Do not use in the rain or leave
outdoors while it is raining.
WEEE
Waste electrical products
should not be disposed of
with household waste. Take
to an authorized recycler.
XX
Noise Guaranteed sound power level.
V Volt Voltage
mm Millimeter Length or size
kg Kilogram Weight
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings, instructions,
illustrations and specifications provided with this power
tool. Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
WORK AREA SAFETY
◾Keep work area clean and well lit. Cluttered or dark
areas invite accidents.

BRISTLE BRUSH ATTACHMENT — BBA21006
◾Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
◾Keep children and bystanders away while
operating a power tool. Distractions can cause you
to lose control.
ELECTRICAL SAFETY
◾Do not expose power tools to rain or wet
conditions. Water entering a power tool will increase
the risk of electric shock.
PERSONAL SAFETY
◾Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol medication. A
moment of inattention while operating power tools may
result in serious personal injury.
◾Always use personal protective equipment.
Personal protective equipment such as eye protection,
dust mask, non-skid safety shoes, hard hat and/or
hearing protection used for appropriate conditions will
reduce personal injuries.
◾Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your finger on the
switch or energizing power tools that have the switch
on invites accidents.
◾Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result
in personal injury.
◾Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
◾Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
◾If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
devices can reduce dust-related hazards.
◾Do not let familiarity gained from frequent use of
tools allow you to become complacent and ignore
tool safety principles. A careless action can cause
severe injury within a fraction of a second.
POWER TOOL USE AND CARE
◾Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
◾Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
◾Remove the battery pack, if detachable, from the
power tool and/or activate any battery disabling
device before clearing jammed material, making
any adjustments, changing accessories, cleaning,
or storing power tools Such preventive safety
measures reduce the risk of starting the power tool
accidentally.
◾Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the
power tool or these instructions to operate the
power tool. Power tools are dangerous in the hands of
untrained users.
◾Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused
by poorly maintained power tools and accessories.
◾Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
◾Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
◾Keep handles and grasping surface dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
BATTERY TOOL USE AND CARE
◾Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of fire when used
with another battery pack.
◾Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and fire.
◾When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.

BRISTLE BRUSH ATTACHMENT — BBA2100 7
◾Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
◾Do not use a battery pack or tool that is damaged
or modified. Damaged or modified batteries may
exhibit unpredictable behavior resulting in fire,
explosion or risk of injury.
◾Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 100 °C may cause explosion.
◾Follow all charging instructions and do not charge
the battery pack or tool outside the temperature
range specified in the instructions. Charging
improperly or at temperatures outside the specified
range may damage the battery and increase the risk
of fire.
OTHER SAFETY WARNINGS
Training
◾Read the instructions carefully. Be familiar with the
controls and the proper use of the machine.
◾Never allow people unfamiliar with these instructions
or children to use the machine. Local regulations can
restrict the age of the operator.
◾Never work while people, especial children or pets are
nearby.
◾Keep in mind that the operator or user is responsible
for accidents or hazards occurring to other people or
their property.
Preparation
◾While working, always wear substantial footwear and
long trousers. Do not operate the equipment when
barefoot or wearing open sandals.
◾Thoroughly inspect the area where the equipment is to
be used and remove all objects which can be thrown
up by machine.
◾Before using, always visually inspect to see that the
tools are not worn out or damaged. Replace worn out
or damaged elements and bolts in sets to preserve
balance.
Operation
◾Do not operate the engine in the confined space where
dangerous carbon monoxide fumes can collect.
◾Work only in daylight or in good artificial light.
◾Always be sure of your footing on slopes.
◾Walk, never run with the machine.
◾For wheeled rotary machines, work across the slopes,
never up and down.
◾Exercise extreme caution when changing direction on
slopes.
◾Do not work on excessively sleep slopes.
◾Use extreme caution when reversing or pulling the
machine towards you.
◾Do not change the engine governor settings or over
speed the engine.
◾Start the engine carefully according to manufacturer
instructions and with feet well away from tool.
◾Do not put your hands or feet near or under rotating
parts.
◾Never pick up or carry a machine while the engine is
running.
OPERATION ON A SLOPE:
Slopes are a major factor related to slip-and-fall acci-
dents, which can result in severe injury. Always be sure of
your footing on slopes. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not use it.
◾Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
SERVICE
◾Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
◾Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
WARNING: Read all safety warnings, instructions,
illustrations and specifications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
SAVE THESE INSTRUCTIONS

BRISTLE BRUSH ATTACHMENT — BBA21008
SPECIFICATIONS
Brush Drum Diameter 250mm
Cleaning Swath 560mm
Recommended Operating Temperature -15°C -40°C
Recommended Storage Temperature -20°C-70°C
Weight (including the guard) 5.05 kg
◾The above parameters are tested and measured
equipped with power head PH1400E.
◾The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another;
◾The declared vibration total value may also be used in
a preliminary assessment of exposure.
NOTICE: The vibration emission during actual use of
the power tool can differ from the declared value in
which the tool is used; In order to protect the operator,
user should wear gloves and ear protectors in the
actual conditions of use.
PACKING LIST
PART NAME QUANTITY
Bristle Brush Attachment 1
Brush Roller 2
Drive Axle 2
Guard (with bolt) 1
Allen Key 1
Hitch pin 2
Lock pin 2
Operator’s Manual 1
DESCRIPTION
KNOW YOUR BRISTLE BRUSH ATTACHMENT (Fig.A)
1. End Cap
2. Bristle Brush Attachment Shaft
3. Guard
4. Brush Roller
5. Gear Box
6. Hitch Pin
7. Allen Key
ASSEMBLY
WARNING: If any parts are damaged or missing,
do not operate this product until the parts are replaced.
Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING: Do not attempt to modify this product
or create accessories not recommended for use with this
product. Any such alteration or modification is misuse and
could result in a hazardous condition leading to possible
serious personal injury.
WARNING: To prevent accidental starting that could
cause serious personal injury, always unplug the battery
connector from the socket when assembling parts.
WARNING: Do not connect the bristle brush to the
power head until assembly is complete. Failure to comply
could result in accidental starting and possible serious
personal injury.
MOUNTING THE GUARD
WARNING: Install the guard before the bristle brush
attachment is connected to the power head.
1. Loosen and remove the bolt from the guard with the
supplied Allen key (Fig. B).
2. Lift the bristle brush attachment shaft and remove
the end cap from the shaft.
3. With the slot in the guard aligned with the rib on the
end of the shaft, pass the guard through the shaft
until the screw holes in the guard and in the shaft are
aligned (Fig. C & D).
4. Use the supplied Allen key to tighten the bolt
clockwise to lock the guard securely.
MOUNTING THE BRUSH ROLLERS
1. Push the drive axle onto the driven shaft (Fig. E).
2. To secure the drive axle to the driven shaft, insert the
lock pin into the locking hole.
NOTICE: The lock pin needs to be installed into place (Fig. F).
3. Follow the same steps to mount the other drive axle.
4. Push the brush roller onto the drive axle (Fig. G).
5. Insert the hitch pin into the hole at the end to secure
the brush roller to the drive axle (Fig .H).
6. Follow the same steps to mount the other brush roller.

BRISTLE BRUSH ATTACHMENT — BBA2100 9
CONNECTING THE BRISTLE BRUSH ATTACHMENT
TO THE POWER HEAD
WARNING: Never attach or adjust any attachment
while the power head is running or with the battery
installed. Failure to stop the motor and remove the
battery may cause serious personal injury.
This bristle brush attachment is designed for use with
EGO Power Head PH1400E
1. Stop the motor and remove the battery pack.
2. Loosen the wing nut on the power head coupler.
3. If the end cap is on the attachment shaft, remove it
and save it in a safe place for later use.
Align the arrow on the bristle brush shaft with the arrow
on the coupler (Fig. I) and push the bristle brush shaft into
the coupler until you hear a clear “CLICK” sound (Fig. J).
4. Slightly pull the shaft of the bristle brush attachment
to verify that it is securely locked into the coupler. If
not, move the bristle brush shaft back and forth in
the coupler until a clear “CLICK” sound indicates that
it is engaged.
5. Tighten the wing nut securely.
WARNING: Be sure the wing nut on the coupler
is fully tightened before operating the equipment;
check it periodically for tightness during use to avoid
serious personal injury.
REMOVING THE ATTACHMENT FROM THE POWER
HEAD
1. Stop the motor and remove the battery pack.
2. Loosen the wing nut.
3. With the shaft-release button depressed, pull or twist
the bristle brush attachment shaft out of the coupler
to remove it from the power head.
OPERATION
WARNING: Do not allow familiarity with this product
to make you careless. Remember that a careless fraction
of a second is sufficient to inflict serious injury.
WARNING: Always wear eye protection. along with
hearing protection. Failure to do so could result in objects being
thrown into your eyes and other possible serious injuries.
WARNING: Do not use any attachments or
accessories not recommended by the manufacturer of
this product. The use of attachments or accessories not
recommended can result in serious personal injury.
APPLICATIONS
You may use this product for the purpose listed below:
◾Cleaning areas and paths, including uneven and
jointed surfaces.
◾Cleaning the pavement/concrete/asphalt driveways,
walkways, and yards.
WARNING: Dress properly to reduce the risk of
injury when operating this tool. Do not wear loose clothing
or jewelry. Wear eye protection. Wear heavy, long pants,
boots and gloves. Do not wear short pants or sandals or
go barefoot.
If the surface to be cleaned is dry, spray it with water to
reduce the amount of dust created.
You should work with the bristle brush forward. Hold the
bristle brush with one hand on the rear handle and the
other hand on the front-assist handle. Keep a firm grip
with both hands while operating the bristle brush.
Hold and guide the bristle brush at a shallow angle. If the
bristle brush is held at too steep an angle, it tends to push
back towards the operator.
Maintain your grip and balance on both feet (Fig. K).
Thrown materials may seriously injure the operator or
bystander. To reduce the risk of personal injury, it is
essential to take the following precautions:
◾Always hold the bristle brush with both hands when
operating. Use a firm grip on both handles.
◾Move the bristle brush to the work area before
starting and start the bristle brush at a lower speed.
◾To reduce the risk of injury from loss of control,
hold and guide the bristle brush at a shallow angle.
If the bristle brush is held at too steep an angle, it
tends to push back towards the operator.
Before each use check for damaged/worn parts
Check the brush roller, guard, front-assist handle, and
drive axle and replace any parts that are cracked, warped,
bent, or damaged in any way.
Clean the bristle brush after each use
See the Maintenance section for cleaning instructions.
TO START/STOP THE TOOL
See “STARTING/STOPPING THE POWER HEAD” section in
the power head PH1400E operator’s manual

BRISTLE BRUSH ATTACHMENT — BBA210010
MAINTENANCE
WARNING: When servicing, use only identical
replacement parts. Use of any other parts may create a hazard
or cause product damage. To ensure safety and reliability, all
repairs should be performed by a qualified service technician.
WARNING: Battery tools do not have to be plugged
into an electrical outlet; therefore, they are always in
operating condition. To prevent serious personal injury, take
extra precautions and care when performing maintenance,
service or for changing the cutting attachment or other
attachments.
WARNING: To prevent serious personal injury, remove
the battery pack from the power head and wait for the brush
roller stop before servicing, cleaning, changing add-on
attachments or when the product is not in use.
GENERAL MAINTENANCE
WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating oils, etc.,
come in contact with plastic parts. Chemicals can damage,
weaken, or destroy plastic, which may result in serious
personal injury.
WARNING: When cleaning the bristle brush
attachment, DO NOT immerse it in water or other liquids. Do
not clean your machine with a pressure washer. The solid jet
of water may damage parts of the machine.
BRUSH ROLLER MAINTENCE
REPLACING THE BRUSH ROLLERS
WARNING: A damaged brush roller may break into
pieces after long-time use, which may cause dangerous
projectiles. Thrown objects can cause serious injury. Inspect
it regularly and do not operate the bristle brush with worn or
damaged parts.
To Remove (Fig. L)
1. Remove the hitch pin from the end of the drive axle.
2. Pull the brush roller, together with cover plate on it,
off the drive axle.
3. If the drive axle is damaged, remove the lock pin
from the hole of the drive axle and pull the drive axle
off the driven shaft (Fig. M).
4. If the cover plate is damaged, pull it from the brush
roller and replace it.
5. Follow the same steps to remove the other brush roller.
To Install
1. Install the drive axle onto the driven shaft and insert
the lock pin into the hole on the drive axle (see Fig. F).
2. Install the cover plate onto the brush roller with the
rib in the cover plate aligned with the hole on the
brush roller (Fig. N).
3. Push the brush roller onto the drive axle (see Fig. G).
4. Insert the hitch pin in the hole at the end of the drive
axle and fold it flat.
5. Follow the same steps to mount the other brush
roller.
CLEAN THE UNIT
◾Remove the battery.
◾Clear the pieces of roots, clogged soils, or plants from
the brush rollers, guard, or the gear box. For thorough
cleaning, remove the brush rollers and guard to wash
them thoroughly. For detailed replacement steps please
see above section“REPLACING THE BRUSH ROLLERS”.
◾Keep the air vents free of obstructions.
STORING THE UNIT
◾Remove the battery pack from the tool.
◾Clean the tool thoroughly and inspect the brush rollers.
◾Remove the bristle brush attachment from the power
head and cover the attachment shaft with end cap to
avoid dirt getting into the coupling.
◾Store the tool in a dry, well-ventilated area, locked-up
or up high, out of the reach of children. Do not store
the unit on or adjacent to fertilizers, gasoline, or other
chemicals.
Protecting the environment
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
Contact your local government for infor-
mation regarding the collection systems
available.
If electrical appliances are disposed of in
landfills or dumps, hazardous substances
can leak into the groundwater and get into
the food chain,damaging your health and
well-being.
