EGR TC0194 User manual

A
B
TC0194

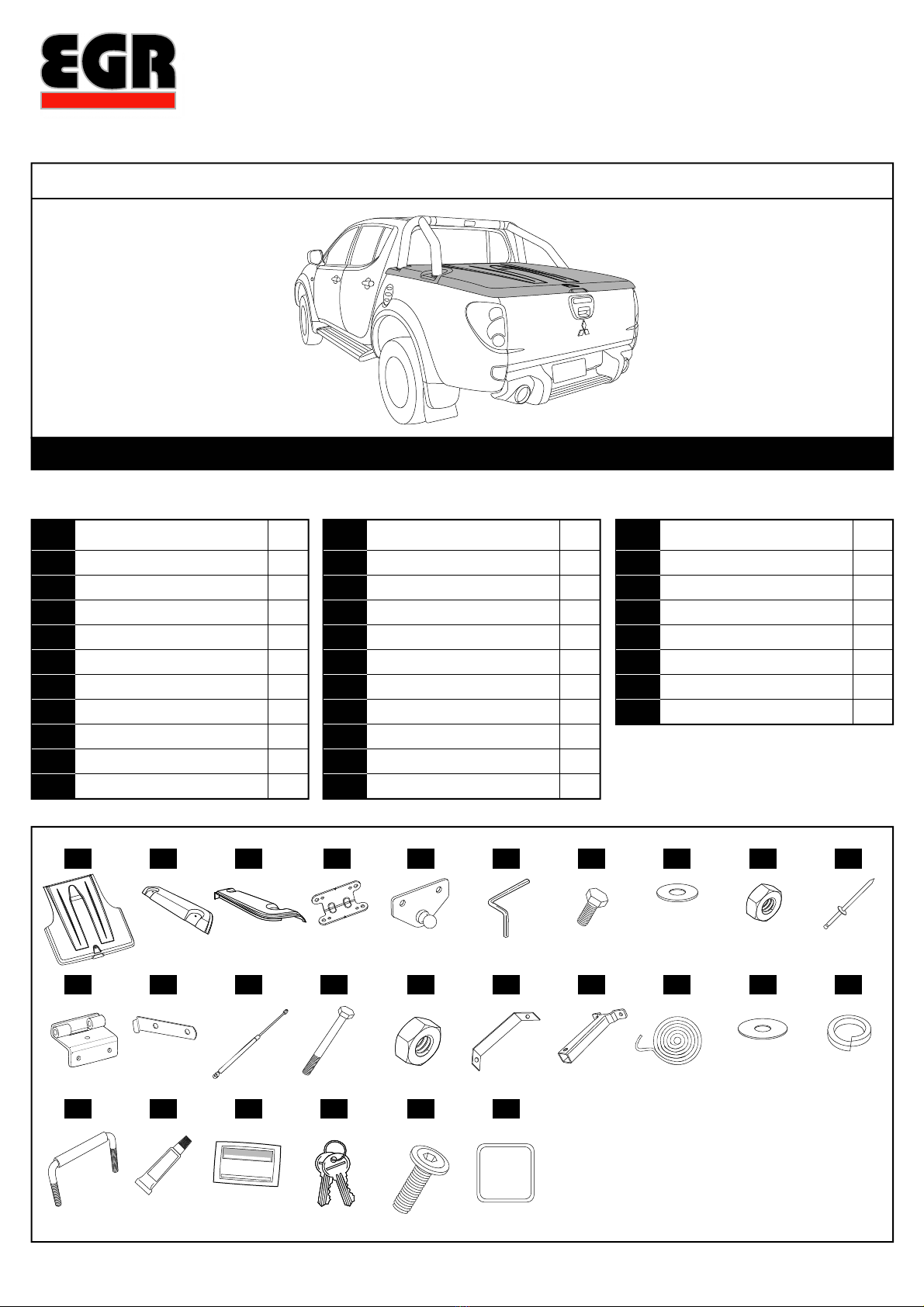

LIST OF PARTS
PLEASE KEEP INSTRUCTIONS IN GLOVE BOX FOR FURTHER USE
17/11/09Page 1 of 13
PART NAME
Tonneau Cover
Corner Piece LHS
Corner Piece RHS
Lock Striker Bracket
Gas Strut Bracket
Hinge Pin
M6x15mm Bolt
M6 Flat Washer
M6 Nut
Pop Rivet
1
2
3
4
5
6
7
8
9
10
1
1
1
2
2
2
8
24
16
12
QTYNO. PART NAME
Bottom Hinge
Retainer Clip
Gas Strut
M8x50mm Bolt
M8 Nut
Lock Striker Support Bracket
Jacking Bracket
Extrusion Tape Roll
M6 Large Metal Washer
M6 Spring Washer
11
12
13
14
15
16
17
18
19
20
2
2
2
2
4
2
2
1
4
12
QTYNO. PART NAME
U Bolt
Rust Inhibitor
Alcohol Wipe
Keys
M6x40mm Bolt
Anti-Rub Pad
21
22
23
24
25
26
2
1
3
2
4
2
QTYNO.
1 2 3 4 5 6 7 8 9 10
11 12 13 14 15 16 17 18 19 20
21 22 23 24 25 26
AUTOMOTIVE
SURFACE CLEANER
IMPREGNATED WITH 70% ISOPROPYLALCOHOL
For use in cleaning painted metal,
glass and other vehicle surfaces.
For external use only.
Dispose of properly after use.
VEHICLE DESCRIPTION: Mitsubishi L200
3 PC TONNEAU COVER
INSTALLATION INSTRUCTIONS

MITSUBISHI L200 3 PIECE TONNEAU COVER TC0194
17/11/09Page 2 of 13
WARNING!
When in the closed position, Tonneau Cover must be latched and tailgate must be closed! Failure to do so could result in unexpected opening of the
Tonneau Cover from sudden wind gusts, which could cause damage to the vehicle and/or your Tonneau Cover!
Warranty Terms
EGR warrants that theABS truck Tonneau Cover EGR will be free from defects in material and workmanship for a period of three (3) years from the retail
date of purchase. The gas struts are warranted for one (1) year from the retail date of purchase. This warranty only applies to the original purchaser and
is nontransferable. Warranty must be claimed with original sales receipt for proof of purchase.
Exclusions
This warranty does not cover failure due to neglect, improper installation including any modifications to installation hardware, operating the vehicle with
your EGR Tonneau Cover in the open position, alterations, addition of equipment, abuse, accident, corrosion, normal wear and tear, lack of maintenance,
and exposure to chemicals that are not safe for plastics.
Incidental or consequential damage or loss of contents due to use, neglect, lack of maintenance, misuse of EGR Tonneau Cover is sole responsibility of
the truck owner and operator. Paint wear to the truck bed can happen with any truck Tonneau Cover and is the sole responsibility of the truck owner.
Paint damage to your truck is not covered under this warranty.
Disclaimer
In the event that your EGR Tonneau Cover is found to be defective under the terms of this warranty, it is at the discretion of EGR to repair or replace the
defective part. Transportation costs and labor are not associated with this warranty claim.
MAINTENANCE:
Your EGR Tonneau Cover only requires periodic cleaning with mild car wash soap. Only use cleaners, waxes, or products that are labelled safe for use
on plastics. Avoid the use of any chemicals to clean your EGR Tonneau Cover unless labelled safe for plastics.Avoid use of abrasive type cleansers as
they may dull the finish.
The gas struts are self lubricating and should only be cleaned occasionally with a damp cloth. Premature seal failure will result if solvents or lubricants
are used to clean struts.
The locking mechanisms & Latches only require occasional lubrication with Graphite Powder. DO NOT use any other lubricants or oils.
Using alternative products will VOID Warranty.
All installation hardware and fasteners must be checked every so often for tightness.
TONNEAU COVER - IMPORTANT:
• Read instructions carefully before installation. It is strongly recommended that installation is conducted by an authorized dealer.
• Do not stand/sit or rest heavy objects on Tonneau Cover.
• Humans or animals are not to be under the closed Tonneau Cover at any time.
• Securely latch Tonneau Cover before operating vehicle.
• Do not carry open volatile chemicals with Tonneau Cover installed.
• If contact with volatile chemicals occurs clean Tonneau Cover with mild detergent and water solution.
• This product must be installed exactly as specified in these instructions. Failure to do so may result in improper fit and/or retention.
• Recommend installation by 2 people.
• Approximate fitting time is 1 ½ hours.
PAINTING INSTRUCTIONS: (IF UNPAINTED)
• Prior to painting, clean all surfaces to be painted using clean water and a mild detergent, do not use lacquer thinner or any solvent based products.
Wipe completely dry.
• Best results will be achieved by wiping the areas to be painted with a tack rag just prior to painting.
• Select a top coat and clear paint that is suitable for ABS (Acrylonitrile-Butadiene-Styrene).
• Automotive paint systems, such as Acrylics or Two Packs, can be applied directly to the components. However, some paints may require a primer.
If recommendations on paint specification are not followed, cracking of the part or degradation to the material may result. In all paint systems,
aromatic hydrocarbons and alkalies are best avoided to reduce damage to the material properties.
• If using a paint system which requires baking, do not expose the product to temperatures above 70° C (155° F).
• Allow a minimum of 8 hours after baking before installation on the vehicle.

TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 3 of 13

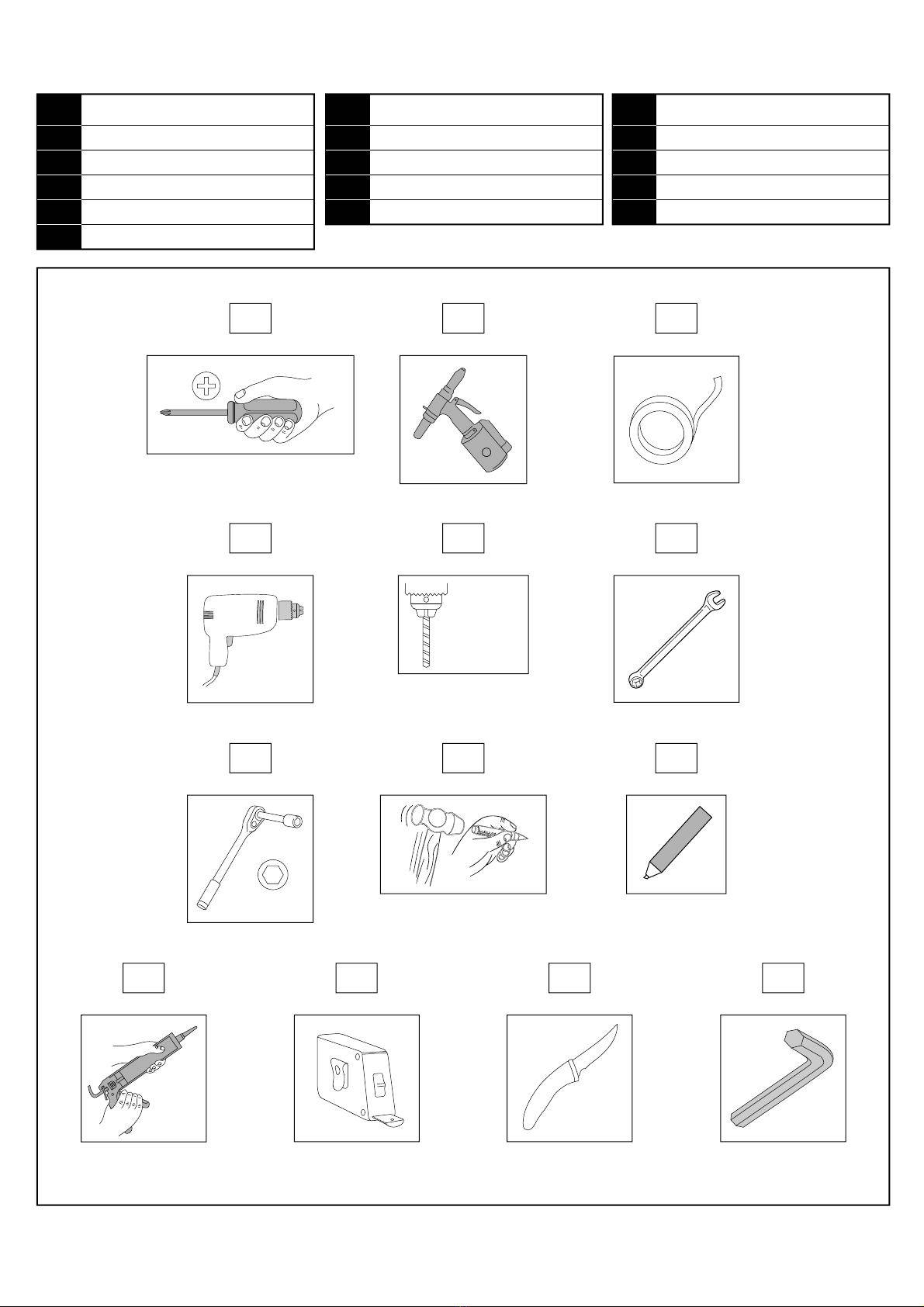

RECOMMENDED TOOLS LIST
TOOL NAME
Caulking Gun & Silicon
Tape Measure
Knife
Allen Key
10
11
12
13
NO.TOOL NAME
Phillips Head Screwdriver
Rivet Gun
Masking Tape
Drill
Ø5mm & Ø6mm Drill Bit
1
2
3
4
5
NO. TOOL NAME
Spanners
Sockets
Hammer & Centre Punch
Pencil
6
7
8
9
NO.
123
Ø5mm
Ø6mm
4 5 6
7 8 9
10 11 12 13

FIG. 4 MEASURE FROM THE FRONT OF RAILAND MARK THE DISTANCES AS SHOWN. REPEAT FOR THE OTHER SIDE.
FIG. 3
FIG. 2 APPLY MASKING TAPE TO THE INNER BEDRAILAS SHOWN.
FIG. 1 REMOVE SPORTS BARAND RETAIN ALL HARDWARE. THOROUGHLY CLEAN AND DRY THE INSTALLATION AREA.
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 4 of 13
1
2
MEASURE AND MARK ALINE ON THE SIDE RAIL 108MM FROM THE REAR OF THE SIDE RAILAS SHOWN. POSITION “FACE B ”
OF LOCK STRIKER BRACKET TO SIDE OF SIDE RAIL 18MM DOWN FROM TOP OF SIDE RAIL. ALIGN NOTCH TO PREVIOUSLY
MARKED CENTRELINE. MARK THE POSITION OF THE TWO (2) LARGER HOLES AS SHOWN. REPEAT FOR THE OTHER SIDE.
108mm
MEASURE FROM REAR
OF FLANGE
18mm
A
B
4
MEASURE FROM
FRONT OF RAIL 37mm
772mm
28mm

SIDE VIEW
FIG. 8
FIG. 7
FIG. 6 REMOVE THE MASKING TAPE FROM THE INSIDE OF THE SIDE RAILS ONLY.APPLY RUST INHIBITOR TO ALL THE DRILLED HOLES.
FIG. 5
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 5 of 13
REMOVE MASKING TAPE
APPLY RUST INHIBITOR
1
2
22
22
CENTRE PUNCH THE TWO (2) FRONT HOLE POSITIONS AND DRILL Ø5MM HOLES. CENTRE PUNCH THE TWO (2) REAR
HOLE POSITIONS AND DRILL Ø6MM HOLES. REPEAT FOR THE OTHER SIDE OF THE VEHICLE.
CENTRE PUNCH,
THEN DRILL Ø5MM
HOLES
CENTRE PUNCH,
THEN DRILL Ø6MM
HOLES
Ø5mm
Ø6mm
20mm
ENSURE BRACKET IS
PARALLEL WITH
TOP OF SIDE RAIL
ALIGN HOLES
A
B
7
89
20
10mm
Ø5mm
1
MARK, CENTRE PUNCH,
DRILL Ø5mm HOLE
APPLY RUST INHIBITOR
2
16
4
16
10
3
ATTACH LOCK STRIKER BRACKETS, ENSURING BRACKETS ARE PARALLEL WITH TOP OF SIDE RAIL. TIGHTEN TO TORQUE 12Nm.
POSITION LOCK STRIKER SUPPORT BRACKET UNDER THE LOCK STRIKER BRACKETANDALIGN THE HOLES CLOSEST TO THE
FRONT OF THE VEHICLE AS SHOWN. MARK AND CENTRE PUNCH HOLE POSITION IN THE SIDE OF THE TUB. DRILL Ø5mm HOLE
AND APPLY RUST INHIBITOR. ATTACH LOCK STRIKER SUPPORT BRACKET TO THE TUB WITH A RIVET.

ATTACH THE GAS STRUT BRACKETS (BOTH SIDES) TO THE SIDE RAILS USING POP RIVETS AS SHOWN.
10
5
CENTRAL POSITION OF BED DRIVER’S SIDE
10
5
PASSENGER’S SIDE
MEASURE FROM TOP OF
SIDE RAIL
0mm 1020 30 4050 60 70 80 90
13mm 13mm
4
B
FIG. 12
FIG. 11
FIG. 10
FIG. 9
FIND THE CENTRE OF THE BED AND MARK THE POSITION.
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 6 of 13
AB
A = B (CENTRAL POSITION)
FIND CENTRE AND
MARK POSITION
MEASURE AND MARK THE POSITIONS AS INDICATED ABOVE FROM THE CENTRE OF THE BED FOR THE PLACEMENT OF
THE BOTTOM HINGES. WARNING:- RECHECK DIMENSIONS TO ENSURE CORRECT MEASUREMENT.
382.5mm 382.5mm
CENTRAL POSITION OF BED
MARK POSITIONS ON
TOP OF HEADER RAIL
21
A
B
4
21
9
20
8
916
ATTACH U BOLTS ONTO LOCK STRIKERS AND LOCK STRIKER SUPPORT BRACKETS.
ADJUST SO THE TOP OF THE U BOLT IS 9MM DOWN FROM THE TOP OF THE SIDE RAIL.
TIGHTEN ENSURING THE 9MM TO THE TOP OF THE SIDE RAIL IS MAINTAINED.

CENTRE PUNCH AND DRILL Ø5MM HOLES AT THE PREVIOUSLY MARKED POSITIONS.
TRIAL FIT BOTTOM HINGES ON THE HEADER RAIL, ALIGNING THEM WITH THE PREVIOUSLY MARKED POSITIONS.
MARK THE THREE (3) HOLE POSITIONS OF EACH HINGE AND REMOVE THEM FROM THE VEHICLE.
FIG. 16
FIG. 15
FIG. 14
FIG. 13
REMOVE MASKING TAPE ANDAPPLY RUST INHIBITOR TO DRILLED HOLES.
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 7 of 13

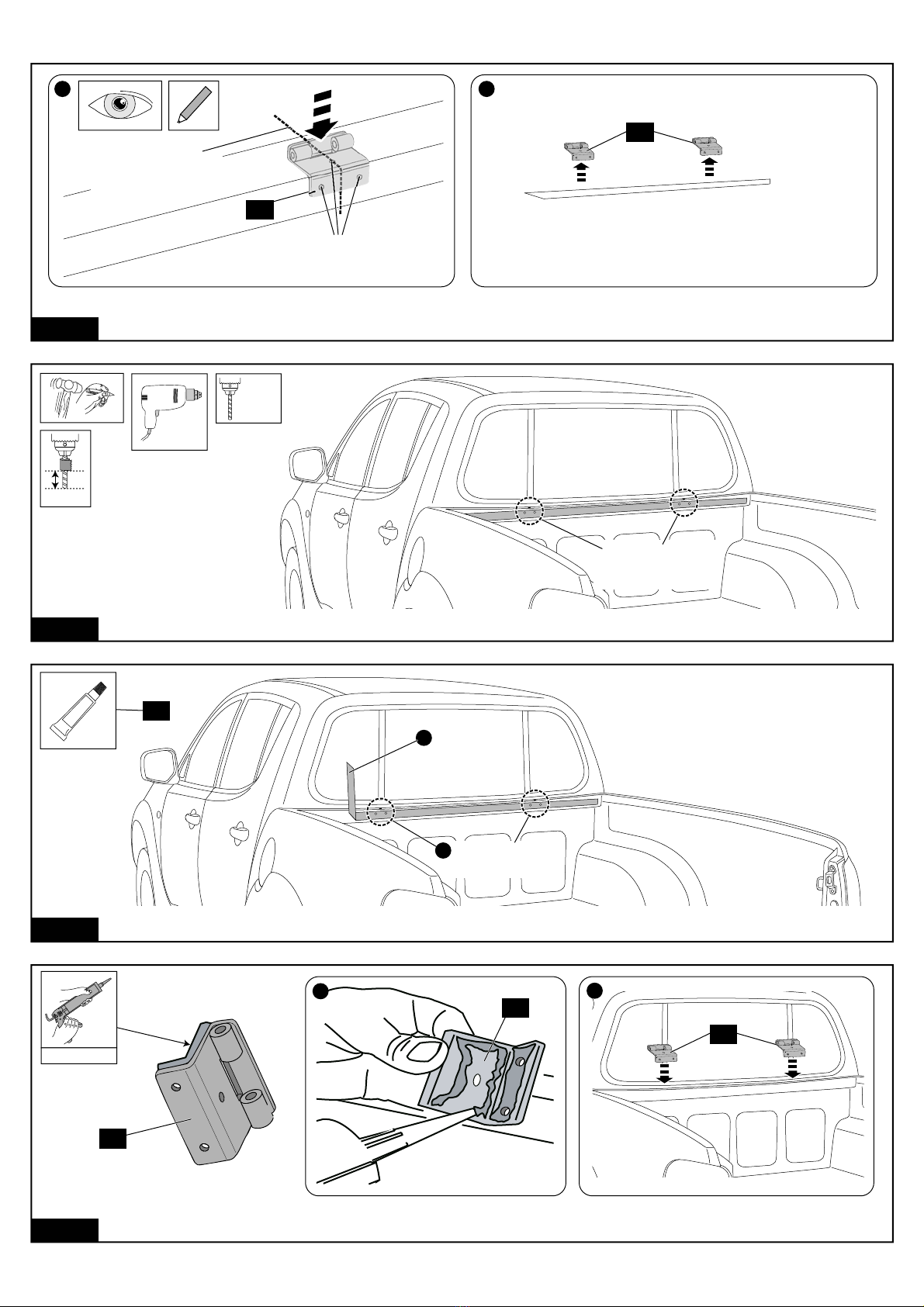

1
ALIGN HINGE
WITH PREVIOUSLY
MARKED POSITION
MARK THREE (3)
HOLE POSITIONS x2
11
2
11
Ø5mm
20mm
CENTRE PUNCH,
THEN DRILL Ø5MM
HOLES (x6)
APPLY RUST
INHIBITOR
REMOVE
MASKING
TAPE
1
2
22
APPLY SILICON TO THE UNDERSIDE OF THE BOTTOM HINGESAND POSITION THEM ON THE HEADER RAIL.
2
11
11
11
1
NOT SUPPLIED

PLACE RETAINER CLIPS (WITH TAG FACING LEFT) OVER FRONT OF BOTTOM HINGES. SECURE THE BOTTOM HINGES AND THE
RETAINER CLIPS TO THE HEADER RAIL USING POP RIVETS AS SHOWN.
FIG. 20
FIG. 19 PLACE THE CORNER PIECES OVER THE ENDS OF THE SPORTS BAR LEGS.
LOOSELYATTACH THEM TO THE SPORTS BAR. DO NOT TIGHTEN FULLYAT THIS STAGE.
FIG. 18
FIG. 17
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 8 of 13

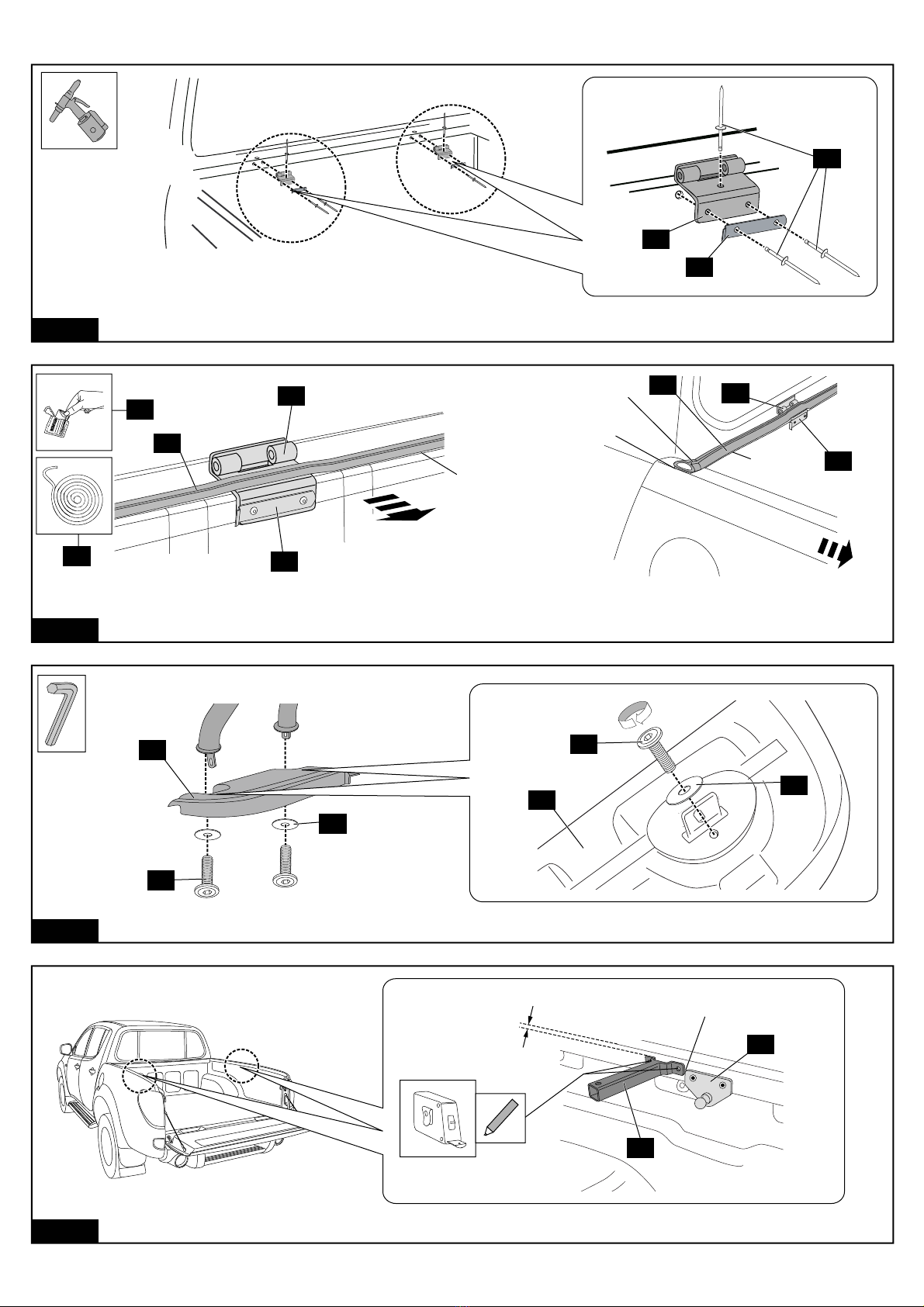

11
12
10
ALIGN EDGE OF JACKING BRACKET TO EDGE OF GAS STRUT BRACKET ON SIDE RAILAS SHOWN, 21MM DOWN FROM TOP OF
SIDE RAIL. MARK THE POSITION OF THE TWO (2) HOLES AS SHOWN. REPEAT FOR THE OTHER SIDE.
21mm
ALIGN EDGE OF JACKING BRACKET
WITH EDGE OF GAS STRUT BRACKET
5
17
CLEAN HEADER RAILAND HINGES (WHERE EXTRUSION WILL SIT) WITH ALCOHOL WIPES PROVIDED AND WIPE AWAY RESIDUE
WITH A DRY CLEAN CLOTH. PLACE THE EXTRUSION TAPE SEAL ALONG THE TOP OF THE HEADER RAIL WITH THE SEALING LIP
FACING TOWARDS THE TAILGATE. START THE EXTRUSION AT THE EDGE OF THE SIDE RAIL. IMPORTANT: POSITION
EXTRUSION AS CLOSE TO THE HEADER RAIL REAR RADIUS. RUB DOWN FIRMLY TO ENSURE MAXIMUM ADHESION.
18
23 11
18
12
REAR
NOTE: SEALING LIP
MUST FACE TAILGATE
REAR OF VEHICLE
START EXTRUSION
AT EDGE OF SIDE RAIL
POSITION EXTRUSION
AS CLOSE TO REAR RADIUS
18
12
11
HEADER
RAIL
2/3
19
19 2/3
25
25

22
POSITION THE SPORTS BAR AND CORNER PIECES ON THE VEHICLE. ATTACH THE LEGS OF THE SPORTS BAR USING THE
RETAINED HARDWARE. NOTE: PUSH DOWN ON THE SPORTS BAR AND LIGHTLY TIGHTEN HARDWARE.
FIG. 24
FIG. 23
LOOSELY PRE-ASSEMBLE ONE (1) M8x50MM BOLT AND TWO (2) M8 HEX NUTS TO THE JACKING BRACKETAS SHOWN.
ATTACH JACKING BRACKET TO THE VEHICLE, ENSURING BRACKET IS PARALLEL WITH TOP OF SIDE RAIL.
TIGHTEN TO TORQUE 12Nm. REPEAT FOR THE OTHER SIDE OF THE VEHICLE.
FIG. 22

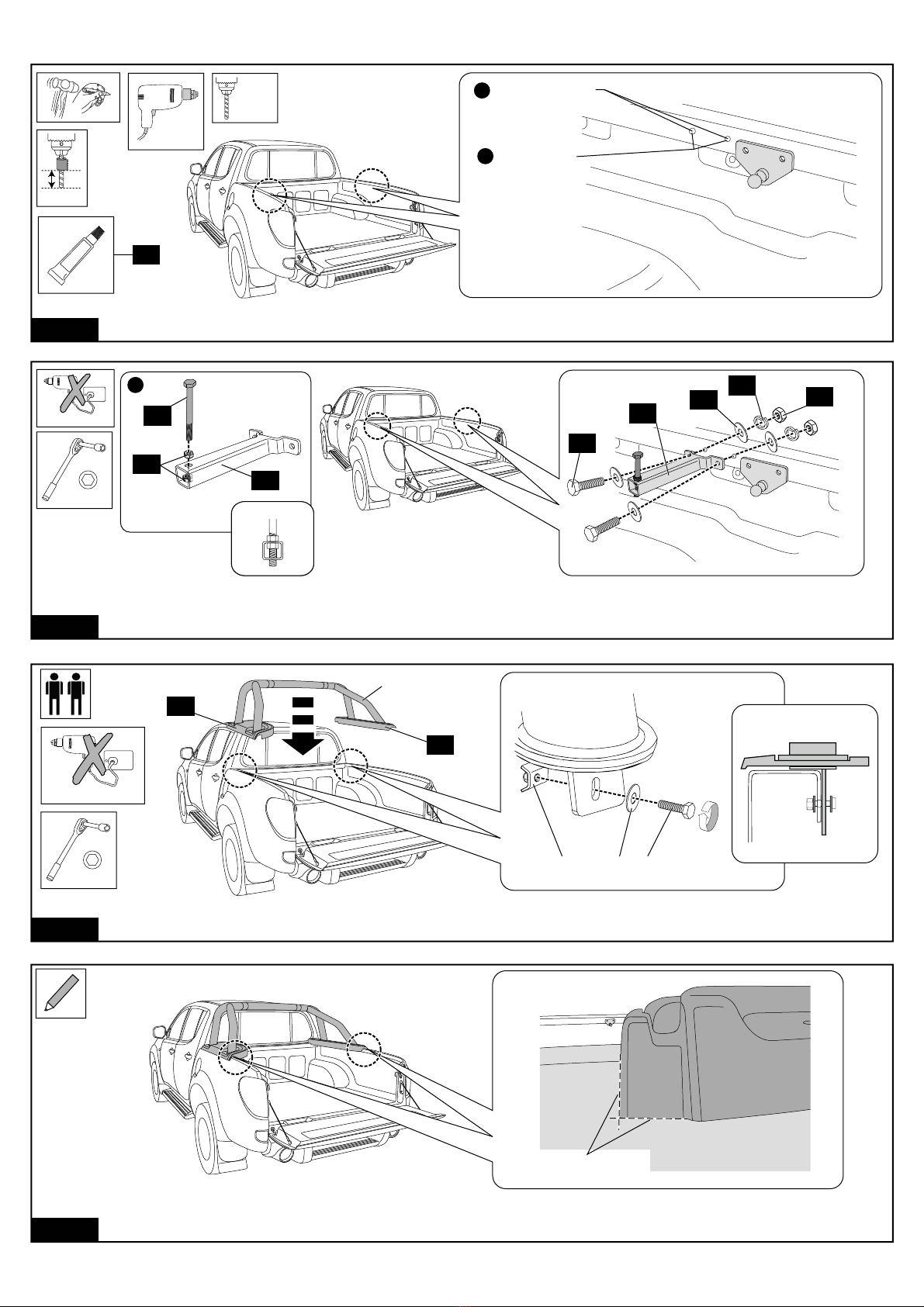

CENTRE PUNCH THE TWO (2) HOLE POSITIONS AND DRILL Ø6MM HOLES. REPEAT FOR THE OTHER SIDE OF THE VEHICLE.
APPLY RUST INHIBITOR TO ALL THE DRILLED HOLES.
FIG. 21
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 9 of 13
NO POWER TOOLS
SIDE VIEW
SPORTS BAR HARDWARE
SPORTS BAR
2
3
NO POWER TOOLS
Ø6mm
20mm
APPLY RUST
INHIBITOR
1
2
1
CENTRE PUNCH,
THEN DRILL Ø6MM
HOLES
17
15
14
SIDE VIEW
89
20
17
7
NOTE THEAREA WHERE CORNER PIECE CONTACTS THE VEHICLE TUB AS SHOWN.
MARK THE EDGESAS SHOWN WITH A PENCIL OR NON-PERMANENT MARKER. REPEAT PROCESS FOR THE OTHER SIDE.
REMOVE SPORTSBARAND CORNER PIECES FROM TUB.
MARK THESE 2 EDGES
ON THE TUB

TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 10 of 13
FIG. 28
FIG. 27
FIG. 26
CLEAN THE PREVIOUSLY NOTED AREAS ON TUB WITH ALCOHOL WIPE PROVIDED AND WIPE AWAY RESIDUE WITH A DRY CLEAN
CLOTH. POSITION CLEAR ANTI-RUB PADS AT THESEAREAS ON THE TUB.
FIG. 25
RE-POSITION THE SPORTS BAR AND CORNER PIECES ON THE VEHICLE. ATTACH THE LEGS OF THE SPORTS BAR USING THE
RETAINED HARDWARE. NOTE: PUSH DOWN ON THE SPORTS BAR BEFORE TIGHTENING HARDWARE.
NO POWER TOOLS
SIDE VIEW
SPORTS BAR HARDWARE
SPORTS BAR
2
3
REMOVE INSPECTION COVER BY REMOVING SCRIVETSAND ROTATING COVER ANTI-CLOCKWISE. RELEASE PLASTIC RETAINER
CLIPSAND UNCLIP RODSAS SHOWN. LOOSEN THE FOUR (4) LATCH MECHANISM SCREWS, SO THE LATCH CAN MOVE FREELY
FOR TONNEAUADJUSTMENT IN THE NEXT STEP.
INSPECTION
COVER PLASTIC RETAINER
CLIPS RODS
RELEASE PLASTIC
RETAINER CLIPS
REMOVE
INSPECTION
COVER
2
1UNCLIP RODS FROM
PLASTIC RETAINER
CLIPS
LOOSEN SCREWS
34
SCREWS
OPEN TAILGATE. FIT THE TONNEAU COVER TO THE VEHICLE. SECURE THE HINGES USING THE HINGE PINSAS SHOWN.
IMPORTANT: ENSURE TAILGATE REMAINS OPEN. DO NOT REMOVE THE TWO (2) RUBBER SPACERS FROM THE TONNEAU
SIDES (AT THE REAR), THESE WILL BE REQUIRED FOR ALIGNMENT LATER ON.
2
1
1RHS SHOWN
“CLICK”
3
RHS SHOWN
2
6
12
6
12
RUBBER
SPACER’S
26

CLOSE TONNEAU AND INSPECT LOCKING MECHANISM. ENSURE LATCH HITS THE U BOLT CENTRALLY. IF IT DOES NOT, ADJUST THE U BOLT
ACCORDINGLY BY LOOSENING THE M6 NUTS AND MOVING THE U BOLT UP OR DOWN AS SHOWN. ONCE ADJUSTMENT IS COMPLETE, TIGHTEN
THE M6 NUTS. IMPORTANT: TONNEAU HAS 2 STAGE LOCKS. ENSURE TONNEAU ENGAGES WITH SECOND STAGE OF THE LATCH.

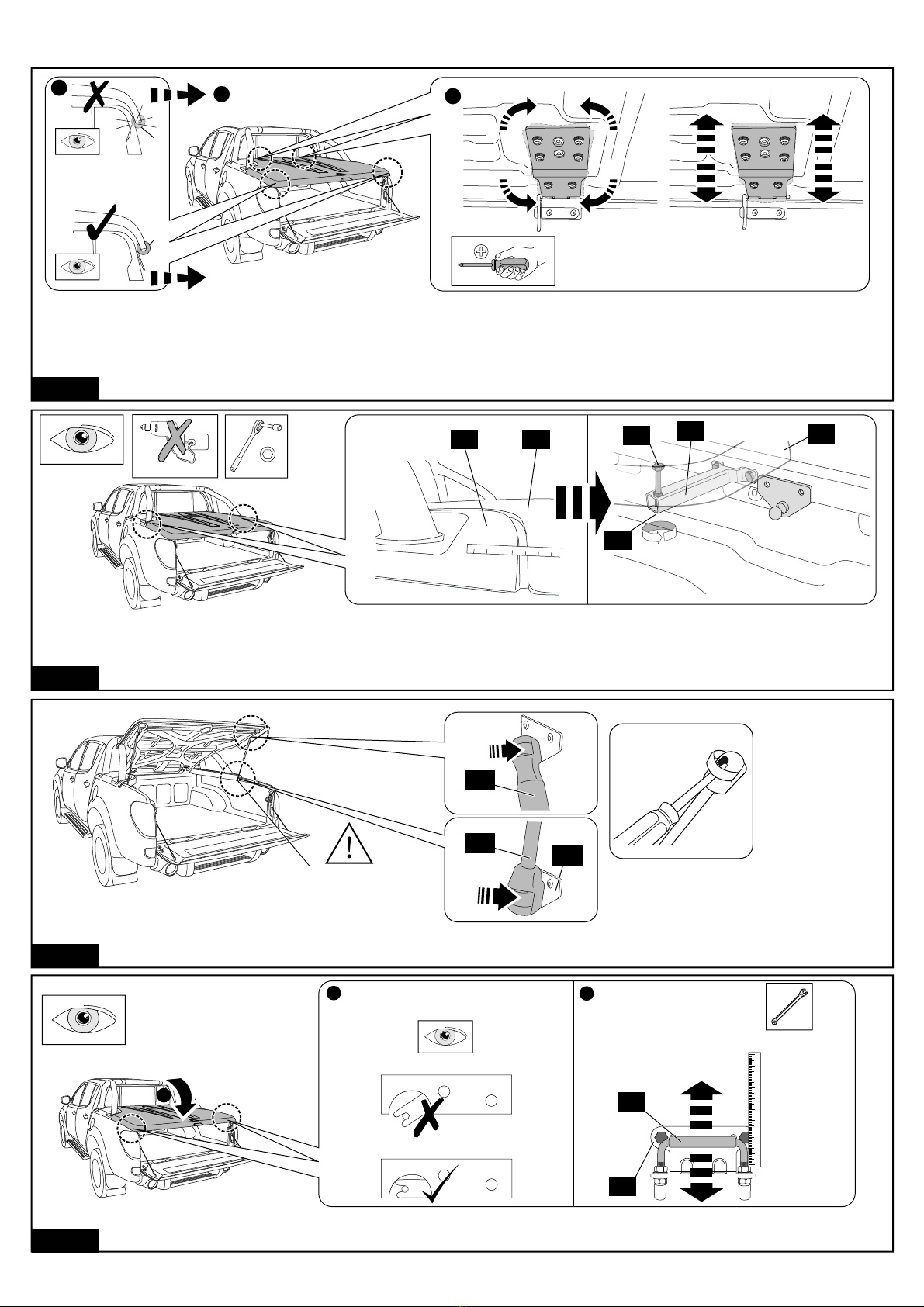

FIG. 32
FIG. 30
CHECK THAT THE SURFACES OF THE TONNEAU COVER AND CORNER PIECES ARE EVEN. ADJUST THE JACKING BOLTS
UNDERNEATH THE CORNER PIECES IF NECESSARY. ENSURE CLEARANCE BETWEEN CORNER PIECE AND TUB, ESPECIALLY
FRONTAND REAR, TO AVOID PAINT DAMAGE TO TUB. ONCE IN THE CORRECT POSITION, LOCK THE M8 NUTS INTO
POSITION AGAINST THE BRACKET USINGA SPANNER. REPEAT FOR THE OTHER SIDE OF THE VEHICLE.
IMPORTANT: TIGHTEN ALL CORNER PIECE M6 BOLTS TO 4Nm.
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 11 of 13
NO POWER TOOLS
12/3
1
ATTACH GAS STRUTS. ENSURE THE NARROW END MOUNTS TO THE VEHICLE.
FIG. 31
ENSURE NARROW
END OF GAS STRUT
MOUNTS TO VEHICLE
TO REMOVE:
13
13 5
2/3
17
15
14
INCORRECT
INSPECT LATCH
ENGAGEMENT
CORRECT
2ADJUST U-BOLT
USE A RULER TO ENSURE
U-BOLT REMAINS PARALLEL
TO LOCK STRIKER
3
TORQUE 10Nm
4
0mm 10 20 30 40 50 60 70 80 90
21
FIG. 29
NEXT STEP
2
ENSURE
CLEARANCE
TO TUB
RUBBER SPACER
1
RE-TORQUE 5Nm
LOOSEN HINGE SCREWS
TO ADJUST TONNEAU
POSITION IF NECESSARY
2
IMPORTANT: THE TONNEAU COMES FITTED WITH TWO (2) RUBBER SPACERS TO ASSIST IN ALIGNMENT TO THE TUB.
CLOSE TONNEAU COVER AND CHECK THAT IT IS CENTRALON BED. LOOSEN HINGE SCREWS - DO NOT ADJUST HINGES WHILE
GAS STRUTS ARE CONNECTED. CHECK LH & RH LATCHES ARE ENGAGED. MOVE TONNEAU TO ENSURE EVEN CLEARANCE LHS
TO RHS BETWEEN TUB AND SPACERS. MOVE TONNEAU TO ENSURE FORE & AFT POSITION IS CORRECT BY ENSURING CLEAR-
ANCE AT REAR OF TUB SIDE. RE-TIGHTEN (12) HINGE SCREWS WHILE TONNEAU IS IN CORRECT POSITION TO TORQUE 5Nm.
RE-TIGHTEN LATCHES WHILE TONNEAU IS IN CORRECT POSITION TO TORQUE 4Nm. IMPORTANT: ENSURE TAILGATE REMAINS
OPEN AND SPACERS ARE REMOVED AFTER ALIGNMENT IS COMPLETE.

FIG. 33
OPEN TONNEAU AND ENGAGE LOCK BY PRESSING UPWARDS ON LATCH. ADJUST PULLRODS TO FIT INTO RETAINER CLIPS BY ROTATING THEM
CLOCKWISE TO SHORTEN OR ANTI-CLOCKWISE TO LENGTHEN. CLIP PULLRODS AND RETAINER CLIPS BACK INTO POSITION. TEST LOCK BY
PRESSING THE BUTTON ON TOP OF TONNEAU COVER. IF LATCH MECHANISM DOES NOT RELEASE, RETURN TO STEP 3 AND SHORTEN THE
PULLRODS. FINALLY, RE-CONFIRM THE OPEN-CLOSE-OPEN OPERATION OF TONNEAU WITH THE TAILGATE CLOSED. MAKE FURTHER ADJUSTMENTS
IF NECESSARY BY RETURNING TO FIGURE 29, 33AND 34. FINALLY REPLACE INSPECTION COVER
1
ENGAGE LOCK
LATCH MECHANISM
PRESS LATCH
UPWARDS
“CLICK”
2 4 6
TEST LOCKING MECHANISM
5
ROTATE PULLRODS
CLOCKWISE = SHORTEN
ANTI-CLOCKWISE = LENGTHEN
ADJUST LENGTH OF
PULLRODS BY ROTATION
3
RETAINER CLIPS
LOCK PLASTIC RETAINER
CLIPS BACK IN POSITION REPLACE
INSPECTION COVER
INSPECTION
COVER
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 12 of 13
CLOSE TONNEAU AND CHECK CLOSING EFFORT WITH TAILGATE CLOSED. IF REQUIRED, ADJUSTTHE U BOLTACCORDINGLY BY LOOSENING
THE M6 NUTS AND MOVING THE U BOLT UP OR DOWN. ONCE ADJUSTMENT IS COMPLETE, TIGHTEN THE M6 NUTS.
FIG. 35
1
ADJUST U-BOLT
USE A RULER TO ENSURE
U-BOLT REMAINS PARALLEL
TO LOCK STRIKER
TORQUE 10Nm
4
0mm 10 20 30 40 50 60 70 80 90
21
FIG. 34
NEXT STEP
2
1
RE-TORQUE 5Nm
LOOSEN HINGE SCREWS
TO ADJUST TONNEAU
POSITION IF NECESSARY
2
CLOSE TAILGATE AND TONNEAU COVER AND RE-CHECK CLEARANCES.
LOOSEN HINGE SCREWS AND ADJUST TONNEAU FORE & AFT IF REQUIRED.
DO NOT ADJUST HINGES WHILE GAS STRUTS ARE CONNECTED. RE-TIGHTEN HINGE SCREWS TO TORQUE 5Nm.
2

OPEN TONNEAU COVER AND DETACH GAS STRUTS BY INSERTINGASMALL SCREW DRIVER AND ADJUSTING THE SPRING CLIP ON THE
STRUTAS SHOWN. NOTE: DO NOT REMOVE THE SPRING CLIP. ONLY A SMALL AMOUNT OF LEVERING IS REQUIRED TO DETACH.
TO REMOVE:
6
12
TC0194MITSUBISHI L200 3 PIECE TONNEAU COVER
17/11/09Page 13 of 13
REMOVAL OF TONNEAU COVER
FIG. 2 REMOVE HINGE PINS AND REMOVE THE TONNEAU COVERAS SHOWN.
FIG. 1
RHS SHOWN
2 3
RHS SHOWN
1
TO REPLACE THE TONNEAU COVER:
Reverse the sequence and the procedures of the two (2) Figures above.
11
11 3
6
12
KEY IDENTIFICATION CODE
XXXXX
MITSUBISHI L200 3 PIECE HARD TONNEAU COVER
Please write your key identification code in the boxes above and retain.
Replacement keys can be purchased from your local Mitsubishi dealer.
