Egreat EG-R3A User manual

1
EG-R3A Quickly install guide
1：
：：
：EG-R3A CONNECTING

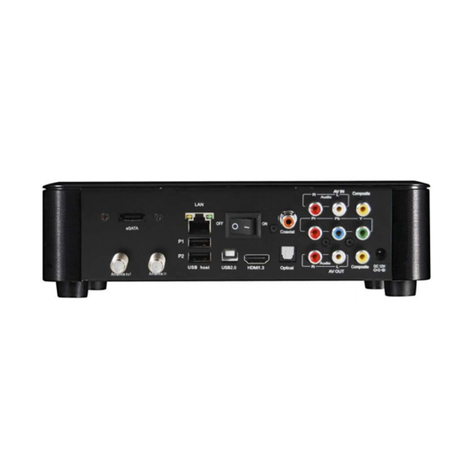

1.1: Connector Indication
※ DC 12V
※ OFF/ON
※ HDMI 1.3
※ OPTICAL
※ Coaxial
※ PR/PB/Y
※ AV OUT（R/L、COMPOSITE）
※ AV IN（R/L、COMPOSITE）
※ LAN 为10/100M
※ USB HOST
※ Antenna out
※ Antenna in
※ ESATA host: connect with other ESATA device.
※ USB2.0 DEVICE: connect with computer directly for data transferring.(even external device can be
realize data transfer too)
1.2. Connectors

2
1.2.1：Power adapter connecting
1.2.2: YPbPr connecting
1.2.3: AV connecting ;

3
1.2.4:HDMI connecting
1.2.5: Optical connecting

4
1.2.6: Coaxial connecting
1.2.7 :Network connecting

5
1.2.8 : DVB-T antenna connecting.
1.2.9 : How to install SATA HDD:

6

7
1.2.10. Playback interface

8
2.Remote control

9
Button indications:
1: power on/off
2: DVDROM eject: control USB DVD ROM to slot in or eject.

10
3: TV mode selection
4: Screen ratio switch(16:9 or 4:3)
5: Setup
6: USB host key: press this key to access USB menu browse.
7: DVD host key: press this key to access DVD play mode.
8: HDD host key: press this key to browse HDD menu.
9: Number key: input numbers or switch channel..
10: Menu: When DVD playback，press this key, will return to DVD menu contents；
When Blu-ray playback, press this key, we can select Volume, subtitle, Chapter.。
11: TITLE: used under DVD mode。
12: Home key: back to the main menu。
13: Return key: return to the previous menu
14: Arrows: up/down/left/right for selecting or remove picture position during
playback pictures or switch TV channels during TV play mode.
15: Confirm.
16: Info key: During playback, press this button to show the information of this
movie(Video format, file name, audio format, play process,)
17: Time seek: Choose a specific time to start play movies.
18: Volume up and down key

11
19: Mute
20: Under playback, to use these two buttons to select previous or next scene
21: Subtitle: If the movie has subtitle press this key to display or cancel subtitle,
user can up/down key to adjust color/size/location/time/size.
22: Audio-track switch: using when it is Multi-audio track files。
23: repeat key: when playback, It has repeat one, repeat all, repeat canceling such
models
24: play and pause。
25: Pause/play key: press this key for pause during playback; then press again, it
will play next movie; press “play” to back normal play mode.
26: Stop: Stop playing the files,and back to the content list.
27: rewind back and fast forward key: Rewind has 1,1.5,2,4,8,16 times
selections,fast forward has 1.5,2,4,8,16,32times selections,press “play” to return playback
mode。
28: Slow: During playing, press this key to slow down.There will appear one icon
to indicate speed: 3/4X,1/2X,1/4X ,1/8X,1/16X,1X
29: bookmark: Under playback mode, used for save and play; Under TV play mode,
press this key to switch between two channels which has played for a short time
30: Angle key: Under DVD mode, press this key to select different angle (just
support DVD mode, and various angle movies)
31: AB repeat key: Under DVD play mode, press this key for A-B repeat.
32: Zoom
※During playback, press this key ,you can found modes of 0.9x、1x、2x、3x、4x、8x, with
arrow keys to move movies.
※During picture browsing, press this key, you can found modes of 2x、4x、8x、16x、Fit,with
arrow keys to move pictures.

12
33: EPG: Under TV play mode, press this key to access EPG menu.
34: Time shift : Under TV play mode, press this key to access time shift mode; press
again to return normal play mode.
35: Input key: Switch AV input or DVBT input.
36: Record key: Under TV play mode, press this key for recording; Under one button
recording mode, press this key for setting recording time.
27: 4 color key: composite function key. Different mode,
different function. Detail function; pls refer to software detail manual.
3. Parameter
DDR2 内存 256MB
NOR FLASH 512MB
Power DC12V/3A
Video output AV output YPbPr
HDMI 1.3a
Video input AV input
DVB-T input
Audio output Stereo output
SPDIF optical output; Coaxial output
File system FAT32, NTFS
File format JPEG
BMP
PNG
GIF
Audio
File format AAC, M4A
MPEG audio (MP1, MP2, MP3, MPA)
WAV
OGG

13
File format RM/RMVB
MPEG1/2/4 Elementary (M1V, M2V, M4V)
MPEG1/2 PS (M2P, MPG)
MPEG2 Transport Stream (TS, TP, TRP, M2T,
M2TS, MTS)
VOB
AVI,ASF, WMV
Matroska (MKV)
MOV (H.264), MP4, RMP4
IFO
DVD-ISO,BD-ISO
MINI BD,BD-9,BD25,RBD,D5,D9,DVD,CD
Video codec
MPEG1,VCD1.0/2.0,SVCD
HD MPEG2 MP/HL,ISO,IFO,VOB,TS
HD MPEG4 SP/ASP,Xvid
H.264 BP@L3,MP@L4.1,HP@L4.1
WMV9,VC-1 AP@L3
DivX3/4/5
XVID SD/HD
RM/RMVB 8/9/10
Video
Audio codec
MPEG LayerⅠ1/2/3(2-CH) and
MPEG 1/2(MultiⅡ-Channel)
LPCM,ADPCM,FLAC,AAC,WAV,OGG
Dolby Digital
RA1/RA-cook/RA-Lossless
Subtitle
format
MicroDVD [.sub],
SubRip [.srt],
Sub Station Alpha [.ssa],
Sami [.smi]
idx+sub
PGS
Menu language Simple Chinese/traditional Chinese English/Russian/Spanish/Czech/Dutch/Italian/France/Germany/Turkis
h/Hebrew
Subtitle language
Simple Chinese/traditional Chinese/English/Russian/Spanish/Czech/
SE European/Central European/Cyrillic/Western/UTF8
Resolution 480i/576i/480P/576P/720P/1080i/1080P
ESATA host
Connecting external device with ESATA connector and play files
SATA
Connecting external device with SATA connector and play files
USB HOST
480Mbps USB2.0HOST×2,connect USB device:USB HDD,digital camera,USB
card reader,USB DVD ROM.

14
USB 2.0 Device
Support data transfer between PC and various device, including SATA HDD/USB
device(there are 2 USB host ports, but just useful for P2 pls note!)/ESATA device.
Network 10／
100M LAN
Network 10/100M support playback via network..
Support USB WIFI dongle
Temperature
Work temp:+5～+50 degree;humidity:< 90%
Save temp:-20～+70 degree;humidity:< 95%
Display Equipment
HDTV:480P/576P/720P/1080i/1080P,PDPTV1366X768,1280X768,T
V PAL:576i/576P NTSC:480i/480P,Analog projector: YPbPr-AV
Video,Digital projector:HDMI 720P/1080P
Size 235*180*70MM
Accessory Remote control/gild HDMI cable/gild USB2.0 cable/12V 3A power
adapter/AC cable/CD-R/Quickly install guide/screw bag
Notice: new firmware software/other tooling software will be upload into our website: www.egreatworld.com;
please download there;
If you have some problem during operating, welcome to login into our forum and leave message there, we will
give you reply ASAP.
License Notice and Trademark Acknowledgement
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and the
Symbol are registered trademarks & the DTS logos are trademarks of DTS, Inc.© DTS, Inc.
All Rights Reserved.
