EINHELL CC-AC 35/10 12V User manual

CC-AC 35/10 12V
Art.-Nr.: 20.721.21 I.-Nr.: 11016
7
DOriginalbetriebsanleitung
Auto-Kompressor
GB Original operating instructions
Car Compressor
FInstructions d’origine
Compresseur Pour Autos
IIstruzioni per l’uso originali
Compressore Auto
DK/ Original betjeningsvejledning
NAuto-Kompressor
SOriginal-bruksanvisning
Bilkompressor
NL Originele handleiding
Auto Compressor
EManual de instrucciones original
Compresor Para Coche
PManual de instruções original
Compressor Para Ocinas Auto
FIN Alkuperäiskäyttöohje
Autokompressori
RUS Оригинальное руководство по
эксплуатации
Автомобильный Компрессор
GR Πρωτότυπες Οδηγίες χρήσης
Συμπιεστης Αυτοκινητου
Anl_CC_AC_35_10_12_V_SPK7.indb 1 14.09.2016 11:11:55

- 2 -
1
2
1
8
7 6
4
3
5
2
13 12 11 10
Anl_CC_AC_35_10_12_V_SPK7.indb 2 14.09.2016 11:12:12

GB
- 9 -
Danger!
When using the equipment, a few safety pre-
cautions must be observed to avoid injuries and
damage. Please read the complete operating
instructions and safety regulations with due care.
Keep this manual in a safe place, so that the in-
formation is available at all times. If you give the
equipment to any other person, hand over these
operating instructions and safety regulations as
well. We cannot accept any liability for damage
or accidents which arise due to a failure to follow
these instructions and the safety instructions.
1. Safety regulations
Danger!
Read all safety regulations and instructions.
Any errors made in following the safety regula-
tions and instructions may result in an electric
shock, re and/or serious injury.
Keep all safety regulations and instructions
in a safe place for future use.
• Never clean your clothes with the com-
pressed air.
• Never direct the compressed air at other
persons.
• Keep all the ventilation slots clean.
• Take care not to draw in dust or similar
contaminants with the compressor.
• Protect the compressor from the rain, splas-
hing water and damp surroundings.
• Do not stand the compressor on heated sur-
faces.
• Do not use the cable for any purpose other
than that intended! Never carry the compres-
sor by its cable and never pull the plug out of
the cigarette lighter socket by the cable. Pro-
tect the cable from heat, oil and sharp edges.
• Examine the machine for signs of damage.
Unless otherwise instructed by this manual,
have defective or damaged parts repaired or
replaced by a customer service workshop.
• Operate only from a rated voltage of 12 volts
(direct voltage). Higher voltage ratings will
destroy the compressor.
• Make sure there is reliable contact between
the socket-outlet and the plug. Poor contact
will lead to overheating and risk of fire.
• The compressor is not suitable for permanent
duty.
• Ensure that the compressor cools down for
10 minutes after it has run for 15 minutes.
2. Layout and items supplied

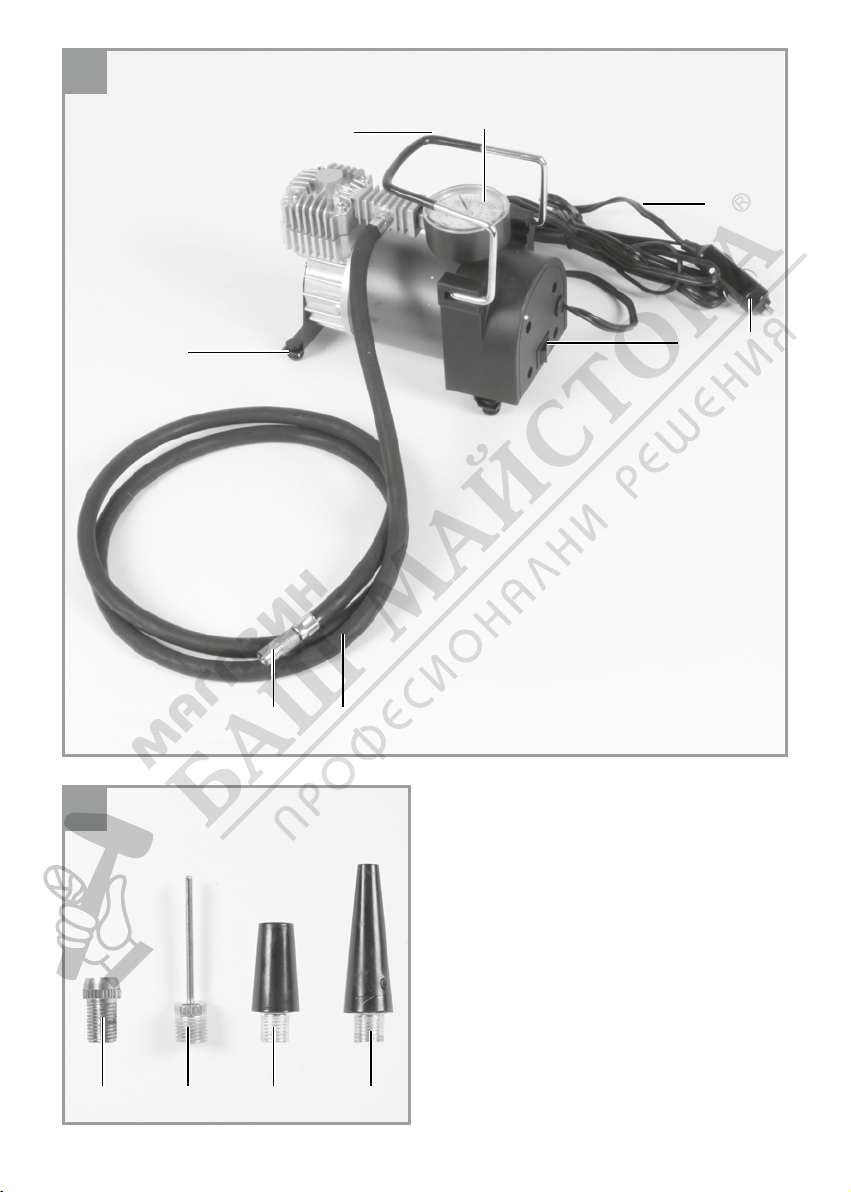

2.1 Layout (Fig. 1)
1. Carry-handle
2. Pressure gauge
3. 12V power cable
4. 12V power plug with integrated fuse
5. On/Offswitch
6. Compressed air hose
7. Connector for tire valve
8. Rubber stopper
Accessories (Fig. 2):
10 Long adapter
11 Short adapter
12 Ball adapter
13 Bicycle valve adapter
2.2 Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suffocating!
• Car compressor
• Connection adapter set
• Original operating instructions
Anl_CC_AC_35_10_12_V_SPK7.indb 9 14.09.2016 11:12:14

GB
- 10 -
3. Proper use
The equipment is designed for inating car,
motorcycle and bicycle tires as well as balls and
small air mattresses.The car compressor is ope-
rated via a 12V cigarette lighter socket (car, mobi-
le home, truck etc.).
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse.The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
4. Technical data
Power supply:...........12V via cigarette lighter plug
Pumping capacity: .............. max. 10 bar (145 psi)
Working pressure max.: ...............8 bar (116 PSI)
Length of connection cable:............approx. 2,9 m
Length of air hose: ...................................... 1.5 m
Check pressure gauge:...................... 0 - 10,3 bar
Operating time: ...........................max. 15 minutes
5. Before starting the equipment
Notes
• The equipment’s pressure gauge is not cali-
brated. The indicated values are not guaran-
teed to be exact air pressure values.
• Check the gauge for damage before use.
• The 12V power plug (Fig. 1 / Item 4) has an
integrated miniature fuse to protect the car
compressor. If the miniature fuse is defective,
the car compressor will not work and the mi-
niature fuse must be replaced by a miniature
fuse with the same rating. Unscrew the front
part of the plug for this purpose.
6. Operation
Insert the cigarette lighter plug (Fig. 1 / Item 4)
into a matching 12 V cigarette lighter socket.
6.1 Using for the rst time
Important! Before you use the compressor for
the rst time, please read the „Important notes“
listed in section 1. After the compressor has been
running for 15 minutes, you must let it cool down
for 10 minutes.
• Check the pressure gauge (Fig. 1 / Item 2)
before switching on.
• To switch on, set the On/Off switch (Fig. 1/
Item 5) to „I“.
• To switch off, set the On/Off switch (Fig. 1/
Item 5) to „0“.
6.2 Inating tires
Danger! Use a calibrated pressure gauge (e.g.
at a petrol station) to check the actual tire pres-
sure. It is imperative to read the information in the
vehicle’s owner manual concerning the ination
of tires.
1. Remove the valve cap from the valve.
2. Screw the connector (Fig. 1 / Item 7) of the
compressed air hose onto the tire valve or
select the bicycle valve adapter (Fig. 2/13) as
required.
6.3 Inating footballs
Warning! Take care not to over-inate footballs or
they might bust.
• Select the matching adapter (Fig. 2) and
screw it into the connector of the compressed
air hose.
6.4 Inating air mattresses etc.
Warning! Given the material composition of in-
atable mattresses, inatable boats etc., the air
pressure cannot be indicated exactly. Take care
therefore not to over-inate such items or they
might burst.
• Select the matching adapter (Fig. 2) and
screw it into the connector of the compressed
air hose.
Anl_CC_AC_35_10_12_V_SPK7.indb 10 14.09.2016 11:12:14

GB
- 11 -
7. Air pressure test
This function is intended for car tires and bicycle
tires.The compressor does not need to be swit-
ched on. Proceed as described in section 6.2. The
air pressure can be read offthe pressure gauge.
In the case of items where the wrong pressure
might be fatal, e.g. car tires, the pressure should
be checked with a calibrated pressure gauge.
8. Cleaning, maintenance and
ordering of spare parts
Danger!
Always pull out the 12V power plug before starting
any cleaning work.
8.1 Cleaning
• Keep all safety devices, air vents and the
motor housing free of dirt and dust as far as
possible. Wipe the equipment with a clean
cloth or blow it with compressed air at low
pressure.
• We recommend that you clean the device
immediately each time you have finished
using it.
• Clean the equipment regularly with a moist
cloth and some soft soap. Do not use
cleaning agents or solvents; these could at-
tack the plastic parts of the equipment. Ensu-
re that no water can seep into the device. The
ingress of water into an electric tool increases
the risk of an electric shock.
8.2 Maintenance
There are no parts inside the equipment which
require additional maintenance.
8.3 Ordering replacement parts:
Please quote the following data when ordering
replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to
www.isc-gmbh.info
9. Disposal and recycling
The equipment is supplied in packaging to pre-
vent it from being damaged in transit. The raw
materials in this packaging can be reused or
recycled.The equipment and its accessories are
made of various types of material, such as metal
and plastic. Never place defective equipment in
your household refuse.The equipment should
be taken to a suitable collection center for proper
disposal. If you do not know the whereabouts of
such a collection point, you should ask in your
local council offices.
10. Storage
Store the equipment and accessories in a dark
and dry place at above freezing temperature.The
ideal storage temperature is between 5 and 30
°C. Store the electric tool in its original packaging.
Anl_CC_AC_35_10_12_V_SPK7.indb 11 14.09.2016 11:12:14

GB
- 12 -
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and
its implementation in national laws, old electric power tools have to be separated from other waste and
disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment
must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.
The old equipment can be returned to a suitable collection point that will dispose of the equipment in
accordance with the national recycling and waste disposal regulations. This does not apply to any ac-
cessories or aids without electrical components supplied with the old equipment.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers
accompanying products is permitted only with the express consent of the iSC GmbH.
Subject to technical changes
Anl_CC_AC_35_10_12_V_SPK7.indb 12 14.09.2016 11:12:14

GB
- 13 -
Warranty certicate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the
unlikely event that your device develops a fault, please contact our service department at the address
shown on this guarantee card.You can also contact us by telephone using the service number shown.
Please note the following terms under which guarantee claims can be made:
1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product
neither for their commercial activities nor for any other self-employed activities. These warranty
terms regulate additional warranty services, which the manufacturer mentioned below promises to
buyers of its new products in addition to their statutory rights of guarantee.Your statutory guarantee
claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which
you have bought from the manufacturer mentioned below and are limited to either the rectication of
said defects on the product or the replacement of the product, whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional applica-
tions. A guarantee contract will not be created if the device has been used by commercial, trade or
industrial business or has been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect
installation, a failure to follow the operating instructions (for example connecting it to an incorrect
mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex-
posing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the
use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand,
stones or dust, transport damage), the use of force or damage caused by external forces (for ex-
ample by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal
use of the device.
4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-
arantee claims should be submitted before the end of the guarantee period within two weeks of the
defect being noticed. No guarantee claims will be accepted after the end of the guarantee period.
The original guarantee period remains applicable to the device even if repairs are carried out or
parts are replaced. In such cases, the work performed or parts tted will not result in an extension
of the guarantee period, and no new guarantee will become active for the work performed or parts
tted. This also applies if an on-site service is used.
5. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info.
Please keep your bill of purchase or other proof of purchase for the new device. Devices that are
returned without proof of purchase or without a rating plate shall not be covered by the guarantee,
because appropriate identication will not be possible. If the defect is covered by our guarantee,
then the item in question will either be repaired immediately and returned to you or we will send you
a new replacement.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by
the scope of this guarantee or for units which are no longer covered. To take advantage of this service,
please send the device to our service address.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as
set out in the service information in these operating instructions.
Anl_CC_AC_35_10_12_V_SPK7.indb 13 14.09.2016 11:12:14
