EINHELL TE-AC 36/6/8 Li OF Set-Solo User manual

TE-AC 36/6/8 Li OF Set
Art.-Nr.: 40.204.50 I.-Nr.: 11018
13
DOriginalbetriebsanleitung
Akku-Kompressor
GB Original operating instructions
Cordless compressor
FInstructions d’origine
Compresseur sans l
IIstruzioni per l’uso originali
Compressore a batteria
DK/ Original betjeningsvejledning
NAkku-kompressor
SOriginal-bruksanvisning
Batteridriven kompressor
CZ Originální návod k obsluze
Akumulátorový kompresor
SK Originálny návod na obsluhu
Akumulátorový kompresor
NL Originele handleiding
Accu compressor
EManual de instrucciones original
Compresor inalámbrico
FIN Alkuperäiskäyttöohje
Akku-kompressori
SLO Originalna navodila za uporabo
Akumulatorski kompresor
HEredeti használati utasítás
Akkus-Kompresszor
RO Instrucţiuni de utilizare originale
Compresor cu acumulator
GR Πρωτότυπες Οδηγίες χρήσης
Συμπιεστησ, με μπαταρια
PManual de instruções original
Compressor sem o
HR/ Originalne upute za uporabu
BIH Akumulatorski kompresor
RS Originalna uputstva za upotrebu
Akumulatorski kompresor
PL Instrukcjąoryginalną
Kompresor akumulatorowy
TR Orijinal Kullanma Talimat
Akülü Kompresör
EE Originaalkasutusjuhend
Akukompressor
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 1 19.04.2022 08:43:24

- 2 -
1a
7
4
15
4
9
2
1b
5
8 6
1
10
11
3
18
12
13
12
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 2 19.04.2022 08:43:26

- 3 -

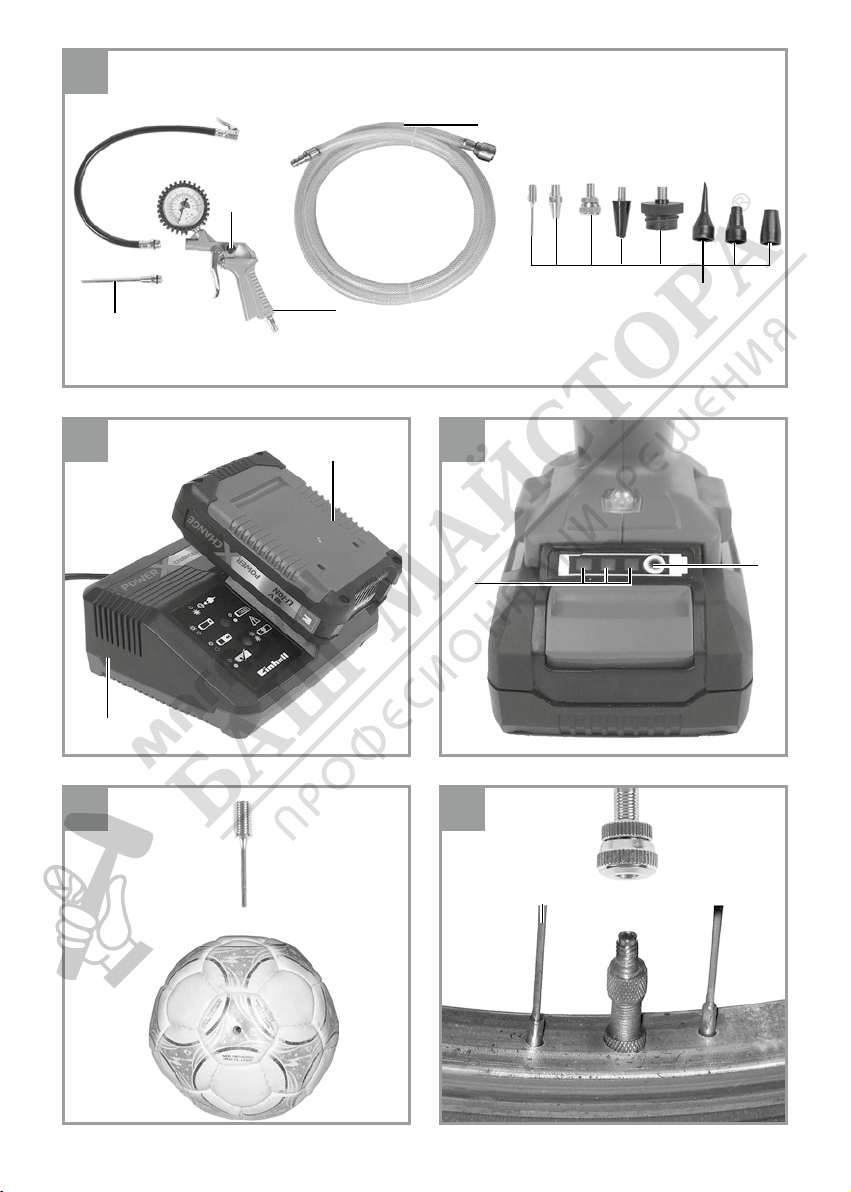

2
3 4
5 6
e
12
15
d
17
14
16
a
b
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 3 19.04.2022 08:43:28

- 4 -
7 8
9 10
11 12
I
I
7d
II
III
I
II
III
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 4 19.04.2022 08:43:30

- 5 -
PS: 8 bar
Tmin: -10°C
Tmax: +100°C
V: 6 L
13 1
5
234
76
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 5 19.04.2022 08:43:31

GB
- 16 -
Danger!
When using the equipment, a few safety pre-
cautions must be observed to avoid injuries and
damage. Please read the complete operating
instructions and safety regulations with due care.
Keep this manual in a safe place, so that the in-
formation is available at all times. If you give the
equipment to any other person, hand over these
operating instructions and safety regulations as
well. We cannot accept any liability for damage
or accidents which arise due to a failure to follow
these instructions and the safety instructions.

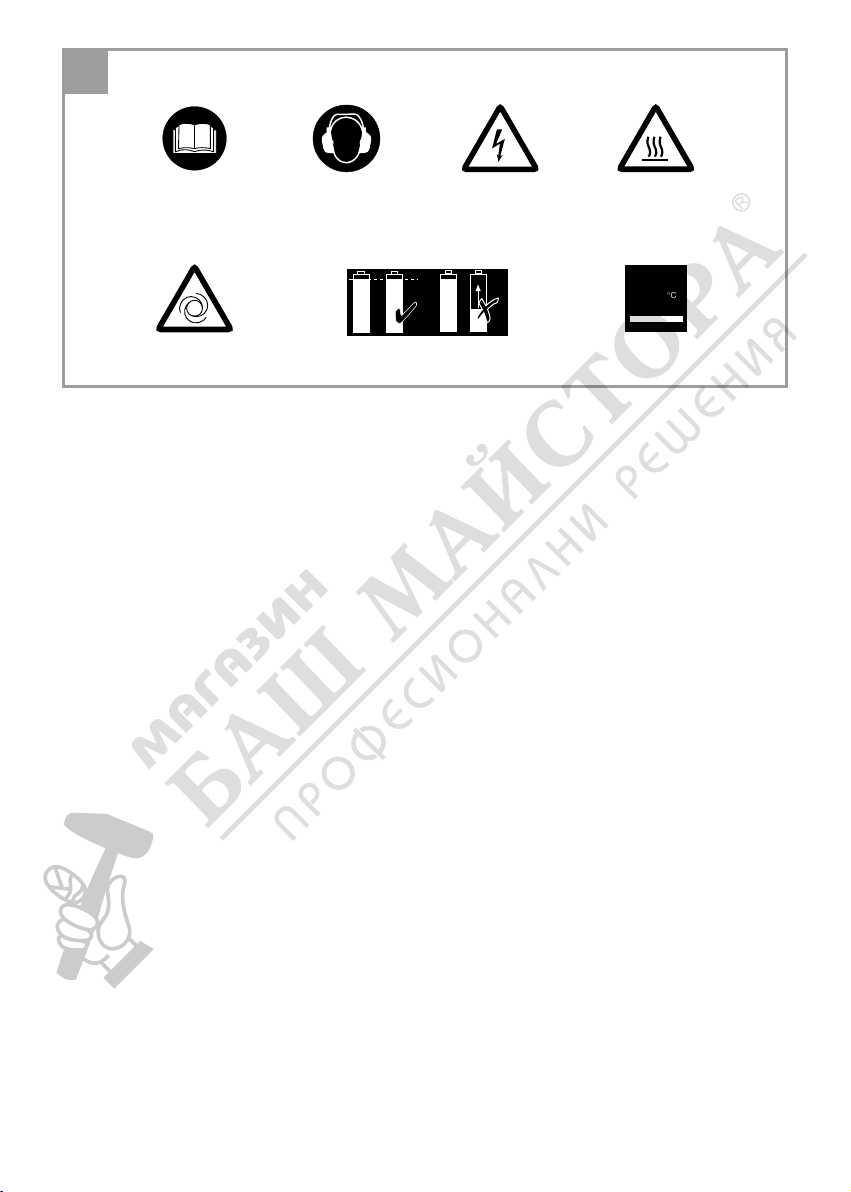

Explanation of the symbols used (see Fig. 13)
1. Danger! - Read the operating instructions to
reduce the risk of inquiry
2. Caution! Wear ear-muffs. The impact of noi-
se can cause damage to hearing.
3. Beware of electrical voltage!
4. Beware of hot parts!
5. Warning! The unit will start up automatically
without warning if the pressure drops below
cut-in pressure!
6. Important! Use only batteries which are
charged to the same level. Never combine full
and half-full batteries.
7. PS: Max. operating pressure
Tmax: Max. operating temperature
Tmin: Min. operating temperature
V: Tank capacity
1. Safety regulations
The corresponding safety information can be
found in the enclosed booklet.
Warning!
Read all the safety information, instructions,
illustrations and technical data provided on
or with this power tool. Failure to adhere to the
following instructions may result in electric shock,
re and/or serious injury.
Keep all the safety information and instruc-
tions in a safe place for future use.
This appliance is not intended for use by persons
(including children) with reduced physical, sen-
sory or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
2. Layout and items supplied
2.1 Layout (Fig. 1/2)
1. Housing cover
2. Pressure tank
3. Intake air lter
4. Foot
5. Quick-lock coupling (regulated compressed
air)
6. Pressure gauge (for reading the set pressure)
7. Pressure regulator
8. ON/OFF switch
9. Transport handle
10. Safety valve
11. Drainage cock for condensation water
12. Battery pack (not supplied)
13. Storage compartment for 8-piece adapter set
14. 8-piece adapter set
15. Tire ination meter
16. Blow-out adapter
17. Compressed air hose
18. Battery cover
2.2 Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suffocating!
• Tire inflation meter
• Blow-out adapter
• 8-piece adapter set
• Compressed air hose
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 16 19.04.2022 08:43:54

GB
- 17 -
• Original operating instructions
• Safety information
3. Proper use
The cordless compressor is designed to generate
compressed air for compressed air driven tools.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse.The user / operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
4. Technical data
Mains voltage ......................................... 36 V DC
Compressor speed min-1: ........................... 3200
Operating pressure bar: ............................max. 8
Pressure vessel capacity (in liters): .................. 6
Theoretical suction rate l/min.: ..................... 130
Output (compressed air) at 7 bar: .... 38 liters/min
Output (compressed air) at 4 bar: .... 55 liters/min
Sound power level LWA in dB: .......................... 94
Uncertainty KWA ....................................... 2.23 dB
Sound pressure level LpA in dB: ...................... 73
Uncertainty KpA ........................................ 2.23 dB
Protection type: ........................................... IPX0
Weight of the unit in kg: ....................approx. 10.5
Danger!
Noise
The noise emission values were measured in ac-
cordance with EN ISO 3744.
5. Before starting the equipment
Before you connect the equipment to the power
supply make sure that the data on the rating plate
are identical to those of the rechargeable battery.
• Check the equipment for damage which may
have occurred in transit. Report any damage
immediately to the transport company which
was used to deliver the compressor.
• Install the compressor in the vicinity of the
point of consumption.
• Avoid long air lines.
• Make sure that the intake air is dry and dust-
free.
• Do not install the compressor in a damp or
wet room.
• The compressor may only be used in suitable
rooms (with good ventilation and an ambient
temperature from +5 °C to 40 °C).There must
be no dust, acids, vapors, explosive gases or
inflammable gases in the room.
• The compressor is designed to be used in dry
rooms. It is prohibited to use the compressor
in areas where work is conducted with spray-
ed water.
• Operate the equipment only on a firm, level
surface.
• Use flexible hoses in order to prevent trans-
mitting unacceptable loads to the pipeline
system at the connection between the com-
pressor system and the pipeline system.
• It is essential to use separators, traps and
drains which process the liquids produced by
the compressor before the compressor sys-
tem is put into operation.
• Supply hoses at pressures above 7 bar
should be equipped with a safety cable (e.g.
a wire rope).
5.1 Charging the battery (Fig. 3)
1. Take the battery pack out of the equipment.
Do this by pressing the side pushlock buttons.
2. Check that your mains voltage is the same as
that marked on the rating plate of the battery
charger. Insert the power plug of the charger
(d) into the socket outlet.The green LED will
then begin to ash.
3. Slot the battery pack (12) onto the battery
charger (d).
4. In the section entitled „Charger indicator“ you
will nd a table with an explanation of the LED
indicator on the charger.
The battery pack can become a little warm during
the charging. This is normal.
If the battery pack fails to charge, check:
• whether there is voltage at the socket outlet
• whether there is good contact at the charging
contacts
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 17 19.04.2022 08:43:54

GB
- 18 -
If the battery pack still fails to charge, send
• the charger
• and the battery pack
to our customer service center.
To ensure that items are properly packaged
and delivered when you send them to us,
please contact our customer service or the
point of sale at which the equipment was
purchased.
When shipping or disposing of batteries and
cordless tools, always ensure that they are
packed individually in plastic bags to prevent
short circuits and res.
To ensure that the battery pack provides long ser-
vice, you should take care to recharge it promptly.
You must recharge the battery pack when you
notice that the performance of the device drops.
Never allow the battery pack to become fully di-
scharged. This will cause it to develop a defect.
Important!
Use only batteries which are charged to the same
level. Never combine full and half-full batteries.
Always charge the two batteries simultaneously.
The equipment‘s operating time depends on the
battery with the lower charge level.The two batte-
ries must always be fully charged before use.
Close the battery cover by swinging it down, and
make sure that it latches in place correctly.
Installing the battery (Fig. 1b)
Flip up the battery cover (18) as shown in Figure
1b. Slot the two rechargeable batteries (12) into
the mounts.
Battery capacity indicator (Fig. 4)
Press the battery capacity indicator switch (a).
The battery capacity indicator (b) will indicate the
charge status of the battery by means of 3 LEDs.
All 3 LEDs are lit:
The battery is fully charged.
2 or 1 LED(s) are lit:
The battery has an adequate remaining charge.
1 LED ashes:
The battery is empty, recharge the battery.
All LEDs blink:
The battery temperature is too low. Remove the
battery from the equipment, keep it at room tem-
perature for one day. If the fault reoccurs, this me-
ans that the rechargeable battery has undergone
exhaustive discharge and is defective. Remove
the battery from the equipment. Never use or
charge a defective battery.
6. Assembly and starting
Important!
You must fully assemble the equipment befo-
re using it for the rst time.
6.1 On/Offswitch (Fig. 1a)
To switch on the equipment, set the On/Offswitch
(8) to position 1.
To switch offthe equipment, move the On/Off
switch (8) to position 0 .
6.2 Setting the pressure (Fig. 1a)
• You can adjust the pressure on the pressure
gauge (6) using the pressure regulator (7).
• The set pressure can be drawn from the
quick-lock coupling (5).
6.3 Setting the pressure switch
The pressure switch is set at the factory.
Cut-in pressure approx. 6 bar
Cut-out pressure approx. 8 bar
7. Operation
7.1 Tire pressure gauge with adapters (Fig. 2)
Working pressure in bar: 0 – 8
Range of applications:
The tire pressure gauge (15) allows you to inate
car tires easily and exactly. Use the pressure
gauge to check the tire pressure. If the tire pres-
sure is too high, you can reduce the pressure with
the integrated relief valve (e). The tire pressure
gauge comes with a valve adapter for car tire
valves.
Warning! Observe the information supplied by
the tire manufacturer and the vehicle manufactu-
rer relating to the recommended tire pressure.
Warning! This equipment is not calibrated! For a
calibrated measurement value, check the actual
tire pressure using a calibrated meter after you
have inated the tires yourself, e.g. at a petrol
station.
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 18 19.04.2022 08:43:54

GB
- 19 -
Use as a blow-out pistol
To use the tire pressure gauge as a blow-out
pistol you must rst unscrew and remove the
hose with the valve adapter for care tires. Now the
blow-out adapter (16) can be screwed to the tire
pressure gauge.
Range of applications:
For cleaning and blowing out hollow spaces or
hard-to-reach areas, as well as for cleaning soiled
equipment. The innitely variable trigger lever al-
lows an exact dosing of compressed air.
7.2 Instructions for the adapter set
For information on the correct use of the adapters
for the various valves, please refer to the following
overview (see Fig. 12 which shows how to con-
nect the adapter to the compressor).
• Ball needle (Fig. 5)
Area of application: For inflating balls.The
ball needle can be used to inflate a variety of
different balls.
TIP: To avoid damaging the valve, moisten
the needle slightly before inserting it.
• Valve adapter (Fig. 6)
Area of application: For Dunlop cycle tire
valves.
This Dunlop valve adapter is designed for
inflating cycle tires.
• Adapter I (Fig. 7/Item I)
Area of application: For all valves with an in-
ternal diameter of 8 mm or more.
You can use this adapter to inflate airbeds,
pools or boats.
TIP: Insert the adapter I into the valve as
shown in Figure 7, drawing d.
Important! The valve cap must be opened a
little by being pressed together slightly.
• Adapter II (Fig. 8/Item II)
Area of application: For screw valves.
This adapter can be used for all conventional
boats, kayaks and other large items such as
pools, which are fitted with a screw valve.
• Vent adapter (Fig. 9/Item III)
Area of application: For deflation valves You
can find a deflation valve combined with other
valves (standard valve, screw valve, etc.)
on many large articles such as an inflatable
mattress.
• Conical universal adapter (Fig. 10-11)
Area of application: The universal adapter can
be used for inflating airbeds and other similar
items.
8. Cleaning, maintenance and
ordering of spare parts
Hazard!
Remove the rechargeable batteries before
doing any cleaning and maintenance work.
Warning!
Wait until the compressor has completely
cooled down. Risk of burns!
Warning!
Always depressurize the tank before carrying
out any cleaning and maintenance work.
Warning!
After use, always switch offthe equipment
immediately and pull out the rechargeable
batteries.
8.1 Cleaning
• Keep the safety devices free of dirt and dust
as far as possible. Wipe the equipment with a
clean cloth or blow it with compressed air at
low pressure.
• We recommend that you clean the appliance
immediately after you use it.
• Clean the appliance regularly with a damp
cloth and some soft soap. Do not use
cleaning agents or solvents; these may be
aggressive to the plastic parts in the appli-
ance. Ensure that no water can get into the
interior of the appliance.
• You must disconnect the hose and any
spraying tools from the compressor before
cleaning. Do not clean the compressor with
water, solvents or the like.
8.2 Condensed water (Fig. 1)
Important! To ensure a long service life of the
pressure vessel (2), drain offthe condensed wa-
ter by opening the drainage cock (11) each time
after using.
Check the pressure vessel for signs of rust and
damage each time before using. Do not use the
compressor with a damaged or rusty pressure
vessel. If you discover any damage, please con-
tact the customer service workshop.
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 19 19.04.2022 08:43:55

GB
- 20 -
8.3 Safety valve (10)
The safety valve has been set for the highest per-
mitted pressure of the pressure vessel. It is prohi-
bited to adjust the safety valve or remove its seal.
Actuate the safety valve from time to time to en-
sure that it works when required. Pull the ring with
sufficient force until you can hear the compressed
air being released. Then release the ring again.
8.4 Cleaning the intake lter (3)
The intake lter prevents dust and dirt being
drawn in. It is essential to clean this lter after at
least every 300 hours in operation. A clogged
intake lter will decrease the compressor‘s per-
formance dramatically. Open the halves of the air
lter housing. Use compressed air at low pressure
(approx. 3 bar) to blow out all the parts of the lter
and then assemble the lter in reverse order.
When cleaning, take adequate precautions
against dust (e.g. use a suitable face mask).
8.5 Storage
Warning!
Pull out the rechargeable batteries and ventilate
the equipment and all connected pneumatic tools.
Switch offthe compressor and make sure that it is
secured in such a way that it cannot be started up
again by any unauthorized person.
Warning!
Store the compressor only in a dry location
which is not accessible to unauthorized per-
sons. Always store upright, never tilted!
8.6 Transport
• Transport the equipment only by carrying it by
the transport handle.
• Protect the equipment against unexpected
knocks and vibrations.
8.7 Ordering replacement parts:
Please quote the following data when ordering
replacement parts:
• Type of machine
• Article number of the machine
• Identification number of the machine
• Replacement part number of the part required
For our latest prices and information please go to
www.Einhell-Service.com
9. Disposal and recycling
The equipment is supplied in packaging to pre-
vent it from being damaged in transit. The raw
materials in this packaging can be reused or
recycled.The equipment and its accessories are
made of various types of material, such as metal
and plastic. Never place defective equipment in
your household refuse.The equipment should
be taken to a suitable collection center for proper
disposal. If you do not know the whereabouts of
such a collection point, you should ask in your
local council offices.
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 20 19.04.2022 08:43:55

GB
- 21 -
10. Charger indicator
Indicator status Explanations and actions
Red LED Green LED
OffFlashing Ready for use
The charger is connected to the mains and is ready for use; there is no
battery pack in the charger
On OffCharging
The charger is charging the battery pack in quick charge mode.The char-
ging times are shown directly on the charger.
Important! The actual charging times may vary slightly from the stated
charging times depending on the existing battery charge.
OffOn The battery is charged and ready for use. (READY TO GO)
The unit then changes over to gentle charging mode until the battery is
fully charged.
To do this, leave the rechargeable battery on the charger for approx. 15
minutes longer.
Action:
Take the battery pack out of the charger. Disconnect the charger from the
mains supply.
Flashing OffAdapted charging
The charger is in gentle charging mode.
For safety reasons the charging is performed less quickly and takes more
time.The reasons can be:
- The rechargeable battery has not been used for a very long time.
- The battery temperature is outside the ideal range.
Action:
Wait for the charging to be completed; you can still continue to charge the
battery pack.
Flashing Flashing Fault
Charging is no longer possible.The battery pack is defective.
Action:
Never charge a defective battery pack.
Take the battery pack out of the charger.
On On Temperature fault
The battery pack is too hot (e.g. due to direct sunshine) or too cold
(below 0° C).
Action:
Remove the battery pack and keep it at room temperature (approx. 20° C)
for one day .
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 21 19.04.2022 08:43:55

GB
- 22 -
11. Possible causes of failure
Problem Cause Solution
The compressor
does not start.
1. No power supply
2. Outside temperature is too low.
3. Motor is overheated.
1. Check the rechargeable batteries
2. Never operate with an outside tem-
perature of below +5° C.
3. Allow the motor to cool down. If
necessary, remedy the cause of the
overheating.
The compressor
starts but there is no
pressure.
1. The non-return valve leaks.
2. The seals are damaged.
3. The drainage cock for condensati-
on water has a leak.
1. Have a service center replace the
non-return valve.
2. Check the seals and have any da-
maged seals replaced by a service
center.
3. Check the drainage cock and repla-
ce if necessary.
The compressor
starts, pressure is
shown on the pres-
sure gauge, but the
tools do not start.
1. The hose connections have a leak.
2. A quick-lock coupling has a leak.
3. Insufficient pressure set on the
pressure regulator.
1. Check the compressed air hose
and tools and replace if necessary.
2. Check the quick-lock coupling and
replace if necessary.
3. Increase the set pressure with the
pressure regulator.
For EU countries only
Never place any electric power tools in your household refuse.
To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and
its implementation in national laws, old electric power tools have to be separated from other waste and
disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment
must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment.
The old equipment can be returned to a suitable collection point that will dispose of the equipment in
accordance with the national recycling and waste disposal regulations. This does not apply to any ac-
cessories or aids without electrical components supplied with the old equipment.
Please note that batteries and lamps (e.g. light bulbs) must be removed from the tool before it is dispo-
sed of.
The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac-
companying products is permitted only with the express consent of the Einhell Germany AG.
Subject to technical changes
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 22 19.04.2022 08:43:56

GB
- 23 -
Service information
We have competent service partners in all countries named on the guarantee certicate whose contact
details can also be found on the guarantee certicate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Battery
Consumables*
Missing parts
* Not necessarily included in the scope of delivery!
In the effect of defects or faults, please register the problem on the internet at www.Einhell-Service.com.
Please ensure that you provide a precise description of the problem and answer the following questions
in all cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 23 19.04.2022 08:43:56

GB
- 24 -
Warranty certicate
Dear Customer,
All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the
unlikely event that your device develops a fault, please contact our service department at the address
shown on this guarantee card.You can also contact us by telephone using the service number shown.
Please note the following terms under which guarantee claims can be made:
1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product
neither for their commercial activities nor for any other self-employed activities. These warranty
terms regulate additional warranty services, which the manufacturer mentioned below promises to
buyers of its new products in addition to their statutory rights of guarantee.Your statutory guarantee
claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which
you have bought from the manufacturer mentioned below and are limited to either the rectication of
said defects on the product or the replacement of the product, whichever we prefer.
Please note that our devices are not designed for use in commercial, trade or professional applica-
tions. A guarantee contract will not be created if the device has been used by commercial, trade or
industrial business or has been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect
installation, a failure to follow the operating instructions (for example connecting it to an incorrect
mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex-
posing the device to abnormal environmental conditions or by lack of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example overloading the device or the
use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand,
stones or dust, transport damage), the use of force or damage caused by external forces (for ex-
ample by dropping it).
- Damage to the device or parts of the device caused by normal or natural wear or tear or by normal
use of the device.
4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-
arantee claims should be submitted before the end of the guarantee period within two weeks of the
defect being noticed. No guarantee claims will be accepted after the end of the guarantee period.
The original guarantee period remains applicable to the device even if repairs are carried out or
parts are replaced. In such cases, the work performed or parts tted will not result in an extension
of the guarantee period, and no new guarantee will become active for the work performed or parts
tted. This also applies if an on-site service is used.
5. To make a claim under the guarantee, please register the defective device at:
www.Einhell-Service.com. Please keep your bill of purchase or other proof of purchase for the new
device. Devices that are returned without proof of purchase or without a rating plate shall not be
covered by the guarantee, because appropriate identication will not be possible. If the defect is co-
vered by our guarantee, then the item in question will either be repaired immediately and returned to
you or we will send you a new replacement.
Of course, we are also happy offer a chargeable repair service for any defects which are not covered by
the scope of this guarantee or for units which are no longer covered. To take advantage of this service,
please send the device to our service address.
Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as
set out in the service information in these operating instructions.
Anl_TE_AC_36_6_8_Li_OF_SPK13.indb 24 19.04.2022 08:43:56
