EINHELL PICOBELLA User manual

PICOBELLA
Art.-Nr.: 3424210 I.-Nr.: 21010
7
EN Original operating instructions
Cordless Surface Cleaner
SP Manual de instrucciones original
Limpiador de superficie
inalámbrica
FR Traduction du mode d’emploi
d’origine
Nettoyeur de surface sans fil
Anl_Picobella_SPK7_USA.indb 1Anl_Picobella_SPK7_USA.indb 1 01.07.2020 11:10:3601.07.2020 11:10:36

- 2 -
1
2
4
5
8
15
6
13
3
10
3
14
6
17
8
9
12
11
2
1
16
15
8
11
7
Anl_Picobella_SPK7_USA.indb 2Anl_Picobella_SPK7_USA.indb 2 01.07.2020 11:11:0301.07.2020 11:11:03

- 3 -
4 5
6 7
8 9
16
8
18
11
6
17
9
19
19
20
Anl_Picobella_SPK7_USA.indb 3Anl_Picobella_SPK7_USA.indb 3 01.07.2020 11:15:1601.07.2020 11:15:16

- 4 -
10 11
12 13
14 15
Anl_Picobella_SPK7_USA.indb 4Anl_Picobella_SPK7_USA.indb 4 01.07.2020 11:23:0601.07.2020 11:23:06

- 5 -
16 17
18
3
19
20
21
21
22
23
24
4
25
21
14
Anl_Picobella_SPK7_USA.indb 5Anl_Picobella_SPK7_USA.indb 5 01.07.2020 11:30:1201.07.2020 11:30:12

- 6 -
23
1 2 3 4
22
26
Anl_Picobella_SPK7_USA.indb 6Anl_Picobella_SPK7_USA.indb 6 01.07.2020 11:36:1801.07.2020 11:36:18

EN
- 7 -
Table of contents
1. Safety information

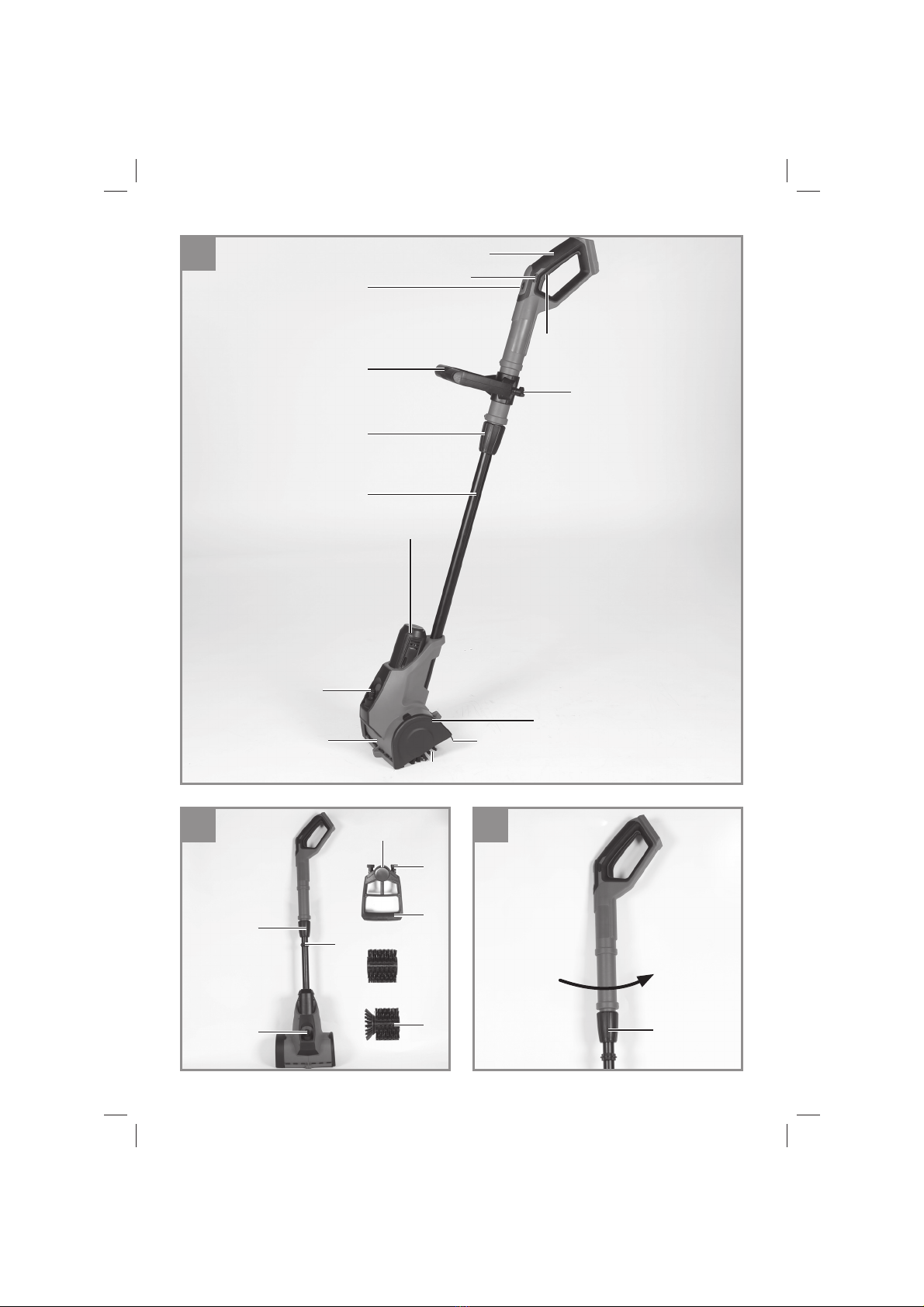

2. Layout and items supplied
3. Intended use
4. Technical data
5. Before starting the equipment
6. Operation
7. Cleaning, maintenance and ordering spare parts
8. Disposal and recycling
9. Storage
Einhell USA LLC · 305 Veterans Blvd · Carlstadt · NJ 07072 · USA
Anl_Picobella_SPK7_USA.indb 7Anl_Picobella_SPK7_USA.indb 7 01.07.2020 11:37:4601.07.2020 11:37:46

EN
- 8 -
DANGER!
When using the equipment, a number of safety
precautions must be observed to avoid injuries
and damage. Please read the complete operating
instructions and safety information with due care.
Keep these operating instructions in a safe place
so that the information is available at all times. If
you give the equipment to any other person, hand
over these operating instructions and the safety
information as well. We cannot accept any liability
for damage or accidents which arise due to
failure to follow these instructions and the safety
information.
1. Safety information
Read All Instructions
WARNING: When using electric gardening
appliances, basic safety precautions should
always be followed to reduce the risk of fire,
electric shock, and personal injury, including the
following:
FOR ALL APPLIANCES
• Avoid dangerous environments - do not use
appliances in damp or wet locations.
• Don’t use in rain.
• Keep children away - all people and pets
should be kept at a distance from the work
area.
• Dress properly - do not wear loose clothing or
jewelry. They can be caught in moving parts.
Wear protective clothing; use of work gloves,
long pants, a long sleeved shirt and safety
footwear is recommended when working
outdoors.Wear protective hair covering to
contain long hair.
• Use safety glasses - always use face or dust
mask if the area in which you are working is
dusty.The purpose of the safety rules is to
attract your attention to possible dangers.
The safety symbols and the explanations
with them, require your careful attention and
understanding.The safety warnings do not
by themselves eliminate any danger. The
instruction or warnings they give are not
substitutes for proper accident prevention
measures.
• Use right appliance - do not use appliance for
any job except that for which it is intended.
• Do not force appliance - it will do the job
better and with less likelihood of a risk of
injury at the rate for which it was designed.
• Do not overreach - keep proper footing and
balance at all times.
• Stay alert. Use common sense. Do not
operate appliance when you are tired or
under the influence of drugs, alcohol or
medication.
• When not in use, appliances should be stored
indoors in dry places out of reach of children.
• Maintain appliance with care. Follow
instructions for lubricating and changing
accessories. Keep handles dry, clean, and
free from oil and grease.
• Check damaged parts. Before using the
appliance, make sure the safety guards are
intact. Never use a tool without its safety
guard. Check the alignment of the moving
parts,the binding of the moving parts.
• Check for broken or defective parts that
can affect the safe operation of your tool. A
guard or other part that is damaged should
be properly repaired or replaced by an
authorized service centre unless indicated
elsewhere in this manual.
• Recharge only with the charger specified by
the manufacturer. A charger that is suitable
for one type of battery pack may create a risk
of fire when used with another battery pack.
• Use appliances only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and
fire.
• When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns. (This advice is
considered correct for conventional NiMh,
NiCd, lead acid and lithium-ion cell types. If
this advice is incorrect for a cell design that
differs from these, then the correct advice
may be substituted.)
• Do not use a battery pack or appliance that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance
to fire or excessive temperature. Exposure to
fire or temperature above 266°F (130°C) may
Anl_Picobella_SPK7_USA.indb 8Anl_Picobella_SPK7_USA.indb 8 01.07.2020 11:37:4901.07.2020 11:37:49

EN
- 9 -
cause explosion.
• Follow all charging instructions and do
not charge the battery pack or appliance
outside of the temperature range specified
in the instructions. Charging improperly or at
temperatures outside of the specified range
may damage the battery and increase the risk
of fire.
• Have servicing performed by a qualified
repair person using only identical
replacement parts.This will ensure that the
safety of the product is maintained.
• Do not modify or attempt to repair the
appliance or the battery pack (as applicable)
except as indicated in the instructions for use
and care.
1.) FOR ALL BATTERY-OPERATED
GARDENING APPLIANCES:
• Do not charge appliance in rain, or in wet
locations.
• Do not use battery-operated appliances in
the rain. Always remove or disconnect battery
pack before adjusting, cleaning, servicing or
transporting the garden appliances.
2.) FOR ALL BATTERY-OPERATED
PRODUCTS EMPLOYING A DETACHABLE
OR SEPARABLE
BATTERY:
• Use only the following type and size battery:
18V 1.5Ah P-X-C lithium-ion battery
18V 2.0Ah P-X-C lithium-ion battery
18V 2.6Ah P-X-C Plus lithium-ion battery
18V 3.0Ah P-X-C lithium-ion battery
18V 4.0Ah P-X-C lithium-ion battery
18V 5.2Ah P-X-C Plus lithium-ion battery
• Do not dispose of the battery in a fire.The
cell may explode. Check with local codes for
possible special disposal instructions.
• Do not open or mutilate the battery. Released
electrolyte is corrosive and may cause
damage to the eyes or skin. It may be toxic if
swallowed.
• Exercise care in handling the battery in order
not to short it with conducting materials such
as rings, bracelets, and keys. The battery or
conductor may overheat and cause burns.
3.) AVOID UNINTENTIONAL STARTING – DO
NOT INSERT BATTERY WHILE YOUR
FINGER IS ON THE SWITCH. BE SURE
SWITCH IS OFF WHEN INSERTING THE
BATTERY.
GENERAL SAFETY WARNINGS FOR THE
BATTERY PACK
• Dispose of used battery promptly and
properly. When disposing of secondary cells
or batteries, keep cells or batteries of different
electrochemical systems separate from each
other.
• Keep battery out of reach of children and in
original package until ready to use.
• Never put batteries in one’s mouth. If
swallowed, contact local poison control
centre immediately.
• CAUTION – The battery used in this device
may present a risk of fire or chemical burn
if mishandled. Replace battery with Einhell/
lawn master brand only. Use of another
battery may present a risk of fire or explosion.
• WARNING: Do not use a visibly damaged
battery pack or appliance.
• WARNING: Do not modify or attempt to repair
the appliance or the battery pack.
• BATTERIES MUST BE RECYCLED.
• Do not short-circuit a cell or battery. Do not
store cells or batteries haphazardly in a box
or drawer where they may shortcircuit each
other or be short-circuited by conductive
materials.
• Do not subject cells or batteries to
mechanical shocks.
• Keep cells and batteries clean and dry.Wipe
the cell or battery terminals with a clean dry
cloth if they become dirty.
• Do not maintain secondary cells and batteries
on charge when not in use.
• Retain the original cell and battery. Do not
use any charger other than that specifically
provided for use with the equipment.
Secondary cells and batteries need to be
charged before use. Always use the correct
charger and refer to the manufacturer’s
instructions or equipment manual for proper
charging instructions.
• When possible, remove the battery from the
equipment when not in use.
• Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to the battery pack, picking up or carrying the
appliance. Carrying the appliance with your
finger on the switch or energizing appliances
that have the switch on invites accidents.
• Disconnect the battery pack from the
appliance before making any adjustments,
changing accessories, or storing appliance.
Such preventive safety measures reduce the
risk of starting the appliance accidentally.
Anl_Picobella_SPK7_USA.indb 9Anl_Picobella_SPK7_USA.indb 9 01.07.2020 11:37:4901.07.2020 11:37:49

EN
- 10 -
• Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
• Have servicing performed by a qualified
repair person using only identical
replacement parts.This will ensure that the
safety of the product is maintained.
• Protect your rechargeable battery against
moisture, rain and high humidity. Moisture,
rain and high humidity can cause dangerous
cell damage. Never charge or work with
batteries which have been exposed to
moisture, rain or high humidity – replace them
immediately.
• If your equipment is fitted with a detachable
battery, remove the battery for safety reasons
after you have finished your work
IMPORTANT SAFETY INSTRUCTIONS FOR
CHARGER
WARNING: This product may contain lead,
phthalate or other chemicals known to the State
of California to cause cancer, birth defects and
other reproductive harm. Please wash your hands
after use.
SAVE THESE INSTRUCTIONS

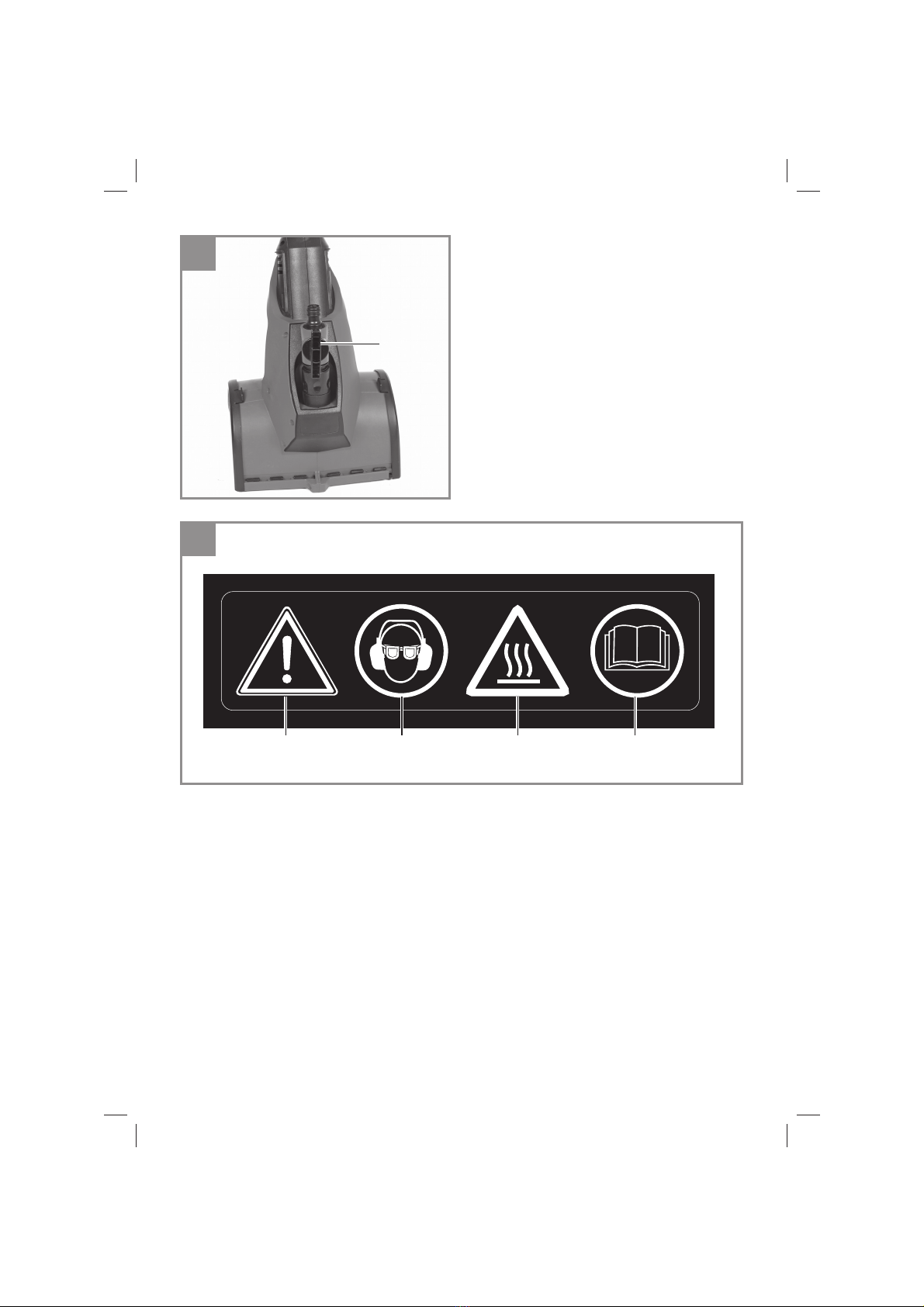

Explanation of the warning signs on the
equipment (see Fig. 23)
1: Warning!
2: Wear goggles and ear muffs!
3: Caution: Hot equipment parts.
4: Read the instruction manual before starting!
2. Layout and items supplied
2.1 Layout
1. Handle
2. Changeover switch
3. On/Offswitch
4. Speed controller
5. Additional handle
6. Fastening screws
7. Hose clip
8. Lock nut
9. Long handle
10. Motor housing
11. Water inlet connector
12. Brush housing
13. Brush cover on side
14. Splash guard
15. Nylon brush
16. Additional handle
17. Mounting
18. Steady grip
19. Brush cover
20. Rubber cap
21. Pushlock button
22. Switch for battery charge level indicator
23. Battery charge level indicator
24. Changeover switch (left)
25. Changeover switch (right)
26. Water control valve
2.2 Items supplied
Please check that the article is complete as
specified in the scope of delivery. If parts are
missing, please contact our service center or the
store where you made your purchase at the latest
within 5 work days after purchasing the article and
upon presentation of a valid bill of purchase.
• Open the packaging and take out the
equipment with care.
• Remove the packaging material and any
packaging and/or transportation braces (if
present).
• Check to see if all the items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, keep the packaging until the end
of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, plastic sheets and small parts. There is
a risk of choking and suffocating!
• Cordless surface brush with hose clip
• Complete additional handle
• Water control valve
• MEDIUM 2-piece nylon brush (nylon brush +
nylon brush with side brush (15))
• Original operating instruction with safety
information
Anl_Picobella_SPK7_USA.indb 10Anl_Picobella_SPK7_USA.indb 10 01.07.2020 11:37:4901.07.2020 11:37:49

EN
- 11 -
Separately available accessories
18V 1.5Ah P-X-C lithium-ion battery
18V 2.0Ah P-X-C lithium-ion battery
18V 2.6Ah P-X-C Plus lithium-ion battery
18V 3.0Ah P-X-C lithium-ion battery
18V 4.0Ah P-X-C lithium-ion battery
18V 5.2Ah P-X-C Plus lithium-ion battery
18V P-X-C Fast Charger
18V P-X-C Dual Port Fast Charger
Explore battery + charger options at
einhellUSA.com
3. Intended use
The equipment is designed for cleaning work
on surfaces in private outdoor areas only.
The surfaces must be suitable for cleaning
using rotating brushes. For wet cleaning
(recommended) the surfaces must also be
insensitive to water.
Sensitive, polished, coated and scratch-sensitive
surfaces can become roughened and/or get
damaged.This equipment must not be used to
clean such surfaces.The equipment may only be
used by guiding it over the ground in a vertical
position.The equipment must not be used in a
horizontal position (e.g. walls) or overhead (e.g.
ceiling). It must not be used for unmade/unpaved
surfaces (e.g. grass pavers).
Use only the brush which is intended to be
used for the surface you want to clean.Test the
brush for suitability on an inconspicuous area
first before using it each time. Different brushes
for different surfaces are available as separate
accessories. Only use water without any additives
whatsoever.
The MEDIUM nylon brush (black) is specifically
suitable for cleaning unsealed paver and stone
surfaces. It can therefore also be used for
cleaning surfaces which are paved with paving
stones/concrete blocks or concreted surfaces
(e.g. driveways, decks, paths).The side brush can
be used for cleaning perimeters and bases.
Using the SOFT nylon brush (yellow/green) the
equipment can also be used for cleaning wood,
composite materials (BPC/WPC) or for brushing
(e.g. flattened areas) artificial turf to raise it
upright, as used in the private domain where it is
installed, for example, on balconies or decks.
The ULTRA metal brush can be used for cleaning
robust surfaces such as, e.g. paving stones/
concrete blocks, concreted surfaces, granite or
porphyry to remove stubborn dirt.
The equipment is allowed to be used only for its
prescribed purpose. Any other use is deemed to
be a case of misuse.The user/operator and not
the manufacturer will be liable for any damage or
injuries of any kind resulting from such misuse.
Please note that our equipment has not been
designed for use in commercial, trade or
industrial applications. Our warranty will be voided
if the equipment is used in commercial, trade or
industrial businesses or for equivalent purposes.
4. Technical data
Motor power supply: ............................18 V
Speed n0:............................ 800-1400 rpm (min-1)
Working width ..........................8.46 in. (215 mm)
Brush diameter ..........................4.5 in. (115 mm)
Max. water inlet pressure ............... 87 psi (6 bar)
Protection class .................................................III
Weight (Tool only) ...........................9 lbs (4.1 kg)
Wear ear-muffs.
The impact of noise can cause damage to
hearing.
Reduce noise generation and vibration to a
minimum!
• Use only equipment that is in perfect
condition.
• Maintain and clean the equipment regularly.
• Adapt your way of working to the equipment.
• Do not overload the equipment.
• Have the equipment checked if necessary.
• Switch off the equipment when not in use.
• Wear gloves.
CAUTION!
Residual risks
Even if you use this electric power tool in
accordance with the instructions, certain
residual risks cannot be eliminated.The
following hazards may arise in connection
with the equipment‘s construction and
Anl_Picobella_SPK7_USA.indb 11Anl_Picobella_SPK7_USA.indb 11 01.07.2020 11:37:4901.07.2020 11:37:49

EN
- 12 -
layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear
protection is applied.
3. Health damage caused by hand-arm
vibrations if the equipment is used over a
longer period or is not properly guided and
maintained.
Limit the operating time.
All stages of the operating cycle must be
considered (for example, times in which the
electric tools are switched offand times in which
the tool is switched on but operates without load).
5. Before starting the equipment
The equipment is supplied without batteries
and without a charger.
5.1 Turn the steady grip out of the transport
position (Fig. 3-4)
Important! For transport reasons the steady
grip is turned 90° to the side. For you to be able
to work with the equipment, the steady grip must
be aligned in line with the brush housing (working
position).
1. Slacken the lock nut (8) by turning it counter-
clockwise and turn the steady grip as far as it
will go.
2. Secure the lock nut (8) by turning it clockwise.
5.2 Fitting the additional handle (Fig. 5)
Using the handle screws (6), fasten the additional
handle (16) (the screws are accessible from
below) and the holder (17) at the area provided.
5.3 Adjusting the length of the long handle
(Fig. 6)
To ensure that you have a comfortable working
position, the length of the long handle can be
adjusted.
1. Slacken the lock nut (8) by turning it counter-
clockwise.
2. To change the length of the long handle, pull
the long handle (9) out of the steady grip (18)
or push it into the steady grip.
3. Make sure that the steady grip is in the
working position (section 5.1) and secure the
lock nut (8) by turning it clockwise.
5.4 Adjusting the additional handle (Fig. 5)
Undo the two fastening screws (6) on the
additional handle until it can be moved in any
direction without any great resistance. Set the
required position and tighten the two fastening
screws (6) again.

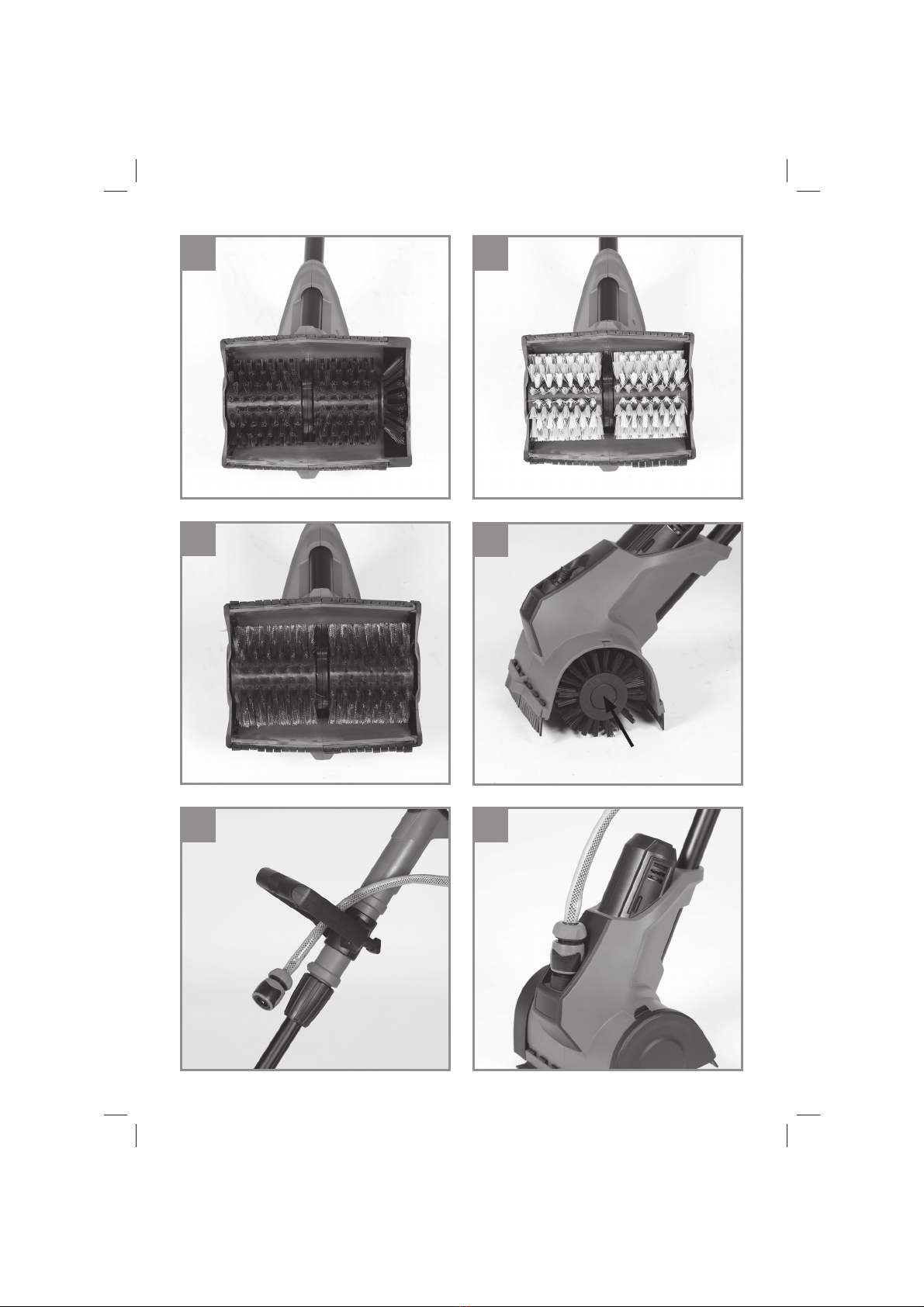

5.5 Fitting the cleaning brushes (Fig. 7-10)
Remove the brush covers on the sides (Fig. 7 /
Item 19).The product is supplied complete with
a 2-piece MEDIUM nylon brush (black). A nylon
brush (Fig. 2 / Item 15) is equipped with a side
brush.The cleaning brushes have rubber caps
(Fig. 8 / Item 20) on the outside. Slot the nylon
brush with side brush onto the brush mount (Fig.
9) on either the left or right side according to your
requirements and the other nylon brush onto the
other brush mount. Fit the brush covers back in
place.The wide brush cover (Fig. 7 / Item 19) is
for the nylon brush with side brush.The MEDIUM
nylon brush is ready-fitted (Fig. 10).
The SOFT nylon brush (yellow/green) (Fig. 11)
and the ULTRA metal brush (Fig. 12) must be
fitted in the same way, but do not have a side
brush.They come supplied complete with a
narrow brush cover which must be used instead
of the wide brush cover.
Warning! There is a risk of injury from the bristles
of the metal brush – wear safety gloves.
5.6 Removing cleaning brushes
Remove the brush covers on the sides (Fig. 7
/ Item 19). Press the middle of the rubber cap
(Fig. 8 / Item 20) to actuate the release button
underneath and pull offthe brush at the same
time.
Warning! There is a risk of injury from the bristles
of the metal brush – wear safety gloves.
5.7 Water inlet connector (Fig. 14 – 17)
To achieve top cleaning results quickly, we
recommend wet cleaning.
Important!
• Observe the requirements of EN 1717
in relation to the connection of the water
connection to the drinking water network.
Consult a specialist plumbing company.
• Never direct the water jet at electric cables or
the equipment itself.
• The water temperature must be between
+41°F (+ 5°C) and +95°F (+ 35°C).
• Do not use water that is dirty, gritty or
contains any chemical products, as these
Anl_Picobella_SPK7_USA.indb 12Anl_Picobella_SPK7_USA.indb 12 01.07.2020 11:37:5501.07.2020 11:37:55

EN
- 13 -
could impair operation and shorten the life of
the equipment.
The connection to the water inlet must be fitted
with a connector for standard hose coupling
systems (Fig. 7 / Item 11). Pass a water hose
(approx. Ø 13 mm (½“)), through the additional
handle as shown in Fig. 14 and attach the hose
coupling to the connection for the water inlet (Fig.
15). Remove the hose clip (Fig. 2 / Item 7) from
the long handle and secure the hose to the long
handle with the hose clip (Fig. 16/17).
The supplied water control valve (Fig. 22/Item 26)
can be fitted to the connector for the water inlet as
an option.The valve enables you to regulate the
water intake with stepless adjustment or interrupt
the water intake.
Each time before use, check the following :
• That the equipment is in perfect condition and
that the safety devices and the cleaning brush
are complete.
• That all screws are securely fastened.
• That all moving parts move smoothly.
5.8 Fitting the battery (Fig. 18)
Push the battery into the battery mount provided.
The battery will be heard to click into place when
it has been pushed fully in.To take out the battery,
press the pushlock button (Item 21) and remove
the battery.
6. Operation
Please note that the statutory regulations
governing noise abatement may differ from one
location to another.
Danger! The brush covers on the side must be
fitted when carrying out work.
Warning!
• Make sure that you have fitted the brush
which is intended to be used for the surface
you want to clean.
• Make sure that the brush covers on the side
are fitted securely.
• Inspect the brushes to check them for dirt
before you start your cleaning work and clean
them if necessary.
• Carry out a test run on a small area which is
not very visible to check that brushing does
not damage the surface.
• The surface to be cleaned must be free of
objects such as stones, twigs, etc.These
could be flung up by the rotating brush or
scratch the surface.
• Lift the equipment 0.4-0.8 inches (1-2 cm)
off the ground when you switch it on, but only
until it has reached full speed.Take care when
doing so in order to prevent injuries.
• Never switch on the equipment while it is
tilted or while it is lifted for any other purpose
than for reaching the full speed – risk of injury!
• Never use the equipment for too long at any
one point.
• We recommend wet cleaning. Only use clean
water without any additives whatsoever.
• Keep your hands and feet away from the
rotating brush.
• Only insert the battery just before you start
your work and remove it again when you have
finished.
6.1 Changeover switch (Fig. 20)
Note:
• Using the changeover switch you can select
the direction of rotation of the equipment
and lock it so that it cannot be switched on
accidentally.You can select between forward
and reverse rotation. Forward is the standard
direction of rotation, with which the equipment
has the most power.
• Hold the equipment firmly by the handle and
additional handle and make sure you have a
steady standing position.
• To avoid causing damage to the equipment,
the direction of rotation must only be changed
when the equipment is at a standstill.
a) Forward (standard direction of rotation):
Slide switch on left (24) pressed - the
equipment pulls away from you.
b) Safety- lock-off: Slide switch in the middle
position (as shown) - On/Offswitch blocked
c) Reverse: Slide switch on right (25) pressed -
the equipment moves towards you.
6.2 On/Offswitch (Fig. 18 / Item 3)
a) Switching on
When you press the On/Offswitch, the brush
rotates.
b) Switching off
When you release the On/Offswitch, the
equipment switches offand the brush comes
to a standstill.
Anl_Picobella_SPK7_USA.indb 13Anl_Picobella_SPK7_USA.indb 13 01.07.2020 11:37:5501.07.2020 11:37:55

EN
- 14 -
6.3 Speed controller (Fig. 20 / Item 4)
To set the speed of the brush, turn the speed
controller (min = lowest / max = highest).This
allows the speed to be adjusted to the particular
surface being cleaned.The numbers 1 – 5
marked on the speed controller are provided to
indicate the set speed more clearly.
6.4 Operation
Note: Worn or frayed brushes should be replaced
in good time. Replace the brush as soon as its
diameter is less than approx. 3.7 in. (95 mm). A
brush diameter of any less can lead to damage.
Important! If the permissible input current is
exceeded (e.g. by pressing too strongly), the
equipment switches offautomatically and must be
switched on again by pressing the On/Offswitch.
6.4.1 Cleaning in general (not applicable to
section “6.4.5 Brushing artificial turf”)
1. Place the brush evenly on the surface.
2. Set the working height to the one which is
most comfortable for you (see section 5.3).
The splash guard (Fig. 1 / Item 14) must just
clear the ground on both sides.
3. Select the correct direction of rotation (see
section 6.1) for the surface you want to clean
(observe sections 6.4.2 – 6.4.4).
4. To achieve top cleaning results quickly, we
recommend wet cleaning. Open the water
inlet.
5. Lift the equipment 0.4-0.8 inches (1-2 cm)
and switch on the equipment (see section
6.2).
6. Set the desired speed (from slow to fast) (see
section 6.3). Wait until the full speed has been
reached and then place the brush on the
surface to be cleaned.
7. Guide the brush slowly and in lines, similar to
a broom, over the surface. Only apply a small
amount of pressure at first and then increase
it little by little.
6.4.2 Cleaning wood, composite materials
(BPC/WPC)
Warning! Use only the SOFT brush to do this (to
fit the brush, see section 5.5). All other available
brushes are made of hard material and can
damage the surface.
• Always clean the boards or wooden elements
in a longitudinal direction (along the grain).
• Actuate the left side (Fig. 19 / Item 24) of the
changeover switch (forward).The equipment
will pull away from you (standard direction of
rotation).
• It is recommended that you clean on a board-
by-board basis.
• Afterwards, rinse the cleaned surface down
with water.
6.4.3 Cleaning smooth, unsealed paver and
stone surfaces
Note: Use the MEDIUM brush to do this (to fit the
brush, see section 5.5).
• Actuate the left side (Fig. 20 / Item 24) of the
changeover switch (forward).The equipment
will pull away from you (standard direction of
rotation).
• In case of certain kinds of stubborn dirt, it can
be helpful to clean using both directions of
rotation. Please note that when the equipment
is in reverse (changeover switch pressed on
the right, Fig. 20 / Item 25), it has less power.
• To clean perimeters and bases, remove the
wide side cover and clean them using the
side brush.
• Afterwards, rinse the cleaned surface down
with water.
6.4.4 Rough, unsealed paving stones,
concrete blocks and concreted surfaces
Note: Use only the ULTRA brush to do this (to fit
the brush, see section 5.5).
Warning! There is a risk of injury from the bristles
of the metal brush – wear safety gloves.
• Actuate the left side (Fig. 20 / Item 24) of the
changeover switch (forward).The equipment
will pull away from you (standard direction of
rotation).
• In case of certain kinds of stubborn dirt, it can
be helpful to clean using both directions of
rotation. Please note that when the equipment
is in reverse (changeover switch pressed on
the right, Fig. 20 / Item 25), it has less power.
Afterwards, rinse the cleaned surface down
with water.
6.4.5 Brushing artificial turf
Warning!
• Use only the SOFT brush to do this (yellow/
green). All other available brushes can
damage the artificial turf.
• Do not use water - dry-brush only.
• Brush in a forward direction only (Fig. 20 /
Item 24, standard direction of rotation - left
side of the changeover switch actuated).
• Remove all leaves, rubbish and similar before
starting brushing.
1. Place the SOFT brush evenly on the surface.
2. Set the working height to the one which is
Anl_Picobella_SPK7_USA.indb 14Anl_Picobella_SPK7_USA.indb 14 01.07.2020 11:37:5501.07.2020 11:37:55

EN
- 15 -
most comfortable for you (see section 5.3).
The splash guard must just clear the ground
on both sides.
3. Actuate the left side (Fig. 20 / Item 25) of the
changeover switch (standard direction of
rotation).
4. Lift the equipment 0.4-0.8 inches (1-2 cm)
and switch on the equipment (see section
6.2).
5. Set the desired speed (from slow to fast)
(see section 6.3). Wait until the full speed has
been reached and then place the brush on
the artificial turf.The equipment will pull away
from you.
6. To raise the fibers upright, brush against the
direction of the fibers of the artificial turf once
the desired speed has been reached. Do not
exert any pressure.
7. If required, draw the brush towards you and
let it roll away without pressure.
8. Repeat this movement until the desired result
has been achieved.
6.5 Charging the Li battery pack
The corresponding instructions can be found
in the original operating instructions for your
charger.
6.6 Battery capacity indicator (Fig. 19 / item
23)
Press the battery capacity indicator switch (22).
The battery capacity indicator (23) shows the
charge status of the battery using 3 LEDs.
All 3 LEDs lit:
The battery is fully charged.
2 or 1 LED(s) lit:
The battery has an adequate remaining charge.
1 LED flashing:
The battery is empty, recharge the battery.
All LEDs flashing:
The battery pack has been deep-discharged and
is defective. Do not re-use or charge a defective
battery pack.
7. Cleaning, maintenance and
ordering spare parts
HAZARD!
Always take the battery out of the equipment
before starting any cleaning work.
7.1 Cleaning
• Keep all safety devices, air vents and the
motor housing free of dirt and dust as far as
possible.Wipe the equipment with a clean
cloth or blow it down with compressed air at
low pressure.
• We recommend cleaning the equipment
immediately each time after use.
• Clean the equipment regularly with a damp
cloth and some soft soap. Do not use
cleaning agents or solvents; these may
be aggressive to the plastic parts in the
equipment. Ensure that no water can get into
the interior of the equipment.The ingress of
water into an electric power tool increases the
risk of an electric shock.
7.2 Maintenance
There are no other parts inside the equipment
which require maintenance.
7.3 Ordering replacement parts:
Service
1. If your power tool requires service,
contact an authorized Einhell USA dealer
or call the Einhell USA customer service
center at 1-866-EINHELL
(1-866-346-4355). Only identical
replacement parts should be utilized for
repairs.This will ensure that the safety of the
power tool is maintained.
2. If the battery charger cable is damaged, it
must be immediately replaced to avoid a
hazard. Contact the Einhell USA®customer
service center at 1-866-EINHELL
(1-866-346-4355) for assistance.
MEDIUM replacement brush (nylon, black)
Art. No. 3424123
SOFT replacement brush (nylon, yellow/green)
Art. No. 3424124
ULTRA replacement brush (metal)
Art. No. 3424125
Anl_Picobella_SPK7_USA.indb 15Anl_Picobella_SPK7_USA.indb 15 01.07.2020 11:37:5501.07.2020 11:37:55

EN
- 16 -
8. Disposal and recycling
The equipment is supplied in packaging to
prevent it from being damaged in transit.The
raw materials in this packaging can be reused or
recycled.The equipment and its accessories are
made of various types of material, such as metal
and plastic. Never place defective equipment in
your household refuse.The equipment should
be taken to a suitable collection center for proper
disposal. If you do not know the whereabouts of
such a collection point, you should ask in your
local council offices.
9. Storage
Store the equipment and its accessories out
of children‘s reach in a dark and dry place at
above freezing temperature.The ideal storage
temperature is between 41°F and 86°F
(5°C and 30°C). Keep the electric tool in its
original packaging.
Do not bend the rubber lips of the splash guard
(Fig. 21 / Item 14) outwards. Store the equipment
in such a way that the rubber lips are not in
contact with the floor/ground as far as possible.
The reprinting or reproduction by any other
means, in whole or in part, of documentation
and papers accompanying the products is
strictly subject to the express consent of Einhell
Germany AG.
Subject to technical changes
Anl_Picobella_SPK7_USA.indb 16Anl_Picobella_SPK7_USA.indb 16 01.07.2020 11:37:5501.07.2020 11:37:55

EN
- 17 -
EINHELL CUSTOMER PROMISE
PRODUCT REGISTRATION:
Einhell strongly encourages you to register
your purchase. You can register online at
EinhellUSA.com Failure to register your product
purchase will not diminish your warranty rights.
However, registering your purchase will allow Einhell
to better serve you with any of your customer service
needs.
WHAT IS COVERED?
Einhell warrants to the owner that if this Machine
fails within 2 years from the date of purchase due to
a defect in material or workmanship or as a result of
normal wear and tear from ordinary household use,
Einhell will send a replacement part or product, as
needed, free of charge and with free shipping to the
original purchaser. If, in Einhell’s sole discretion, the
failed Machine cannot be repaired with a part, Einhell
will elect to either (A) send a new Machine at no charge
and with free shipping or (B) refund the full purchase
price to the owner.
WHO CAN SEEK WARRANTY COVERAGE?
This Warranty is extended by Einhell to the owner
of this Machine (a “Machine” consists of a product
powered by a motor) for residential and personal
household use only. This warranty is limited to thirty
(30) days from the start of original purchase of any
EINHELL brand product that is used for commercial
purposes, or any other income-producing purpose.
Should ownership of this machine change during the
coverage period, please update the Machine’s owner
information at EinhellUSA.com
WHAT IS NOT COVERED?
This warranty does not cover any product that
has been subject to misuse, neglect, negligence,
or accident, or that has been operated in any way
contrary to the operating instructions as specified in
the operator’s manual. This Warranty does not cover
cosmetic changes that do not affect performance.
This Warranty is only valid if the Machine is used
and maintained in accordance with the instructions,
warnings and safeguards contained in the owner’s
manual. Einhell will not be responsible for the cost
of any unauthorized warranty repairs. This warranty
does not cover any cost or expense incurred by the
purchaser in providing substitute equipment or service
during reasonable periods of malfunction or non-use
of this product while waiting for a replacement part or
unit under this warranty.
Wearing parts like belts, augers, chains and tines
are not covered under this warranty, and can
be purchased at EinhellUSA.com or by calling
1-866-EINHELL (1-866-346-4355). Batteries are
covered in full for 90-days from the date of purchase.
Repair, replacement or refund of the purchase price
are the exclusive remedies of purchaser and the sole
liability of Einhell under this warranty. No employee or
representative of Einhell is authorized to make any
additional warranty or any modification to this warranty
which may be binding upon Einhell. Accordingly,
purchaser should not rely upon any additional
statements made by any employee or representative
of Einhell. In no event, whether based on contract,
indemnity, warranty, tort (including negligence),
strict liability or otherwise, shall Einhell be liable for
any special, indirect, incidental, or consequential
damages, including, without limitation, loss of profit or
revenue.
Some states do not allow limits on warranties. In such
states, the above limitations may not apply to you.
Outside the USA and Canada, other warranties may
apply.
QUALITY COMES FIRST. The Einhell name is synonymous with high-performance tools and high-quality
European craftsmanship. From cordless screwdrivers to electric lawn mowers, Einhell USA designs and develops
state-of-the-art handheld power and garden tools for DIY enthusiasts, hobby gardeners, and handymen.
Einhell USA’s quality assurance and engineering teams ensure products are subjected to stringent quality and
performance tests. We know that sometimes tough tools go through tough times. In the event that you should
experience any issue with your product, you have our commitment that we’ll do everything we can to get you
back a tool that’s ready to work as hard as you do.
Anl_Picobella_SPK7_USA.indb 17Anl_Picobella_SPK7_USA.indb 17 01.07.2020 11:37:5501.07.2020 11:37:55
