Ekofires eko 2050 Guide

installation and user instructions
All instructions must be handed to user for safekeeping
Revision A - 06/09
Country(s) of destination - GB/IE
eko 2050
fuel effect gas fire

INSTALLATION INSTRUCTIONS
Preliminary Notes Before Installation
This appliance is an Inset Decorative Fuel Effect appliance that provides radiant warmth utilising
the latest type burner technology.
The fire is designed to fit various types of fireplaces and natural draught flues as listed in the
Installation Requirements.The appliance must be installed by a competent[1] person in accor-
dance with Gas Safety (Installation and Use) Regulations 1998.Read all these instructions before
commencing installation.
This appliance must be installed in accordance with the rules in force and only used in a suffi-
ciently ventilated space.The appliance is designed for installation on to a non-combustible
hearth of at least 300mm depth.
This appliance is factory set for operation on the gas type, and at the pressure stated on the
appliance data plate.
This appliance is a manual control version, with a number of fuel effect options. These instruc-
tions cover the controls, and all fuel effect options. See the relevant sections of these instruc-
tions for further details.
Eko 2050
©2009 Focal Point Fires plc.
[1] GB - Gas SafeTM registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use)
Regulations 1998.
Please note : Except where otherwise stated, all rights, including copyright in the text, images and
layout of this booklet is owned by Focal Point Fires plc. You are not permitted to copy or adapt
any of the content without the prior written permission of Focal Point Fires plc.

Section
1.0
2.0
3.0
4.0
5.0
6.0
6.1
7.0
8.0
9.0
10.0
Contents
Important Notes
Appliance Data
Installation Requirements
Site Requirements
Ventilation
Unpacking the Appliance
Component Checklist
Installation into a chairbrick
Gas Supply Routing
Fuel bed layout
Fitting the Fire Front
Page No.
1
2
2
3
4
4
4
5
5
5
5
Section
11.0
12.0
12.1
13.0
14.0
15.0
16.0
17.0
18.0
19.0
Contents
Testing & Commissioning
Operating the fire (manual control)
Operating the fire (remote control)
Spark Failure
Setting Pressure
Flue Spillage monitoring system
Testing for Spillage
Briefing the customer
Servicing
Troubleshooting Guide
User Instructions
Page No.
5
5
6
6
7
7
7
8
8
9
1.0
©2009 Focal Point Fires plc.
IMPORTANT NOTES
This fire is an Inset Live Fuel Effect Gas Fire providing radiant warmth. It is designed to operate
on Natural Gas only. See Data Plate on appliance.
It is the LAW that all gas appliances and fittings are installed by a competent[1] person and in accor-
dance with the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards
for Installation, Codes of Practice and in accordance with the Manufacturers’ Instructions. The
installation shall also be carried out in accordance with the following regulations:
The Building Regulations issued by the Department of the Environment, the Building Standards
(Scotland) (Consolidation) Regulations issued by the Scottish Development Department.
BS 5871 part 2
BS 5440 part 1
BS 8303
BS 1251
BS 6891
BS 6461 part 1
Failure to comply with these regulations could lead to prosecution and deem the warranty
invalid.
This appliance must be installed in accordance with the rules in force and used only in a suf-
ficiently ventilated space. Consult all instructions before installation and use of this appli-
ance. This appliance is intended for decorative purposes.
This appliance is free from any asbestos material. Refractories and fuel bed are construct-
ed from ceramic fibre.
[1] GB - Gas SafeTM registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the Gas Safety (Installation and Use)
Regulations 1998.
1

INSTALLATION REQUIREMENTS
This appliance MUST NOT be installed into a room containing a bath or shower, or where steam
may be present. The fire has been designed to fit into a builders’ opening or fireplace conform-
ing to BS 1251 (and meeting certain dimensional requirements), or a suitable flue box complying
with the constructional requirements of BS 715. Either a ‘Replacement Chairbrick’ or a BS 1251
chairbrick should also be fitted into the builders’ opening. The flue box must be installed onto a
suitable non-combustible insulating surface at least 12mm thick, covering the entire base are of
the box.
The flue must have an effective height of at least three meters, as measured from the hearth to
the top of the flue. Any flue damper plates or restrictors should be removed and no other restric-
tion fitted to the flue. Where removal is not practical, the restriction must be fixed in the fully
open position.
A natural draught flue system is required, and if previously used for solid fuel or oil burning, the
flue and chimney must be swept prior to appliance installation. The flue must be checked before
installation by using a smoke pellet or similar to ensure proper draw and that leakage is not evi-
dent at any joints. Repair and re-test as necessary before the appliance is installed.
The flue must be connected to only one fireplace, and the flue must not vent more than one appli-
ance (i.e. not shared with a gas back boiler). There must be no opening in the flue apart from the
one that the appliance is installed into, and the one venting the gases into the air. A suitable ter-
minal may be fitted, such as class GC1, as regulations allow.
This appliance has been tested for use with circular flues of a minimum internal diameter of
175mm.
The flue termination (cowl) must be of a type suitable for use with an inset Decorative Fuel Effect
Fire BS5871 part 3 contains further details.
2
2.0
3.0
APPLIANCE DATA
Manual control models Remote control models
Gas Group G20 Natural Gas CAT I2H G20 Natural Gas CAT I2H
Inlet Pressure 20 mbar (+/- 2.0mbar) 20 mbar (+/- 2.0mbar)
Max Energy Input (gross) 6.8 kW 6.8 kW
Min Energy Input (gross) 3.5 kW 3.5 kW
Pilot Energy Input (gross) 166 W 166 W
Setting Pressure (cold)15.8 mbar (+/- 1.5mbar)15.8 mbar (+/- 1.5mbar)
Main Injector Burner Stereo size 81/Bray cat. 82/420 Stereo size 81/Bray cat. 82/420
Gas Inlet Connection 8mm Inlet Restrictor Elbow 8mm Inlet Restrictor Elbow
Gas Control Valve Dungs BM 733/NGC 6801 Mertik Maxitrol GV30 series
Ignition Integral Piezo spark Integral Piezo spark
Spark Gap 3.5 to 4.5mm 3.5 to 4.5mm
Weight 20 Kg 20 Kg
Please see Data Badge affixed to appliance for current data.
This appliance is for use only with the gas type, and at the pressure stated on the appli-
ance Data Badge, and is for decorative purposes.
©2009 Focal Point Fires plc.

SITE REQUIREMENTS
The fireplace opening should be inspected and repairs made where necessary. Any chair brick
may be left in place.
The opening WIDTH and HEIGHT dimensions should be between 405mm and 440mm wide, and
565mm to 575mm high.
Opening DEPTH should be 220mm or greater. Opening DEPTHS include any plaster or infill pan-
els which form part of the installation.
This appliance requires a natural draught flue system which may be one of the following;
225mm x 225mm (9in x 9in) brick or stone.
175mm (7in) minimum diameter lined brick or stone.
175mm (7in) minimum diameter twin wall flue conforming to BS 715.
Any existing under grate draught device must be sealed off.
The opening wall must be non-combustible.
The appliance requires a hearth with non-combustible surface of at least 12mm thick. The top sur-
face must be at least 50mm above the surrounding floor level, or be surrounded by a raised edge
or fender 50mm high.
3
4.0
A
C
D
B
E
F
A. Opening height: 565mm min/575 mm max.
B. Opening width: 405mm min/440mm max.
C. Mounting depth: 220mm
D. Hearth must extend minimum of 150mm either side of the opening.
E. Hearth must extend minimum of 300mm in front of the opening.
F. Non-combustible hearth must be a minimum of 50mm in height, or
be surrounded by 50mm high fender.
©2009 Focal Point Fires plc.

SITE REQUIREMENTS (continued)
Any type of fire surround used with this appliance must be adequately sealed to the wall and floor.
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the
dimensions given below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireplace opening.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the
fireplace opening , providing the forward projection does not exceed 100mm (4in).
Any combustible side walls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock,
blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.
VENTILATION
No purpose provided ventilation is normally required for this appliance. The requirements of
other appliances operating in the same room or space must be taken into consideration when
assessing ventilation.
If spillage is detected when commissioning the appliance then amongst other problems there may
be insufficient natural ventilation for the correct operation of the flue. This is potentially a greater
problem should the property be of modern nature. If the appliance does not spill with windows
open but does with windows closed, this proves that lack of ventilation is the problem, if not, it
will be the flue at fault. Installation of an airbrick in these circumstances may be the best solu-
tion. Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2. Ventilation locat-
ed underneath or within the immediate vicinity of the fire MUST NOT be used as it may adverse-
ly affect the performance of the O.D.S. system.
Spillage detected during commissioning is almost always a result of poor flue performance, which
cannot be corrected by any amount of ventilation.
For Republic of Ireland ventilation may be required, see IS 813, ICP3, IS 327, and any other rules
in force.
UNPACKING THE APPLIANCE
Read all the instructions before continuing to unpack or install this appliance.
Remove the box containing the firefront, and the bag containing the coals or pebbles. Remove
the cardboard packing pieces, and any bags containing other fittings or parts. Remove the burn-
er unit from the remaining packaging. Check that the components supplied correlate with the
checklist given in section 6.1. Please dispose of the packaging materials at your local recycling
centre.
COMPONENT CHECKLIST
QUANTITY DESCRIPTION
1 Burner tray assembly
1 Cast or fabricated firefront with separate ashpan cover, one of several designs and finishes
1 Moulded ceramic fibre combustion matrix
16 Individual ceramic coals (coal models only)
16 Individual ceramic pebbles (pebble models only)
9 Individual ceramic logs (Log models only)
1 Moulded ceramic front strip
1 Set of manufacturers instructions
1 Screw pack
4
4.0
5.0
6.0
Maximum depth of shelf Minimum distance from finished hearth
surface to underside of shelf
100mm (4in) 745mm (29 1/4 in)
150mm (6in) 845mm (33 1/4 in)
203mm (8in) 895mm (35 1/4 in)
6.1
©2009 Focal Point Fires plc.

INSTALLATION INTO A CHAIRBRICK
Note: Ensure that the gas supply is isolated before commencing installation of the appliance.
Smoke test the flue to ensure proper draw and that there are no leaks present.
Locate the gas supply point. This appliance is suitable for all gas connections, including those
concealed behind the opening. Important Note: Check that the thermocouple connection nut
into the rear of the valve is secure.
Place the appliance into the shaped firebrick, ensuring it does not protrude forward of the fire-
place opening. Mark the location of the front support of the tray. Remove the tray and drill the
two marked holes with an appropriate masonry bit. Place fibre rawl plugs into the holes. Remove
the front support from the appliance by unscrewing from the two front legs.
Position the front foot in the over the holes and secure the front support using suitable screws
into the prepared holes. Re-fit the tray into the shaped firebrick, and secure the front legs of the
tray to the support
GAS SUPPLY ROUTING
When the opening is ready for installation of the fire, the gas supply can be routed to the appli-
ance. Either an ‘over the hearth’ routing, or a concealed routing may be selected, dependant on
the layout of the fireplace, and the location of the incoming supply pipwork.
The gas pipe must be suitably protected where it passes through fireplace openings. Any sleev-
ing should be sealed to the pipe at its ends. This appliance is fitted with an inlet restrictor elbow.
The open end of the supply pipe should be sealed temporarily during the installation of the fire-
box to prevent the ingress of dirt and dust. Using 8mm diameter pipe, connect the appliance to
the gas supply point.
The appliance must be fitted with rigid or semi-rigid pipe of 8mm external diameter. The appli-
ance is factory fitted with an inlet restrictor elbow.
Use a minimum length of 8mm pipe, less than 1.5m where possible, as a long run of pipe may
cause an unacceptable drop in the supply pressure.
The Elegance, Blenheim and Elysee firefronts are specially notched to allow the gas pipe to pass
through when an over hearth supply is necessary.

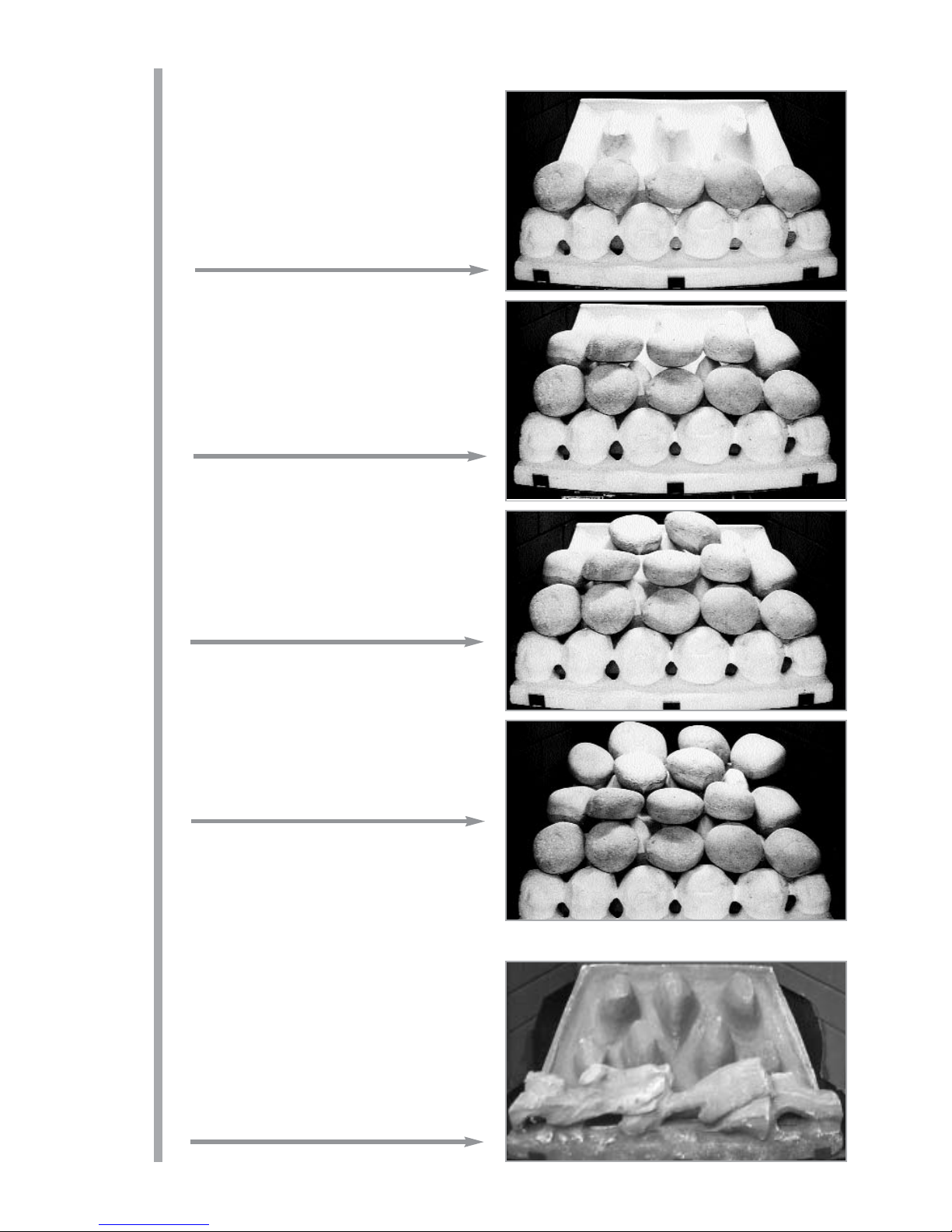

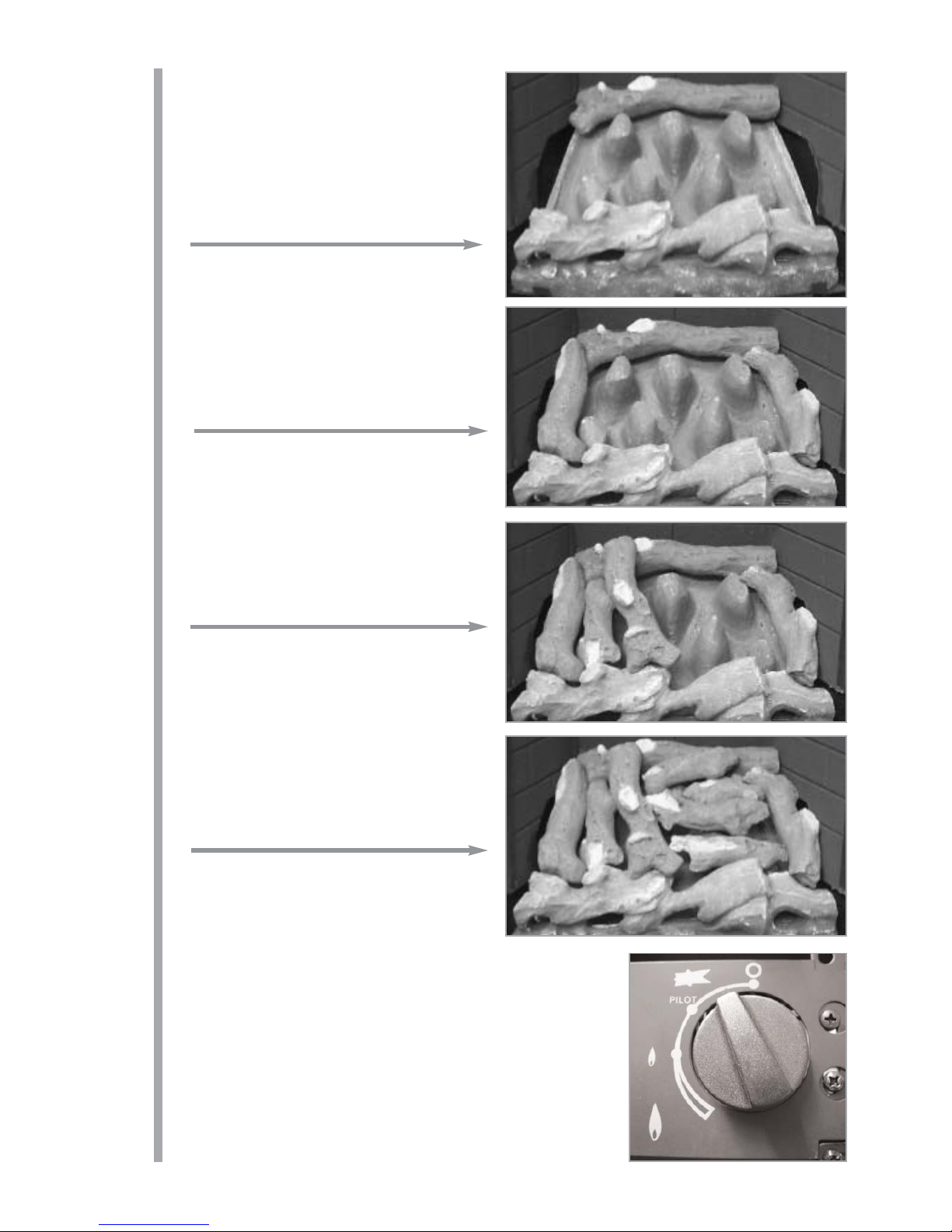

FUEL BED LAYOUT
Please see the relevant section of the user instructions.

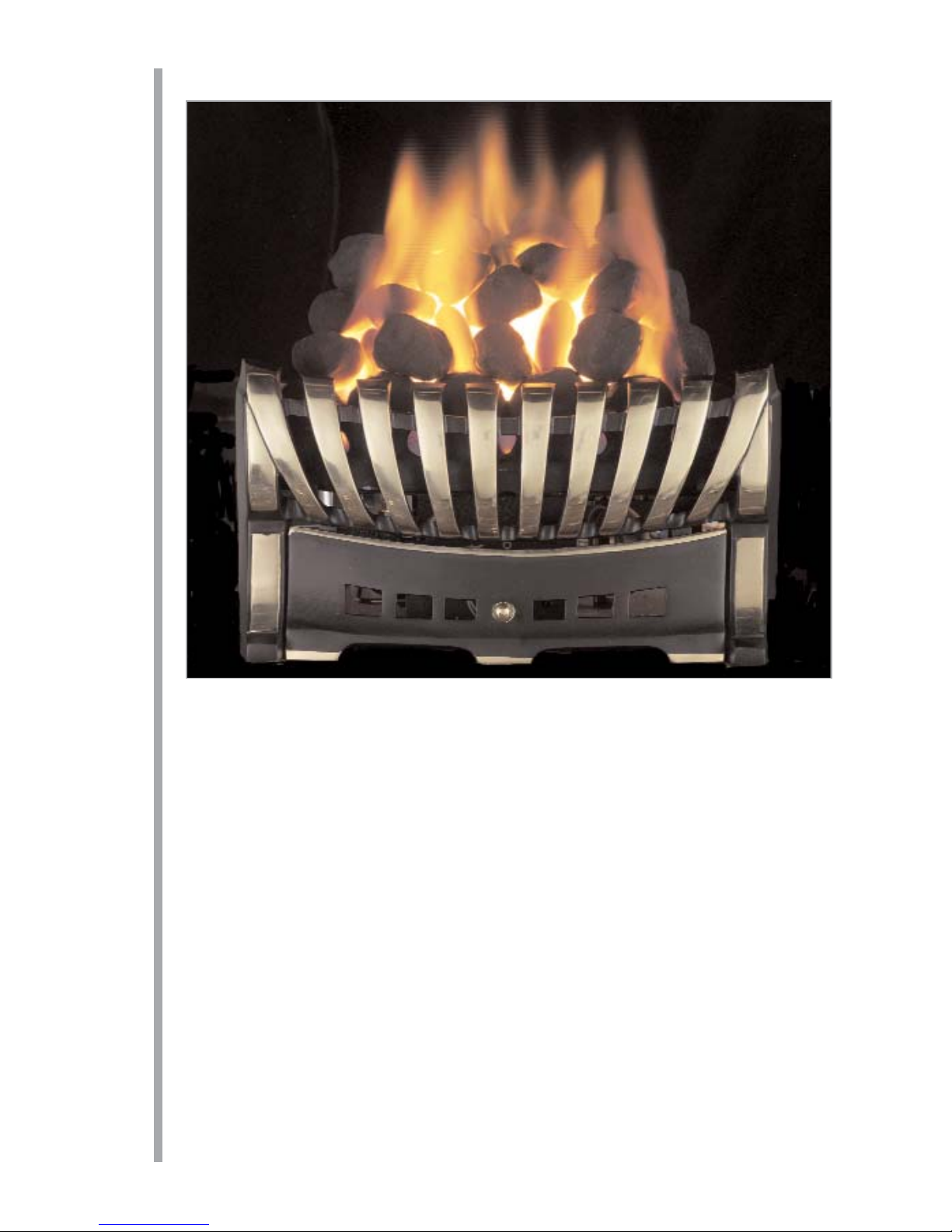

FITTING THE FIREFRONT
The appliance may be supplied with one of a number of diffrent firefronts available.
Place the firefront directly in front of the fire and slide the ashpan door into place. The Lulworth
front may be screwed to the hearth if required.
Do not use any firefront other than the one supplied with the appliance.
TESTING AND COMMISSIONING
Turn on and test the gas supply up to the fire for any leaks, in accordance with current edition of
BS5891.

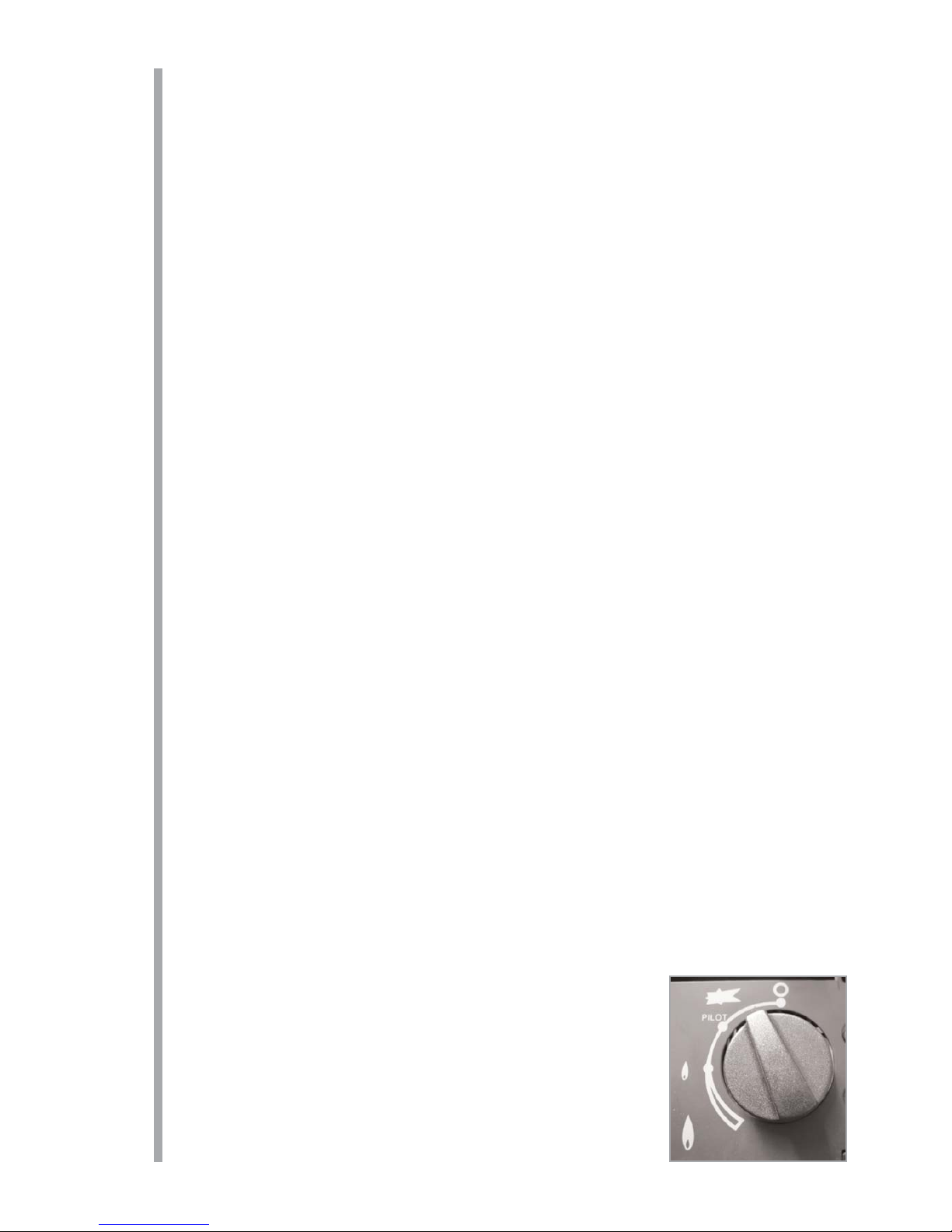

OPERATING THE FIRE
(manual control models)
The pilot is visible through the left hand side of the front ceramic.
strip. Push in and turn the control knob to the SPARK position, and
hold there for a few seconds. Continue turning anti-clockwise through
the spark click to the PILOT light position, ensuring the pilot has lit.
If not, return the knob clockwise, and repeat. When the pilot lights
after the spark, keep the knob depressed for approximately ten sec-
onds. Now release the knob and the pilot should stay alight. If not,
retry ignition. If the pilot is extinguished during use, wait three min-
utes before repeating the ignition procedure.
5
7.0
8.0
9.0
10.0
11.0
12.0
©2009 Focal Point Fires plc.

OPERATING THE FIRE (manual control models) - continued
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise
to the high (large flame) position. The main burner should light after a few seconds.
To decrease the setting to LOW, turn the control knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and
return to the pilot position and release.
To turn the fire OFF, keep the knob pressed in, return to the off position and release.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled suffi-
ciently to allow the magnetic valve unit to reset itself.
OPERATING THE FIRE
(remote control models)
The pilot is visible through the left hand side of the
front ceramic strip. Turn the main burner control
(shown on left hand side of control valve) knob fully
anti-clockwise.
Turn ignition knob (shown on right hand side of control
valve) slightly left towards the ignition position until
reaching the stop, press down and hold for 5 seconds
(only pilot gas is flowing).
Continue pressing down the knob while turning further to the left to
activate the piezo spark, continue to hold the knob down for a further
10 seconds after the pilot has been lit. If the pilot does not light repeat
the previous steps.
Upon lighting and after the further 10 seconds, release the knob and
turn further to the left to the ON position. The main burner will light
and be controlled in accordance with the main burner control knob set-
ting. Adjust the main burner control knob to the desired setting.
If the pilot is extinguished during use of the fire, you MUST wait ten
minutes before repeating the ignition procedure.
To turn the main burner OFF whilst keeping the pilot flame lit, turn the
ignition control knob to the pilot position then only the pilot will
remain lit.
To shut the fire off completely, press the ignition control knob down
and continue turning to the right from the pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled suffi-
ciently to allow the magnetic valve unit to reset itself.
The remote control unit allows operation of the main burner setting between maximum and pilot
only setting. It does not permanently turn the pilot on or off.
The remote control handset incorporates an inbuilt safety feature to prevent the main burner
being activated or turned up accidentally. It is necessary to press button 1 and 2 (see illustration)
simultaneously to turn the fire up.
To turn the fire down press button 3 only.
SPARK FAILURE
The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to produce a good
spark.
There should be no need to adjust this. If under any circumstances the electric spark fails, the
pilot may be lit manually by proceeding with the ignition sequence as previously described, and
after turning the control knob through the spark position, the knob should be held in and the
pilot lit with a taper.
6
12.0
1
2
3
12.1
13.0
©2009 Focal Point Fires plc.

SETTING PRESSURE
Remove the screw from the pressure test point.
The pressure test point is situated on the main injector
pipe next to the pilot.
The setting pressure should be in accordance with the
figures stated on page 2 of these instructions. The fire
is factory set to achieve these pressures, and any signif-
icant variation could indicate a supply problem.
If the pressure is too high, the gas supply meter may be
set incorrectly. This should be checked with the fire running and if necessary reset by the gas sup-
plier.
If the pressure is too low, then check the meter governor pressure with the appliance running. If
this is incorrect it will need to be reset by the gas supplier. If the setting pressure is too low, but
the meter pressure is acceptable, then a problem in the supply pipework is to be suspected. This
will be dirt and debris, kinked or inadequate size pipes, restriction in a fitting or solder flashing
across a joint. (NOTE: you will not get an accurate reading of the inlet pressure with a pressure
gauge on the end of the supply pipe - this is the static pressure in the system. You must use a T
piece and measure the supply pressure with the fire on High - the dynamic pressure). Refit and
tighten the screw into the pressure test point when the test is complete.
FLUE SPILLAGE MONITORING SYSTEM
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no
apparent reason then several things may be suspected. If a door or window has been opened cre-
ating a draught, then pilot disturbance is the problem, and removal of the draught should resolve
this. If a grommet seal has been left out of the firebox (if fitted) then this also will also cause inter-
mittent shutdown. The gas pressure reaching the fire must also be checked. The thermocouple
connection into the back of the gas control valve may also have worked loose during installation,
simply tighten to remedy if this is the case.
If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the
appliance OFF, check the flue and carry out any remedial work required. Re-light the fire and carry
out a spillage test. DO NOT allow the appliance to be used if it continues to fail a spillage test.
The aeration hole of the pilot must be carefully cleaned out on each annual service to ensure con-
tinued function of the ODS.
The spillage monitoring system shall not be adjusted, modified, or put out of operation by the
installer. Any spare parts fitted MUST be of a type supplied for the purpose by the appliance man-
ufacturer.
If the fire is not spilling, then further guidance should be sought, using the Troubleshooting sec-
tion as a guide.
TESTING FOR SPILLAGE
Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for
five minutes. Take a smoke match, light it, and using a smoke match tube, hold it at the top edge
of the fire opening, 25mm down and 25mm in. Starting 50mm in from either side, run the smoke
match across the opening.
7
14.0
15.0
16.0
A.25mm down from
top of opening
B. 25mm in from
front of opening.
C. Disregard outer
50mm either side of
fireplace opening
Match
Crimp
Tube
Cross section of smoke match tube
Make a smoke match tube from 10mm diameter
tube. Seal off one end and crimp the tube to prevent
the smoke match from sliding down inside.
C
CB
A
Fireplace Opening
Smoke Match In
Tube
©2009 Focal Point Fires plc.

TESTING FOR SPILLAGE - continued
All the smoke should be drawn away up the flue. Any smoke returning into the room indicates
that spillage is occurring. If the initial spillage test fails, run the fire for a further 10 minutes and
repeat the test. When the test has been completed satisfactorily, repeat with any extractor fans in
the premises running on the highest setting, and any communicating doors open. Finally, repeat
with all doors open.
NOTE: If spillage is still indicated after undertaking all of the above, there may be a fault in
the flue, or insufficient ventilation is present.
If the problem cannot be rectified immediately, then expert advice should be sought. Inform the
user, disconnect the fire, and attach an explanatory label.
BRIEFING THE CUSTOMER
All instructions must be handed to the user for safekeeping. Show the customer how to light
and control the fire.
After commissioning the appliance, the customer should be instructed on the safe use of the
appliance and the need for regular servicing. Frequency of service depends on usage, but MUST
be carried out at least one annually.
Scratched and other superficial damage to the matt black paintwork of the appliance can be cov-
ered with matching heatproof spray. Use only the manufacturers’ recommended spray paint. Paint
only when the fire is OFF and cold. Always mask off the surrounding area to prevent contamina-
tion with overspray. Ventilate the room during the use of the spray.
DO NOT attempt to spray paint the coals or ceramics, or wash them in water.
SERVICING
Ensure that the fire is fully cold before attempting service. A suggested procedure for servicing is
detailed below.
1. Lay out the dust sheet and tools.
2. Carefully remove the firefront casting, and ceramic components.
3. Check around the top of the fireplace opening for signs signs of spillage.
4. Isolate the gas supply at the appliance inlet elbow, and disconnect the gas supply
pipe. Remove the two screws securing the tray to the front support.
5. Lift the burner tray from the chair brick.
6. Check the flue with smoke pellet for correct operation.
7. Strip off the burner pipes and clean thoroughly.
8. Clean out the injector and pilot assembly. DO NOT attempt to dismantle the pilot unit.
9. Ensure the injector is aligned squarely with the venturi tube. Re-assemble and re-fit the burner tray.
10. Re fit and replace the ceramics, using genuine spares where necessary.
11. Re-fit the decorative front.
12. Turn on the gas supply, and leak test.
13. Check any purpose provided ventilation is un-obstructed.
14. Light the fire and test for spillage.
15. Check setting pressure and safe operation of the appliance.
For specific servicing instructions, see the relevant sections.
CLEANING THE CERAMICS
Remove the firefront and place to one side. Remove the ceramic components. Gently clean in
the open air. Be careful not to create dust from the coals. Where necessary replace damaged
components with genuine spares. Seal scrap components in plastic bags and dispose of at
proper refuse sites as directed.
Re-fit the ceramics carefully by referring to the relevant section of these instructions.
8
16.0
18.0
17.0
18.1
©2009 Focal Point Fires plc.

DISMANTLING THE BURNER TRAY
Remove the tray as previously described. The pilot unit can be removed by undoing the tubing
nut, the thermocouple nut on the rear of the valve, lint arrestor, two securing screws, and lifting
away. Remove the tubing nut from the valve end of the pilot pipe, and blow through to dislodge
any debris that may be present. Clean the exterior of the pilot assembly with a soft brush and
blow through the flame ports on the pilot head. Check the aeration holes are free from lint or dirt.
The pilot assembly is a non-serviceable item, and should not be taken apart. The aeration hole
must be absolutely clear internally for proper operation. A thoroughly cleaned (inside and out)
oxypilot will cure a wide range of ignition faults.
Remove the two tubing nuts on the ends of the gas pipe to the injector elbow. Release the screw
through the supporting leg and lift assembly clear. The injector pipe can now be checked for
debris. Remove the nut retaining the injector elbow. Blow through the elbow to remove any
debris.
The valve is not field serviceable, apart from the pilot filter. Remove the control knob by pulling
it forwards, then remove the largest of the three screws on the face of the valve. Slide the filter
out and clean away any debris that may have accumulated. The filter element should also be
blown clean. This component should not require replacement, however if signs of deterioration
are evident then a genuine spare must be used. If a large amount of debris is present in the fil-
ter then the pipework and control should be thoroughly cleaned before re-assembly.
TROUBLESHOOTING GUIDE
Fire sparks but pilot does not light No gas to fire, check isolators are open.
Pipework blockage, clean out.
Air not fully purged, re-purge supply or wait longer.
Spark earthing to metal work, reset gap correctly.
Blocked pilot, clean out internally.
Pilot lights but then goes out Severe restriction in gas supply, clear obstruction.
Faulty thermocouple, replace pilot unit.
Hold control knob in for longer.
Fire does not spark at pilot HT lead detached, refit.
Spark gap too large or small, reset correctly.
Faulty piezo unit, replace.
Debris shorting out electrode, clean.
Fire runs for a time and then cuts off Excessive room draught or flue pull, rectify.
Loose or faulty thermocouple, rectify.
ODS system in operation.
Firebox grommet seal not fitted, rectify.
Lint in pilot aeration hole, clean thoroughly internally
Pilot flame shrinks Poor gas flow to fire, check pressure with fire on high.
when fire is on high If pressure is low, remove any restriction in pipework or valve.
Check all isolators are adequately sized and fully open.
Check meter pressure is adequate.
Air leak under base of firebox, rectify.
Lint in pilot aeration hole, clean thoroughly internally.
Fire smells when first lit or in use Newness smell from brand new appliance.
Spillage occurring. Carry out spillage test and rectify any problems.
Low temperature sealants or combustible materials used in
incorrect positions.
9
19.0
18.2
©2009 Focal Point Fires plc.

USER INSTRUCTIONS
IMPORTANT NOTES
The installation of this fire MUST only be carried out by a competent[1] person in accordance with
the Gas Safety (Installation and Use) Regulations 1998, the relevant British Standards, Codes of
Practice, the Building Regulations and the manufacturers’ instructions.
Failure to comply with the above recommendations could lead to prosecution and invalidate the
appliance warranty.
Please ensure you are handed all of the manufacturers documents on completion of the installa-
tion. This will include these instructions.
Always keep a note of the installer’s name and address, the original purchase receipt and the date
of installation for future reference.
The fire and flue should be serviced regularly to ensure continued safe operation. See the servic-
ing section for further details. Frequency of service will depend on use, but MUST be carried out
at least once annually.
Parts of this appliance become naturally hot during use. It is recommended that a suitable fire
guard conforming to BS 8423 is used, especially where young children, the elderly, or infirm are
concerned.
Combustible items, such as flooring and furniture, and soft wall coverings (such as blown vinyl
or embossed paper) may discolour if fitted too close to the fire. See relevant section for further
details on clearances to combustibles. No combustible material or flooring should protrude onto
the hearth.
DO NOT burn any foreign material on this fire, the fuel effect must be of the correct type and laid
out in accordance with the relevant section of these instructions. Failure to do so could create a
hazard or lead to sooting.
Before the appliance is installed, the chimney should be swept. All flues should be checked by the
installer to ensure there are no defects or obstructions that may prevent the flow of combustion
products.
This appliance is fitted with a flue blockage safety device which will shut down the fire if abnor-
mal flue conditions occur. It is NOT a substitute for an independently mounted Carbon Monoxide
detector.
The fire is only suitable for use with the gas type for which it is supplied.
1
Section
1.0
2.0
3.0
4.0
5.0
5.1
5.2
6.0
6.1
7.0
8.0
9.0
10.0
Contents
Important Notes
Firefront
Clearances to Combustibles
Ventilation
Fuel Bed Layout (Coal models)
Fuel Bed Layout (Pebble models)
Fuel Bed Layout (Log models)
Operating Instructions (Manual models)
Operating Instructions (Remote models)
Flue Spillage Monitoring System
Cleaning
Servicing
List of Spares
Page No.
1
2
2
2
2
3
4
5
6
6
7
7
7
1.0
©2009 Focal Point Fires plc.
[1] GB - Gas SafeTM registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the
Gas Safety (Installation and Use) Regulations 1998.

FIREFRONT
This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate
airflow under the fuelbed for the correct functioning of this appliance.
Compliance with safety standards cannot be guaranteed if another style of front is used.
CLEARANCES TO COMBUSTIBLES
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the
dimensions given below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe.
Combustible materials, such as wood, may be fitted to within 100mm (4in) of either side of the
frame of the appliance, providing the forward projection does not exceed 100mm (4in).
Any combustible side walls must be at least 500mm to the side of the radiant heat source.
As with all heating appliances, any decorations, soft furnishings, and wall coverings (i.e. flock,
blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.
VENTILATION
No purpose provided ventilation is normally required for this appliance. The requirements of
other appliances operating in the same space or room, and the results of a spillage test must be
taken into consideration when assessing ventilation requirements, this will have been carried out
by your CORGI registered installer.
For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules
in force.
FUEL BED LAYOUT
(coal effect models)
1. Remove the combustion matrix from its protec-
tive packaging, and position onto the burner tray
as shown. The front edge of the matrix should sit
snugly behind the back edge of the burner rails. Do
not fit the matrix on top of the burner rails.
2. Next, remove the front coal strip from its pro-
tective packaging and position as shown. The rear
edge of the front coal strip should fit in front of the
burner rail. Again, do not to place on top of the
burner rails. When the front coal is in position bend
up the three metal tags at the front of the tray to
retain (inset).
2
Maximum depth of shelf Minimum distance from inside edge of
fire frame to underside of shelf
100mm (4in) 203mm (8in)
150mm (6in) 305mm (12in)
203mm (8in) 356mm (14in)
2.0
3.0
4.0
5.0
Correct
Incorrect
©2009 Focal Point Fires plc.

FUEL BED LAYOUT
(coal effect models) - continued
3. Open the bag of 16 moulded coals. All of the
coals are the same. Take five coals and place them
as shown. Care should be taken to ensure that the
coals bridge the gap between the front coal and
the four coal supports at the front of the matrix.
Care should also be taken not to push the coals
right down between the coal supports, as this can
detract from the flame picture when the appliance
is running.
4. Take five more moulded coals and position as
shown to form the ‘second row’ of the fuel effect.
The coals may be rotated as desired to fit into the
gaps between the coal supports in order to create
a random, realistic effect. Again, remember not to
push the coals down too far into the valleys
between the coal supports as this can have a detri-
mental effect to the flame picture.
5. Now take another four coals and place behind
the second row of coals, in order to complete the
third row. The coals may be orientated as desired
to achieve a realistic effect. Keep the spacing
between the coals even and uniform. The two coals
at the ends of the row may be placed rearwards,
towards the back corners of the fuel matrix.
6. Finally, take the two remaining coals and place
at the back of the fuel matrix, in the centre as
shown. Adding these coals should complete the
appearance of the fuel bed giving an even distribu-
tion of equally spaced coals.
The fire is designed to operate correctly with
the coals supplied when assembled according
to the instructions. Never add to the sixteen
coals, or change them for a different type. Never
throw rubbish or other matter onto the coal bed.
FUEL BED LAYOUT
(pebble effect option)
1. Refer back to section 5.0 - Fuel bed layout (coal
effect option) and follow steps 1 and 2. The front
strip and fuel effect matrix used for pebble effect
versions are of the same design as coal effect ver-
sions, but have a different surface finish.
3
5.0
5.1
©2009 Focal Point Fires plc.

FUEL BED LAYOUT
(pebble effect option)- continued
2. Open the bag of 16 ceramic pebbles. All of these
pebbles are the same size. Take five pebbles and
place them as shown. Care should be taken to
ensure that the pebbles bridge the gap between
the front strip and the four supports at the front
of the matrix. Care should also be taken not to
push the pebbles right down between the sup-
ports, as this can affect the flame picture when the
appliance is running.
3. Take five more ceramic pebbles and position as
shown to form the ‘second row’ of the fuel effect.
The pebbles may be rotated as desired to fit into
the gaps between the supports in order to create
a random, realistic effect. Again, remember not to
push the pebbles down too far into the valleys
between the supports as this can have a detrimen-
tal effect to the flame picture.
4. Now take another two pebbles and place behind
the second row of coals, next to each other in the
centre of the fuel bed. The pebbles may be orien-
tated as desired to achieve a realistic effect. Keep
the spacing between the pebbles even and uni-
form.
5. Finally, take the four remaining pebbles and
place at the back of the fuel matrix as shown.
Once again, the pebbles may be orientated as
desired in order to give a realistic effect. Avoid
pushing the pebbles down between the supports.
The fuel bed layout is now complete.
The fire is designed to operate correctly with
the pebbles supplied when assembled accord-
ing to the instructions. Never add to the sixteen
pebbles, or change them for a different type.
Never throw rubbish or other matter onto the
fuel bed.
Due to the light colour of the pebbles, some discolouration/sooting is to be expected during normal
use.
FUEL BED LAYOUT
(Log effect option) - continued
1. Refer back to section 5.0 - Fuel bed layout (coal
effect option) and follow steps 1 and 2. The fuel
effect matrix used for log effect versions is the
same design as coal effect versions, but has a dif-
ferent surface finish. The front log strip is of a dif-
ferent design and must be handled with care.
5.1
5.2
4©2009 Focal Point Fires plc.

FUEL BED LAYOUT
(Log effect option) continued
2. Open the bag of 9 moulded ceramic logs. All of
the logs except two are the same. Take the largest
log (numbered 16) and place it as shown. Care
should be taken to ensure that the orientation is
correct and the log fits snugly into its position.
3. Take the two medium sized logs (numbered 15
and 8) position the log numbered 8 on the left
hand side ensuring correct orientation. Place the
log numbered 15 on the right hand side again
ensuring correct orientation. Both these logs will fit
securely into their allocated poisition, they may
require rotating slightly to ensure this.
4. Now take the remaining large log (numbered 4)
and position vertically as shown, ensuring correct
orientation. The base of this log must rest secure-
ly on the front log strip. Take one of the smaller
logs (numbered 14) and position in between the
two vertically positioned logs ennsuring the orien-
tation is correct. Keep the spacing between these
logs uniform.
5. Finally, take the remaining two medium sized
logs (numbered 5 and 7) and place in a horizontal
position shown, 5 first, resting on the front log
strip. 7 next resting on 5. Now take the smallest
log (numbered 12) and position in the orientation
shown ensuring the log does not fall into the
matrix but rests securely on the allocated sup-
ports. Now take the final log (numbered 14) and
place in a horizontal position as shown. Ensure
there is even spacing between the logs and rotate
if necessary to provide a stable fit onto the matrix.
The fuel bed layout is now complete.
The fire is designed to operate correctly with
the logs supplied when assembled according to
the instructions. Never add to the nine logs, or
change them for a different type. Never throw
rubbish or other matter onto the fuel bed.
OPERATING INSTRUCTIONS
(manual control models)
The pilot is visible through the left hand side of the front ceram-
ic strip. Push in and turn the control knob to the SPARK position,
and hold there for a few seconds.
Continue turning anti-clockwise through the spark click to the
PILOT light position, ensuring the pilot has lit. If not, return the
knob clockwise, and repeat.
5.2
6.0
5
16
15 8
4
14
5
14
12
©2009 Focal Point Fires plc.

OPERATING INSTRUCTIONS (manual control models) - continued
When the pilot lights after the spark, keep the knob depressed for approximately ten seconds.
Now release the knob and the pilot should stay alight. If not, repeat ignition. If the pilot is extin-
guished during use, wait three minutes before repeating the ignition procedure.
To achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise
to the high position. The main burner should light after a few seconds.
To decrease the setting to LOW, turn the control knob clockwise to the low setting.
To turn to the PILOT position from the HIGH or LOW positions, press the control knob in, and
return to the pilot position and release.
To turn the fire OFF, keep the knob pressed in, return to the off position and release.
OPERATING THE FIRE
(remote control models)
The pilot is visible through the left hand side of the
front ceramic strip. Turn the main burner control
(shown on left hand side of control valve) knob fully
anti-clockwise.
Turn ignition knob (shown on right hand side of control
valve) slightly left towards the ignition position until
reaching the stop, press down and hold for 5 seconds
(only pilot gas is flowing).
Continue pressing down the knob while turning further to the left to
activate the piezo spark, continue to hold the knob down for a further
10 seconds after the pilot has been lit. If the pilot does not light repeat
the previous steps.
Upon lighting and after the further 10 seconds, release the knob and
turn further to the left to the ON position. The main burner will light
and be controlled in accordance with the main burner control knob set-
ting. Adjust the main burner control knob to the desired setting.
If the pilot is extinguished during use of the fire, you MUST wait ten
minutes before repeating the ignition procedure.
To turn the main burner OFF whilst keeping the pilot flame lit, turn the
ignition control knob to the pilot position then only the pilot will
remain lit.
To shut the fire off completely, press the ignition control knob down and continue turning to the
right from the pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled suffi-
ciently to allow the magnetic valve unit to reset itself.
The remote control unit allows operation of the main burner setting between maximum and pilot
only setting. It does not permanently turn the pilot on or off.
The remote control handset incorporates an inbuilt safety feature to prevent the main burner
being activated or turned up accidentally. It is necessary to press button 1 and 2 (see illustration)
simultaneously to turn the fire up.
To turn the fire down press button 3 only
FLUE SPILLAGE MONITORING SYSTEM
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no
apparent reason then several reasons may be suspected. If a door or window has been opened
creating a draught, then pilot disturbance could be the problem, and removal of the draught
should resolve this. The fire can then be re-lit in accordance with the previous section. A sealing
grommet may have been ommited when the fire was installed, and the original installer should
be called to check this, the gas pressure and pipework.
6.0
1
2
3
6
6.1
7.0
©2009 Focal Point Fires plc.

FLUE SPILLAGE MONITORING SYSTEM - continued
If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the
appliance OFF, call in your installer to check the flue and ventilation and carry out any remedial
work required. DO NOT allow the appliance to be used until the flue system is passed as safe.
CLEANING
Before carrying out any of the following operations, ensure that the fire is OFF and completely
cold. Debris that may form on the firebed should be periodically removed by a competent person.
Large deposits could indicate deterioration of the flue. This should be repaired by a competent
person, and the fire serviced before further use.
FIREFRAME - This is retained by one of two methods, either by magnetic backing pieces, or a three
piece clip-on assembly. The magnetic frame may be removed for cleaning if required, however the
clip-on style must not be removed. A wipe with a dry cloth is normally sufficient, but on stains it
is permissible to use a damp cloth with a mild household cleaner, followed by a wipe with a dry
cloth. DO NOT use abrasive cleaners as these may damage the finish. To re-assemble ensure the
magnets are place on the steel backing pieces, and re-fit to the firebox.
FIREFRONT - Any dust accumulating in the firefront may be removed using a vacuum cleaner or
dry cloth. Heavy stains may be removed by using a damp cloth and mild household detergent.
Brass parts of the firefront may be cleaned using a suitable brass cleaner. Replace the front cen-
trally against the fire after cleaning.
PAINTED AREAS - These can be cleaned using a dry cloth.
COALS AND CERAMICS - See the relevant section in the installation guide of these instructions. Do
not create dust from the coals. Clean gently in the open air. Replace components with original
spares only as necessary.
SERVICING
The fire and flue should be checked on an annual basis to ensure all of the product of combus-
tion are entering the flue and that there is no excessive build up of soot. The frequency of serv-
ice will depend on usage, but MUST be carried out at least once annually. Servicing must be car-
ried out by a competent[1] person.
Cleaning of the coals may be carried out by following the instructions given in the Installation sec-
tion. The Installation instructions carry full servicing details for the use of the installer.
If debris from the flue or other foreign matter is found on the fire it may indicate a need for serv-
icing. Do not use the fire until the source of the debris has been found and rectified. Air vents
(where fitted) should be checked periodically to ensure they are free from obstruction.
LIST OF SPARES
PART NO. ITEM
F550038 Pack of 16 coals
F550050 Pack of 16 pebbles
F550079 Pack of 9 ceramic logs
F780008 Front ceramic strip - coal
F780017 Front ceramic strip - pebble
F780050 Front ceramic strip - Log
F780007 Ceramic combustion matrix - coal
F780016 Ceramic combustion matrix - pebble
F780051 Ceramic combustion matrix - Log
Please Enquire Decorative Frame
Please Enquire Decorative Front
7.0
8.0
9.0
F860631
7©2009 Focal Point Fires plc.
As our policy is one of continuous improvement and development , we hope therefore you will understand we must retain the right to amend details and/or spec-
ifications without prior notice.
[1] GB - Gas SafeTM registered operatives (Northern Ireland only- CORGI registered operatives) are the only class of person considered as competent by the HSE under the
Gas Safety (Installation and Use) Regulations 1998.
10.0
