Ekofires EKO 3095 User manual

INSTALLATION & USER INSTRUCTIONS
All instructions must be handed to the user
for safekeeping.
FULL DEPTH RADIANT & CONVECTOR GAS FIRES
Revision D - 03/13
© 2013 Focal Point Fires plc
GB IE
BS7977-1 : 2009
K 579168
1
ODEL SHOWN: EKO 3030 GAS FIRE
Please note : Except where otherwise stated, all rights,
including copyright in the text, images and layout of this
booklet is owned by Focal Point Fires plc. You are not per-
mitted to copy or adapt any of the content without the
prior written permission of Focal Point Fires plc.
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
ODELS COVERED BY THESE INSTRUCTIONS
3030, 3035, 3040, 3060, 3065, 3070, 3080, 3085, 3090 & 3095 GAS FIRES
Christchurch, Dorset BH23 2BT
Tel: [phone]
Fax: [phone]
www.ekofires.co.uk
e-mail: [e-mail]
PLEASE NOTE: EKO 3030,3035 3040, 3060, 3065, 3070, 3080, 3085, 3090 & 3095 GAS FIRES GAS FIRES AY BE
SUPPLIED WITH DIFFERENT FRETS THAN SHOWN

• This appliance is an Inset Decorative Fuel Effect appliance which provides radiant warmth utilising the latest type burner technology.
• The fire is designed to suit various types of fireplaces and natural draught flues as detailed in this manual.
• The appliance must be installed by a competent person in accordance with Gas Safety (Installation and Use) Regulations 1998. It is
strongly recommended that a GAS SAFE registered engineer be used for this purpose.
• Read all these instructions before commencing installation.
• This appliance must be installed in accordance with the rules in force and used only in a sufficiently ventilated space.
• The appliance is designed for installation on to a non-combustible hearth of at least 300mm depth.
• This appliance is factory set for operation on the gas type, and at the pressure stated on the appliance data plate.
• In the event of gas leakage from the appliance, the gas supply must be turned off at the nearest isolating valve.
• The appliance must be installed in accordance with the following:
• Failure to comply with the above could lead to prosecution and deem the manufacturer’s warranty invalid.
• The appliance is designed to fit various types of situations as described in sections 3.0 and 4.0.
• It should be noted that heaters create warm air currents. These currents move heat to wall surfaces next to the heater. Installing the
heater next to vinyl or cloth wall coverings or operating the heater where impurities in the air (such as tobacco smoke, candle smoke
etc.) exist, may cause the walls to become discoloured.
• WARNING: The manufacturer of this appliance considers all surfaces as working surfaces with the exception of the control knob
and ash pan door.
• As with any gas fire, a fire guard complying with BS 8423 must be used in presence of pets, children, and the elder-
ly or infirm.
• Consult ALL instructions before installation and use of this appliance.
• This appliance is free from any asbestos material.
• Refractories and fuel bed are constructed from ceramic fibre.
• Slide control models : These appliances feature a battery-operated control system, and under normal usage will need a new battery
approximately every twelve months.
Burner/spark generator requirements - 1 x AA (1.5 volt)
Refer to the appropriate section of these instructions for details of how to change the battery.
• Remote control models : This appliance features a battery-operated remote control system, and under normal usage will need
new batteries approximately every twelve months.
Remote control Handset requirements - 1 x ‘PP3’ type (9 volt)
Receiver/motor unit requirements - 4 x ‘AA’ type (1.5 volt)
Refer to the appropriate section of these instructions for details of how to change the batteries.
I N S T A L L A T I O N I N S T R U C T I O N S
2
GB IE
•Manufacturers' Instructions.
•The Building Regulations issued by the Department for Communities and Local Government, the Building Standards (Scotland)
(Consolidation) Regulations issued by the Scottish Development Department.
•Relevant British Standards insofar as the relevant areas are not covered by these instructions.
•For Republic of Ireland, reference should be made to the current edition of IS813 (the relevant standards governing installation).
Secti n
1.0
2.0
3.0
4.0
4.1
5.0
6.0
7.0
7.1
8.0
9.0
10.0
11.0
11.1
11.2
11.3
11.4
C ntents
Important Notes
Appliance Data
Installation Requirements
Site Requirements
Debris Collection Space
Ventilation
Pre Fabricated Flue Boxes
Unpacking the Appliance
Component Checklist
Preparing the Appliance
Preparing the Opening
Gas Supply Routing
Fitting the Firebox
Installation by Cable Fixing it
Gas Connection
Fuel Bed Layout
Fitting the Firefront / Frame
Page N .
2
3
3
3
4
5
5
5
5
6
7
7
7
8
8
8
8
Secti n
12.0
12.1
12.2
12.3
12.4
12.5
12.6
12.7
12.8
13.0
13.1
13.2
13.3
13.4
13.5
13.6
13.7
14.0
C ntents
Testing and Commissioning
Operating the Fire (Manual control)
Operating the Fire (Slide control)
Operating the Fire (Remote control)
Spark Gap
Operating Pressure - manual, slide & remote controls
Flue Spillage Monitoring System
Testing for Spillage
Briefing the customer
Servicing
Cleaning the ceramics
Removing the burner
Servicing the burner
Pilot assembly
Removing the firebox
Replacing the batteries- Remote controls
Replacing the batteries- Slide controls
Troubleshooting Guide
Page N .
8
9
9
9
10
10
10
11
11
11
12
12
12
12
12
12
12
13
1.0 I PORTANT NOTES
© 2013 Focal Point Fires plc.

This appliance MUST NOT be installed into a room containing a bath or shower, or where steam may be present. The fire has been
designed to fit into a builders’ opening or fireplace conforming to BS 1251 (and meeting certain dimensional requirements), or a suit-
able flue box complying with the constructional requirements of BS 715. The flue box must be installed onto a suitable non-combustible
insulating surface at least 12mm thick, covering the entire base area of the box. The flue must have an effective height of at least three
metres, as measured from the hearth to the top of the flue. Any flue damper plates or restrictors should be removed and no other
restriction fitted to the flue. Where removal is not practical, the restriction must be fixed in the fully open position.
A natural draught flue system is required, and if previously used for solid fuel or oil burning, the flue and chimney must be swept prior
to appliance installation. The flue must be checked before installation by using a smoke pellet or similar to ensure proper draw and that
leakage is not evident at any joints. Repair and re-test as necessary before the appliance is installed. The flue must be connected to only
one fireplace, and the flue must not vent more than one appliance (i.e. not shared with a gas back boiler). There must be no opening in
the flue apart from the one that the appliance is installed into, and the one venting the gases into the air. A suitable terminal may be fit-
ted, such as class GC1, as regulations allow.
Radiant models only: This appliance has been tested for use in a pre-cast block flue complying with BS 1289. In accordance with BS
1289 part 1, pre-cast flues built with directly plastered faces (front or rear) are not correctly installed as to ensure proper operation
with any type of gas fire. In some instances of this flue construction, temperature cracking of the surface plaster may occur through no
fault of the appliance. An air gap or some form of insulation material should be installed to prevent normal flue temperatures from dam-
aging wall surfaces. Pre-cast flues must be checked for mortar fangs and correct installation of joints, flue sections in loft space and ter-
minals.
These appliances have been tested for use with circular flues of a minimum internal diameter of 125mm. This appliance is suitable for
use with a “lightweight” surround and back panel of 150OC minimum rating.
The fireplace opening should be inspected and repairs made where necessary. Any chair brick or fireback may be left in situ, providing
that the dimensional requirements for debris collection space and spigot clearances are met. See figure 1.
All models : This appliance requires a natural draught flue system which may be one of the following;
225mm x 225mm (9in x 9in) brick or stone.
125mm (5in) minimum diameter lined brick or stone.
125mm (5in) minimum diameter twin wall flue conforming to BS 715.
Pre-cast block flue complying with BS 1289 (Radiant models only).
2.0 APPLIANCE DATA
3
GB IE
4.0 SITE REQUIRE ENTS
Please see Data Badge affixed to appliance for current data. This appliance is for use only with the gas type, and at the pressure stated
on the appliance Data Badge, and is for decorative purposes.
© 2013 Focal Point Fires plc.
Specifications Manual Control Models Slide control models Remote control models
Main burner injector Stereo size 76 Stereo size 82 Stereo size 81
Oxypilot (Natural Gas Models) SIT 9081 SIT 9081 SIT 9081
Gas Control (All Models) Copreci 21400 Teddington TESA 3173/011 Mertik Maxitrol GV30 series
Gas Inlet All models - 8mm compression - Inlet restrictor elbow
Ignition Double-action piezo Spark Piezo Spark Piezo Spark
Spark Gap 3.5 - 4.5mm 3.5 - 4.5mm 3.5 - 4.5mm
Flue specification
All models - 225mm x 225mm (9in x 9in) brick or stone.
125mm (5in) minimum diameter lined brick or stone.
125mm (5in) minimum diameter twin wall flue conforming to BS 715.
Radiant models only : Pre-cast block flue complying with BS 1289 or BS EN 1858.
3.0 INSTALLATION REQUIRE ENTS
Model Destination
Country Cat
Operating Pressure
(±2.0 mbar) Max Energy Input (kW) Min Energy Input (kW)
Natural gas G20 G25 G30 G31 Gross Net Gross Net
Manual control models GB - IE I2H 20 - - - 6.8 6.1 3.5 3.15
Slide control models GB - IE I2H 15.8 - - - 6.8 6.1 3.5 3.15
Remote control models GB - IE I2H 15.8 - - - 6.8 6.1 3.5 3.15

4.0 SITE REQUIRE ENTS - CONTINUED GB IE
4
Note: The spigot outlet of the fire is 565mm high, but should fit into the gather at the top of the fireplace as the appliance is fitted. Any
modifications to the fireplace opening must be to a height of 560mm min.
Radiant models: opening depths, include any plaster or infill panels which form part of the installation. Opening DEPTH should be
200mm or greater for a clay/cement lined or pre-cast flue which is new, unused, or previously used only with a gas appliance. DEPTH
should be 240mm or greater for a flue used for solid fuel of oil burning appliances.
Convector models: opening depths, include any plaster or infill panels which form part of the installation. Opening DEPTH should be
267mm or greater for a clay/cement lined or pre-cast flue which is new, unused, or previously used only with a gas appliance. DEPTH
should be 307mm or greater for a flue used for solid fuel of oil burning appliances.
Any existing under grate draught device must be sealed off. The opening wall must be non-combustible.
The appliance requires a hearth with non-combustible surface of at least 12mm thick. The top surface must be at least 50mm above the
surrounding floor level, or be surrounded by a raised edge or fender 50mm high.
To enable the products of combustion to be cleared properly up the flue, the outlet at the back of the appliance must have a 50mm min-
imum clearance between it and the back wall of the opening or any other obstruction. The area immediately above the outlet must form
a smooth path into the flue.
Any type of fire surround used with this appliance must be adequately sealed to the wall and floor.
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireframe. Combustible materials, such as wood, may be
fitted to within 100mm of either side of the fireplace opening, providing the forward projection does not exceed 100mm. Any com-
bustible side walls must be at least 500mm to the side of the radiant heat source. As with all heating appliances, any decorations, soft
furnishings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.
Radiant models have a mounting depth of 180mm. In accordance with BS 5871 part 2, minimum debris collection volumes are required
behind the installed appliance. These are shown below and as dimension ‘X’ in figure 1.
CLAY/CE ENT LINES OR BLOCK FLUE WHICH IS NEW, UNUSED, OR PREVIOUSLY ONLY USED WITH A GAS FIRE.
X Dimension = 20mm
UNLINED FLUE OR CHI NEY WHICH HAS BEEN PREVIOUSLY USED FOR A SOLID FUEL OR OIL BURNING APPLIANCE
X Dimension = 60mm
N te: dimensi ns in italics refer nly t c nvect r m dels.

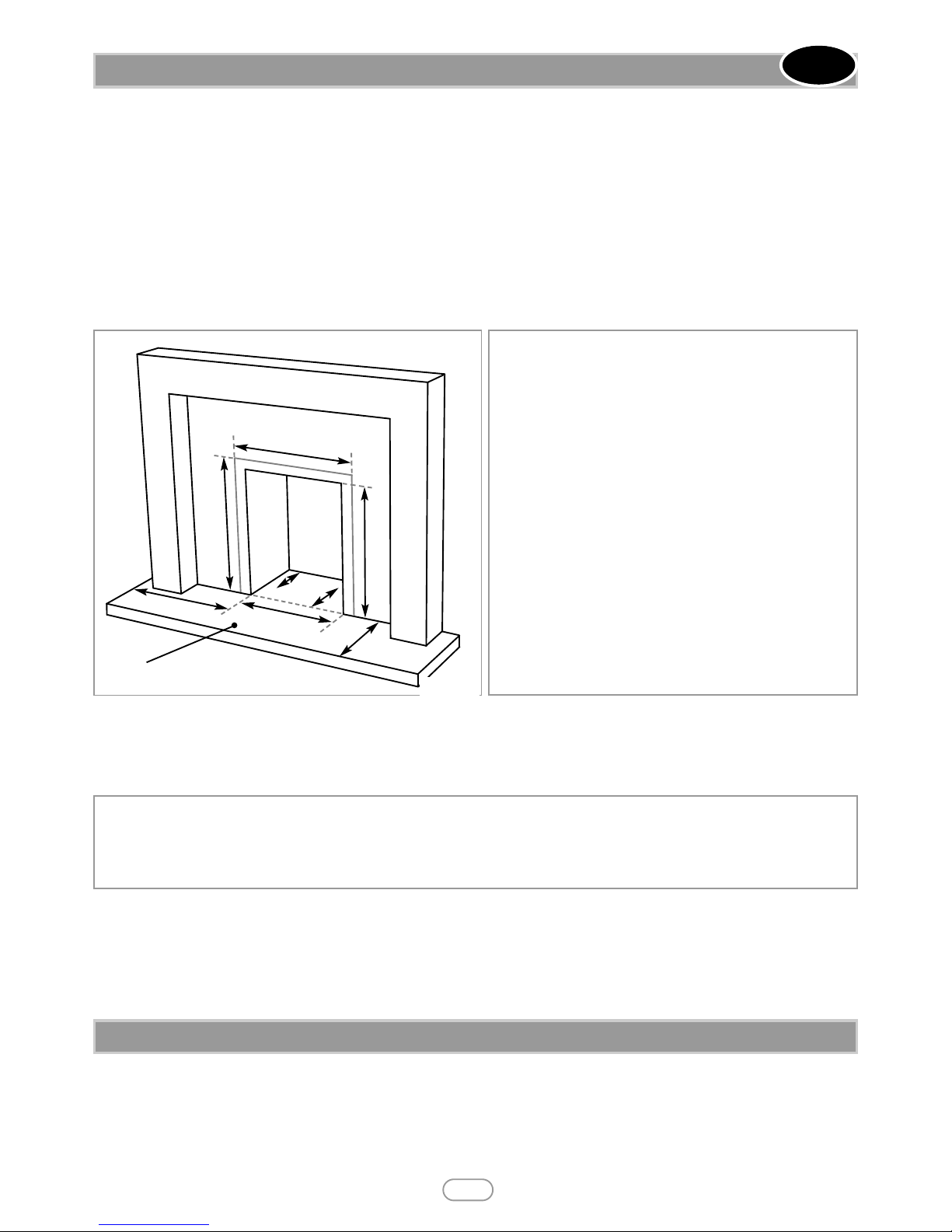

‘A’. Opening height: 540mm min/575mm max. (545mm min)
‘B’. Opening width: 375mm min/450mm max. (390mm
min/440mm max).
‘C’. Mounting depth: 180mm. (247 mm).
‘D’. Hearth must extend minimum of 150mm either side of the
opening.
‘E’. Hearth must extend minimum of 300mm in front of the
opening.
‘F’. Non-combustible hearth must be a minimum of 50mm in
height, or be surrounded by 50mm high fender.
‘G’. 470mm, this area must be flat and vertical to ensure a good
seal.
‘H’. 585mm, this area must be flat and vertical to ensure a good
seal.
‘X’. Debris collection space - See section 4.1.
aximum depth of shelf inimum distance from finished hearth
surface to underside of shelf
100mm 745mm
150mm 845mm
203mm 895mm
4.1 DEBRIS COLLECTION SPACE
‘A’
‘C’
‘B’
‘E’
‘F’
‘G’
‘H’
‘X’
‘D’
Figure 1
© 2013 Focal Point Fires plc.

No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the
same room or space must be taken into consideration when assessing ventilation. If spillage is detected when commissioning the appli-
ance, then amongst other problems there may be insufficient natural ventilation for correct operation of the flue. If the appliance does
not spill with the windows open, but spillage is detected with the windows closed, this demonstrates a lack of natural ventilation. If
spillage is still detected with the windows open, the flue is at fault. Installation of an air brick is the best solution to lack of ventilation.
Any ventilation fitted must comply with BS 5871 part 2 and BS 5440 part 2. Vents fitted under or within the immediate vicinity of the
appliance must not be used as adverse effects to the operation of the ODS may occur. Spillage detected during commissioning is almost
always a result of poor flue performance that cannot be corrected by any amount of ventilation. For Republic of Ireland ventilation may
be required, see IS 813, ICP3, IS 327, and any other rules in force.
This appliance can be fitted into a number of proprietary flue boxes
provided that the minimum dimensions shown in figure 2 are com-
plied with.
Constructional Note: The frame of the fire, any back panel or
other infill panels, and the flue box must be sealed together so that
there is no possibility of leakage between them. Adequate clear-
ances to combustible materials (e.g. false chimney breast construc-
tion) must be maintained.
The manufacturers’ instructions for fitting the prefabri-
cated box shall be complied with at all times. To fit the fire
using the cable fixing kit, some minor adaption may be necessary
for certain flue boxes. A check should be made to ensure the fire-
box does not obscure the flue box outlet. The firebox, base of the
flue box, and hearth below may be drilled to allow plugs and screws
to secure installation. It is important that the sealing requirements
of the appliance are met at all times and that the flue box is well
sealed to any back or infill panel. N te: The DEPTH dimension is
inclusive of any back or infill panel.
Stand the carton the right way up, cut the strapping bands and remove the top endcap. Read all the instructions before continuing to unpack
or install this appliance.
Remove the box containing the firefront, and the bags containing the ceramic components. Remove the cardboard packing pieces, and any other
bags or boxes containing fittings or other parts. When all loose parts have been removed, the outer sleeve may be lifted off to reveal the appli-
ance. Check that the components supplied correlate with the component checklist given in section 7.1. Please dispose of all the packaging mate-
rials at your local recycling centre.
5.0 VENTILATION GB IE
6.0 PREFABRICATED FLUE BOXES
7.0 UNPACKING THE APPLIANCE
7.1 CO PONENT CHECKLIST
QUANTITY DESCRIPTION
1 Firebox and burner tray assembly
1 Decorative frame
1 Firefront (fret)
1 Moulded ceramic fibre combustion matrix
1 Moulded ceramic front strip
16 Individual ceramic coals (Coal models only)
16 Individual ceramic pebbles (Pebble models only)
9 Individual ceramic logs (Log models only)
1 Slide control knob and M4 Nyloc nut (Slide control models only)
1 Cable fixing kit; 2 cables, 2 tensioners, 2 cable clamps, 4 eyebolts, 4 wall plugs
1 Sealing grommet
3 Lengths of adhesive sealing strip
1 Self tapping screw pack; 4 No8 x 5/16
1 Remote control Handset (Remote control models only)
1 Set of manufacturers instructions
5© 2013 Focal Point Fires plc.
125mm min internal dia twin wall flue
Radiant models :
250mm min depth
Convector models :
265mm min depth
Radiant models : 375mm min opening width
Convector models : 390mm min opening width
Radiant
models :
570mm min
height
Convector
models :
545mm min
height
Figure 2

Note: Ensure that the gas supply is isolated before commencing
installation of the appliance.
The fireplace opening and environment must be in compliance with specifica-
tions laid down in the appropriate sections of these instructions.
Remove the appliance from it’s carton as described previously and stand upon
a dust sheet or similar. Place the decorative frame, coals, ceramics and fixings
safely to one side. Remove the burner from the assembly by removing the
retaining screws.
Slide control models : Remove the slide control linkage connecting screw.
The tray is now free, and may be lifted away.
RADIANT PANELS (Radiant models only): The three radiant panels may now be fixed
inside the firebox. Select the plain or patterned side of each panel and insert as follows;
Lay the firebox on it’s back. Lay the tapered panel onto the rear face of the firebox.
The side panels should be fitted by inserting their front edges into the pre-fitted retaining brack-
ets on the front face of the firebox. Gently align the side panels with the side of the firebox as
shown in figure 3, over the top of the back panel already in place.
Make sure that the side panels are pushed up firmly to the roof of the firebox, and back firmly
to retain the tapered panel. Make small adjustments to line up the mortar lines if required. Secure
the side panels using the small ‘L’ shaped brackets and screws provided (figure 4). The screws
should locate into the pre-punched holes in the sides of the firebox.
SUPPLY PIPE ENTRY ( All models): nockout holes are provided in the rear and sides of
the firebox for use where concealed pipework is required. Where necessary,
knock out the appropriate hole with a sharp tap from a hammer, and fit the
rubber grommet supplied. A small incision can now be made in the rubber to
slip snugly around the outside of the pipe and sleeving. Do not install or use
the appliance without the seal in place. If a hole is inadvertently opened,
reseal with an intact grommet. Failure to fit the seal correctly will cause flue
suction to act upon the area under the burner, resulting in poor performance
and intermittent cutting out of the burner.
Slide controls models : The control knob is supplied as a loose part. Insert
the control knob into the hole in the top of the slide control spindle (Figure
5). Secure the control knob in position using the M4 nyloc nut provided.
SPIGOT RESTRICTOR : If installing the fire into a Class 1 or good Class
2 flue, simply bend up (stitch bend join) the spigot restrictor into position in
the flue outlet of the fire as shown in figure 6 and figure 7.
You UST remove (or bend down fully) the spigot restrictor and
re-test if the appliance fails a spillage test during commissioning.
SEALING STRIPS : Apply the self adhesive sealing strips to the back of
the fireframe as shown in figure 7 to give a continuous seal.
8.0 PREPARING THE APPLIANCE GB IE
6© 2013 Focal Point Fires plc.
Figure 3
Figure 4
Figure 5
Figure 6
Figure 8
Figure 7

Before installing the fire, check the flue using a smoke pellet. All of the smoke should travel up the flue and exit correctly from the ter-
minal. If problems are found, DO NOT fit the fire until corrective action is completed. Protect the decorative hearth whilst pushing the
firebox in and out of the opening. Part of the packaging will make an ideal hearth saver pad. Before running the gas supply into the open-
ing, offer up the firebox to the fireplace to check the fit is good. Angle the firebox or adjust the spigot outlet as described in part 8.0 of
these instructions. Ensure that it slides in correctly, the sealing face sits flat and square to the wall or infill panel, and that the base is firm
on the floor of the opening as no leaks are permissible here. At this stage it is essential to ensure that the spigot outlet of the fire is
not restricted in any way. Remove the firebox and take any necessary measurements before making good and preparing for final
installation.
CABLE FIXING : For fixing of the fire by the cable method, see the relevant section. The cable fixing locations should be marked on
the back of the opening and the holes drilled. Fit the wall plugs and eyebolts to these holes.
SCREW FIXING : For fixing by screw, mark and drill the fireframe or base, and the relevant points in the opening or on the wall. wall
plugs will again be required. Pre-punched holes are not provided for this purpose to allow you to choose the optimum positions.
GAS SUPPLY : Following preparation for the fixing method, the concealed gas supply, where required, can now be put into place. Refer
to the gas supply section for suggested pipe routes. The ends of the sleeving in which the gas pipe is run should be sealed. The ends of
the 8mm supply pipe should be temporarily sealed to prevent the ingress of debris during fixing.
PLEASE NOTE: Ensure fire can be removed for ease of servicing and not siliconed.
When the opening is ready for installation of the fire, the gas supply may be routed as per the examples shown in figure 9.
IMPORTANT - Wherever a concealed connection is made a rubber grommet must be used to seal the firebox.
The gas pipe must be suitably protected where it passes through fireplace openings. Any sleeving should be sealed to the pipe at its ends.
This appliance is fitted with an inlet restrictor elbow. Using 8mm diameter pipe, connect the appliance to the gas supply point. The appli-
ance must be fitted with rigid or semi-rigid pipe of 8mm external diameter. The appliance is factory fitted with an inlet restrictor elbow.
Use a minimum length of 8mm pipe, less than 1.5m where possible, as a long run of pipe may cause an unacceptable drop in the supply
pressure.The open end of the supply pipe should be sealed temporarily during the installation of the firebox to prevent the ingress of
dirt and dust. Soldered joints are not recommended.
Radiant models only:
To fit the firebox, first check the firebox fits correctly into the opening. For openings
between 545mm and 565mm in height it will be necessary to insert the upper part
of the firebox first, followed by the lower as shown in figure 10.
If is is still not possible to fit the firebox into the opening then remove the outlet
deflector screws using a screwdriver, bend the outlet deflector down and partly
insert the firebox. Now push the outlet deflector back up to the original
position under the lip of the fireplace opening and secure with the screws.
The fire is designed to operate correctly with the spigot raised and screwed in its
original position and spillage problems may arise by not realigning correctly once fit-
ted.Secure the firebox by drilling and screwing down the frame or base of the fire-
box, or use the cable fixing method.
9.0 PREPARING THE OPENING GB IE
7© 2013 Focal Point Fires plc.
10.0 GAS SUPPLY ROUTING
11.0 FITTING THE FIREBOX
Figure 10
Radiant models
Not to scale
Figure 9 Manual control Slide control Remote control
Fireplace openingGrommets
Firebox
Inlet
restrictor
elbow

All models: Drill four holes using a 8mm
masonry bit to a depth of 42mm in the posi-
tions shown in figure 10. If the fireplace con-
figuration does not allow the exact layout
given, the eyebolts should be positioned as
close to the correct layout as possible.
Before finally fitting cables, ensure the self
adhesive sealing strips are in position on the
back of the appliance frame. The fireframe
must be sealed evenly to the fireplace opening
all around the periphery.
Thread the tensioning cables through the
holes in the top of the firebox, then the eye-
lets, and finally through the lower holes in the
back of the firebox, as shown in figure 12.
Note : The burner must be removed as per relevant section to gain access to the cable adjusters.
Push the appliance back into the fireplace, centralise, and pull the loose tensioning cables through the
holes into the firebox. You may need to temporarily adjust the outlet deflector at this point as
described in section 8.0 of these instructions. Thread the tensioner bolts onto the cables, with the
nuts screwed down close to the tensioner head. Slide the screwed nipple onto the cable, pull cable
tight, and tighten nipple.
The tension of the cable may now be adjusted by using a suitable spanner on the tensioner nuts to
pull the appliance tightly against the fireplace opening. Visually inspect the seal and reseat if necessary.
Do not cut off excess cable. Surplus cable must not be cut off, as it will be impossible to refit the fire after servicing. Coil up the surplus
cable, and locate at rear of firebox as shown in figure 13. If running a concealed gas supply, ensure grommets are secure around incom-
ing pipes.
Important Note: Check the thermocouple nut connection into the rear of the valve is secure.
Temporarily fit the burner unit and ensure a suitable gas route can be achieved. Purge the gas supply thoroughly to remove air and
dirt/debris before connection. Disconnect the inlet restrictor elbow from the inlet pipe.
Connect the previously installed gas supply to inlet restrictor elbow. Place the burner unit into the firebox making sure that the rear
lugs locate properly on to the ledge in the firebox. Fit the two securing screws through the burner legs to secure the assembly. Re-fit
the restrictor elbow to the inlet pipe of the appliance.
Please see the relevant section of the user instructions.
All models : Remove all protective film and packaging material before fitting.
One-piece frame models : The appliance is supplied with a one piece decorative frame that
is attached to the front of the firebox with the magnets provided. Position the firefront in front
of the burner.
Three-piece frame models : The clip-on frame pieces should be hooked over the outer
edges of the fireframe, (figure 14), and pushed firmly home. The sides should be fixed first, fol-
lowed by the top bar, which overlaps the sides. Push firmly home.
I PORTANT : Due to the possibility of sharp edges, care should be taken when
handling the three-piece frame components. The use of protective gloves is strong-
ly recommended.
Cast frame models : Remove the decorative frame from it’s protective packaging. The frame is retained onto the firebox with a mount-
ing bracket at the top of the frame and three magnets on each leg of the frame.
Turn on and test the gas supply up to the fire for any leaks, in accordance with current edition of BS6891.
When the appliance is first used, protective oils coating the firebox may burn off. It is advisable to ventilate the room during this period
for at least one hour.

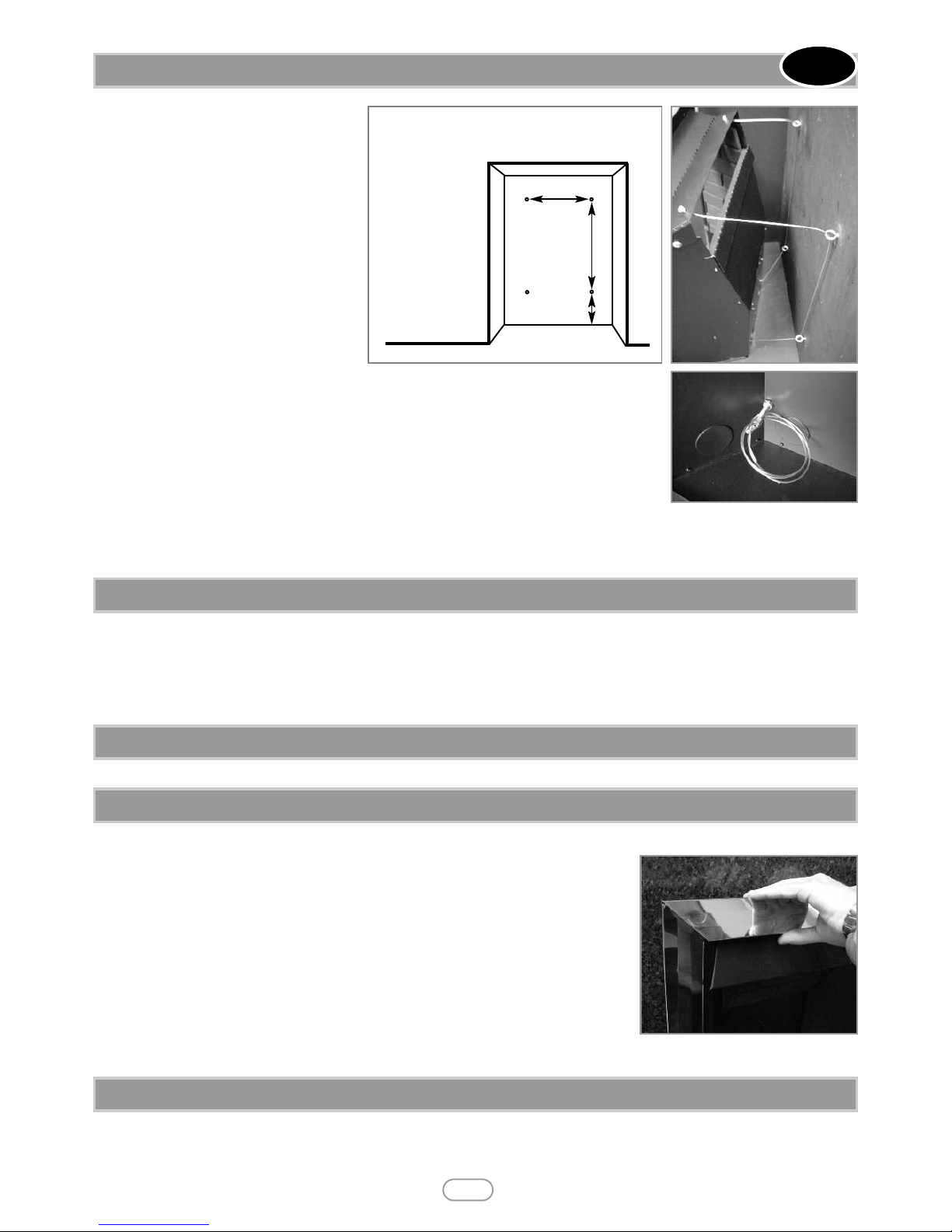

11.1 INSTALLATION BY CABLE FIXING KIT GB IE
8© 2013 Focal Point Fires plc.
‘A’
‘B’
‘C’
‘A’. 250 mm
‘B’. 350 mm
‘C’. 60 mm
All dims ±10mm
Figure 11
Figure 12
Figure 13
11.2 GAS CONNECTION

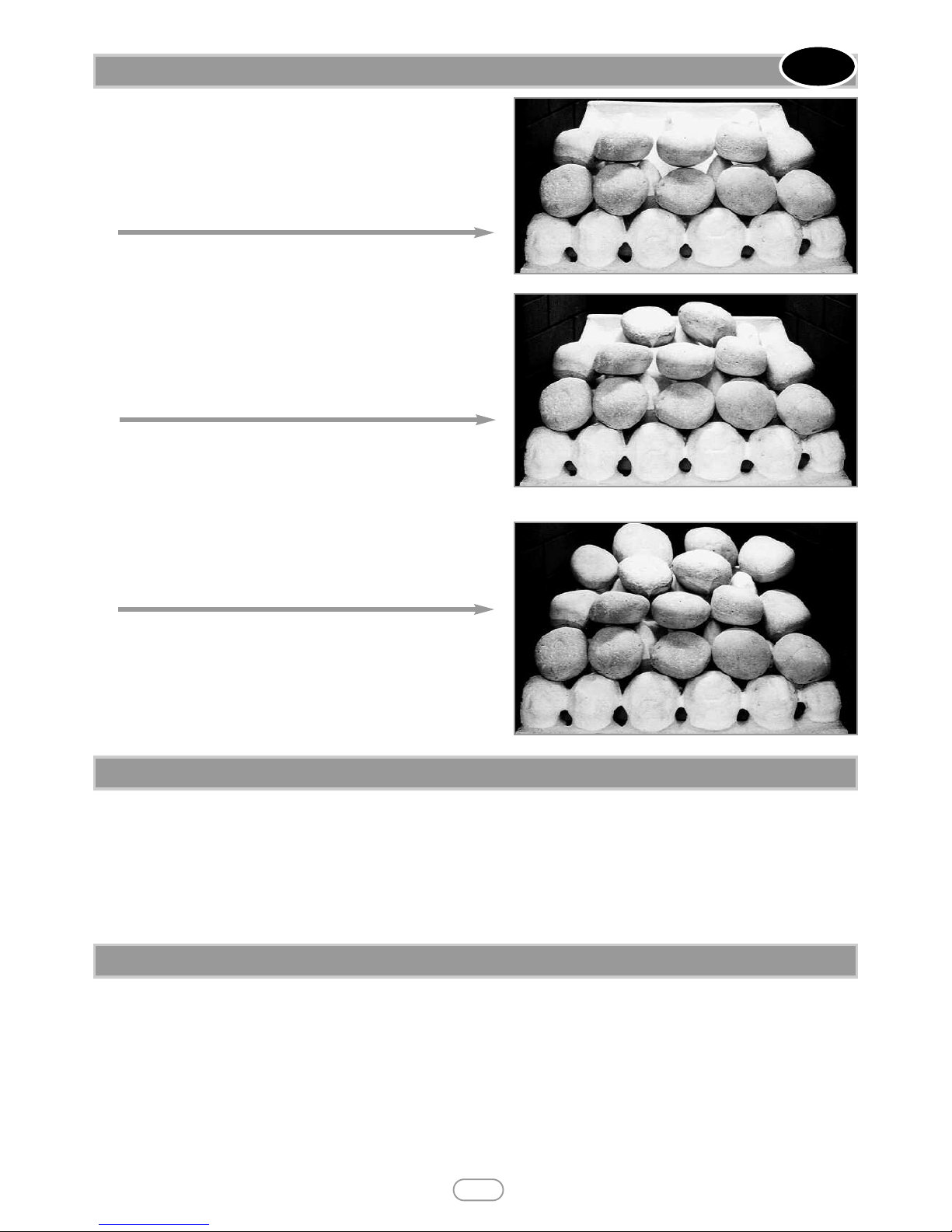

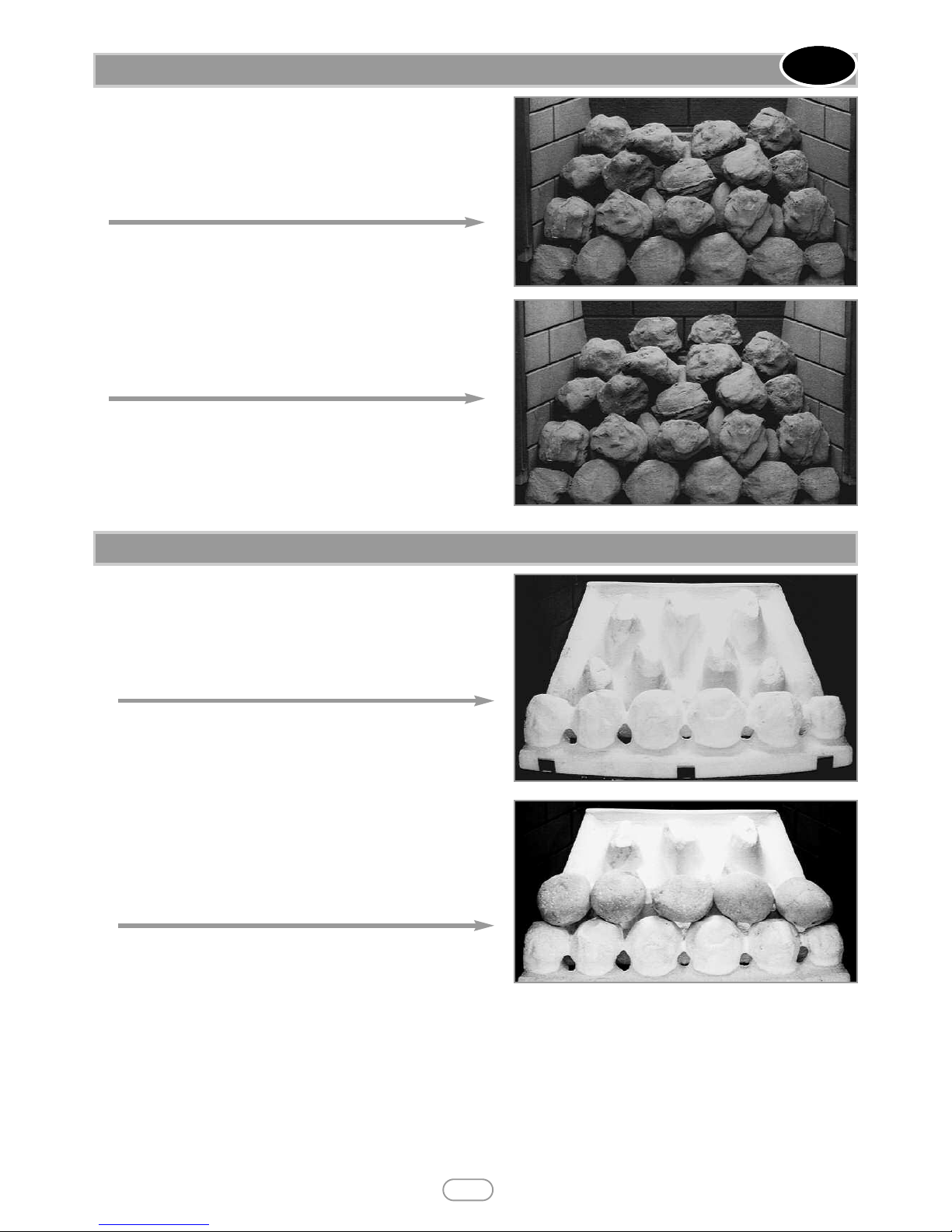

11.3 FUEL BED LAYOUT
12.0 TESTING AND CO ISSIONING
11.4 FITTING THE FIREFRONT/FRA E
Figure 14

The pilot is visible through the viewing hole which is located at the lower left hand side of the fuel
bed. The fire features a ‘twin spark’ ignition system to aid lighting, Push the control knob in fully
and turn anti-clockwise through both of the SPAR positions, keeping fully depressed, hold there
for a few seconds. If the fire has not been used for some time, hold the knob in this position for
longer, to allow any air in the pipes to be purged. Continue turning anti-clockwise through the
spark clicks to the nine o’clock position, ensuring the pilot has lit. If not, return the knob clock-
wise, and repeat.
When the pilot lights after one of the two sparks, keep the knob depressed in the nine o’clock
position for approximately ten seconds. Now release the knob and the pilot should stay alight. If
the pilot is extinguished during use, wait three minutes before repeating the ignition procedure. To
achieve the HIGH setting, push the control knob in slightly and continue turning anti-clockwise to
the high position. The main burner should light after a few seconds. To decrease the setting to LOW, push the knob in slightly and turn
the control knob clockwise to the low setting. To turn to the pilot only position from the HIGH or LOW positions, press the control
knob in, and return to the nine o’clock position and release. To turn the fire OFF, keep the knob pressed in, return to the off position
and release.
The pilot is visible through the left hand side of the front ceramic strip. Rotate the coals or pebbles for
good viewing.
Push the slide control knob fully downwards to the SPAR position, and hold there for a few seconds,
until the pilot light stays on. When the pilot light has established, release the slide control knob and it
will return to the LOW flame setting. If the pilot is extinguished during use, wait three minutes before
repeating the ignition procedure.
To achieve the HIGH setting, move the slide control knob upwards to the HIGH flame setting. The fire
can also be set to operate anywhere between HIGH and LOW by moving the control knob to an inter-
mediate position.
To turn the fire OFF, move the slide control knob upwards fully to the position marked ‘O’.
The pilot is visible through the left hand side of the ceramic fuel bed.
When cold, the coals or pebbles may be rotated for good viewing.
Turn the main burner control (shown on left hand side of control valve) knob
fully anti-clockwise.
Turn ignition knob (shown on right hand side of control valve) slightly left
towards the ignition position until reaching the stop, press down and hold for
5 seconds (only pilot gas is flowing)
Continue pressing down the knob while turning further to the left to activate
the piezo spark, continue to hold the knob down for a further 10 seconds
after the pilot has been lit. If the pilot does not light repeat the previous steps.
Upon lighting and after the further 10 seconds, release the knob and turn further to the left to the
ON position. The main burner will light and be controlled in accordance with the main burner con-
trol knob setting. Adjust the main burner control knob to the desired setting.
If the pilot is extinguished during use of the fire, you MUST wait ten minutes before repeating the
ignition procedure.
To turn the main burner OFF whilst keeping the pilot flame lit, turn the ignition control knob to the
pilot position then only the pilot will remain lit.
To shut the fire off completely, press the ignition control knob down and continue turning to the
right from the pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled suffi-
ciently to allow the magnetic valve unit to reset itself.
The remote control unit allows operation of the main burner setting between maximum and pilot
only setting. It does not permanently turn the pilot on or off.
The remote control handset incorporates an inbuilt safety feature to prevent the main burner being
activated or turned up accidentally. It is necessary to press button 1 and 2 (see figure 18) simultane-
ously to turn the fire up.
To turn the fire down press button 3 only.
FIN:
A

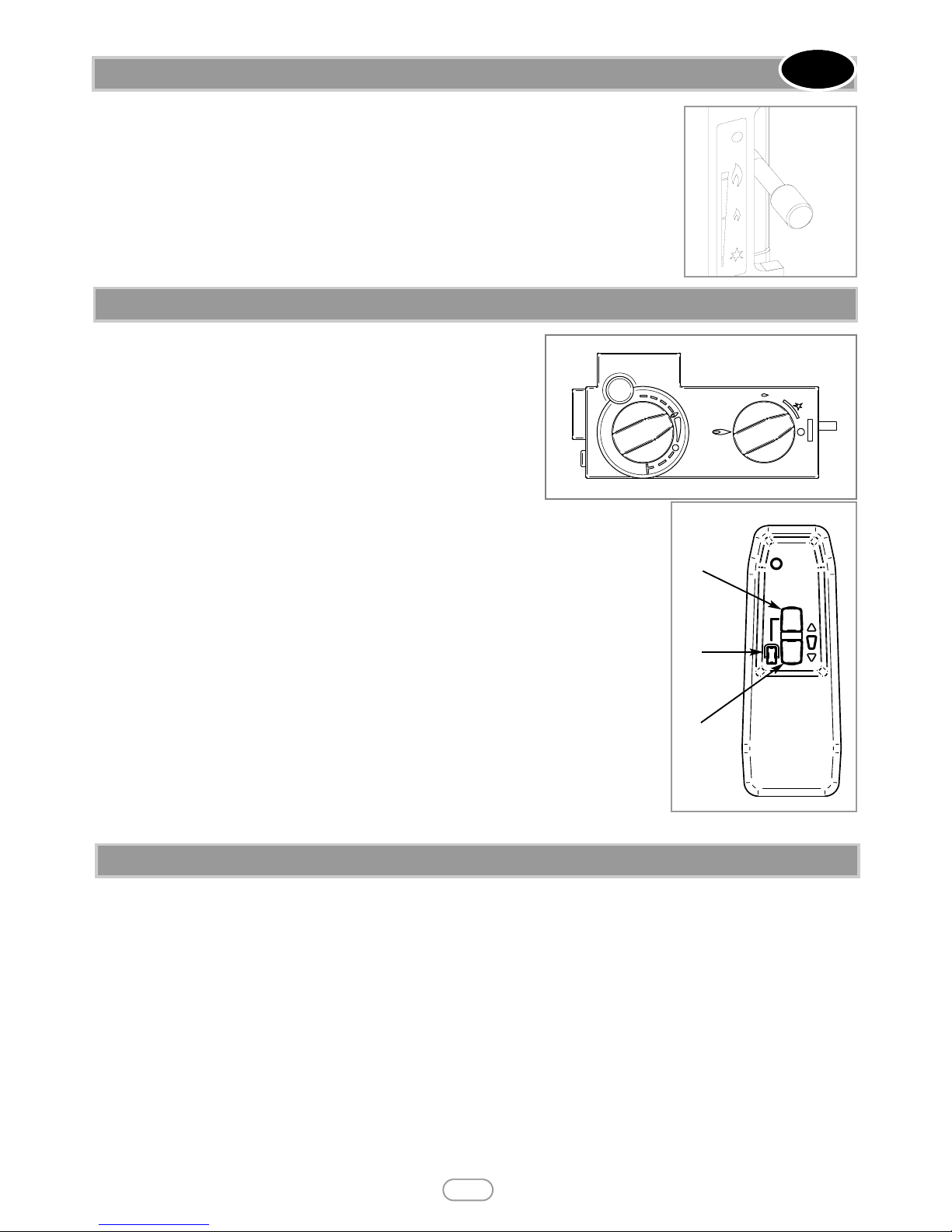

12.1 OPERATING THE FIRE - ANUAL CONTROL ODELS GB IE
9© 2013 Focal Point Fires plc.
Figure 15
12.2 OPERATING THE FIRE - SLIDE CONTROL ODELS
Figure 16
12.3 OPERATING THE FIRE - RE OTE CONTROL ODELS
FIN:
A
1
2
3
FIN:
A
:
Figure 18
Figure 17

The spark gap (shown in figure 19) between the spark electrode and the thermocouple
should be 3.5 - 4.5mm to produce a good spark.
There should be no need to adjust this.
If under any circumstances the electric spark fails, the pilot may be lit manually by proceed-
ing with the ignition sequence as previously described, and after turning the control knob
through the spark position, the knob should be held in and the pilot lit with a taper.
Release the pressure test point screw, and attach a pressure gauge. Light the fire on
the HIGH setting. To commission the appliance, the operating pressure must be in
accordance with the figures stated in section 2.0 of these instructions. The fire is
factory set to achieve the correct flow rates at the specified inlet pressure.
Any significant variation in the inlet pressure could indicate a supply problem. If the
inlet pressure is too high, the gas supply meter/governor may be set incorrectly.
This should be checked with the fire running and if necessary reset by the gas sup-
plier. If the inlet pressure is too low, then check the meter/governor pressure with
the appliance running. If this is less than the inlet pressure stated in section 2.0 of
these instructions it will need to be reset by the gas supplier. If the inlet pressure
is too low, but the meter/governor pressure is acceptable, then a problem in the
supply pipework is to be suspected. Upon satisfactory checking of the inlet pressure, turn the fire off, disconnect the pressure gauge
and refit the test point screw. Light the fire and check for gas soundness. In the event that the inlet pressure is not in accordance with
the figures stated in the data section of these instructions, the appliance must not be commissioned, and the problem investigated and
rectified.
Slide control models : The pressure test point is located directly above the gas valve in the centre of the burner.
Remote control models : The pressure test point is located on the right hand side of the burner, between the burner legs.
Release the pressure test point screw, and attach a pressure gauge. Light the fire on the HIGH setting. To commission the appliance, the
burner pressure must be in accordance with the figures stated in section 2.0 of these instructions.
The fire is factory set to achieve these pressures and any significant variation could indicate a supply problem. If the pressure is too high,
the gas supply meter may be set incorrectly. This should be checked with the fire running and if necessary reset by the gas supplier.
Upon satisfactory checking of the burner pressure, turn the fire off, disconnect the pressure gauge and refit the test point screw. Light
the fire and check for gas soundness. In the event that the burner pressure is not in accordance with the figures stated in the data sec-
tion of these instructions, the appliance must not be commissioned, and the manufacturer should be contacted for guidance.
This fire is fitted with a flue spillage safety device (ODS). If the fire shuts down during use for no apparent reason then several things
may be suspected. If a door or window has been opened creating a draught, then pilot disturbance is the problem, and removal of the
draught should resolve this. The gas pressure reaching the fire must also be checked (again, recall your installer to check and rectify any
problem). The thermocouple connection into the back of the gas control valve may also have worked loose during installation, simply
get the installer to tighten. If pilot disturbance is not the cause, then the ODS safety system may be in operation. Switch the appliance
OFF, check the flue and carry out any remedial work required. Relight the fire and carry out a spillage test.
DO NOT allow the appliance to be used if it continues to fail a spillage test. The aeration hole of the pilot must be carefully cleaned out
on each annual service to ensure continued function of the ODS.The spillage monitoring system shall not be adjusted, modified, or put
out of operation by the installer. Any spare parts fitted MUST be of a type supplied for the purpose by the appliance manufacturer. If the
fire is not spilling, then further guidance should be sought, using the Troubleshooting section as a guide..
12.5 OPERATING PRESSURE - ANUAL, SLIDE & RE OTE CONTROLS

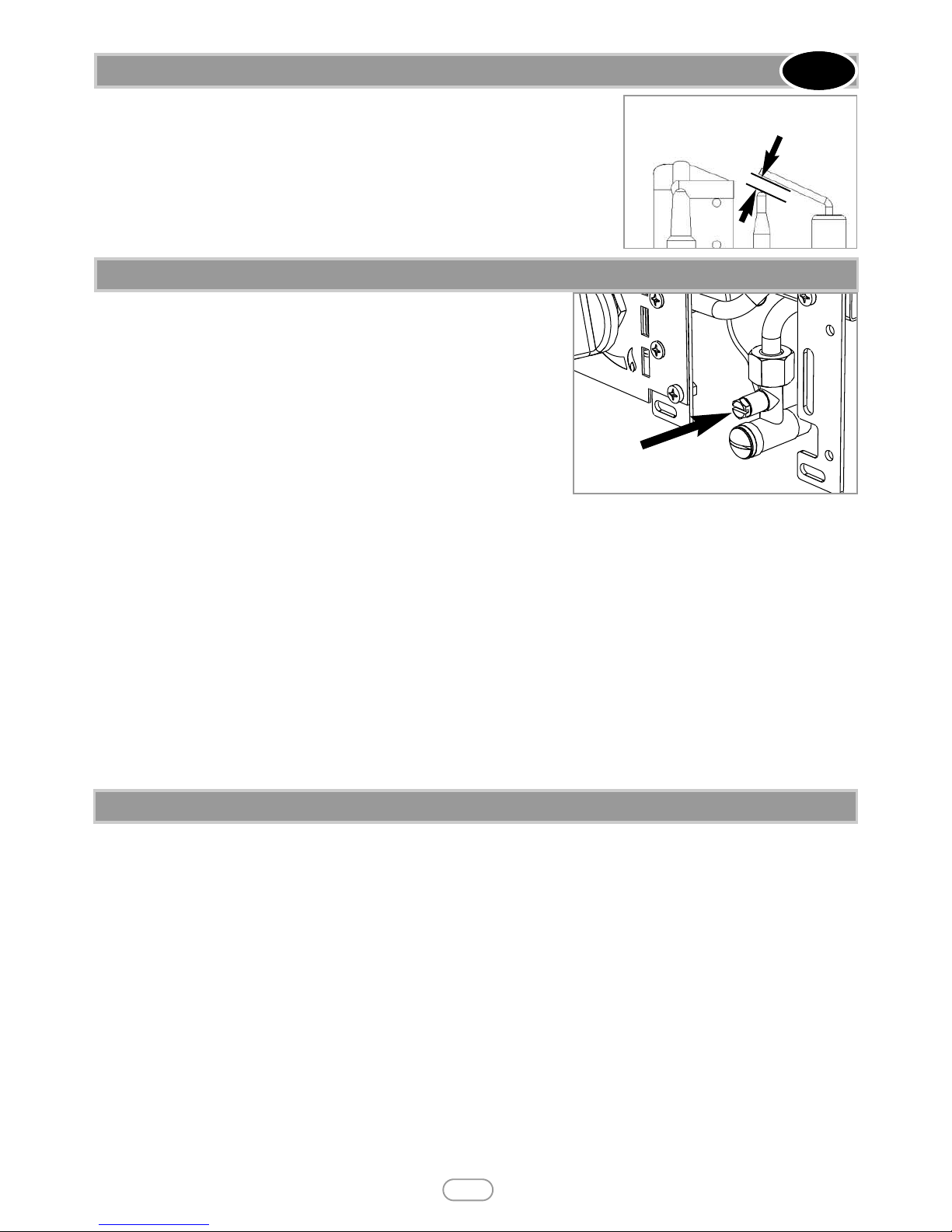

Figure 19 Spark gap
12.4 SPARK GAP
© 2013 Focal Point Fires plc.
10
12.6 FLUE SPILLAGE ONITORING SYSTE
GB IE
FIN:
A
Figure 20

Close all doors and windows to the room containing the appliance. Let the fire run on HIGH for five minutes. Take a smoke match, light
it, and using a smoke match tube, hold it at the top edge of the fire opening, 25mm down and 25mm in. Starting 50mm in from either
side, run the smoke match across the opening. All the smoke should be drawn away up the flue. Any smoke returning into the room
indicates that spillage is occurring. If the initial spillage test fails, run the fire for a further 10 minutes and repeat the test. When the test
has been completed satisfactorily, repeat with any extractor fans in the premises running on the highest setting, and any communicating
doors open. Finally, repeat with all doors open.
DO NOT allow the fire to be used until the test is satisfactorily passed.
All instructions must be handed to the user for safekeeping. Show the customer how to light and control the fire. After commissioning
the appliance, the customer should be instructed on the safe use of the appliance and the need for regular servicing. Frequency of serv-
ice depends on usage, but MUST be carried out at least once annually. Advise that cleaning of the fire may be achieved when the fire is
cold using a damp cloth and mild detergent on most surfaces.
Scratched and other superficial damage to the matt black paintwork of the appliance can be covered with matching heatproof spray. Use
only the manufacturers’ recommended spray paint. Paint only when the fire is OFF and cold. Always mask off the surrounding area to
prevent contamination with overspray. Ventilate the room during the use of the spray. DO NOT attempt to spray paint the coals or
ceramics, or wash them in water.
Advise that the fire will emit a “newness” smell for a time after initial commissioning and that extra ventilation may be needed during
this time. Advise that the fire is fitted with a spillage safety device (O.D.S.). If the fire shuts down, this system may be in operation. If
spillage is suspected, SWITCH APPLIANCE OFF and call in the installer to investigate any problems.
Isolate the fire from the gas supply. Ensure that the fire is fully cold before attempting service. A suggested procedure for servicing is
detailed below.
11 © 2013 Focal Point Fires plc.

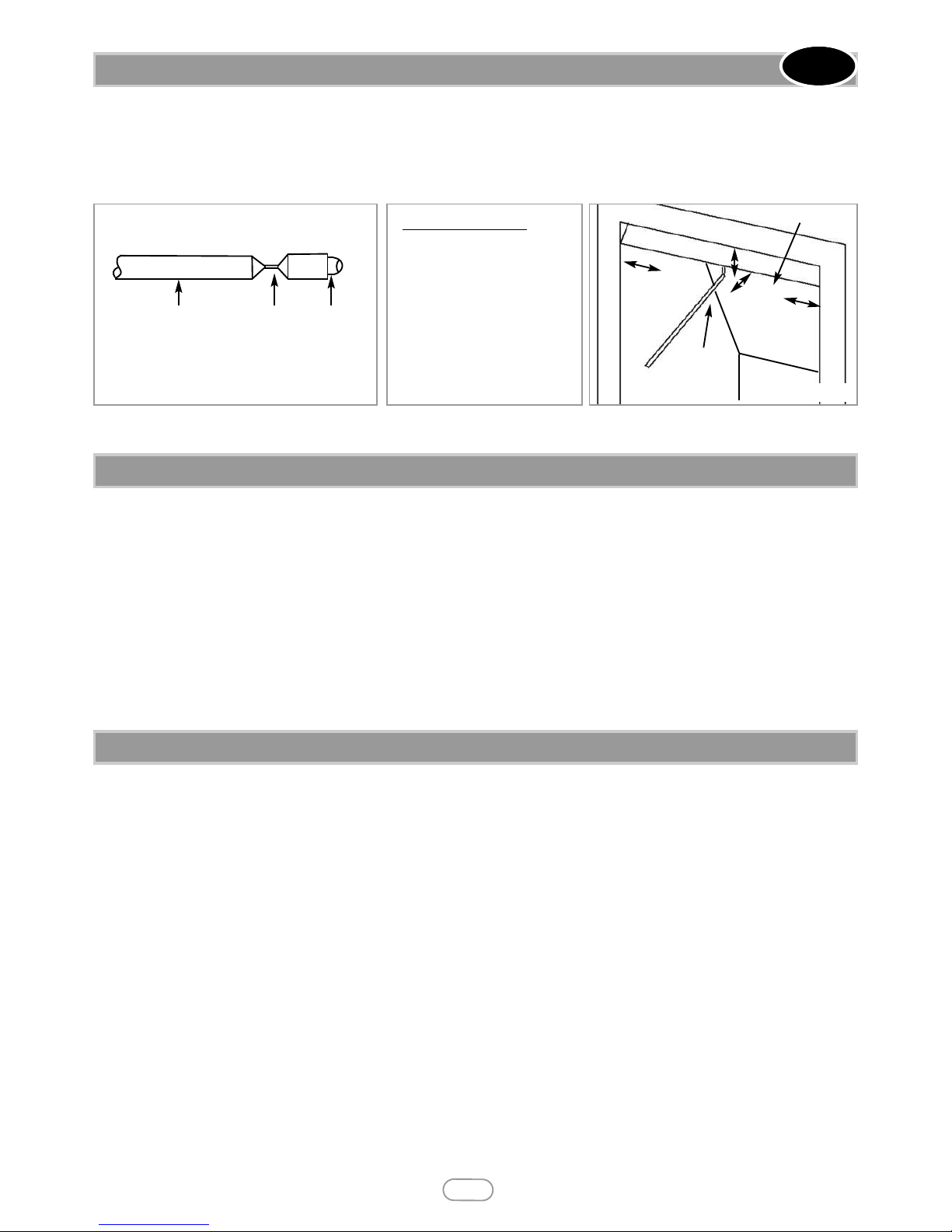

12.7 TESTING FOR SPILLAGE
Match
Crimp
Tube
Figure 21 : Cross section of smoke match tube
Make a smoke match tube from 10mm diameter
tube. Seal off one end and crimp the tube to prevent
the smoke match from sliding down inside.
Spillage test - Figure 22
A. 25mm down from top of
opening
B. 25mm in from front of open-
ing.
C. Disregard outer 50mm
either side of fireplace opening
C
CB
A
Fireplace Opening
Smoke Match
In Tube
Figure 23
GB IE
12.8 BRIEFING THE CUSTO ER
13.0 SERVICING
1. Lay out the dust sheet and tools.
2. Carefully remove the ceramic components.
3. Remove the cast front fret or the combined frame and firefront (dependant on model).
4. Remove the two screws that retain the data/control plate.
5. Disconnect the gas supply, and remove the two securing screws in the tray legs.
6. Remove the burner tray.
7. Remove firebox as described.
8. Check the fireplace opening for rubble accumulation and remove. If debris is excessive, initiate remedial work on the flue.
9. Check the flue with smoke pellet for correct operation.
10. Refit firebox using new seals where necessary.
11. Strip off the burner pipes and clean thoroughly.
12. Clean out the injector, pilot assembly and burner tube. DO NOT attempt to remove the pilot injector.
13. Re-assemble and re-fit the burner tray.
14. Turn on the gas supply, and leak test.
15. Refit the decorative casting and ceramics.
16. Check any purpose provided ventilation is un-obstructed.
17. Light the fire and test for spillage.
18. Check setting pressure and safe operation of the appliance.
For specific servicing instructions, see the relevant sections.

12
Remove the firefront and place to one side. Remove the ceramic components. Gently clean in the open air. Be careful not to create
dust from the coals. Where necessary replace damaged components with genuine spares. Seal scrap ceramic components in plastic
bags and dispose at proper refuse sites as directed.
Re-fit the coals by referring to the relevant section of these instructions.
Remove the decorative front. Remove the ceramics and the data/control plate and place safely aside.
Slide control models - disconnect the slide control mechanism by removing the M4 nut on the slide control linkage.
Remove the two screws securing the tray legs to the firebox. Pull tray forward slightly and lift away.
Refitting is the reverse of above, being sure to engage the tray location lugs on the shelf at the rear of the firebox.
Remove the burner unit as previously described. The pilot unit can be removed by withdrawing the tubing nut, the thermocouple nut on
the rear of the valve, and the two securing screws, and lifting away. Remove the tubing nut from the valve end of the pilot pipe, and blow
through to dislodge any debris.
Remove the two tubing nuts on the ends of the gas pipe to the injector elbow and blow clear. Release the screw through the supporting
leg and lift assembly clear. The injector pipe can now be checked for debris. Remove the nut retaining the injector elbow. Blow through
the elbow to remove any debris.
Manual control models only : The valve is not field serviceable, apart from the pilot filter. Remove the control knob by pulling it forwards,
then remove the largest of the three screws on the face of the valve. Slide the filter out and clean away any debris that may have accu-
mulated. The filter element should also be blown clean. This component should not require replacement, however if signs of deteriora-
tion are evident then a genuine spare part must be used. If a large amount of debris is present in the filter then the pipework and con-
trol should be thoroughly cleaned before re-assembly.
Remove the burner unit as in relevant section and pilot unit as described.
Clean the pilot assembly with a soft brush and blow through. Check the aeration holes are free of any dirt or lint. Clean thoroughly
internally, the connection can be removed from the base of the pilot unit using two spanners to make cleaning easier. Do not damage
or try to remove the pilot injector. The unit is factory set and the only check necessary is to ensure the spark gap is correct. See
specifications for gap setting.
Remove the burner unit as described previously.
Protect the hearth from potential damage. Unroll the coiled tensioner cables from the rear of the firebox. Remove the securing nip-
ples and tensioner adjusters. The firebox is now released from the opening and can be slid outward onto the hearth. Inspect the fire-
place opening for debris and if excessive rectify the flue before proceeding further. Check the seal around the fireframe and if neces-
sary replace. Refitting of the firebox is as described in the fitting section of these instructions.
Handset - Remove cover from rear of handset and insert 1 x ‘PP3’ (9 volt) battery - Replace
cover
Appliance - Ensure appliance is off and cool. Remove cover from top of receiver box. The
cover is protected by reflective foil, and located towards the right hand side, underneath the
burner unit. Insert 4 x ‘AA’ (1.5 volt) batteries - Replace cover.
Slide control models
Appliance - Ensure appliance is off and cool. The battery is located in the front of the ignition
unit, on the right hand side of the burner (shown in figure 25). Unscrew the battery holder cap.
Insert 1 x AA (1.5 volt) battery and refit cap.
© 2013 Focal Point Fires plc.
13.3 SERVICING THE BURNER
13.1 CLEANING THE CERA ICS GB IE
13.2 RE OVING THE BURNER
13.4 PILOT ASSE BLY
13.5 RE OVING THE FIREBOX
13.6 REPLACING THE BATTERIES (RE OTE CONTROL VERSIONS)
FIN:
A
 
 

Figure 24
13.7 REPLACING THE BATTERIES (SLIDE CONTROL VERSIONS)
Figure 25

Fire sparks but pil t d es n t light • No gas to fire, check isolators are open and gas supply is on.
• Pipework blockage, clean out.
• Air not fully purged, re purge supply or wait longer.
• Spark earthing to metalwork, reset gap correctly.
• Blocked pilot, clean out internally.
Pil t lights but then g es ut • Severe restriction in gas supply: clear obstruction.
• Faulty thermocouple, replace pilot unit.
• Blocked pilot, clean out.
• Blocked lint gauze, clean.
• Hold control knob in for longer.
• Check control knob does not foul indicator plate.
• If the pilot will not stay lit there could be a problem with contamination of the
gas supply, drafts,ventilation or the thermocouple needs replacement.
odifications are dangerous and can have a serious unseen effect on safety.
NEVER ODIFY OR BEND THE THER OCOUPLE TO AKE THE PILOT STAY
ALIGHT.
Fire d es n t spark at pil t • HT lead detached, refit.
• Check the spark gap (see section 12.4).
• Faulty piezo unit, replace.
• Debris shorting out electrode, clean.
• Spark shorting to metalwork under tray, check routing of HT lead under burner.
Fire runs f r a time and then cuts ff • Loose or faulty thermocouple, rectify.
• Blocked pilot, clean out.
• Excessive drafts in the room.
• Excessive flue pull.
• Fire is too close the an air vent.
• Fire is sited on disused chimney breast which has not been adequately sealed up.
• Dirt or lint in pilot aeration hole or on the lint gauze, clean thoroughly.
• If the pilot will not stay lit there could be a problem with contamination of the
gas supply, drafts, ventilation or the thermocouple needs replacement.
odifications are dangerous and can have a serious unseen effect on safety.
NEVER ODIFY OR BEND THE THER OCOUPLE TO AKE THE PILOT STAY
ALIGHT.
Pil t flame shrinks when fire is n high • Poor gas flow to fire, check pressure with fire on high.
• If pressure is low, remove any restriction in pipework or valve.
• Check all isolators are adequately sized and fully open.
• Check meter pressure is adequate.
• Firebox grommet seal missing, rectify.
• If the pilot will not stay lit there could be a problem with contamination of the
gas supply, drafts, ventilation or the thermocouple needs replacement.
odifications are dangerous and can have a serious unseen effect on safety.
NEVER ODIFY OR BEND THE THER OCOUPLE TO AKE THE PILOT STAY
ALIGHT.
Fire smells when first lit r in use • Newness smell from brand new appliance.
• Spillage occurring. Carry out Spillage test and rectify any problems.
• Combustible materials used in incorrect positions.
• Firebox grommet seal missing, rectify.
•Other airborne contaminants such as dust, tobacco smoke, paint vapours.
13 © 2013 Focal Point Fires plc.
14.0 TROUBLESHOOTING GUIDE GB IE

• The installation and Servicing of this fire MUST only be carried out by a competent person in accordance with local Codes and/or
Regulations, Building Regulations and the manufacturer's instructions. Failure to comply with these could lead to prosecution and invalidate
the appliance warranty. In the event of gas leakage from the appliance, the gas supply must be turned off at the nearest isolating valve. This
appliance is only suitable for the gas type for which it is supplied.
• eep a note of the installer's name and address, the original purchase receipt and the date of installation. Failure to produce this informa-
tion may invalidate the warranty. The appliance should be serviced regularly to ensure continued safe operation. See the servicing section
for further reference. Frequency of service will depend on use, but MUST be carried out at least once annually.
• Parts of this appliance become naturally hot during use. The manufacturer of this appliance considers all surfaces as working surfaces with
the exception of the control knob and control panel.
• As with any gas fire, a fire guard complying with BS 8423 must be used in presence of pets, children, and the elderly or
infirm.
• The appliance should be serviced regularly to ensure continued safe operation. Frequency of service will depend on use, but MUST be car-
ried out at least once annually.
• Combustible items, such as flooring and furniture and soft wall coverings (such as blown vinyl or embossed paper), low temperature sur-
rounds etc may discolour if fitted too close to the fire. See relevant section for further details on clearances to combustibles. No combustible
materials or flooring should protrude onto the hearth.
• This appliance incorporates a combustion monitoring system (ODS).
• DO NOT burn any foreign material on this fire, the ceramic fuel effect components must be of the correct type and laid out in accordance
with the relevant section of these instructions.
• Failure to do so could create a hazard or lead to sooting.
• Before the appliance is installed, the chimney should be swept. All flues should be checked by the installer to ensure there are no defects
or obstructions that may prevent the flow of combustion products.
• This appliance is fitted with a flue blockage safety device which will shut down the fire if abnormal flue conditions occur. It is NOT a sub-
stitute for an independently mounted Carbon Monoxide detector.
• This fire is supplied with a particular style of firefront. Use of the firefront will ensure an adequate airflow under the firebed for the cor-
rect functioning of this appliance. Use ONLY the firefront supplied with the appliance. Use of any other firefront could be dangerous.
U S E R I N S T R U C T I O N S
2.0 CLEARANCES TO CO BUSTIBLES
A combustible shelf may be fixed to the wall above the fire, providing that it complies with the dimensions given below.
A non-combustible shelf may be fitted to within 10mm of the top edge of the fireplace opening. Combustible materials, such as wood, may be
fitted to within 100mm of either side of the fireplace opening, providing the forward projection does not exceed 100mm.
Any combustible side walls must be at least 500mm to the side of the radiant heat source. As with all heating appliances, any decorations, soft
furnishings, and wall coverings (i.e. flock, blown vinyl and embossed paper) positioned too close to the appliance may discolour or scorch.
1.0 I PORTANT NOTES
1
GB IE
© 2013 Focal Point Fires plc.
Maximum depth f shelf Minimum distance fr m finished hearth surface t underside f shelf
100mm 745mm
150mm 845mm
203mm 895mm
Secti n
1.0
2.0
3.0
4.0
5.0
5.1
5.2
6.0
7.0
C ntents
Important Notes
Clearances to Combustibles
Fireguards
Ventilation
Operating Instructions - manual control
Operating Instructions - slide control
Operating Instructions - remote control
Flue Spillage Monitoring System
Fuel Bed Layout - coal effect
Page N .
1
1
2
2
2
3
3
3
4
Secti n
7.1
8.0
9.0
10.0
10.1
11.0
12.0
13.0
14.0
C ntents
Fuel Bed Layout - pebble effect
Servicing
Cleaning
Replacing the batteries- Remote controls
Replacing the batteries- Slide controls
List of replacement parts
Installation details
Service History
Guarantee - Terms and Conditions
Page N .
5
6
6
7
7
7
7
8
8

The fireguards specified in BS 8423 are intended to protect people from falling into a fire, prevent burns and reduce the risk of injury, particu-
larly to young children and the infirm. In addition it is intended to reduce the risk of fire resulting from clothing and/or other flammable mate-
rials coming into contact with, or in proximity to, burning fuel and/or hot surfaces.
Fireguards can be permanently fixed in position or can be moveable, and can incorporate open fires including combination grates, or closed fires,
including room heaters and stoves. See figures 1 & 2 for fireguard examples.
The fireguards specified are not intended to reduce the risk of fires caused by flying particles, which are covered by BS 3248.
No purpose provided ventilation is normally required for this appliance. The requirements of other appliances operating in the same space or
room, and the results of a spillage test must be taken into consideration when assessing ventilation requirements, this will have been carried out
by your registered installer.
For Republic of Ireland, ventilation may be required, see IS 813, ICP3, IS 327, and any other rules in force.
WARNING : Ventilation openings (where fitted) must never be blocked or restricted in any way.
The pilot is visible through the viewing hole which is located at the lower left hand side of the
fuel bed. The fire features a ‘twin spark’ ignition system to aid lighting, Push the control knob in
fully and turn anti-clockwise through both of the SPAR positions, keeping fully depressed, hold
there for a few seconds. If the fire has not been used for some time, hold the knob in this posi-
tion for longer, to allow any air in the pipes to be purged. Continue turning anti-clockwise
through the spark clicks to the nine o’clock position, ensuring the pilot has lit. If not, return the
knob clockwise, and repeat.
When the pilot lights after one of the two sparks, keep the knob depressed in the nine o’clock
position for approximately ten seconds. Now release the knob and the pilot should stay alight.
If the pilot is extinguished during use, wait three minutes before repeating the ignition proce-
dure. To achieve the HIGH setting, push the control knob in slightly and continue turning anti-
clockwise to the high position. The main burner should light after a few seconds. To decrease the
setting to LOW, push the knob in slightly and turn the control knob clockwise to the low setting. To turn to the pilot only position from
the HIGH or LOW positions, press the control knob in, and return to the nine o’clock position and release. To turn the fire OFF, keep
the knob pressed in, return to the off position and release
FIN:
A
2© 2013 Focal Point Fires plc.
3.0 FIREGUARDS GB IE
Figure 3
Figure 1
Example of moveable fireguard for portable heating appliances
Key
1. Optional base section for total enclosure of a wall mounted appliance
2. Points for attachment to a wall.
Figure 2
Example of detachable fireguard
Key
1. Detachable fireguard
2. Screw eye
5.0 OPERATING THE FIRE - ANUAL CONTROL ODELS
4.0 VENTILATION

The pilot is visible through the left hand side of the front ceramic strip. Rotate the coals or pebbles for
good viewing.
Push the slide control knob fully downwards to the SPAR position, and hold there for a few seconds,
until the pilot light stays on. When the pilot light has established, release the slide control knob and it
will return to the LOW flame setting. If the pilot is extinguished during use, wait three minutes before
repeating the ignition procedure.
To achieve the HIGH setting, move the slide control knob upwards to the HIGH flame setting. The fire
can also be set to operate anywhere between HIGH and LOW by moving the control knob to an inter-
mediate position.
To turn the fire OFF, move the slide control knob upwards upwards fully to the position marked ‘O’.
When cold, the coals or pebbles may be rotated for good viewing.
Turn the main burner control (shown on left hand side of control valve) knob
fully anti-clockwise.
Turn ignition knob (shown on right hand side of control valve) slightly left
towards the ignition position until reaching the stop, press down and hold for
5 seconds (only pilot gas is flowing)
Continue pressing down the knob while turning further to the left to activate
the piezo spark, continue to hold the knob down for a further 10 seconds
after the pilot has been lit. If the pilot does not light repeat the previous steps.
Upon lighting and after the further 10 seconds, release the knob and turn fur-
ther to the left to the ON position. The main burner will light and be controlled in accordance with
the main burner control knob setting. Adjust the main burner control knob to the desired setting.
If the pilot is extinguished during use of the fire, you MUST wait ten minutes before repeating the
ignition procedure.
To turn the main burner OFF whilst keeping the pilot flame lit, turn the ignition control knob to the
pilot position then only the pilot will remain lit.
To shut the fire off completely, press the ignition control knob down and continue turning to the
right from the pilot position to the OFF position.
A safety interlock prevents re-ignition of the pilot flame until the thermocouple has cooled suffi-
ciently to allow the magnetic valve unit to reset itself.
The remote control unit allows operation of the main burner setting between maximum and pilot
only setting. It does not permanently turn the pilot on or off.
The remote control handset incorporates an inbuilt safety feature to prevent the main burner being
activated or turned up accidentally. It is necessary to press button 1 and 2 (see figure 6) simultane-
ously to turn the fire up.
To turn the fire down press button 3 only.
This fire is fitted with a flue spillage safety device (ODS).
If the fire shuts down during use for no apparent reason then several reasons may be suspected. If a door or window has been
opened creating a draught, then pilot disturbance could be the problem, and removal of the draught should resolve this.
The fire can then be re-lit in accordance with the previous section. If pilot disturbance is not the cause, then the ODS safety sys-
tem may be in operation. Switch the appliance OFF, call in your installer to check any ventilation and carry out any remedial work
required. DO NOT allow the appliance to be used until the installation is passed as safe.
5.1 OPERATING THE FIRE - SLIDE CONTROL ODELS GB IE
Figure 4
5.2 OPERATING THE FIRE - RE OTE CONTROL ODELS
FIN:
A
1
2
3
FIN:
A
:
Figure 6
Figure 5
6.0 FLUE SPILLAGE ONITORING SYSTE
3© 2013 Focal Point Fires plc.

Coal effect models
1. Position the combustion matrix onto the burner tray as shown in
figure 8. The front edge of the matrix should sit snugly behind the
back edge of the burner rails as shown in figure 7. Do not fit the
matrix on top of the burner rails.
2. Position the front coal strip as shown in figure 9. The rear edge of
the front coal strip should fit in front of the burner rail. Again, do not
to place on top of the burner rails. When the front coal is in posi-
tion bend up the three
metal tabs at the front of
the tray to retain as
shown in figure 10.
3. Coals. All of the coals are the same. Take five coals and place them
as shown in figure 11. Care should be taken to ensure that the coals
bridge the gap between the front coal and the four coal supports at
the front of the matrix. Care should also be taken not to push the
coals right down between the coal supports, as this can detract from
the flame picture when the appliance is running.
4. Take five more moulded coals and position as shown in figure 12
to form the ‘second row’ of the fuel effect. The coals may be rotated
as desired to fit into the gaps between the coal supports in order to
create a random, realistic effect. Again, remember not to push the
coals down too far into the valleys between the coal supports as this
can have a detrimental effect to the flame picture
Figure 8
Figure 7
Correct
Incorrect
Figure 9
7.0 FUEL BED LAYOUT - COAL EFFECT GB IE
4© 2013 Focal Point Fires plc.
Figure 11
Figure 10
Figure 12

5. Take another four coals and place behind the second row of coals
as shown in figure 13, in order to complete the third row. The coals
may be orientated as desired to achieve a realistic effect. eep the
spacing between the coals even and uniform. The two coals at the
ends of the row may be placed rearwards, towards the back corners
of the fuel matrix.
6. Finally, take the two remaining coals and place at the back of the
fuel matrix, in the centre as shown in figure 14. Adding these coals
should complete the appearance of the fuel bed giving an even dis-
tribution of equally spaced coals.
I PORTANT : The fire is designed to operate correctly
with the coals supplied when assembled according to the
instructions. Never add to the sixteen coals, or change
them for a different type. Never throw rubbish or other
matter onto the coal bed.
1. Refer back to section 6.0 - Fuel bed layout - coal effect and follow
steps 1 and 2. The front strip and fuel effect matrix used for pebble
effect versions are of the same design as coal effect versions, but have
a different surface finish. Position them as shown in figure 15.
2. Open the bag of 16 ceramic pebbles. All of these pebbles are the same
size. Take five pebbles and place them as shown in figure 16. Care should
be taken to ensure that the pebbles bridge the gap between the front
strip and the four supports at the front of the matrix. Care should also
be taken not to push the pebbles right down between the supports, as
this can affect the flame picture when the appliance is running.
5© 2013 Focal Point Fires plc.
7.0 FUEL BED LAYOUT - COAL EFFECT - CONTINUED GB IE
Figure 13
Figure 14
7.1 FUEL BED LAYOUT - PEBBLE EFFECT
Figure 15
Figure 16

3. Take five more ceramic pebbles and position as shown to form the
‘second row’ of the fuel effect as shown in figure 17. The pebbles may be
rotated as desired to fit into the gaps between the supports in order to
create a random, realistic effect. Again, remember not to push the peb-
bles down too far into the valleys between the supports as this can have
a detrimental effect to the flame picture.
4. Now take another two pebbles and place behind the second row of
coals next to each other in the centre of the fuel bed as shown in figure
18. The pebbles may be orientated as desired to achieve a realistic effect.
eep the spacing between the pebbles even and uniform.
5. Finally, take the four remaining pebbles and place at the back of the
fuel matrix as shown in figure 19.
Once again, the pebbles may be orientated as desired in order to give a
realistic effect. Avoid pushing the pebbles down between the supports.
The fuel bed layout is now complete.
I PORTANT : The fire is designed to operate correctly with
the pebbles supplied when assembled according to the
instructions. Never add to the sixteen pebbles, or change
them for a different type. Never throw rubbish or other mat-
ter onto the fuel bed. Due to the light colour of the pebbles,
some discolouration/sooting is to be expected during normal
use.
The fire and flue should be checked on an annual basis to ensure all of the products of combustion are entering the flue and that there
is no excessive build up of soot. The frequency of service will depend on usage, but MUST be carried out at least once annually. Servicing
must be carried out by a GAS SAFE registered engineer.
Cleaning of the coals/pebbles may be carried out by following the instructions given in section 8.0 of these instructions. The Installation
instructions carry full servicing details for the use of the installer.
If debris from the flue or other foreign matter is found on the fire it may indicate a need for servicing. Do not use the fire until the
source of the debris has been found and rectified. Air vents (where fitted) should be checked periodically to ensure they are free from
obstruction.
Before carrying out any of the following operations, ensure that the fire is OFF and completely cold.
FIREFRONT - Any dust accumulating in the firefront may be removed using a vacuum cleaner or dry cloth. Heavy stains may be
removed by using a damp cloth and mild household detergent. Brass parts of the firefront may be cleaned using a suitable brass
cleaner. Replace the front centrally against the fire after cleaning. Do not use a damp cloth to clean cast iron fronts (Soho, Finsbury
and Arch models) as this can cause the fronts to rust.
PAINTED AREAS - These can be cleaned using a dry cloth.
7.1 FUEL BED LAYOUT - PEBBLE EFFECT - CONTINUED
6
GB IE
© 2013 Focal Point Fires plc.
Figure 18
Figure 19
8.0 SERVICING
Figure 17
9.0 CLEANING

COALS AND CERAMICS - Remove the firefront and place to one side. Remove the ceram-
ic components. Gently clean in the open air. Be careful not to create dust from the coals.
Where necessary replace damaged components with genuine spares. Seal scrap compo-
nents in plastic bags and dispose of at proper refuse sites as directed.
Handset - Remove cover from rear of handset and insert 1 x ‘PP3’ (9 volt) battery - Replace
cover
Appliance - Ensure appliance is off and cool. Remove cover from top of receiver box. The cover is protected by reflective foil, and
located towards the right hand side, underneath the burner unit. Insert 4 x ‘AA’ (1.5 volt) batteries - Replace cover.
Slide control models
Appliance - Ensure appliance is off and cool. The battery in the top of the ignition unit, on the
left hand side of the burner. Insert 1 x ‘PP3’ (9 volt) battery.
7© 2013 Focal Point Fires plc.
11.0 LIST OF REPLACE ENT PARTS
FIN:
A
 


Figure 24
Item Part number
Pack of 16 coals F550038
Pack of 16 pebbles F550050
Pack of 9 ceramic logs F550084
Front ceramic strip - coal F780008
Front ceramic strip - pebble F780017
Front ceramic strip - Log F780050
Ceramic combustion matrix - coal F780007
Ceramic combustion matrix - pebble F780016
Ceramic combustion matrix - Log F780051
Ceramic pad set (includes rear pad and side pads) - Radiant models F550049
Oxypilot 9081 - All models F730006
Gas valve - manual control models F730085
Gas valve - slide control models F730067
Gas valve - remote control models F730011
Injector - stereo 76 - manual control models F730091
Injector - stereo 81 - Remote control models F730046
Injector - stereo 82 - slide control models F730077
Burner assembly - complete - manual control TRAYEXCELC
Burner assembly - complete - slide control TRAY087
Burner assembly - complete - remote control TRAY017
10.0 REPLACING THE BATTERIES (RE OTE CONTROL VERSIONS)
10.1 REPLACING THE BATTERIES (SLIDE CONTROL VERSIONS)
Figure 25
GB IE
12.0 INSTALLATION DETAILS
Installer GAS SAFE registration No : Model :
Fire serial No. :
Name & contact details of installer : Supplied by :
Date installed :
