ektor EV-LEDFIRE-III-SM User manual

DRAF
T
1. WELCOME
Installation Instructions
CONTENTS
CODE:1689
CODE:1690
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
Thank you for choosing this quality Ektor product.
This manual is intended to help you install this
product in a way that ensures the safety of yourself
and others. Whilst this Ektor product is designed
to be installed easily, we highly recommend you
take the time to read this manual thoroughly before
commencing installation. When installed correctly
and serviced regularly, this product will provide
hassle free operation for many years.
1689 EV-LEDFIRE-III-SM
1690 EV-LEDFIRE-III-SM-B
1
Welcome
Overview
Safety warnings
Installation
Mounting options
Terminal block wiring
Maintaining your SM Ledfire III luminaire
Replacing the battery
Battery life
Power and battery charge
Wireless daughterboard
Self-test/ standard wiring/ central battery system
DALI wiring/ central battery system
Using the inverter with a switch
Using the inverter with a sensor
Accessories list
Non maintained/ maintained jumper
Discharge rating selection
Self-test indicator LEDs
Self-test/ commissioning interval programming
Product specifications
Australian emergency classification
Spacing table
Construction sites
Testing precautions
Problem solving procedure
Warranty information
Compliance standards
Technical support and troubleshooting
MANUFACTURED
TO ISO9001

SURFACE MOUNT LEDFIRE III EMERGENCY INSTALLATION INSTRUCTIONS
DRAF
T
2. OVERVIEW
Ektor Generation III platform introduces you to a new era of emergency lighting control. With years in the
making, the third generation platform builds on the Ektor product ranges’ increasing quality, reliability and
performance. In choosing this Ektor product you can be comfortable that you have the best.
Out of the box this product can be wired in any of these configurations:
• Self-testing unit
• Standalone unit
• Standalone unit controlled with a switch or sensor
• DALI controlled remote testing unit
And can be used with a central battery system (monitored and non-monitored)
An optional wireless module can be added to allow you to connect to standard Wi-Fi networks for remote
testing and reporting.
Our Ektor Generation III platform also brings class leading technology which increases performance and
reliability including:
• Smart battery charging technology which reduces power consumption up to 90% while
increasing the service life of the battery
• Smart battery conditioning to ensure the best performance from the battery
• 450V Electrolytic capacitors which increase the products reliability
• Highly efficient design to reduce fatigue on the product
For buildings requiring longer durations such as 3, 4 and 8 hours the installer can change the jumpers found
on the unit for automatic scaling of the output. Moreover should you require non-maintained or maintained
output, the installer can select this on installation.
2
3. SAFETY WARNINGS
1. THIS PRODUCT MUST ONLY BE INSTALLED BY A LICENSED ELECTRICIAN.
2. BEFORE COMMENCING INSTALLATION TURN OFF AND ISOLATE THE ELECTRICAL SUPPLY.
3. DO NOT ENERGISE WITH PRODUCT OPEN OR DISASSEMBLED.
4. SUPPLY VOLTAGES WITHIN PRODUCT. ISOLATE SUPPLY VOLTAGES BEFORE OPENING OR SERVICING.
5. THE ONLY USER SERVICEABLE PART IS THE BATTERY PACK.
6. DO NOT ATTEMPT TO SERVICE OTHER PARTS OF THE FITTING AS THIS WILL VOID THE WARRANTY.
7. AS THE INSTALLER, IT IS YOUR RESPONSIBILITY TO ENSURE YOU COMPLY TO ALL RELEVANT BUILDING AND SAFETY
CODES FOR EXAMPLE THE BCA, AS3000. REFER TO APPLICATION STANDARDS FOR THE RELEVANT RULES.
8. WHEN tHE INStALLAtION IS COMPLEtE, LEAVE tHIS MANUAL WItH tHE BUILDING’S OWNER/S FOR FUtURE REFERENCE.

DRAF
T
4. INSTALLATION
The Ektor Surface Mount Ledfire III can be installed either by surface or rod mounting the product.
To install the Surface Mount Ledfire III please follow the steps listed below:
1. Remove the product from the box and inspect it for any damage. If you believe the product to be
damaged or otherwise unsound, DO NOT install the product. Please pack it back into its box and return
it to the place of purchase for replacement. If the product is satisfactory, proceed with the installation.
2. When mounting the Surface Mount Ledfire III the cover MUST be removed. Remove the cover using a
flat blade screwdriver to release the clips and pull the cover upwards as shown below.
3. The cover must also be removed for battery replacement and servicing. All installation options can be
found in the following section of this manual.
NOTE: Ensure the Surface Mount
Ledfire III clips are released with a flat
blade screwdriver before attempting
to remove
Surface Mount
Ledfire III cover
Surface Mount
Ledfire III enclosure
Battery
2
3
Figure 1: Surface Mount Ledfire III disassembly and installation
3

SURFACE MOUNT LEDFIRE III EMERGENCY INSTALLATION INSTRUCTIONS
DRAF
T
M5
TORQUE TO
1.5 NM MAX.
5. MOUNTING OPTIONS
1. Remove the Surface Mount Ledfire III cover as shown in the installation instructions in section 4 (page 3)
of this instruction manual. This will allow the mounting holes to become visible.
2. Mount the Surface Mount Ledfire III by fastening screws securely to a flat surface.
Refer to installation guide (EV-RODMOUNT) included in the rod mount kit. The product and rod MUST BE
dry and clean before assembly to avoid joint contamination.
1. Disassemble the Surface Mount Ledfire III as shown in the installation instructions in section 4 (page 3) of
this manual. This will allow for the rod mount to be assembled to the products top cover.
2. Ensure rod is mounted ONLY on a flat surface and fasten with the appropriate fixing e.g. masonry anchor
for concrete.
3. A 25 tube is to be used, pushed firmly in on both ends and fastened.
SURFACE MOUNT
ROD MOUNT
Figure 2: Surface mount installation
Figure 3: Rod mount installation
NOTE: DO NOT overtighten screws when
mounting the rod mount to the Surface
Mount Ledfire III.
The rod mount is suitable with tubes
ranging from 0-2 metres in length. The
weight on the rod must not exceed 8kg.
M5 Philips screw/
locknut detail
Rod mount
25 tube
4

DRAF
T
6. TERMINAL BLOCK WIRING
8. REPLACING THE BATTERY
7. MAINTAINING YOUR SM LEDIRE III LUMINAIRE
Wiring schematic for the terminal block used with the Surface Mount Ledfire III is illustrated below.
1. Use only the LiFePO4 battery recommended on the label found on the inverter/battery charger pack.
No other battery will work in this fitting, other than the type listed.
2. Access the battery by removing the product cover as shown in section 4 (page 3) of this manual.
3. Disconnect the battery from the product and if necessary, cut cable ties to release the battery from its
mounting position.
4. Replace the battery as was previously installed and then reinstall inverter/battery pack or install as per all
relevant standard requirements.
5. Replace the Surface Mount Ledfire III back into its previously mounted ceiling position and ensure the
green charge light is illuminated. Allow a few minutes for the battery to charge.
6. Allow a minimum 24 hours charging time before carrying out any discharge tests as per the requirements
in AS/NZS 2293, BCA or other relevant standards.
Figure 4: Wiring schematic
The Surface Mount Ledfire III is connected to an unswitched active during normal operating conditions.
When disconnected from the mains supply, the Surface Mount Ledfire III is powered by a LiFePO4 battery
operated inverter. Due to this, care should be taken when replacing the battery.
WARNING
L N L' DA2 DA1
5

SURFACE MOUNT LEDFIRE III EMERGENCY INSTALLATION INSTRUCTIONS
DRAF
T
Charge
current
Max charge current Max charge voltage Savings
Cell voltage
9. BATTERY LIFE
10. POWER AND BATTERY CHARGE
The economic life of the battery installed in this unit is 4 years; it is recommended that the battery is replaced
after this time. To maintain the economic life of this product it is required that the battery be discharged and
recharged at least once every 6 months. The battery life can be reduced if the battery is not discharged as
per the requirements of AS/NZS 2293 or an equivalent standard. Increasing the number of duration tests
above that as defined in AS/NZS 2293 or an equivalent standard can have a positive effect on the battery
performance as long as 12 discharge cycles per year is not exceeded.
The Ektor Generation III platform uses smart battery charging technology which reduces power consumption
and increases battery life.
During the first stage of operation the battery charger charges the battery until full. Afterwards, the unit goes
into a stage which charges the battery periodically. This reduces the battery temperature and reduces the
loss of electrolytes which ultimately increases the service life of the battery.
The smart battery charger also offsets the charging time by a random interval to un-synchronise all the
emergency lighting in the building. This reduces the average loading on a building’s infrastructure and reduces
any impacts of surges created by turning on large numbers of products simultaneously.

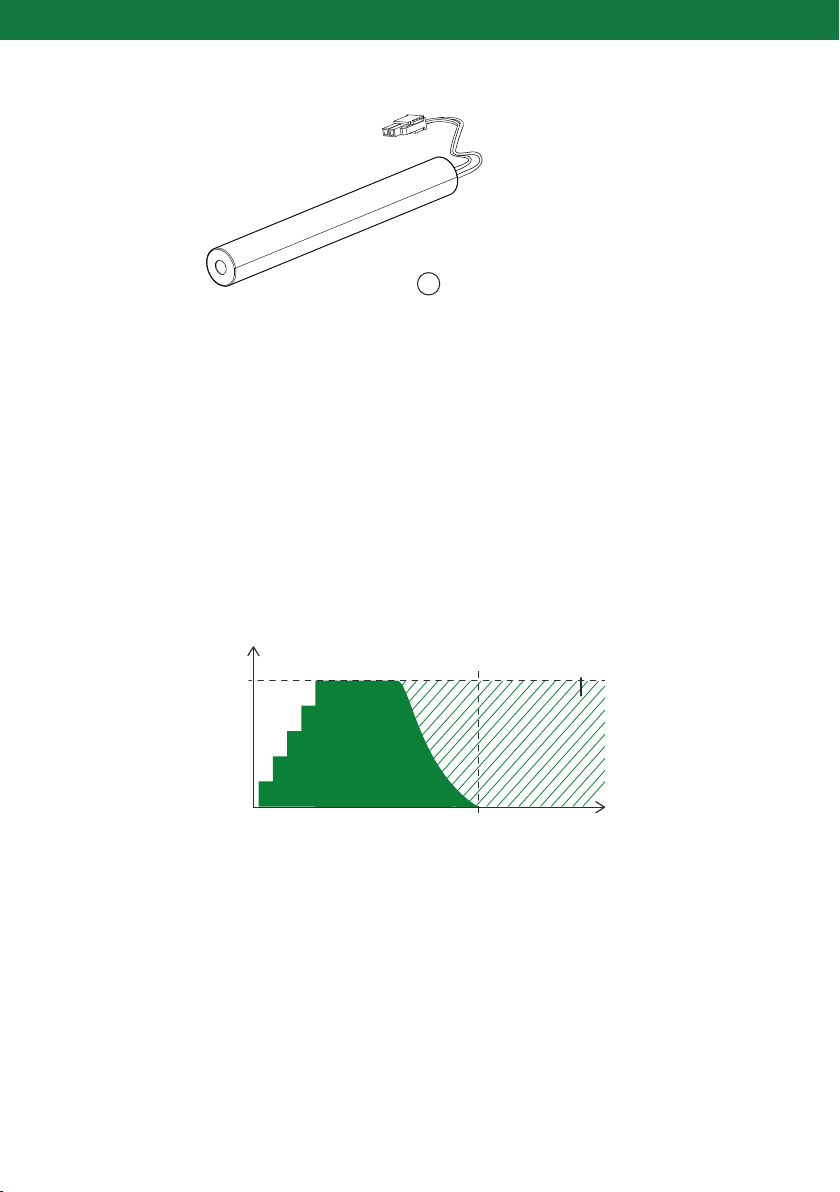

Figure 5: Example of included battery
Figure 6: Smart charge rate
1 x LiFePO4 battery (1303)
KIT INCLUDES:
1
6

DRAF
T
11. WIRELESS DAGHTERBOARD
12. SELF-tESt/ StANDARD WIRING/ CENtRAL BAttERY SYStEM
The Surface Mount Ledfire III inverter supports an optional wireless daughterboard. The driver must be
disconnected from mains and battery must be removed, before installing or changing any expansion module.
More information and a list of other accessories can be found in the Wireless design and installation guide.
The assembly for the Wireless daughterboard onto the inverter is shown below:
The inverter can be used in an automatic self-test mode which reduces the need for a test switch timer.
The self-test ability automatically disables if the unit is wired to DALI or the wireless daughterboard is attached.
Additionally the third generation platform can be wired to a central battery system. With this wiring the system
cannot report the light status (see Self-test support document for more information).

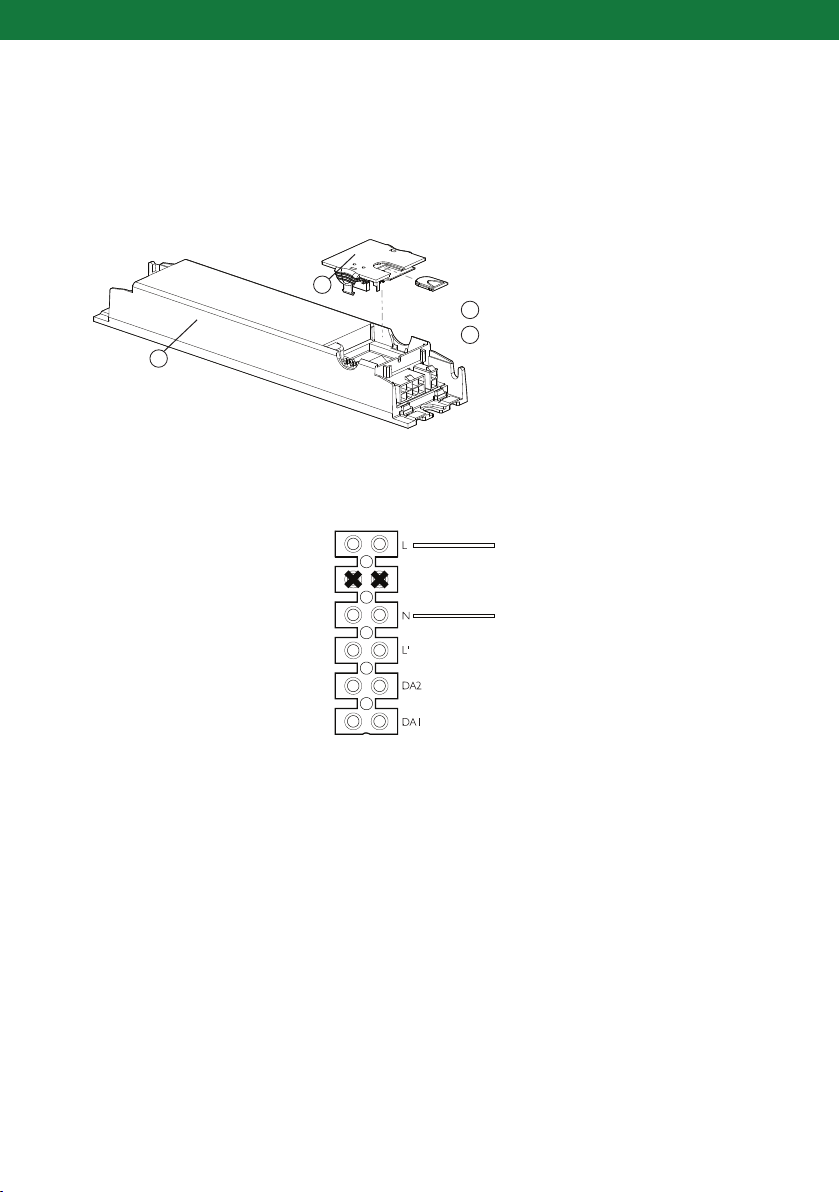

Figure 7: Daughterboard assembly diagram
Figure 8: Inverter standard wiring diagram
7
2
1
Wireless daughterboard (6118)(optional)
Surface Mount Ledfire III inverter (1204, 1207)
1
2
Installer wired
Prewired

SURFACE MOUNT LEDFIRE III EMERGENCY INSTALLATION INSTRUCTIONS
DRAF
T
13. DALI WIRING/ CENtRAL BAttERY SYStEM
14. USING THE INVERTER WITH A SWITCH
15. USING THE INVERTER WITH A SENSOR
The Surface Mount Ledfire III inverter supports DALI out of the box, illustrated in the hardwiring diagram
shown below. The inverter also supports central battery systems and can be monitored through DALI.
When used as a central battery system the devices can be tested with DALI.
A mains rated switch can be wired with this product to turn ON/OFF the non-emergency light in normal use.
This does not affect operation in emergency mode.
A mains rated sensor can be wired with this product to turn ON/OFF the light in normal use. This does not
affect operation in emergency mode.
Figure 9: Inverter DALI wiring diagram
Figure 10: Inverter switch wiring diagram
Figure 11: Inverter sensor wiring diagram
8
Mains rated switch
Mains rated sensor

DRAF
T
16. ACCESSORIES LIST
17. NON MAINtAINED/ MAINtAINED JUMPER
18. DISCHARGE RATING SELECTION
Below are the listings of the accessories and replacements compatible with the Surface Mount Ledfire III.
A user can select the mode of operation for the Surface Mount Ledfire III inverter. If the inverter is using a
switch input this is disregarded and not used.
The inverter supports a number of discharge ratings which can be selected by the user. The output from
the LED scales based on the discharge rating (see section 22 for output classification information).
Figure 12: Maintained/non-maintained jumper
Jumper
Figure 13: Discharge rating selection
Remove expansion cover
C
B
A
PART
HOURS
INDICATOR
CODEEVOLT CODE
A
STATUS
B C
DESCRIPTION
COMPLETE UNITS
Ledfire III Surface Mount (White)
Ledfire III Surface Mount (Black)
1 hour
2 hours (default)
3 hours
4 hours
8 hours
Central battery operation
N/A
N/A
NON MAINTAINED
MAINTAINED MODE
1689
1690
PARTS/REPLACEMENTS
Ledfire III Surface Mount inverter (White)
Battery 3000mAh 6.4V, 2 Cell LiFePO4
Wireless daughterboard
Easy commissioning module - DALI
Easy commissioning module - EKTOR
EV-LEDFIRE-III-SM
EV-LEDFIRE-III-SM-B
OFF
ON
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
OFF
OFF
ON
ON
OFF
OFF
ON
OFF
ON
OFF
OFF
ON
ON
LED is only ON in
emergency
LED is ON in normal and
emergency operation
EV-LEDFIRE-III-SM-INV
EV-3000mAh-6.4V-LiFePO4
EV-WIFI-DAUG
EV-ECM-DALI
EV-ECM-EKTOR
1204
1303
6118
5304
5305
9

SURFACE MOUNT LEDFIRE III EMERGENCY INSTALLATION INSTRUCTIONS
DRAF
T
19. SELF-TEST INDICATOR LEDS
20. SELF-tESt/ COMMISSIONING INtERVAL PROGRAMMING
The table below shows the operation of the Surface Mount Ledfire III status indicators:
The self-test mode must first be enabled to perform tests. This is done by switching the breaker in the correct
sequence as illustrated below. The same sequence can also be used with the test button on a single device.
The test interval is fixed and set to 26 weeks / 182 days. The LEDs indicate the status of the device and which
functions are being performed. For more information refer to the Configurations: Status LEDs and Device
Modes document.
INDICATOR DESCRIPTION
YELLOW
2sec ON / 2sec OFF
YELLOW
4sec ON / 1sec OFF
YELLOW
0.5sec ON / 0.5sec OFF
GREEN
1xFlash
Device is performing a duration test
Last duration test passed. The duration
was met when last run. Test ran less
than five days ago
Last duration test failed. Failed to meet
duration. The device is not currently
running a new test. Mains is on
A duration test is pending. The device
is not in any self-test and set to
normal mode
10
3X SwITCH CyCLES wAIT & REPEAT
WAIT 5 sec.
then repeat the
3X SWITCH CYCLE
NOTE: If the wait in-between breaker or test button push sequences is longer than
30 seconds then it will timeout and the procedure will need to begin again.
5 sec.
OFF ON
OFF ON
OFF ON
5 sec.

DRAF
T
Voltage (V)
Frequency (Hz)
Max. ambient temp.
Battery type
Class
Duration
IP rating
Storage temperature
SURFACE MOUNT LEDFIRE III
Max. power
Viewing distance
Mounting type
Wiring
Battery voltage
Charging time
Charger operation
Charger type
N/A
Surface mounted
Hard wired
6.4V
16 hours
Multi state
Smart charge
230~240V
50Hz
40°C
LiFePO4
2
Dependant on jumper
IP20
0-50°C
7 Watts

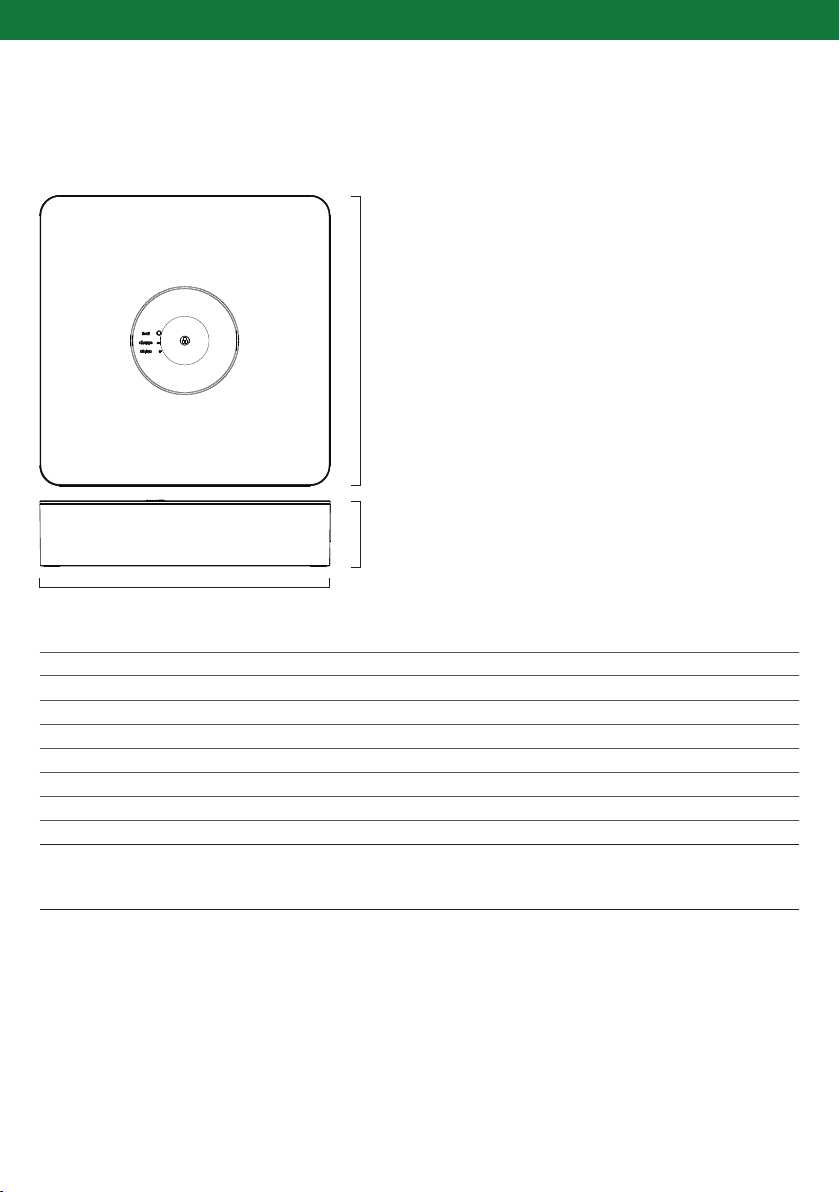

21. PRODUCT SPECIFICATIONS
SURFACE MOUNT LEDFIRE III
230mm
230mm
53mm
11
NOTE: Maximum power consumption in the following configuration: 230VAC 50Hz, 1 hour discharge, maintained mode, charging active.

SURFACE MOUNT LEDFIRE III EMERGENCY INSTALLATION INSTRUCTIONS
DRAF
T
23. SPACING TABLE
22. AUSTRALIAN EMERGENCY CLASSIFICATION
Below is the spacing table extract from AS/NZS 2293 which details spacing between emergency fittings at
different mounting heights.
Classification of the Surface Mount Ledfire III output when duration is selected.
HOURS SURFACE MOUNT LEDFIRE III
1
2
3
4
8
D63
D63
D32
D25
D8
LUMINAIRE
CLASSIFICATION
MOUNTING HEIGHT (M)
2.1 2.4 2.7 3 3.3 3.6 4 4.5 5 6 7 8 9 10 15 20
D8
D25
D32
D63
12
24. CONSTRUCTION SITES
IMPORTANT NOTE: Continuously switching the power supply to the fitting on and off during or after
the installation process due to other processes being conducted on the building site could cause the fitting to
discharge and charge its battery many times during a short period which can impact negatively on the battery
life. It is not recommended that you connect the Ektor emergency products to the power supply if such
conditions are prevalent. If you choose to expose the Ektor emergency products to such harsh operating
conditions, Evolt may not honour any warranty on the life of the batteries or the product enclosure. This Ektor
emergency product is designed to undergo regular discharge tests but it is recommended that the intervals
between consecutive tests are not less than two weeks. Frequent testing of the exit product will reduce the
service life of the battery. In order to prevent damage to the battery, leave the unswitched active circuit turned
off at the circuit breaker until such time as emergency lighting is required
9.4
14.2
15.4
19.4
9.7
14.7
16.1
20.3
9.9
15.3
16.7
21.1
10.1
15.7
17.2
21.8
10.2
16.1
17.6
22.4
10.3
16.5
18.0
23.0
10.4
16.9
18.5
23.7
10.3
17.3
19.1
24.5
10.2
17.7
19.5
25.2
9.5
18.1
20.2
26.4
8.3
18.3
20.6
27.4
6.1
18.2
20.7
28.1
17.9
20.6
28.6
17.3
20.3
28.9
7.7
14.6
28.0 22.5

DRAF
T
13
25. TESTING PRECAUTIONS
When the Ektor emergency product is permanently connected to the mains supply you will need to allow
the battery to have 24 hours to charge. Once the battery is fully charged you will need to conduct a manual
discharge test as per the requirements of AS/NZS 2293 or other relevant standards. At the time of printing,
the Australian standard requires that new fittings operate in emergency mode for at least 2 hours for their
first discharge test. Further tests are to be carried out at intervals of not more than six months. It is important
that you keep records of the initial test and ongoing tests in the building’s emergency service logbook. If the
fitting is not to be permanently connected to the mains supply at the time of installation, you must give it the
mandatory 2 hour test when you connect it permanently to the mains supply.
26. PROBLEM SOLVING PROCEDURE
If you have installed and connected the Ektor Surface Mount Ledfire III as per the instructions contained within
this manual and the product fails to work properly, please use the following table as a guide to fixing the
problem before calling our office.
FAULT POSSIBLE CAUSES
Green LED is not lit
Green LED is lit but the lamp does not light when the test
switch is pressed
Lamp lights, but only temporarily, when test switch is
pressed or when the main power supply is turned off
• AC supply is not connected
• AC supply turned off
• Battery plug not connected to battery pack
• Lamp is damaged
• Lamp is not inserted properly
• Battery pack is damaged
• Battery pack not fully charged
• Battery pack is damaged

SURFACE MOUNT LEDFIRE III EMERGENCY INSTALLATION INSTRUCTIONS
DRAF
T
14
27. WARRANTY INFORMATION
Ektor products are distributed in Australia and New Zealand by Evolt Pty Ltd (Evolt).
The Australian Consumer Law as well as other Australian laws guarantee certain conditions, warranties and
undertakings, and give you other legal rights, in relation to the quality and fitness for purpose of Ektor products
sold in Australia.
In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable
loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable
quality and the failure does not amount to a major failure. What constitutes a major failure is set out in the
Australian Consumer Law.
Nothing in this Warranty purports to modify or exclude the conditions, warranties and undertakings, and other
legal rights, under the Australian Competition and Consumer Act and other Australian laws.
Ektor products are warranted in Australia for a period of 12 months from the date of delivery of the product,
provided that the products are properly stored, installed, used and maintained in accordance with the instructions
contained within their manual.
Products that have been altered in any way or used other than in accordance with their instructions are not
covered by this warranty.
This warranty is not transferrable and is valid only in the hands of the purchaser of the product. The warranty
does not cover Ektor products other than those purchased from Evolt. Proof of purchase must be provided to
Evolt with any warranty claim. Evolt recommends that the purchaser attaches their proof of purchase to their
product manual.
Evolt’s total liability under this warranty is limited to the cost of repair or replacement of the faulty product. Evolt
may satisfy its obligations under this warranty in full by repair or replacement of a faulty product.
This warranty does not apply to consumable items such as lamps or batteries or other items that can be classified
as consumable.
For the avoidance of any doubt, any and all warranties or conditions which are not guaranteed under the
Australian Competition and Consumer Act or the Australian Competition and Consumer Regulations 2010 and
which are not expressly included in this Warranty as additional warranties or conditions are excluded.
This Warranty does not cover loss or damage caused by wear and tear, misuse, incorrect installation or
operation, failure to clean and maintain, incorrect voltage or non-authorised electrical connections, adverse
external conditions (such as power surges and dips, acts of God, exposure to heat, corrosion, insect or vermin
infestation), use of non-authorised or defective parts or globes, or to items that have been repaired other than by
Evolt or a repairer approved by Evolt.

DRAF
T
28. COMPLIANCE STANDARDS
STANDARD TITLE
Australian/ New Zealand
Standards
AS/NZS 2293-3:2005+A1:2010
AS/NZS 60598-2-22:2005
AS 61000.3.2:2007 + A1:2009
AS/NZS CISPR 15:2011
Emergency escape lighting and exit signs for buildings.
Part 3: Emergency escape luminaires and exit signs.
Luminaires Part 2.22: Particular requirements - Luminaires for
emergency lighting (IEC 60598-2-22, Ed. 3.1(2002) MOD).
Electromagnetic compatibility (EMC) - Limits - Limits for
harmonic current emissions (equipment input current
(16 A per phase) (IEC 61000-3-2, Ed.3.0 (2005) MOD).
Limits and methods of measurement of radio disturbance
characteristics of electrical lighting and similar equipment.
European Committee
for Standardisation
EN 60598-1:2008+A11:2009
EN 60598-2-22:1998+A1:2003+A2:2008
EN 55015:2006+A1:2007+A2:2009
EN 61547:2009
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3: 2008
Luminaires - Part 1: General requirements and tests.
Luminaires - Part 2-22: Particular requirements -
Luminaires for emergency lighting.
Limits and methods of measurement of radio disturbance
characteristics of electrical lighting and similar equipment.
Equipment for general lighting purposes - Electromagnetic
compatibility (EMC) immunity requirements.
Electromagnetic compatibility (EMC) Limits. Limits for
harmonic current emissions (equipment input current ≤
16 A per phase).
Electromagnetic compatibility (EMC) - Part 3-3: Limits -
Limitation of voltage changes, voltage fluctuations
and flicker in public low-voltage supply systems, for
equipment with rated current <= 16 A per phase and
not subject to conditional connection.
15
29. TECHNICAL SUPPORT AND TROUBLESHOOTING
For further assistance in using this product, consult your nearest wholesaler or Evolt Pty Ltd. Be aware that
illustrations and images used are for illustration purposes only and, changes may apply to products after the
release of this document.

DRAF
T
Ph: + 612 9502 1161
Fax: + 612 9502 1154
Email: [email protected]
evolt.com.au
Reference: 602893_V2
