Elan STROBE-1000-LED-RGB+W User manual

STROBE-1000-LED-RGB+W
Thank you for purchasing a product from our STROBE-1000-LED-RGB+W. Every suit has
been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton
for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your unit for any damage and be sure all accessories necessary to operate
the unit has arrived intactly. In the case damage has been found or parts are missing, please
contact Acson Comercial or your local supplier for further instructions. Do not return this unit
without any warning.
USER’S MANUAL

2
Contents
FOR YOUR OWN SAFETY, PLEASE READ
THIS USER MANUAL CAREFULLY BEFORE
POWERING OR INSTALLING. SAVE IT FOR
FUTURE REFERENCE
1. Getting Started ......................................................................................................................................3
2. Safety Instructions ...............................................................................................................................4
3. Meet the STROBE-1000-LED-RGB+W Fixture .....................................................................................5
Main Features ................................................................................................................................5
DMX Quick Reference ...................................................................................................................5
The STROBE-1000-LED-RGB+W Pin-Up Picture .........................................................................6
4. Setup.......................................................................................................................................................7
Fuse Replacement..........................................................................................................................7
Connecting A Bunch of STROBE-1000-LED-RGB+W Fixtures .....................................................7
Data/DMX Cabling .........................................................................................................................7
Cable Connectors ..........................................................................................................................7
To build your own DMX Terminator ................................................................................................7
3-Pin / 5-Pin ...................................................................................................................................8
Take It To The Next Level: Setting Up DMX Control .......................................................................8
Fixture Linking (Master/Slave Mode) .............................................................................................8
Mounting & Rigging .......................................................................................................................9
5. Operating Adjustments .........................................................................................................................9
The Control Pane ...........................................................................................................................9
Control Panel Menu Structure ........................................................................................................10
DMX Mode .....................................................................................................................................11
Additional Features ........................................................................................................................12
DMX Values In-Depth ....................................................................................................................13
6. Troubleshooting .....................................................................................................................................16
7. APPENDIX ..............................................................................................................................................16
Tech Specs .................................................................................................................................... 17

3
1. Getting Started
• 1 x STROBE-1000-LED-RGB+W
• 1 x Base Plate
• Safety Cable, An Eyebolt & Set of Mounting Brackets
• Power Cord
• User Manual
Carefully check the shipping carton for damage that may have occurred during shipping. If the carton
appears to be damaged, carefully inspect your unit for damage and be sure all accessories necessary to
operate the unit have arrived intact. In the rare event you find something damaged or missing, please
contact Acson Comercial or your local dealer for further instructions. Please do not return this unit to your
dealer without first contacting customer support.
Powering Up
All fixtures must be powered directly off a switched circuit and cannot be run off a rheostat (variable resistor)
or dimmer circuit, even if the rheostat or dimmer channel is used solely for a 0% to 100% switch.
AC Voltage Switch
Not all fixtures have a voltage select switch, so please verify that the fixture you receive is suitable for
your local power supply. See the label on the fixture or refer to the fixture’s specifications chart for more
information. A fixture’s listed current rating is its average current draw under normal conditions. Check the
fixture or device carefully to make sure that if a voltage selection switch exists that it is set to the correct line
voltage you will use.
Congratulations, you have just purchased one of the most innovative and relia-
ble lighting fixtures on the market today! Please read and understand the instruc-
tions in this manual carefully and thoroughly before attempting to operate this unit,
This manual contains important information regarding safety protocols that must be
strictly adhered to at all times.
Unpacking
Warning!
Verify that the voltage select switch on your unit matches the line voltage applied.
Damage to your fixture may result if the line voltage applied does not match the voltage
indicated on the voltage selector switch. All fixtures must be connected to circuits with a
suitable Ground (Earthing).
!
Getting A Hold Of Us
If something is wrong, please contact your dealer.
Disclaimer: The information and specifications contained in this document are subject to change without
notice. We assumes no responsibility or liability for any errors or omissions that may appear in this user
manual. We reserves the right to update the existing document or to create a new document to correct any
errors or omissions at any time.You can get the latest version of this document from your dealer.

4
2. Safety Instructions
Please read these instructions carefully they include the important information about the installation usage
and maintenance of this products
• Please keep this User Guide for future use. If you sell the unit to someone else, make sure that they
also receive this User Guide.
• ALWAYS make sure that you are connecting to the proper voltage, and that the line voltage you are
connecting to is not higher than that stated on the decal or rear panel of the fixture.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent
surfaces. Be sure that no ventilation slots are blocked.
• ALWAYS disconnect from the power source before servicing or replacing fuse and be sure to replace
with same fuse size and type.
• ALWAYS secure fixture using a safety chain. NEVER carry the fixture by its cord. Use its carrying
handles.
• DO NOT operate at ambient temperatures higher than 104°F (40°C).
• In the event of a serious operating problem, stop using the unit immediately. NEVER try to repair the unit
by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact
the nearest authorized technical assistance center. Always use the same type spare parts.
• NEVER connect the device to a dimmer pack.
• Make sure the power cord is never crimped or damaged.
• Never disconnect the power cord by pulling or tugging on the cord.
• Avoid direct eye exposure to the light source while it is on.
Please note
Certain people with epilepsy and photosensitivity may suffer a seizure if exposed to
flashing or strobe lighting. If strobe lighting is to be used in a production, warnings should
be posted at the front of house or entrance doors to the theater as well as in a program,
if distributed. Example: “WARNING: Strobe lights are used during this performance.”
Caution!
There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself.
In the unlikely event your unit may require service, please call your dealer.
!

5
3. Meet the STROBE-1000-LED-RGB+W Fixture
Main Features
• Super bright output via 1260 0.8w RGBW LEDs
• Intense built-in strobe programs + random strobe
• 2-segment pixel modes can safely be used as
wash (max 40% brightness)
• Built-in over heat protection temperature sensor
to extend the lamp life
• Variable electronic strobe & 16-bit dimmer
• User adjustable flash rate of 0-30 flashes per
second
• Flash duration can be set from 0-650ms in DMX
mode
• 7000Hz LED scan rate
• 4-button easy to use LCD control panel menu
• Aluminum mounting bracket with locking knobs +
base plate
• 3-pin & 5-pin DMX Input/Output
• PowerCon™ compatible AC power In/Out
connectors
DMX Quick Reference (1/3/4/7/8/16-Channel Modes)
DMX Quick Reference (4/8-Channel: Pixel Modes)
Channel Mode Function
1347816
1 1 1 1 1 Master Dimmer (0-100%)
----- ----- ----- 2 2 2 Red segment Intensity (0-100%)
----- ----- ----- 3 3 3 Green segment Intensity (0-100%)
----- ----- ----- 4 4 4 Blue segment Intensity (0-100%)
----- ----- ----- 5 5 5 White segment Intensity(0-100%)
----- 2 2 6 6 6 Flash duration (0-full on)
1 3 3 7 7 7 Strobe rate (0-30Hz)
----- ----- 4 ----- 8 8 Built-In Effects
----- ----- ----- ----- ----- 9 Red1/Segment 1 Intensity (0-100%)
----- ----- ----- ----- ----- 10 Green1/Segment 2 Intensity (0-100%)
----- ----- ----- ----- ----- 11 Blue1/Segment 3 Intensity (0-100%)
----- ----- ----- ----- ----- 12 White1/Segment 4 Intensity (0-100%)
----- ----- ----- ----- ----- 13 Red2/Segment 5 Intensity (0-100%)
----- ----- ----- ----- ----- 14 Green2/Segment 6 Intensity (0-100%)
----- ----- ----- ----- ----- 15 Blue2/Segment 7 Intensity (0-100%)
----- ----- ----- ----- ----- 16 White2/Segment 8 Intensity (0-100%)
4-Channel Pixel Mode 8-Channel Pixel Mode
1 Red Segment Intensity (0-100%) Red1 Intensity (0-100%)
2 Green Segment Intensity (0-100%) Green1 Intensity (0-100%)
3 Blue Segment Intensity (0-100%) Blue1 Intensity (0-100%)
4 White Segment Intensity (0-100%) White1 Intensity (0-100%)
5 Red2 Intensity (0-100%)
6 Green2 Intensity (0-100%)
7 Blue2 Intensity (0-100%)
8 White2 Intensity (0-100%)

6

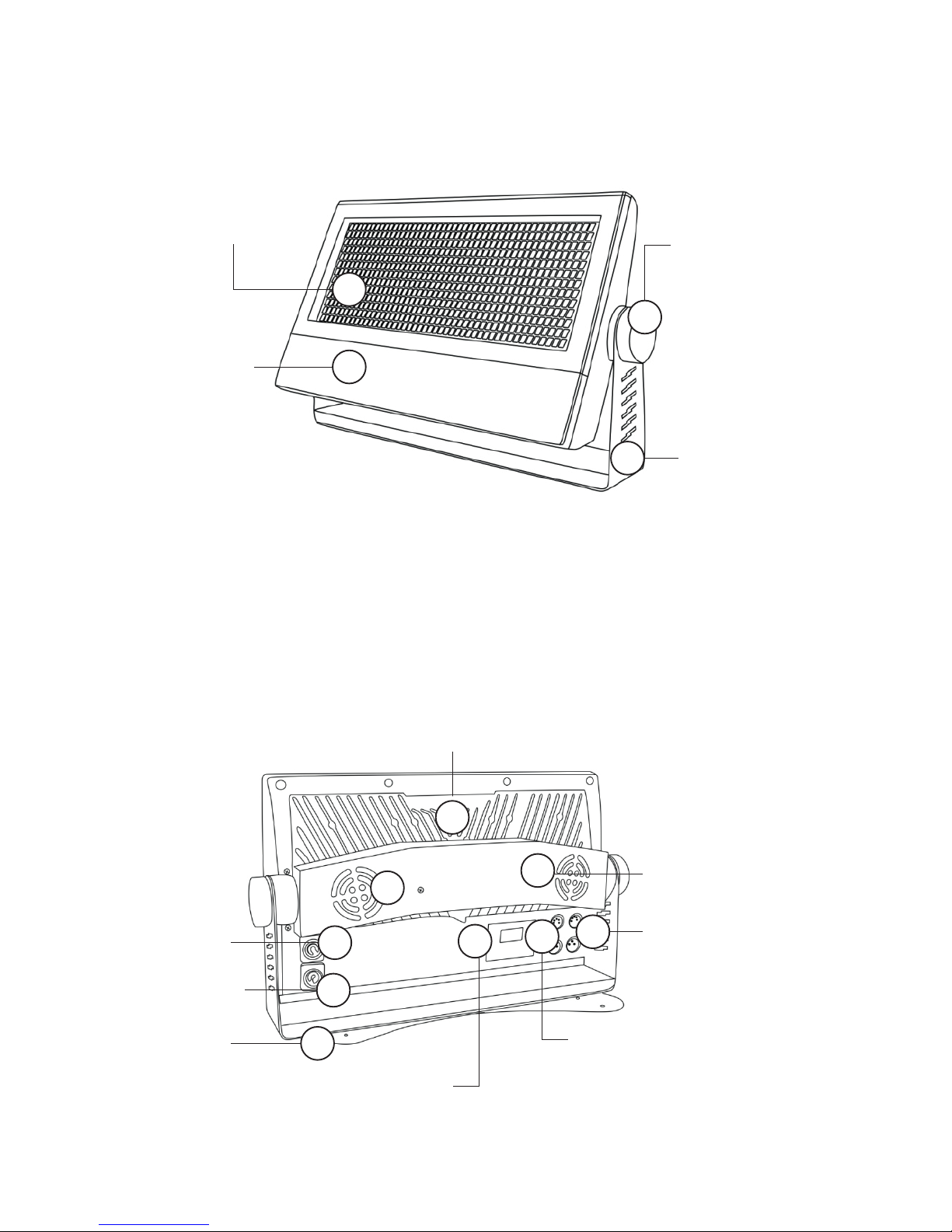

Figure 1: The STROBE-1000-LED-RGB+W Pin-Up Picture
Figure 2: The Rear Connections
1
2
4
3
2
2
1
6
5
4
7
3
1. 1260pcs Bright LEDs
3. Durable Cast
Aluminum Housing
2. Locking Knobs
4. Mounting Bracket
2. Cooling Fans
6. 3/5-Pin DMX512 Out
5. 3/5-Pin
DMX512 In
4. Easy-To-Use
4-Button LCD
Control Panel
8. Stand Plate
7. AC Power Out
3. AC Power In
1. Natural Convection
Heat Sink Cooling
8

7
4. Setup
Before replacing a fuse, disconnect power cord,
Always replace with the same type and rating of fuse.
!
Fuse Replacement
CAUTION! The STROBE-1000-LED-RGB+W utilizes a high-output switch-mode power supply with an
internal fuse. Under normal operating conditions, the fuse should not require replacement. The fuse is field
replaceable,however it is an advanced procedure suited to qualified individuals. Should your STROBE-1000-
LED-RGB+W fuse require replacement, please contact your dealer for instructions.
Connecting A Bunch of STROBE-1000-LED-RGB+W Fixtures
Follow the guide below to properly link fixtures. Power the first fixture in the chain with a standard cable (pro-
vided with fixture). Then jump each subsequent fixture with a properly rated jumper cable. WARNING: DO
NOT POWER LINK MORE THAN (2) FIXTURES IN ONE SINGLE CHAIN, ELECTRICALOVERLOAD MAY
OCCUR.
Data/DMX Cabling
To link fixtures together you’ll need data cables.You should use data grade cables that can carry a high qua-
lity signal and are less prone to electromagnetic interference. Standard microphone cables will “probably” be
OK, but note that they cannot transmit DMX data as reliably over long distances.
In any event, the cable should have the following characteristics:
• 2-conductor twisted pair plus a shield
• Maximum capacitance between conductors – 30 pF/ft.
• Maximum capacitance between conductor & shield – 55 pF/ft.
• Maximum resistance of 20 ohms / 1000 ft.
• Nominal impedance 100 – 140 ohms
To build your own
DMX Terminator:
Obtain a 120-ohm, 1/4-watt resistor,
and wire it between pins 2 & 3 of
the last fixture. They are also readi-
ly available from specialty retailers
Cable Connectors
Cables must have a male XLR
connector on one end and a female
XLR connector on the other end.
A Word on Termination
DMX is a resilient communication pro-
tocol, however errors still occasiona-
lly occur. Termination reduces signal
errors, and therefore best practices
include use of terminator in all circum-
stances. If you experiencing problems
with erratic fixture behavior, especia-
lly over long cable runs, a terminator
may help improve performance.
CAUTION: Do not allow contact between the common and the fixture’s chassis ground. Grounding the com-
mon can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to
verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

8
3-Pin / 5-Pin
If you use a controller with a 5 pin DMX output connector, you will need to use a 5 pin to 3 pin adapter. They
are widely available over the internet and from specialty retailers If you’d like to build your own, the chart
below details a proper cable conversion:
Take It To The Next Level: Setting Up DMX Control
• Step 1: Connect the male connector of the DMX cable to the female connector (output) on the controller
• Step 2: Connect the female connector of the DMX cable to the first fixture’s male connector (input).
Note: It doesn’t matter which fixture address is the first one connected.We recommend connecting the
fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first,
and so on.
• Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on
the output of the final fixture to ensure best communication.
Fixture Linking (Master/Slave Mode)
1. Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin connector of the
first fixture.
2. Connect the end of the cable coming from the first fixture which will have a (female) 3 pin connector to
the input connector of the next fixture consisting of a (male) 3 pin connector. Then, proceed to connect
from the output as stated above to the input of the following fixture and so on.
Conductor 3-Pin Female(Output) 5-Pin Male(Input)
Ground/Shield Pin 1 Pin 1
DMX Data (-) Pin 2 Pin 2
DMX Data (+) Pin 3 Pin 3
Not Used. No Connection. No Connection
Not Used. No Connection No Connection
DMX IN
DMX IN
DMX OUT
First Fixture in
Chain
Next Fixture
in Chain
T
o Next Fixture

9
Mounting & Rigging
This fixture can be mounted in any orientation (vertical, horizontal). Always make sure there is adequate
ventilation and no flammable surfaces within 2 feet (.6 meters) of the fixture. You can mount the fixture using
fixture clamps or with threaded bolt type hardware. Always install the included safety eyebolt and cable
when mounting in overhead or wall locations.
The Control Panel
All the goodies and different modes possible with the STROBE-1000-LED-RGB+W are accessed by using
the control panel on the front of the fixture. There are 4 control buttons below the LCD display which allow
you to navigate through the various control panel menus.
DMX IN
DMX IN
DMX OUT
First Fixture in
Chain
Next Fixture
in Chain
DMX out
T
o Next Fixture
A quick note:
Often, the setup for Master-Slave and Stan-
dalone operation requires that the first fixture
in the chain be initialized for this purpose via
either settings in the control panel or DIP-swit-
ches. Secondarily, the fixtures that follow may
also require a slave setting.
Check the “Operating Adjustments” section in
this manual for complete instructions for this
type of setup and configuration
Warning
Do not mount the fixture in the ventilation path of a nearby
heating supply duct. The heated airflow will cause fixture
failure due to overheating
!
5. Operating Adjustments
LED STROBE
ESC
DOWN
UP
ENTER
Button Function
<ESC> Used to access the menu or return to a previous
menu option
<DOWN> Scrolls through menu options in descending
order
<UP> Scrolls through menu options in ascending order
<ENTER> Used to store the current menu or option within a
menu

10
The LCD control panel display shows the menu items you select from the menu map on page
#10. When a menu function is selected, the display will show immediately the first available op-
tion for the selected menu function. To select a menu item, press <ENTER>.
To navigate through the LCD control panel, use the <UP/DOWN> buttons to scroll through
the menu options. Press the <ENTER> button, then use the <UP/DOWN> buttons to view any
sub-menu options. Press <ESC> to continue without saving, or press <ENTER> button,
then the <ESC> to save and return to the previous menu item.
Control Panel Menu Structure
Menu Sub-menu
Address Set DMX Address 001-512
Auto
Mode 1 Auto Mode 1
Mode 2 Auto Mode 2
Mode 3 Auto Mode 3
Mode 4 Auto Mode 4
Mode 5 Auto Mode 5
Mode 6 Auto Mode 6
Speed 000-031 Auto Run Speed
Test LED
All on All On + Individual LED Segment
Testing
Red on
Green on
Blue on
White on
Red 1 on
Red 2 on
Green 1 on
Green 2 on
Blue 1 on
Blue 2 on
White 1 on
White 2 on
Fade on
Temp <ENTER> Internal Temperature
Time <ENTER> Total Run Time
Config
DMX Status
Value Hold
Holds the last DMX values if signal
is lost
Value Clear
Clears the DMX values if signal is
lost
Display Mode LCD Display ON or Auto OFF
Temp Unit CS Celsius degree and Fahrenheit
degree for selection
Channel Mode Channel 1 (1ch DMX mode)
Channel 3 (3ch DMX mode)

11
Control Panel Menu Structure
Config
Channel Mode
Channel 4 (4ch DMX mode)
Channel 7 (7ch DMX mode)
Channel 8 (8ch DMX mode)
Channel 16 (16ch DMX mode)
Pixel 4 (4ch DMX pixel control)
Pixel 8 (8ch DMX pixel control)
Key Mode
Key Lock
Menu buttons lock after 30sec of
inactivity (push more than once to
temporarily unlock buttons).
Key Unlock
Menu buttons are not locked.
Load Default Load Default Resets all values to
default
DMX Mode
Allows the unit to be controlled by any universal DMX controller.
Set the Starting DMX Address:
The default mode for the fixture is DMX, so the first menu item that you can edit is the starting DMX ad-
dress.
1. Press the <UP/DOWN> buttons until you reach Address.
2. Push the <ENTER> button.
3. Use the <UP/DOWN> buttons to select a channel from 001-512.
4. Press the <ENTER> button to confirm.
5. Press the <ESC> button to return to the main menu.
Select the DMX Channel Mode:
1. Press the <UP/DOWN> buttons until you reach Config.
2. Push the <ENTER> button.
3. Using the <UP/DOWN> buttons, highlight DMX Mode, then press <ENTER>.
4. Use the <UP/DOWN> buttons to select 1, 3, 4, 7, 8, 16, or 4/8 pixel modes.
5. Press <ENTER>, and then press the <ESC> button until you reach the Address screen.
Master/Slave Mode:
1. Disconnect fixture(s) from any DMX signal source.
2. Set each fixture to matching DMX modes.
3. Connect all fixtures together via DMX. The first fixture in the DMX chain will be the master, followed by
the slave fixtures.
4. Connect DMX controller to the master unit for DMX control.
Load Default Settings:
1. Press the <UP/DOWN> buttons until you reach Load Default.
2. Push the <ENTER> button.
Auto & Standalone Modes:
Allows a single or Master/Slaved units to run factory installed programs at user selectable speeds.

12
Auto Mode:
1. Press the <UP/DOWN> buttons until you reach Auto.
2. Push the <ENTER> button.
3. Use the <UP/DOWN> buttons to select from Mode 1 to Mode 6.
4. Press the <ENTER> button to confirm.
Auto Program Speed:
1. Press the <UP/DOWN> buttons until you reach Speed.
2. Push the <ENTER> button.
3. Use the <UP/DOWN> buttons to select from 000-031.
4. Press the <ENTER> button to confirm.
Additional Features:
Never thought you would ever see so many nifty neato features in a strobe light did you?
Temperature:
IMPORTANT - Brightness will decrease when the LED temperature rises over 55ºC. If a temperature of
+70ºC is reached, the overheat protection sensor will activate, initiating blackout until a safe temperature is
reached. It’s highly recommended to not use the LEDs at full strobe brightness for longer than a 1 minute
period. You can safely use the fixture as a normal wash in 4/8 pixel modes which are programmed to achie-
ve a max of 40% strobe brightness.
1. Press the <UP/DOWN> buttons until you reach Temp.
2. Push the <ENTER> button.
3. The display will show the current temperature in Celsius degrees.
Signal Loss Settings:
In the event of DMX signal loss, you can set the fixture to either hold its last
received DMX signal values, or clear them.
1. Press the <UP/DOWN> buttons until you reach Config.
2. Push the <ENTER> button.
3. Using the <UP/DOWN> buttons, navigate to DMX Status, then press the <ENTER> button.
4. Use the <UP/DOWN> buttons to select either Value Hold, or Value Clear.
5. Press the <ENTER> button to confirm.
LCD Display On/Auto Off:
Display mode On will keep the LCD illuminated continually, Auto will shut the display
off after 30 seconds of inactivity.
1. Press the <UP/DOWN> buttons until you reach Config.
2. Push the <ENTER> button, and navigate to Display Mode.
3. Push the <ENTER> button, then select either On or Auto, and press the <ENTER> button.
Key (Button) Protection Mode:
With Key Lock active, buttons will be unresponsive to any initial button press after
30 seconds of inactivity. Temporary unlock will occur with more than 1 button
press. To disable this feature, activate Key Unlock.
1. Press the <UP/DOWN> buttons until you reach Config.
2. Push the <ENTER> button.
3. Press the <UP/DOWN> buttons until you reach Key Mode, then press<ENTER>.
4. Use the <UP/DOWN> buttons to select either Key Lock, or Key Unlock, and press the <ENTER> button.
Temp Unit CS
1. Press the <UP/DOWN> buttons until you reach Config.
2. Push the <ENTER> button, and navigate to Temp Unit CS

13
DMX Values In-Depth (16-Channel Mode)
Ch. Value Function
1 000 <--> 255 Master Dimmer (0-100%)
2 000 <--> 255 Red segment Intensity (0-100%)
3 000 <--> 255 Green segment Intensity (0-100%)
4 000 <--> 255 Blue segment Intensity (0-100%)
5 000 <--> 255 White segment Intensity(0-100%)
6 000 <--> 255 Flash duration (0-full on)
7 000 <--> 255 Strobe rate (0-30Hz)
8
000 <--> 005
Built-In Programs
No function
006 <--> 042 Ramp up effect (slow <--> fast)
043 <--> 085 Ramp down effect (slow <--> fast)
086 <--> 128 Ramp up-down effect (slow <-->
fast)
129 <--> 171 Random effect (slow <--> fast)
172 <--> 214 Lightning effect (slow <--> fast)
215 <--> 255 Spike effect
9 000 <--> 255 Red1/Segment 1 Intensity (0-
100%)
10 000 <--> 255 Green1/Segment 2 Intensity (0-
100%)
11 000 <--> 255 Blue1/Segment 3 Intensity (0-
100%)
12 000 <--> 255 White1/Segment 4 Intensity (0-
100%)
13 000 <--> 255 Red2/Segment 5 Intensity (0-
100%)
14 000 <--> 255 Green2/Segment 6 Intensity (0-
100%)
15 000 <--> 255 Blue2/Segment 7 Intensity (0-
100%)
16 000 <--> 255 White2/Segment 8 Intensity (0-
100%)
3. Using the <UP/DOWN> buttons to select Celsius degree or Fahrenheit degree
Test Mode:
1. Press the <UP/DOWN> buttons until you reach Test LED.
2. Push the <ENTER> button.
3. Now, you can choose to test all of the LEDs at once, or individually test each of its 9 segments. Use the
<UP/DOWN> buttons to navigate, and press the <ENTER> to confirm.

14
DMX Values In-Depth (8-Channel Mode)
DMX Values In-Depth (7-Channel Mode)
DMX Values In-Depth (4-Channel Mode)
Ch. Value Function
1 000 <--> 255 Master Dimmer (0-100%)
2 000 <--> 255 Red segment Intensity (0-100%)
3 000 <--> 255 Green segment Intensity (0-100%)
4 000 <--> 255 Blue segment Intensity (0-100%)
5 000 <--> 255 White segment Intensity(0-100%)
6 000 <--> 255 Flash duration (0-full on)
7 000 <--> 255 Strobe rate (0-30Hz)
8
000 <--> 005
Built-In Programs
No function
006 <--> 042 Ramp up effect (slow <--> fast)
043 <--> 085 Ramp down effect (slow <--> fast)
086 <--> 128 Ramp up-down effect (slow <-->
fast)
129 <--> 171 Random effect (slow <--> fast)
172 <--> 214 Lightning effect (slow <--> fast)
215 <--> 255 Spike effect
Ch. Value Function
1 000 <--> 255 Master Dimmer (0-100%)
2 000 <--> 255 Red segment Intensity (0-100%)
3 000 <--> 255 Green segment Intensity (0-100%)
4 000 <--> 255 Blue segment Intensity (0-100%)
5 000 <--> 255 White segment Intensity(0-100%)
6 000 <--> 255 Flash duration (0-full on)
7 000 <--> 255 Strobe rate (0-30Hz)
Ch. Value Function
1 000 <--> 255 Dimmer (0% <--> 100%)
2 000 <--> 255 Flash Duration (0% <--> 100%)
3 000 <--> 255 Strobe Rate (0-30Hz)
4
000 <--> 005
Built-In Programs
No function
006 <--> 042 Ramp up effect (slow <--> fast)
043 <--> 085 Ramp down effect (slow <-->
fast)
086 <--> 128 Ramp up-down effect (slow <-->
fast)
129 <--> 171 Random effect (slow <--> fast)
172 <--> 214 Lightning effect (slow <--> fast)
215 <--> 255 Spike effect

15
DMX Values In-Depth (7-Channel Mode)
DMX Values In-Depth (1-Channel Mode)
DMX Values In-Depth (4-Channel Pixel Mode)
Ch. Value Function
1 000 <--> 255 Dimmer (0% <--> 100%)
2 000 <--> 255 Flash Duration (0% <--> 100%)
3 000 <--> 255 Strobe Rate (0-30Hz)
Ch. Value Function
1 000 <--> 255 Dimmer (0% <--> 100%)
Ch. Value Function
1000 <--> 021 No Function
022 <--> 255 Red/Segment Intensity (0% <--> 100%)
2000 <--> 021 No Function
022 <--> 255 Green/Segment Intensity (0% <--> 100%)
3000 <--> 021 No Function
022 <--> 255 Blue/Segment Intensity (0% <--> 100%)
4000 <--> 021 No Function
022 <--> 255 White/Segment Intensity (0% <--> 100%)
DMX Values In-Depth (8-Channel Pixel Mode)
Ch. Value Function
1000 <--> 021 No Function
022 <--> 255 Red/Segment 1 Intensity (0% <--> 100%)
2000 <--> 021 No Function
022 <--> 255 Green/Segment 1 Intensity (0% <--> 100%)
3000 <--> 021 No Function
022 <--> 255 Blue/Segment 1 Intensity (0% <--> 100%)
4000 <--> 021 No Function
022 <--> 255 White/Segment 1 Intensity (0% <--> 100%)
5000 <--> 021 No Function
022 <--> 255 Red/Segment 2 Intensity (0% <--> 100%)
6 000 <--> 021 No Function
022 <--> 255 Green/Segment 2 Intensity (0% <--> 100%)
7000 <--> 021 No Function
022 <--> 255 Blue/Segment 2 Intensity (0% <--> 100%)
8000 <--> 021 No Function
022 <--> 255 White/Segment 2 Intensity (0% <--> 100%)

16
6. Troubleshooting
7. APPENDIX
Symptom Solution
Fixture Auto-
Shut Off
If it is stopped or dimmer than normal, the unit may
have shut itself off due to high heat. This is to protect
the fixture from overheating.
No Light Output Check to ensure fixture is operating under correct
mode, IE sound active/auto/DMX/Etc., if applicable.
Chase Speed
Too Fast/Slow Check to ensure proper setup of speed adjustment.
No Power Check fuse, AC cord and circuit for malfunction.
Blown Fuse
Check AC cord and circuit for damage, verify that mo-
ving parts are not restricted and that unit’s ventilation
is not obstructed
Slow Movement Check that speed channels are set appropriately.
Fixture Not Responding / Responding Erratically
Make sure all connectors are seated properly and se-
curely. Use Only DMX Cables and/or check cables for
defects. Install a Terminator. Reset fixture(s).
Fixture Moving
On Its Own
Verify proper mode of operation. Is the fixture in “Auto”
mode?
Always disconnect power before cleaning never remove
the ground prong from power cord never spin a fan with
compressed air,
This can damage components in your fixture
!
Your fixture will require regular cleaning to prevent a build up of dust and smoke debris on the optics and
housing. After disconnection of power, wipe down the fixture with a damp cloth. Never use alcohol or sol-
vents as this may damage the finish. Use glass cleaner for glass surfaces such as external lens or mirrors.
A dry paint brush is an excellent tool to remove surface dust.
Be sure to periodically check for loose parts that could damage the fixture or potentially allow the fixture to
cause injury. Make sure all overhead and wall installations have a secondary safety device installed such
as a safety cable rated for your fixture type and size. Check the power cord as well, make sure there is no
damage that could cause electrical shock, never remove the ground prong.
There are no user-servicable parts in this fixture. Do not attempt to open and repair this fixture. Return to the
factory for repair

17
Power
Operating Voltage 220-240VAC 50/60Hz
Power Consumption 800W Max, 5A, pf: .75
Light Source
LED 630RGB LEDs，630 white leds, 50,000 hrs.
Optical
Beam Angle 140 degree
Luminous 38,000 lm
Thermal
Max.Operating Temp. 104 degrees F (40 degrees C) ambient
Control
Protocol USITT DMX-512
DMX Channels 1/3/4/7/8/16 Channels
Input 3/5-pin XLR Male
Output 3/5-pin XLR Female
Operating Modes Standalone, Master/Slave, Auto Mode
Other Information
A lot of things look cooler in slow motion. Eating isn’t one of them.
Tech Specs

Note: All information is subject to change without prior notice.
IMPORTANT INFORMATION!
In order to optimize the recovery and recycling of the materials that old appliances contain
and reduce the impact on human health and the environment, please make sure that this
product is recycled at the end of its life.
Importer:
ACSON COMERCIAL
C/Pallars, 405
08019 Barcelona
www.acson.com
[email protected]
