INTRODUCTION: Congratulations, you have just purchased one of the most
innovative and reliable lighting fixtures on the market today! The Power Wash 575E™,
has been designed to perform reliably for years when the guidelines in this booklet are
followed. Please read and understand the instructions in this manual carefully and
thoroughly before attempting to operate this unit. These instructions contain
important information regarding safety during use and maintenance.
UNPACKING: Thank you for purchasing the Power Wash 575E™ by Elation
Professional®. Every Power Wash 575E™ has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears to be
damaged, carefully inspect your unit for damage and be sure all accessories
necessary to operate the unit have arrived intact. In the event damage has been found
or parts are missing, please contact our customer support team for further
instructions. Please do not return this unit to your dealer without first contacting
customer support at the number listed below.
CUSTOMER SUPPORT: Elation Professional® provides a customer support line, to
provide set up help and to answer any question should you encounter problems
during your set up or initial operation. You may also visit us on the web at
www.elationlighting.com for any comments or suggestions. For service related issue
please contact Elation Professional®. Service Hours are Monday through Friday 9:00
a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Forum: www.ElationLighting.com/forum/
Warning!To prevent or reduce the risk of electrical shock or fire, do not expose this
unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any
repairs yourself, doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever
possible.

Elation Lighting www.elationlighting.com 6
WARRANTY REGISTRATION:The Power Wash 575E™ carries a two year (730
days) limited warranty. Please fill out the enclosed warranty card to validate your
purchase. All returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.) number. The R.A. number must
be clearly written on the outside of the return package. A brief description of the
problem as well as the R.A. number must also be written down on a piece of paper
and included in the shipping container. If the unit is under warranty, you must provide
a copy of your proof of purchase invoice. Items returned without a R.A. number clearly
marked on the outside of the package will be refused and returned at cutomers
exspence. You may obtain a R.A. number by contacting customer support at (323)
582-3322.

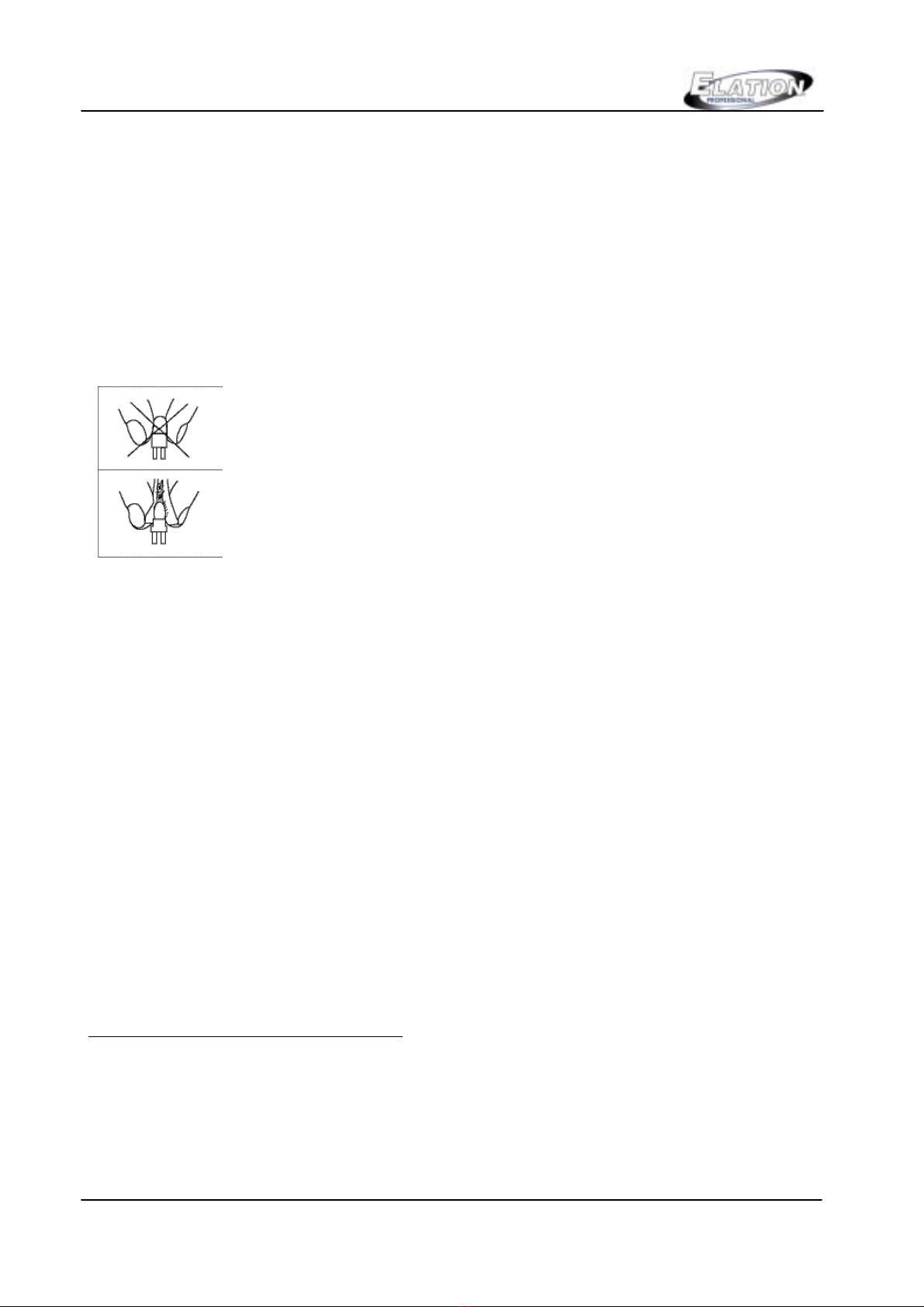

D IS CHAR GE LAMP WAR NING:This fixture is fitted with a
discharge lamp, which is highly susceptible to damage if
improperly handled. Never touch the lamp with your bare hands, as
the oil from your hands will shorten lamp life. Also, never move the
fixture until the lamps have had ample time to cool. Remember,
lamps are not covered under warranty conditions.
This fixture emits intense UV radiation, which is harmful to the eyes and skin. The
intense luminance of the lamp can cause severe damage to the retina. Never operate
this fixture with the protective covers removed, these covers have been specially
designed to shield against UV radiation.
Epileptic Warning: Those suffering from epilepsy should avoid looking directly into
the lamp at all times.
Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce
lamp life and intensity.
To achieve the intensity associated with discharge lamps, these lamps use a gas
sealed in a high-pressure environment to emit a brilliant output. Due to the high
pressure involved with the construction of the lamp, the lamp may explode during
prolonged extensive use. This risk is increased with age; added care is encouraged
when dealing with older lamps. Thus, lamp should always be replaced at the end of
their recommended duty cycle. Extreme caution should be used when operated this or
any fixture fitted with a gas discharge lamp.
Never open this fixture while in use!
During the initial operation of this fixture, a light smoke or smell may emit from the
interior of the fixture. This is a normal process and is caused by excess paint in the
interior of the casing burning off from the heat associated with the lamp.

Elation Lighting www.elationlighting.com 7
1 Description of Device
1
2
3
4
5
1. Moving Head
2. Carrying handles
3. LED- Display
4. Arm
5. Camlock system
MaxMin
DMX IN DMX OUT
Software Update
1.Ground
2.Data -
3.Data +
Mic Sensitivity
6
7
8 9
10
15
6. Software-Update
connector
7. Microphone- Intensity
8. DMX- Input
9. DMX- Output
10. Fan (air inlet/outlet)
11. Power On/Off
12. Mains supply
(Powercon)
13. Fuse lamp
14. Fuse electronics
15. Carrying handles
Lamp Fuse Electronic Fuse
Power input:90 - 260VAC,
50 / 60Hz POWER
10
11
12
13 14
15

Elation Lighting www.elationlighting.com 8
1.1 Safety Instructions
The POWER WASH 575E
POWER WASH 575E is a High-Tech Product. To
guarantee a smooth operation, it is necessary to keep
following rules.
The manufacturer of this device will not take responsibility of
damages through disregard of the information in this manual.
Warranty adjustments will be cancelled.
1. Make sure before putting into operation, that the fan and the air inlets are
clean and not blocked by anything.
2. Attention: Don’t touch the device during the operation. This can cause
injuries or damages.
3. Unplug the POWER
POWER WASH WASH 575E 575E from the AC outlet before any
attempting any service.
4. It is necessary to wait at least 30 minutes after disconnecting the AC before
you open the POWER WASH
POWER WASH 575E 575E. Please do not touch the bulb of the
lamp if you are not absolutely sure it is cold. -- Danger of BURNING --
5. Never look directly into the beam of the lamp. You risk injury of your retina
and blindness.
6. Pay attention of the maximum lamp operation time. You have to change it if
the lamp shows any deformations or damages. The same is with all glass
components, color filters, lenses and mirrors.
7. To allow a secure operation, follow also the Installation guide described in
chapter 2. Operating the POWER WASH 575E
POWER WASH 575E without suited safety aids
like Safety cables or clamps/hooks can increase the risk of an accident.
8. Installation should be done by qualified staff only. You need to pay attention
to the common rules of technology that are not explicitly mentioned in this
manual.
9. Use only original spare parts. Any structural modification will cancel all
warranty adjustments.

Elation Lighting www.elationlighting.com 9
2 Preparation and Installation
2.1 Mounting
The POWER
POWER WASH WASH 575E 575E is fully operational whether it hangs or is mounted
to the wall. It can also be operated while standing on the floor. Keep a safety
distance of 0.5 m towards any easy inflammable materials (decoration etc.).
Install a safety wire that can hold at least 10 times the weight of the fixture. Never
use the carrying handles for secondary attachment.
Pay attention to the regulations of: BGV C1 (former VBG 70) and
DIN VDE 0711-217 !
The installation should be done by qualified staff only.
2.1.1 Clamps
There are two major possibilities to mount the POWER
POWER WASH WASH 575E 575E
together with clamps. Camlock system or direct mounting of clamps. In
both cases you have to regard a sufficient stability of the system. For
installation instructions please see also printing on the backside of the
case.

Elation Lighting www.elationlighting.com 10

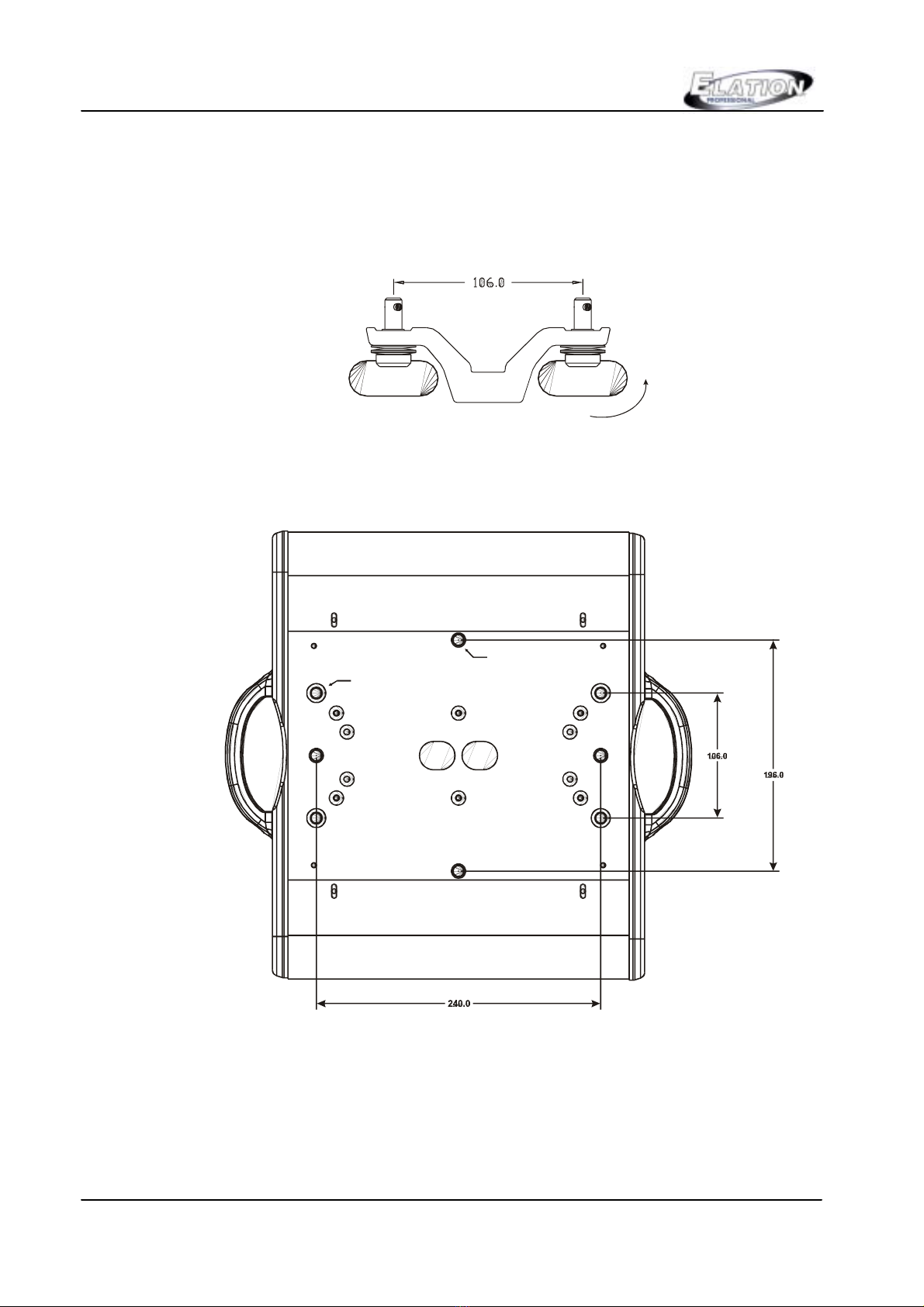

a) Camlock system: This system allows you a fast and efficient setup of
clamps. Attach the two camlocks to designated position on the
backside of the case and close the locks by turning them 90°. Verify
the secure fit of the camlock system. The clamps themselves are
directly attached permanently on the camlocks.
90°
b) Use two clamps direct on the backside of the POWER
POWER WASH WASH 575E 575E
to mount the unit on a truss (each two opposite threads max. M10x20).
4x M10x20mm
4x Camlock
2.2 Secure the POWER WASH 575E
POWER WASH 575E
Regardless of the rigging of the POWER
POWER WASH WASH 575E 575E you have to use a
stipulated safety wire. Therefore you have to thread to safety wire through to two
provided holes on the backside of the fixture and connect it with the truss-
support. Pay attention to a safe and proper fastening.

Elation Lighting www.elationlighting.com 11
2.3 Connections
2.3.1 Power supply
Electronic ballast with:
~90 - 260 Volt, 50 - 60 Hz, earth contact type plug - Powercon
Connected load 780W <=> 3.8 A (blind current compensation).
Please see printing on the case for the right electronic supply!
2.3.2 DMX
DMX 512 Standard input/output. See also printing on the case for the right
pin assignment.
[+] = Pin 3 / [-] = Pin 2 / [Ground] = Pin 1
The DMX- Addressing starts at the DMX- Address [001].
2.4 Fuse
The POWER WASH 575E
POWER WASH 575E electronic system is protected by two 5x20 mm fine-
wire fuses.
Lamp: 230V / T 5A
Electronic: 230V / T 1A
Please see the printing on the POWER WASH 575E
POWER WASH 575E casing for more details.
Attention:
•Disconnect AC outlet before changing a fuse!
•Use only the original declared fuse type!

Elation Lighting www.elationlighting.com 12
3 The Menu Field
You’ll find the control board on the side part of the base. It allows you to
make all necessary adjustments of the POWER
POWER WASH WASH 575E. 575E. With the
Mode-key you get into the main menu. Afterwards you can navigate through
the menu with the Up/Down-keys. Push the Enter-key to get in the next
menu level or to confirm your settings. Make them and set functions ON/OFF
with the Up/Down-keys. Confirm and save it with the Enter-key (the display
shows OK). Push the Mode-key to cancel the entry and go back to the main
menu.
MODEENTER
UP DOWN
MODE ENTER UPDOWN
UPMODE ENTER DOWN
Display
Level 1
Level 2
Level 3
Remark
D001
Define the DMX start address
TEST
Test program of all functions
AUDI
ASLW
Self-running audio program (slow)
AFST
Self-running audio program (fast)
MSTR
Master for the audio program
SVPT
Basic position for the audio program
SIZE
Size for the audio program (NORM-BIG-MIDL-SMAL)
LAMP
Switch on/of the lamp direct at the POWER
POWER WASH WASH
575E
575E
RESE
Reset
TIME
POWR
Running time of the fixture (no destructible)
LA1
Running time of the lamp (erasable)
LA2
Running time of the lamp (no destructible)
FCOL
Reverse Pan-direction
RPAN
Reverse Tilt-direction
RTLT
Manual drive of all device functions
SPEC
MANU
Automatic lamp start
LAAU
Switch off lamp via DMX
DLOF
Reed out actual DMX-values
DMXI
Display On/Off
DISP
D ON
Twist the display
REV
Reed out internal temperature
TEMP
Maximum cooling fan velocity
FANS
HIGH
Automatic cooling fan control
REG
Low cooling fan speed ‡lamp off
LOOF
Low cooling fan speed ‡automatic
LOHI
Define the DMX start address
flDOWN - UP ‡
ADJU
CODE
xxxx
Use the code for entering the calibration menu (for
authorized persons only)
CYAN
Calibration of the Cyan color wheel
MAGE
Calibration of the Magenta color wheel
YELL
Calibration of the Yellow color wheel
COLO
Calibration of the color wheel
BSPR
Calibration of the beam shape

Elation Lighting www.elationlighting.com 13
ZOOM
Calibration of the Zoom
Dimm
Calibration of the Dimmer
SHUT
Calibration of the Shutter
CLRE
Settings in the internal memory (super-user only)
ARES
Adjust Reset
VTIL
Software version Tilt-board
VTRB1
Software version driver board 1
VTRB2
Software version driver board 2
COAD
CODE
xxxx
Use the code for entering the calibration menu (for
authorized persons only)
CYAN
Coarse calibration of the Cyan color wheel
MAGE
Coarse calibration of the Magenta color wheel
YELL
Coarse calibration of the Yellow color wheel
DFSE
Call on the default function values
FEED
Pan/Tilt feedback (error correction) On/Off
EFLG
Correction of faults
3.1 Adjust the DMX- Address (D001)
Right after turning on the POWER
POWER WASH WASH 575E 575E you can see the current DMX-
Address. If there is no DMX- Signal the display flashes.
D001
For the address setting please follow this procedure:
1. Switch On the POWER WASH 575E
POWER WASH 575E and wait until the fixture reset has
finished ('RESE'is flashing in the display).
2. Press the Mode-key in order to access the main menu. Browse through the
menu by pressing the Up/Down-keys until the display shows D001. Confirm
by pressing the Enter-key (the decimal point is flashing)
3. Use the Up/Down-keys to select the desired address. Confirm the setting by
pressing the Enter-key (the display shows OK) or press the Mode-key to
cancel.
The DMX- Address is stored also while switching off the POWER WASH 575E
POWER WASH 575E!

Elation Lighting www.elationlighting.com 14
3.2 The Test Program (TEST)
test
The Test-Program allows you to run a complete self test procedure of all
functions. Press Enter to confirm or Mode to cancel.
3.3 The Audio Program (AUDI)
Audi
The Audio-menu allows you to run a stand alone audio program. This chaser
can run either fast or slow. AFST: Every sound impulse on step of the chaser.
Aslw: Every second sound impulse one step of the chaser.
Additional you can choose a basic position for this audio chaser. Use therefore
either the internal manual mode or an external controller to set the desired
Pan/Tilt position. Confirm this setting in the SVPT menu by pressing the Enter-
key.
You can also set the size of the audio chaser in the SIZE menu. You have the
choice between: NORM (no basic position has to bee chosen), BIG, MIDL
and SMAL).
If you want to run the systems simultaneously, one of the YPOCs
YPOCs must be
switched as the master. All others must be "Slave" Master = OFF. Notice: The
Audio function is only working if no DMX is connected. This function can work e.g.
on small events or as an emergency program.
3.4 Lamp On/Off (LAMP)
LAMP
Use the Up/Down-keys to select lamp On or lamp Off Press Enter to confirm or
Mode to cancel and return to the main menu. (The lamp OFF command is only
working if the shutter is closed at the same time. Use an external controller or
the manual drive mode, see chapter 3.10.1.

Elation Lighting www.elationlighting.com 15
3.5 Reset (RESE)
RESE
Press the Enter-key to run a reset of all fixture functions (RST is shown in the
display).
3.6 Running time of lamp and unit (TIME)
TIME
By this option can read out three different running times of the fixture.
POWR
Running time of the fixture (no destructible).
LA 1
Running time of the lamp (erasable). Push the Up/Down-keys at one
time to delete this running time.
LA 2
Running time of the lamp (no destructible).
3.7 Continuous Color Wheel (FCOL)
fcol
This function allows you to control the color wheel continuously. If it is switched
off, the color wheel is stepping directly from one to another color.
3.8 Invert Pan Movement (RPAN)
RPAN
This function allows you to invert the Pan movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel and return to
the main menu.
3.9 Invert Tilt Movement (RTLT)
RTLT
This function allows you to invert the Tilt movement. Use the Up/Down-keys to
select invert On or Off. Press Enter to confirm or Mode to cancel.

Elation Lighting www.elationlighting.com 16
3.10 Special Functions (SPEC)
SPEC
This menu allows you to enter further special functions of the POWER
POWER WASH WASH
575E.
575E.
In detail they are:
3.10.1 Manual Drive (MANU)
MANU
This function allows you to drive all the fixture functions manually. Select
the desired function with the Up/Down-keys and confirm with Enter. Now
choose the desired value with the Up/Down-keys and confirm again with
Enter or cancel and return to the menu with the Mode-key.
Function
Value
Remark
PAN
000 - 255
Pan Position
TILT
000 - 255
Tilt Position
CYAN
000 - 255
Cyan color wheel
MAGE
000 - 255
Magenta color wheel
YELL
000 - 255
Yellow color wheel
COLO
000 - 255
Color wheel (fixed colors)
SHUT
000 - 255
Shutter / Strobe function (the lamp strikes at
DMX 255 if dimmer is "open" = DMX 255)
DIMR
000 - 255
Dimmer
BSPR
000 - 255
Beam shape + Frost
ZOOM
000 - 255
Zoom
SPEC
000 - 255
Lamp Off, Reset, ...
3.10.2 Lamp On automatically (LAAU)
LAAU
This function enables to switch On the lamp automatically after switching
On the fixture. Use the Up/Down-keys to select ON if you want to switch
on the lamp automatically after switching on the fixture or Off if you don't
want this function. Press Enter to confirm or Mode to cancel and return to
the menu.

Elation Lighting www.elationlighting.com 17
If you have chosen off you have the possibility to start the lamp either via
DMX or direct at the POWER WASH 575E
POWER WASH 575E in the Lamp menu.
3.10.3 Lamp Off via DMX (DLOF)
DLOF
This function enables to switch off the lamp via DMX or not. Use the
Up/Down-keys to select ON if you want to switch off the lamp via DMX or
Off if you don't want this function. Press Enter to confirm or Mode to
cancel and return to the menu.
If you have chosen off you have the possibility to switch off the lamp
either direct at the POWER WASH 575E
POWER WASH 575E in the Lamp menu or switch off
the main switch.
3.10.4 DMX Input (DMXI)
DMXI
Readout DMX values of each channel received by the fixture. Use the
Up/Down-keys to select desired channel and press Enter to read its
value.
Function
Value
Remark
PAN
0 - 255
Pan Position
TILT
0 - 255
Tilt Position
CYAN
0 - 255
Cyan color wheel
MAGE
0 - 255
Magenta color wheel
YELL
0 - 255
Yellow color wheel
COLO
0 - 255
Color wheel (fixed colors)
SHUT
0 - 255
Shutter / Strobe function
DIMR
0 - 255
Dimmer
BSPR
0 - 255
Beam shape + Frost
ZOOM
0 - 255
Zoom
SPEC
0 - 255
Lamp Off, Reset, ...
MOVE
0 - 255
Movement
SPED
0 - 255
Speed for Pan/Tilt

Elation Lighting www.elationlighting.com 18
3.10.5 Display (DISP)
DISP
Use this function to choose between different display indications. Use the
Up/Down-keys to select desired function and press Enter to confirm or
Mode to cancel and return to the menu.
D ON
Display On/Off (If you've chosen off, the display will go out within
15 seconds after the last input. The next key touch will reactivate
the display).
REV
Turn around the display.
Note: You can also do this by pushing the Up/Down-keys at the
same time.
3.10.6 Fixture Temperature (TEMP)
TEMP
This function allows you to read out the actual temperature of the
POWER WASH 575E
POWER WASH 575E. Press Enter to confirm or Mode to cancel. Inside
temperatures below 80°C are not critical. 80°C and more lead the lamp
being switched off at a critical point. Please note for a save operation that
the outside temperature should not exceed 45°C.
3.10.7 Fan Control (FANS)
FANS
By using this function you can choose between 4 types of fan speed
operations. Use the Up/Down-keys to select desired function and press
Enter to confirm or Mode to cancel and return to the menu.
HIGH
The cooling fan works continuously at max. speed.
REG
The fan automatically raises its speed in order to control inside
temperature of the fixture.
LOOF
The fan keeps the adjusted low speed until the temperature
exceeds max. inside temperature, then the POWER
POWER WASH WASH
575E
575E automatically switch off the lamp.
LOHI
The fan keeps the adjusted low speed until the temperature
exceeds max. inside temperature, then the POWER
POWER WASH WASH
575E
575E automatically switch from low to high fan speed.

Elation Lighting www.elationlighting.com 19
exceeds max. inside temperature, then the POWER
POWER WASH WASH
575E
575E automatically switch from low to high fan speed.
In addition to these settings, you can set to fan speed to minimum via
DMX (Special channel, DMX value 224..229). This will last until a tempera-
ture of 90° is reached.
3.10.8 Adjustments and Calibrations (ADJU)
ADJU
By this function you can adjust and calibrate the positions of the different
wheels and other motors. This can be necessary after a service or repair
work.
For this function you have to entry the fixture code. This work should be
done only by authorized persons.
Use the Up/Down-keys to select desired function and press Enter to
confirm or Mode to cancel and return to the menu. Use now the Up/Down-
keys to set the adjustment values and confirm once more with the Enter-
key or cancel with the Mode-key.
Function
Value
Remark
ADJU
CODE
xxxx
Adjustments in the internal setup are code protec-
ted (for authorized persons only).
CYAN
- 99 - + 99
Adjustment of the Cyan color wheel
MAGE
- 99 - + 99
Adjustment of the Magenta color wheel
YELL
- 99 - + 99
Adjustment of the Yellow color wheel
COLO
- 99 - + 99
Adjustment of the Color wheel
BSPR
- 99 - + 99
Adjustment of the Beam shape
ZOOM
- 99 - + 99
Adjustment of the Zoom
DIMM
- 99 - + 99
Adjustment of the Dimmer
SHUT
- 99 - + 99
Adjustment of the Shutter
CLRE
Adjustments in the internal circuit.
ARES
- 99 - + 99
Adjust Reset (wheels stand still after the reset)
VTIL
- 99 - + 99
Software version of Tilt-board
VTR1
- 99 - + 99
Software version of Head- board
VTR2
- 99 - + 99
Software version of Base- board
COAD
CODE
xxxx
Adjustments in the internal setup are code protec-
ted (for authorized persons only).
CYAN
- 99 - + 99
Coarse adjustment of the Cyan color wheel

Elation Lighting www.elationlighting.com 20
MAGE
- 99 - + 99
Coarse adjustment of the Magenta color wheel
YELL
- 99 - + 99
Coarse adjustment of the Yellow color wheel
3.10.9 Default Settings (DFSE)
DFSE
Press Enter to reset all fixture personalities (not the adjusted functions) to
the default values. On the display will appear ok to indicate that the de-
faults are set.
Function
Display
Default Settings
DMX Address
D001
D001
Pan reverse
RPAN
ON
OFF ¸
Tilt reverse
RTLT
ON
OFF ¸
Automatic lamp on
LAAU
ON
OFF ¸
Lamp on via DMX
DLOF
ON ¸
OFF
Display
DISP
D ON ¸
Cooling fan
FANS
HIGH
REG ¸
LOOF
LOHI
Feedback
FEED
ON ¸
OFF
3.10.10 Position Feedback (FEED)
FEED
The POWER WASH 575E
POWER WASH 575E is provided with a automatic position
correction (feedback) for the Pan and Tilt movement. Use the Up/Down-
keys to select ON if you want to enable the feedback function or Off if you
don't want this function. Press Enter to confirm or Mode to cancel and
return to the menu.
3.10.11 Correction of faults (EFLG)
EFLG
(Function available for authorized persons only)
3.11 Error and Information Messages
HEAt
This message appears if you try to switch on the lamp within 5
minutes after having switched off (lamp too hot). The message will
appear on the display if the lamp doesn’t ignite within 20 seconds.
The fixture will store this command and automatically ignite the lamp
after 5 minutes.
