Elation FSH 1000 User manual

Followspot
FSH1000
For your own safety, please
read this user manual carefully
before you start-up and use.
IMPORTANT SAFETY INSTRUCTIONS
♦CAUTION! Be careful with your operations. With a dangerous voltage you may suffer a dangerous
electric shock when touching the wires! Make sure that the available voltage is not higher than stated
in this manual.
♦If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the device
switched off until it has reached room temperature.
♦This device falls under protection-class I, therefore it is essential that the blue conductor gets
connected to earth.
♦Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and
the power-cord from time to time.
♦If the external flexible cable or cord of this device is damaged, it shall be exclusively replaced by the
manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
♦Shields, lenses or ultraviolet screens shall be changed if they have become visibly damaged to such
an extent that their effectiveness is impaired, for example by cracks or deep scratches.
♦Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
♦Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the
power-cord by the plug. Never pull out the plug by tugging the power-cord.
♦DANGER OF BURNING! Never touch the device during the operation! The housing heats up to the
housing temperature Tsurface.
♦Don’t switch the device on and off in short intervals as this would reduce the lamp’s life.
♦HEALTH HAZARD! Never look directly into the light source, as sensitive persons may suffer an
epileptic shock (especially meant for epileptics)!
♦Keep away children and amateurs from the device!
♦There are no serviceable parts inside the device. Maintenance and service operations are only to be
carried out by authorized dealers.
♦This device is a lighting effect for creating decorative effects. this fixture is only allowed to be operated
with an alternation current of max. 230V/50Hz 1000W and was designed for indoor use only.
♦When choosing the installation-spot, please make sure that the device is not exposed to extreme heat,
moisture or dust. There should not be any cables lying around. You endanger your own and the safety
of others!
♦The symbol Mdetermines the minimum distance from lighted objects. The minimum distance
between light-output and the illuminated surface must be more than 3 meters.
♦The maximum ambient temperature Tamust never be exceeded.
♦Operate the device only after having become familiar with its functions. Most damages are the result of
unprofessional operation!
♦Please use the original packaging if the device is to be transported.
♦Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
♦If this device will be operated in any way different to the one described in this instruction, the product
may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to
dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
5
1
2
6
1 PLUG
2 ON-OFF SWITCH
3 DIAPHRAGM
4 FAN
5 LENS
6 LAMP HOLDER
7 FOCUS ADJUSTER
8 BRACKET
Followspot
®
Junostraat 2, 6468EW Kerkrade
The Netherlands
www.americandj.eu
[email protected]
FSH 1000
Made in China

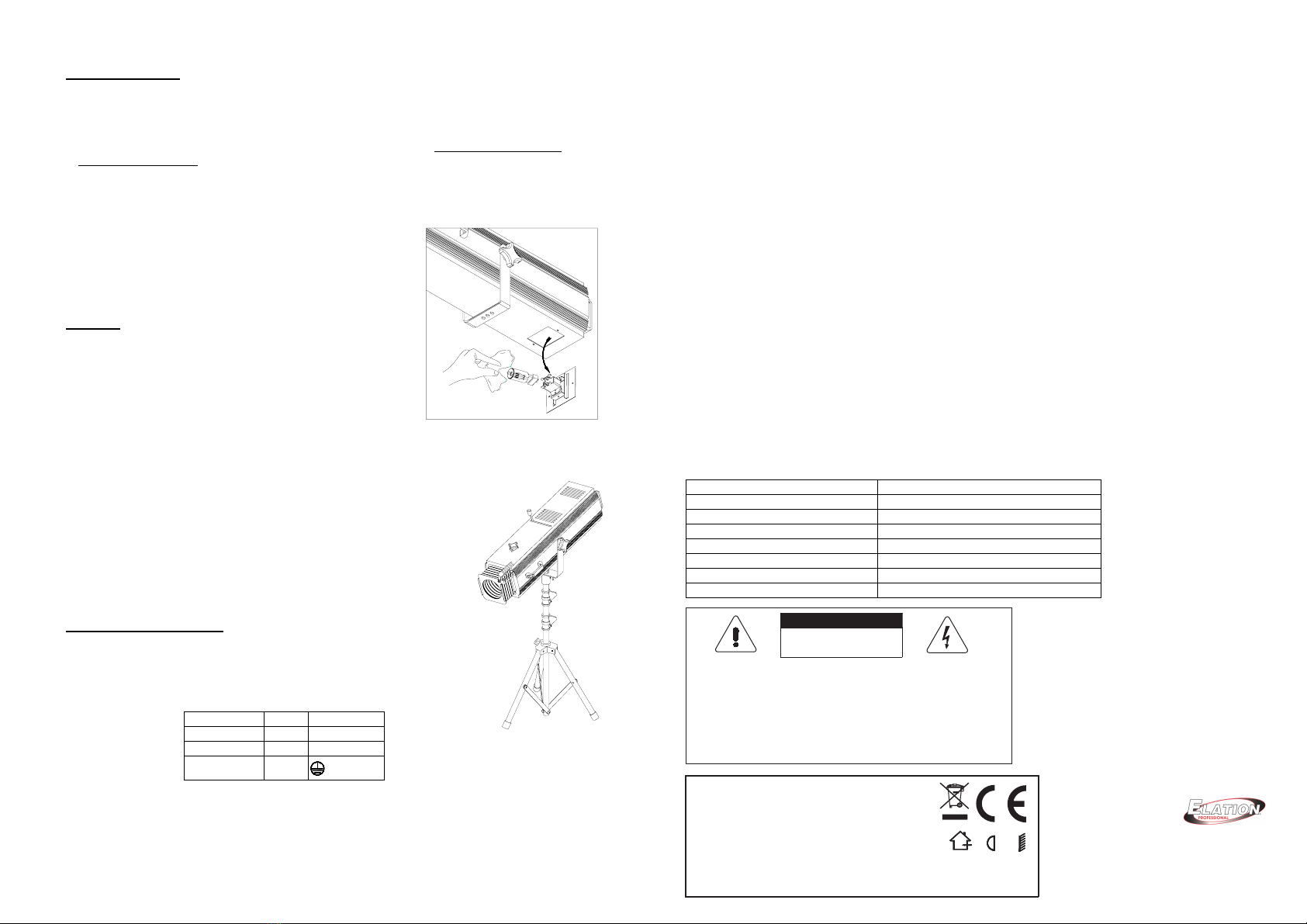

Replacing the lamp
♦DANGER TO LIFE! Only install the lamp with the device switched off! Unplug from mains before!
♦CAUTION! The lamp has to be replaced when it is damaged or thermally deformed due to the heat!
The lens must be replaced if it is visibly damaged and therefore operating with reduced efficiency.
♦Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 5 minutes).
♦During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp
manufacturer’s notes!
♦Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for. Damages caused by non-observance are not subject to warranty.
♦For the installation, you need one GX9.5 halogen lamp with up to max. 1000W.
♦Procedure:
Step 1: Open the lamp holder on the bottom of the device
by unscrew the two screws.
Step 2: Pull out the lamp holder.
Step 3: Remove the old lamp.
Step 4: Insert the same type lamp into the lamp-socket.
Step 5: Replace the lamp holder and screw the two screw.
Installing
♦The installation of the device has to be built and
constructed in a way that it can hold 10 times the weight
for 1 hour without any harming deformation.
♦The installation must always be secured with a secondary
safety attachment, e.g. an appropriate catch net. This
secondary safety attachment must be constructed in a
way that no part of the installation can fall down if the main
attachment fails.
♦Caution: Devices may cause severe injuries when crashing down! If you have doubts concerning the
safety of a possible installation, do NOT install the device!
♦DANGER OF FIRE! When installing the device, make sure there is
no highly inflammable material (decoration articles, etc.) within a
distance of min. 0.5 M.
♦Mount the device with the mounting-bracket to your standing system.
The hole in the mounting bracket has a diameter of 13 mm.
♦Adjust the desired inclination-angle via the mounting-bracket and fix
the fixation screws.
♦DANGER TO LIFE! Before taking into operation for the first time,
the installation has to be approved by an expert or by qualified
ENGINEERS/TECHNICIANS only!
Connection with the mains
♦DANGER TO LIFE! The electric connection must only be carried out
by a qualified electrician!
♦In order to connect the device to the mains, you have to install a
power-plug.
♦The occupation of the connection-cables is as follows:
Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth
♦The earth has to be connected!
♦Connect the device to the mains with the power-plug.
♦If the device will be directly connected with the local power supply network, a disconnection switch with
a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
♦In general, lighting effects should not be connected to dimming-packs.
♦DANGER TO LIFE! Before taking into operation for the first time, the installation has to be approved
by an expert!
OPERATION:
♦After you connected the fixture to the mains, the lamp will be on. You can adjust the beam angle by
pulling and pushing the handle screw through the track beneath the device.
CLEANING AND MAINTENANCE
♦The following points have to be considered during the inspection:
1)All screws used for installing the devices or parts of the device have to be tightly connected and
must not be corroded.
2)There must not be any deformations on housings, fixations and installation spots(ceiling,
suspension. trussing).
3)The electric power supply cables must not show any damages, material fatigue (e.g. porous cables)
or sediments. Further instructions depending on the installation spot and usage have to be adhered
by a skilled installer and any safety problems have to be removed.
♦DANGER TO LIFE! Disconnect from mains before starting maintenance operation!
♦We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use
alcohol or solvents!
♦The interior of the device should be cleaned at least annually using a vacuum-cleaner or an air-jet.
♦There are no serviceable parts inside the device except for the lamp. Maintenance and service
operations are only to be carried out by authorized dealers.
♦Please refer to the instructions under “Replacing the lamp”.
♦Should you need any spare parts, please use genuine parts.
♦If the power supply cable of this device becomes damaged, it has to be replaced by authorized dealers
only in order to avoid hazards.
♦Should you have further questions, please contact your dealer.
TECHNICAL SPECIFICATIONS
Power supply: Max. 230V/AC, 50Hz
Power consumption, Max. 1000W
Dimensions (L x W x H); 780x215x320mm
Weight; 12 kg
Fitting lamp GX9.5 230V 650W or 1000W halogen
Maximum ambient temperature ta: 25°C
Maximum housing temperature tS: 160°C
Minimum distance: 1m
Power: 220/240V~ 50Hz Max.1000W
Fuse: 250V 6.3A
Lamp: Base GX9,5 Halogen 220/240V 1000W
-Professional use only!
-Isolate electrically before re-lamping! -Caution hot lamp!
-There is no inflammable material within a distance of min. 0.5M
Ta=25°C TSURFACE=160°C Made in china
2M
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
VERY HOT HOUSING!
ATTENTION:
1) Operate this units only with proper AC voltage
2) Read instructions manual carefully before operation
3) To avoid the risk of electric shock and fire, Do not expose this unit
to moisture or high humidity
4) No user serviceable parts inside
SERVICE PERSONNEL:
1) See service manual before opening the housing
2) Let the unit cool down for 10 min. before re-lamping
3) All parts must be replaced by original spare parts
®
Junostraat 2, 6468EW Kerkrade
The Netherlands
www.americandj.eu
[email protected]
Followspot FSH1000
