Elba EPRC-A6456GE SS User manual

For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
PROF. RANGE COOKER
MODEL: EPRC-A6456GE(SS)

INDEX
Cautions Page 3-4
Instructions for installation:
Dimensions and installation features Page 5
Electrical connection Page 6-7
Ventilation and gas connection Page 7
Abnormal Operation Page 8
Instructions for use:
Description of the main parts of the appliance Page 8
Ignition and operation of the burners Page 9
Advice on the use of gas burners Page 10-11
Oven function Page 12
Electronic programmer Page 13
Instruction for Cooking Page 14-16
Maintenance and cleaning Page 17

Please read this instruction carefully. It is advisable to keep this instruction manual
in a safe place for future reference.
SAFETY PRECAUTIONS
1. Keep electrical appliances out of reach from children. Do not let them to
operate the appliances without supervision.
2. This product is for household and indoor use only.
3. This product is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
4. If the power cord or plug in damaged, it must be replaced by the service
centre or a qualified service technician to avoid hazard.
5. Before installation, check if the mains supply voltage is matched with
the voltage stated on the rating plate of the hood.
6. There must be adequate air ventilation of the room when the product is
used.
7. There is a risk of fire if cleaning is not carried out in accordance with
this instruction.
8. Do not touch the heating elements inside the oven.

9. Before maintenance or cleaning, disconnect the appliance from the
mains and wait for it to cool down.
10. Always use oven gloves to remove and replace food in the oven.
11. Do not remove the plug by pulling the cable.
12. Do not store or place flammable liquids or items in the vicinity of this
appliance.
13. Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass since they can scratch the surface, which may
result in shattering of the glass.

INSTRUCTIONS FOR INSTALLATION
DIMENSIONS AND INSTALLATION FEATURES
WARNING:
a) Prior to installation, ensure that the local distribution conditions (nature of the
gas and gas pressure) and the adjustment of the appliance are compatible;
b) The adjustment conditions for this appliance are stated on marking plate;
c) This appliance is not connected to a combustion products evacuation device.
It shall be installed and connected in accordance with current installation
regulations. Particular attention shall be given to the relevant requirements
regarding ventilation.

The cooker is supplied with an anti-tilting chain to prevent the appliance from
tilting forward and accidental damage to the gas pipe. Take the expansion with
hook and make an adequate hole in the wall behind, at the same height as the
chain fixing area. Insert the plug into the hole and then screw in the hook until it is
firmly fixed to the wall. Fix the chain to the hook. Adjust to level of the cooker
inserting the feet provided.
ELECTRICAL CONNECTION
The appliance is fitted with an approved 15 Amp flexible cord which must be
connected to a correctly earthed socket outlet. The manufacturer is not liable for
any direct or indirect damage caused by faulty installation or connection. It is
therefore necessary that all installation and connection operations are carried out
by qualified personnel complying with the local and general regulations in force.
The wire section on the cable must not be less than 1.5mm (3×1.5cable).
CONNECTION OF THE FEEDING CABLE TO THE MAINS
Connect the feeding cable to a plug suitable for the load indicated on the rating
plate of the product. In case of a direct connection to the mains (cable without plug),
it is necessary to insert a suitable omnipolar switch before the appliance, with
minimum opening between contacts of 3 mm (the grounding wire should not be
interrupted by the switch).

Before connecting to the mains, make sure that:
1) The electrical counter, the safety valve, the feeding line and the socket are
adequate to with stand the maximum load required (see rating plate).
2) The supply system is regularly grounded, according to the regulations in force.
3) The socket or the omnipolar switch can easily be reached after the installation of
the oven. After carrying out the connection to the mains, check that the supplying
cable does not come into contact with parts subject to heating.
4) Never use reductions, shunts, adaptors which can cause overheating or burning.
5) The manufacturer is not liable for any direct or indirect damage caused by faulty
installation or connection. It is therefore necessary that all installation and
connection operations are carried out by qualified personnel complying with the
local and general regulations in force.
ELECTRICAL FEATURES
Oven light 25W
Upper heating element 1950W
Bottom heating element 1800W
Grill heating element 2250W
Circular heating element 1800W
Ventilator motor 30W
Cooling fan 11W
VENTILATION
In general, the appliance should have adequate ventilation for complete
combustion of gas, proper flueing and to maintain temperature of immediate
surroundings within safe limits.
GAS CONNECTION
The appliance must be connected to the gas supply or the cylinder according to the
specifications of the standards and after checking that it is adjusted for the type of
gas available. Once the appliance has been installed, make sure that the gas pipe
is neither squashed nor damaged by moving parts.Before Leaving, check all
connections for gas leaks with soap and water. DO NOT use a naked flame for
detecting leaks. Ignite all burners both individually and separately to ensure correct
operation of gas valves, burners and ignition.

ABNORMAL OPERATION
ANY OF THE FOLLOWING ARE CONSIDERED TO BE ABNORMAL OPERATION
AND MAY REQUIRE IMMEDIATE SERVICING:
- Yellow tipping of the hob burner flame.
- Sooting up of cooking utensils.
- Burners not igniting properly.
- Burners failing to remain alight.
- Burners extinguished by oven door.
- Gas valves, which are difficult to turn.
INSTRUCTIONS FOR USE - GAS HOB
WARNING:
1) This appliance shall be installed in accordance with the regulations in force
and only used in a well ventilated space (Read the instructors before
installing or using this appliance.)
2) The use of a gas cooking appliance might result the production of heat and
moisture in the room in which it is installed. Ensure that the kitchen is well
ventilated.
3) Keep natural ventilation holes open or install a mechanical ventilation device
(mechanical extractor hood).
4) Prolonged intensive use of the appliance may call for additional ventilation,
for example opening of a window for more effective ventilation.
1 = Grid
2 = Burner Cap
3 = Burner Head
4 = Spark Plug
5 = Safety Valve

DESCRIPTIONS OF SYMBOLS
IGNITION AND OPERATION OF THE BURNERS
In order to ignite a burner, it is necessary to depress the knob while rotating it anti-
clockwise, until the index is aligned with the position corresponding to the
maximum gas delivery (i.e. the large flame symbol).
As far as the models equipped with a safety valve are concerned, once the flame is
lit hold the knob depressed for about 3-4 seconds till the device keeps the burner
automatically lit. If the burner fails to ignite, wait one minute for the gas to dissipate
before attempting to reignite. At this moment it is possible to adjust the flame
intensity by rotating the knob anticlockwise from maximum position to the minimum
one (i.e. the small flame symbol).
In order to turn the burner off, rotate the knob clockwise bringing the index back to
the position corresponding to the closure symbol (●).
IN CASE THE APPLIANCE FAILS TO OPERATE CORRECTLY, CONTACT THE
AUTHORISED SERVICE CENTRE.

RECOMMENDATIONS
In case of electric power failure, it is necessary to carry out the above-described
operations by putting a gas lighter or a flame near the burner (in such an event, pay
the utmost attention not to burn yourself).
The safety valve (for models where such item is provided) intervenes in case of
accidental flame failure, blocking the gas delivery (e.g. air draughts, spillage of
liquids, etc.). In any case, the ignition device must not be actuated for longer than
15 seconds. Should the ignition manoeuvre fail, or should the burner be
accidentally turned off, immediately close the actuation knob and repeat the ignition
after one minute at least.
Once the ignition has taken place, adjust the flame according to your needs.
ADVICE ON THE USE OF GAS BURNERS
For lower gas consumption and a better yield, use saucepans with diameter
suitable for the burners, avoiding the flame coming up round the side of the
saucepan (see the Container Table). Use only flatbottomed pans.
As soon as a liquid starts to boil, turn the flame down to a level sufficient to
maintain boiling. During cooking, when using fats and oils, be very careful because
if they overheat they could catch fire.
CONTAINER TABLE (USE FLAT-BOTTOMED SAUCEPANS)
Burner
φmin Saucepan
(mm)
φmax Saucepan
(mm)
Auxiliary
90
160
Semi-rapid
130
180
Rapid
150
260
Triple Ring
210
240

INSTRUCTIONS FOR USE - OVEN
ELECTRIC OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by turning the knob clockwise to the
required temperature, between 60º to MAX. If the appliance is operating with an
electric oven, the warning light will come on when the oven is heating up. When it
goes out it means that it reaches the required temperature. Regular flashing means
that oven temperature is being constantly maintained at the programmed level.
ELECTRIC OVEN CONTROL KNOB
Each of the functions listed below can be used only together with the correct
temperature. The programme selector and thermostat control is used to select
various oven functions and to choose the cooking temperatures best corresponding
to the food to be cooked. During oven operation the lamp will always remain on.

OVEN FUNCTIONS
The oven door must be closed for all cooking methods.
LAMP
The lamp of the oven is on, with no heating elements operated (electrical resistances).
During oven operation the lamp will always remain on.
TRADITIONAL COOKING
THERMOSTAT SELECTOR SWITCH FROM 60º TO MAX
The heat is provided from the top and bottom elements. The oven must be preheated
before the food is placed inside. Static cooking provides optimum results with: cakes,
pizzas, bread and for gentle slow cooking of casseroles.
DELICATE COOKING
THERMOSTAT SELECTOR SWITCH FROM 60º TO MAX
Ideal for pastries and cakes with wet covering and damp desserts in moulds. Excellent
results can also be achieved in cooking at the bottom.
TOP OVEN COOKING
THERMOSTAT SELECTOR SWITCH FROM 60º TO MAX
Ideal to use for browning food at the end of cooking.
GRILL COOKING
THERMOSTAT SELECTOR SWITCH FROM 60º TO MAX
Grill Element is ideal to use for toasting and melting cheese. The cooking time should
be no longer than 5 minutes.
FAN ASSISTED GRILL COOKING
THERMOSTAT SELECTOR SWITCH FROM 60º TO 200ºC
Use with Grill Element and Fan. Use for grilling meats, vegetables and poultry. Preheat
oven, place food on grill rack in baking tray. Other food may be cooked underneath
whilst grilling.
FAN FORCED COOKING
THERMOSTAT SELECTOR SWITCH FROM 60º TO MAX
Use with heating element and fan. The heat is spread evenly to all shelf positions.
Food can be cooked on different shelves with the appropriate cooking times. The oven
must be preheated before cooking.
DEFROSTING
THERMOSTAT SELECTOR SWITCH ANY
The fan located on the bottom of the oven makes the air circulate at room temperature
around the food. This is recommended for the defrosting of all types of food. By using
the fan, the defrosting time is approximately halved. In the case of meat, fish and bread,
it is possible to accelerate the process using the "Fan forced" and setting the
temperature to 80ºC to 100ºC.

ELECTRONIC PROGRAMMER
Showing time (0:00-24:00).
The screen shows 3 flashing number and “AUTO” if the power is on.
In order to set correct time, press the button ( ) first, then + or - button to carry forward backward the
figure until the exact time shows.
MANUAL OPERATION SETTING
- Press the button ( ) to remove the flashing of “AUTO”
- If “AUTO” is glittering (automatic or semi automatic program has been set), press button ( ) to
remove “AUTO” and to operate manually.
AUTO OPERATION SETTING
- This will set the full automatic starting and ending timer.
- Press button ( ) to set roast time.
- Press button ( ) to set roast ending time.
- Set temperatures and roast modes by turning the thermostat knob and function knob.
- After the setting above, “AUTO” will be flashing, which means the roast process of the oven is set.
Timer: 23hours 59minutes can be set as maximum.

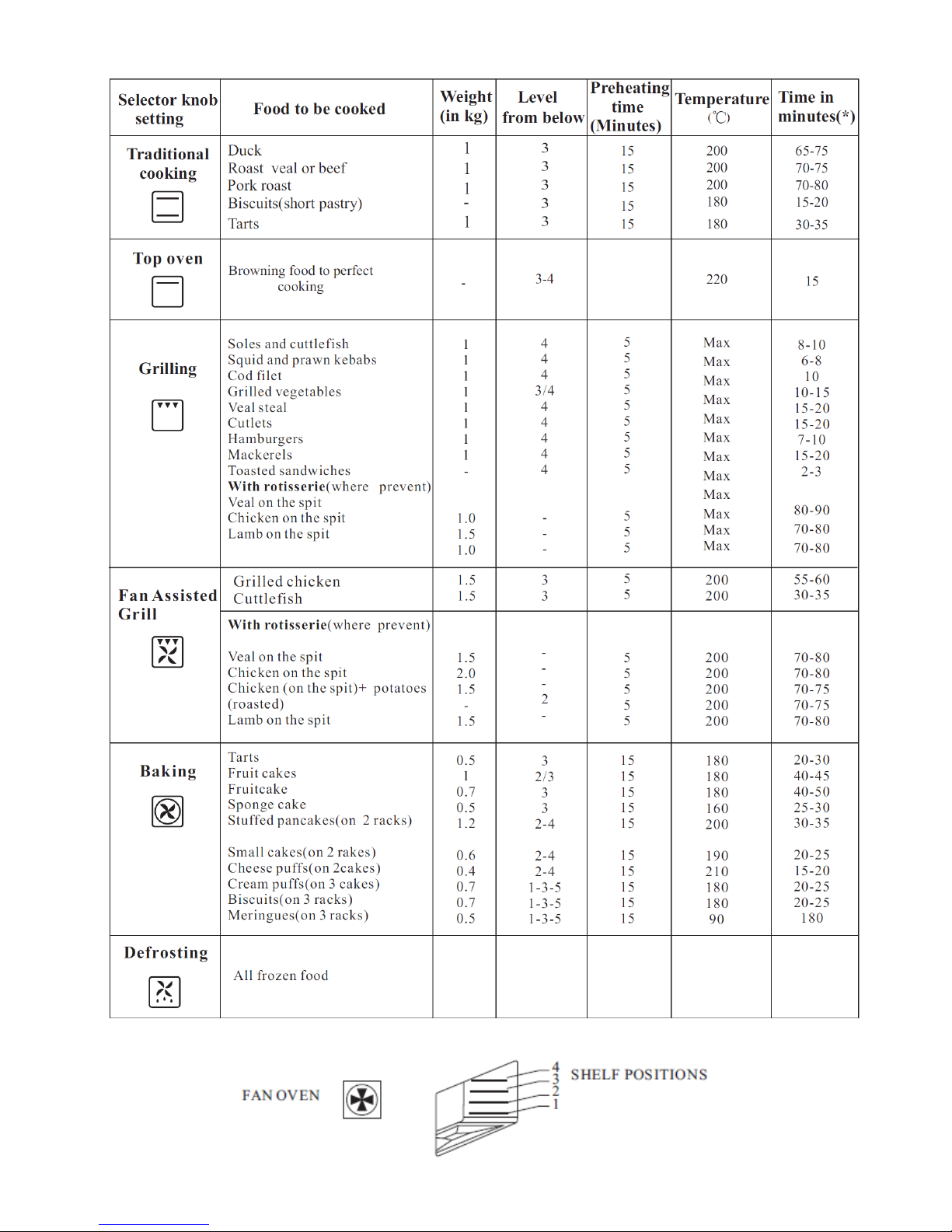

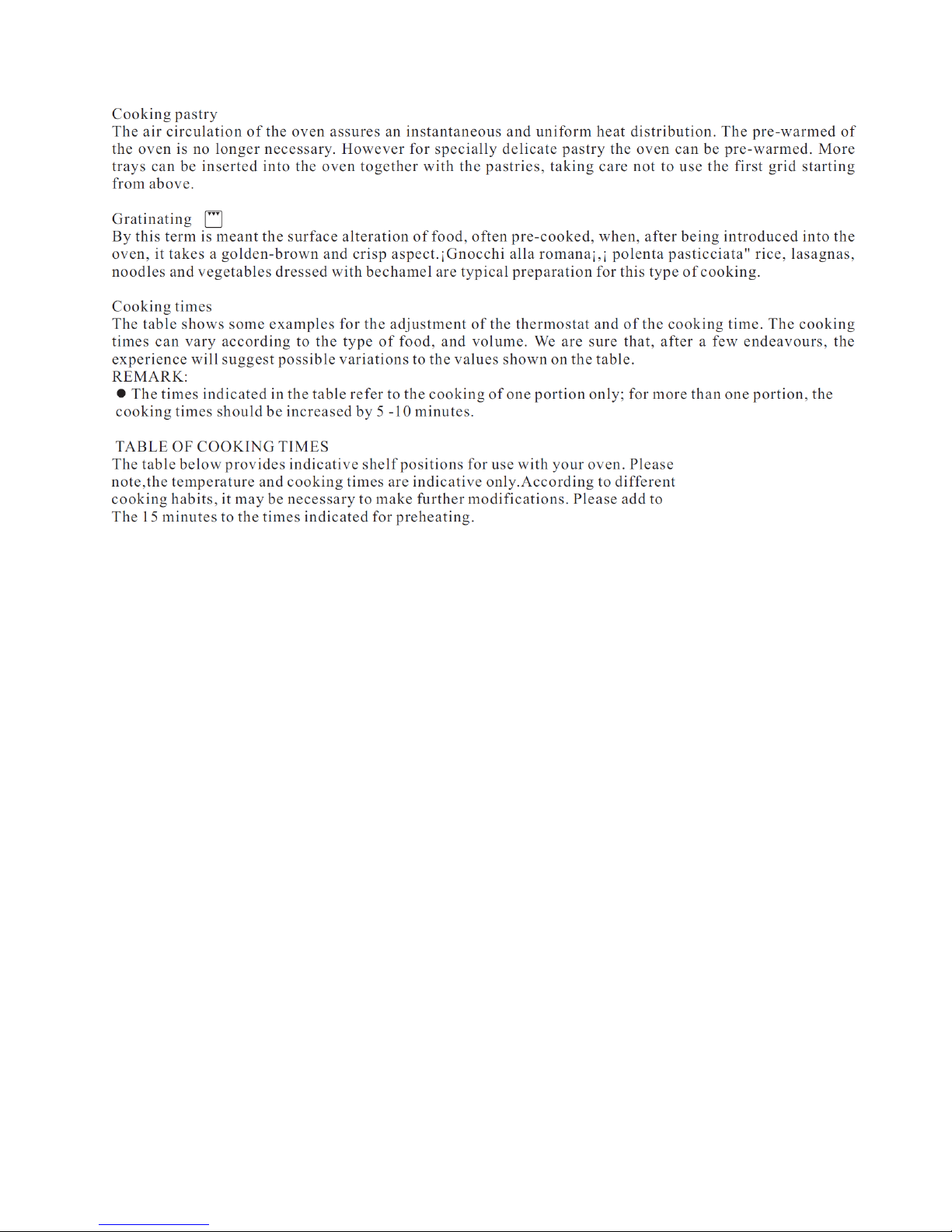

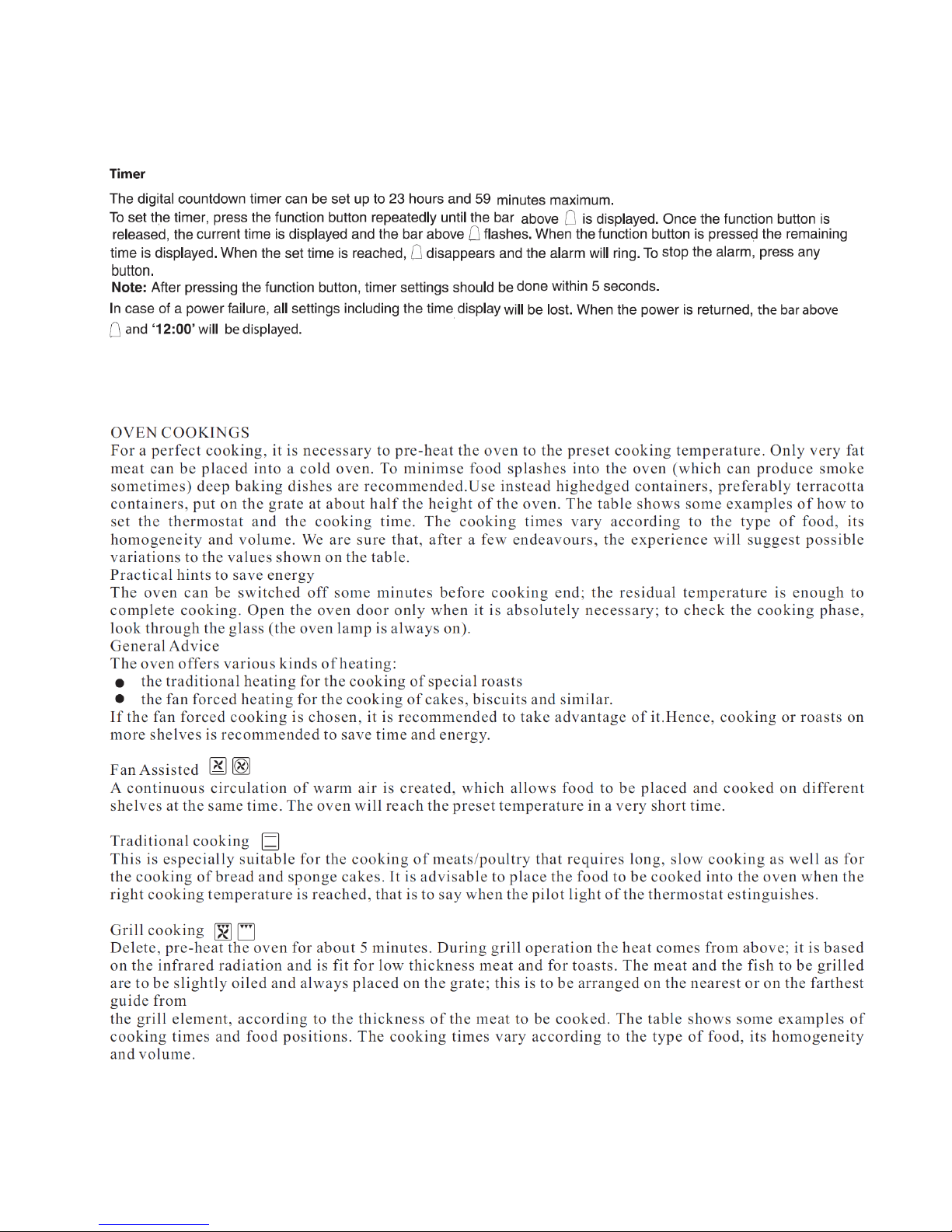

INSTRUCTIONS FOR COOKING

MAINTENANCE AND CLEANING
Do not use jet of steam for cleaning.
Before any operation disconnect the appliance electrically. Wash the enamel parts
with lukewarm water and detergent.
Do not use abrasive products. Wash the burner spreader frequently with hot water
and detergent. Make sure to remove any deposits which could block the flame
outlet.
Rinse the stainless steel parts with water and dry them with a soft cloth.
To clean the hob use slightly damp sponges and wiping cloths. Avoid using too
much water which could penetrate the internal parts and damage electrical parts.
The grids of the hob can be washed in the dishwasher.
For persistent stains use normal non-abrasive detergents, specific products
commonly available on the market or a little vinegar.
Clean the glass parts with hot water, avoiding the use of rough cloths.
Do not use stainless steel pads or acids for cleaning. To prevent difficulties in
ignition, carefully clean the lighting spark plugs regularly.
Periodically check if the knobs become difficult to turn. Contact a qualified engineer
to lubricate the taps. Contact a qualified engineer to deal with any other problems
which may arise during use.
To keep the characteristics of brightness of the enamelled parts for a long time it is
necessary to clean the oven after each cooking.
Once the oven is cold, you will be able to easily remove the fat deposits by means
of a sponge or a cloth damp with warm soapy water.
Never use abrasive cloths or sponges that could irreparably damage the enamel.
TO MAINTAIN SAFE OPERATION, IT IS RECOMMENDED THAT THE PRODUCT
TO BE INSPECTED EVERY FIVE YEARS BY AN AUTHORISED SERVICE
TECHNICIAN.

CLEANING THE OVEN
WARNING: Ensure that all controls are in the “OFF” position and wait for the grill
element to cool down.
1) Support the front of the grill element while you remove the knurled screw
retaining the element.
2) Lower the front of the element carefully to the rest position.
3) When cleaning the oven make sure do not apply any forces to the grill
element
4) When the cleaning is completed, carefully remove any cleaning chemicals
and water from the grill element.
5) Carefully raise the front of the element into position and secure with the
knurled screw.
NEVER USE THE OVEN WITH THE GRILL ELEMENT HANGING DOWN.
CLEANING THE OVEN DOOR
Unhook the doors. For a more thorough clean, you have to remove the oven door.
Procedures as follows:
1) Open the door fully;
2) Lift up and turn the small levers located on the two hinges;
3) Grip the door on the two external sides and close it approximately half way.
Unlock the door by pressing on the clamps F, then pull the door towards you
lifting it out of its seat. To replace the door, reverse this sequence.
REPLACING THE OVEN BULB
Once the oven has been electrically disconnected, unscrew the glass protection
cap and the bulb, Always remember to use high temperatures (300/ E14) bulb for
the oven. Reassemble the glass cap and reconnect the oven after replacing the
bulb.

MAIN SPECIFICATION
Rated Voltage : 220-240V/50Hz
Oven Light : 300/E14 x 1
Oven Capacity : 56 Litres
Rated Power : 2 x Semi Rapid Burner (1.75kW x 2)
1 Triple Ring Burner (3.50kW x 1)
1 Auxiliary burner (1.00kW x 1)
Product Dimension : 600mm (W) x 910mm (H) x 600mm (D)
NOTICE
This product must not be disposed together with domestic waste. It has to be
disposed at an authorized place for recycling of electrical and electronic
appliances. By collecting and recycling waste, you help to save natural
resources and make sure the product is disposed in an environmental friendly
and healthy way.
