Elba ESMB-M3430 User manual

STAND MIXER
MODEL: ESMB-M3430(WH)
Owner’s Manual
Please read this manual carefully
before operating your set.
Retain it for future reference.
Record model number and serial
number of the set.
See the label attached on the set
and quote this information to your
dealer when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate.

1
IMPORTANT SAFEGUARDS
Before using the appliance, basic precautions should always be followed including the
following:
1. Read all instructions before using.
2. Do not operate the appliance with damaged power cord or plug, after the appliance
malfunction, or if it is dropped or damaged in any manner. Return the appliance to
the nearest authorized dealer or after-sales service center for examination, repair,
electrical or mechanical adjustment.
3. Do not leave the mixer unattended while operating.
4. Do not let the power cord hang over the edge of the table or counter or hot surface.
5. When removing the plug from wall outlet, grasp the plug to pull and not the cable.
6. To protect against risk of electrical shock, do not immerse mixer in water or
any other liquids. This may cause personal injury or damage to the product!
7. Avoid contacting with moving parts. Keep hands, clothing, as well as spatulas and
other utensils away from beaters and dough hooks during operation to reduce the
risk of injury to persons, and/or damage to the appliance.
8. Close supervision is necessary when your appliance is being used near children or
infirm persons.
9. Never use any accessories or parts from other manufacturers or that ELBA does not
specifically recommend.
10.Always make sure that the beaters or dough hooks are fully inserted into position
before connecting the plug to the wall outlet.
11.Do not place the appliance on or near hot gas or on a heated oven.
12.Never eject beaters or dough hooks while in use.
13.Bowl must be in proper position before operating the mixer.
14.Unplug the plug from wall outlet when not in use, before putting on or taking off parts,
and before cleaning.
15.Always power off the appliance before changing or removing accessories.
16.Let the appliance to cool off before cleaning or storing.
17.This appliance is for domestic use only.
18.Do not operate the appliance for other than its intended use.
19.Do not use this mixer outdoors.
20.This appliance is not intended for used by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of the
appliances by a person responsible for their safety.
21.Children should be supervised to ensure that they do not play with the appliance.
22.Save these instructions for future reference.
Important note:
•The maximum operation time shall not exceed 10 minutes. Let the appliance
completely cool down before performing next working cycle to avoid any
damages on motor unit.

2
PRODUCT DESCRIPTION
Accessories:
Beaters: For mixing egg or any other liquids.
Dough hooks: For kneading the dough.
MIXING GUIDE
Speed selector
Descriptions
0
<OFF>
No power at this stage.
1
<FOLD>
This is a good starting speed for bulk and dry foods such as flour,
butter and potatoes.
2
<BLEND>
Best speed to start liquid ingredients for mixing salad dressings.
3
<MIX>
For mixing cakes, cookies and quick breads.
4
<CREAM>
For creaming butter and sugar.
5
<WHIP>
For beating eggs, cooked icings, whipping potatoes, whipping
cream, etc.
TURBO
Maximum speed

3
USING THE APPLIANCE FOR THE FIRST TIME
Please read all instructions carefully before using this appliance.
⚫Remove all packing material and check carefully. Make sure that the appliance is in
good condition. It must have no cracks on the unit and no damage to the power
cord or plug. Do not discard any packaging until all accessories are confirmed
available in the packaging.
⚫Please make sure that the voltage indicated on the appliance corresponds with the
household voltage.
⚫Remove any adhesive labels or stickers before using.
OPERATING THE APPLIANCE
1. Prior to initial use, wash all parts that come into contact with food. Switch off and
unplug the appliance before changing accessories. Select the desired
accessories, depending on the mixing task to be performed: beaters for whisking,
mixing and beating, or dough hooks for kneading.
2. Place the appliance on the flat and stable countertop.
3. By install the beaters or dough hooks to hold the handle of the hand mixer with
one hand and place the beaters or dough hooks with the other. Install the beaters
or dough hooks to the hole at the bottom of the hand mixer. The one with gear
can only be inserted into the right side of the hole and the one without gear to the
left side.
Note: Ensure selected accessories are fully inserted into correct hole, otherwise
your mixing result may be affected. Do not use different type accessories at the
same times

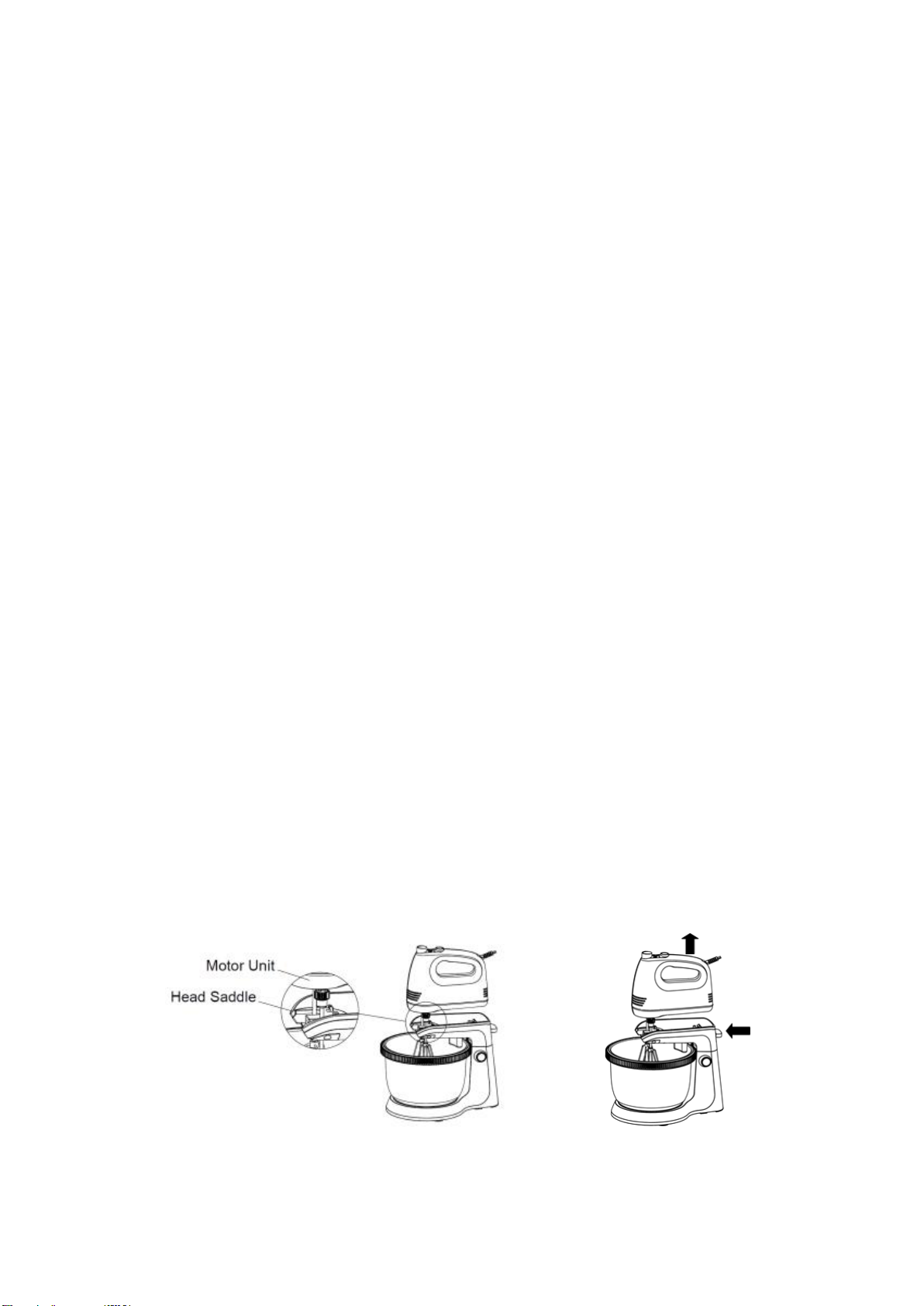

4. Place the motor unit on the head saddle, making sure the socket at the bottom of
bottom unit aligns with the lock hole on the head saddle (Fig 1), press the handle
to lock the motor unit in place until a “click”sound can be heard. For detaching
the hand mixer on the head saddle, press the release button and lift the hand
mixer handle. (Fig 2)
Fig 1.
Fig 2.

4
5. Put the ingredients into mixer bowl and shall not more than 2.5L. Otherwise, the
ingredients will spill over the edge of the bowl during the mixing. Never add more
than 1.5kg of ingredient (in total) to the mixing bowl. Else, may damaging the
appliance.
6. Ensure the speed selector is at “0”setting and connect the plug to the wall outlet
and power on.
7. Then dial the speed selector according to your desired setting and the mixer will
start working. There are 5 speed settings and the speed will achieve the highest if
the turbo button is pressed at any time.
Note:
•Do not put knife, metal spoon, fork and others into the bowl while working.
•During kneading, some flour may adhere on the side of the bowl, at this time
please stop the appliance and scrape the flour on the wall of mixing bowl by using
plastic spatula to obtain good kneading result.
8. Maximum working time per cycle shall not exceed 10 minutes. Make sure to allow
the unit completely cool down to room temperature before performing next
working cycle. This is to avoid damages on motor unit.
9. When mixing is complete, turn the speed selector to “0”position and unplug from
power outlet.

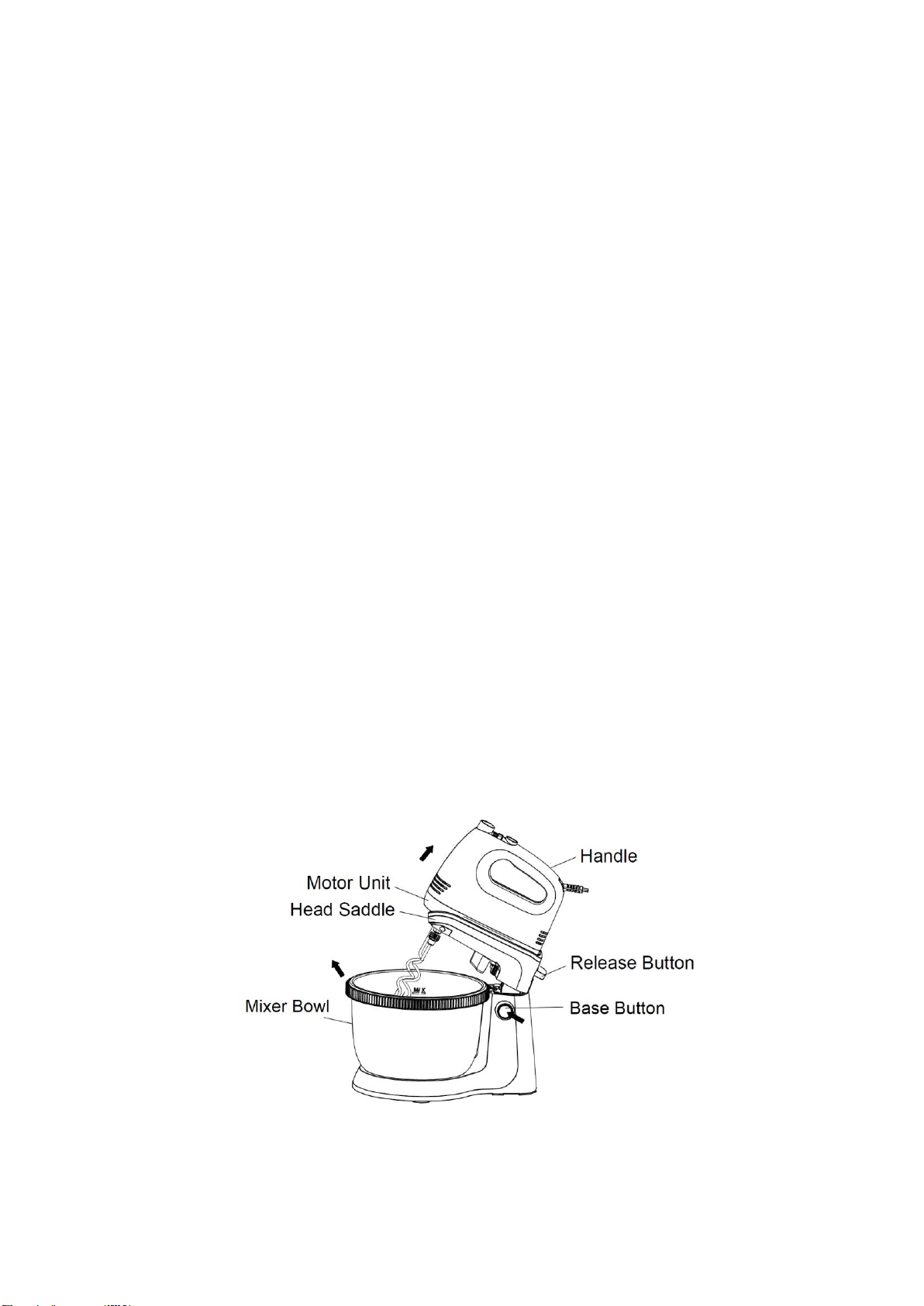

10.Press and hold the base button and lift the motor unit with head saddle until the
motor unit is locked into tilt position, then you can also remove the bowl from
base.
11.To remove the motor unit from head saddle, press and hold the release button,
then lift it directly.

5
12.If necessary, scrape the excess food particular from beaters or dough hooks by
plastic spatula.
13.To eject the beaters or dough hooks, hold the beaters or dough hooks with one
hand and firmly press the eject button down with the other hand to remove them.
Note:
•Before removing the attachments, ensure the speed selector is at “0”setting and
the motor unit is removed from the head saddle.
•Never eject beaters or dough hooks when the appliance is in operation.
•Remove the beaters or dough hooks only at “0” setting.
14.Always unplug from the power supply when you have done mixing and before
cleaning.
15.The motor unit can be used as a hand mixer.
Note: Never use containers made of glass or other fragile material as there may
be risk of damage.
CLEANING AND MAINTENANCE
1. Unplug the appliance from the power supply and wait until it completely cools
down before cleaning.
2. Clean the exterior of the appliance using a damp cloth and then wipe it with a soft
dry cloth.
3. Do not immerse the mixer into water or on any other liquids.
4. Detach the bowl from the appliance and clean it with water. Then wipe it with dry
cloth before storage.
5. Clean the beaters or dough hooks in warm soapy water. Rinse and wipe dry.
Please note that beaters and hooks are suitable for dishwasher.
6. We recommend cleaning the accessories immediately to remove any food
residues from the accessories after using. This will make cleaning easier and
prevents bacterial growth.
7. Never use abrasive cleaners to clean the appliance, beaters or dough hooks.
8. If the supply cord is damaged, it must be replaced by the authorized service center
or qualified technician in order to avoid hazard.

6
COOKING TIPS
1. Ingredients such as butter and eggs should be in room temperature before mixing
begins. Prepare the ingredient ahead of time.
2. To eliminate the possibility of shells or deteriorated eggs in your mixture, break eggs
into separate container first, then adding it to the mixture.
3. Always start the process of mixing at lowest speed. Gradually increase to the
recommended speed as stated in your recipe.
4. When mixing liquid, especially hot liquid adds small quantities at a time to reduce
spillage.
5. Do not over beat. Be careful that you only mix/blend mixture as recommended in
your recipe. Fold into dry ingredient only until just combined. Always use the low
speed.
6. Should any object, such as spatula fall into the bowl while the mixer is operating, turn
the speed selector to “0”setting immediately. Then remove the object.
7. For easier clean-up, remove beaters and rinse immediately with warm water.
8. If some ingredients are not mixed sufficiently during working, turn off the appliance
and try to push the ingredient toward the middle of the bowl by using plastic spatula,
then turn it on again to continue working.
9. If some ingredients are hardly to be mixed during working due to few ingredients,
remove main unit from head saddle and use it as a hand mixer to continue mixing.
ENVIRONMENT-FRIENDLY DISPOSAL
You can help to protect the environment!
Please remember to respect the local regulations: hand in the non-working
electrical equipments to an appropriate waste disposal centre.
