Elcontrol Vip energy 2k8 alm harmo User manual

Energy & Harmonics Analyser

Via Vizzano 44 - 40037 Pontecchio Marconi (Bologna Italy

Tel. +39 051 6782006 - Fax +39 051 845544

http://www.elcontrol-energy.net

e-mail: vendite@elcontrol-energy.net

sales@elcontrol-energy.net

ENGLISH

USER MANUAL

3YYYB125 Vip Energy 2k8 User Manual Eng Rel.01/2009

WARNING  Elcontrol Energy Net S.r.l. declines all liability for any damage to people or property caused by unsuitable or incorrect

use of its products. Elcontrol Energy Net reserves the right to change product specifications without prior notice.

VIP

VIP ENERGY

ENERGY 2K8

2K8

ALM - HARMO

VL1

VL2

VL3

varL1

varL2

varL3

PFL1

PFL2

PFL3

WL1

WL2

WL3

VAL1

VAL2

VAL3

AL1 AVG

AL2 AVG

AL3 AVG

V THD%

A THD%

VL1 THD%

VL2 THD%

VL3 THD%

ALI MD

AL2 MD

AL3 MD

SEL

V A

W PF

AL1 THD%

AL2 THD%

AL3 THD%

VL1

VL1Min

VL1Max

AL1

AL1Min

AL1Max

VL2

VL2Min

VL2Max

AL1

AL2

AL3

VL3

VL3Min

VL3Max

AL2

AL2Min

AL2Max

AL3

AL3Min

AL3Max

VL1

vL2

VL3

Delta

(***

Fig.1 Fig.4 Fig.9 Fig.10 Fig.11 Fig.12 Fig.13 Fig.16

Fig.14

Fig.15

kvarh COG

kWh COG

(**

SEL

VA var

W Hz

VA MD

W MD

var MD

VA AVG

W AVG

var AVG

kvarh

kWh

kVAh

kWh

A NeutraL

Fig.5

Fig.2

Fig.3

Fig.6

Fig.7

Fig.8

Fig.17 Fig.20 Fig.20 Fig.20 Fig.21 Fig.21 Fig.21 Fig.22 Fig.23

Fig.24

Fig.18

Fig.19

Graphic

harmonics

VL1 (*

Graphic

harmonics

VL2 (*

Graphic

harmonics

VL3 (*

Graphic

harmonics

AL1(*

Graphic

harmonics

AL2(*

Graphic

harmonics

AL3(*

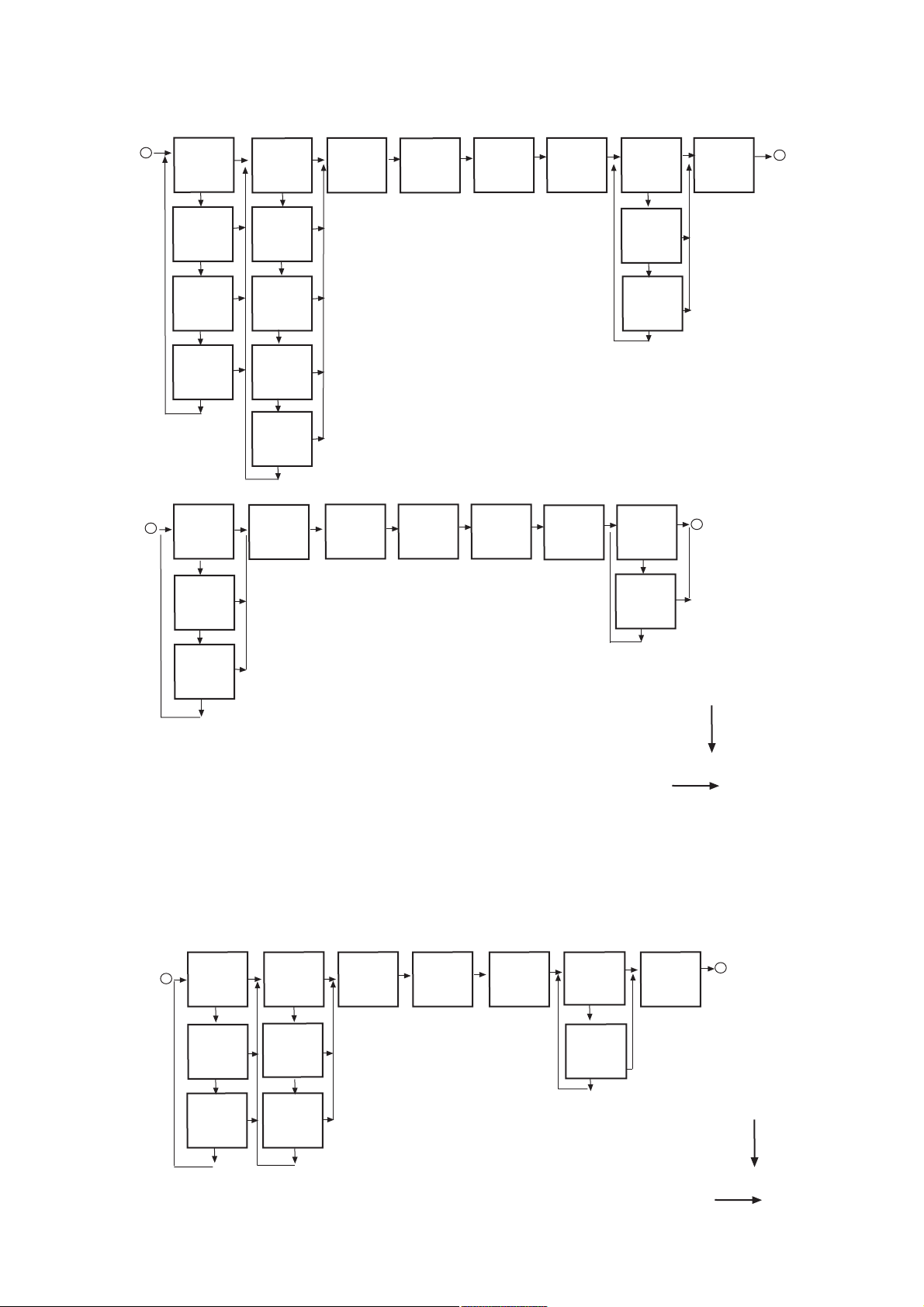

THREE PHASE (DELTA / STAR CONNECTION, QUICK REFERENCE MEASURES PAGES

Note:

(* Only Harmo version

(** Only in cogeneration Mode

(*** Only in Star connection

Legend:

SEL

PAG

V A

W PF

kVAh

kWh kvarh

kWh

V Min

V Max

A Min

A Max

VA var

W Hz

var

V THD%

A THD%

kvarh

COG

kWh

COG

(

AVG

var

AVG

Fig.16 Fig.17 Fig.20 Fig.21 Fig.22 Fig.23 Fig.13

Fig.24

Fig.3

Fig.8

Fig.18

Fig.19

Graphic

harmonics

V (

Graphic

harmonics

A (

DIPHASE CONNECTION QUICK REFERENCE MEASURES PAGES

kVAh

kWh

kvarh

kWh

kvarh COG

kWh COG

(

VA var

W Hz

VA MD

W MD

var MD

VA AVG

W AVG

var AVG

Graphic

harmonics

VL1 (

Fig. 17 Fig. 20 Fig. 20 Fig. 21 Fig. 21 Fig. 22 Fig. 23

Fig. 24

Fig. 18

Fig. 19

VL1

vL2

varL1

varL2 PFL1

PFL2

WL1

WL2

VAL1

VAL2

VL1-L2

AL1

AL2

AL1 AVG

AL2 AVG

V THD%

A THD%

VL1 THD%

VL2 THD%

ALI MD

AL2 MD

V A

W PF

AL1 THD%

AL2 THD%

VL1

VL1Min

VL1Max

AL1

AL1Min

AL1Max

VL2

VL2Min

VL2Max

AL2

AL2Min

AL2Max

Fig. 1 Fig. 4 Fig. 9 Fig. 10 Fig. 11 Fig. 12 Fig. 13 Fig. 16

Fig. 25

Fig. 3

Fig. 6

Fig. 7

Fig. 3 Fig. 8

Fig. 8

Fig. 14

Fig. 15

Graphic

harmonics

VL2 (

Graphic

harmonics

AL1 (

Graphic

harmonics

AL2 (

Note:

(* Only Harmo version

(** Only in cogeneration Mode

SINGLEPHASE CONNECTION QUICK REFERENCE MEASURES PAGES

Note:

(* Only Harmo version

(** Only in cogeneration Mode

Legend:

SEL

PAG

Legend:

SEL

PAG

PAG PAG

PAG

PAG +SEL

(30 SEC

PAG + SEL

SETUP 4-20mA / ALM

Fig. 26 Fig. 27 Fig. 28

Fig. 29 Fig. 30 Fig. 31

Fig. 32 Fig. 33 Fig. 34

Fig. 35

PAG

From the Common Setup Pages

PAG

To measures pages

PAG

Fig. 41

Fig-36

Fig. 37

Fig. 38

Fig. 39

Fig. 40

Fig. 42

Fig. 43

Tab. 1

Chosing 100mSec

Chosing relay

PAG

Avaible measures for alarms

PAG

SETUP PAGES (ALL MODELS

SETUP PAGES ALM VERSION



kVA

kvar

kVA

avg

TOT



avg

COS F (PF

THD% V

THD% A



DISPLAYED MEASUREMENT

Maximum Current [I]

Active Power [kW]

Reactive Power [kvar]

Average

verage Active Power [kW]

Active Power [kW]

TOT

OT L1

L1 L2

L2 L3

Maximum Demand Current [I]

Phase-phase V

Phase-phase Volt

oltage [V]

age [V]

Minimum V

Minimum Volt

oltage [V]

age [V]



Phase-neutral V

Phase-neutral Volt

oltage [V]

age [V]

Maximum V

Maximum Volt

oltage [V]

age [V]

Current [A]

Power Factor

Frequency [Hz]

Average Current [A]

verage Current [A]

App

Apparent Power [kV

arent Power [kVA]

Average

verage App

Apparent Power [kV

arent Power [kVA]

Cog-negative Reactive Energy [kvarh]



Maximum Demand Reactive Power [kvar]

Maximum Demand

Maximum Demand App

Apparent Power [kV

arent Power [kVA]

Positive (Imported

Positive (Imported Active Energy [kWh]

Active Energy [kWh]

Cog-negative (Expo

Cog-negative (Expo Active Energy [kWh]

Active Energy [kWh]

Positive Reactive Energy [kvarh]

App

Apparent Energy [Kvah]

arent Energy [Kvah]

Current Thd%

Volt

oltage Thd%

age Thd%

Maximum Demand

Maximum Demand Active Power [kW]

Active Power [kW]

Average Reactive Power [kvar]

verage Reactive Power [kvar]

Minimun Current [I]

PARAMETERS

ARAMETERS

L3-L1



L2-L3



L1-L2



HARMONIC ORDER

(k=1..25 @ 50Hz - k=1..20 @ 60Hz

L1 L2

L2 L3

HARMONIC VOL

HARMONIC VOLT

TAGE VK

AGE VK

HARMONIC CURRENT IK



VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

Fig.8 Fig.16

Fig.15

Fig.14

Fig.13

Fig.12

Fig.11

Fig.10

Fig.9

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

Fig.17

Fig.18

Fig.19

Fig.20

Fig.21

Fig.25

Fig.24

Fig.23

Fig.22

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

3 PH - N

L2 L3

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

3 PH

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

1 PH

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

2 PH

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

Medium Voltage 3 PH - (2 PT

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

3 PH (2 CT

WIRING DIAGRAMS MEASURES INPUTS

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

VIP ENERGY 2k8

Three phase power & energy analyzer

PAG

SET

SEL

9 Modules DIN (157.5 x 58 x 90

Rail DIN OMEGA da 35

157.5

90 4662

max 4 mm2

MEASUREMENT CONNECTION CABLES

200 mAT

115 VAC

230 VAC

100 mAT

Rs485

A B

CURRENT INPUT MAX 7A

P1 P2

AL1

P1 P2

AL2 P1 P2

AL3

POWER

SUPPLY

OV 230V

115V

4VA-50/60Hz

1 2

VOLTAGE INPUT MAX 600V

1 N

CAT III

2 N V

3 N

POWER SUPPLY CONNECTION

LABELS

DIMENSIONS

1 - INTRODUCTION

Please read carefully the instructions with this symbol before installing and using the instrument.

1.1 - STANDARDS and REGULATIONS

VIP ENERGY2K8 conforms to Directive 73/23/CEE (LVD and 2004/108/CE (EMC .

It has been designed with reference to EN 61010-1, EN 61326 including append. A1/A2/A3, EN 61000-6-2, EN 61000-6-3,

EN 61000-3-2, EN 61000-3-3, EN 61000-3-3/A1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-5/A1,

EN 61000-4-6, EN 61000-4-6/A1, EN 61000-4-8, EN 61000-4-8/A1,EN 61000-4-11, EN 61000-4-11/A1.

1.2 - USER SAFETY

In order to preserve these safety conditions and ensure safe operation, the user must observe all instructions and marks

specified in this user manual. All maintenance and repair operations requiring the opening of the instrument must be carried

out only by suitably qualified and authorised personnel. The instrument was shipped from the manufacturing plant in

perfect technical safety conditions.

1.3 - PRELIMINARY INSPECTIONS

Before installation, check that the instrument is in good conditions and was not damaged during transport. Check that the

network voltage and the rated voltage coincide. This instrument does not require an earth connection.

1.4 - PRECAUTIONS IN THE EVENTS OF MALFUNCTIONS

When safe operation is no longer possible, put the instrument out of service and ensure that it cannot be operated

accidentally.

Safe operation cannot be guaranteed in the following circumstances:

· When the instrument appears clearly damaged.

· When the instrument no longer works.

· After long storage in unsuitable conditions.

· After being damaged in transit.

2 - CONNECTION OF THE INSTRUMENT

2.1 - POWER SUPPLY

The power supply connections terminals are located on the rear side and are clearly indicated with the label POWER

SUPPLY. Use cables having a maximum section of 2.5 mm2. Earth connection is not required. Follow the connection

diagram at the beginning of the manual.

2.2 - CONNECTING VOLTAGE MEASUREMENT CABLES

These cables, having a maximum section of 4 mm2, are to be connected to the terminals labelled VOLTAGE INPUT as

indicated in the diagrams at the beginning of the manual.

2.3 - CONNECTING CURRENT MEASUREMENT CABLE

The instrument is able to measure up to 5A only through external C.T. The cables having maximum section of 4 mm2 must

be connected to the terminals labelled CURRENT INPUT as shown in the diagrams at beging of the manual.

Use CT's with 5A secondary. Use cables having a section appropriate to the length of the connection and the rated power

of the CT's used.

Note 1: For safety reasons, never leave the CT secondary open.

Note 2: Important direct connections, without C.T. will damage the inputs.

3  MEASUREMENTS PAGES

At power on the VIP ENERGY2K8 displays the last page selected before the power off . Use the PAG key to scroll through

the different measurements and the SEL key to see the details. See the diagrams at page 1, 2, and 3 for the measurements

pages. The presence of several pages is depending on the connection mode selected into the setup . [Fig.33].

3 PH-N = Three-phases with neutral, i.e. Star , 4 wires system (Star diagram page 1

3 PH = Three-phases without neutral, i.e. Delta, 3 wires system (Delta diagram page 1

2 PH = Two-phases and neutral (Diphase diagram page 2

1 PH = Single-phase and neutral (Single-Phase diagram page 3

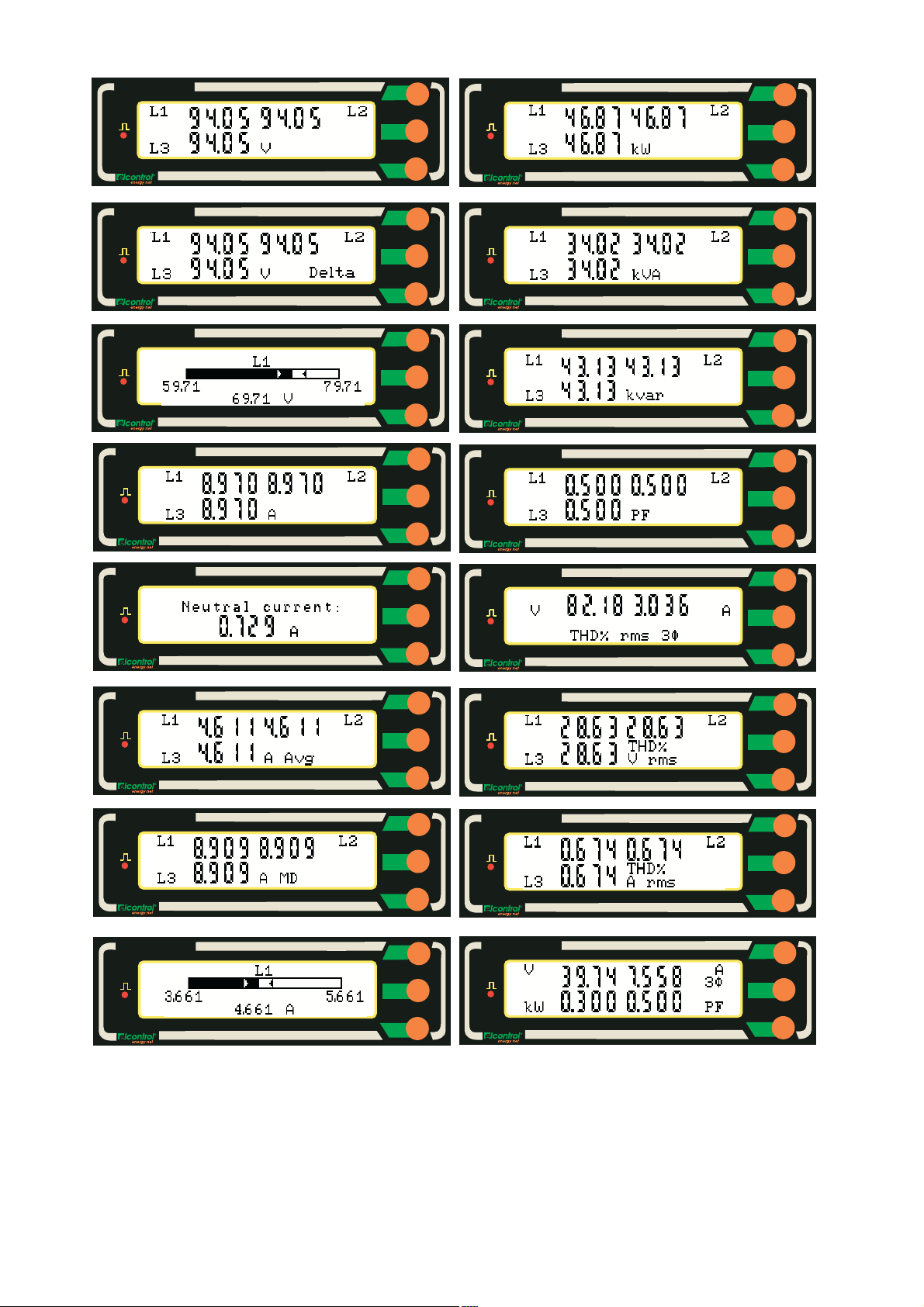

[Fig. 1]

3 PH-N, 3 PH = Phase-neutral voltages VL1-N, VL2-N, VL3-N

2 PH = Phase-neutral voltages VL1-N, VL2-N

1 PH = Page not appearing

rms

æ÷

=fndrms VV 11( 22 -

rms

[Fig. 2]

Page appearing only in Three phases without neutral (Delta .

3 PH = Phase-phase voltages VL1-L2, VL2-L3, VL3-L1

[Fig. 3]

Graphics of the maximum, minimum and instantaneous value of the phase voltage. In the central part

of the page you can see the phase the graphic refers to

[Fig. 4]

3 PH-N, 3 PH = Phase currents AL1, AL2, AL3

2 PH = Phase currents AL1, AL2

1 PH = Page not appearing

[Fig. 5]

Neutral current Aneutral appearing only in 3 PH-N; 3 PH.

[Fig. 6]

3 PH-N, 3 PH = Average phase current AL1Avg AL2Avg, AL3Avg

2 PH = Average phase current AL1Avg AL2Avg

1 PH = Page not appearing

Note: The integration time is the same used for the Average power and it is adjustable into the SETUP

menu [Fig.29].

[Fig. 7]

3 PH-N, 3 PH = Phase current peaks AL1MD, AL2MD, AL3MD

2 PH = Phase current peaks AL1MD, AL2MD,

1 PH = Page not appearing

[Fig. 8]

As in [Fig.3] but refers to the currents.

[Fig. 9]

3 PH-N, 3 PH = Phase active powers PL1, PL2, PL3

2 PH = Phase active powers PL1, PL2

1 PH = Page not appearing

[Fig. 10]

3 PH-N, 3 PH = Phase Apparent powers SL1, SL2, SL3

2 PH = Phase Apparent powers SL1, SL2

1 PH = Page not appearing

[Fig. 11]

3 PH-N, 3 PH = Phase reactive powers QL1, QL2, QL3

2 PH = Phase reactive powers QL1, QL2

1 PH = Page not appearing

[Fig. 12]

3 PH-N, 3 PH = Phase Power Factor PFL1, PF L2, PF L3

2 PH = Phase Power Factor PFL1, PF L2

1 PH = Page not appearing

[Fig. 13]

Average Total Harmonic Distortion Factors in %

THD%V = (THD%VL1+THD%VL2+THD%VL3 / 3

THD%A = (THD%AL1+THD%AL2+THD%AL3 / 3

Note These special parameters allow to identify immediately if one of the phases is distorted

[Fig. 14]

3 PH-N, 3 P = Phase Total Harmonic Distortion THD%V1, THD%V2, THD%V3

2 PH = Phase Total Harmonic Distortion THD%V1, THD%V2

1 PH = Page not appearing

THD%V1 =

rms

25 2

=fndrms AA 22 11( -

[Fig. 15]

3 PH-N, 3 PH = Phase Total Harmonic Distortion THD%A1, THD%A2 ; THD%A3

2 PH = Phase Total Harmonic Distortion THD%A1, THD%A2

1 PH = Page not appearing

THD%A1=

[Fig. 16]

Equivalent three-phase voltage V = (VL1-N + VL2-N + VL3-N / 3 (3 PH-N

Equivalent three-phase voltage V = (VL1-L2 + VL2-L3 + VL3-L1 / 3 (3 PH

Phase to phase voltage V = VL1-N + VL2-N (2 PH

Phase-Neutral voltage V= VL1-N (1 PH

Equivalent three-phase current A = S / (3 V (3 PH-N, 3 PH

A = S / V (2 PH

A = AL1 (1 PH

Total Active power P = PL1 + PL2 + PL3 (3 PH-N, 3 PH

P = PL1 + PL2 (2 PH

P = PL1 (1 PH

Power factor P.F. = P / S

[Fig. 17]

Apparent power S = ( P2 + Q2

Total Reactive power Q = QL1 + QL2 + QL3 (3 PH-N, 3 PH

Total Reactive power Q = QL1 + QL2 (2 PH

Total Active power see fig. 16

Frequency (di VL1 f (Hz

[Fig. 18]

Average apparent power S avg

Average reactive power Q avg

Average active power P avg

Note: The integration time can be adjusted into the Setup menu [Fig. 29]. The average values can be

reset into the Setup menu [Fig. 31].

[Fig. 19]

Maximum demand apparent powe S MD

Maximum demand reactive power Q MD

Maximum demand average power P MD

Note: The peaks values can be reset into the Setup menu [Fig. 31].

[Fig. 20]

Graphic display of the voltage harmonics referring to the single-phases.

Use the SEL and SET keys to scroll through the measured values of the harmonics appearing on the

right top of the page. Example : H 05 90.32 V L2 means the 5th voltage harmonics of phase 2 has

a value of 90.32 Volt.

Note : This page appears only in the HARMO model.

[Fig. 21]

As in fig. 20 but refers to the currents harmonics .

[Fig. 22]

Total apparent energy counter kVAh

Total active energy counter kWh

Note: range 0,000,000.00-99,999,999.9. When the upper limit is reached, the counter restarts from 0.00.

[Fig. 23]

Total reactive energy counter kvarh

Total active energy counter kWh

Note: range 0,000,000.00-99,999,999.9. When the upper limit is reached, the counter restarts from 0.00.

[Fig. 24]

This page appears only if COG is enabled in the SETUP menu [Fig. 32].

Cogeneration counters.

Total reactive energy kvarh

Total exported active energy kWh

Note: o measure properly the cogeneration counters it is strictly necessary to connect the

CTs oriented in the same direction.

[Fig. 25]

Phase-phase Voltage VL1-L2. It appears only in 2 PH.

4  SETUP PAGES (ALL THE MODELS

Programming the instrument through the SETUP menu. Use the PAG and SEL keys to access the Programming mode

(SETUP menu .

See also the diagram on page 8 reading this chapter

4.1 SETUP PAGE PROTECTION CODE

By default, the access code to set-up pages is not enabled. To enable it, keep the PAG + SEL keys pressed at the same

time for 30 sec. The display will show the page on which the access code must be entered. [Fig.26].

[Fig. 26]

By means of the SEL + SET keys, every digit can be changed and the code can be entered. The initial

factory code , that must be entered the first time is 000000. Confirm and exit from this page by pressing the

PAG key.

Now a second page (with "COD" blinking , identical to the first one, is displayed:

From this page, the access code can be permanently changed, if wished.

In this case remember or make a safe note of the new code somewhere you can find it later on.

To exit from the second page press the PAG key.

IMPORTANT: After the first access to the password page, the request of the code will become permanent.

From that moment on the code must be always entered to access the set-up page.

Avoid to recall the password page, for test purposes, if the code request is not permanently desired.

4.2  SETUP PAGES

To access SETUP pages press the PAG and the SEL keys at the same time. Press the PAG key to access the next page,

press the SEL key to select a digit or a setting. Use the SET key to adjust it.

The SETUP can be protected with a password (see paragraph 4.1 .

[Fig. 27]

Programming Primary / Secondary of the Voltage Transformers (VT . Use a ratio equal to 1

(e.g. 100/100 in case of direct measures without voltage transformer. Select a digit with the SEL key;

change its value using the SET key.

[Fig. 28]

Programming Primary / Secondary of the Current Transformers (CT . Use a ratio equal to 1 (e.g. 5/5 in

case of direct measures without current transformer. Select a digit with the SEL key; change its value

using the SET key.

[Fig. 29]

Integration Time of the average Power and Current settable from 0 to 99 minutes.

Select a digit with the SEL key; change its value using the SET key.

[Fig. 30]

Energy counters Reset

If you select YES with the SET key, all the counters will be reset as soon you confirm by pressing the

PAG. key.

[Fig. 31]

Reset of the average and maximum demand, Power and e Current.

If you select YES with the SET key, all the counters will be reset as soon you confirm by pressing the

PAG. key.

[Fig. 32]

Enable Cogeneration counters.

Select ON or Off to enable the measures and confirm with PAG

To measure properly the cogeneration counters it is strictly necessary to connect the CTs oriented in

the same direction.

[Fig. 33]

Programming connection type

Select the type of system which you want to measure using the SET key.

Delta = Three phases without neutral (i.e. Delta (3 PH

Star = Three phases with neutral (i.e. Star (3 PH-N

Diphase = Two-phases with neutral (2 PH

Single-Phase = Single phase with neutral (1 PH

VIP ENERGY2K8 PASSWORD SETUP MEMO

Serial Number

Installed At

Factory Password 000000

Date

New Password

Date

New Password

Date

New Password

[Fig. 34]

Rs485 communication parameters set-up.

Baud Rate can have the following values: 2400, 4800, 9600, 19200 (bps

The Parity (central value can be: N(none , O(odd , E(even .

The type of communication protocol Modbus (3 bottom digits can be:

ASCII = Modbus ASCII. This format is limited to simulate the same data frame of the Vip Energy.

BCD = Modbus BCD MODICON protocol

IEEE = Modbus IEEE standard, INTEL format

[Fig. 35]

Modbus address of the instrument. The permitted address field ranges between 1 and 247

5  SETUP PAGES

These models are equipped with a programmable relay output. See the diagram at page 9 for the programming.

To access the Programming Mode, see the previous paragraphs.

[Fig. 36]

Models with relay output have two way of functioning :

Relay: alarms/relay mode (see paragraph 5.1 .

Pulse Mode: pulse mode (see paragraph 5.2 .100 mSec = Enable Pulse mode with pulse length of 100

mSec. (see chap. 7.1 for the programming

Relay = The confirmation of this page enable the remote relay control or the alarm mode.

5.1 - RELAYS or ALARM OUTPUT

Choosing relay on page [Fig. 36] enables to go to the programming of the output 1 intervention mode.

[Fig. 37]

Association of the output 1 with a measures for alarm controlling. Press the SET key to choose the relay

option or one of the measures of Tab. 1 at page 9. Pressing the PAG key enables to go to page of [Fig.38].

Note: Some of the measures are not carried out in 1PH, 2PH and 3PH mode.

The selection of the Relay option involves the remote control of the relay output through the commands

sent to the Rs485 serial line. In this case it is not necessary to insert other information : press the PAG

key to exit the SETUP .

[Fig. 38]

Set-up of the upper threshold (H of the selected measure. (Tab.1 . When the measure remain above the

threshold + hysteresis , for a time longer than the requested delay, the relay 1 is closed, range 0 - 999

x 106.

[Fig. 39]

Set-up of the lower threshold (L of the selected measure. When the measure remain below the threshold

hysteresis , for a time longer than the requested delay, the relay 1 is closed, range 000-999 x 106.

[Fig. 40]

Set-up of the hysteresis value expressed as a % (percentage . Admitted value from 0% to 99% of the

alarm threshold. The alarm condition is acknowledged only if the measure become higher than

Threshold*(1+hysteresis%

[Fig. 41]

Set-up of the delay figure output 1 (relay closed The alarm will toggle only if the new alarm condition

persist for a time longer than the delay. Delay figure from 0 to 999 seconds.

5.2  PULSES OUTPUT

Choosing 100mSec (pulse mode at page [Fig. 36] the Programming Mode of output 1 is selected.

[Fig. 42]

Measure corresponding to the pulse output 1. Selectable measures: kWh, kvarh , kVAh.

Cogenerated kWh and kvarh appear when the cogeneration mode is enabled..

[Fig. 43]

Set-up of the pulse length output 1. E.g. : selecting 0.01 kWh value = 1 pulse for 0.01 kWh energy

consumption.

6  TECHNICAL CHARACTERISTICS

Maximum dimensions (mm : instrument: 157,5 x 58 x 90

Power supply: from network 230 V 115 V +15% - 20% @ da 50/60 Hz (4 VA

Display: LCD display dot matrix

Voltmeter inputs: 600V CAT. III (750V CAT. II , 35÷400 Hz

Voltmeter input impedance: 2 M

Voltage input overload : max 850 V phase-neutral

Current inputs: AL1, AL2, AL3, COM. Consumption 1 VA. external curr. transf required (see diagrams

Measuring range: 0-120% nominal current

Sensitivity: current 20 mA ; voltage 10 V

Over current : withstand 50 amps for 1 sec.

Number of scales: 1 voltage scale, 2 current scales

Measurements: True R.M.S. up to25th harmonic = 1250Hz with fundamental @50 Hz

Sampling frequency: 2.5 kHz

Accuracy: < 0,5% for V, I and Power

Connection: Single phase or three phase star, three phase delta, or diphase systems

Weight : 0.6 Kg

Protection level: instrument IP20, front panel IP40

Temperature range: -10°C ÷ + 50°C

Relative humidity range: (R.H. : from 20% to 90%.

Condensation: non condensing

Relay output: 100VAC max, 120mA AC max

7 - RS485 SERIAL OUTPUT

Standard Rs485, max 32 instruments on each line without signal repeater, up to 247 instrument with signal repeater.

Table of contents

Other Elcontrol Measuring Instrument manuals

Elcontrol

Elcontrol Microvip 3 plus User manual

Elcontrol

Elcontrol Vip 396 485 User manual

Elcontrol

Elcontrol VIP MK3 User manual

Elcontrol

Elcontrol NanoVIP3 User manual

Elcontrol

Elcontrol STAR 3 User manual

Elcontrol

Elcontrol NanoVIP Plus Mem User manual

Popular Measuring Instrument manuals by other brands

Pfeuffer

Pfeuffer HE lite operating instructions

Draper

Draper 15102 user manual

Balcrank

Balcrank 3331-019 Operation, installation, and maintenance manual

Reflex

Reflex GYRO SPRINT-IQ Quick user guide

Afore

Afore SAPM-10KW Installation and operation manual

Miyachi

Miyachi LF Series Operator's manual

Elekitsorparts

Elekitsorparts FAA-450 Operation guide

AUTODA

AUTODA AD2016SC3 Operating instruction

DxShop

DxShop T200 instruction manual

ELGO Electronic

ELGO Electronic RMIX2 Series operating manual

HBM

HBM ME30 operating manual

Würth

Würth FLL13 Translation of the original operating instructions

Vortex

Vortex Razor HD 4000 user manual

L3 Narda SignalShark 3320 quick start guide

AFL

AFL OFL250 user guide

Kewtech

Kewtech KTD40 user manual

Endress+Hauser

Endress+Hauser Proline Promass S 100 technical information

Chauvin Arnoux

Chauvin Arnoux C.A 813 user manual

Elcontrol Vip Energy 2K8 ALM HARMO User manual

Popular Measuring Instrument manuals by other brands
