Elebia NEO20S User manual

USER MANUAL - NEO20S

Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
2

3
Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
Table of Contents
General Information
General Precautions
Restrictions
Main Features
Specications
Regulatory Standards
Remote Control
FCC, IC, CE & ARIB

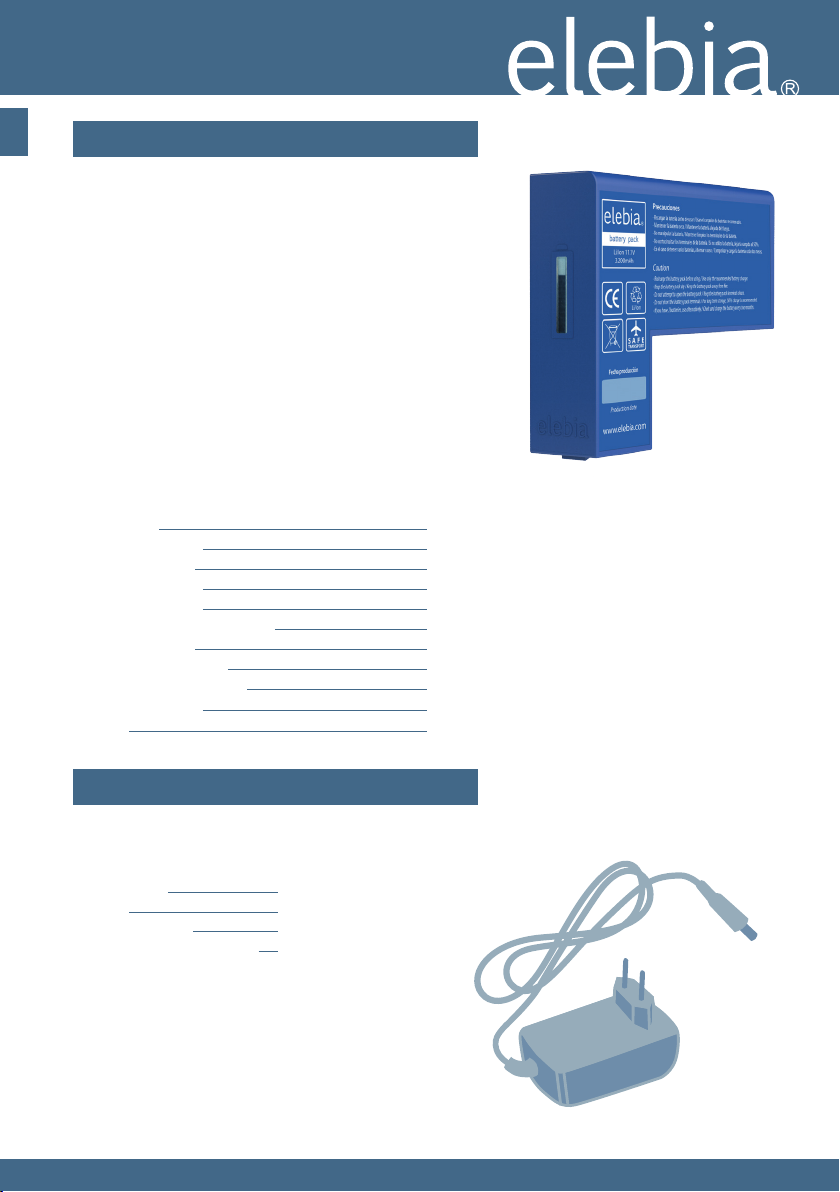

Battery
Charger

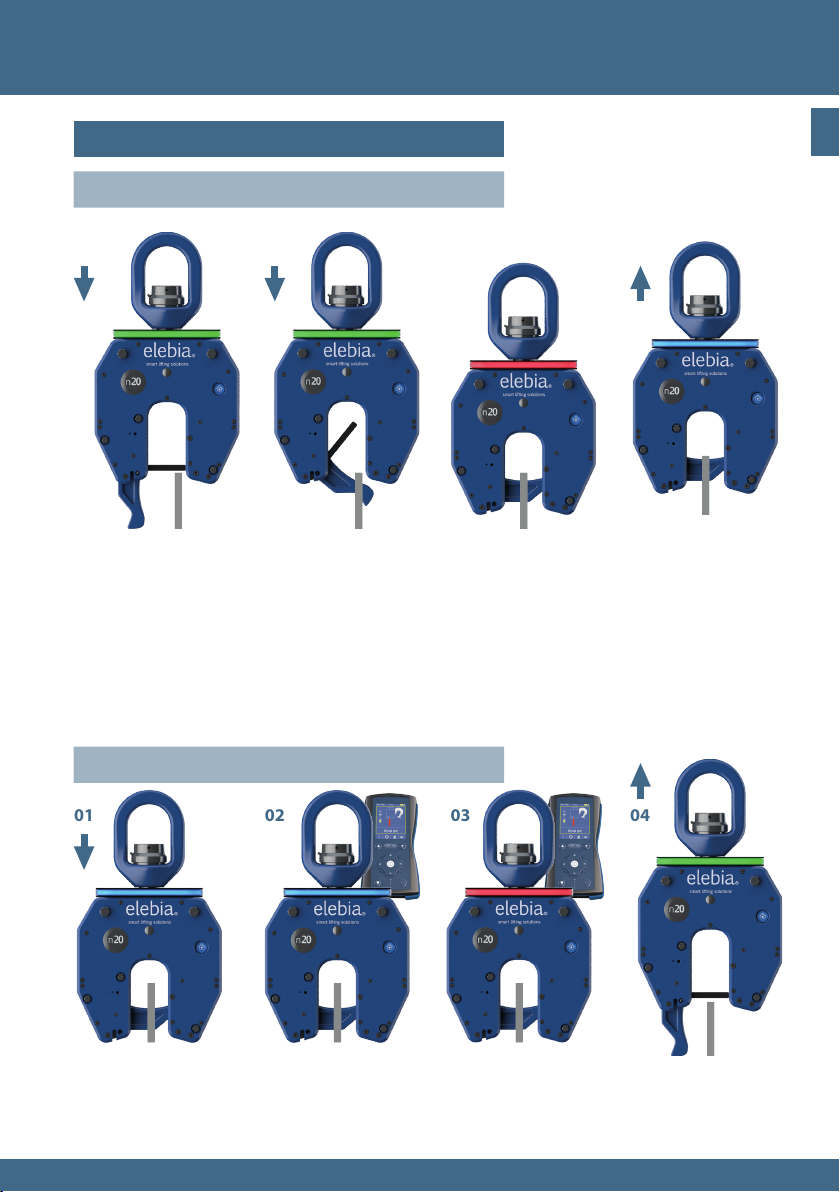

Lifting Procedure
Manual Unlock
Conformity Declaration & Manufacturer’s Certicate
Warranty
Inspection & Maintenance
4
4
5
6
7
7
8
9
10
10
11
12
13
14
14
EN

Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
4
General Precautions
General Information regarding the NEO20S lifting hook
Inappropriate use of the NEO20S lifting hook may give place to potentially dangerous situations and,
if not prevented, these could lead to death or serious injury. To avoid such situations we encourage to
meet the following instructions:
1. Always read the user’s manual instructions before using the NEO20S lifting hook.
2. Any operator must be familiarised with the NEO20S lifting hook’s operation controls, procedures
and warnings.
3. DO NOT operate the NEO20S lifting hook before having completely read and understood the
manufacturer’s user manual and instructions.
4. DO NOT operate the NEO20S lifting hook if it has been altered without the manufacturer’s approval.
5. DO NOT operate the NEO20S lifting hook if it is not working properly or if working unusually.
6. DO NOT operate the NEO20S lifting hook nor repair it if it is damaged or lacks components.
7. DO NOT lift more than the Working Load Limit of 20,000 kg./44,092 lb. indicated per NEO20S lifting
Users must be aware of all operating conditions. Please contact our technical service in case of doubts
and/or questions.
• The NEO20S lifting hook has specically been designed for the vertical lifting and transporting/
moving of loads.
• The Working Load Limit of 20,000 kg./44,092 lb. indicated is per lifting hook.
• Safety factor of 4:1.
Warning
Prior to operation and/or maintenance of elebia products, read and understand the information provi-
ded in this user’s manual.
Failure to review and utilize recommended applications, operation and maintenance instructions may
result in serious injury to operator and others.
It is the sole responsibility of the operator to ensure the correct manipulation and handling of any load
while using any of the elebia products. Automated processes in any lifting operation, whether attaching
and/or releasing any load, or other, must always be submitted to visual inspection of the operator.
elebia designs and produces automated lifting solutions which enhance safety and productivity but can
never replace the responsible and provident handling of all lifting processes.
This user’s manual covers the Application, Operation, Use and Maintenance of the elebia NEO20S
lifting hook.
NOTE: disconnect power sources prior to handling.
!

5
Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
Restrictions
· Inuences resulting from temperature
The elebia NEO20S lifting hook has been designed to be used in normal atmospheric conditions and in a
temperature range from -20 ºC to 60 ºC / -4 ºF to 140 ºF. The NEO20S lifting hook must not be used if these
conditions are not met.
· Inuences from acids/alkalines and chemicals
The elebia NEO20S lifting hook must not be exposed to acids/alkalines or their vapours, as certain pro-
duction methods may release acids and/or vapours.
EN
hook and in the CE stamp.
8. DO NOT use the NEO20S lifting hook to lift, sustain or transport people.
9. DO NOT lift loads over people and ensure that people remain at a distance from the load.
10. DO NOT operate the NEO20S lifting hook unless all people are, and remain outside, the area of the
sustained load.
11. DO NOT operate the NEO20S lifting hook if there are people touching or manipulating it.
12. DO NOT lift loads unless the load slings, chain slings or other accessories are of the correct size and
suitably fastened to the NEO20S lifting hook.
13. DO NOT operate the NEO20S lifting hook with twisted, tangled, damaged or worn load slings, chain
slings or other means and/or lifting accessories.
14. DO NOT lift the load until the closure system of the NEO20S lifting hook is conrmed locked.
15. DO NOT operate the NEO20S lifting hook if it does not meet the lifting procedure specied in section
11 of the user manual.
16. DO NOT leave the weight sustained on the NEO20S lifting hook unattended unless specic precau-
tions have been taken.
17. DO NOT allow the use of the NEO20S lifting hook to make electrical or earth contact in welding operations.
18. DO NOT allow the NEO20S lifting hook or lifting chains to be touched by a live welding electrode.
19. DO NOT withdraw nor cover the warning signs (i.e. LED Status Indicator) of the NEO20S lifting hook.
20. DO NOT operate the NEO20S lifting hook if it lacks the safety signs or if they are illegible.
21. DO NOT modify the NEO20S lifting hook (by welding, grinding, etc.), as this can adversely aect its
operation and safety.
22. Provide notication of any malfunction or abnormal performance of the NEO20S lifting hook after it
has been disconnected for its repair.
23. The NEO20S lifting hook must be stored clean and in a non-humid area to protect against corrosion.
24. DO NOT store the NEO20S lifting hook with the battery inserted.

Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
6

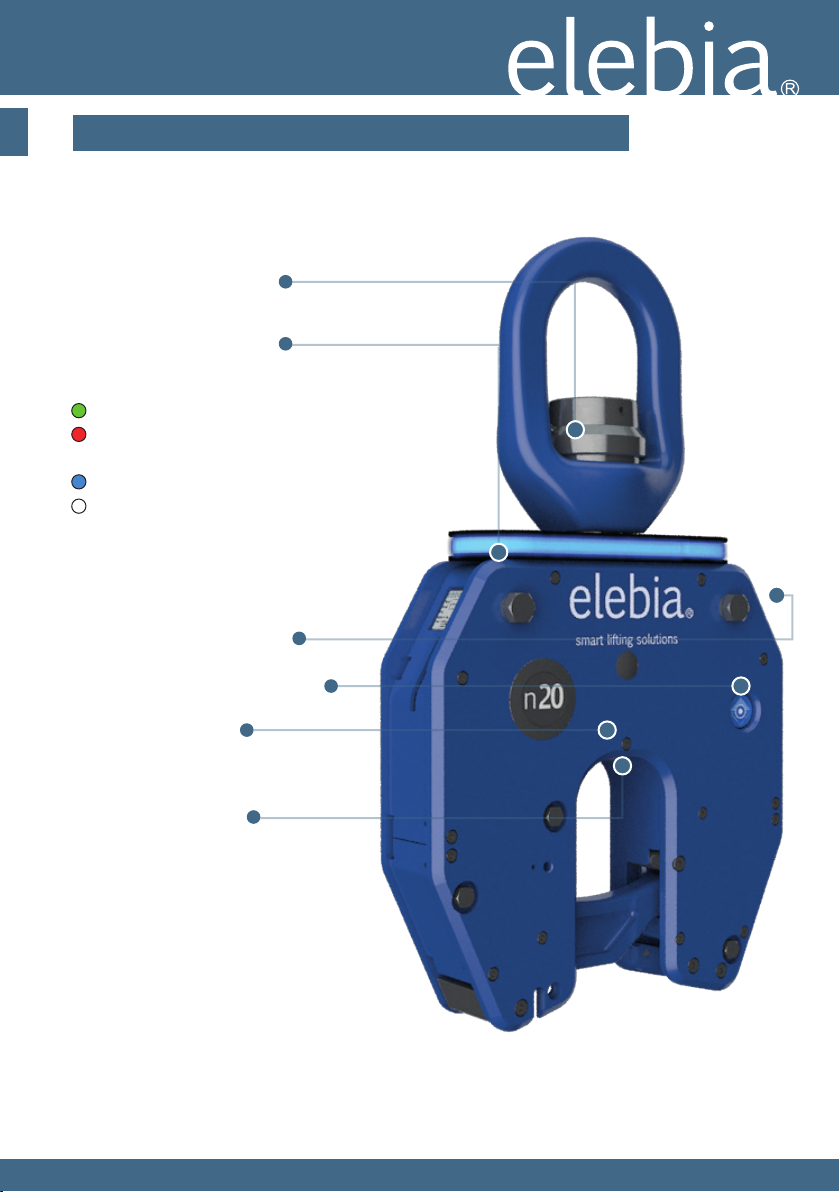

Main Features of the NEO20S lifting hook
A contact sensor detects when load is in
position and NEO20S closes automatically.
* This feature is optional
If the hook carries a load cell and there is a suspended
load, the pulse of the indicator takes an intermittent
pattern after 10 seconds in order to save battery.
Swivel with Bearings
Manual Operation Button
Position Encoder
High Capacity Battery
Autoclose Sensor*
High Brightness
LED Status Indicator*
Green: The lifting hook is unlocked and can release load.
Red: Intermediate status. Do Not Lift! Lifting hook is
transitioning from unlocked to locked or vice versa.
Blue: The lifting hook is securely locked and can lift load.
White: Low battery indicator.

7
Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
The NEO20S lifting hook certies with the following regulatory standards:
Specications
Regulatory Standards
ASME B30.20-2010
ASME BTH-1-2017
EN 10204 3.1.B
ETSI EN 300 220-1 V3.1.1
ETSI EN 300 220-2 V3.1.1
ETSI EN 303 446-1 V1.1.0
ETSI EN 303 446-2 V1.1.0
UNE-EN 1050
UNE-EN 13135:2013
UNE-EN 60204-1:2007
UNE-EN 60730-1:2013
UNE-EN 61000-6-4:2007
UNE-EN 61000-6-2:2006
UNE-EN ISO12100:2012
Directive on Machine Safety (D2006/42/EC)
EMC Directive (2014/30/EU)
Low Voltage Directive (2014/35/EU)
Radio Equipment Directive (2014/53/EU)
ARIB Construction Design Certication N. 203-JN0689.
FCC Identier 2ACLHEVO for Equipment Class:
Digital Transmission System.
Assurance of Production Quality in accordance with ISO9001
Each NEO20S lifting hook is delivered with the CE stamp and a declaration of CE conformity
EN
mm / inches
55 kg. / 121.25 lb.
93 / 3.66
117 / 4.60
390 / 15.35
115 / 4.52
106 / 4.17
546 / 21.49
677 / 26.65
128 / 5.03
390 / 15.35
100 / 3.93

Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
8
The NEO20S lifting hook can be paired to the eMAX remote control, the eMINI remote control and/or the
eINST installable remote control.

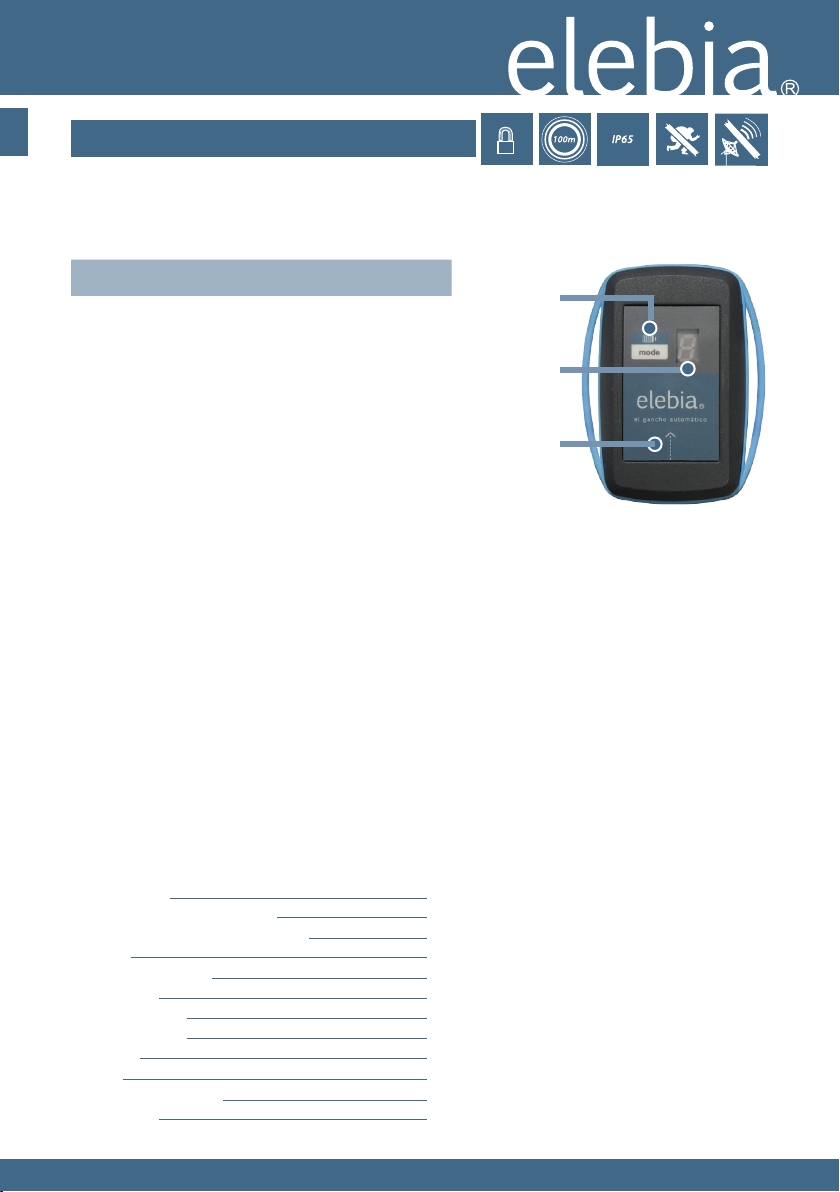

The eMINI is a small and compact remote control.
With the eMINI remote control, the operator can
open and close the NEO20S lifting hook and control
its battery level. The eMINI also displays sensor infor-
mation and maintenance messages.
For more information on the eMINI remote control,
please refer to the eMINI remote control user manual
(downloadable from https://elebia.com/downloads/)
Power Supply
Available Code Combinations
Detection of Errors in Transmission
Buttons
Frequency Selection
Frequencies
Communication
Radiated Power
Antenna
Range
Working Temperature
Dimensions
1 3V lithium battery (CR2032)
65,536 dierent combinations
2 CRC bytes + Forward Error Correction
2
1
868 MHz / 924.1 MHz
Bi-directional return of receiver battery status
under 5 dBm
Printed circuit
100 metres / 330 Feet
-20 ºC to 85 ºC / -4 ºF to 185 ºF
Minitel box (68 x 52 x 17 mm. / 2.68 x 2.05 x 0.67 in.)
Remote Control
eMINI Mode Button
Display Information
elebia Button
Working Modes Display Information
The remote can work in 2 dierent modes:
> ‘One button’ mode:
‘elebia’ button: locks and unlocks the NEO20S lifting
hook.
> ‘Two buttons’ mode:
‘elebia’ button: locks the NEO20S lifting hook
‘mode’button: unlocks the NEO20S lifting hook
To switch between modes, press and hold the
‘elebia’ button for 10 seconds.
Battery level of the NEO20S lifting hook
Low battery level of the eMINI remote control
Maintenance review of the NEO20S lifting hook
One button mode
Two buttons mode
The eMINI remote control does not detect the
NEO20S lifting hook
- battery is not inserted
- battery is o
- battery is discharged
0 to 9:
A:
C:
1b:
2b:
b:

9
Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
FCC, IC, CE & ARIB
EN
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmit-
ter, except in accordance with FCC multi-transmitter product procedures.
Any changes or modications not expressly approved by the warranty of this device could void the user’s
authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures: Reorient or relocate the receiving antenna; Increase the separation between the equipment and receiver.

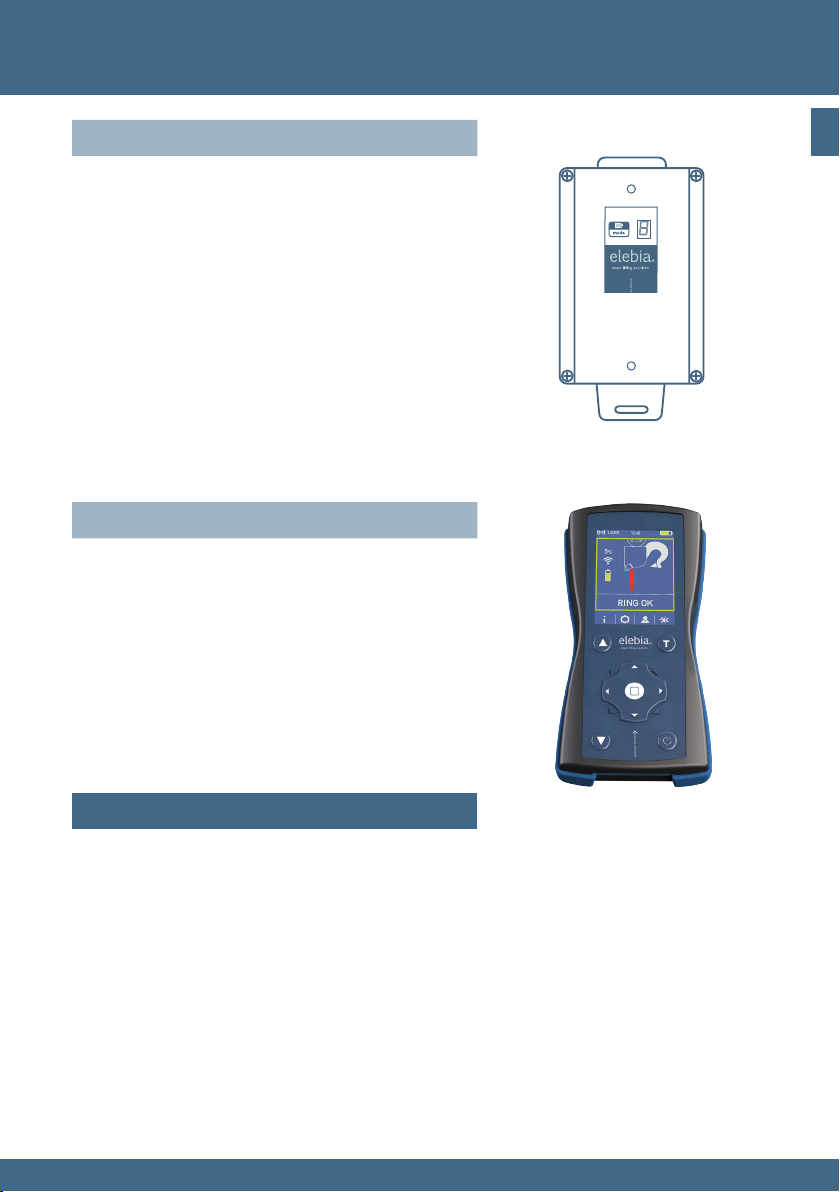

The NEO20S lifting hook can also be controlled using a free
channel of the crane’s master control. The eINST remote
control has to be placed in the crane relay cabinet, where
only simple wiring is needed. It may be used by pairing to
a free channel of the crane’s master control. It is compatible
with all cranes.
Available as 24 V DC or 48 V DC
Dimensions: 80 x 140 x 45 mm. / 3.15 x 5.51 x 1.77 in.
For more information on the eINST remote control, please
refer to the eINST remote control user manual
(downloadable from https://elebia.com/downloads/)
The eMAX is our most advanced remote control. It displays
all the info in a big high-resolution screen and a high-prole
keypad, yet remains handy and lightweight.
For more information on the eMAX remote control, please
refer to the eMAX remote control user manual
(downloadable from https://elebia.com/downloads/)
eINST
eMAX

Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
10
Battery
Charger
The battery status is indicated by a 14 segment Eink
display. The battery is fully charged when the 14 Eink
segments are black, and as the battery discharges
the segments turn white.
The battery is completely discharged when all 14
Eink segments are white.
High capacity: 3 hour charge – 5,000 cycles / 250
hours in standby mode.
For more information about the battery,
please refer to the evo2 battery user manual
(downloadable from https://elebia.com/downloads/)
Technical Specications:
Input Voltage
Output
Charge Indicator
Charge Complete Indicator
100-240 V AC / 50-60Hz. 1.0A (max.)
12.6 V DC / 1.2A
No
No
Technology
Maximum Voltage
Nominal Voltage
Nominal Capacity
Protection Circuit
Maximum Discharge Current
Charge Indicator
Temperature (Charge)
Temperature (Discharge)
Temperature (Idle)
Weight
Rechargeable Li-Ion
12.4 V DC
10.95 V DC
3.2 Ah DC
Charge, Discharge, Overvoltage
6.4 A
Eink 14 Segment Display
0 ºC to 45 ºC / 32 ºF to 113 ºF
-20 ºC to 50 ºC / -4 ºF to 122 ºF
-20 ºC to 60 ºC / -4 ºF to 140 ºF
150 g. / 5.29 oz.
For more information about the charger,
please refer evo2 battery charger user manual
(downloadable from https://elebia.com/downloads/)

11
Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
Lifting Procedure
Engage
Release
NEO20S approaches the
lifting point, orients and
positions itself once the
hook contacts the lifting
point.
Once load is safely on
the ground.
The trigger makes
contact with the lifting
point and the closing
operation begins.
The release order can
be given.
NEO20S’s sensor re-
cognizes the hook is in
the closed position and
latches automatically.
(visual conrmation with the
LED’s status changing from
green (open) to red (do not
lift) and nally to blue (closed).
The NEO20S lifting hook
unlocks and opens.
(red colour in LED status
indicator. Do not lift.)
The load is ready to be
lifted and transported.
Load is released.
(green colour in LED
status indicator.)
01
01
02
02
03
03
04
04
EN

Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
12
Autoclose mode
Laser Pointer
A contact sensor detects when the hook is closed,
and NEO20S closes automatically.
The NEO20S carries a Laser Pointer as an optional fea-
ture. In lifting operations, and from a certain distance,
the sense of depth can be misjudged.
The laser pointer acts as a guide in order to perfectly
place and set the NEO20S lifting hook in the correct
position when approaching the lifting point.
It can be manually activated by pressing the button
that is beside the battery slot.
Manual Override
If there is ever the need to manually override NEO50’s electronics, the process is very simple.
Insert the end/tip of
pole in the cover’s slot.
Pull until cover opens and
wait until LEDs turn green.
Lower the end/tip of pole until it reaches
the narrow lower end of the cover’s slot.
01 02 03

13
Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
Conformity Declaration and Manufacturer’s Certicate
ELEBIA AUTOHOOKS, S.L.U., with registered oce at Plaça Pere Llauger Prim, naus 10-11, Polígon Indus-
trial Can Misser, 08360, Canet de Mar, (Barcelona), Spain, Tax Identication Certicate B65770265, and
ISO 9001 Certicate No. 9000041
DECLARES:
Under its sole responsibility, that the following NEO20S Lifting Hook, with serial number
_____________________, with a maximum operating load of 20,000 kg., complies with the EC Machinery
Directive 2006/42/EC of the European Parliament and of the Council, of 22 June 1998, on the approxima-
tion of the laws of the Member States relating to machinery, and 2004/108/EC, on the approximation of
the laws of the Member States relating to electromagnetic compatibility, and has been manufactured in
accordance with the following harmonised standards:
ASME B30.20-2010, ASME BTH-1-2017, EN 10204 3.1.B, ETSI EN 300 220-1 V3.1.1, ETSI EN 300 220-2 V3.1.1,
ETSI EN 303 446-1 V1.1.0, ETSI EN 303 446-2 V1.1.0, UNE-EN 1050, UNE-EN 13135:2013, UNE-EN 60204-
1:2007, UNE-EN 60730-1:2013, UNE-EN 61000-6-4:2007, UNE-EN 61000-6-2:2006, UNE-EN ISO12100:2012
As stipulated by Directive on Machine Safety D2006/42/EC
- CE symbol xed to the lifting hook.
- Technical documentation led in manufacturer’s site.
Authorised signatory:
Oscar Fillol Vidal
Person authorised to compile the technical le.
CEO of ELEBIA AUTOHOOKS
Barcelona, 15 March 2020
Date: Date:
Observations: Observations:
EN

Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
14
Warranty
Inspection & Maintenance
The warranty of the NEO20S lifting hook is for 2 years
and covers parts and labour for the use envisaged
and recommended in the user manual. Batteries and
maintenance operations, and the materials and la-
bour involved therein, are exempt from the warranty.
Non-performance of checks and maintenance may
lead to cancellation of the warranty.
This warranty is limited to the original end user of the lifting equipment and is subject to the equipment
being inspected, controlled and maintained according to the producer and dealer instructions throug-
hout the warranty period. The warranty period is 2 years from the purchase date and is subject to the
conditions and measures given here.
Warranty will not be valid when any of the following measures are met:
• Overload.
• Wrong and/or carelessly use.
• Damages by not following procedures and measures.
• Damages by hoisting diering material other then indicated on the NEO20S lifting hook or stated
in the user manual.
• Adapting and/or modifying the NEO20S lifting hook.
• The injudicious use of the NEO20S lifting hook, and not succeeding all indications which are stated
in the user manual.
• When maintenance inspections have not been carried out by the authorised elebia Technical Service.
The manufacturer is not responsible for incidental damage or damage due to wrong use of the lifting
tools as well as from violation of this manual.
At least once a year, or in case of any damage to the NEO20S lifting hook, the hook should be inspected,
tested and if necessary returned to Elebia Autohooks SLU Technical Service for review. The frequency of
inspections and tests may vary according to the intensity and type of use.
Proper maintenance of the NEO20S lifting hook will lengthen its useful life. It is the user’s responsibility to
respect the General Precautions, Warnings and Restrictions included in this user’s manual, to undertake the
corresponding inspections, and to withdraw the product in the event of deterioration or malfunction.
Frequent visual inspection to detect cracks and deformations, and inspection of crucial parts is recommen-
ded. In the event of cracks or deformations of over 1%, the mechanism must be withdrawn.
Distributor / Service:
Date:

15
Disclaimer: This user manual is for information only. The manufacturer reserves the right to modify any specications.
EN
Date:
Date:
Date:
Date:
Date:
Date:
Date:
Date:
Date:
Date:
Observations:
Observations:
Observations:
Observations:
Observations:
Observations:
Observations:
Observations:
Observations:
Observations:
Maintenance Check

Plaça Pere Llauger Prim, Naus 10-11
Polígon Industrial Can Misser
08360 Canet de Mar (Barcelona) Spain
Tel. [phone]
www.elebia.com
[email protected]
