Electra DCI Light Commercial Series User manual

DCI Light Commercial Series
KBD IndoorUnits
OCD IndoorUnits
TBD IndoorUnits
QAD IndoorUnits
OutdoorUnits
ELSI-KBD012-N11
ELSI-OCD012-N11
ELSI-QAD012-N11
ELAU-VLD012-H11
ELSI-KBD018-N11
ELSI-OCD018-N11
ELSI-TBD018-N11
ELSI-QAD018-N11
ELAU-VLD018-H11
ELSI-KBD024-N11
ELSI-OCD024-N11
ELSI-TBD024-N11
ELAU-VLD024-H11
ELSI-KBD030-N11
ELSI-OCD030-N11
ELSI-TBD030-N11
ELAU-VLD030-H11
ELSI-KBD036-N11
ELSI-OCD036-N11
ELSI-TBD036-N11
ELAU-VLD036-H11
ELAU-VLD036-H13
ELSI-KBD048-N11
ELSI-OCD048-N11
ELSI-TBD048-N11
ELAU-VLD048-H13
ELSI-OCD060-N11
ELAU-VLD060-H13
REFRIGERANT
R410A
HEATPUMP
REFRIGERANT
SM VLD DCI Ver-3 GB
June 2016

Contents
Contents i
Part 1 General Information .................................................................................................... 1
Part 2 Indoor Units ............................................................................................................... 29
Part 3 Outdoor Units........................................................................................................... 137
Part 4 Installation................................................................................................................ 168
Part 5 Electrical Control System....................................................................................... 200
※The specifications, designs, and information in this book are subject to change without notice for
product improvement.

General Information
General Information 1
Part 1
General Information
1. Model Lists.......................................................................................................................... 2
2. External Appearance.......................................................................................................... 3
2.1 Indoor Units............................................................................................................... 3
2.2 Outdoor Units ............................................................................................................ 4
3. Product specification......................................................................................................... 5
4. Features ............................................................................................................................ 28

Model Lists
2 General Information
1. Model Lists
1.1 Indoor Units
R410A (capacity multiplied by 1000Btu/h)
Type
Function
12
18
24
30
36
48
60
Super slim cassette
Cooling and heating
●
●
●
●
Duct
Cooling and heating
●
●
●
●
●
●
●
Ceiling-floor
Cooling and heating
●
●
●
●
●
Ceiling-floor(Wine Cellar)
Cooling
●
●
Four-way cassette(compact)
Cooling and heating
●
●
Console
Cooling and heating
●
●
1.2 Outdoor Units
Universal Outdoor unit Model
Compressor type
Compressor Brand
Matched indoor units
ELAU-VLD012-H11
Rotary
GMCC
ELSI-KBD012-N11
ELSI-OCD012-N11
ELSI-QAD012-N11
ELAU-VLD018-H11
Rotary
GMCC
ELSI-KBD018-N11
ELSI-OCD018-N11
ELSI-TBD018-N11
ELSI-QAD018-N11
ELAU-VLD024-H11
Twin-rotary
GMCC
ELSI-KBD024-N11
ELSI-OCD024-N11
ELSI-TBD024-N11
ELAU-VLD030-H11
Twin-rotary
GMCC
ELSI-OCD030-N11
ELSI-KBD030-N11
ELSI-TBD030-N11
ELAU-VLD036-H11
Twin-rotary
Mitsubishi
ELSI-KBD036-N11
ELSI-OCD036-N11
ELSI-TBD036-N11
ELAU-VLD036-H13
Twin-rotary
Mitsubishi
ELAU-VLD048-H13
Twin-rotary
Mitsubishi
ELSI-OCD048-N11
ELSI-TBD048-N11
ELSI-KBD048-N11
ELAU-VLD060-H13
Twin-rotary
Mitsubishi
ELSI-OCD060-N11

External Appearance
General Information 3
2. External Appearance
2.1 Indoor Units
Compact Four-way cassette
Super slim cassette
Ceiling-Floor
Console
Duct(12000-48000Btu/h)
Duct(60000Btu/h)

External Appearance
4 General Information

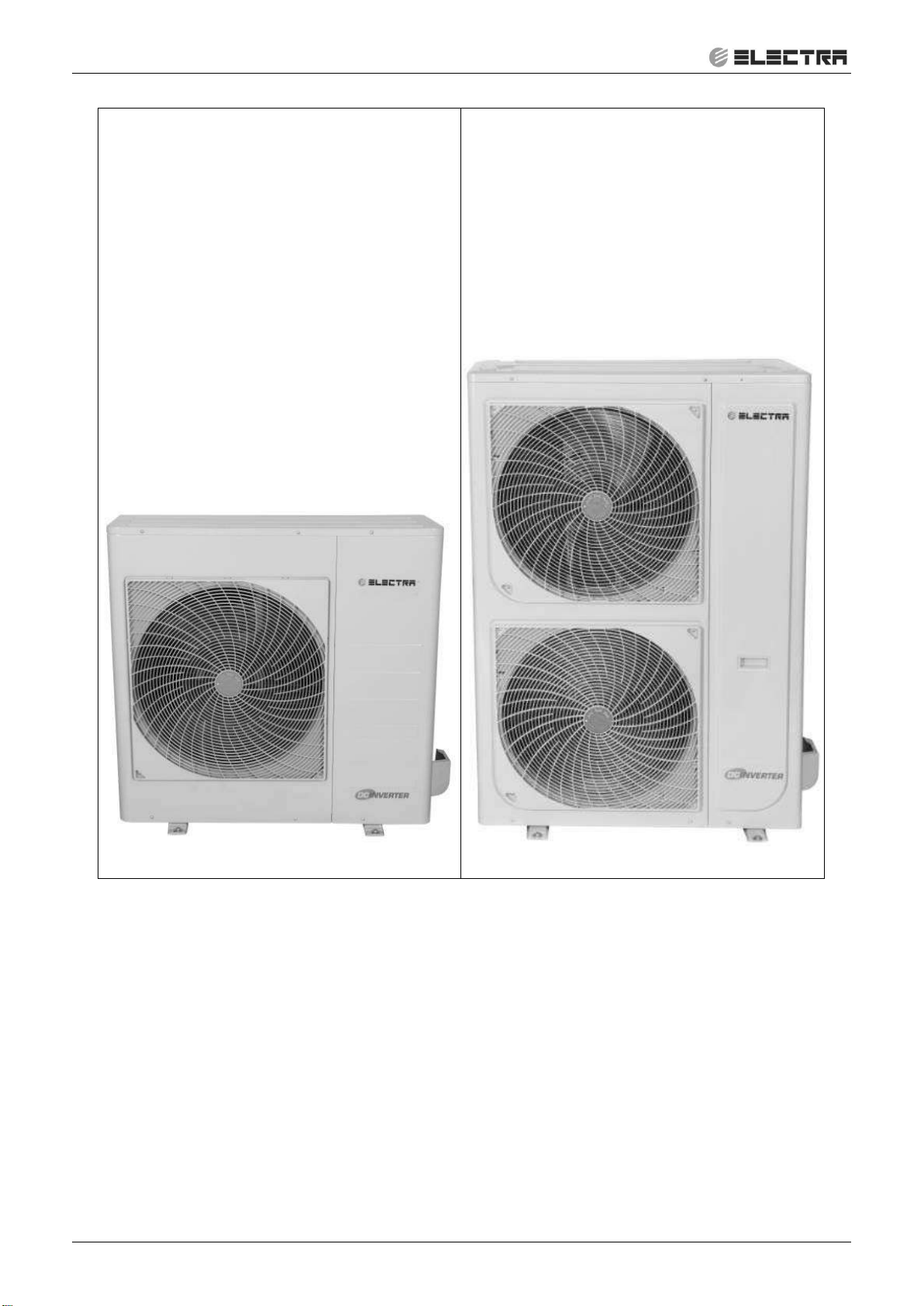

2.2 Outdoor Units
Single fan outdoor unit
Double fan outdoor unit

Product specification
General Information 5
3. Product specification
Model Indoor Unit
ELSI-KBD012-N11
Model Outdoor Unit
ELAU-VLD012-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
3.5
3.5
Pdesign
kW
3.5
3.5
SEER/EER /SCOP/COP (2)
W/W
5.6
3.8
Energy efficiency class
A+
A
Annual energy consumption
kWh
219
1289
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
16
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
H/M/L
RPM
700/580/500
700/580/500
Air flow (3)
H/M/L
m3/hr
650/530/450
650/530/450
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
55
Sound pressure level(5)
H/M/L
dB(A)
42/38/34
Moisture removal
l/hr
1.5
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
570x270x570
Weight
kg
16
Package dimensions
LxWxH
mm
655x655x290
Packaged weight
kg
19
Frame outline dimensions
WxHxD
mm
647x50x647
Frame Weight
kg
2.5
Frame package dimensions
LxWxH
mm
715x715x123
Frame Packaged weight
kg
4.5
Stacking height
units
7levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
850
Air flow
H/L
m3/hr
2200
Sound power level(4)
H/L
dB(A)
62
Sound pressure level(5)
H/L
dB(A)
52
Dimensions
WxHxD
mm
760x590x285
Weight
kg
35.4
Package dimensions
LxWxH
mm
887x355x645
Packaged weight
kg
37.9
Stacking height
units
4 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
1.1
Additional charge per 1 meter
gr / 1m
15
Connections between units
Liquid line
In.(mm)
1/4"(Φ6.35)
Suction line
In.(mm)
3/8"(Φ9.52)
Max.tubing length
m.
Max.20
Max.height difference
m.
Max.10
Operation control type
Remote control

Product specification
General Information 7
Model Indoor Unit
ELSI-OCD012-N11
Model Outdoor Unit
ELAU-VLD012-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
3.5
3.8
Pdesign
kW
3.5
3.4
SEER/EER /SCOP/COP (2)
W/W
5.1
3.8
Energy efficiency class
A
A
Annual energy consumption
kWh
240.1960784
1252.631579
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
16
INDOOR
Fan type & quantity
Centrifugal fan x2
Fan speeds
H/M/L
RPM
1200/1070/900
1200/1070/900
Air flow (3)
H/M/L
m3/hr
560/440/410
560/440/410
External static pressure
Min-Max
Pa
25(0~40)
Sound power level (4)
H/M/L
dB(A)
58
Sound pressure level(5)
H/M/L
dB(A)
41/39/36
Moisture removal
l/hr
1.5
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
700x210x635
Weight
kg
18
Package dimensions
LxWxH
mm
915x655x290
Packaged weight
kg
22.8
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
850
Air flow
H/L
m3/hr
2200
Sound power level(4)
H/L
dB(A)
62
Sound pressure level(5)
H/L
dB(A)
52
Dimensions
WxHxD
mm
760x590x285
Weight
kg
35.4
Package dimensions
LxWxH
mm
887x355x645
Packaged weight
kg
37.9
Stacking height
units
4 levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
1.1
Additional charge per 1 meter
gr / 1m
15
Connections between units
Liquid line
In.(mm)
1/4"(Φ6.35)
Suction line
In.(mm)
3/8"(Φ9.52)
Max.tubing length
m.
Max.20
Max.height difference
m.
Max.10
Operation control type
Wired remote control

Product specification
8 General Information
Model Indoor Unit
ELSI-KBD018-N11
Model Outdoor Unit
ELAU-VLD018-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
5
5.3
Pdesign
kW
5
5.3
SEER/EER /SCOP/COP (2)
W/W
5.6
3.8
Energy efficiency class
A+
A
Annual energy consumption
kWh
313
1953
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+16
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
H/M/L
RPM
820/670/500
820/670/500
Air flow (3)
H/M/L
m3/hr
800/650/500
800/650/500
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
60
Sound pressure level(5)
H/M/L
dB(A)
48/40/33
Moisture removal
l/hr
2.0
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
570x270x570
Weight
kg
16.5
Package dimensions
LxWxH
mm
655x655x290
Packaged weight
kg
19
Frame outline dimensions
WxHxD
mm
647x50x647
Frame Weight
kg
2.5
Frame package dimensions
LxWxH
mm
715x715x123
Frame Packaged weight
kg
4.5
Stacking height
units
7levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
2500
Sound power level(4)
H/L
dB(A)
65
Sound pressure level(5)
H/L
dB(A)
55
Dimensions
WxHxD
mm
845x700x320
Weight
kg
46
Package dimensions
LxWxH
mm
965x395x755
Packaged weight
kg
50
Stacking height
units
3levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
1.8
Additional charge per 1 meter
gr / 1m
15
Connections between units
Liquid line
In.(mm)
1/4"(Φ6.35)
Suction line
In.(mm)
1/2"(Φ12.7)
Max.tubing length
m.
Max.30
Max.height difference
m.
Max.20
Operation control type
Remote control

Product specification
10 General Information
Model Indoor Unit
ELSI-TBD018-N11
Model Outdoor Unit
ELAU-VLD018-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
5.3
5.9
Pdesign
kW
5.3
5.3
SEER/EER /SCOP/COP (2)
W/W
6.1
3.8
Energy efficiency class
A++
A
Annual energy consumption
kWh
304
1953
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+16
INDOOR
Fan type & quantity
Centrifugal fan x2
Fan speeds
H/M/L
RPM
950/850/750
950/850/750
Air flow (3)
H/M/L
m3/hr
900/750/600
900/750/600
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
60
Sound pressure level(5)
H/M/L
dB(A)
44/41/38
Moisture removal
l/hr
2.0
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
1068x235x675
Weight
kg
25
Package dimensions
LxWxH
mm
1145x755x313
Packaged weight
kg
31.5
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
2500
Sound power level(4)
H/L
dB(A)
65
Sound pressure level(5)
H/L
dB(A)
55
Dimensions
WxHxD
mm
845x700x320
Weight
kg
46
Package dimensions
LxWxH
mm
965x395x755
Packaged weight
kg
50
Stacking height
units
3levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
1.8
Additional charge per 1 meter
gr / 1m
15
Connections between units
Liquid line
In.(mm)
1/4"(Φ6.35)
Suction line
In.(mm)
1/2"(Φ12.7)
Max.tubing length
m.
Max.30
Max.height difference
m.
Max.20
Operation control type
Remote control

Product specification
General Information 11
Model Indoor Unit
ELSI-OCD018-N11
Model Outdoor Unit
ELAU-VLD018-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
5.3
5.6
Pdesign
kW
5.3
5.1
SEER/EER /SCOP/COP (2)
W/W
6.4
3.8
Energy efficiency class
A++
A
Annual energy consumption
kWh
290
1879
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+16
INDOOR
Fan type & quantity
Centrifugal fan x2
Fan speeds
H/M/L
RPM
1030/880/800
1030/880/800
Air flow (3)
H/M/L
m3/hr
1250/950/800
1250/950/800
External static pressure
Min-Max
Pa
25(0-60)
Sound power level (4)
H/M/L
dB(A)
58
Sound pressure level(5)
H/M/L
dB(A)
45/43/39
Moisture removal
l/hr
2.0
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
920x270x635
Weight
kg
28
Package dimensions
LxWxH
mm
1135x655x350
Packaged weight
kg
31.5
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
2500
Sound power level(4)
H/L
dB(A)
65
Sound pressure level(5)
H/L
dB(A)
55
Dimensions
WxHxD
mm
845x700x320
Weight
kg
46
Package dimensions
LxWxH
mm
965x395x755
Packaged weight
kg
50
Stacking height
units
3levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
1.8
Additional charge per 1 meter
gr / 1m
15
Connections between units
Liquid line
In.(mm)
1/4"(Φ6.35)
Suction line
In.(mm)
1/2"(Φ12.7)
Max.tubing length
m.
Max.30
Max.height difference
m.
Max.20
Operation control type
Wired remote control

Product specification
12 General Information
Model Indoor Unit
ELSI-KBD024-N11
Model Outdoor Unit
ELAU-VLD024-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
7.2
8
Pdesign
kW
7.2
7.8
SEER/EER /SCOP/COP (2)
W/W
6.1
3.9
Energy efficiency class
A++
A
Annual energy consumption
kWh
413
2800
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+20
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
H/M/L
RPM
700/600/450
700/600/450
Air flow (3)
H/M/L
m3/hr
1780/1560/1360
1780/1560/1360
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
62
Sound pressure level(5)
H/M/L
dB(A)
47 / 45 /42
Moisture removal
l/hr
2.5
Condensate drain tube I.D
mm
ODΦ32
Dimensions
WxHxD
mm
840x245x840
Weight
kg
24
Package dimensions
LxWxH
mm
900x900x265
Packaged weight
kg
28
Frame outline dimensions
WxHxD
mm
950x55x950
Frame Weight
kg
5
Frame package dimensions
LxWxH
mm
1035x1035x90
Frame Packaged weight
kg
8
Stacking height
units
7levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
3500
Sound power level(4)
H/L
dB(A)
69
Sound pressure level(5)
H/L
dB(A)
57
Dimensions
WxHxD
mm
900x860x315
Weight
kg
59
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
63
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.2
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
50
Max.height difference
m.
25
Operation control type
Remote control

Product specification
General Information 13
Model Indoor Unit
ELSI-TBD024-N11
Model Outdoor Unit
ELAU-VLD024-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
7.2
7.8
Pdesign
kW
7.2
7.8
SEER/EER /SCOP/COP (2)
W/W
6.4
3.9
Energy efficiency class
A++
A
Annual energy consumption
kWh
394
2800
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+20
INDOOR
Fan type & quantity
Centrifugal fan x2
Fan speeds
H/M/L
RPM
1200/1080/890
1200/1080/890
Air flow (3)
H/M/L
m3/hr
1400/1250/1100
1400/1250/1100
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
63
Sound pressure level(5)
H/M/L
dB(A)
52/50/46
Moisture removal
l/hr
2.3
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
1068x235x675
Weight
kg
25
Package dimensions
LxWxH
mm
1145x755x313
Packaged weight
kg
30
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
3500
Sound power level(4)
H/L
dB(A)
69
Sound pressure level(5)
H/L
dB(A)
57
Dimensions
WxHxD
mm
900x860x315
Weight
kg
59
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
63
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.2
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
50
Max.height difference
m.
25
Operation control type
Remote control

Product specification
14 General Information
Model Indoor Unit
ELSI-OCD024-N11
Model Outdoor Unit
ELAU-VLD024-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
7
7.8
Pdesign
kW
7
7.8
SEER/EER /SCOP/COP (2)
W/W
6.6
3.8
Energy efficiency class
A++
A
Annual energy consumption
kWh
371
2874
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+20
INDOOR
Fan type & quantity
Centrifugal fan x2
Fan speeds
H/M/L
RPM
1030/880/800
1030/880/800
Air flow (3)
H/M/L
m3/hr
1250/950/800
1250/950/800
External static pressure
Min-Max
Pa
25(0-80)
Sound power level (4)
H/M/L
dB(A)
63
Sound pressure level(5)
H/M/L
dB(A)
46/43/39
Moisture removal
l/hr
2.3
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
920x270x635
Weight
kg
28
Package dimensions
LxWxH
mm
1135x655x350
Packaged weight
kg
31.5
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
800
Air flow
H/L
m3/hr
3500
Sound power level(4)
H/L
dB(A)
69
Sound pressure level(5)
H/L
dB(A)
57
Dimensions
WxHxD
mm
900x860x315
Weight
kg
59
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
63
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.2
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
50
Max.height difference
m.
25
Operation control type
Wired remote control

Product specification
General Information 15
Model Indoor Unit
ELSI-KBD030-N11
Model Outdoor Unit
ELAU-VLD030-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
8.5
8.6
Pdesign
kW
8.5
8.1
SEER/EER /SCOP/COP (2)
W/W
6.4
3.9
Energy efficiency class
A++
A
Annual energy consumption
kWh
465
2908
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+30
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
H/M/L
RPM
720/630/560
720/630/560
Air flow (3)
H/M/L
m3/hr
1850/1600/1400
1850/1600/1400
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
62
Sound pressure level(5)
H/M/L
dB(A)
50 / 47 / 44
Moisture removal
l/hr
3.0
Condensate drain tube I.D
mm
ODΦ32
Dimensions
WxHxD
mm
840x245x840
Weight
kg
26.5
Package dimensions
LxWxH
mm
900x900x265
Packaged weight
kg
30.5
Frame outline dimensions
WxHxD
mm
950x55x950
Frame Weight
kg
5
Frame package dimensions
LxWxH
mm
1035x1035x90
Frame Packaged weight
kg
8
Stacking height
units
7levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
860
Air flow
H/L
m3/hr
3800
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
900x860x315
Weight
kg
59
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
63
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.45
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
50
Max.height difference
m.
25
Operation control type
Remote control

Product specification
16 General Information
Model Indoor Unit
ELSI-TBD030-N11
Model Outdoor Unit
ELAU-VLD030-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
8.5
9
Pdesign
kW
8.5
8.5
SEER/EER /SCOP/COP (2)
W/W
6.4
3.9
Energy efficiency class
A++
A
Annual energy consumption
kWh
465
3051
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+30
INDOOR
Fan type & quantity
Centrifugal fan x3
Fan speeds
H/M/L
RPM
1300/1150/1000
1300/1150/1000
Air flow (3)
H/M/L
m3/hr
1850/1650/1450
1850/1650/1450
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
64
Sound pressure level(5)
H/M/L
dB(A)
53/50/46
Moisture removal
l/hr
2.5
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
1285x235x675
Weight
kg
30
Package dimensions
LxWxH
mm
1360x755x313
Packaged weight
kg
35
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
860
Air flow
H/L
m3/hr
3800
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
900x860x315
Weight
kg
59
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
63
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.45
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
50
Max.height difference
m.
25
Operation control type
Remote control

Product specification
General Information 17
Model Indoor Unit
ELSI-OCD030-N11
Model Outdoor Unit
ELAU-VLD030-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
8.3
9.2
Pdesign
kW
8.3
8.5
SEER/EER /SCOP/COP (2)
W/W
6.3
3.8
Energy efficiency class
A++
A
Annual energy consumption
kWh
461
3132
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+30
INDOOR
Fan type & quantity
Centrifugal fan x2
Fan speeds
H/M/L
RPM
1150/1000/860
1150/1000/860
Air flow (3)
H/M/L
m3/hr
1990/1580/1140
1990/1580/1140
External static pressure
Min-Max
Pa
37(0~80)
Sound power level (4)
H/M/L
dB(A)
65
Sound pressure level(5)
H/M/L
dB(A)
48/44/40
Moisture removal
l/hr
2.5
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
1140x270x775
Weight
kg
35
Package dimensions
LxWxH
mm
1355x795x350
Packaged weight
kg
42
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
860
Air flow
H/L
m3/hr
3800
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
58
Dimensions
WxHxD
mm
900x860x315
Weight
kg
59
Package dimensions
LxWxH
mm
1043x395x915
Packaged weight
kg
63
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.45
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
50
Max.height difference
m.
25
Operation control type
Wired remote control

Product specification
18 General Information
Model Indoor Unit
ELSI-KBD036-N11
Model Outdoor Unit
ELAU-VLD036-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
10
10.5
Pdesign
kW
10
10
SEER/EER /SCOP/COP (2)
W/W
5.4
3.8
Energy efficiency class
A
A
Annual energy consumption
kWh
648
3684
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+30
INDOOR
Fan type & quantity
Centrifugal fan x1
Fan speeds
H/M/L
RPM
720/630/560
720/630/560
Air flow (3)
H/M/L
m3/hr
1850/1600/1400
1850/1600/1400
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
63
Sound pressure level(5)
H/M/L
dB(A)
51/49/46
Moisture removal
l/hr
3.8
Condensate drain tube I.D
mm
ODΦ32
Dimensions
WxHxD
mm
840x245x840
Weight
kg
26.5
Package dimensions
LxWxH
mm
900x900x265
Packaged weight
kg
30.5
Frame outline dimensions
WxHxD
mm
950x55x950
Frame Weight
kg
5
Frame package dimensions
LxWxH
mm
1035x1035x90
Frame Packaged weight
kg
8
Stacking height
units
7levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
860
Air flow
H/L
m3/hr
7200
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
60
Dimensions
WxHxD
mm
990x965x345
Weight
kg
73
Package dimensions
LxWxH
mm
1120x435x1100
Packaged weight
kg
83
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.75
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
65
Max.height difference
m.
30
Operation control type
Remote control

Product specification
General Information 19
Model Indoor Unit
ELSI-TBD036-N11
Model Outdoor Unit
ELAU-VLD036-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
10.5
11
Pdesign
kW
10.5
10.2
SEER/EER /SCOP/COP (2)
W/W
6
3.8
Energy efficiency class
A+
A
Annual energy consumption
kWh
613
3758
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+30
INDOOR
Fan type & quantity
Centrifugal fan x4
Fan speeds
H/M/L
RPM
1200/1050/850
1200/1050/850
Air flow (3)
H/M/L
m3/hr
2200/1850/1500
2200/1850/1500
External static pressure
Min-Max
Pa
0
Sound power level (4)
H/M/L
dB(A)
65
Sound pressure level(5)
H/M/L
dB(A)
52 / 49 /43
Moisture removal
l/hr
3.5
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
1650x235x675
Weight
kg
40
Package dimensions
LxWxH
mm
1725x755x313
Packaged weight
kg
46
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
860
Air flow
H/L
m3/hr
7200
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
60
Dimensions
WxHxD
mm
990x965x345
Weight
kg
73
Package dimensions
LxWxH
mm
1120x435x1100
Packaged weight
kg
83
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.75
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
65
Max.height difference
m.
30
Operation control type
Remote control

Product specification
20 General Information
Model Indoor Unit
ELSI-OCD036-N11
Model Outdoor Unit
ELAU-VLD036-H11
Installation Method of Pipe
Flared
Characteristics
Units
Cooling
Heating
Average
Capacity (1)
kW
10
11
Pdesign
kW
10
10.2
SEER/EER /SCOP/COP (2)
W/W
5.3
3.8
Energy efficiency class
A
A
Annual energy consumption
kWh
660
3758
Tbiv
oC
N/A
-7
Tol
oC
N/A
-15
Power supply
V/Ph/Hz
220-240V/Single/50Hz
Circuit breaker rating
A
10+30
INDOOR
Fan type & quantity
Centrifugal fan x3
Fan speeds
H/M/L
RPM
960/880/800
960/880/800
Air flow (3)
H/M/L
m3/hr
1740/1560/1180
1740/1560/1180
External static pressure
Min-Max
Pa
37(0~80)
Sound power level (4)
H/M/L
dB(A)
62
Sound pressure level(5)
H/M/L
dB(A)
42/39/36
Moisture removal
l/hr
3.5
Condensate drain tube I.D
mm
ODΦ25
Dimensions
WxHxD
mm
1200x300x865
Weight
kg
44
Package dimensions
LxWxH
mm
1385x920x373
Packaged weight
kg
52.5
Stacking height
units
6levels
OUTDOOR
Refrigerant control
Capillary +EXV
Compressor type. model
Twin-rotary DC Inverter
Fan type & quantity
Axial x 1
Fan speeds
H/L
RPM
860
Air flow
H/L
m3/hr
7200
Sound power level(4)
H/L
dB(A)
70
Sound pressure level(5)
H/L
dB(A)
60
Dimensions
WxHxD
mm
990x965x345
Weight
kg
73
Package dimensions
LxWxH
mm
1120x435x1100
Packaged weight
kg
83
Stacking height
units
2levels
Refrigerant type
R410A
Refrigerant charge (standard connecting tubing length)
kg(5m)
2.75
Additional charge per 1 meter
gr / 1m
30
Connections between units
Liquid line
In.(mm)
3/8"(Φ9.52)
Suction line
In.(mm)
5/8"(Φ15.9)
Max.tubing length
m.
65
Max.height difference
m.
30
Operation control type
Wired remote control
