INTRODUCTION
SYSTEM DESCRIPTION
ON-UNIT INDICATORSAND CONTROLS
REMOTE CONTROL
OPERATION MODES, FUNCTIONSAND FEATURES
USE OF WIRELESS REMOTE CONTROL
OPERATION PROCEDURE
Turningon the air conditioner
Ventilatingoperation
Coolingoperation
Coolingoperation with auto fan mode
Heatingoperation
Heatingoperation with auto fan mode
Auto cooling/ heatingoperation
Dry operation
Selectingthe temperature
Sleep function
Timer operation
Automatic vertical air swing
Turningoff the air conditioner
Current clocktime set
PROTECTION MODES
CARE AND MAINTENANCE
OPERATING TIPS
PRECAUTIONS
BEFORE CALLING FOR SERVICE
CONTENTS
1
2
3
4
5
7
8
8
8
8
8
8
8
9
9
9
9
10
11
11
11
12
13
14
15
16
IF YOUR AIR
CONDITIONER IS FOR
COOLING ONLY, PLEASE
DISREGARD THE
HEATING INSTRUCTIONS
PLEASE READ THESE
INSTRUCTIONS BEFORE
OPERATING THE AIR
CONDITIONER

1
INTRODUCTION
This Split Air Conditioner is desighned for versatile applications:
OPERATING TEMPERATURE
RANGE:
Cooling: O O
21 43 C
Heating: O O
-7 21 C
IMPORTANT NOTICE:
This air conditioner must be
grounded to protect against
electrical shock.
Installation of the air
conditioner must be
performed by an experienced
air conditoning installer,
observing good regrigeration
practice.
Electrical connections and
power cord replacement
should only be made by
authorized electricians and in
accordance with electrical
regulations and local codes.
Failure to comply with the
manufacturer's installation
and operation instructions
could affect the performance
of the air conditioner and the
validity of the warranty.
(According to T temperature condition)
1
Coolingair in the summer.
Heating.
Dehumidifyingthe air at high humidity conditions.
Ventilation.

4
14
12
9
10
11
7
8
13
Air intake grille
Supply air flap
(louver)
Air filter
Power cord
Unit's indicators
and on unit control
Horizontal air
flow defecting
louvers
Suction line
Liquid line
Power cable
Control wire
Condensate tube
Outdoor unit air
intake
Outdoor unit air
outlet
Remote control
Air outlet
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
3
2
6
15
5
SYSTEM DESCRIPTION
2
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
15

3
COOL Cools, dehumidifies and filters the roomair. Maintains the desired room
temperature.
OPERATION MODES, FUNCTIONS
AND FEATURES
SLEEP Designed to create comfortable sleepingconditions. When in COOLING mode,
the temperature rises one degree centigrade every hour, for to three hours, from
the start ofthe mode. The temperature rise prevents the feelingofover-cooling
while sleeping(when your body is at rest). In HEATING mode the reverse occurs;
the air conditioner lowers its temperature one-degree every hour. When in SLEEP
mode, the air conditioner will be automatically turned off after have operated for
seven hours. The result is amore comfortable and invigoratingsleep, which leaves
you feelingfresh and energetic on the next morning.
TIMER Real time control and display, automatically turns the air conditioner ON and
OFF accordingto the time ofday setting, ensuringcomfort conditions before
returninghome, without wastingelectricity. It turns the air conditioner off
automatically when sleeping.
HOT KEEP In HEATING and in AUTO FAN, the fan will be turned off when the compressor
is not in operation and will not be restarted, unless the indoor coil reaches
adequate temperature. This HOT KEEP feature prevents uncomfortable cold air
drafts. Use ofAUTO FAN is, therefore, recommended when the air conditioner
is in HEATING mode.
AUTO FAN The air conditioner automatically selects the FAN speed in accordance to with the
roomtemperature. At the start, the unit operates at high fan speed. As the room
air approaches to the desired temperature, the fan switches to alower speed for
quieter operation.
FAN Recirculates and filters the roomair. Maintains constant air movement in
the room.
DRYDehumidifies and softly cools the roomIn DRYMode, the air conditioner
operates at an inceased dehumidifyingpower. This function is recommended
to be used when temperature is rather lowbut the humidity is high.
AUTO Automatically switches fromCOOLING to HEATING or fromHEATING to
COOLING, maintainingthe desired temperature accordingto the roomconditions.
HEAT Heats and filters the roomair. Maintains the desired roomtemperature.

BUZZER Asoft buzzer will sound fromthe indoor unit display to indicate that acommand
sent by the remote control has been accepted and stored in the unit s memory.
This feature may be easily cancelled by the user fromthe display panel.
3-MIN
DELAYED RUN
This compressor is protected by athree-minute delayed restart.
AUTO
LOUVRE
The air louvers is automatically positioned for the most suitable blow-out angle,
when COOL, HEAT, DRYor FAN modes are selected. When the air conditioner
is turned off, the flap will close automatically for an aesthetic appearance.
VERTICAL
AIR SWING
Automatic swingofsupply air in vertical direction. The flap moves automatically
in upward and downward direction to spread the conditioned air evenly
throughout the room.
ON UNIT
OPERATION
The air conditoner can be aturned ON for COOLING or HEATING or be turned
OFF directly formthe indoor unit display panel without the use ofthe remote
control.
4

USE OF WIRELESS REMOTE CONTROL
Prior to operating your air
conditioner, make sure that:
The indoor unit is properly
plugged into power.(Except
for multi-split models).
Indicator(A)on the unit's
display is lit, meaning that the
air conditioner is ready to
accept your remote control
commands.
For clock setting, see page 11.
PRIOR TO
OPERATION
CARD TYPE REMOTE
CONTROL PUTSALL
FUNCTIONSAT YOUR
FINGERTIPS
Aimat the infrared signal receiver on the roomair conditioner when operating.
The remote control signal can be received at adistance ofup to about 7m.
Be sure that there are no obstructions between the remote control and the
signal receptor.
Do not drop or throwthe remote control.
Do not place the remote control in alocation exposed to direct sunlight, or
next to aheatingunit, and/or other heat source.
Do not expose the air conditioner signal receiver(C)to astronglight such as
fluorescent lamp or sunlight
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
5

ABCD
STAND-BYINDICATOR
Lights up when the air
conditioner is connected
to power and ready to
receive the remote
control commands.
ON UNIT CONTROL
Press to turn on or turn
off for COOLING or HEATING
without the use of remote control
SIGNAL RECEIVER
Receive signals from
the remote control.
OPERATION INDICATOR
Lights up during
operation. Blinks once to
announce that the
remote control infrared
signal has been received
and stored. Blinks
continuously in
protection mode.

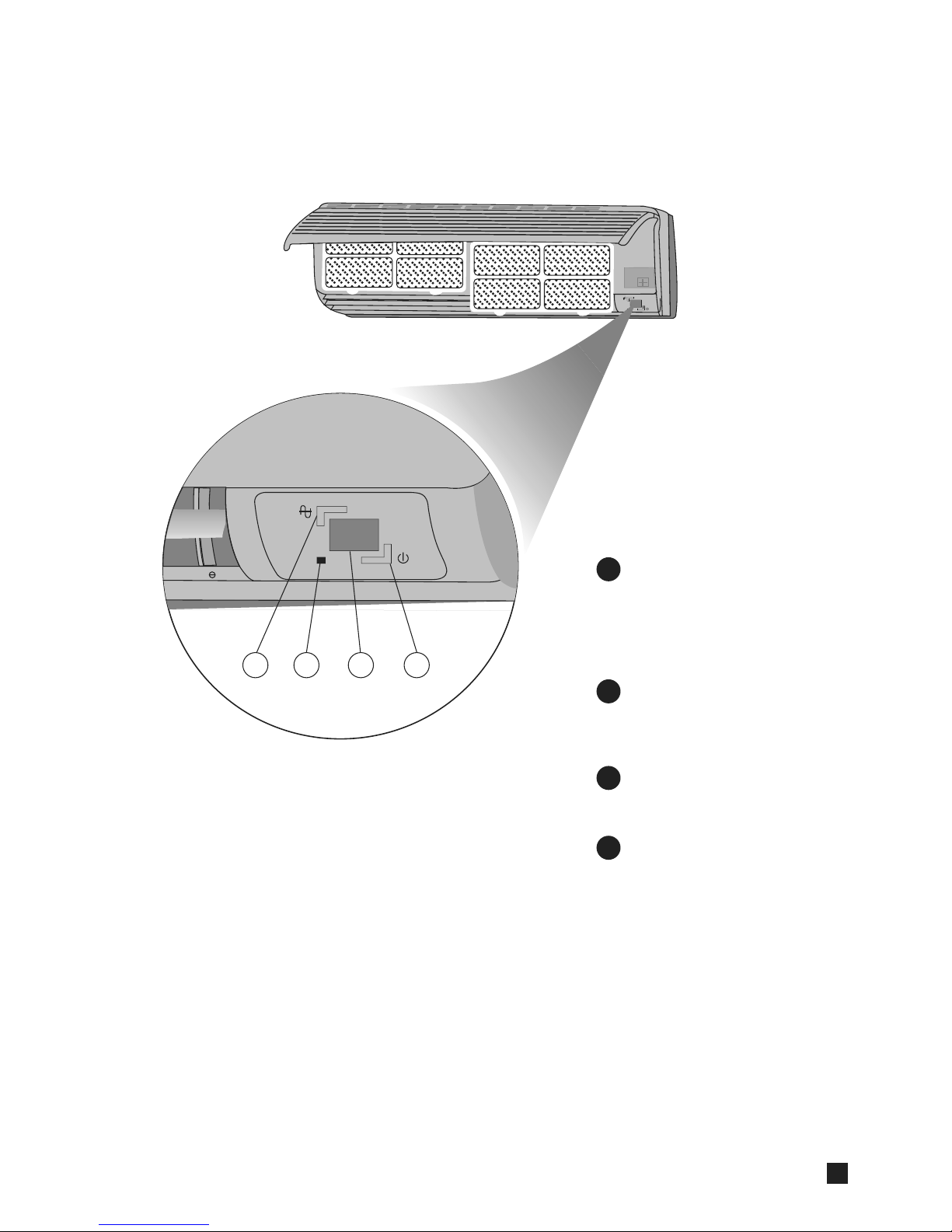

ON-UNIT INDICATORS AND CONTROLS
A
B
C
D
6

1
2
3
4
5
6
7
REMOTE CONTROL
7
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
START/STOP button
Operation mode
selection button
COOLING
HEATING
AUTO COOL/HEAT
DRY
FAN
FAN SPEED and
AUTO FAN button
Room temperature
UP button
Room temperature
DOWN Button
SLEEP button
Airflow direction
AUTO-CONTROL
button
TIMER button
TIMER UP button
TIMER DOWN button
LCD operation display
Infrared signal
transmitter
TIMER SET button
TIMER CLEAR button
Transmission sign
8
9
10
11
12
13
14
15
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR

OPERATION PROCEDURE
MODE
+
-
TIMER
SET
CLEAR
MODE
+
-
TIMER
SET
CLEAR
MODE
+
-
TIMER
SET
CLEAR
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
AUTO
ON
OFF
AUTO
ON
OFF
AUTO
ON
OFF
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR

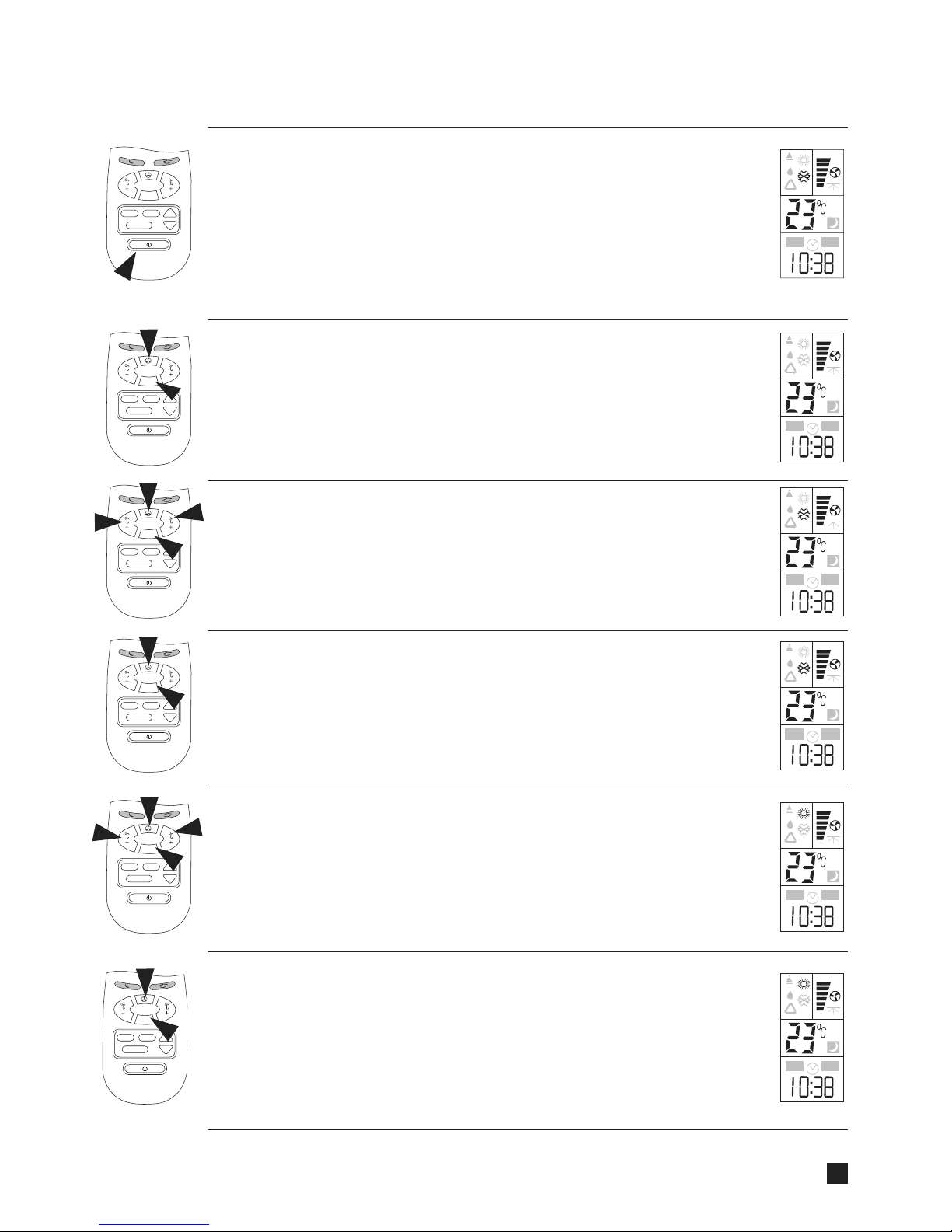

TURNING ON THE AIR CONDITIONER
Press START/STOP button (1) to turn the air conditioner. After connectingto th e
power supply, The indicator (B) on the air conditioner light up, indicatingthat the air
conditioner is in the standby status. Please note that LCD operation display (13) will
always showthe last mode ofoperation and the function used. Ifyou
want to change the control set tings, proceed accordingto the followinginstructions.
Otherwise, the air conditioner will start and operate in the same mode and functions prior to
beingturned off.
VENTILATING OPERATION
Select the ventilatingmode by pressingMODE button (2). Switch to the desired
fan speed by pressingFAN speed button (3).
COOLING OPERATION
Select the COOLING mode by pressingMODE button (2). Switch to the desired
FAN SPEED or to AUTO FAN by pressingbutton (3). Select suitable temperature
setting. By selectingthe COOLING mode, the air flap will move automatically to air
delivery position, optimal for cooling.
COOLING OPERATION WITH AUTO FAN MODE
This operation starts with the highest air flowin order to quickly lower the room
temperature. It will then automatically switch to the lowair flowto quietly maintain
the selected temperature.
HEATING OPERATION
Select the HEATING mode by pressingMODE button (2). Switch to the
desired FAN SPEED or to AUTO FAN by pressingFAN button (3). Select
suitable temperature setting. By selectingthe HEATING mode, the air flap will
move automatically to air delivery position, optimal for heating.
previous
HEATING OPERATION WITH AUTO FAN MODE
This operation starts with the highest air flowin order to quickly raise the room
temperature. It will then automatically switch to alower air flowto quietly maintain
the selected temperature. HEATING with AUTO FAN will automatically provide
the user with the HOT KEEP function. The fan will be turned off when the indoor
coil temperature is not sufficiently hot to prevent uncomfortable cold air drafts.
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
8

DRYOPERATION
Select the DRYmode by pressingMODE button (2). Select the suitable
temperature setting. While in DRYmode, the air conditioner will operate at low
fan speed, regardless ofthe fan settingon the LCD operation display. Fan
might terminate operation fromtime to time to prevent fromover cooling. By
selectingthe mode, the air flap will move automatically to optimal horizontal
air delivery position.
SELECTING THE TEMPERATURE
Press TEMP button (4) or (5) to change the temperature settingin the LCD
operation display(11).The temperature settingis shown in degrees centigrade.
Ahigher number indicates ahigher roomtemperature. Alower number indicates
alower roomtemperature.
AUTO COOLING/HEATING OPERATION
Select the AUTO mode by pressingMODE button (2). Switch to the desired
FAN SPEED or to AUTO FAN by pressingbutton (3). Select suitable
temperature setting. The air flap will automatically move to either horizontal
air delivery for coolingor to vertical air delivery for heating. At start, the air
conditioner will select its mode ofoperation accordingto the room
temperature and the temperature setting
.
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
SLEEP FUNCTION
Press the SLEEP button (6) to select the SLEEP function. When the sleep
function is activated the air conditioner will be automatically turned OFF after
seven hours. Ifat the same time TIMER is activated, as well ,the air conditioner
will be turned ON and OFF accordingto the TIMER setting.
To cancel the SLEEP function press on one ofthe following:
START/STOP button (1)
SLEEP button (6)
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
9

III. TIMER ON/OFF
This mode enables you to set the start and
stop time ofoperation. Press Timer button
(8) till the ON sign blinks. By pressingagain
the OFF sign blinks. By press again the ON
sign blinks. Time
Example: Operation is restored at 10:30 a.m.
Operation stops at 18:00
can be adjusted by using
the up and down buttons (9) and (10)
respectively. Press Set button (13) to activate
the timer.
TIMER OPERATING MODES
I. TIMER ON
This mode enables you to set astart operating
time .Press the TIMER button (8) till ON sign blinks.
Star time can be adjusted usingup and down
buttons (9) and (10) respectively. Press SET button
(13) to activate the timer.
Example: Operation is restored at 10:30 a.m.
II. TIMER OFF
This mode enables you to set the stop time of
operation. Press the Timer button (8) till the OFF
sign blinks. Time can be adjusted usingup and
down buttons (9) and (10) respectively. Press Set
button (13) to activate the timer.
Example: Operation stops at 18:00.
IV. CLEAR
Use this mode to cancel timer operation. Press
CLEAR button (14), timer operation will terminate
and the LCD display will be cleared for each
timer mode.
Note: Iftimer button (8) is selected and neither
time adjust, SET, or CLEAR buttons are not pressed
within 15 seconds; the timer operation will be
cancelled and the last setup will be displayed
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
10
TIMER OPERATION
Press TIMER select button (8) to activate the timed operation mode. Each time you
press TIMER button (8) is pressed, one ofthe followingfour type ofoperation modes will
appear on the LCD display. The operation modes are sequenced in turn in the direction
ofarrow. Indicator (C) on the air conditioner will light up duringTIMER operation.
Note: After power failure when the unit is in timer mode indicator will be blinkingand
the unit will be automatically turned to stand-by mode and the timer operation will be
cancelled. To resume the timer wait 30 sec. before reprograming. Followthe instructions
above.

AUTOMATIC VERTICAL AIR SWING
Press button (7) to activate the auto air swing. By Pressingbutton (7) again you
can stop the auto swingand position the air flap at any desired anle.
TURNING OFF THE AIR CONDITIONER
Press START/STOP button (1) to turn off the air conditioner. Indicator (B) on the
air conditioner will be turned off. Indicator (A) will stay lit, indicatingthat the air
conditioner is in STAND-BYmode and ready to accept any newcommand from
the remote control. The remote control LCD will display the clocktime. The last
operatingset-up will be kept for the next operation.
CURRENT CLOCK TIME SET
Clocksettingis performed when batteries are inserted. The remote control
displays the settingand the clockdisplay will blink"0:00" or "12:00" AM (AM
sign will blink, too) till anewtime is set.
For clocksetting, use buttons (9) and (10) for settingthe hours and minutes,
respectively, and then press timer SET button (13). The clocksettingcan be
also performed by pressingtime SET button (13) for 5 seconds.
The clockdisplay will blink, for newsettingfollowthe steps described above.
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
AUTO
ON
OFF
11

PROTECTION MODES
Your air conditioner includes several automatic protection modes, which enables you to use it
virtually at any time and in any season, regardless ofthe outdoor temperature. Some ofthe
protection modes are listed below:
Mode Operation
conditons
Protection
from
Controlled
remedy
CoolingLowoutdoor
temperature Indoor coil freezes up Stops outdoor fan and
compressor when
approachingfreezing
conditions
Resumes operation
automatically.
High outdoor
temperature Outdoor coil
overheating
Stops compressor when
approachingover heating
conditions.
Resumes operation
automatically.
Operatingindicator(D)
blinks.
HeatingLowoutdoor
temperature Outdoor coil
ice build up Reverses Operation from heatingto coolingfor
short periods to de-ice
outdoor coil.
Oiperatingindicator (D)
blinks.
High indoor
or outdoor
temperature
Indoor coil
overheating
Stops outdoor fan and
compressor when
approachinghigh indoor
coil temperature.
Resumes operation
automatically.
12

13
CARE AND MAINTENANCE
Befor performingany maintenance procedure,
make sure to disconnect the air conditioner from
the power.

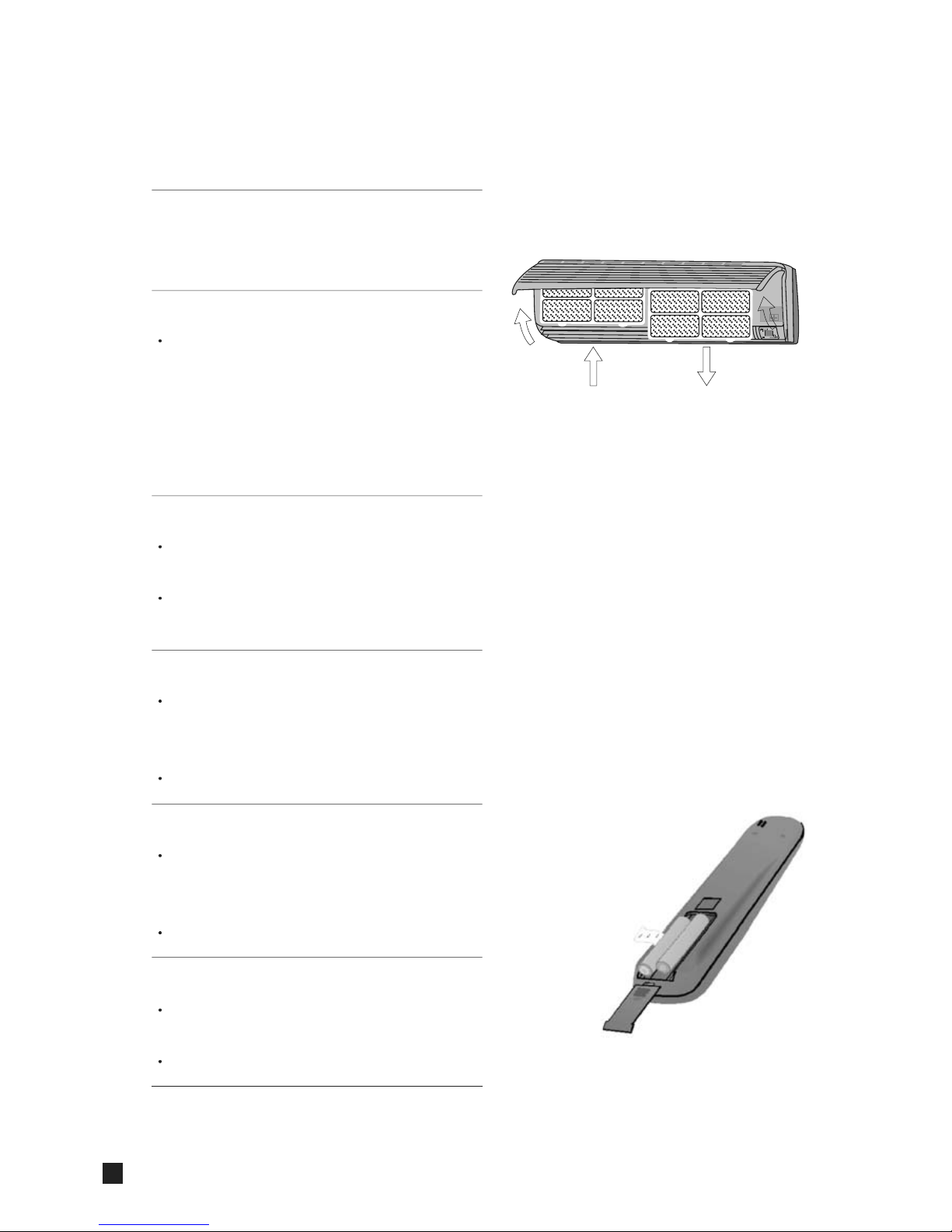

CLEANING THE AIR FILTER
To remove the air filters lift up the panel. Push
the air filters up slightly to unlockthem. Pull out the
filters clean the filter by washingin warmsoapy
water and dry thorougly Align and fit the filters in
place. Close the panel by pushingit in the center
to lockit in place.
CLEANING THE AIR CONDITIONER
Wipe the unit with asoft dry cloth or clean it
usingavacuumcleaner.
Do not use hot water or volatile materials which
could damage the surface ofthe air conditioner.
AT THE BEGINNING OF THE SEASON
Make sure there are no obstacles blockingthe
flowofinlet or outlet air, in both indoor and outdoor
units.
Make sure the power is properly connected.
PROTECT THE ELECTRONIC SYSTEM
Indoor unit and remote control must be at least 1
meter away fromaTV. radio or any oter home
electronic appliance.
Protect the inner unit fromdirect sun or lighting.
REMOTE CONTROL BATTERYCHANGE
Remove the batteries fromthe remote control as
shown.
Use two 1.5 volt size AAA batteries

OPERATING TIPS
Set asuitable roomtemperature; excessively lowroomtemperature
is not good for your health and wastes electricity. Avoid frequent setting
ofthe temperature.
Duringcooling, avoid direct sun. Keep curtains and blinds closed.
Close doors and windows to keep the cool air in the room.
Avoid generatingheat or usingofheatingappliances while the air
conditioner in coolingmode.
Make sure that the air flap is positioned properlay: horizontal flow
incoolingand downward vertical flowfor heating.
Keep the roomtemperature uniformby adjustingthe left/right vertical
air blades.
Position the air flap and the left/right air blades in such amanner as
to prevent your body frombeingexposed directly to air drafts.
Duringprolonged operation, ventilate the roomoccasionally by
openingawindowfromtime to time.
In apower failure, the microprocessor memory is retained. When
restarted, operation will be resumed in the last mode ofoperation.
After turningon, allowmore than 3 minutes for cooling, heatingor
dry operation to start.
When COOL modes are used, make sure that the room's
relative humidity is below78%. Ifthe unit is used for aprolonged
periods oftime in high humidity, moisture may formon the air outlet
and drip down.
Remote control signals may not be received ifthe indoor unit
controls cover is exposed to direct sunlight or stronglight. In such a
case, blockthe sunlight or dimthe lighting.
The remote control is operative in arange of7meters. Ifyou are out
ofrange, the remote control may have difficulties in transmittingsignals.
14

PRECAUTIONS
Use the proper electrical fuse.
Do not pull out the power cord unless the unit is
turned off.
Do not start or stop operation by disconnecting
the power cord.
Do not obstruct or blockthe air inlet or air outlet
ofthe air conditoner.
Do not insert any objects in the air outlet ofthe
indoor or outdoor units.
Do not splash water on the air conditioner.
IF NOISE IS HEARD
There may be hissing
sound during operation
or just after shut down.
this is caused by the
refrigerant that is
circulating inside the
unit
There may be a cracking
sound at starting and
stopping the unit's
operation. This is caused
by heat expansion or
contraction of plastics.
15

Before callingfor service, please checkthe followingcommon malfunctions
and correct it as needed.
ProblemCause Remedy
BEFORE CALLING FOR SERVICE
Unit does not
operate. Stand-
by indicator does
not light up
unit does not
operate. Stand-by
indicator lights.
Unit does not
respond properly
to remote control
command
Air does not
blowout from
indoor unit
COOLING, or
HEATING does not
start immediately
Unit functions but
does not perform
sufficiently
Unit not connected
to power
Power failure
Remote control
malfunctions
IR signal does not
reach unit
Distance between
remote control and
unit too large or
aimed at from
improper angle
IR receiver on-unit
exposed to strong
light source
De-icingprotection
mode is activated
3-min. compressor
delayed start
Improper
temperature setting
Unit capacity
insufficient for
load or roomsize
Plugin the power
cord
Checkmain fuse
Checkremote
control batteries
Try to operate from
acloser distance
Start fromon-unit
controls
Checkfor obstruction
between unit and
remote control.
Clear ifneeded.
Get closer to unit
Dimlights,
fluorecents
especially
Normal operation
in HEATING mode
Normal operation
for these modes
Resset temperature
Consult your dealer
16

1. ACCESSORIESSUPPLIED WITH AIR CONDITIONER
2. LOCATION OF INDOOR AND OUTDOOR UNITS
3. ELECTRICAL REQUIREMENTS
4. INSTALLATION OF THE INDOOR UNIT
5. CONDENSATE HOSE CONNECTION
6. ELECTRICAL CONNECTIONSBETWEEN INDOOR AND OUTDOOR UNITS
7. REFRIGERANT TUBING
8. FINAL TASKS
INSTALLATION INSTRUCTIONS
The appliance shall not be installed in the laundry.

Mounting Plate 1
Wall mounting
of the indoor
unit
Remote control
With batteries 1Operation of
Unit
Screws
washers dowels 4Wall mounting
of indoor unit
Outdoor unit
drain connector 1Outdoor unit water drain
Mounting pads 4
Padding of
outdoor unit
bottom support
Cable ties 4Securing wires
in the indoor and
outdoor unit
Cable terminals 1
Securing of
grounding wire
on the indoor
and outdoor unit
Twin wire cable
(for heat pump
units)
1Transmitting
signals
Operation and
installation
instructions
1Users and
installers
reference
Fig.1
1. Bottomofoutdoor unit
2. Drain connector
Fig.2
Drain installation
Example
1ACCESSORIES SUPPLIED WITH
THE AIR CONDITIONER 2LOCATION OF INDOOR AND
OUTDOOR UNITS
FOR SPLIT WALL MOUNTED AIR CONDITIONER
INSTALLATION INSTRUCTIONS
Select the location considering the following:
INOOR UNIT
1. Choose alocation which will provide good air circulation.
ensure that no objects or furnishings prevent air circulation.
2. Do not install the unit nearaheat source or where it will be
exposed to direct sunlight.
3. The location must allowconvenient electrical draingage and
tubingconnections.
4. Installation site should provide an easy passage to outdoors.
5. The unit must be mounted on astrongwall that will withstand
the generated vibrations.
6. Install the mountingplate as shown.
OUTDOOR UNIT
1. The location must alloweasy servicingand provide good air
circulation.
2. The unit may be suspended fromawall by abracket
(Optional) or located in afree standingposition on the floor
(preferably slightly elevated).
3. ifthe unit is suspended, ensure that the bracket is firmly
connected and the wall is strongenough to withstand
vibrations.
4. Unit location should not disturb neighbors with noise or
exhaust air stream.
5. Place the mountingpads under the unit legs.
6. Install the outdoor unit as shown. Refer to the technical and
service manual for allowed distances.
7. When the unit is installed on awall, install the drain
connector hose and drain plugas shown.
Shape Name Qty Used for
AUTO
ON
OFF
MODE
+
-
TIMER
SET
CLEAR
Fig 1 Fig 2
1
2
