ElectrIQ EAP260HC-PM 2.5 User manual

USER MANUAL
EAP260HC-PM 2.5
PM2.5 HEPA AIR PURIFIER
WITH AIR QUALITY SENSOR
Thank you for choosing electriQ
Please read this user manual before using this innovative
Air Purifier and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

CONTENTS
SAFETY
3
ENERGY SAVING
5
INDOOR POLLUTANT INFORMATION
5
PRODUCT OVERVIEW
6
OPERATING INSTRUCTIONS
7
ADDITIONAL FUNCTIONS
8
FILTER REPLACEMENT
9
CARE AND MAINTENANCE
10
TECHNICAL SPECIFICATION
11
TROUBLESHOOTING
11
SUPPORT
12

3
SAFETY INSTRUCTIONS
•Carefully read the instructions before operating the
unit.
•This appliance is for indoor use only.
•This unit must only be connected to a 220-240V /
50Hz earthed outlet.
•Installation must be in accordance with regulations of
the country where the unit is used.
•If you are in any doubt about the suitability of your
electrical supply, have it checked and, if necessary,
modified by a qualified electrician.
•This air purifier has been tested and is safe to use.
However, as with any electrical appliance –use it with
care.
•Disconnect the air purifier from the socket when
changing the filters or cleaning the unit.
•Avoid touching any moving parts within the appliance.
•Never insert fingers, pencils or any other objects
through the guard.
•This device is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities. It is also not intended for use by
those with a lack of experience and knowledge, unless
they have been given supervision or instruction
concerning the use of the appliance by a person
responsible for their safety.
•Do not leave children unsupervised with this device.
•Never connect the unit to an electrical outlet using an
extension cord. If a power outlet is not available, one
should be installed by a qualified electrician.
•Never operate this appliance if the cord or power
supply are damaged. Ensure the power cord is not
stretched or exposed to sharp objects/edges.

4
•A damaged power supply should be replaced by the
manufacturer. Never extend or attempt to change the
power supply lead.
•Any service other than regular cleaning or filter
replacement should be performed by an authorised
service representative. Failure to comply could result
in a voided warranty.
•Do not use the appliance for any purpose other than
its intended use.
•Avoid removing the power cord from the socket whilst
the unit is still in operation. This could cause electrical
damage.
•Never use the power supply as a switch to start and
turn off the air purifier. Use the provided ON/OFF
button located on the control panel.
•Always place the unit on a dry and stable surface.
•The use of accessory attachments that have not been
approved by the appliance manufacturer is not
recommended, as this may result in fire, cause an
electric shock and/or cause personal injury.
•Ensure hands are fully dried before plugging or
unplugging the appliance.
•The appliance should not be installed in laundry or wet
rooms.
FEATURES
•Portable design with large carry handles for easy
handling.
•In-built ioniser for premium air quality.
•Easy to use remote control with multiple functions.
•4 speed fan function including automatic fan mode.
•Stylish design and easy to use.
•Easy to read digital display with a 4-colour indicator light.
Know your air quality from a glance.
GREEN 1-50 PM = Perfect / BLUE 51-100 PM = Good
YELLOW 101-150 PM = Poor / RED 151-500 PM = Bad.

5
ENERGY SAVING AND UNIT SAFETY
PROTECTION TIPS
•Do not cover or restrict the airflow from the outlet or inlet grills.
•For maximum performance and safety, the minimum distance
from a wall or objects should be 30cm. Keep away from other
electrical appliances.
•Keep the filters clean. Under normal conditions, filters should
only need cleaning once every two weeks (approximately).
Since the filters remove airborne particles, more frequent
cleaning may be necessary, depending on the air quality.
INFORMATION ON INDOOR POLLUTANTS
VOC (Volatile Organic Compound): VOCs come from motor
vehicle exhausts, gasoline vapour, pollutants such as
formaldehyde, ammonia and many other common and chemical
solvents such as paints and glues, or can be a by-product of
mould growth. VOCs cause irritation to the eyes and or nose as
well as causing headaches, nausea and even potential damage
to the central nervous system. Pressed wood furniture, newly
decorated rooms, paint and cleaning solvents are common
sources of VOCs.
Mould / Fungus: These can affect our respiratory system and
cause allergic reactions, like a runny nose, eye and throat
irritation, headaches, fatigue and aggravation of asthma.
Other indoor pollutants include bacteria, viruses, dust mites and
pollen.
Emissions from electronic office equipment: Many studies,
including those from EPA and the University of California Berkley,
have reported that emissions from office equipment such as
computers and printers, include VOCs, ultra-fine particles and
ozone. These emissions have been proven to have a negative
effect on the health of many people which can be reduced by
using an air purifier.

6
PRODUCT OVERVIEW
Control panel/ Display
Air outlet
Front panel
Carry handle
Sensor
Air inlet (Back
panel)
Sleep
Timer
Auto Mode
ON/OFF
Speed
Function
NOTE: The centre button on the
remote control is reserved for
other functions not in use for
this model.

7
OPERATING INSTRUCTIONS
FAN SPEED
ON/OFF
TIMER
SLEEP
These functions are accessible by using the remote control or the units
control panel.
SLEEP: Press the SLEEP button to enter sleep mode. During sleep mode
the display will be inactive and the fan will run at speed number 1.
TIMER: The timer can be set to either turn the appliance on or off. It has a
duration of up to 12 hours, and can be set in 15 min intervals up to 1 hour,
and then in 1-hour increments.
On Timer:
Can be set by repeatedly pressing the timer button while the unit is
in standby.
Off Timer:
Can be set by repeatedly pressing the timer button while the unit is
running.
When the unit is OFF but plugged in, press the TIMER button to start a
countdown to when the unit will turn itself ON. You can choose between 1
hour and 12.
FAN SPEED: Press the FAN SPEED button to choose the speed the fan will
operate at, with 1 being the lowest and 3 being the highest.
Automatic fan mode is accessed by pressing the fan speed on the unit only.
Air speed will change according to the rooms air quality.
ON/OFF: To turn the appliance ON or OFF press the button on the remote or
the unit.

8
ADDITIONAL FUNCTIONS
IONISER
Ions are designed to turn on while the unit is in
operation. The ioniser sterilises the air further
and removes mould spores and allergens from
the air. (Can be activated or deactivated by
using the FUNCTIONS button on the remote
control).
FILTER RESET
Press and hold the TIMER and POWER
buttons for 3 seconds to reset the filter. When
the filter indicator light is red. The filter will need
to be replaced.
TEMPERATURE
Press the SLEEP and SPEED button at the
same time to display the current
temperature of the room. (Can be activated
or deactivated by using the FUNCTION
button on the remote control.)
CHILD LOCK
Press the SLEEP and TIMER buttons at the
same time to enter child lock mode. All other
operations will be unavailable in this mode. To
exit, press the SLEEP and TIMER buttons again.

9

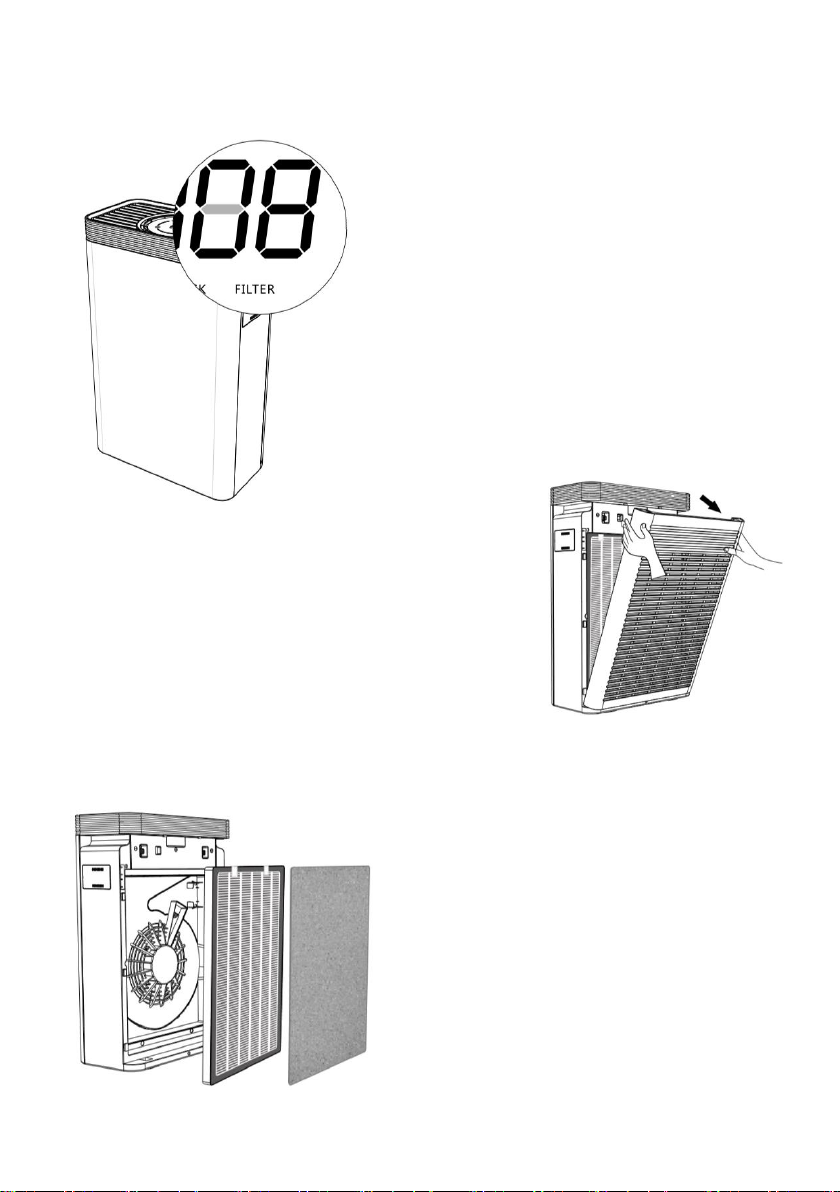

FILTER REPLACEMENT
When the filter indicator light turns red, the
filter needs to be replaced.
Turn off the unit then unplug the unit from
the mains.
Open the filter cover by gently pulling the
back-air inlet panel away from the unit as
shown.
Remove the filter using the two tabs that say “FRONT” and peel off the
primary filter. This can be cleaned and reused.
New combination filters can be
purchased from your stockist using the
code:
FIL-EAP260HUVC
When the filter has been replaced turn
the unit on then press and hold the timer
and the ON/OFF button together to reset
the filter.

10
CARE AND MAINTENANCE
•Always shut off the unit and unplug from the mains before cleaning or
performing any maintenance.
•When the unit is not in use for long periods, it is advisable to remove the
plug from the power socket.
•Do not use chemical solvents (such as benzene, alcohol or gasoline) as
they may cause irreversible damage to the unit.
•Do not assemble the unit and power it on before all the parts are
completely dry. Any other maintenance than what is described in this
user manual must be only performed by the service centre.
CLEANING THE CASE
•Only use tepid water and a mild detergent on a soft cloth. Do not use
bleach or abrasives.
•Do not splash water directly onto the main unit.
•Avoid wetting the power connection port, doing so may cause an electric
shock and can lead to the insulation deteriorating or unit to rust.
CLEANING THE FILTERS AND FILTER HOLDING AREA
•Hoover the filter gently every 2-3 weeks or more often if used in dusty
environments.
•Ensure the filter is not damaged during the cleaning process and replace
if it shows signs of damage.
•Wipe the filter holding area with a dry cloth if necessary.
CLEANING THE FILTER COVER AND CLEAN AIR OUTLET
•Use water and a mild detergent.
•Do not use bleach or abrasives.
•Do not spray water inside the unit.
•If the clean air outlet grilles get soiled easily, use a vacuum attachment
or soft brush to clean.
•If the filter cover is dirty, hoover it. If it is heavily soiled, wash it with
warm soapy water and dry thoroughly before reinserting it in the unit.

11
TECHNICAL SPECIFICATION
MODEL
EAP260HC-PM 2.5
DIMENSION
510×330×170mm
GENERAL WEIGHT
6.0kg
RATED POWER
45W
RATED VOLTAGE
220V~/50Hz
NOISE LEVEL
≤61dB(A)
TROUBLESHOOTING
ISSUE
CHECK
Not working
Check that the power adapter is
connected and is the correct rating.
Ensure the front panel is correctly
fitted and that the peg on the rear of
the panel is undamaged.
Abnormal Smells
Check if the filter is clean.
Replace the filter.
Pollutants not removed and loud noise
when running
Check if the filter is clean.
Replace the filter.
Abnormally high Air Quality (PM2.5)
reading for prolonged period.
Clean the sensor with a soft cloth.
Make sure there is no dust or other
substances in or around the sensor.
Auto and Timer Buttons flashing and
unit bleeping
Replace the filter and reset the
appliance following the care and
maintenance section.

12
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please, for your own convenience, check the troubleshooting guide
before calling the service line.
If the unit still fails to operate call: 0871 620 1057 or complete the online
form
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Way
Elland, West Yorkshire
HX5 9DA
DISPOSAL
Disposal: Do not dispose this product as unsorted waste. Collection of
such waste must be handled separately as special treatment is
necessary.
Recycling facilities are now available for all customers at
which you can deposit your old electrical products.
Customers will be able to take any old electrical equipment
to participating sites run by their local councils. Please
remember that this equipment will be further handled during
the recycling process, so please be considerate when
depositing your equipment. Please contact the local council
for details of your local household waste recycling centres.
