ElectrIQ EAP500HC User manual

USER MANUAL
EAP500HC
Thank you for choosing electriQ
Please read this user manual before using this innovative
Air Purifier and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

2
CONTENTS
SAFETY INSTRUCTIONS
3
AIR PURIFIER DIAGRAM
4
ABOUT YOUR AIR PURIFIER
5
INFORMATION ON INDOOR POLLUTANTS
6
OPERATION INSTRUCTIONS
7
BEFORE FIRST USE
7
HOW TO USE
8
EXTRA FEATURES
9
CARE AND MAINTENANCE
9
CHANGING THE FILTER
9
CLEANING THE AIR QUALITY SENSOR
9
CLEANING THE CASE
10
CLEANING THE FILTERS AND FILTER HOLDING AREA
10
CLEANING THE FILTER COVER AND CLEAN AIR OUTLET
10
TECHNICAL SPECIFICATION
10
TROUBLESHOOTING
11
SUPPORT
11

3
SAFETY INSTRUCTIONS
Important!
Carefully read the instructions before operating the unit.
This appliance is for indoor use only.
This unit must only be connected to a 220-240V / 50Hz earthed outlet.
Installation must be in accordance with regulations of the country where the unit is
used.
If you are in any doubt about the suitability of your electrical supply, have it
checked and, if necessary, modified by a qualified electrician.
This air purifier has been tested and is safe to use. However, as with any
electrical appliance –use it with care.
Disconnect the air purifier from the socket when changing the filters or cleaning
the unit.
Avoid touching any moving parts within the appliance.
Never insert fingers, pencils or any other objects through the guard.
This device is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those
with a lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their
safety.
Do not leave children unsupervised with this device.
Do not clean the unit by spraying it or immersing it in water. Use a damp cloth
only. Never allow water or vapours to enter the unit.
Do not clean with strong chemical agents or other abrasive materials.
Never connect the unit to an electrical outlet using an extension cord. If a power
outlet is not available, one should be installed by a qualified electrician.
Never operate this appliance if the cord or power supply are damaged. Ensure
the power cord is not stretched or exposed to sharp objects/edges.
A damaged power supply should be replaced by the manufacturer. Never extend
or attempt to change the power supply lead.
Any service other than regular cleaning or filter replacement should be performed
by an authorised service representative. Failure to comply could result in a voided
warranty.
Do not use the appliance for any purpose other than its intended use.
Avoid removing the power cord from the socket whilst the unit is still in operation.
This could cause electrical damage.
Never use the power supply as a switch to start and turn off the air purifier. Use
the provided ON/OFF button located on the control panel.
Always place the unit on a dry and stable surface.

4
The use of accessory attachments that have not been approved by the appliance
manufacturer is not recommended, as this may result in fire, cause an electric
shock and/or cause personal injury.
Ensure hands are fully dried before plugging or unplugging the appliance.
The appliance should not be installed in laundry or wet rooms.
Energy Saving and Unit Safety Protection Tips
Do not cover or restrict the airflow from the outlet or inlet grills.
For maximum performance and safety the minimum distance from a wall or
objects should be 20cm. Keep away from other electrical appliances.
Keep the filters clean. Under normal conditions, filters should only need
cleaning once every two weeks (approximately). Since the filters remove
airborne particles, more frequent cleaning may be necessary, depending on
the air quality.
AIR PURIFIER DIAGRAM
1. Front Panel
6. Front Panel Switch
2. Pre-Filter
7. Motor and Fan
3. Composite Filter
8. Air Quality Sensor
4. Display Panel
9. Power Socket
5. Touch Buttons
10. Air Quality Indicator

5
ABOUT YOUR AIR PURIFIER
The EAP500HC provides multiple stages of air purification using professional air
filtration and intelligent sterilisation technologies. This unit features an advanced all
in one photocatalytic HEPA and activated carbon filter for improved air filtration.
Primary filter, made of non-woven materials, are used for removing large
particles like hair and dust.
Elementary filter removes large particles like dust and hair.
Antibacterial HEPA filter to remove 99.9% of airborne particles of 0.25
micrometres or larger.
Activated carbon filter removes unpleasant odours and absorbs harmful
substances such as formaldehydes and benzenes.
Molecular sieve absorption layer removes smaller particles
Photocatalytic filter further decomposes pollutants.
Plasma Ioniser sterilises the air further and removes mould spores and allergens
from the air
The EAP500HC also features an air quality LED indicator that will provide a visual
indication of the current air quality.
Applications:
Personal use in domestic and office space to improve air quality
Helps smokers to reduce contaminants within the air
Can help improve the symptoms of asthma and pollen allergies.
Great for children’s rooms and small offices
NOTE: This air purifier is not a substitute for proper ventilation, regular vacuum
cleaning or for use in place of a cooker hood whilst cooking. If the relative humidity
is above 60% we recommend using a dehumidifier to reduce the humidity.

6
INFORMATION ON INDOOR POLLUTANTS
VOC (Volatile Organic Compound): VOCs come from motor vehicle exhausts,
gasoline vapour, pollutants such as formaldehyde, ammonia and many other
common and chemical solvents such as paints and glues, or can be a by-product of
mould growth. VOCs cause irritation to the eyes and or nose as well as causing
headaches, nausea and even potential damage to the central nervous system.
Pressed wood furniture, newly decorated rooms, paint and cleaning solvents are
common sources of VOCs.
Mould / Fungus: These can affect our respiratory system and cause allergic
reactions, like a runny nose, eye and throat irritation, headaches, fatigue and
aggravation of asthma.
Other indoor pollutants include bacteria, viruses, dust mites and pollen.
Emissions from electronic office equipment: Many studies, including those from
EPA and the University of California Berkley, have reported that emissions from
office equipment such as computers and printers, include VOCs, ultra-fine particles
and ozone. These emissions have been proven to have a negative effect on the
health of many people which can be reduced by using an air purifier.
Using HEPA filters, Activated Carbon filters and Plasma Ionisation: An effective
HEPA filter is absolutely necessary to remove particles, even at a microscopic level;
it ensures that the particles are not spread. Plasma Ionisers will sterilise the air and
reduce bacterial growth.
The antibacterial activated carbon on the EAP500HC is a natural material
biosynthesized from walnut shell, the absorption area of activated carbon is very
large at up to 300,000 square meters. The activated carbon filter will absorb
unpleasant odours and reduce the VOC content in the air.
The Plasma Ioniser will sterilise the air and reduce bacterial growth.

7
OPERATION INSTRUCTIONS

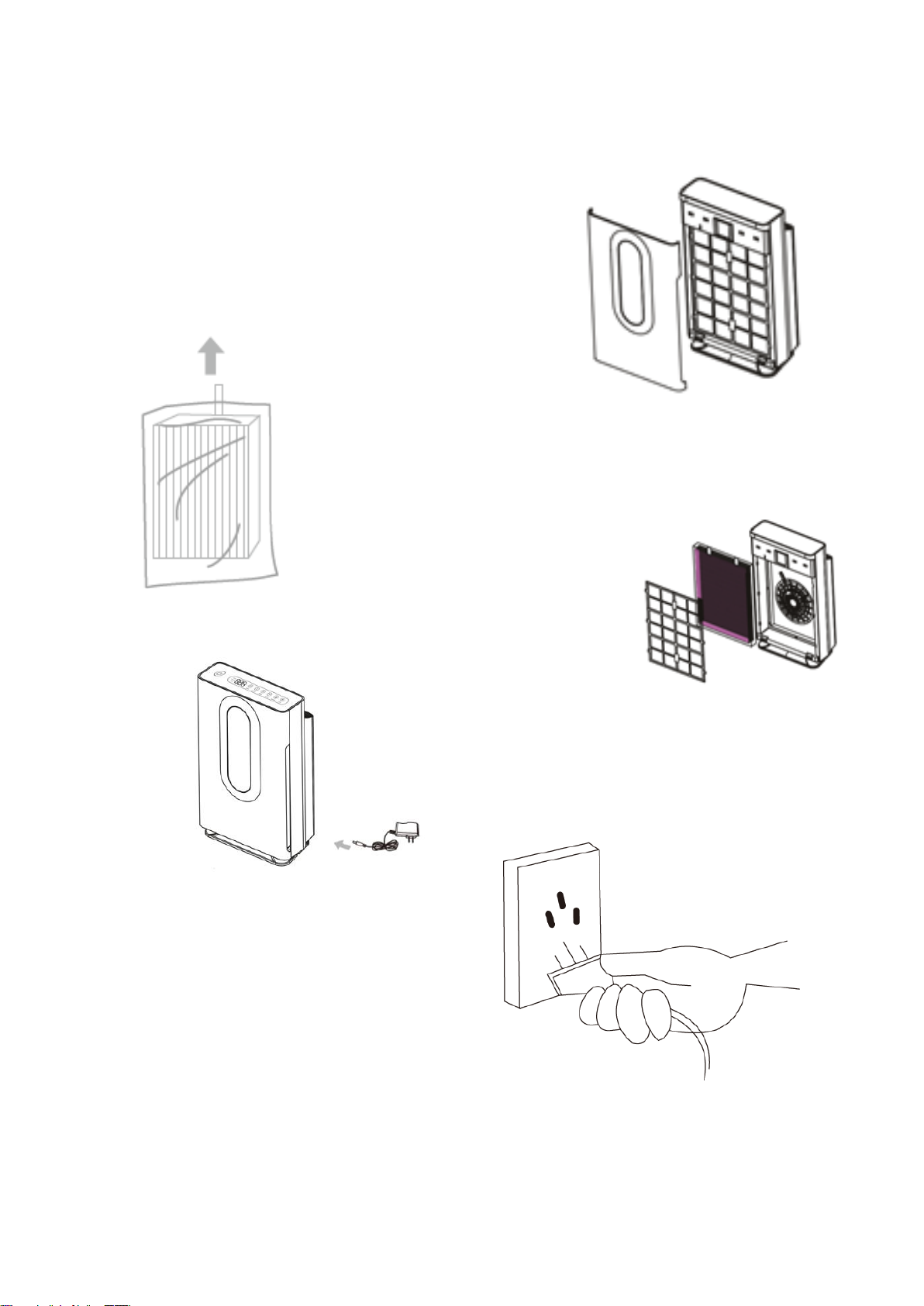

BEFORE FIRST USE:
1) Unpack the appliance and remove the filter
cover from the front of the unit
2) Remove the filter from
the plastic protective
packaging
3) Load the composite
filter into the front of
the unit and replace
the cover.
4) Remove the power adapter and
connect it to the DC socket on the
base of the unit.
5) Connect the plug to an earthed
socket

8
HOW TO USE:
POWER
Press to turn the appliance on and off.
TIMER
With the unit turned on, repeatedly press the timer button to select in
how many hours it should turn off. The duration can be set between
1 and 12 hours in 1 hour increments. To turn off the timer,
repeatedly press the timer button until 0 is shown.
SPEED
Press to change between the four fan speeds. The speed will be
displayed on the screen.
MAX
Boost the fan speed to maximum for 60 minutes.
AUTO
Press to activate auto mode, the fan speed will be automatically
adjusted based on the air quality.
SLEEP
Press to enter sleep mode. The fan will be changed to its lowest
setting and the lights on the unit will turn off.
LOCK
Press and hold for 5 seconds to lock the control panel. All buttons
apart from the lock button will be disabled. To unlock press and
hold again for 5 seconds.
AIR QUALITY: The unit utilises a PM2.5 sensor to measure the air quality. When
turning on the unit will take around 90 seconds before showing the air quality on
the screen. The front indicator will also show the air quality
INDICATOR COLOUR
AIR QUALITY
PM INDEX
Green
Excellent
0-50 µg/m3
Blue
Good
51-100 µg/m3
Yellow
Medium
101-150 µg/m3
Red
Bad
151+ µg/m3
DISPLAY
Shows Air Quality (PM index)
Speed / Timer when appropriate button
pressed

9
EXTRA FEATURES:
TURN OFF THE
FRONT COLOUR
INDICATOR
Press and hold the Power and Speed buttons for 5 seconds
to turn the colour indicator on and off.
IONISER
Press and hold the Power and Auto buttons for 5 seconds to
turn the ioniser on and off.
RESET THE
FILTER CHANGE
COUNTER
After changing the filter, Press and hold the Auto and Timer
buttons for 5 seconds to reset the filter change timer.
CARE AND MAINTENANCE
Always shut off the unit and unplug from the mains before cleaning or performing
any maintenance.
When the unit is not in use for long periods, it is advisable to remove the plug from
the power socket.
Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may
cause irreversible damage to the unit.
CHANGING THE FILTER
Open the filter cover by pressing in the retaining tabs and pulling the front cover free.
Remove the old filter by simply pulling on the tabs to release them. Replace the filter
with a new/clean one before replacing the filter cover. Press and hold the AUTO +
TIMER buttons for 3 seconds to reset the filter timer once it has been replaced.
CLEANING THE AIR QUALITY SENSOR
Remove the cover from the sensor, and wipe the sensor with a damp cotton bud. It
should then be dried by wiping with a dry cotton bud before replacing the cover. For
optimal performance the sensor should be cleaned every two months.

10
CLEANING THE CASE
Only use tepid water and a mild detergent on a soft cloth.
Do not use bleach or abrasives.
Do not splash water directly onto the main unit.
Avoid wetting the power connection port, doing so may cause an electric shock
and can lead to the insulation deteriorating or unit to rust.
CLEANING THE FILTERS AND FILTER HOLDING AREA
Hoover the filter gently every 2-3 weeks or more often if used in dusty
environments.
Ensure the filter is not damaged during the cleaning process and replace if it
shows signs of damage.
Wipe the filter holding area with a dry cloth if necessary.
CLEANING THE FILTER COVER AND CLEAN AIR OUTLET
Use water and a mild detergent.
Do not use bleach or abrasives.
Do not spray water inside the unit.
If the clean air outlet grilles get soiled easily, use a vacuum attachment or soft
brush to clean.
If the filter cover is dirty, hoover it. If it is heavily soiled, wash it with warm soapy
water and dry thoroughly before reinserting it in the unit.
NOTE: Do no assemble the unit and power it on before all the parts are completely
dry. Any other maintenance than what is described in this user manual must be only
performed by the service centre.
TECHNICAL SPECIFICATION
Input power
220-240~ 50/60Hz
Weight
9.5Kg
Dimensions
420 x 240 x 690mm
Fan speeds
Low / Medium / High / Turbo
Noise
≤66dB
Ions
10 million / cm3
Formaldehyde purification rate
160 m3/h

11
TROUBLESHOOTING
ISSUE
CHECK
Not working
Check that the power adapter is connected and is
the correct rating.
Ensure the front panel is correctly fitted and that the
peg on the rear of the panel is undamaged.
Abnormal Smells
Check if the filter is clean.
Replace the filter.
Pollutants not removed and
loud noise when running
Check if the filter is clean.
Replace the filter
Abnormally high Air Quality
(PM2.5) reading for
prolonged period.
Clean the sensor
Auto and Timer Buttons
flashing and unit bleeping
Replace the filter and reset the appliance following
the care and maintenance section.
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please, for your own convenience, check the troubleshooting guide before calling
the service line.
If the unit still fails to operate call: 0871 620 1057 or complete the online form
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Way
Elland, West Yorkshire
HX5 9DA
DISPOSAL
Disposal: Do not dispose this product as unsorted waste. Collection of such waste
must be handled separately as special treatment is necessary.
Recycling facilities are now available for all customers at which you can
deposit your old electrical products. Customers will be able to take any
old electrical equipment to participating sites run by their local councils.
Please remember that this equipment will be further handled during the
recycling process, so please be considerate when depositing your
equipment. Please contact the local council for details of your local
household waste recycling centres.
