ElectrIQ STORM100E User manual

USER MANUAL
STORM100E
EVAPORATIVE COOLER
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Cooler and keep it safe
for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

Page 2of 12
CONTENTS
SAFETY INSTRUCTIONS
3
FEATURES
4
HOW EVAPORATIVE AIR COOLERS WORK
5
DIAGRAM
6
INSTALLATION
6
CONTROL PANEL
7
OPERATION
7
REMOTE CONTROL
9
FILLING THE WATER TANK
9
MAINTENANCE
10
TROUBLE SHOOTING
11
APPENDIX
11 9
TECHNICAL DATA
12
SUPPORT
12

Page 3of 12
SAFETY INSTRUCTIONS
IMPORTANT!
•Carefully read the instructions before operating the unit
•This appliance is for indoor use only. Any outdoor use must be supervised and the
unit must not be exposed to wet conditions such as rain.
•Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed outlet.
•Installation must be in accordance with regulations of the country where the unit is
used.
•If you are in any doubt about the suitability of your electrical supply have it checked
and, if necessary, modified by a qualified electrician.
•This air cooler has been tested and is safe to use. However, as with any electrical
appliance - use it with care.
•Disconnect the power from the appliance before changing filters, dismantling,
assembling or cleaning.
•Avoid touching any moving parts within the appliance.
•Never insert fingers, pencils or any other objects though the guard
•This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those with a
lack of experience and knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their
safety.
•Do not leave children unsupervised with this appliance.
•Do not clean the unit by spraying it or immersing it in water.
•Never connect the unit to an electrical outlet using an extension cord. If an outlet is
not available, one should be installed by a qualified electrician.
•Never operate this appliance if the cord or plug is damaged. Ensure the power cord is
not stretched or exposed to sharp objects / edges.
•A damaged supply cord should be replaced by the manufacturer or a qualified
electrician in order to avoid a hazard.
•This appliance is designed for personal comfort and so should not be left
unattended for extended periods.
•Any service other than regular cleaning or filter replacement should be performed by
an authorised service representative. Failure to comply could result in a voided
warranty.
•Do not use the appliance for any purpose other than its intended use.
•Never use the plug as a switch to start and turn off the air unit. Use the provided
ON/OFF switch located on the control panel.
•Always place the unit on a dry and stable surface. Do not move or tilt the unit while
the water tank is full.
•The appliance should not be installed in laundry or wet rooms.
•Do not use this unit in environments with flammable and explosive gases.
•Avoid keeping the unit in direct sunlight for a long period of time.

Page 4of 12
ENERGY SAVING AND UNIT SAFETY PROTECTION TIPS
•Do not cover or restrict the airflow from the outlet or inlet grills.
•For maximum performance the minimum distance from a wall or objects should be 50cm.
•Please make sure, while in operation, the water in the water tank does not exceed the MAX level
and does not fall below MIN.
•Keep the filters clean. Under normal conditions, filters should only need cleaning once every
three weeks (approximately). Since the filters remove airborne particles, more frequent cleaning
may be necessary, depending on the air quality.
•In order to achieve maximum efficiency please place the unit near an open door or window.
Evaporative Air Coolers work with an evaporative cooling mechanism which requires cross
ventilation
•This unit will lose efficiency if the relative humidity in the room exceeds 60%
•The ambient operating temperature range is from 5°C to 40°C.
If used in low temperatures (as a humidifier) it is recommended to fill the water tank with warm
(but not hot) water.
FEATURES
•Air Cooler, humidifier and air cleaner great in well ventilated large rooms and commercial spaces
•Very powerful air throw, perfect for industrial spot cooling
•Ideal for large areas, warehouses, dining rooms, exhibition rooms, patios, terraces, restaurants,
temporary outdoor events, marquees and more
•Alternative spot cooling solution for rooms and spaces which cannot be sealed or traditionally air
conditioned
•3 fan speeds and oscillation setting for improved air flow: low, medium and high speed allowing
adjustment between maximum cooling and quiet operation
•Honeycomb Filter for improved cooling and air cleaning
•Easy to use digital controls with remote control.
•Handle and wheels for great mobility
•Powerful air throw with directional swing for faster cooling
•Large easy to fill 100 litre tank for almost full day operation
•Continuous water supply connection option with a built-in overflow protection system ensures
longer unattended operation
SPECIFICATIONS:
•Air flow: up to 12,000 m3/hr
•Water tank: 100 Litres
•3 speed fan: low / medium / high
•8 hours timer
•Versatile and mobile
•High efficiency honeycomb cooling pads
•Swing function
•Ioniser for improved air cleaning.
•Remote Control.

Page 5of 12

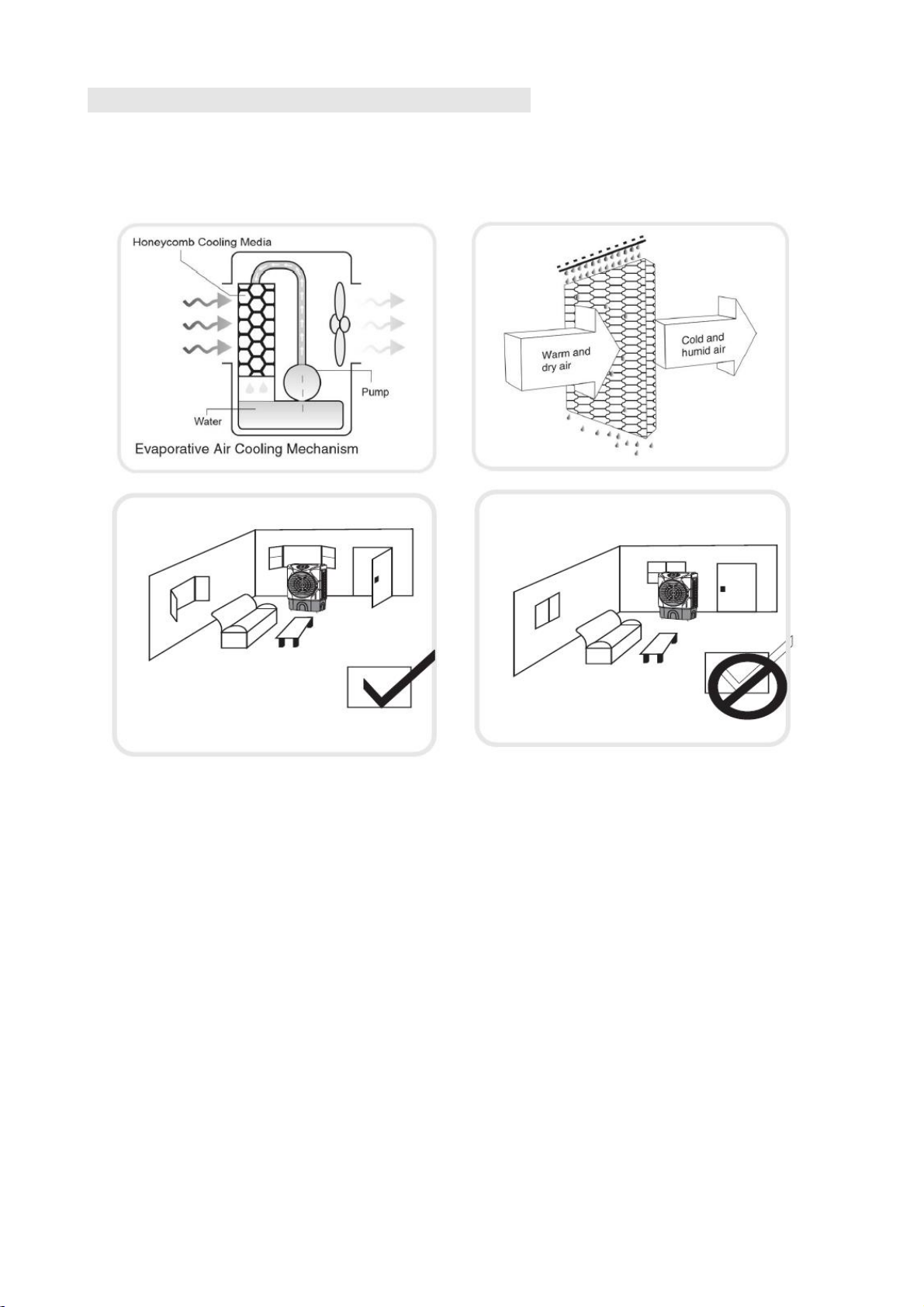

HOW EVAPORATIVE AIR COOLERS WORK
The air cooler cools the air by means of evaporation. When water evaporates into the air, the result
is a mixture of air and water molecules. This chemical change requires heat which is taken from
the water molecules, resulting in a spot cooling effect.
•The recommended relative humidity for optimum operation is 60% or lower. A drier climate
makes for more noticeable cooling.
•The evaporative air cooler should not be used in enclosed or sealed spaces. It must be kept
level and there must always be water in the water tank. Doors and windows should be open to
allow free air flow. The evaporative air cooler works best when placed near an open window/air
current.
•When the product is used for the first time the Honeycomb cooling media will have an odour,
this should dissipate within a week of use.

Page 6of 12
DIAGRAM
INSTALLATION
This unit can easily be moved from one room to another. While moving the unit please note that it
must always be kept upright and then placed on an even surface.
•Remove any packaging - keeping the air cooler in a vertical position.
•Attach the castors to the base of the appliance using the supplied
screws.
•Make sure all parts are present and the unit is assembled correctly
•WATER TANK: Fill the water tank through the filling slot on the
front of the unit with water or ice ensuring it does not to go above
the MAX level.
•Make sure that the honeycomb filter is properly inserted at the
back of the unit.
Connect the power plug to a working socket, and then press the
power button.
Control Panel
Filling Flap
Water Tank
Castors
Louvres
(Air Outlet)
Air Inlet
Top Water Tank

Page 7of 12

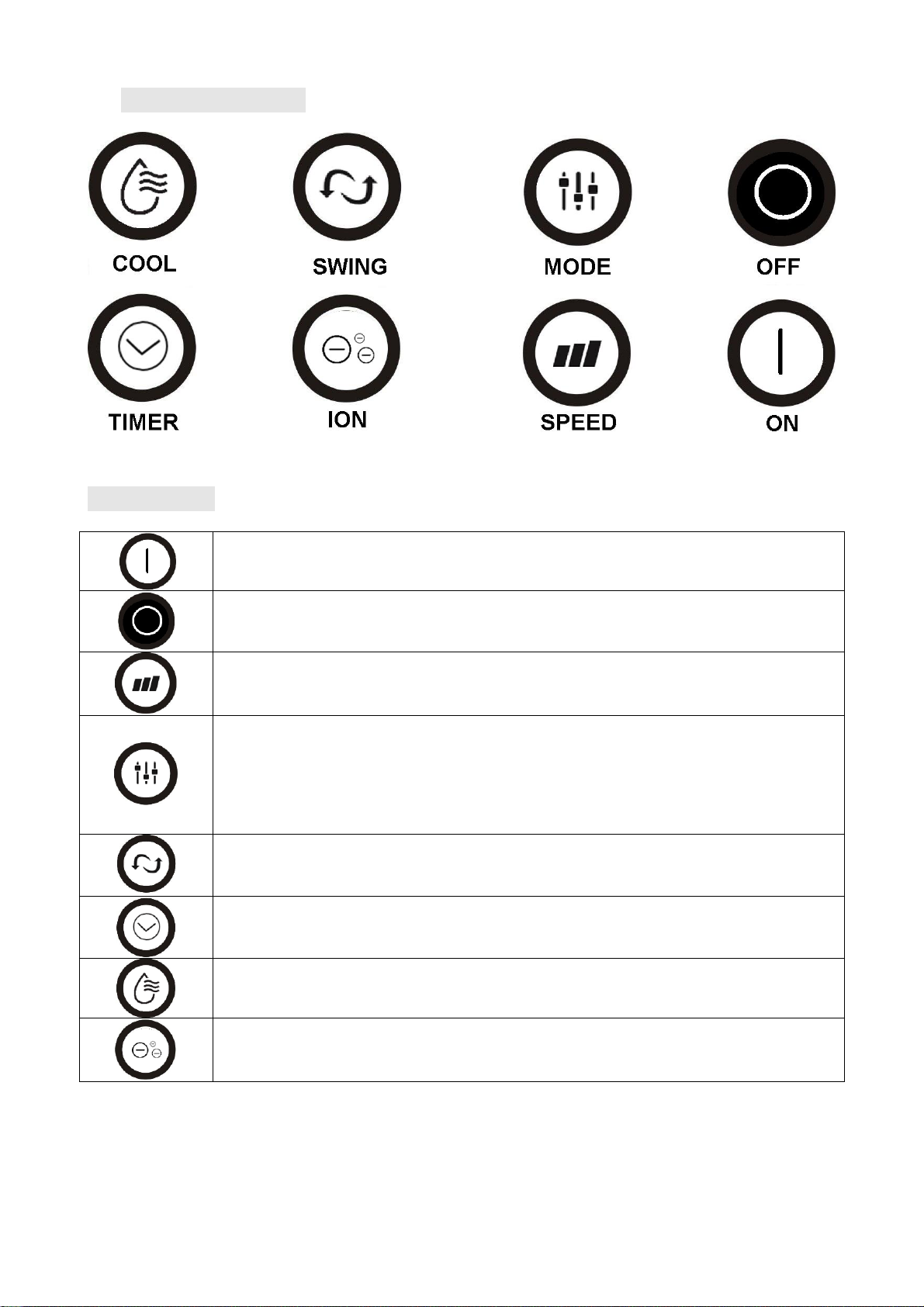

CONTROL PANEL
OPERATION
Press to turn the air cooler On
Press to turn the air cooler Off
Press to change the fan speed between low, medium and high. The currently
selected fan speed will be illuminated.
Press to change between normal, natural and sleep:
Normal: Fan operates at a constant level.
Natural: The fan speed fluctuates to imitate a natural breeze.
Sleep: The fan speed will decrease by 1 level every half hour and then
remain at low.
The relevant light will illuminate to indicate the mode currently selected.
Press to activate the swing mode. The airflow will gently swing from left to right.
The vertical direction of the airflow can be adjusted manually. The Swing symbol
will be illuminated when the function is active. Press again to turn it off.
WHILE THE UNIT IS RUNNING: Repeatedly press the timer button to select in
how many hours the unit should turn off, upto a maximum of 8 hours.
Press to activate the evaporative cooling. Ensure that the water level is sufficient
for operation. When this function is not turned on the unit will operate as a fan /
air purifier.
Press to activate the ioniser. The display will indicate when the ioniser is in
operation.

Page 8of 12
DISPLAY PANEL
WATER TANK EMPTY
Refill the water tank before using cooling mode.
SWING
Illuminated when the swing function is activated
IONISER
Illuminated when the ioniser is activated for enhanced air cleaning.
COOLING
Illuminated when the cooling function is activated
MODES
NORMAL
Fan operates at a constant level
NATURAL
The fan speed fluctuates to imitate a natural breeze.
SLEEP
The fan speed will decrease by 1 level every half hour and then remain at
low.
FAN SPEEDS
LOW SPEED
MEDIUM SPEED
HIGH SPEED

Page 9of 12
SWING
ION
POWER
SPEED
COOL
MODE
TIMER
REMOTE CONTROL
The remote control enables you to control all the same functions as
the control panel from a distance of upto 6 metres. The remote
control should be pointed towards the receiver on the front of the air
cooler.
ATTENTION:
•Do not mix old and new or different types of batteries
•If not in use for a prolonged period the batteries should be
removed.
Please note: Design of the remote may vary.
FILLING THE WATER TANK
Before turning on the cooling function, please add water to the tank. The appliance can be used
without water in air cleaner mode.
Before filling with water, open the water inlet on the front of the appliance, fill the water tank slowly
and then return the water inlet into the original position. Only use clean tap water and do not fill the
water beyond the maximum water level
Note: It is completely normal and in no way dangerous if the device has a slight odour or the water
tank has slight discolouration when used for the first time.
SWING
ION
POWER
SPEED
COOL
MODE
TIMER

Page 10 of 12
MAINTENANCE
CLEANING
ATTENTION: Please turn off the appliance and disconnect from the mains before cleaning or
performing any maintenance.
CLEANING THE SURFACE
•Clean the plastic housing with a duster or a soft wet cloth.
•Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible
damage.
•Make sure no water enters the control panel.
CLEANING THE WATER TANK
•Unplug the appliance then remove the honeycomb filter from the rear.
•With a cloth (dipped in a mild detergent), wipe the water tank, rinse it with water.
•Draining the water reservoir and refilling with fresh water at least once a week will help reduce
any mineral deposits and keep the filters clean.
•Do not run the unit in cooling mode with stale water in the tank.
•We recommend emptying the tank and refilling it with fresh water if water has been standing in
the tank for an extended period of time.
MAINTAINING AND CHANGING THE HONEYCOMB FILTER PADS
The appliance is supplied with a set of 3 honeycomb cooling / filters pads (back and sides). The
cleaning frequency for the honeycomb filters depend on local air and water conditions. In areas where
the mineral content of the water is high (hard water), mineral deposits may build up on the honeycomb
filter and restrict air flow. If mineral deposits remain on the honeycomb pads, the filter should be
removed and washed under fresh water. We recommend cleaning the honeycomb filter at least every
two months, depending on your needs.
For best results, allow the honeycomb filter to dry after each use by turning off the cooling function
for 15 minutes (with empty water tank) before turning the unit off.
Unplug the power cord, then remove the honeycomb filter frame, by removing the screws holding it
in place and lifting to remove from the appliance. With a mild detergent and a soft brush, scrub the
honeycomb filter, clean with water and dry. Do not dip in water.
END OF SEASON MAINTENANCE
1. Empty the tank and wash it with warm soapy water.
2. Dry the tank and clean the Honeycomb pads
3. Store any Icepack you may use in the water tank
4. Cover the unit and keep it in a dry place.

Page 11 of 12
TROUBLESHOOTING
Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the
warranty and may cause bodily harm.
Issue
Possible Reason
Solution
No power
1. Power cord is not plugged in
2. No power from the socket.
3. Honeycomb filter support is not
installed correctly
4. The power button has not been
pressed.
1. Connect the power cord
2. Check socket is switched
on –test with a different
appliance.
3. Install the honeycomb filter
correctly.
4. Press the power button
No dust elimination
1. The honeycomb filter is blocked.
2. The air inlet is blocked
1. Remove the honeycomb
filter and clean it.
2. Remove the obstruction
Odour emission from unit
1. New unit. When the unit is used
for the first time, the
Honeycomb cooling media will
have an odour, which will
dissipate within a week of use
2. Honeycomb filter may have
developed mold or bacterial
growth
1. No action required
2. Clean the filter pads with
mild antibacterial solution.
Dry before use.
If the above solutions do not resolve the problem please contact the service centre.
APPENDIX
Disposal: Do not dispose this product as unsorted waste. Collection of such waste must be
handled separately as special treatment is necessary.
Recycling facilities are now available for all customers at which you can deposit your old
electrical products. Customers will be able to take any old electrical equipment to
participating civic amenity sites run by their local councils. Please remember that this equipment will
be further handled during the recycling process, so please be considerate when depositing your
equipment. Please contact the local council for details of your local household waste recycling
centres.

Page 12 of 12
TECHNICAL DATA
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please, for your own convenience, make these simple checks before calling the service line.
If the unit still fails to operate call: 0330 390 3061 or complete the online form
1. Is the unit plugged into the mains?
2. Is the fuse OK?
3. Switch the unit off and wait three minutes to see if the issue is resolved. Restart the unit.
Office hours: 9AM - 5PM Monday to Friday
www.electriQ.co.uk
Unit J6, Lowfields Way
Elland, West Yorkshire
HX5 9DA
Model Number: STORM100E
Description
Symbol
Value
Unit
Water Tank
100
Litres
Voltage
220-240
V
Frequency
50
Hz
Power
380
W
Maximum fan flow rate
F
200
m3/min
Fan Power input
P
380
W
Service Value
SV
0.5
(m3/min)/W
Standby Power Consumption
PSB
<0.5
W
Fan sound power level
LWA
<65
dB(A)
Maximum air velocity
c
12
Meters/sec
Size (LxWxH)
750x550x1305
mm
Net weight
34
kg
Measurement standard for service value
SV = F/P
(EU) No 206/2012
Contact details for obtaining more information
electriQ, Unit J6, Lowfields Way
Elland, West Yorkshire, HX5 9DA
V20210401
