ElectrIQ EAP120HC-WIFI User manual

USER MANUAL
EAP120HC-WIFI
DESKTOP AIR PURIFIER
Thank you for choosing electriQ
Please read this user manual before using this innovative
Air Purifier and keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

2
CONTENTS
SAFETY INSTRUCTIONS
3
AIR PURIFIER DIAGRAM
5
ABOUT YOUR AIR PURIFIER
6
INFORMATION ON INDOOR POLLUTANTS
7
OPERATION INSTRUCTIONS
8
USING THE TOUCH CONTROLS
8
BEFORE FIRST USE
8
HOW TO USE
9
AIR QUALITY INDICATOR
10
ESSENTIAL OIL DIFFUSER
10
CONNECTING THE APPLIANCE TO WIFI
11
CONTROLLING YOUR APPLIANCE THROUGH THE APP
16
CARE AND MAINTENANCE
21
CHANGING THE FILTER
21
CLEANING THE CASE
22
CLEANING THE FILTERS AND FILTER HOLDING AREA
22
CLEANING THE BOTTOM COVER AND CLEAN AIR OUTLET
22
TECHNICAL SPECIFICATION
22
TROUBLESHOOTING
23
SUPPORT
23

3
SAFETY INSTRUCTIONS
Important!
•Carefully read the instructions before operating the unit.
•This appliance is for indoor use only.
•This unit must only be connected to a 220-240V / 50Hz outlet.
•Installation must be in accordance with regulations of the country where the unit is
used.
•If you are in any doubt about the suitability of your electrical supply, have it
checked and, if necessary, modified by a qualified electrician.
•This air purifier has been tested and is safe to use. However, as with any electrical
appliance –use it with care.
•Disconnect the air purifier from the socket when changing the filters or cleaning
the unit.
•Avoid touching any moving parts within the appliance.
•Never insert fingers, pencils or any other objects through the guard.
•This device is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities. It is also not intended for use by those
with a lack of experience and knowledge, unless they have been given supervision
or instruction concerning the use of the appliance by a person responsible for their
safety.
•Do not leave children unsupervised with this device.
•Do not clean the unit by spraying it or immersing it in water. Use a damp cloth
only. Never allow water or vapours to enter the unit.
•Do not clean with strong chemical agents or other abrasive materials.
•Never connect the unit to an electrical outlet using an extension cord. If a power
outlet is not available, one should be installed by a qualified electrician.
•Never operate this appliance if the cord or power supply are damaged. Ensure the
power cord is not stretched or exposed to sharp objects/edges.
•A damaged power supply should be replaced by the manufacturer. Never extend
or attempt to change the power supply lead.
•Any service other than regular cleaning or filter replacement should be performed
by an authorised service representative. Failure to comply could result in a voided
warranty.
•Do not use the appliance for any purpose other than its intended use.

4
•Avoid removing the power cord from the socket whilst the unit is still in operation.
This could cause electrical damage.
•Never use the power supply as a switch to start and turn off the air purifier. Use
the provided ON/OFF button located on the control panel.
•Always place the unit on a dry and stable surface.
•The use of accessory attachments that have not been approved by the appliance
manufacturer is not recommended, as this may result in fire, cause an electric
shock and/or cause personal injury.
•Ensure hands are fully dried before plugging or unplugging the appliance.
•The appliance should not be installed in laundry or wet rooms.
•Only use essential oils specifically designed for use with an aroma diffuser,
following the manufacturers safety instructions.
•The use of unsuitable substances may result in toxic gas or present a risk of fire.
•Only place essential oils within the diffuser unit. Allowing the oils to come into
contact with other parts of the appliance may result in damage.
Energy Saving and Unit Safety Protection Tips
•Do not cover or restrict the airflow from the outlet or inlet grills.
•For maximum performance and safety, the minimum distance from a wall or
objects should be 30cm. Keep away from other electrical appliances.
•Keep the filters clean. Under normal conditions, filters should only need
cleaning once every two weeks (approximately). Since the filters remove
airborne particles, more frequent cleaning may be necessary, depending on
the air quality.

5
AIR PURIFIER DIAGRAM
Bottom Cover
Aromatherapy Sponge
holders
Aromatherapy
Sponges
3 in 1 Filter Cartridge
Power Cord
Air Inlet
Air Quality Sensor
Air Quality Indicator
Control Panel
Air Outlet

6
ABOUT YOUR AIR PURIFIER
The EAP120HC-WIFI provides multiple stages of air purification using professional air
filtration and intelligent sterilisation technologies. This unit features advanced HEPA and
activated carbon filters for improved air filtration.
•Primary filter, made of non-woven materials, are used for removing large particles like
hair and dust.
•Antibacterial HEPA filter to remove 99.9% of airborne particles of 0.25 micrometres or
larger.
•Activated carbon filter removes unpleasant odours and absorbs harmful substances
such as formaldehydes and benzenes.
The EAP120HC-WIFI also features an air quality indicator that will provide a visual indication
of the current air quality.
In addition the appliance can be connected to your home network, allowing settings to be
changed and the device to be monitored through your smartphone from anywhere in the
world. The app also provides the ability to program the air purifier for even smarter
operation.
Applications:
•Personal use in domestic and office space to improve air quality
•Helps smokers to reduce contaminants within the air
•Can help improve the symptoms of asthma and pollen allergies.
•Great for children’s rooms and small offices
NOTE: This air purifier is not a substitute for proper ventilation, regular vacuum cleaning or
for use in place of a cooker hood whilst cooking. If the relative humidity is above 60% we
recommend using a dehumidifier to reduce the humidity.

7
INFORMATION ON INDOOR POLLUTANTS
VOC (Volatile Organic Compound): VOCs come from motor vehicle exhausts, gasoline
vapour, pollutants such as formaldehyde, ammonia and many other common and chemical
solvents such as paints and glues, or can be a by-product of mould growth. VOCs cause
irritation to the eyes and or nose as well as causing headaches, nausea and even potential
damage to the central nervous system. Pressed wood furniture, newly decorated rooms,
paint and cleaning solvents are common sources of VOCs.
Mould / Fungus: These can affect our respiratory system and cause allergic reactions, like a
runny nose, eye and throat irritation, headaches, fatigue and aggravation of asthma.
Other indoor pollutants include bacteria, viruses, dust mites and pollen.
Emissions from electronic office equipment: Many studies, including those from EPA and
the University of California Berkley, have reported that emissions from office equipment
such as computers and printers, include VOCs, ultra-fine particles and ozone. These
emissions have been proven to have a negative effect on the health of many people which
can be reduced by using an air purifier.
Using HEPA filters and Activated Carbon filters: An effective HEPA filter is absolutely
necessary to remove particles, even at a microscopic level; it ensures that the particles are
not spread.
The antibacterial activated carbon on the EAP120HC-WIFI is a natural material
biosynthesized from walnut shell, the absorption area of activated carbon is very large at up
to 300,000 square meters. The activated carbon filter will absorb unpleasant odours and
reduce the VOC content in the air.
The Plasma Ioniser will sterilise the air and reduce bacterial growth.

8
OPERATION INSTRUCTIONS
USING THE TOUCH CONTROLS
•The controls respond to touch, so you don’t
need to apply any pressure.
•Use the ball of your finger, not its tip.
•Make sure the controls are always clean, dry,
and that there is no objects covering them.
BEFORE FIRST USE:
1) Unpack the appliance.
2) Remove the bottom cover from the
base of the unit by twisting it
anticlockwise towards the unlock sign
and lifting off the unit
3) Remove the 3 in 1 filter from inside
the unit and unpack it from the plastic
protective packaging
4) Install the 3 in 1 filter in the base of
the unit, ensuring it is correctly
seated.
5) Replace the bottom cover on the base
of the appliance, lining up the right
arrow on the bottom cover, with the
arrow on the power cord outlet.
6) Twist the bottom cover clockwise to lock the base into position.
7) Place the unit upright on a flat level surface.
8) Plug in the appliance.

9
HOW TO USE
POWER
BUTTON
Press to turn the appliance on and off.
FAN SPEED
BUTTON
Press to change between the fan speeds. The current fan speed will be
indicated next to the symbol:
Low: Low Fan Speed
High: High Fan Speed
Auto: Fan speed will change depending on air quality
Sleep: Low fan speed, and all lights are off.
Press and hold for 5 seconds to initiate the WIFI connection.
LOCK
Press and hold for 5 seconds to activate the child lock, where all buttons
on the control panel are deactivated. Press and hold again to turn off the
child lock.
RESET
Press to turn off the air quality indicator light.
The unit will bleep and the Reset symbol will flash at the end of the filters
life. Press and hold for 5 seconds when the filter replacement lights are
illuminated to reset the counter for the filter life monitor after changing
the filter.
TIMER
BUTTON
With the unit turned on, Press the Timer button to activate the timer.
Repeatedly press the timer button to select in how many hours it should
turn off. The duration can be set between 1 and 15 hours in 1 hour
increments. The duration of the timer is found by adding the total of the
timer lights illuminated. i.e. if 2h and 4h are lit, the timer is set for 6 hours.
To turn off the timer, press and hold the timer button again.
Lock Button
Reset Button
Power Button
Timer Button
Fan Speed Button
Indicator Light

10
AIR QUALITY INDICATOR
The unit utilises a sensor to measure the air quality.
This is then shown by the illumination of the fan on
the top of the unit. When turning on the unit will
take around 20 seconds before the colour stops
changing and the air quality is shown.
ESSENTIAL OIL DIFFUSER
The air purifier also contains an essential oil diffuser. To use the diffuser, remove the
bottom cover and add a few drops of your favourite essential oil to the two aromatherapy
sponges. Replace the base cover, and the unit will gently diffuse the aroma during
operation.
INDICATOR
COLOUR
AIR QUALITY
PM INDEX
Blue
Excellent
0-50 µg/m3
Green
Good
51-100 µg/m3
Purple
Medium
101-150 µg/m3
Red
Bad
151+ µg/m3

11
CONNECTING THE APPLIANCE TO WIFI
DOWNLOAD THE APP TO YOUR PHONE

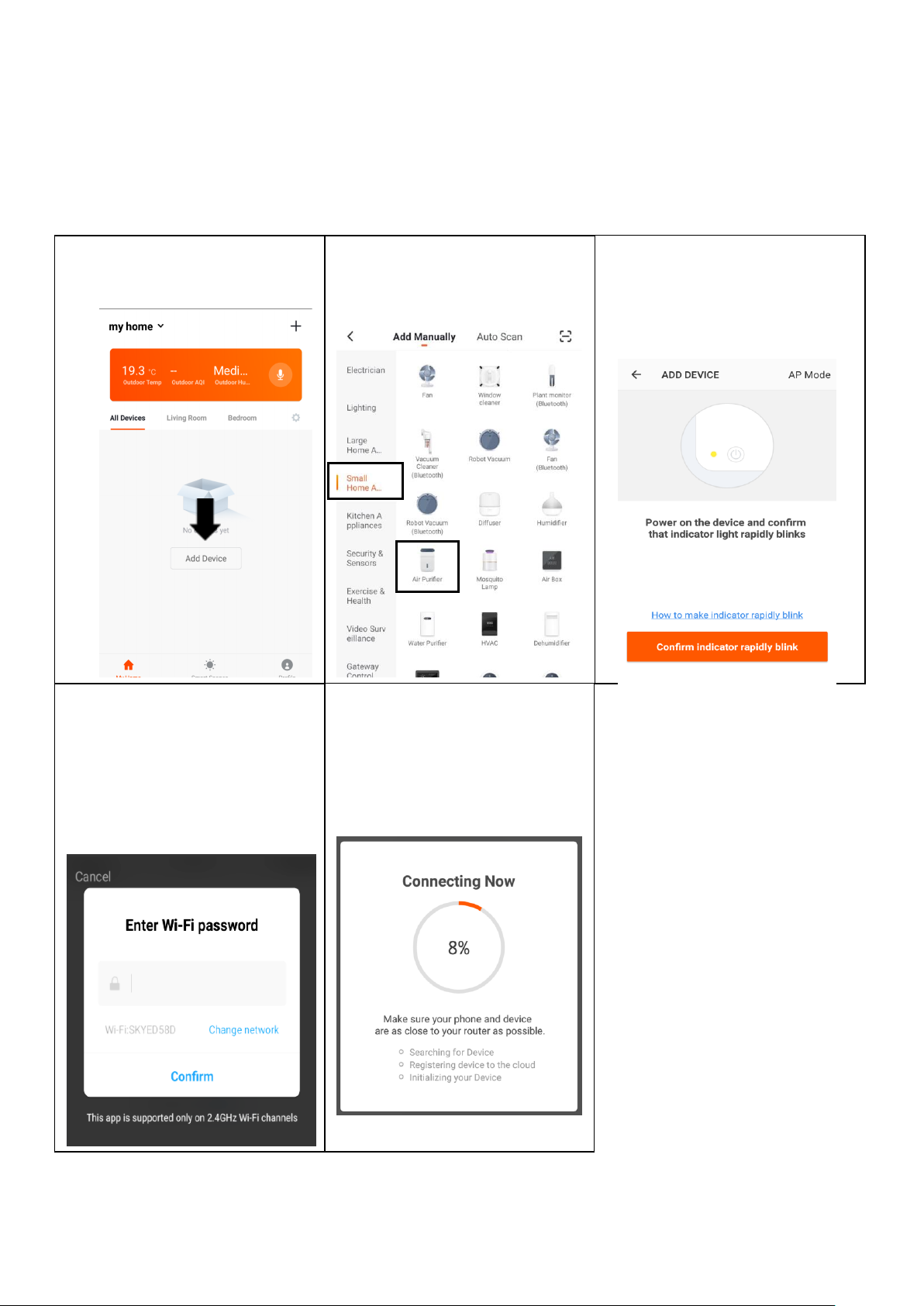

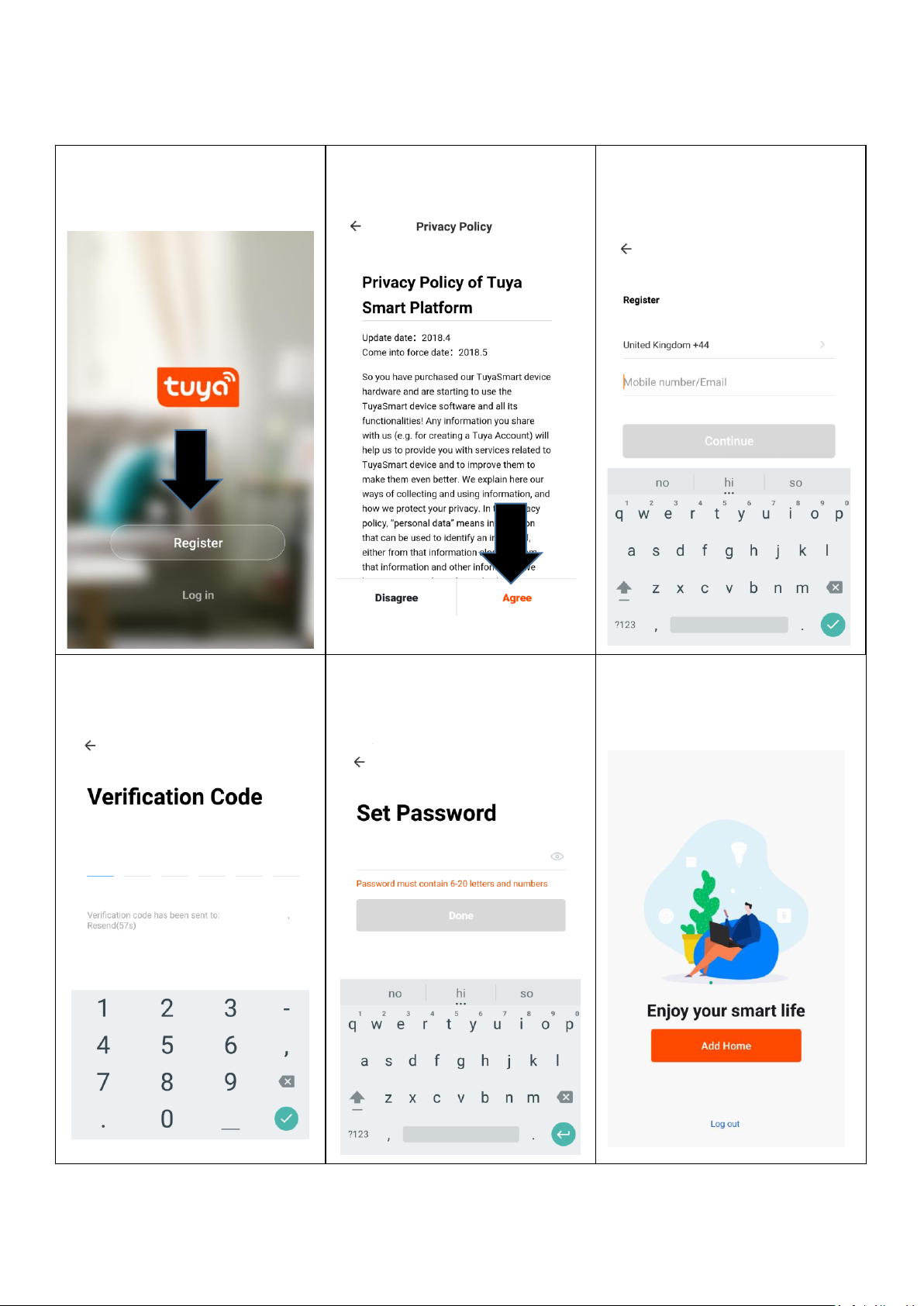

Download the ”TUYA SMART” app, from your chosen app store, using the QR codes below, or by
searching for the app in your chosen store.
Android IOS
CONNECTION METHODS AVAILABLE FOR SETUP
The air purifier has two different setup modes, Quick Connection and AP (Access Point). The
quick connection is a quick and simple way to set the unit up. The AP connection uses a direct
local WIFI connection between your phone and the air purifier to upload the network details.
Before starting the setup, with the air purifier plugged in, press and hold the FAN SPEED
button for 5 seconds (until you hear a bleep) to enter the WIFI connection mode. This can be
done in standby or when the unit is powered on.
Please ensure your device is in the correct WIFI connection mode for the connection type you
are attempting, the flashing of the WIFI light on your air purifier will indicate this.
Connection Type
Frequency of Flashes
Quick Connection
Flashes twice per second
AP (Access Point)
Flashes once per three seconds
CHANGING BETWEEN CONNECTION TYPES
When the WIFI connection mode is started the unit will enter QC mode. If after 2 minutes
the unit has not connected to your network, the unit will automatically change to AP mode
and the light will flash slowly. To change back to QC mode, press and hold the FAN SPEED
button again.

12
REGISTER THE APP
2. Read the Privacy policy and
press the Agree Button.
3. Enter your email address or
phone number and press
continue to register.
4. A verification code will be sent
by the method selected in step
3. Enter the code into the app.
6. The app is now registered. It
will automatically log you in
following registration.
5. Type in the password you
would like to create. This
needs to be 6-20 characters,
with letters and numbers.
1. Press on the register button at
the bottom of the screen.

13
SETTING UP YOUR HOME WITHIN THE APP
TUYA is designed so it can work with a large number of compatible smart devices within your
home. It can also be set up to work with multiple devices within different houses As such during
the setup process, the app requires that different areas are created and named to allow easy
management of all your devices. When new devices are added, they are assigned to one of the
rooms you have created.
CREATING ROOMS
1. Press on the ADD HOME
button.
2. Type in a name for your
home,
3. Press on the location button
to select the location of your
home. (See SETTING YOUR
LOCATION below)
4. New rooms can be added by
pressing the ADD ANOTHER
ROOM option at the bottom.
(See ADD ANOTHER ROOM
below)
5. Untick any rooms that are not
required on the app.
6. Press DONE in the top right
corner.
SETTING YOUR LOCATION
Use your finger to
move the orange
HOME symbol.
When the symbol is
in the approximate
location of your
home, press the
confirm button in
the top right corner.
ADD ANOTHER ROOM
Type in the name
of the room, and
press Done in
the top right
corner

14
CONNECTING USING QUICK CONNECTION
Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing
twice per second. If not follow the instructions for changing the connection mode. Also ensure
your phone is connected to the WIFI network. (We advise turning mobile data off during setup)
2. Select the type of device
as “Air Purifier” within the
Small Home Appliance tab.
3. Ensure the WIFI light on the air
purifier is flashing twice per
second，then press on the
orange button at the bottom of
the screen to confirm.
4. Enter your WIFI password and
press confirm.
5. This will then transfer the
settings to the air purifier. Wait
for this to complete. If this fails,
retry. If still unsuccessful please
review the troubleshooting
section for further help.
1. Open app and press “+” to add
device, or use the add device
button

15
CONNECTING USING AP MODE (ALTERNATIVE METHOD)
Before initiating the connection, make sure the unit is in standby mode, with the WIFI light flashing
slowly. If not follow the instructions for changing the WIFI connection mode. Also ensure your
phone is connected to the WIFI network. (We advise turning mobile data off during setup)
1. Open app and press “+” to
add device, or use the add
device button
2. Select the type of device
as “Air Purifier” within the
Home Appliance tab.
3. Press on the AP mode button in
the top right of the screen.
4. Ensure the WIFI light on the air
purifier is slowly flashing (once
per three seconds), then press
on the orange button at the
bottom of the screen to
confirm
5. Enter your WIFI password and
press confirm.
6. Go to network settings in your
phone and connect to the
“SmartLife xxx” connection.
There is no password to enter.
Then return back to the app to
complete setup.
This will then transfer the settings to the air purifier.
Once the connection process has completed, go back to the network settings on your phone to ensure your
phone has reconnected to your WIFI router.

16
CONTROLLING YOUR APPLIANCE THROUGH THE APP
THE HOME SCREEN
Each device has its own entry on the home screen to allow the user to either quickly turn the unit on or off,
or to enter the device screen to make other changes.
DEVICE SCREEN
Change Home: If you
have a number of units at
different houses, you can
change between them
Add Device: Add a device
to the app, and go through
the setup process.
Environmental
information: Provides
outdoor temperature and
humidity based on the
location details entered
Rooms: Use to view the
units set up within each
room
Smart Scene: Allows you
to program intelligent
behaviour based on the
internal and external
environment
Add Device: Add a device
to the app, and go through
the setup process.
Room Management:
Allows rooms to be added,
removed or renamed.
Profile: Provides the
option for changing
settings, and adding
devices using a QR code
provided by a friend.
POWER Button: Use to
quickly turn the unit on or
off.
Name of Air Purifier:
Press to enter the Device
Screen

17
DEVICE SCREEN
The device screen is the main control screen for the air purifier, providing access to the controls to
amend the functions and settings
NOTES:
•Due to continuous development of the app, the layout and available features may be
subject to change.
Edit Name: Use to
change the name of the
air purifier.
Fan Speed:
Displays the Current fan
speed
Back: Returns to the
Home Screen
Current Air Quality:
Displays the current
air quality
Power Button: Use to turn the
unit on or off.
SPEED:
Use to change the Fan speed
between Sleep, Low, High and
Auto
SETTINGS:
Use to turn the Air quality
indicator light on or off.
TIMER:
Use to add an off timer
while the unit is running.
Current
Temperature/Weather:
Displays the current
temperature and
weather for the area
Filter life remaining:
Displays what
percentage of the filter
life is remaining

18

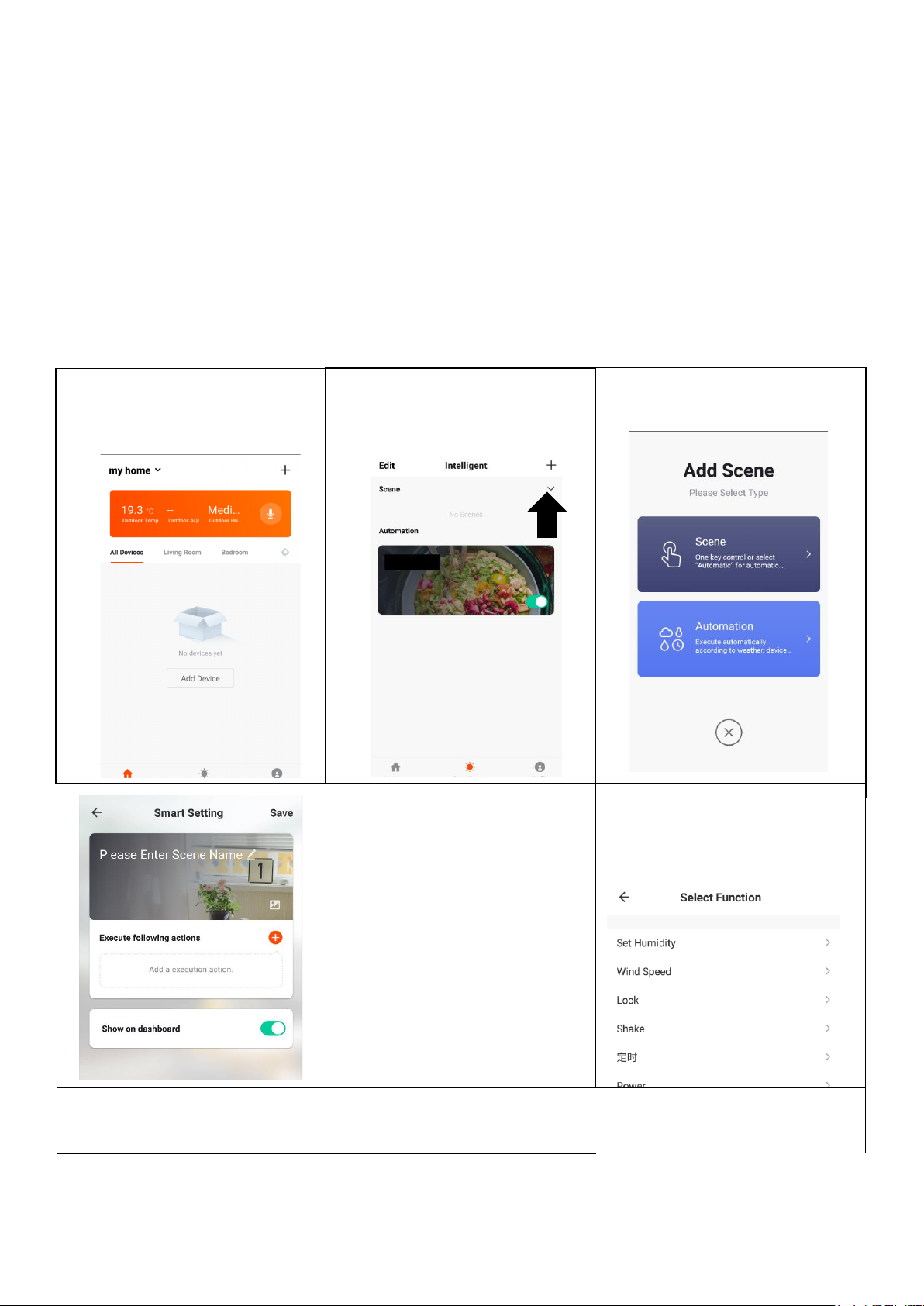

SMART SCENES
Smart Scenes is a powerful tool providing the option to customise the operation of the air purifier based
both on conditions within the room and outside influences. This gives the user the option of specifying much
more intelligent actions. These are split into two categories Scene and Automation.
SCENE
Scene allows for a one touch button to be added to the Home screen. The button can be used to change a
number of settings in one go, and can change all the settings within the unit. A number of scenes can easily
be setup, allowing the user to easily change between a number of preset configurations.
Below is an example of how to set up a scene:
3. Select Scene to create a new
Scene
4. Press the Pen next to “Please
Enter Scene Name” to input the
name for your Scene
Show on Dashboard: Leave this
on if you require the scene to be
displayed as a button on the
Home Screen
Press the Red Plus to add the
action required. Then select the
air purifier from the list of
devices.
5. Chose the function, set the value
for the function, and then press the
back button in the top right corner,
to return to the previous screen.
6. Once all the functions required have been added, press the Save button in the top right corner to finalise
and save your new Scene
1. Press on the Smart Scene tab
at the bottom of the Home
screen
2. Press on the Plus in the top
right corner to add a smart
scene.

19
AUTOMATION
Automation allows an automatic action to be set up for the device. This can be triggered by the Time, air
quality of the room, weather conditions, and a range of other influences.
1. Press on the Smart Scene tab
at the bottom of the Home
screen
2. Press on the Plus in the top
right corner to add a smart
scene.
3. Select Automation to create a
new Automation Scene
4. Setup is very similar to the scene
setup on the previous page, and
includes an extra section for specifying
a trigger for the scene to start.
Press the Pen next to “Please Enter
Scene Name” to input the name for
your Scene
Press the Red Plus next to “When any
condition is satisfied” to add the
trigger
Press the Red Plus next to “Execute
following actions” to add the action
required. Then select the air purifier
from the list of devices.
6. Chose the function,
set the value for the
function, and then press
the back button in the
top right corner, to
return to the previous
screen.
5. Select the condition when the
automation should start. A
number of triggers can be
combined.
7. Once all the functions required have been added,
press the Save button in the top right corner to finalise
and save your new scene.
The automation is now set up, it can be turned on and
off using the toggle on the image shown on step 2.

20
PROFILE TAB
The profile tab gives you the option to edit both your
detail, and use the added features of the unit.
CHANGING THE NAME OF YOUR DEVICE
When in any of the device screens further settings for the
device can be accessed, by pressing on the three dots in
the top right hand corner. The top option within this
allows you to change the name of the device to
something relevant to the use of the product, such as
“Living Room Air Purifier”. Within the menu, you also
have the option of setting up a pattern lock or change
your password.
DEVICE SHARING
This allows you to share access to the controls of your air
purifier with friends and family.
INTEGRATION
This allows the unit to be integrated with your favourite
home automation hardware such as Google Home and
the Amazon Echo.
CONNECTION TROUBLESHOOTING
1. Check whether the device is powered on and is in the correct WIFI connection mode, if
not please refer to the CHANGING BETWEEN CONNECTION MODES section.
2. Ensure the WIFI password has been entered into the app correctly (Case sensitive)
3. Check that the phone is connected to the WIFI you are connecting the device to.
4. Ensure the network you are connecting it to is 2.4Ghz (5Ghz WIFI networks are not
supported), and that there is a strong WIFI signal to the item.
5. If your router is dual band, ensure that the 2.4ghz network has a different network name
(SSID). Further advice on changing router settings will be available from your Internet
service provider / Router manufacturer.
6. Check the settings on the router. Encryption should be WPA2-PSK and authorisation type
should be set to AES
7. Try using the alternative connection method. i.e. If connection is failing when attempting
to connect through CF mode, try AP mode.
