Please read this installation manual completely
before installing the product.
If the power cord is damaged, replacement work
shall be performed by authorised personnel only.
Installation work must be performed in accordance
with the national wiring Standards by authorised
personnel only.
Contact an authorised service technician for
repair, maintenance or installation of this unit.
SPLIT TYPE
-
iQool9
iQool12
iQool18
iQool24

11
CONTENTS
Contact an authorised service technician for repair or maintenance of this unit.
The appliance shall be installed in accordance with national wiring regulations.
This appliance is not intended for use by persons(including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Young children should be supervised to ensure that they do not play with the air conditioner.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
Installation work must be performed in accordance with the national wiring standards by
authorised personnel only.
CAUTION
SAFETY PRECAUTIONS
Warning .....................................................................................................................................2
Caution ......................................................................................................................................2
INSTALLATION INSTRUCTIONS
Selecting installation place.........................................................................................................3
Accessories ........ .....................................................................................................................3
Indoor & outdoor unit installation drawings ...............................................................................4
TEST RUNNING
Test running ...................... .....................................................................................................14
INDOOR UNIT INSTALLATION
Installation plate mounting..........................................................................................................5
Drill a hole in the wall ........ ......................................................................................................6
Connective pipe installation .......................................................................................................6
Drain piping.................................................................................................................................7
Connect the cable to the indoor unit............................................................................................7
Indoor unit installation..................................................................................................9
OUTDOOR UNIT INSTALLAITON
Outdoor installation precaution ..................................................................................................9
Settlement of outdoor unit ........................................................................................................10
Drain joint installation ...............................................................................................................10
Refrigerant pipe connection .....................................................................................................10
Connect the cable to the outdoor unit .....................................................................................12
Air purging.................................................................................................................................12

22
WARNING
Read the followSAFETY PRECAUTIONS carefully before installation.
Incorrect installation dueto ignoring of the instruction willcause harm or damage, and the
seriousness is classifiedby the following indications.
This symbol indicates the possibility of death or serious injury.
The items to be followed are classified by the symbols:
Symbol will background white denotes item that is PROHIBITED from doing.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
1) Engage dealer or specialist for installation. If installation done by the user is defective, it will
cause water leakage, electrical shock or fire.
2) Install according to this installation instructions strictly. If installation is defective, it will cause
water leakage, electrical shock or fire.
3) Use the attached accessories parts and specified parts for installation. otherwise, it will cause
the set to fall, water leakage, electrical shock or fire.
4) Install at a strong and firm location which is able to withstand the set s weight. If the strength is
not enough or installation is not properly done, the set will drop and cause injury.
5) For electrical work, follow the local national wiring standard, regulation and this installation
instructions. An independent circuit and single outlet must be used. If electrical circuit capacity
is not enough or defect found in electrical work, it will cause electrical shock or fire.
6) Use the specified cable and connect tightly and clamp the cable so that no external force will
be acted on the terminal. If connection or fixing is not perfect, it will cause heat-up or fire at the
connection.
7) Wiring routing must be properly arranged so that control board cover is fixed properly. If
control board cover is not fixed perfectly, it will cause heat-up at connection point of terminal,
fire or electrical shock.
8) When carrying out piping connection, take care not to let air substances other than the specified
refrigerant go into refrigeration cycle. Otherwise, it will cause lower capacity, abnormal high
pressure in the refrigeration cycle, explosion and injury.
9) Do not modify the length of the power supply cord or use of extension cord, and do not share
the single outlet with other electrical appliances. Otherwise, it will cause fire or electrical
shock.
CAUTION
1) This equipment must be earthed and installed with earth leakage current breaker. It may cause
electrical shock if grounding is not perfect.
2) Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks
and accumulates at surrounding of the unit, it may cause fire.
3) Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect,
water may enter the room and damage the furniture.
4) For the unit adopts auxiliary electric heater, keep at least 1 meter away from the nearest
combustible materials.
SAFETY PRECAUTIONS
,

33
INSTALLATION INSTRUCTIONS
Read completely,then follow stepby step.
Accessories
There should not be any heat source, inflammable gas or stream near the unit.
There should not be any obstacles blocking the air circulation.
A place where air circulation in the room is good.
A place where drainage can be easily done.
A place where noise prevention is taken into consideration.
Do not install the unit near the door way.
Ensure the restrictions on installation specified in the indoor unit installation drawings are met.
Select a location which is firm enough for installation so that the device is not subjected to
vibrations.
The device should beinstalled at a distance of at least 1m from all other electrical devices and
installations, e.g. TV, radio,computer, etc.
There should not be any direct sunlight. If unavoidable, sunlight prevention should be taken
into consideration.
Indoor unit
Outdoor unit
If an awning is built over the unit to prevent direct sunsight or rain,be careful that heat
radiation from the condenser is not obstructed.
There should not be any animal or plant which could be affected by hot airdischarged.
Make sure that there is sufficient space as specified in the installation drawings.
Do not place any obstacles which may cause a short circuit of the discharged air.
Select a location which avoids causing a nuisance to neighbours from noise and air emissions
from device.
Select a location which is sufficiently well ventilated.
Never cover the air inlets and outlets.
The location must be sufficientlyfirm for installation and the prevention of vibrations.
There must be no risk presented by combustible gas or gas escaping as a result of corrosion.
Avoid a location where there is a high salt content.
Avoid a location which is heavily exposed to dust.
Avoid a location to which the general public have access.
Selecting installation place
Installation plate
Seal
Drain joint
Ower s manual
Installation manual
Remote controller
illustration
Clip Anchor
Mounting plate fixing
screw ST3.9x25
Remote controller
Fixing screw for remote
controller holder
ST2.9X10
Air freshening filter
(used to install on
Air filter)
1
(for cooling& heating
modelsonly)
5
5
1
1
1
1
1
2
1
12
Use the supplied installation accessories as required. The items necessary to install
this air conditioner are not included must be purchased separately.
Remote controller holder
Connective pipe assembly
Dry battery AAA.LR03
Indoor unit
NOTE:
A
I
J
K
L
M
N
B
C
D
E
F
G
H
1
,

44
INSTALLATION INSTRUCTIONS
Fig.1
E
F
D
2.3m or more
Air filter
12cm or more
12cm or mote
15cm or more
A
B
C
C
A
60cm or more
60cmor more
30cm or more
Air Outlet
30cm or more
Wrapping tape(wrap the
insulation pipe with the tape
from bottom to top)
Allow two of A, B and C
directions to be free
from obstructions.
Where there is a danger of the
unit falling, use foot bolts to
fix.
B
200cm or more
Additional drain pipe
(C)
TEMP
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
MODE
FAN SPEED
TIMER ON
SLEEP
ON/OFF
TIMER OFF
AIR
DIRECTION
RESET LOCK
SET TEMPERATURE
SWING
LED
DISPLAY
TURBO
Clip Anchor(5)
Installation plate fixing
screw ST3.9x25(5)
Remote
controller
Fixing screw for
remote controller
holder ST2.9X10

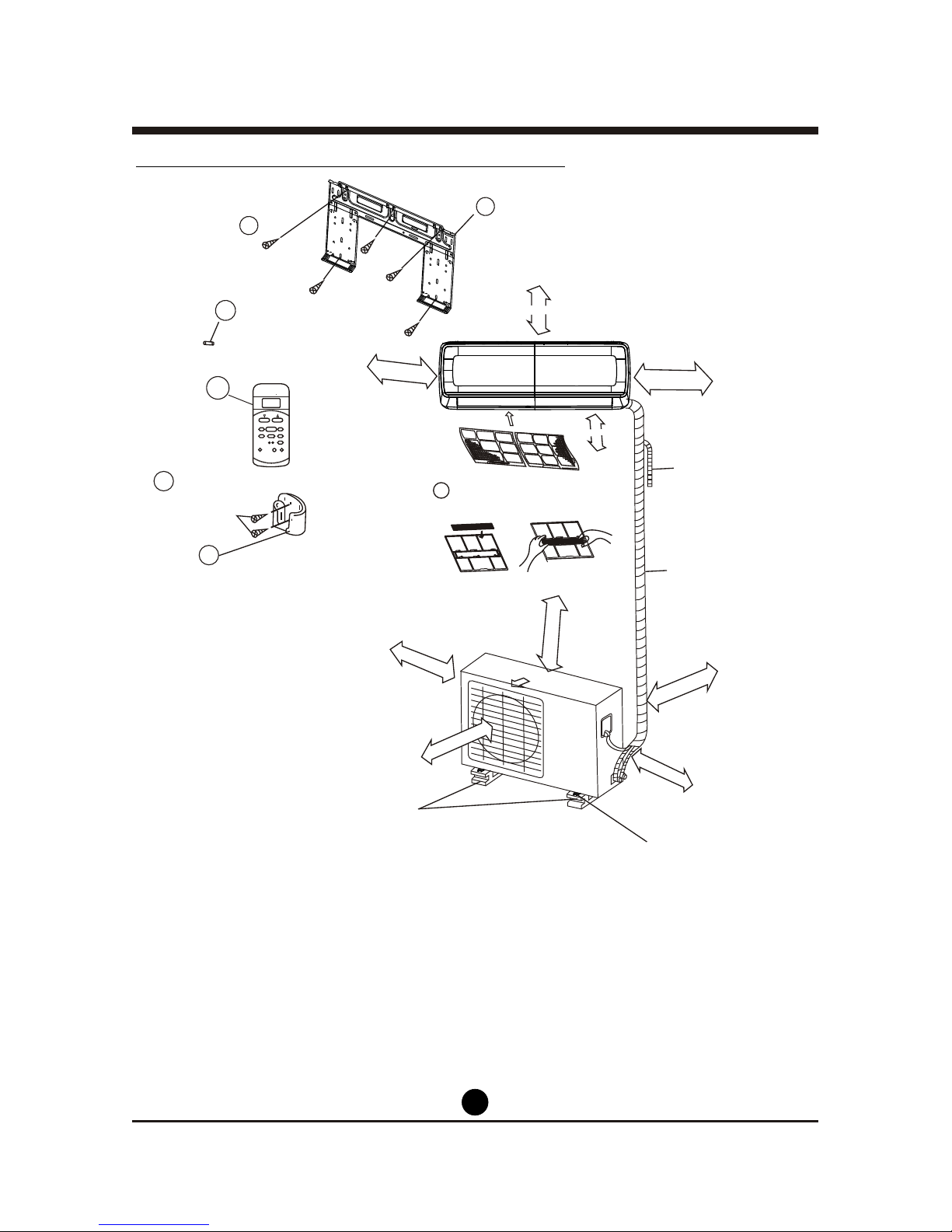

Indoor & outdoor unit installation drawings
The mounting plateshould be installed on a wall
which can support theweight of the indoorunit.
Before screwing the remote
controller holder tothe wall,
make sure thatcontrol signals
are properly receivedby
indoor unit.
In sites with poordrainage, use
block bases for outdoorunit.
Adjust its heightuntil the unit
is leveled. Otherwise,water
leakage or poolingof water
may occur.
H
Install the air freshening
filter at the back of air filter
NOTE: Appearance of outdoorunit and indoor unit may differfrom some models.
The actual shapeshall prevail.

55
INDOOR UNIT INSTALLATION
1. Fit the installation plate horizontally
on structural parts of the wall with
spaces around the installation plate.
2. If the wall is made of brick, concrete
or the like, drill five 5mm diameter
holes in the wall and insert Clip
anchor for appropriate mounting
screws.
3. Secure the installation plate to the
wall with screws.
Mount the Installation Plate and drill
holes in the wall according to the
wall structure and corresponding
mounting points on the installation
plate. The installation plate provided
with the machine differ from appliance
to appliance.
(Dimensions are in mm unless
otherwise stated)
NOTE:
1. Installation PlateMounting
Remove the installation plate from
the indoor unit.The installation plate
should be installed on a wall which can
support the weight of the indoor unit.
""
Model A
Model B
Model C
Model D
INDOOR UNITINSTALLAITON
Fig.2
770
850
1010
1130
737
266
173 338
338
934
261
304
128
54
561
561
221
143
18
18
93
18.7
18.7
120
48
221
152
38.8
160
122
126
253
146
Indoor unit outline
Indoor unit outline
Indoor unit outline
Indoor unit outline
Frame bottom outline
Frame bottom outline
Frame bottom outline
Frame bottom outline
99
294
302
326
340
65
65 65
65
65
65
The installation plate is fixed witha screw
for the convenience of shipment, please
remove the screw first before installation.

66
2. Drill a hole in the wall
3. Connective pipe installation
Wall
Indoor Outdoor
5-7mm
Fig.3
INDOOR UNIT INSTALLATION
1. Determine hole positions according to left
and right side of the installation plate. The hole
center is obtained by measuring the distance as
shown in the diagram of Fig.2.
2. Dirll the piping plate hole with 65mm hole-core drill.
3. Drill the piping hole at either the right or the left and
the hole should be slightly slanted to the outdoor side,
so that the outside end is lower than inside end,see Fig.3.
4. Always take steps to protect the pipe when drilling
metal grid,metal plate or the like.
Because the condensed water from rear
of the indoor unit is gathered in ponding
box and is piped out of room. Do not put
anything else in the box.
Fig.4
1. For the left-hand and right-hand piping,
remove the pipe cover from the side panel.
2. For the right back and left back piping,
install the piping as shown.
NOTE:
3. Attach the drain hose to the underside of
the refrigerant pipes with adhesive viny
tape.
4. Wrap the refrigerant pipes and drain hose
together with insulation tape.
5. Open the front panel, then open the wire
cover, connecting the cables.
6. Bundle the pipes, connecting cable, and
drain hose with tape securely, evenly as
shown in Figure on the right.
7. Pass them through the wall hole.
Both sides drainage structure is
standard. For both sides drainage structure,
it can be choosen for right, left or both sides
drainage connection. If choosing both sides
drainage connection, another proper drain
hose is needed as there is only one drain
hose offered by factory. If choosing one side
drainage connection, make sure the drain
hole on the other side is well plugged.
For 9k/12k models, if choosing left-hand
or left-back piping,please choosing left side
drainage connection. The connection of the
drain hose is supposed to be done by
qualified installer in case of water leakage.
Rubber plug
Fig.5

77
INDOOR UNIT INSTALLATION
Connect the indoor unit first, then the outdoor unit.
Do not allow the piping to let out from the back of the indoor unit.
CAUTION
Be careful not to let the drain hose slack.
Heat insulation should be done tothe extension drain hose of indoor unit.
Be sure that the drain hose is located at the lowest side of the bundle. Locating at the upper
side can cause drain pan to overflow inside the unit.
Never intercross nor intertwist the power wire with any other wiring.
Fig.6

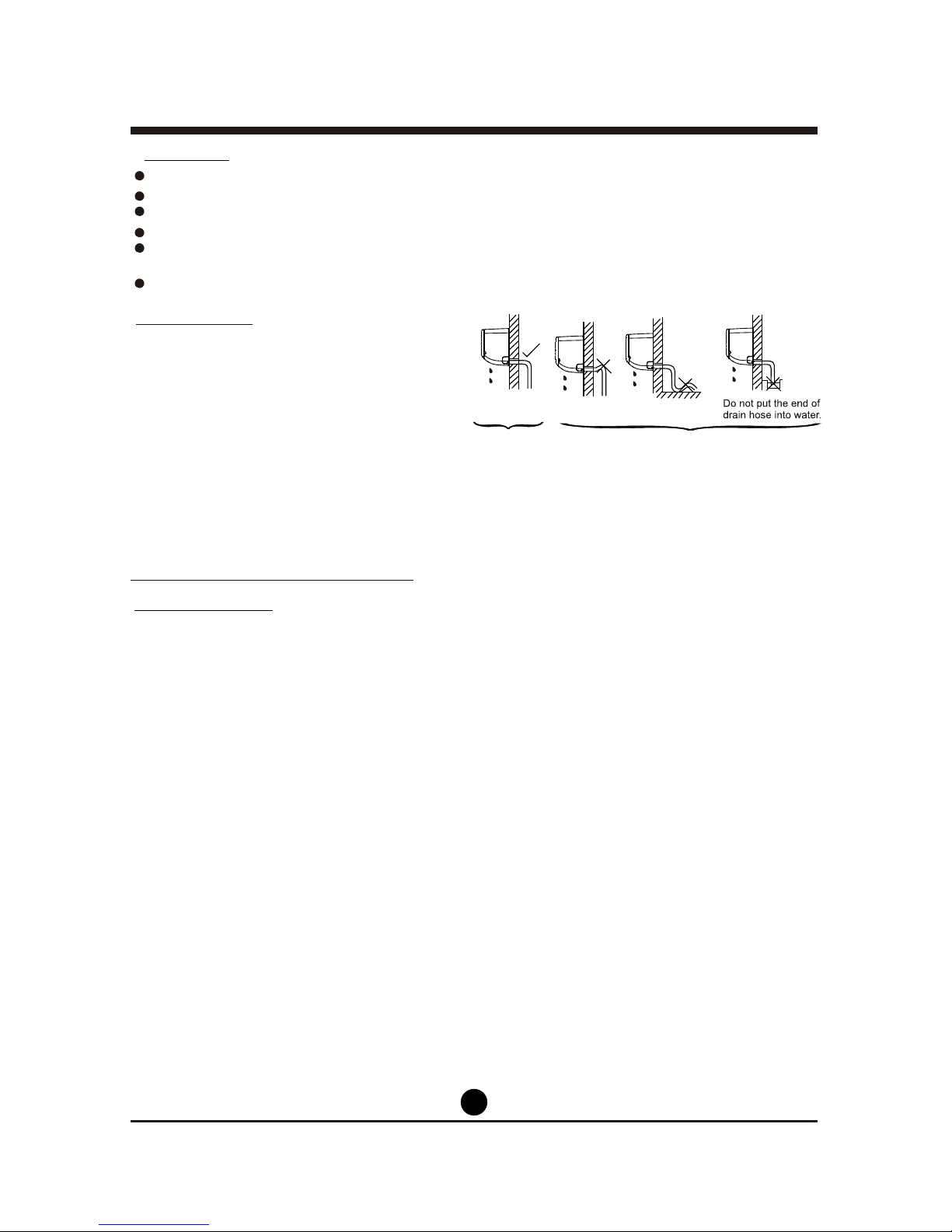

4.Drain piping
1. Connect the drain hose as described
in Fig.6. The drain hose should be
inclined downward.
2. When drain hose requires extension,
obtain an extension hose commercially
available. Be sure to thermally insulate
the indoor section of the extension
hose. Do not let the drain hose slack.
3. Remove the air filter and pour some
water into the drain pan to check
the water flows smoothly.
Right Wrong
No trap ispermitted.
Electric safety regulations for theinitial Installation
1. If there is serioussafety problem about the power supply, the technicians should refuse to
install the air conditioner andexplain to the client untilthe problem is solved.
2. Power voltage should bein the range of 90%~110%of rated voltage.
3. The surge protector and main powerswitch with a 1.5 timescapacity of Max. Current ofthe unit
should be installed in power circuit. Ensurethe air conditioner is groundedwell.
4. The appliance shall beinstalled in accordance with nationalwiring regulations. Do not operate
your air conditioner in a wet roomsuch as a bathroom orlaundry room.
5. An all-poledisconnection device which has atleast 3mm clearances in allpoles, and have a
leakage current that may exceed10mA, the residual current device(RCD)having a rated
residual operating current not exceeding30mA, and disconnection must beincorporated in the
fixed wiring in accordance withthe wiring rules.
6. For the unit adoptsauxiliary electric heater,keep at least 1 meteraway from the nearest
combustible materials.
7. According tothe attached Electrical Connection Diagram located on the panel of the indoor&
outdoor unit to connect thewire.
8. All wiringmust comply with local andnational electrical codes and beinstalled by qualified and
skilled electricians.
9. Every wire must beconnected firmly. Nowire should be allowed totouch refrigerant tubing,
the compressor, or any movingparts.
10. Loose wiring may causethe terminal to overheat orresult in unit malfunction.A fire hazard
may also exist. Therefore, be sureall wiring is tightly connected.
9. An individualbranch circuit and single receptacleused only for this airconditioner must be
available. See the following table for suggested wire sizesand fuse specifications:
Electrical work
5. Connectthe cableto theindoor unit

88
INDOOR UNIT INSTALLATION
Minimum cross-sectional areaof conductors:
Rated current
of appliance
(A)
>3 and 6
>6 and 10
>10 and 16
>16 and 25
>25 and 32
>32 and 40
Nominal cross-sectional
area
(mm2)
0.75
1
1.5
2.5
4
6
The wire size of power supply cord
and interconnected wire and the
current of the fuse or switch are
determined by the maximum current
indicated on the nameplate which
located on the side panel of the unit.
Please refer to the nameplate before
selecting the wire size, fuse or switch.
The controller of the air conditioner
designed with a fuse protection
function under abnormal conditions,
the specifications of the fuse have
printed on the circuit board, such as:
T3.15A/250VAC, T5A/250VAC, etc.
NOTE:
,
Before performing any electrical work, turn off the main power to the system.
1. The indoor power cord type is H05VV-F or H05V2V2-F, the outdoor power cord and
interconnected cord type is H07RN-F.
2. Lift the indoor unit panel up, remove the wire box cover by loosening the screw.
3. Remove the cable clamp. Match wire colours with terminal numbers on indoor and outdoor
unit s terminal blocks and firmly screw wires to the corresponding terminals.
4. Connect the end of the connection cable fully inserting into the terminal block.
5. Fasten the connection cable with a cable clamp.
NOTE: The wiring connection is differ from appliance to appliance,please referto Page 12..
NOTE:
Connect thecable tothe indoorunit
Terminal block
Wire cover
Screw
Screw
Cable clamp
Fig.7

99
Fig.8
Install the outdoor unit on a rigid base to
prevent increasing noise level and vibration.
Determine the air outlet direction where the
discharged air is not blocked.
In the case that the installation place is exposed
to strong wind such as a seaside, make sure the
fan operating properly by putting the unit lengthwise
along the wall or using a dust or shield plates.
Specially in windy area, install the unit to prevent the
admission of wind. If need suspending installation,
the installation bracket should accord with technique
requirement in the installation bracket diagram.
The installation wall should be solid brick, concrete or
the same intensity construction, or actions to reinforce,
damping supporting should be taken. The connection
between bracket and wall, bracket and the air conditioner
should be firm, stable and reliable.
Be sure there is no obstacle which block radiating air.
Fig.9
OUTDOOR UNIT INSTALLATION
Outdoor installation precaution
1. Pass the piping through the hole in the wall.
2. Hook the indoor unit onto the upper portion
of installation plate(Engage the indoor unit with
the upper edge of the installation plate). Ensure
the hooks are properly seated on the installation
plate by moving it in left and right.
3. Piping can easily be made by lifting the indoor
unit with a cushioning material between the
indoor unit and the wall. Get it out after finish
piping. When use a wall embedded pipe, the
indoor unit can be moved to the left or right for
30~50mm(model dependent), which offers
sufficient space to arrange the pipes and ensure
the indoor unit fully close to the wall after installation.
4. Press the lower left and right side of the unit
against the installation plate until hooks
engages with the their slots.
Indoor unit installation
Strong
wind
Strong
wind
Barrier
Incorrect
Wall embedded pipe
Move to leftor right
150mm
30~50mm
30~50mm
Correct
OUTDOOR UNIT INSTALLATION
O
30

1010
Refrigerant pipe connection
Oblique
90 Roughness
Burr
Main cause for refrigerant leakage is due to defect
in the flaring work. Carry out correct flaring work
using the following procedure:
A: Cut the pipes and the cable.
1. Use the piping kit accessory or pipes purchased locally.
2. Measure the distance between the indoor and the
outdoor unit.
3. Cut the pipes a little longer than the measured distance.
4. Cut the cable 1.5m longer than the pipe length.
1. Flaring work
Fig.11
Fig.12
Drain joint installation
Seal
Drain joint
Base pan hole of
outdoor unit
Seal
Drain pipe
(A)
(B)
For the drain joint with the seal(Fig.11 (A)), first
fit the seal onto the drain joint, then insert the
drain joint into the base pan hole of outdoor unit,
rotate 90 to securely assemble them. To install
drain joint as shown in Fig.11 (B), insert the drain
joint into the base pan hole of outdoor unit until it
remains fixed with a clicking sound. Connecting
the drain joint with an extension drain hose (Locally
purchased), in case of the water draining off the
outdoor unit during the heating mode.
NOTE: In cold areas, do not use a drain hose with
the outdoor unit.(otherwise, drain water may freeze)
NOTE: The drain jointis slightly different
according to thedifferent outdoor unit.
Outdoor unitdimension
mm(WxHxD)
A(mm)
458
460
B(mm)
250
276
530
590
640
290
333
405
560
549
335
325
549 276
Mountingdimensions
700x540x240
685x430x260
780x540x250
760x590x285
900x860x315
945x810x395
845x700x320
810x558x310
Anchor the outdoor unit with a bolt and nut 10 or
8 tightly and horizontally on aconcrete or rigid mount.
Settlement of outdoorunit
NOTE: The outdoor unit you purchase may be like one
of the following. Install the outdoor unit according to the
dimension as indicated in the table below:
A
W
B
D
Air inlet
Air outlet
Air inlet
OUTDOOR UNIT INSTALLATION
Fig.10
NOTE: Connective pipe lengthwill affect the
capacity and energyefficiency of theunit. The
nominal efficiency istested basing onthe pipe
length of 5meters. Consult the technicians to
purchase proper sizeconnective pipe for your
machine..

1111
Bar
Copper pipe
Clamp handle Red arrow mark
Cone
Yoke
Handle
Bar
"A"
C: Putting nut on
Remove flare nutsattached to indoor and
outdoor unit, thenput them on pipe/tube
having completed burrremoval.(not possible
to put themon after flaring work) Flare nut
Copper tube
Fig.14
Fig.15
D: Flaring work
Firmly hold copperpipe in a die in the
dimension shown inthe table below.
Caution
Align the center of the pipes.
Sufficiently tighten the flare nut with fingers,
and then tighten it with a spanner and torque
wrench as shown in Fig.16 & 17.
2. Tightening Connection
Excessive torque can break nut
depending on installation conditions.
Indoor unit tubing Flare nut Pipings
Fig.16
Outer diam.
(mm)
A(mm)
Max. Min.
6.35 1.3 0.7
9.52
1.6 1.0
12.7
1.8 1.0
12.7
16
1.8
2.2
1.0
2.0
Outer
diam. Tightening torque(N.cm) Additional tightening
torque(N.cm)
6.35
12.7
16
9.52
1500
(153kgf.cm) 1600 (163kgf.cm)
3500
(357kgf.cm)
3600
(367kgf.cm)
2500
(255kgf.cm)
2600
(265kgf.cm)
4500
(459kgf.cm)
4700
(479kgf.cm)
B: Burr removal
1. Completely removeall burrs from the cut
cross section ofpipe/tube.
2. Put theend of the copper tube/pipe ina
downward direction asyou remove burrs in
order to avoiddropping burrs into the tubing.
Pipe
Reamer
Point down
Fig.13
OUTDOOR UNIT INSTALLATION
Fig.17
E: Pipe length
Model
R410A
inverter
split air
condtioner
Max. Length
of refrigerant
pipe(m)
Max. drop
height
(m)
Capacity
(Btu/h)
25 10
30 20
50
65
25
30
<15000
>15000~<24000
>24000~<36000
>36000~<60000

1212
Air and otherforeign matter in the refrigerant circuit causes abnormal pressure rise, which
may result inequipment damage and even injury.Therefore, the indoorunit and tubing
between the indoorand outdoor unit must be leak tested and evacuatedto remove any
noncondensables and moisturefrom the system.
1.Air purging with vacuum pump
Preparation
Check that eachtube(both liquid and gas side tubes) between the indoorand outdoor units
have been properlyconnected and all wiring for the test run hasbeen completed. Remove
the service valvecaps from both the gas and the liquid sideon the outdoor unit. Note that
both the liquidand the gas side service valves on the outdoorunit are kept closed at this stage.
Pipe length andrefrigerant amount:
Air purging
Connective
pipe length
Less than 5m
More than 5m
Air purging
method
Use vacuum pump.
Use vacuum pump.
Additional amount of refrigerant to be charged
R22: (Pipe length-5)x30g/m
R410A: (Pipe length-5)x15g/m
Liquid side: 6.35
R22: (Pipe length-5)x60g/m
R410A: (Pipe length-5)x30g/m
Liquid side: 9.52
1. Remove the electrical wiring cover from the outdoor unit by loosening the screws.
2. Connect the connective cables to the terminals as identified with their respective matched
numbers on the terminal block of indoor and outdoor units.
3. Secure the cable onto the control board with the cable clamp.
4. To prevent the ingress of water, form a loop of the connective cable as illustrated in the
installation drawings of indoor and outdoor units.
5. Insulate unused cords (conductors) with PVC-tape. Process them so they do not touch any
electrical or metal parts.
Cover
Terminal block
Screw(1~2,model
dependent)
Cable clamp
OUTDOOR UNIT INSTALLATION
Connect the cable to the outdoor unit
Fig.18
Terminal block of outdoor unit
Indoor unit Indoor unit
Power
supply
Power
supply
W 1(L) 2(N) S 1 2(N) S
W 1(L) 2(N) S L N 1(L) 2(N) S L N
Outdoor unit Outdoor unit
(2) (3)
L N S L N S
(1)

1313
When relocate the unit to another place,
perform evacuation using vacuum pump.
Make sure the refrigerant added into the air
conditioner is liquid form in any case.
(Not applicable to the units adopt freon R22 )
Open the valve stem until it hits against the
stopper. Do not try to open it further.
Securely tighten the valve stem cap with a
spanner or the like.
Valve stem cap tightening torque (See
Tightening torque table in previous page ).
Outdoor
unit
Indoor
unit
Refrigerant
Flare nut
Stopper
Cap
Valve body
Packed valve
Half union
Gas side
Liquid side
AC
D
B
Valve stem
Fig.19
Fig.20

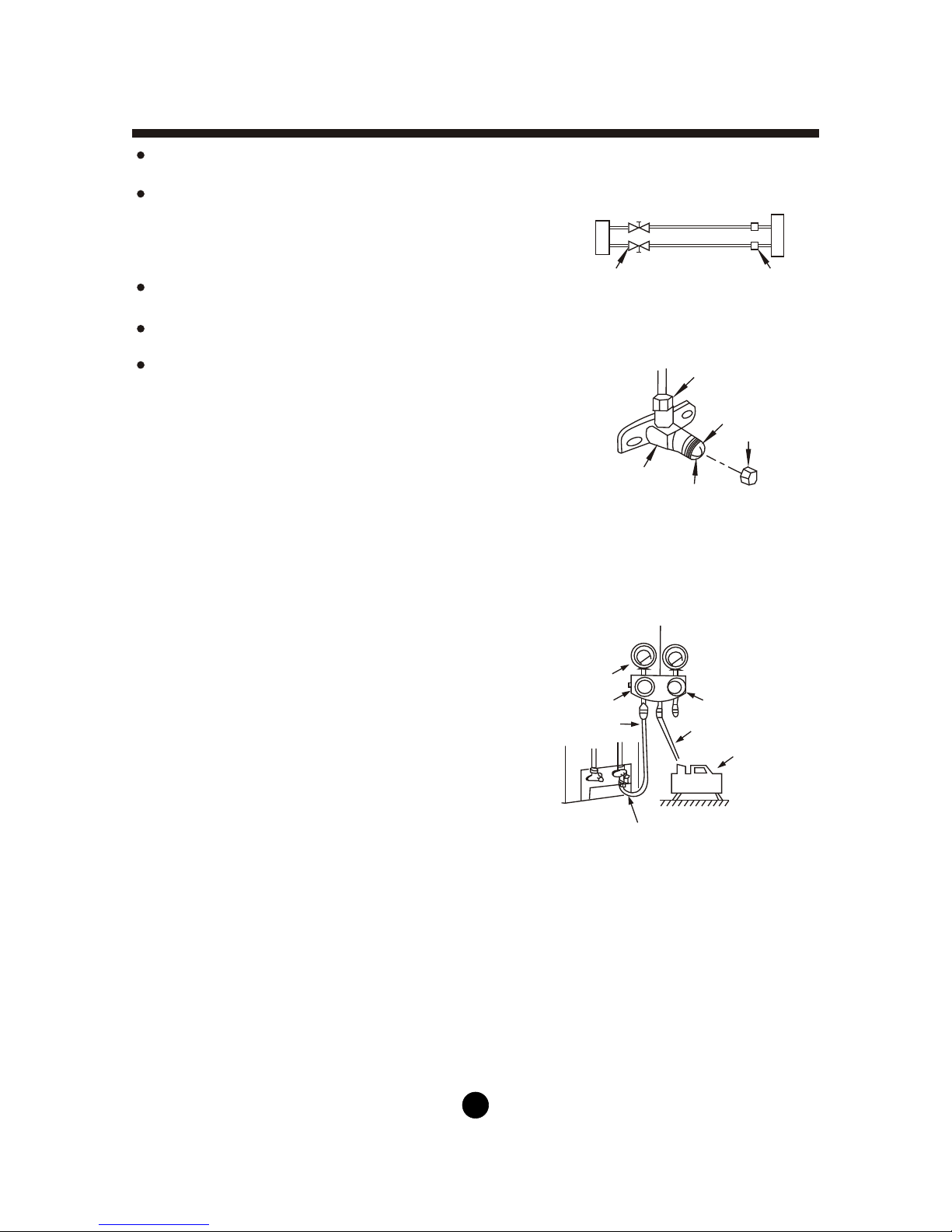

2.When Using the Vacuum Pump
(For method of using a manifold valve, refer
to its operation manual.)
1. Completely tighten the flare nuts, A, B, C, D,
connect the manifold valve charge hose to a
charge port of the low-pressure valve on the
gas pipe side.
2. Connect the charge hose connection to the
vacuum pump.
3. Fully open the handle Lo of the manifold valve.
4. Operate the vacuum pump to evacuate. After
starting evacuation, slightly loose theflare nut
of the Lo valve on the gas pipe side and
check that the air is entering(Operation noise
of the vacuum pump changes and a
compound meter indicates 0 instead of minus)
5. After the evacuation is complete, fully close
the handle Lo of the manifold valve and stop
the operation of the vacuum pump. Make
evacuation for 15 minutes or more and check
that the compound meter indicates
5
-76cmHg (-1x10 Pa).
6. Turn the stem of the packed valve B about
o
45 counterclockwise for 6~7 seconds after
the gas coming out, then tighten the flare nut
again. Make sure the pressure display in the
pressure indicator is a little higher than the
atmosphere pressure.
7. Remove the charge hose from the Low
pressure charge hose.
8. Fully open the packed valve stems B and A.
9. Securely tighten the cap of the packed valve.
Fig.21
Caution in handling the packed valve
Manifold valve
Compound meter
-76cmHg
Handle Lo Handle Hi
Charge hose
Charge hose
Vacuum pump
Pressure gauge
Low pressure valve
OUTDOOR UNIT INSTALLATION

1414
TEST RUNNING

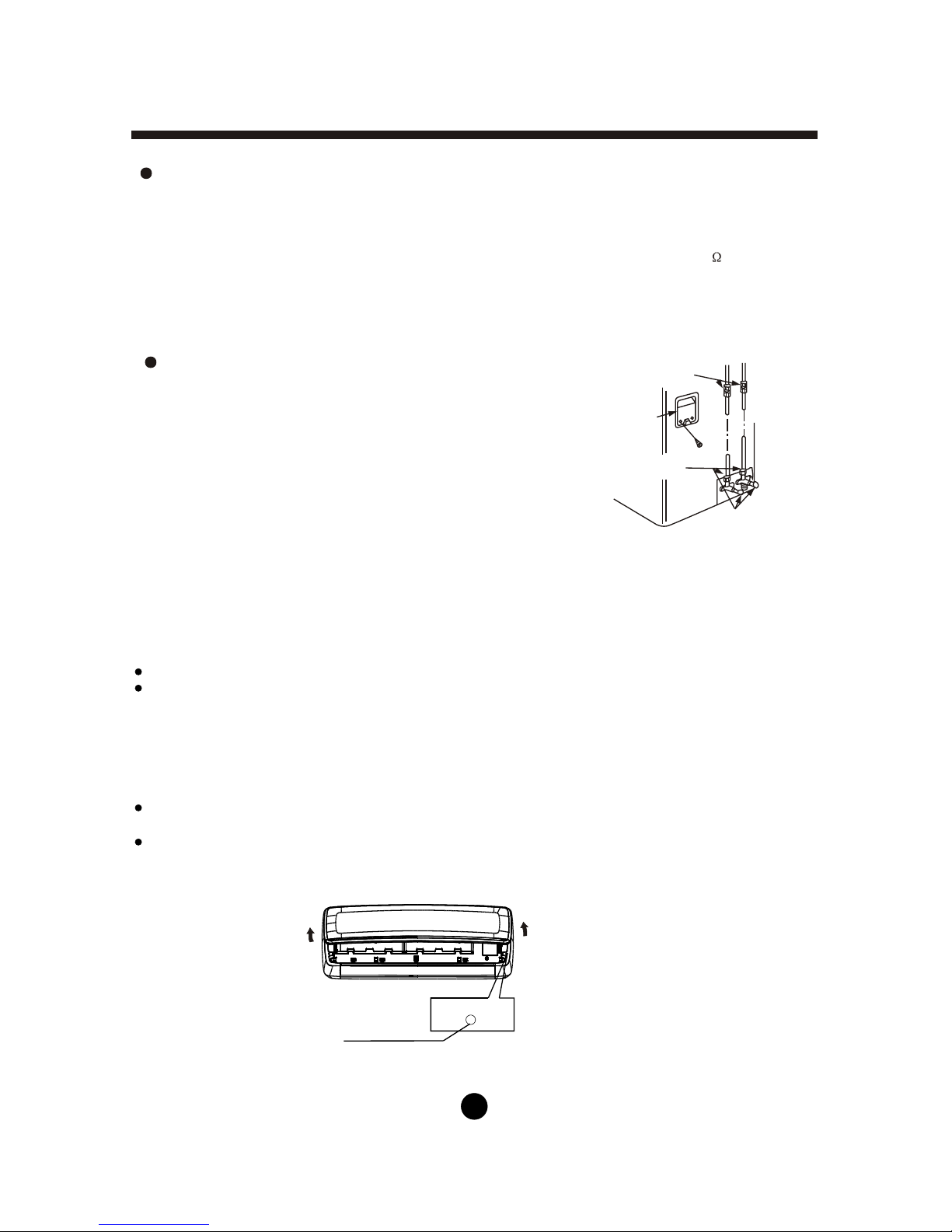

Perform the electric safe check after completing installation:
1. Grounding work
After finishing grounding work, measure the grounding resistance by visual detection and
grounding resistance tester. Make sure the grounding resistance is less than 4 .
2. Electrical leakage check (performing during test running)
During test operation after finishing installation, the serviceman can use the electroprobe
and multimeter to perform the electrical leakage check. Turn off the unit immediately if
leakage happens. Check and find out the solution ways till the unit operate properly.
A: Lo packed valve B: Hi packed valve
C and D are ends of indoor unit connection.
CAUTION
Indoor unit
check point D
B
C
A
Outdoor unit
check point
Cover
Fig.22
Electrical safety check
Gas leak check
1. Soap watermethod:
Apply a soapwater or aliquid neutral detergent
on the indoorunit connections and outdoor unit
connections by asoft brush to check for leakage
of the connectingpoints of the piping. If bubbles
come out, itindicates that the pipes have leakage.
2. Leak detector
Use the leakdetector to checkfor leakage.
TEST RUNNING
3.Safety and leakage check
Perform test operation after completing gas leak check at the flare nutconnections and
electrical safety check.
Check that alltubing and wiringhave been properly connected.
Check that thegas and liquidside service valves are fully open.
1. Connect thepower, press the ON/OFF button on the remote controller to turn the unit on.
2. Use theMODE button to select COOL, HEAT,AUTO andFAN tocheck if allthe functions
works well.
O
3. When theambient temperature is too low(lower than 17 C), the unitcannot be controlled by
the remote controllerto run atcooling mode, manualoperation can be taken. Manual
operation is usedonly when theremote controller isdisable or maintenance necessary.
Hold the panelsides and liftthe panel upto an angle until it remainsfixed with a clicking
sound.
Press the Manualcontrol button toselect theAUTO or COOL,the unit will operate under
Forced AUTOor COOL mode(see User Manual for details).
4. The testoperation should last about 30 minutes.
Manual switch
AUTO/COOL
