ElectrIQ P12C User manual

USER MANUAL
12,000 BTU PORTABLE AIR CONDITIONER
P12C
P12HPW (with Heat Pump and WIFI Smart App)
Thank you for choosing ElectriQ
Please read this user manual before using this innovative Air Conditioner and
keep it safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

Page 2of 18
CONTENTS
SAFETY INSTRUCTIONS
3
FEATURES AND PARTS LIST
4
INSTALLATION
6
OPERATION AND SETTINGS
9
CONNECTING THE AIR CONDITIONER TO WIFI (P12HPW ONLY)
12
WATER-DRAINAGE
13
MAINTENANCE
14
TROUBLESHOOTING
16
TECHNICAL DATA
17

Page 3of 18
SAFETY INSTRUCTIONS
Important!
Carefully read the instructions before operating the unit
This appliance is for indoor use only.
Rating: This unit must be only connected to a 220-240 V / 50 Hz earthed
outlet.
Installation must be in accordance with regulations of the country where the unit is used.
If you are in any doubt about the suitability of your electrical supply have it checked and, if necessary,
modified by a qualified electrician.
This air conditioner has been tested and is safe to use. However, as with any electrical appliance - use it
with care.
Disconnect the power plug from socket before dismantling, assembling or cleaning.
Avoid touching any moving parts within the appliance.
Never insert fingers, pencils or any other objects though the guard
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children
shall not play with the appliance. Cleaning and user maintenance shall not be made by children without
supervision.
Do not leave children unsupervised with this appliance.
Do not clean the unit by spraying it or immersing it in water.
Never connect the unit to an electrical outlet using an extension cord. If an outlet is not available, one
should be installed by a qualified electrician.
Never operate this appliance if the cord or plug is damaged. Ensure the power cord is not stretched or
exposed to sharp objects/edges.
The power cord must not be immersed in water, as this could result in electric shock.
A damaged supply cord should be replaced by the manufacturer or a qualified electrician in order to avoid
a hazard.
Any service other than regular cleaning or filter replacement should be performed by an authorized
service representative. Failure to comply could result in a voided warranty.
When defrosting and cleaning the appliance, only use tools recommended by the manufacturer.
Do not use the appliance for any other purpose than its intended use.
The air conditioner unit must always be stored and transported upright, otherwise irreparable damage
may be caused to the compressor; if in doubt we suggest waiting at least 24 hours before starting the
unit.
Avoid restarting the air conditioning unit unless 3 minutes have passed since being turned off. This
prevents damage to the compressor.

Page 4of 18
Never use the mains plug or an external timer as a switch to start and stop the air conditioning unit. Use
the provided ON/OFF button located on the control panel.
Always place the unit on a dry and stable surface.
The appliance should not be installed in laundry or wet rooms
The appliance must be placed in a room without sources of ignition (for example: open flames, an
operating gas appliance or an operating electric heater).
R290 refrigerant gas complies with European environmental directives. R290 has a low GWP (Global
Warming Potential) of 3.
This appliance contains about 210 g of R290 refrigerant gas.
Do not use or store in unventilated spaces with an area smaller than 10.1 m2per unit. The room must be
such as to prevent stagnation of possible leaks of refrigerant gas as there could be a danger of fire or
explosion hazard should the refrigerant come into contact with electric heaters, stoves or other sources
of ignition.
Do not use the product and contact the retailer for advice, if damage has occurred to the unit which may
have compromised the refrigerant system.
Refrigerant gas may be odourless.
Do not open the air conditioner, to attempt service or repair the unit. Any internal servicing of the unit
must be carried out only by the manufacturer or its authorized technicians.
Any repairs or maintenance must only be carried out on the unit by a suitably qualified engineer. Before
opening and servicing the unit the authorized engineer must be in possession of a copy of the
manufacturer’s service manual and must follow the safety information contained within it to ensure all
hazards are minimized.
The refrigerant system should not be perforated or punctured.
Energy Saving and Unit Safety Protection Tips
Do not cover or restrict the airflow from the outlet or inlet grills.
For maximum performance the air conditioner should be situated at least 50cm from the walls or other
objects.
Keep the filters clean. Under normal conditions, filters should only need cleaning once every three weeks
(approximately). Since the filters remove airborne particles, more frequent cleaning maybe necessary,
depending on the air quality.
For the initial start-up set the fan speed to maximum and the thermostat to 4-5 degrees lower than the
current temperature. After, set the fan switch to low and set the thermostat to your desired setting.
To protect the unit we recommend the unit should only be used when the room temperature is between
7°C and 35°C. If the temperature is below this use electrical heating to raise the temperature above 10⁰C
before starting the unit.
FEATURES AND PARTS LIST

Page 5of 18
FEATURES
Self-evaporative system - no external water tank needed
Powerful but compact
LED screen, indicates temperature and operation mode
Enhanced design with hot air outlet positioned higher –this allows for improved performance
with the use of a short hose
24 hour programmable timer function –allows you to choose when the unit operates.
3 speed fan Low, Medium and High for best balance between quiet operation and maximum
airflow
Compressor protection technology
Take control of your air conditioner from anywhere, at any time, using your
smartphone. Simply connect the dehumidifier to your WIFI network and download the
app onto your android or ios smartphone (P12HPW Only)

Page 6of 18

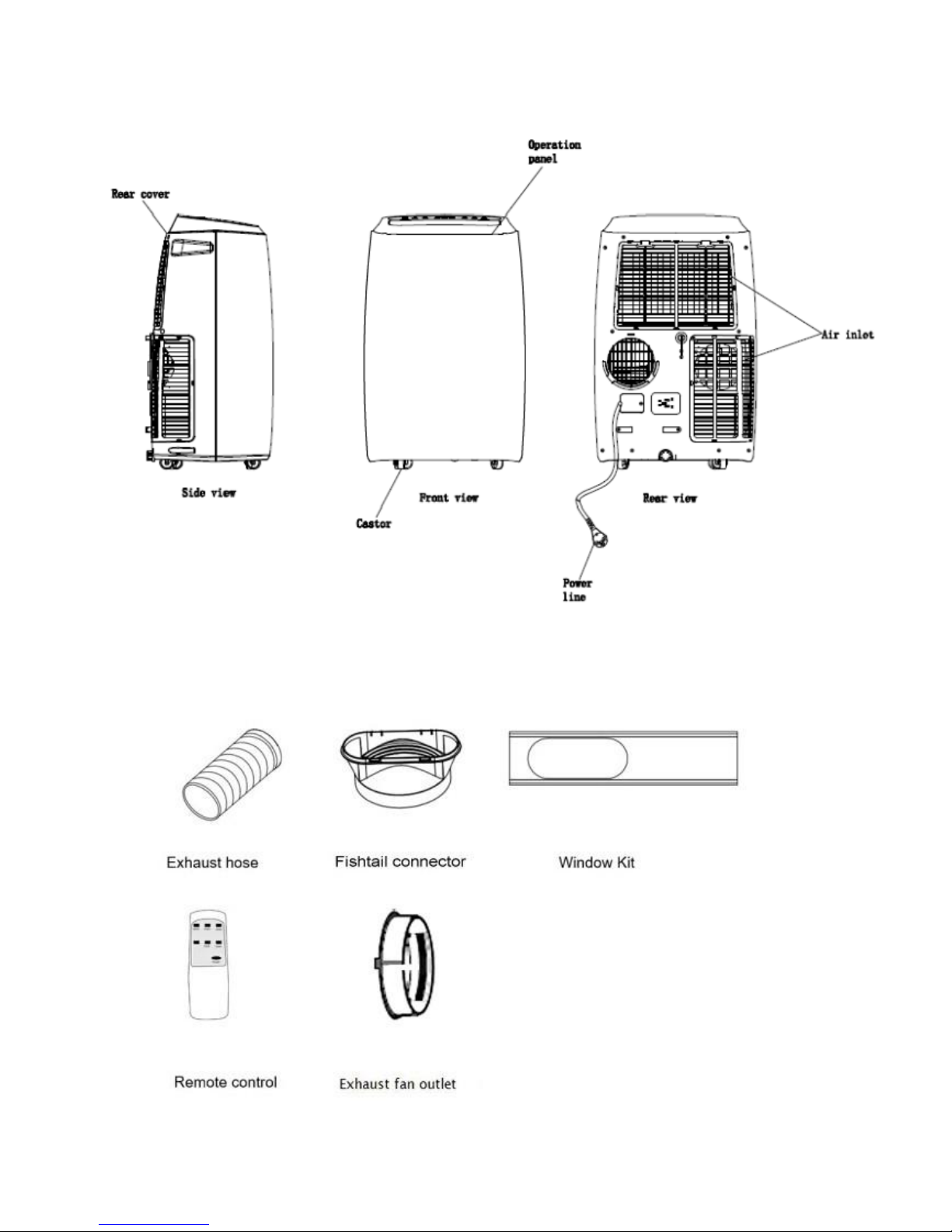

PARTS LIST
ACCESSORIES

Page 7of 18
INSTALLATION
Warning：Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit please note that it must always be kept upright and then placed on an
even surface.
1. Assemble the fishtail connector on to the hose
2. Assemble the exhaust hose
3. Extend one head of the hose and screw it into the assembled adaptor at the back of the unit
anti-clockwise.
Note: to screw it into place should take no less than three rotations.

Page 8of 18
INSTALLATION OF WINDOW KIT
4. Partially open the window and then fix the window kit to the window
5. Make sure the unit is upright and there are no obstructions to the air
inlets and outlet grill. The unit should be positioned at least 50cm
away from walls or other objects within the room.
6. Fix the other end of the hose to the air-outlet window kit
Note: The window kit is only designed to be installed with sliding or sash windows or doors. The window kit is
not designed or to be used with any other style of windows. However the fish tail adaptor can be used with most
windows / doors. When using the cooling mode ensure that the opening left is as small as possible.
The best form of installation is through a wall duct.
Please note that the unit will need to be vented out in heating mode, ideally through the wall. By properly
venting you expel cold air from your room while efficiently heating it.

Page 9of 18
Important safeguards
The length of the soft hose extends from 28 cm to 150 cm. If hose is extended
above this length the unit may malfunction and this can invalidate the warranty.
The outlet vent must be well ventilated and not obstructed as this will cause the
unit to overheat.
Avoid bending the air hose more than 30 degrees.
OPERATION AND SETTINGS
CONTROL PANEL & FUNCTION
P12C:
P12HPW:

Page 10 of 18
POWER BUTTON
Press to turn unit “ON” or “OFF”
TEMPERATURE UP & DOWN
During cooling/heating function –These buttons raise or lower the temperature by 1oC for each
press. The minimum temperature is 16oC and max. 31oC.
FAN SPEED
Press to select either LOW, MEDIUM or HIGH fan speed.
NOTE: In dehumidifying function, this button is invalid as the unit is designed to run at low speed in
dehumidifying mode.
SLEEP MODE
Press the Sleep mode button until the unit enters sleep mode, the default fan speed is low and the
Sleep mode indicator led will illuminate. When the sleep mode is turned on:
Under cooling mode: After one hour the set temperature will increase by 1 degree Celsius, after
another hour the set temperature will increase by another degree, and will then remain set at that
temperature.
Under Heating Mode (P12HPW Only): After one hour the set temperature will decrease by 1
degree Celsius, after another hour the set temperature will decrease by another degree, and will
then remain set at that temperature.
Please note:
Sleep mode cannot be used in dehumidifying and fan mode.
If internal tank becomes full, the machine will enter standby and sleep mode will be
cancelled.
SWING BUTTON
After machine is on and mode selected, press this button and the louver will swing continuously up
and down; by pressing this button again the movement will stop and the louver remain fixed in
position.

Page 11 of 18
PROGRAMMABLE TIMER
The in-built timer will allow you to set the unit to turn on or turn off after a set period of time,
Please note only one timer can be used at any time.
ON TIMER –The timer will turn on the unit automatically after the time set has elapsed.
1. When on standby, press the TIMER button, then set the number of hours time you desire
the unit to start by pressing the TEMP+ or TEMP- button.
2. Once the set time has elapsed, the unit will turn on automatically.
3. Press the POWER button before the time has elapsed and the unit will turn on as normal
and the timer will be cancelled
4. The function and fan speed can be set whilst setting the timer.
OFF TIMER –The timer will turn off the unit automatically after the time set has elapsed.
1. While the unit is operating, press the TIMER button then set the number of hours time you
desire the unit to stop by pressing TEMP+ or TEMP- button.
2. Once the set time has elapsed, the unit will turn off automatically.
3. Press the POWER button before the time has elapsed, the setting time will be cancelled and
the unit will turn off.
MODE
Pressing this button will select between the Cooling / Heating (P12HPW ONLY) / Fan /
AUTO or Dehumidify
LED DISPLAY
The display indicates the current target temperature or the remaining timer settings. When the set
temperature or the timer is adjusted, the new setting is shown.
The display is also used to show error codes. Should a fault occur, see ERROR CODES.
WF INDICATOR
When illuminated this indicates that the internal water tank is full and requires emptying,
following the information provided in the water drainage section.
WIFI INDICATOR (P12HPW ONLY)

Page 12 of 18
Illuminated to indicate the unit is connected to wifi. When flashing indicates the unit is ready to
connect to WIFI. Flashing twice per second unit in normal connection mode, and flashing once
every two seconds indicates the unit is in AP connection mode. To turn the WIFI function on, or
change between the modes hold the fan speed button for 5 seconds. Further details on the WIFI
feature can be found in the separate WIFI guide.
REMOTE CONTROL FUNCTION
The functions on the remote are the same as those on the main control panel
CONNECTING THE AIR CONDITIONER TO WIFI (P12HPW ONLY)
Ensure whilst setting up the WIFI on your air conditioner, that it is close to your router, as the unit
requires a good signal during the setup process. Your air conditioner is designed to be connected to a
2.4ghz network, and the connection is set up using the “”TUYA SMART” app, which can be downloaded
from your chosen app store
Android IOS
Further details on how to connect the device can be found in the separate WIFI Guide.
1. POWER –ON/OFF Switch
2. MODE –Operation Mode
3. TIMER –Timer Mode
4. SPEED –Fan Speed Selector
5. TEMP+ - Temperature Up
6. TEMP- –Temperature Down
7. SLEEP
8. SWING

Page 13 of 18
WATER-DRAINAGE
MANUAL DRAINAGE:
1. When the internal water tank is full the unit will stop working and display the message “E2” on
the display.
2. Shut off the unit and unplug. Try not to move the model abruptly as this may cause water to spill
out from internal water tank.
3. Place a tray under the water plug.
4. Screw off the water plug and unplug the water blocker - water will drain from the container.
5. Put the water blocker back and screw the water plug back into place
CONTINUOUS DRAINAGE:
1. Screw off the water plug and unplug the water blocker.
2. Use a water pipe to connect to the water outlet.
3. You can plumb this pipe into your current plumbing system,
lead it outside or use a water pump.
Note: This model has a self-evaporative function, which reduces the need to empty the water tank. If
the unit is vented correctly most of the water is reused to cool the condenser coils and any excess is
evaporated. Please do not use continuous drainage if you intend to use the self-evaporating facility.
In heating or dehumidifier mode you may need to use the permanent drainage.

Page 14 of 18
MAINTENANCE
CLEANING
Please shut off the unit and unplug from the mains before cleaning or performing any
maintenance
CLEAN THE SURFACE
Clean the plastic housing with a duster or a soft wet cloth.
Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible
damage.
AIR FILTER CLEANING
a) Clean the air filters every 2 weeks. If the air filter is blocked with
dust, the unit’s performance will be significantly affected.
b) Disconnect the power plug from the socket before dismantling,
assembling or cleaning
c) Open the air filter covers and remove the carbon (if installed) and
washable mesh filter
d) Hoover gently the carbon filter and do not wash
e) Wash the mesh air filters by immersing them
in warm (about 40℃) water with a neutral
detergent.
f) Rinse it and then dry it thoroughly.
g) Carefully re-install air filters back into their cover
Please note: If in use, the optional active carbon filter (cloth) should be replaced every 3-6 months
based on the environment.
END OF SEASON MAINTENANCE：
1. Pull out the plug from the drainage hole and empty the internal tank. You can also drain the water
by leaning the unit.
2. Then switch the unit to low fan mode.
3. Keep the unit in this mode for half day - until the conduit is dried. Doing this helps to keep the inside
of the unit dry and prevents mold developing
4. Turn off the unit and pull out the plug.

Page 15 of 18
5. Coil the wire and bind it together, then put it into the accessories space.
6. Separate the air-exhausted pipe and store it safely.
7. Cover the unit and keep it in a dry place.
8. Take the batteries out of remote control and store, or dispose, them safely
Keep all accessories with the unit ready for next season.

Page 16 of 18
TROUBLESHOOTING
Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate
the warranty and may cause bodily harm.
Trouble
Reason
Solution
The unit does
not work
No power supply
Power-on and turn on the unit.
Water-full indicator illuminated
Drain the internal water tank
Timer function is active
Cancel Timer function
Room temperature too low or too high
Use only in ambient temperatures between 7-
35℃
The unit does
not seem to
perform
In direct sunlight
Draw the curtains, UV affects RC
Windows or doors open.
Large amount of people or a heat source in
the room.
Close windows and turn on another air
conditioner
Filter is very dirty
Clean or change the air filter
Air inlet or air outlet is blocked
Clear out debris
Room temperature is lower than setting
temperature
Change the setting temperature
The unit loud
The unit is not put on flat surface
Put the unit on flat and hard surface
Compressor
does not
work
Overheating protection is active
Check venting.
Restart the unit after 5 minutes when
compressor has cooled
Remote control
doesn’t
work
Operating distance is too far.
Move remote control closer to the unit and make
sure it aims at the air-outlet grille
Control panel has not received the signal
from remote control.
The batteries are flat
Replace the batteries
E0
Room temperature abnormal or there is
electrical short on temperature sensor
Temperature not within 7-35 C operating range.
If temperature within operating range refer
to Service Centre (check room temperature
sensor or relevant circuit)
E3
Pipe temperature sensor failure
Switch off the unit, let it rest for min 30 minutes
and restart. If still error please contact the service
centre.
E2/E4
Water tank is full inside the machine
Drain out water from drain port at bottom rear of
the unit.
If the above solutions do not resolve the problem please contact the service centre.
Disposal: Do not dispose this product as unsorted municipal waste. Collection of such waste must be handled
separately as special treatment is necessary.
Recycling facilities are now available for all customers at which you can deposit your old electrical products. Customers
will be able to take any old electrical equipment to participating civic amenity sites run by their local councils. Please
remember that this equipment will be further handled during the recycling process, so please be considerate when
depositing your equipment. Please contact the local council for details of your local household waste recycling centres.

Page 17 of 18
TECHNICAL DATA
P12C
P12HPW
Capacity
Cooling: 12,000 BTU
Cooling: 12,000 BTU
Heating:11,000 BTU
Rated Input
Cooling: 1345W
Cooling: 1345W
Heating: 1391W
Running Current
Cooling: 6.0A
Cooling: 6.0A
Heating:6.3A
Noise (sound power)
≤65dB(A)
≤65dB(A)
Permitted Excessive
Operating
Pressure
1.0/2.6 MPa
1.0/2.6 MPa
Maximum Allowable
Pressure
1.2/3.2 MPa
1.2/3.2 MPa
Power Supply
220-240V/50Hz
220-240V/50Hz
Net Weight
26Kg
26Kg
Refrigerant Quantity
210g
210g
Dimension(L*D*H)
440x335x715 mm
440x335x715 mm
Unit must be vented outside when in Air Cooling and Heating mode.
For the purposes of EU regulation EN12102 this is a local air
conditioner and produces less than 65dB(A) sound energy.

Page 18 of 18
ElectriQ UK SUPPORT
www.ElectriQ.co.uk/support
Please, for your own convenience, make these simple checks
before calling the service line.
If the unit still fails to operate call: 0871 620 1057 or complete
the online form
1. Has the unit been standing upright for at least 2 hours?
2. Is the unit plugged into the mains?
3. Is the fuse OK?
4. Switch the unit off and wait three minutes to see if the issue
is resolved. Restart the unit.
5. Check if the water tank is full.
Office hours: 9AM - 5PM Monday to Friday
www.ElectriQ.co.uk
Unit 2, The Nursery
Berristow Lane
South Normanton
Derbyshire, DE55 2FX
