ElectrIQ SILENT10 User manual

USER MANUAL
SILENT10
PORTABLE AIR CONDITIONER
Thank you for choosing electriQ
Please read this user manual before using this innovative Air Conditioner and keep it
safe for future reference.
Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

Page 2 of 14
CONTENTS
SAFETY INSTRUCTIONS......................................................... 3
FEATURES ............................................................................... 5
PARTS LIST.............................................................................. 5
INSTALLATION ........................................................................ 6
OPERATION ............................................................................. 8
REMOTE CONTROL................................................................. 9
EMPTYING THE INTERNAL WATER TANK.......................... 10
MANUAL DRAINAGE:............................................................ 10
MAINTENANCE...................................................................... 11
CLEANING.............................................................................. 11
END OF SEASON MAINTENANCE........................................ 11
TROUBLESHOOTING............................................................ 12
APPENDIX .............................................................................. 13
TECHNICAL DATA................................................................. 13

Page 3 of 14
SAFETY INSTRUCTIONS
Important!
•Carefully read the instructions before operating the unit
•This appliance is for indoor use only.
•Rating: This unit must be only connected to a 220-240 V /
50 Hz earthed outlet.
•Installation must be in accordance with regulations of the country where the
unit is used.
•If you are in any doubt about the suitability of your electrical supply have it
checked and, if necessary, modified by a qualified electrician.
•This air conditioner has been tested and is safe to use. However, as with any
electrical appliance - use it with care.
•Disconnect the power from the appliance before dismantling, assembling or
cleaning.
•Avoid touching any moving parts of the appliance.
•Never insert fingers, pencils or any other objects though the guard
•This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities. It is also not intended for
use by those with a lack of experience and knowledge, unless they have
been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety.
•Do not leave children unsupervised with this appliance.
•Do not clean the unit by spraying it or immersing it in water.
•Never connect the unit to an electrical outlet using an extension cord. If an
outlet is not available, one should be installed by a qualified electrician.
•Never operate this appliance if the cord or plug is damaged. Ensure the
power cord is not stretched or exposed to sharp objects/edges.
•A damaged supply cord should be replaced by the manufacturer or a
qualified electrician in order to avoid a hazard.
•Any service other than regular cleaning or filter replacement should be
performed by an authorised service representative. Failure to comply could
result in a voided warranty.
•Do not use the appliance for any purpose other than its intended use.
•The air conditioner unit must always be stored and transported upright,
otherwise irreparable damage may be caused to the compressor; if in
doubt we suggest waiting at least 24 hours before starting the unit.
•Avoid restarting the air conditioning unit unless 3 minutes have passed since
being turned off. This prevents damage to the compressor.
•Never use the mains plug as a switch to start and turn off the air conditioning
unit. Use the provided ON/OFF button located on the control panel.
•Always place the unit on a dry and stable surface.
•The appliance should not be installed in laundry or wet rooms.

Page 4 of 14
•The appliance must be placed in a room without sources of ignition (for
example:open flames, an operating gas appliance or an operating electric
heater).
•R290 refrigerant gas complies with European
environmental directives.
•R290 has a low GWP (Global Warming
Potential) of 3.
•The air conditioner contains about 210 g of
R290 refrigerant gas.
•Do not use or store in an unventilated space
with an area smaller than 11m2per unit.
•The room must be such as to prevent
stagnation of possible leaks of refrigerant gas
as there could be a danger of fire or explosion
hazard should the refrigerant come into contact
with electric heaters, stoves or other sources of
ignition.
•Refrigerant gas may be odourless.
•Do not use the product and contact the retailer for advice, if damage has
occurred to the unit which may have compromised the refrigerant system.
•Any repairs or maintenance must only be carried out on the unit by a suitably
qualified engineer. Before opening and servicing the unit the authorized
engineer must be in possession of a copy of the manufacturer’s service
manual and must follow the safety information contained within it to ensure
all hazards are minimized.
•The refrigerant system should not be perforated or punctured.
Energy Saving and Unit Safety Protection Tips
•Do not cover or restrict the airflow from the outlet or inlet grills.
•For maximum performance the minimum distance from a wall or objects
should be 50cm.

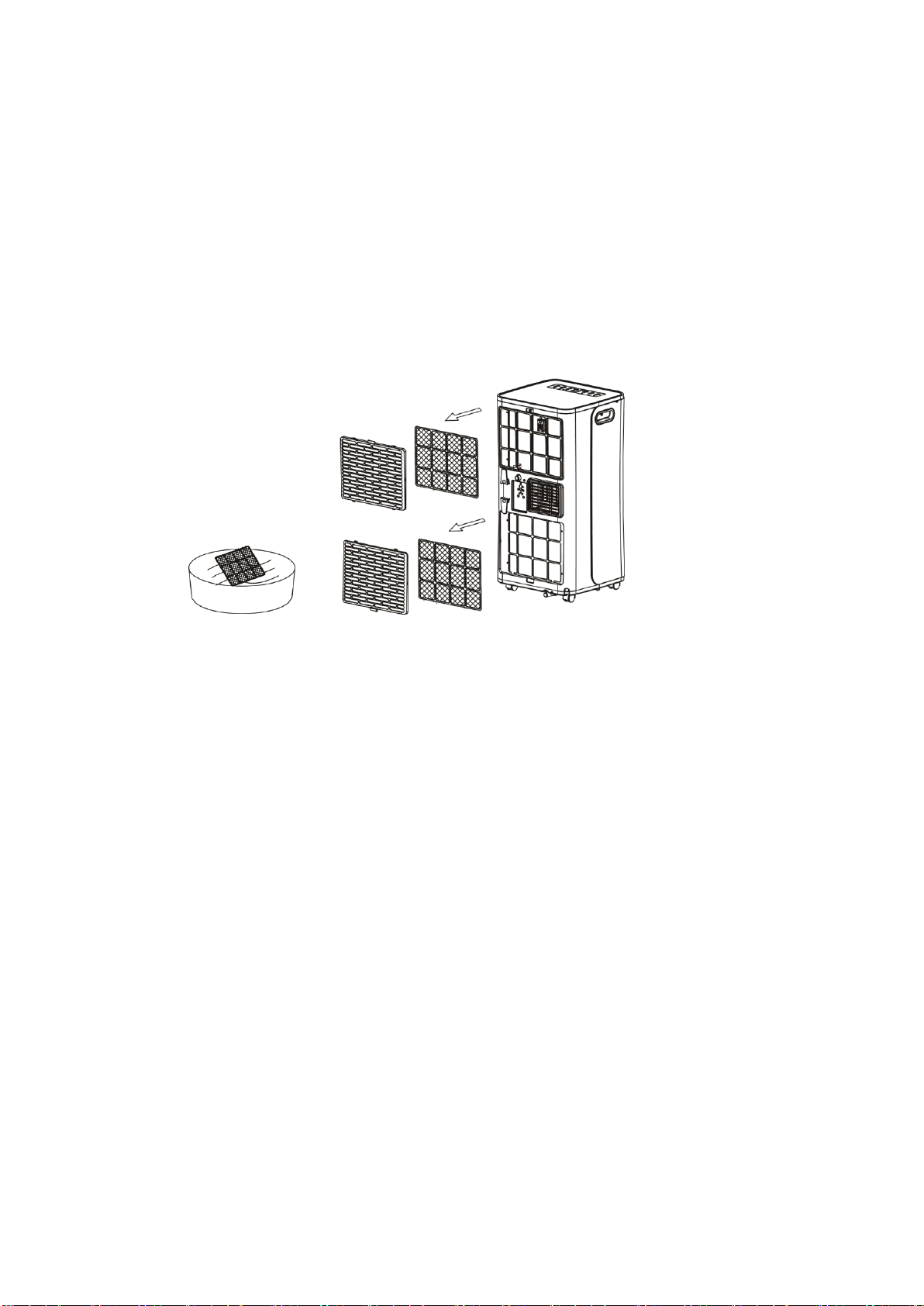

•Keep the filters clean. Under normal conditions, filters should only need
cleaning once every three weeks (approximately). Since the filters remove
airborne particles, more frequent cleaning maybe necessary, depending on
the air quality.
•For the initial start up set the fan speed to maximum and the thermostat to 5
degrees lower than the current temperature. After, set the fan switch to low
and set the thermostat to your desired setting.
•To protect the unit we recommend not using the cooling function when the
ambient temperature is higher than 35oC.

Page 5 of 14
FEATURES
⚫Self-evaporative system - no external water tank needed
⚫Designer inspired luxury model
⚫Bright LED screen, indicates temperature and operation mode
⚫On/Off timer function –allows you to choose when the unit operates
⚫Compressor protection technology
PARTS LIST
ACCESSORIES:
1：Extendable Slide Bar 2: Fishtail Adaptor 3: Extendable Exhaust Hose
4: Exhaust Connector 5: Remote Control

Page 6 of 14
INSTALLATION
Warning: Before using this unit, please keep it upright for at least 3-4 hours.
This unit can easily be moved from one room to another.
While moving the unit please note that it must always be kept upright and then placed on an
even surface.
1. Attach the fishtail connector to the end of the hose, by
extending the end of the hose and twisting the fishtail
adaptor until it is firmly attached (At least 3 full rotations)
2. Extend the opposite end of the hose and screw into the
exhaust connector (At least 3 full turns)
3. Push the Exhaust Connector onto the Exhaust outlet on the
rear of the unit
4. Make sure the unit is upright and there are no obstructions to the
air inlets and outlet grills.
INSTALLATION OF WINDOW KIT.
The window kit (slide bar and fishtail) can be used with sliding windows and doors. For other types of
window, the fishtail should be used on its own.
1. Partially open the window and then fix the
window kit to the window.
2. Fix the fishtail adaptor into the
opening on the slide bar
3. Fix the exhaust connector on the
opposite end of the exhaust hose to
the exhaust outlet on the rear of the
air conditioner.

Page 7 of 14
NOTES:
•The window kit is only designed to be installed with sliding or sash windows or doors. The window
kit is not designed or to be used with any other style of windows.
•The fish tail adaptor can be used without the slide bar with most windows / doors.
•When using the air conditioner ensure that the opening left around the fishtail is as small as
possible as the cooling will be less efficient.
•The best form of installation is through a wall duct. By properly venting you expel hot air from your
room while efficiently cooling it.
•Your air conditioner should be used without the vent pipe in dry mode. When using dry mode
ensure that an external water tank is used, monitored and regularly emptied before overflowing.
Permanent plumbing can be also installed for dry mode or an external uplift water pump can be set
up for unattended use.
IMPORTANT SAFEGUARDS
The length of the soft hose extends from approximately 28 cm to
150 cm. If hose is extended above this length, the unit may
malfunction and this can invalidate the warranty. The outlet vent
must be well ventilated and not obstructed as this will cause the unit
to overheat. Avoid bending the air hose more than 30 degrees.

Page 8 of 14
OPERATION
When first plugged in the unit will automatically enter standby mode.
ON/OFF button: Press to turn the unit on and enter cooling mode. The unit will default to cooling mode
with a desired temperature of 22⁰C. Press again and the unit will switch off.
MODE BUTTON : Press this button to change between Cooling, Fan and Dry Modes.
FAN BUTTON
FAN AND COOL MODE: Press to change between the available fan speeds.
DRY MODE: The fan is set to low speed and cannot be changed
TIMER : The timer functions cannot be combined or repeated.
POWER ON TIMER
With the appliance in standby, press the “TIMER” button to setup the power-on time.
Press the UP and DOWN buttons to adjust the duration of the timer (from 1 to 24 hours). Timer
indicator turns on. The unit will start after selected number of hours.
POWER OFF TIMER
With the appliance running with the desired settings, press the “TIMER” button to setup the
power-off timer. Press the UP and DOWN buttons to adjust the duration of the timer (from 1 to 24
hours). The timer indicator will illuminate. The unit will stop after selected number of hours.
UP AND DOWN BUTTONS: Press to adjust the desired temperature and timer. In cooling mode,
the temperature can range from 16 - 31⁰C.
Press the UP and DOWN buttons together to change between ⁰C and ℉.
SLEEP MODE BUTTON :
While in cool mode press the “SLEEP” button to put the unit in sleep mode. The fan speed will change to
low. It will automatically increase the desired room temperature by 1℃after an hour and by a further 1℃
after a further hour. This means the unit will spend less time with the compressor running, and so run
quieter.
The sleep function cannot be used in dry and fan modes.
If the water tank is filled, the unit is put into standby or the mode is changed, sleep mode will be
cancelled.

Page 9 of 14
REMOTE CONTROL
The air conditioner can be controlled with the remote control. Two AAA-batteries are required to use the
remote control.
1. POWER : Press the POWER button to turn the machine on or off.
2. TIMER : Press the TIMER button to set the timer.
3. DOWN : Press the DOWN button to decrease the desired temperature or
timer
4. MODE : Press the MODE button to switch between cooling, fan and dry
modes.
5. UP :Press the UP button to increase the desired temperature or timer
6. FAN : Press the FAN button to change between high and low fan speeds.
7. SLEEP MODE : Press the SLEEP button to turn on the sleep mode
MULTI PROTECTIVE FUNCTIONS
ANTI-FREEZING PROTECTING CONTROL
When the ambient temperature is low while in Cooling Mode, the compressor and water motor will stop
working. If the copper coil temperature reaches < 2⁰C for over 20 seconds. When the copper coil
temperature increases to >8⁰C, the protection will be stopped.
WATER-FULL PROTECTION:
When the water level in the internal water tank reaches the maximum level, the unit will sound an alarm
and the tank full light will illuminate. Please drain the water from the internal water tank by removing the
rubber stopper.
COMPRESSOR DELAY-PROTECTION
The compressor runs a 3 minute delay protection function.
COMPRESSOR PROTECTION
In cooling and dry modes, if the temperature difference between the coil temperature and room
temperature is less than 3⁰C, for more than 30 minutes, the machine will enter the ‘no refrigerant’
compressor protection mode. The compressor and water spring motor will stop working. The up
fan runs at low speed and the down fan stops running

Page 10 of 14
EMPTYING THE INTERNAL WATER TANK

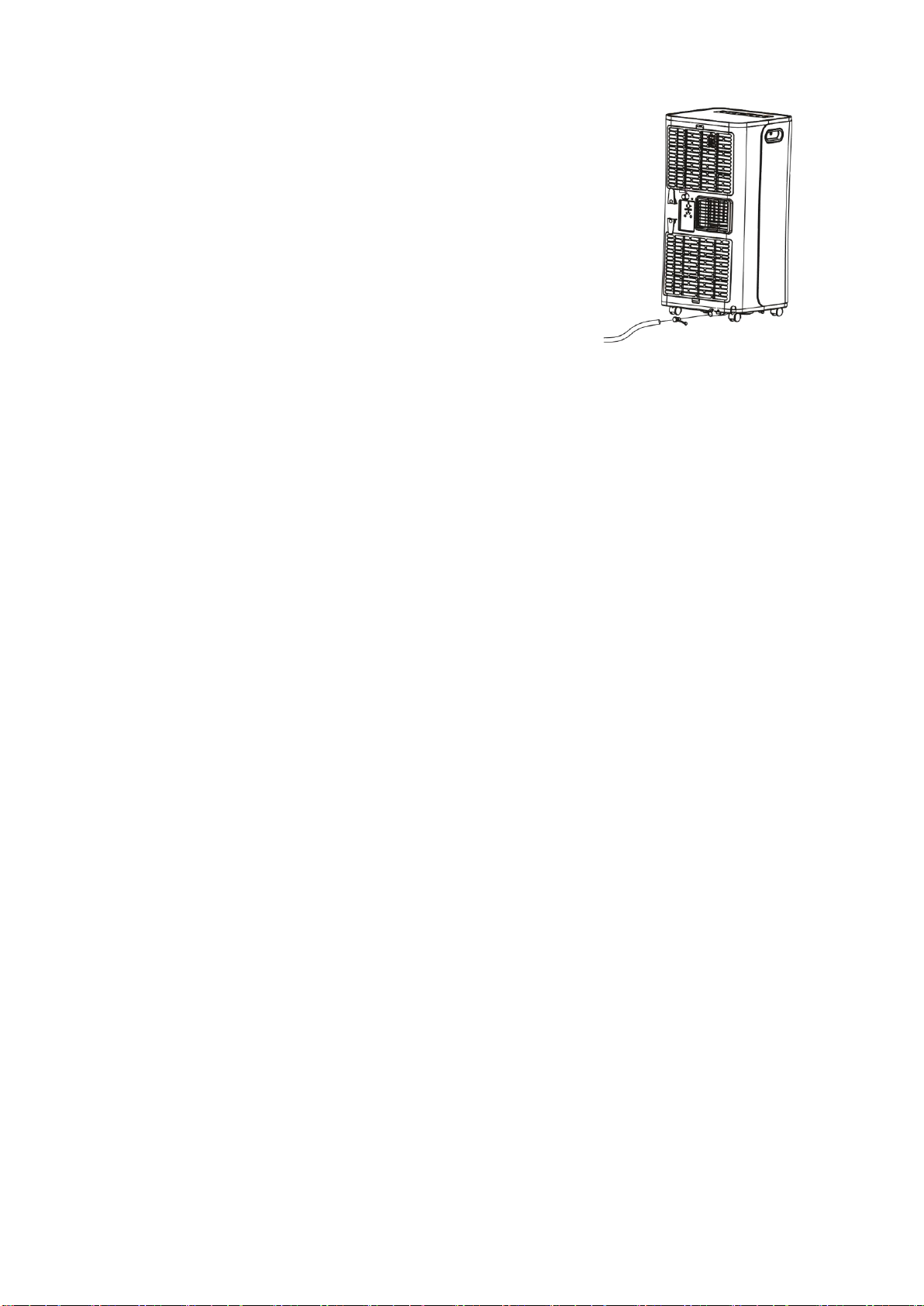

MANUAL DRAINAGE:
When the internal water tank is full the unit will stop working and the
tank full light will illuminate. Turn off the unit and unplug. Try not to
move the unit abruptly as this may cause the water in the internal tank
to spill out. Place a tray under the rubber stopper or place the unit in
a drainage area.
Remove the rubber stopper –water will drain from the internal tank.
Put the rubber stopper back into place.
CONTINUOUS DRAINAGE:
Remove the rubber stopper from the continuous drainage port
Connect a water pipe to the water outlet. You can plumb this pipe into your current plumbing
system, lead it outside and use gravity fall or use a water pump.
Note: This model has a self-evaporative function, which reduces the need to empty the water tank. If
the unit is vented correctly most of the water is reused to cool the condenser coils and any excess is
evaporated. Please do not use continuous drainage if you intend to use the self-evaporating facility.
